Types Of Patio Doors (Opening Styles & Materials)

Here are the types of patio doors with different door openings, materials, design styles, costs, and the most energy-efficient patio door options.
Types of patio doors collageOne of the best choices you can make when it comes to renovating or remodeling your home is to not just focus on the aesthetically pleasing changes but to choose changes that will add value to your home. Adding a patio door can do just that and more.

When choosing the best type of patio door, many decisions exist. Below we break down the differences so you can make an informed buying decision and get the right one for your needs.

Quicklist: Types of Patio Doors

  • Based on the Opening
    • Sliding Door
    • Hinged Door
    • BiFold Door
    • Accordion
    • French
    • Folding
    • Pivot
    • Garage-Style
  • Based on Design
    • French Door
    • Frameless
    • Stacking
    • Integrated Shade
    • Double Glazing
    • Pocket

What Is a Patio Door?

White door and wood table setAllowing an indoor-outdoor living experience, a patio door is a large entryway made from glass panes. This easily can impact the amount the natural light inside the home.

The indoor-outdoor living experience is a modern idea where your home feels like an open area because of the glass-paned door and the use of natural light inside. A patio door delivers an incredible combination of security (the basic function of a door) and aesthetic appeal.

A patio door can have a regular look or take up a big space like an entire wall. It can even have multiple doors, which might lessen your home security. Make sure you choose a safe middle between the door’s security function and your aesthetic freedom in making the man look even more presentable.

Besides these two factors, you must also consider the budget allotted for the patio door and your home space. It is also necessary to consider which among the different types of patio doors has the proper thermal performance and if it can help with the home’s insulation or has an opening mechanism capable of affecting the door’s energy efficiency.

Types of Door Openings

Glass door with outswing mechanismYou can choose a wide variety of options when checking the different types of doors for the patio with specific aspects that differ. One of the said aspects is the patio door openings.

Traditionally, there are only two door openings to consider, sliding and hinged. Technically though, there’s more than that. When deciding on the ideal patio door opening, consider the space you have in the patio door area. Some openings require more, which is something you may not have. Check out the following patio door openings to help you make a decision.

Sliding Doors

Sliding door, egg chair, and potted flowersConsidered the most popular patio door opening, sliding patio doors is an option that many homeowners prefer because of the following advantages it offers:

Easy-to-use opening mechanism: Kids can easily open and close this patio door.

Affordable: Different types of sliding doors for patios are on the affordable spectrum. When considering these options, you can choose between $1,000 to $3,000 plus the installation fee.

Highly customizable style: You can add a screen door for some customization, obscure your living space from the outside and provide additional protection, or have a longer sliding rail or an oversized glass panel to have something different.

Conveniently space-saving: Since you don’t need to swing a door, the sliding patio door only requires minimal space.

Energy-efficient: Sliding patio doors help you save energy because of their overlapping panels.

Along with these pros, though, are the following disadvantages:

 Sliding doors are difficult to secure. Use a bar for a better locking mechanism.

 Less durable and easily gets damaged

 Must always be maintained and well-oiled

 Offers less entry space

 Functional but less aesthetic appeal

Hinged Doors

Hinged-type door for the patio leading to a wood deckA hinged patio door is a popular option that operates by swinging in or out. This type of patio door requires enough space to function effectively. Placement of this patio door is vital since you must consider the available space around it.

“Security has been vastly improved with multi-point locking systems becoming standard on patio doors.” – Sheri Koones, House About It Dream, Design, Dwell

Also known as a French door, a hinged patio door is famous for its security function and sturdiness. It usually comes in 2 or 3 panels, where either 1 or 2 can be opened, and the remaining panel acts as a door-length window.

With the same size as the sliding door, it measures around 30 to 72 inches and can be customized, but it may set you back around $10,000 for it. This type of patio can also be made from aluminum, vinyl, or wood.

Here are some advantages of hinged patio doors that are worth noting:

Highly durable: It does not have moving parts that make it vulnerable.

Offers excellent security: Comes with a knob lock and deadbolt for security.

Versatile design: With an option to decorate the door however you want to by its molding, the grills on the windows, and even the handles.

Low maintenance: You don’t need to keep it well-oiled since it doesn’t have rail tracks that can get stuck.

Easy to use: You can easily and quickly open and close the door.

Partnered with these advantages are the following drawbacks you have to face:

Limited view: Hinged doors have large frames that may limit your view of the outdoors.

Limited entry space: Can have congestion when you have guests at home since it offers a smaller clear opening for entry space with the frames and the swinging panel.

French Doors

French doors opening to brick patioFrench patio doors are a classic choice with decorative glass panes and elegant frames. Several styles are available, including inswing, outswing, and center-hinged models.

For the patio, these doors typically have two hinged doors that swing outwards, allowing for a wide opening when fully open. For the interior, French doors will generally swing inwards.

Inswing doors open into the house while outswing doors open towards the outside. Center-hinged French patio doors are often used as entryways, with one door panel fixed to the wall while the other swings in or out.

Materials such as vinyl, uPVC, composite, aluminum, wood, or steel are frequently used to construct these door types. The most popular material, vinyl, is simple to maintain, durable, and reasonably priced.

The advantages and disadvantages of using French patio doors are as follows:

Beautiful appearance: They have an exquisite and timeless appearance that can go with various architectural types.

Vast selection of styles: They come in several designs and materials, including wood, fiberglass, and vinyl, so you may tailor your doors to match the aesthetic of your house.

Simple to use: They have a large opening for simple access to your outdoor space and function similarly to conventional hinged doors.

Energy-efficient: Double or triple-pane glass, weatherstripping, and insulated frames are all energy-efficient elements that may be incorporated into the design of these doors to help you save money on your energy costs.

There are also several drawbacks when installing these doors in the home.

Limited space-saving potential: They need room to swing open, so they might not be the best option for homes with limited space.

Less secure: Single-point locks are more common on these kinds of doors, making them potentially less secure than other door types.

Drafts are possible: These doors could not offer as much insulation as other choices, which might result in leaks and energy waste.

Restricted opening size: French patio doors often have a maximum opening size, unlike other bi-fold or accordion doors.

Maintenance: To keep these doors looking and operating at their best, they need regular maintenance, which may include painting or staining.

Bifold Doors

Sliding-type door matched with large windowsA bifold patio door has a similar mechanism to an accordion since it has several panels that can be slid and folded together when opened. It also has a hinged door, making quick entry and exit possible without folding it entirely.

Standard folding patio doors with three panels measure around 70 to 92 inches and can cost you $1,900 to $3,600 for the bifold patio door alone. It can be made of aluminum, fiberglass, or vinyl, depending on your preference. Depending on the home’s space and preference, you can install around 2 to 8 panels

Here are the benefits you can be guaranteed by using a bifold patio door:

Space-saving: You don’t need to allow that much space to open the door like a hinged one, but you still need enough space to keep the stacked panels when opened.

Modern style: Unlike the traditional sliding and hinged patio doors, the mechanism of a bifold is quite modern, as well as its look.

Dual-locking feature: Delivers incredible security without limiting this patio door’s wide openings and views.

Versatile usage: Depending on your preference, you can open the bifold as little or as much as you want. You can either partially stack a couple of panels or slide them all in.

Larger view and opening: since you can glide and stick the panels, you are left with a large opening for the entryway and viewing.

You must also check out the disadvantages of using a bifold patio door to know what you’re dealing with.

Requires large space: If you install a bifold patio door, you need an entire wall to accommodate its panels, and the wall needs to be furniture-free to avoid being a hindrance to this patio door.

Can be expensive: Can easily cost around $3,000 to $10,000, and this is without the labor fee.

Vulnerable to insect options: Since you won’t be able to install any screen, your home may be subjected to insect issues.

Complex installation: You need an entire wall for a bifold patio door, so you need a professional’s help.

Less durable: With the panels moving, the bifold patio door is less durable than the sliding one.

High maintenance: This is difficult to maintain and clean with many panels and folds.

Pivot Doors

Glass pivot door leading to a small country style deckA pivot patio door operates in a rotating motion, so it’s called “pivot”.The doors are attached both at the top and bottom, allowing the circular movement of the door. This also means it can take and use outdoor and indoor spaces.

Also known as revolving doors, this style can either be a single pivot door or a group pivot door. The former only has a single panel and rotates vertically. At the same time, the latter comprises several panels grouped, opening up a much larger space, and can be installed at different angles, making it more stylish.

Take note of the following advantages you can make the most of when using pivot:

Fun yet classy: Who doesn’t want to play with a revolving door when young? The modern mechanism is what makes it fun.

Stress-free mechanism: No bulky framing and butt hinge to worry about.

Modern aesthetics: Showcases chic appeal and clear-cut lines.

Easy-to-operate: Makes use of a simple setup that provides quick access to the deck or the patio.

The big downside of a pivot patio door is that it can be expensive. This is also why it makes sense that they are mostly installed in big commercial buildings and offices.

Garage Style Doors

Wide open garage-style doorThe garage-style patio door delivers a more industrial look, especially since it is usually made of metals like steel. With the use of metal, it also needs something stronger to pull them up.

Enough and a substantial amount of space to effectively use the panels of a garage-style patio door. Make sure to consider the electric fixtures of the home as you go along. Better yet, go to the professional for better consultation and installation of garage door panels

Door Materials

Sliding French doors

More than their openings, patio doors also differ based on the materials they are using. While many patio doors use glass, other materials can also fit well with a patio door.

Here are the different materials you can also consider for your patio door. Make sure to check them out before actually constructing the patio door.

Vinyl: Vinyl is an affordable yet durable material you can use for your patio doors. With its durability, it is an excellent component for exterior hiding. And it doesn’t easily peel, corrode, rust, warp, or dent, so it is guaranteed to last longer too.

Despite being affordable, vinyl can keep extreme heat and cold out. It is also an energy-efficient material you can consider. You can get creative on your patio door with vinyl since it can be shaped like metal or wood and comes in various colors.

Aluminum: Aluminum is a light metal considered a popular option for patio doors. It is a good option for exterior patio doors because it withstands weather changes and elements without getting affected (chipping, peeling, or warping). It is a more affordable metal option than steel but less durable and energy-efficient.

Aluminum patio doors are vulnerable to rusting, so you must treat yours with an anti-rust agent. While this effectively protects the material, make sure not to scratch or dent it so that the protection can last longer. Denting is also a big no because this material is difficult to repair.

Aluminum pivot style door

Wood: Wood is a constant for building and construction; this is the same way when creating your patio doors. Patio doors made from wood are popular but less durable.

They offer a sturdy classic look that you will find in most patio doors in the past. They are also soundproof and can easily be painted with any color.

The downside with wooden patio doors is that despite being expensive, they can warp and rot because of moisture and other weather elements. This is why treatment is required, or you will be forced to replace them every 15 to 20 years.

Traditionally, only French doors for patios make use of wood. Today, a popular trend is out where wood is installed on the indoor side of the door while weather-proof material like aluminum or vinyl is installed on the outdoor side. If you are going for a country-style theme, consider installing a barn door patio door.

Fiberglass: Quite similar to vinyl, fiberglass is another durable material you can use for your patio door. The big difference is that it is more durable and has a higher price tag.

While lightweight, this material is solid and flexible enough to be styled however you want, even looking like a smooth wood finish.

Steel: Steel is another metal option similar to aluminum but is more durable and expensive. Weather-resistant steel patio doors don’t chip, peel, or warp and can be considered energy-efficient.

However, the material must still be treated with an anti-trust agent, which is more expensive. Weather-resistant, the material does not chip, peel, warp, or dent. It is the energy-efficient option you can use for your patio doors.

Despite being weather-resistant, steel must be treated with an anti-rust agent to protect against damage and rust. Make sure you avoid getting the metal scratched to still benefit from the treatment and avoid the metal from denting because the repair is incredibly difficult.

Patio Entrance Designs

Covered porch with mounted lights and table setBesides their mechanisms and materials, patio doors also have a variety of designs you can check out and match with the current vibe of your home.

Here are some of the different design styles to consider.

French Door

Interior of a room with brocade curtainsA French door normally consists of a pair of hinged doors that either swing in or out, depending on your preference.

An in-swing French patio door is perfect for homes with limited patio space, while its outswing version is ideal for homes with limited indoor space but an expansive patio. Just ensure that nothing obstructs the doors once they’re swung open.

French types of patio doors come with glass panels, delivering modern and classic appeal in one go. It is an element of the home that many homeowners covet and look for because of its aesthetic value.

The glass panels can either be left alone for a minimalistic appeal or sometimes integrated with latticework, making it more desirable for homebuyers.

Frameless

House exterior with enclosed sun deckFrameless types of patio doors stretch from the floor to the ceiling, giving the illusion that the door is seamlessly floating, which is why most frameless patio doors are made of glass panels.

This design makes you feel connected indoors and outdoors without any obstruction. This is a great option if you constantly want to feel like nature.

Stacking Doors

Wide folding door to the backyardA stacking patio door is similar to a bi-fold patio door, where the panels are stacked together on one side when the door is opened. The door has its railing, like a sliding door, but it must also be well-oiled and maintained.

• Frameless Glass Stacking Doors: A frameless glass stacking door is an elegant version of stacking types of patio doors. The glass panels are normally connected using a stainless steel linking mechanism.

The downside is that it would be less durable, so you must be more careful with sliding and stacking the glass panels together.

Integrated Shade

Wide doors covered with attached blindsAn integrated shade is part of the sliding door system that slides in and out of the wall. This option removes the need to install blinds and, at the same time, helps you maximize space with its thin frame.

The integrated shade is popular for helping the home cool down when the sun is at its hottest without taking out the option of enjoying the breeze at night.

Double Glazing

Backyard area with small space for table and chairsA double-glazing door, also known as gas-filled glass or double-paned, offers a slim and seamless option that can deliver minimalist appeal if that’s what you’re going for. The panels are paired with stainless steel frames that always remain perfectly aligned.

Pocket Sliding

glass door and awningA pocket sliding door is similar to a normal sliding door except for the pocket inside the wall built precisely to tuck the door safely inside it. Not only is it a clean design, but it also saves space since you won’t have to slide it somewhere else.

How Much Do Doors Cost?

Kitchen beside the sliding door leading to an outdoor areaThere are different factors to consider when it comes to the cost of a patio door, including the types of patio doors, the material it’s made of, the size of your door, and the installation costs. Patio doors don’t come cheap, so if you plan to have one in your home, you must be ready for what it can cost.

“For easy installation, buy a patio door with the door panels already mounted in a preassembled frame. Try to avoid patio doors sold with frame kits that require complicated assembly.” – Editors of Creative Publishing International, Black & Decker The Complete Photo Guide to Home Improvement

Typically, the cost range from $1,200 to $10,000, but there are different factors to consider, including the following:

  • Materials
  • Size & Measurements
  • Door Trim
  • Labor & Installation

With these factors, here is a list of the range of costs you may pay for:

Quality of the Patio Door Cost
Low-quality $1,200
Average $2,500
High-quality $10,000

Cost of Doors Based on Type

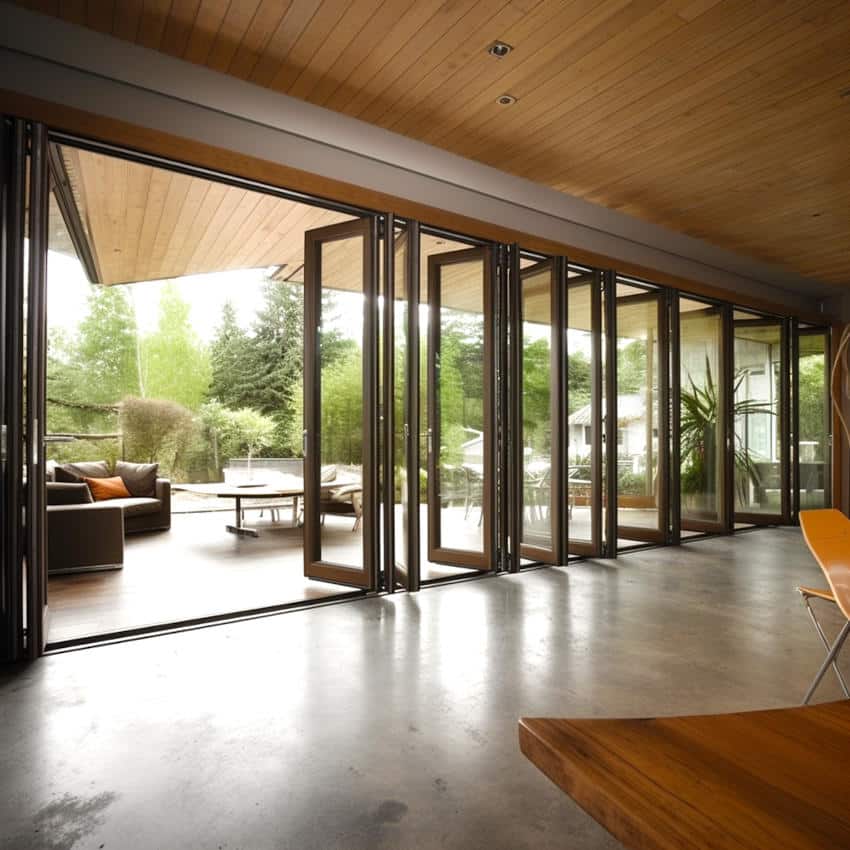

Accordion type door

For more specific costing, here are the costs you will encounter in terms of the types of patio doors you can install at home:

Types of Patio Door Cost
Sliding Patio Door $1,000 to $2,600
  • 2-panel
$300 to $1,500
  • 3-panel
$700 to $3,000
  • 4-panel
$2,000 to $5,000
French Door $500 to $4,000
Telescoping Patio Door $1,500 to $5,000
Bi-fold or Folding Patio Door $3,000 to $10,000 ($500 to $900/linear sq. ft.)
Anderson Patio Door $1,500 to $3,500

Price of Doors Based on Materials

More than just the different types of patio doors, there are also different materials involved in creating patio doors that can affect the cost. Here are the costs of patio doors based on their materials, including the door trim.

Materials Patio Door is Made of Cost
Glass $150 to $1,000
  • Single-pane
$150 to $300
  • Low-E
$250 to $450
  • Energy-efficient
$350 to $600
  • Tempered
$400 to $600
  • Hurricane-rated
$700 to $1,500
Aluminum $300 to $1,200
Fiberglass $800 to $3,500
Vinyl $300 to $1,200
Wood $1,500 to $5,000

Cost of Door Replacement

The patio door replacement cost will depend on the materials and the size of the door, which can cost around $700 to $5,000, with the doors priced at $400 to $1,800 and the labor at $300 to $600.

The national average cost of patio door replacement is priced at $1,700. To be specific, here are the costs you need to take into account:

Parts for Replacement Cost
Full Door $600 to $5,000
Sliding Panel $450 to $750
Rollers $95 to $170
  • Parts
$20 to $40
  • Labor
$75 to $130
Knob $120 to $250
  • Parts
$40 to $100
  • Labor
$75 to $150

Other Door Costs You Should Know About

Installing and replacing patio doors involve not just the door and labor themselves. You can include additions to your patio door to improve its functionality and aesthetics. Here are some of these additions and the costs they come with.

Miscellaneous Factors Cost
Screen Doors $100 to $250
Insulation Cost $300 to $600
Patio Enclosure $4.50 to $6.50/square foot
Security (Dual Point Locks/Locking System) $30 to $300
Hard Frame Style (Hinged or Motorized) As much as $400
Project Waste Disposal $100 to $600

How to Measure a Door for the Patio

Modern concrete backyard space with wood wall accentsMeasuring your patio door is necessary before you can even start installing and replacing your patio door. This will also help you estimate the cost you need to pay for the new patio doors.

Follow these simple steps as a guide when measuring a sliding patio door:

Step 1: Prepare everything you will need for the measurement – Get a tape measure, a pen and paper to record your measurement, and a measurement guide to match what you have with the common measurements for patio doors.

Step 2: Measure the width of the patio door – Step outside and measure the door starting from the center by extending your tape horizontally toward the sides and edges (from one siding to another). Make sure to record the measurements on your paper.

Step 3: Measure the height of the patio door – Extend your tape and measure the door vertically:

    • From the header to the bottom of the door sill
    • From the siding to the bottom of the door
    • From the edge of the stucco to the bottom of the door

Optional Step: You can measure both the exterior and interior just to be sure that what you’ve recorded are the correct measurements. Here is what you need to measure from the interior side of your patio door:

    • Width of the patio door – From the casing trim or the inner wood, return towards the sides of the existing patio door
    • Height of the patio door – From the casing trim to the floor

Here is the guide for the actual measurements of patio doors:

Width Height
59 inches         80 inches
60 inches 80 inches
71 inches 80 inches
72 inches 80 inches
96 inches 80 inches
89 inches 80 inches
107 inches 80 inches
143 inches 80 inches

How to Remove a Sliding Door

Wooden deck decorated with string lights and rattan swingRemoving sliding types of patio doors involves a step-by-step process you need to follow. First, prepare a screwdriver and foam sheets or layers of comforters and heavy blankets. Ask someone for assistance if you feel like it’s a heavier task than you can do alone.

1. Place the foam sheets or comforters on the floor because it’s where you will set the sliding door down (Very important if your sliding door is made of glass).

2. Use a flat-head screwdriver to lift the rollers off the track carefully, then move the screen to a safe place

3. Remove the stationary door and use a flat-head screwdriver when necessary. Free it from the tracks and lift the door. Lay it down on the prepared sheets.

4. Remove the sliding door by starting at the bottom of the track. Slide the door until you feel it hit a certain point, and use a screwdriver to remove the adjustment screws. Lift the door from the track and set it again on the sheets.

Tip: Never forcefully remove the sliding doors, or they might crack and get damaged.

How Long Does It Take To Install A Sliding Glass Door?

Hiring a professional to install sliding glass types of patio doors will take only around a day to accomplish the task. If you choose to DIY, it can take days, depending on your free time and effort.

Inswing Vs Outswing Doors

Empty house interior with white wallsThe vast majority of patio doors use an outswing function. However, in cases where space is limited, an inswing can be used.

Inswing patio doors are perfect for homes with a small patio, but you must ensure enough space indoors to accommodate the door when it’s opened. Free the space indoors surrounding the patio door from furniture and other possible obstructions.

Outswing types of patio doors are ideal for homes with small spaces indoors but have a large patio. The doors can freely be swung towards the patio with ease. Deciding which kind of patio door to choose depends on the spaces available in your home and the patio.

What Type of Door Is Most Energy Efficient

a small balcony with a lounge chairA tinted or laminated patio door can help curb heat loss somewhat. On the other hand, an energy-efficient patio door can be made from two panes of glass (insulated with argon in between) with a frame made of wood, vinyl, or fiberglass. A double-pane glass door provides superior energy efficiency, offers UV protection, and can reduce excess outside noise.

In most door labels sold in the US, you’d find an NFRC (National Fenestration Rating Council) label that helps you identify how the door product performs in a particular climate. Look for the Solar Heat Gain Coefficient and U-Factor ratings. The former measures how much solar radiation can be absorbed by the door, while the latter measures the product’s capacity to keep heat from the inside. [Source: NFRC

For regions with more extreme climates, triple-pane glass doors offer even better insulation properties. There is a 10% to 15% increase in cost by opting for a triple pane over double pane glass. Whether that is worthwhile depends on your heating and cooling costs and budget.

Up to 30% of a home’s heating can be lost through windows and doors. Check the indicated thermal resistance or R-value of your patio door. The higher the value, the better its insulation capacity. [Source: energy.gov].

Make sure that the installation is professionally done to guarantee its tight fit.

Energy efficiency is a major factor when choosing between sliding glass doors and French patio doors. Generally, a sliding glass door’s tighter seal and insulation make it a more energy-efficient option than traditional French doors.

However, if you prefer the look of French patio doors, energy-efficient models are available that still provide excellent insulation and reduce energy loss.

See more related content in our article about the different types of patios on this page.
