9 Patio Furniture Layout Ideas For Backyard Entertaining & Dining

Transform your backyard into the ultimate spot for hosting and entertaining with these nine patio furniture layout ideas. Each plan has been carefully designed and optimized for furniture placement with multi-functional dining zones and cozy conversation areas. Whether you want to host a stylish outdoor dinner party or hang out with friends at a summer barbecue, these floor plans balance flow and functionality so you can plan the perfect outdoor event.

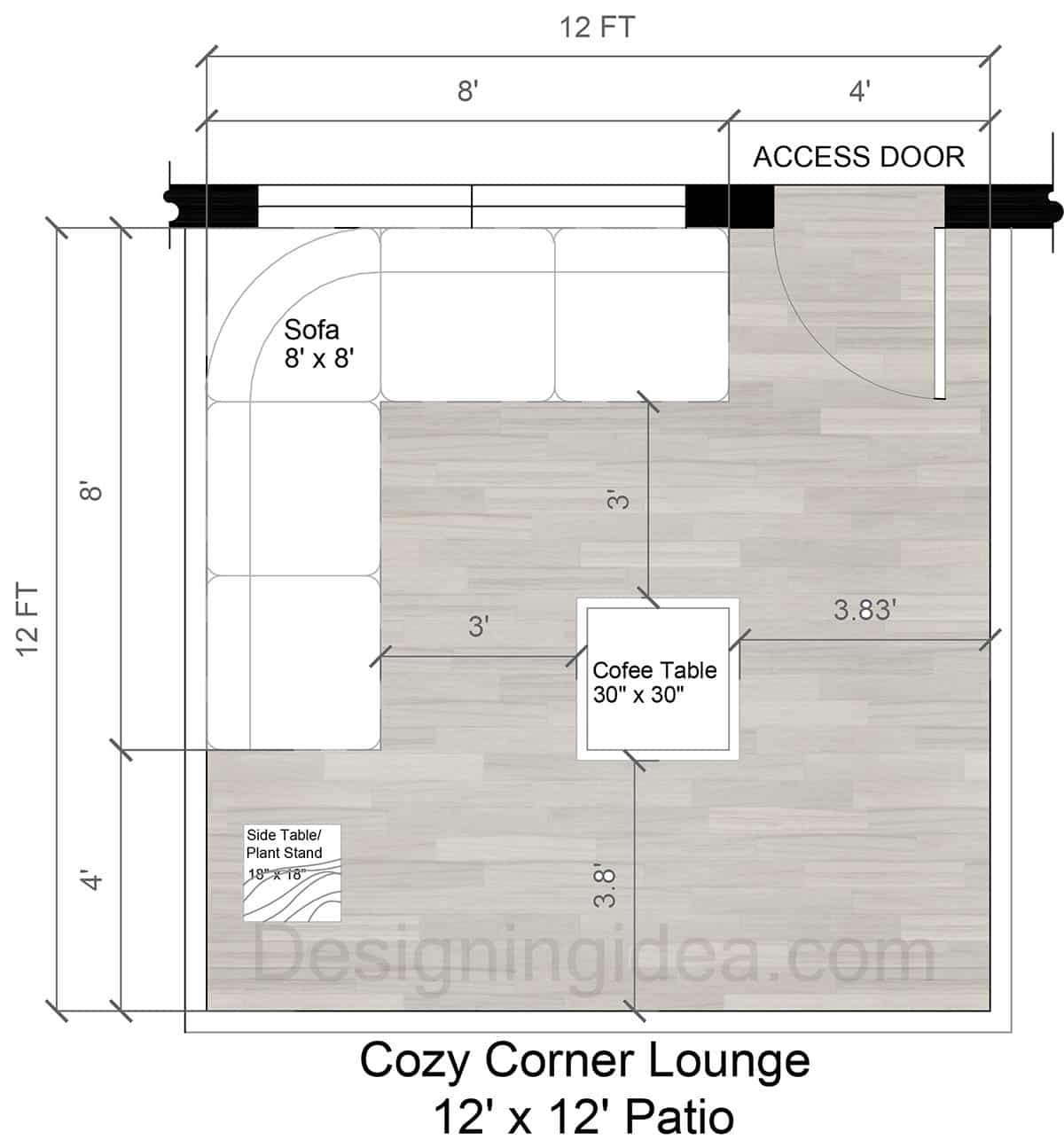

12×12 Cozy Corner Lounge Patio Layout

This square 12-by-12 patio becomes a true outdoor living room by anchoring an L-shaped sectional in one corner, all while freeing the opposite half for effortless flow from the door into the house.

Floor Plan Details:  A large L-shaped sectional is placed in the corner to maximize seating and faces a coffee table to hold drinks or food items. The sectional sofa measures 8 ft × 8 ft, and hugs the left and top walls, filling one corner and leaving the opposite half of the patio open for circulation or a grill. The coffee table is centered in front of the sectional, and measures 30 in × 30 in (2 ft 6 in square) with roughly 3 ft of walk-around clearance on all sides. An 18 in x 18 in side table is placed to one side for extra storage or decor, or a plant stand can be used for greenery. A doorway to the home is positioned on the right wall and swings outward, creating a natural entry aisle that is kept clear; the sofa’s back aligns with an 8-ft solid wall segment, so the door never collides with furniture.

Furniture & Dimensions:

• Patio: 12ft x 12ft
• Sectional Dimensions: 8 ft x 8 ft
• Seat Depth: 32 in
• Coffee Table: 30 in x 30 in (or 24”x24” for a better fit) and a height of 18 in
• Side Table/Plant Stand: 18 in x 18 in with a height of 18–24 in

Design Tips:

• Corner anchoring maximizes seating. By pushing the sectional tight to two walls, you reclaim nearly half the patio for movement and keep sightlines open toward the garden.
• Mind the 30-inch rule. A 30-in square coffee table offers enough surface for drinks and games while maintaining the ideal 30 inches of clearance all around for leg comfort and cleaning access.
• Layered surfaces add functionality. The small 18-in side table doubles as a plant stand, bringing greenery to eye level and providing a safe landing spot for a book or lantern beside the corner seat.
• Watch the door swing. Keep furniture clear of the 90-degree arc of the door; the dedicated 4-ft entry slice ensures guests step onto open flooring before engaging with the lounge.
• Choose cohesive materials. Choose weather-resistant sectional cushions in a neutral tone that matches the flooring; then punctuate with textured pillows or an outdoor rug to delineate the seating zone.
• Accent lighting for evenings. A low LED strip under the sectional base and a battery lantern on the side table will provide ambient glow without hogging floor space or power outlets.

Best For: Works great for entertaining smaller groups of friends and family due to the patio’s limited size. It can also be used for outdoor movies, or swap the coffee table for a fire pit for evening relaxation.

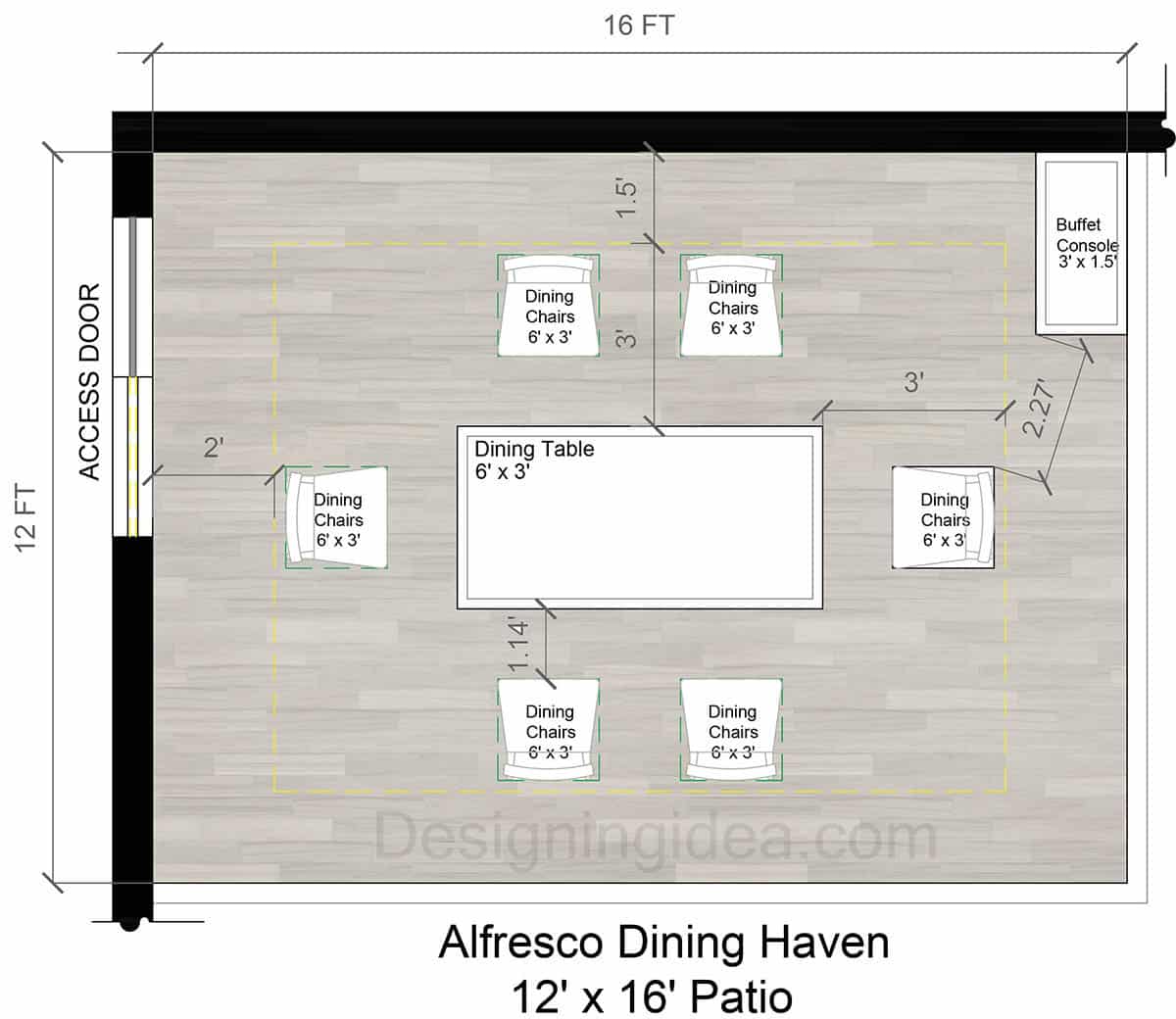

12×16 Alfresco Dining Haven Design

Turn your patio into a dedicated alfresco dining room centering around a 6-seater table with a buffet tucked into the far corner.

Floor Plan Details: With its full dining table with chairs for 6, and a buffet console or serving cart near one wall, this design is ideal for focusing on outdoor dining. The 12 ft (depth) × 16 ft (width), 192 sq ft patio uses a 6 ft L × 3 ft W rectangular table, centered in the middle of the floor plan. Six standard chairs are used for seating (one at each short end, two per long side). The dashed yellow outline shows the recommended 36-in “push-back” zone so guests can slide out without bumping walls or knees. In the corner is room for a service console, or a slim buffet/drink station measuring 3 ft L × 1 ½ ft D. This is perfect for food staging, or an ice bucket without crowding the table.

Furniture & Dimensions:

• Size: 12ft x 16ft
• Dining Table (Rectangular): 6 ft x 3 ft, with a height of 30 in. (Seats 6 people)
• Dining Chairs (6 total): Width of 20 in each, and a depth of 20 in
• Clearances: Allow 2 ft of space behind chairs to walk comfortably
• Serving Cart/Buffet Console measures 3 ft wide x 1.5 ft deep, with a height of 36 in

Design Tips:

• Respect the 36-inch pull-back halo. The dashed guideline is your best friend; stick to it and even bulky armchairs will glide out gracefully.
• Go lean on the buffet depth. A console no deeper than 18 in keeps serving space handy without stealing the 3-ft traffic lane.
• Light & airy chairs. Opt for armless, stackable or woven resin chairs; they read visually lighter and slide fully under a 3-ft-wide table.
• Anchor with an outdoor rug. An 8 × 12 or custom 9 × 13 rug that stops short of the walkways will frame the dining zone, soften acoustics, and help align chair legs on paver joints.
• Layer task lighting. Overhead string lights or a slim pergola pendant define the table, while cordless lanterns on the buffet add ambient glow for evening meals.
• Plan for staging dishes and platters. Keep the buffet top at standard 36 in counter height so guests can serve themselves buffet-style without stooping, and include a lower shelf for baskets or extra cushions.

Best for: Outdoor dinners, brunches, and hosting. (Perfect for dining outside, but lacks lounging flexibility).

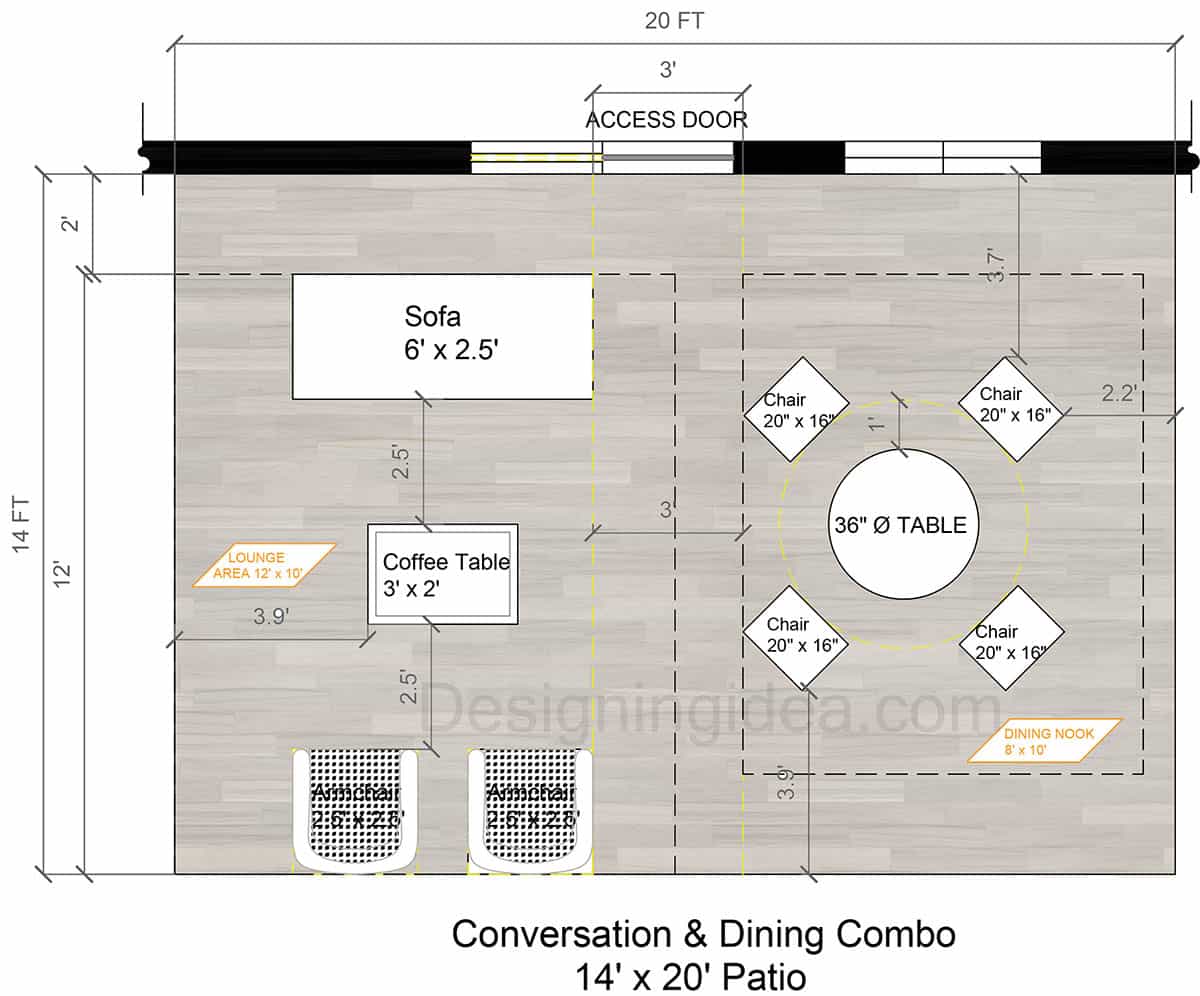

14×20 Conversation & Dining Furniture Combo Patio

By splitting your patio space into two specific zones, you can host relaxed conversation and sit-down meals simultaneously, and each area feels purposeful and shares the same social energy.

Floor Plan Details: For those looking for a perfect place to host a gathering with outdoor dining and a comfortable sitting area, this design checks all the boxes. The overall footprint measures 20 ft W × 14 ft D, or 280 sq ft and is split between the two zones. A yellow dashed centerline aligns with the 3-ft access door and splits traffic evenly between the two activity regions. A conversation lounge on the left half is zoned at 12 ft W × 10 ft D. It has a sofa measuring 6 ft L × 2 ft 6 in D, and is set against the upper wall so guests face out toward the action. It has a coffee table, 3 ft L × 2 ft W, with 30 in clearance on all sides for leg room and trays. A pair of lounge chairs, each roughly 2 ft 6 in square, are placed opposite the sofa to complete a U-shape seating circle.

The dining nook on the right half is defined by an 8 ft W × 10 ft D dashed rectangle. It has a table that’s 36-in-diameter round, and centered, with seating ideally for four. The four armless chairs are 20 in W × 16 in D, and angled at 45°, so the backs clear the walls easily. A continuous 3-ft aisle runs from the access door down the patio’s center, letting servers, kids, or pets move without cutting through either zone.

Floor Plan Concept:

• Divide the space into two zones: a lounge area and a compact dining area.
• Use area rugs or planters to visually separate zones, but still remain zoned together with the same color palette.

Furniture & Dimensions:

• Size: 14 ft x 20 ft
• Lounge Area:
• 3-seat sofa: ~6 ft wide x 2.5 ft deep
• 2 armchairs: ~2.5 ft wide x 2.5 ft deep each
• Coffee table: ~3 ft x 2 ft
• Dining Set (4 seats):
• Round table: ~42 in diameter (36” for better fit)
• 4 chairs: ~20 in wide each
• Side Table/Accent Table (optional):
• 18 in diameter
• Height: ~18–24 in

Design Tips:

• Let the aisle do the zoning. Keep the 3-ft spine free of furniture so the eye (and foot traffic) flows naturally from the door to every seat.
• Scale seating to its function. A low-profile 2 ft 6 in-deep sofa with compact slipper chairs maintains lounging comfort without invading into the dining space.
• Choose a round table for tight corners. Use a 36-in circular table to softens sight-lines and eliminate sharp edges along the walkway.
• Anchor each area with different textures. An outdoor rug beneath the lounge and try a woven mat under the dining set to visually add some separation and help with sound dampening.
• Balance furniture heights. Low-profile lounge pieces will keep views open, while the taller dining chairs offer posture support. Together they create a tiered, layered look rather than a furniture wall that’s good for a cohesive design approach.
• Add movable accents. A narrow console along the bottom wall or a rolling bar cart can migrate between lounge and dining as hosting duties require, without breaching the center aisle.
• Best for: Mixed-use fun (dining combined with chatting).

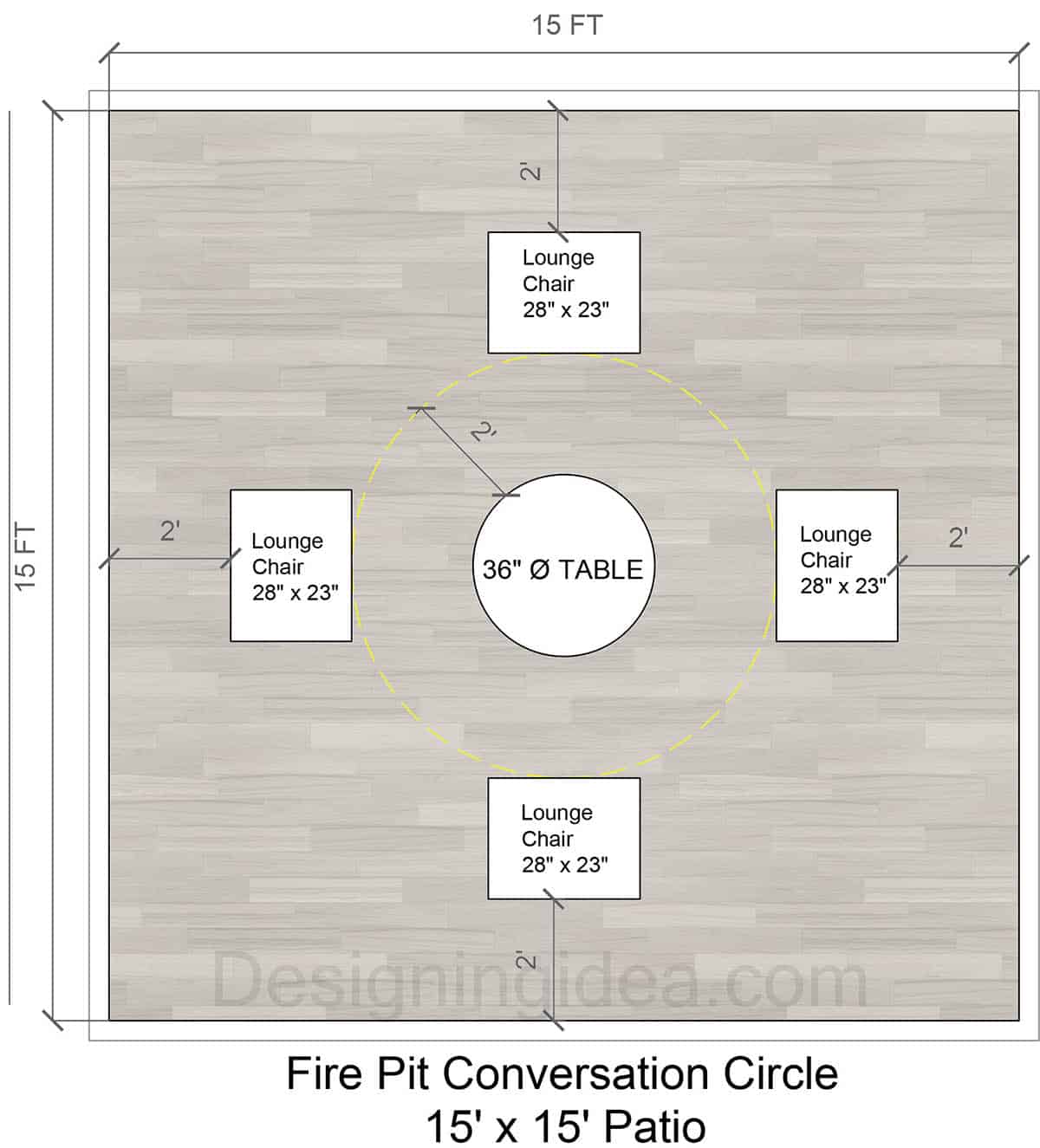

15×15 Fire Pit Conversation Circle Patio

Focused on creating an intimate four-seat campfire lounge by centering a 3-ft fire pit and positioning compact chairs at equal spacing surrounding it, this patio uses simple geometry that feels luxurious and social.

Floor Plan Details: This patio design creates a focal point out of the fire pit that encourages interaction. The floor plan is a perfect square measuring 15 ft × 15 ft (225 sq ft) and centers around a 36-in-diameter round fire-pit that sits exactly in the middle of the space. Situated around it are four identical lounge chairs measuring 28 in W × 23 in D and are placed at the cardinal points, forming a balanced circle. A dashed yellow ring marks a 24-in “comfort halo” around the pit, which provides a safe knee-clearance zone that also keeps furniture at the ideal distance from open flames. Clearances between chair backs and the patio border retain a continuous 24-in walking band, so guests can slide behind seated friends without feeling squeezed. Since no furniture is taller than chair-back height, every seat enjoys an unobstructed 360° view of both the fire and garden.

Floor Plan Concept:

• Round fire pit at the center
• Four to six chairs arranged in a circular pattern
• Optional small side tables to hold drinks

Furniture & Dimensions:

• Size: 15ft x 15ft
• Fire Pit (Round): Diameter of 36 in to 42 in, with a surrounding Clearance of 3 ft from flame zone to seating
• Lounge Chairs (4–6): Width of 28 to 30 in each, with a depth of 28–30 in (23”) to fit 2’ back clearance
• Side Tables (1–2): 18 in diameter and a height of 18 to 20 in

Design Tips:

• Honor the 2-ft safety ring. Keep a full 24 in between flame edge and upholstery; it’s just enough for stretched legs yet far enough to avoid singed cushions.
• Choose low-profile, deep-seats. Pieces around 23 – 24 in deep let you lean back without crowding the circle; swivel rockers work well if you want extra motion.
• Go round with accessories. A circular outdoor rug (≈10 ft Ø) will echo the fire pit and visually anchor the arrangement inside the square paving field.
• Layer temperature control. Add a slim, movable drink table between two chairs for summer nights, and stash a basket of blankets under one seat for shoulder seasons.
• Light for mood & safety. String lights or low bollards around the patio edge help guests find the 24-in walkway, while the fire pit itself supplies ambient glow at eye level.
• Consider the wind. If prevailing breezes cross the square, position the “host” chair on the up-wind side so smoke drifts away from guests.
• Use a fire pit table: Choose a model that can act as a table for playing cards or eating outdoors with the fire pit is not being used.

Best for: Evening family gatherings, marshmallow roasts, and intimate talks.

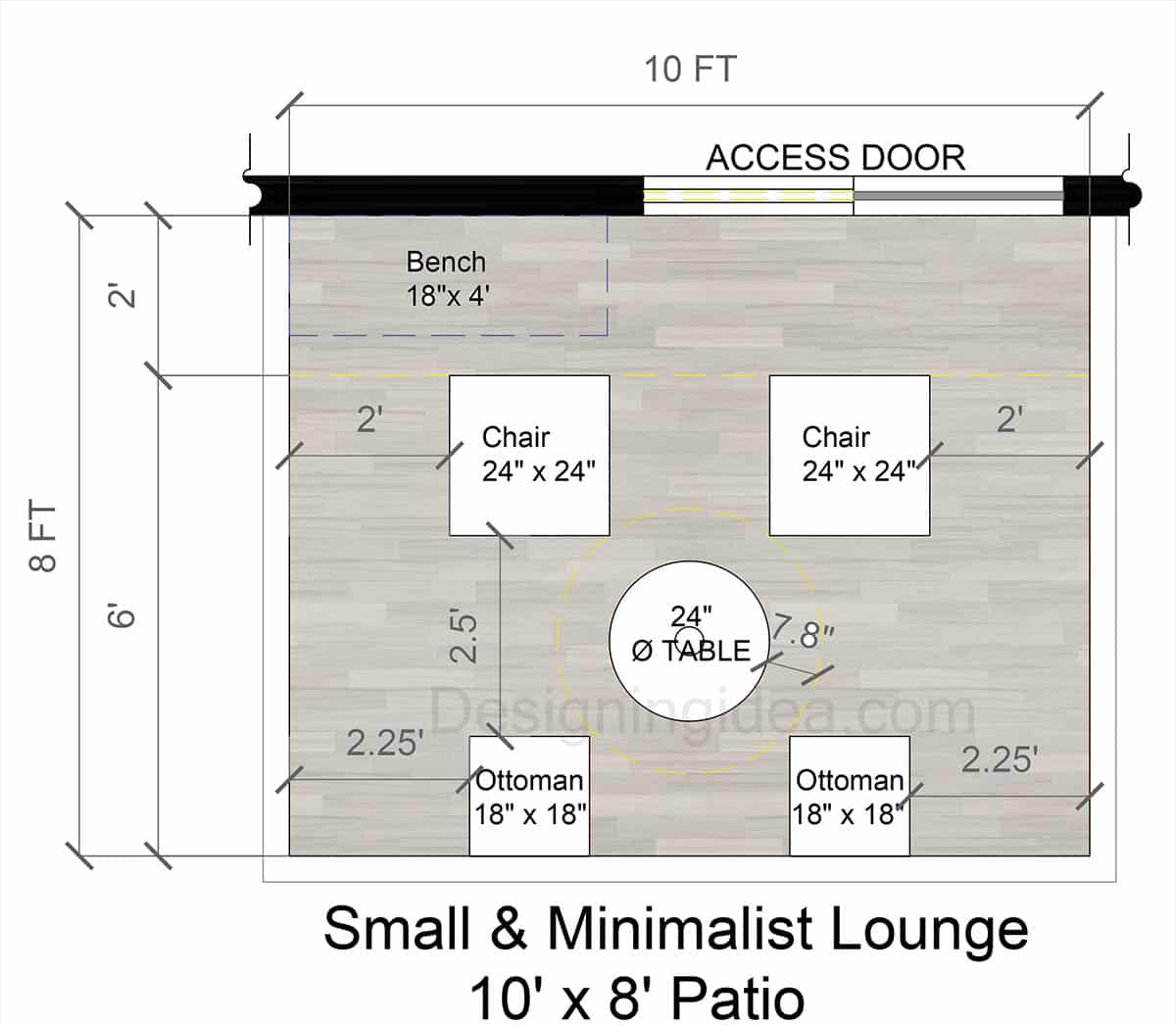

10×8 Small & Minimalist Patio Lounge Layout

By using low-profile furniture pieces around a 24-inch table this small patio transforms into an inviting minimalist lounge that doesn’t feel congested.

Floor Plan Details: Smaller patios lead to unique challenges and with an overall footprint of 10 ft W × 8 ft D (80 sq ft), this design is perfectly for sized for two to four people. There’s a 2ft traffic lane inside the access door (top edge) that is kept clear as a landing strip and passage zone. for seating a built-in bench that’s 18 in-deep × 4 ft-long runs along the back wall behind the traffic lane (dashed outline) for overflow seating or plant display. Two armless lounge chairs, each measuring 24 in × 24 in, sit 2 ft in from the side walls and 2 ½ ft behind the centerline, and facing the view. In addition, a pair of ottomans is used as occasional seating, or for footrests, and is 18 in × 18 in, and placed 2 ¼ ft off the side walls. For the centerpiece, a compact 24-in-diameter round table anchors the layout (dashed yellow circle shows a 7-in “swivel room”), just enough room to set down drinks without cramping leg space.

Floor Plan Concept:

• Ideal for a balcony-like or smaller patio space
• Two chairs and a compact coffee table
• Foldable furniture or stackable chairs for easy storage

Furniture & Dimensions:

• Size: 10 ft x 8 ft
• Compact Chairs (2): Width of 24 in, and a depth of 24 in
• Small Coffee Table/Bistro Table: 24 in diameter (if round), with a height of 18 to 20 in
• Optional Bench or Foldable Ottoman: For a bench, use 4 ft wide x 18 in deep, and for an ottoman, go with 18 in x 18 in

Design Tips:

• Float, don’t line the walls. Pulling chairs 2 ft off the sides avoids a “furniture hug” and makes the patio feel wider than its 80 sq ft.
• Work vertically for bonus seating. The slim wall bench tucks behind the circulation zone—ideal for extra guests, outdoor cushions, or herb planters without stealing floor area.
• Choose lightweight, visual furniture. Armless chairs and open-frame ottomans keep sightlines open; look for metal or teak legs rather than skirted bases.
• Keep the table petite and round. At 24 in Ø, everyone can reach the center, yet it stays inside the critical 30-in leg-clearance halo.
• Multi-task the ottomans. They’re footstools for the main chairs, pop-up perches for a game of cards, or side tables with a slim tray on top.
• Zone with an outdoor rug. A 6 × 4 (or custom 8 × 5) flat-weave rug under the seating cluster defines the lounge while leaving the entry lane bare for muddy shoes.
• Add height via the bench wall. Slim sconces, a trellis, or hanging planters above the bench draw the eye up and make the space feel taller and airier.
• Stick to a restrained palette. Two or three complementary tones, e.g., dove-gray cushions, matte-black frames, and a single accent color to underscore the minimalist vibe and keep the tiny footprint serene.
• Keep chairs facing outwards to enjoy the view. This is especially useful if the area is somewhat enclosed.

Best for: Apartment balconies, small patios, or sipping morning coffee.

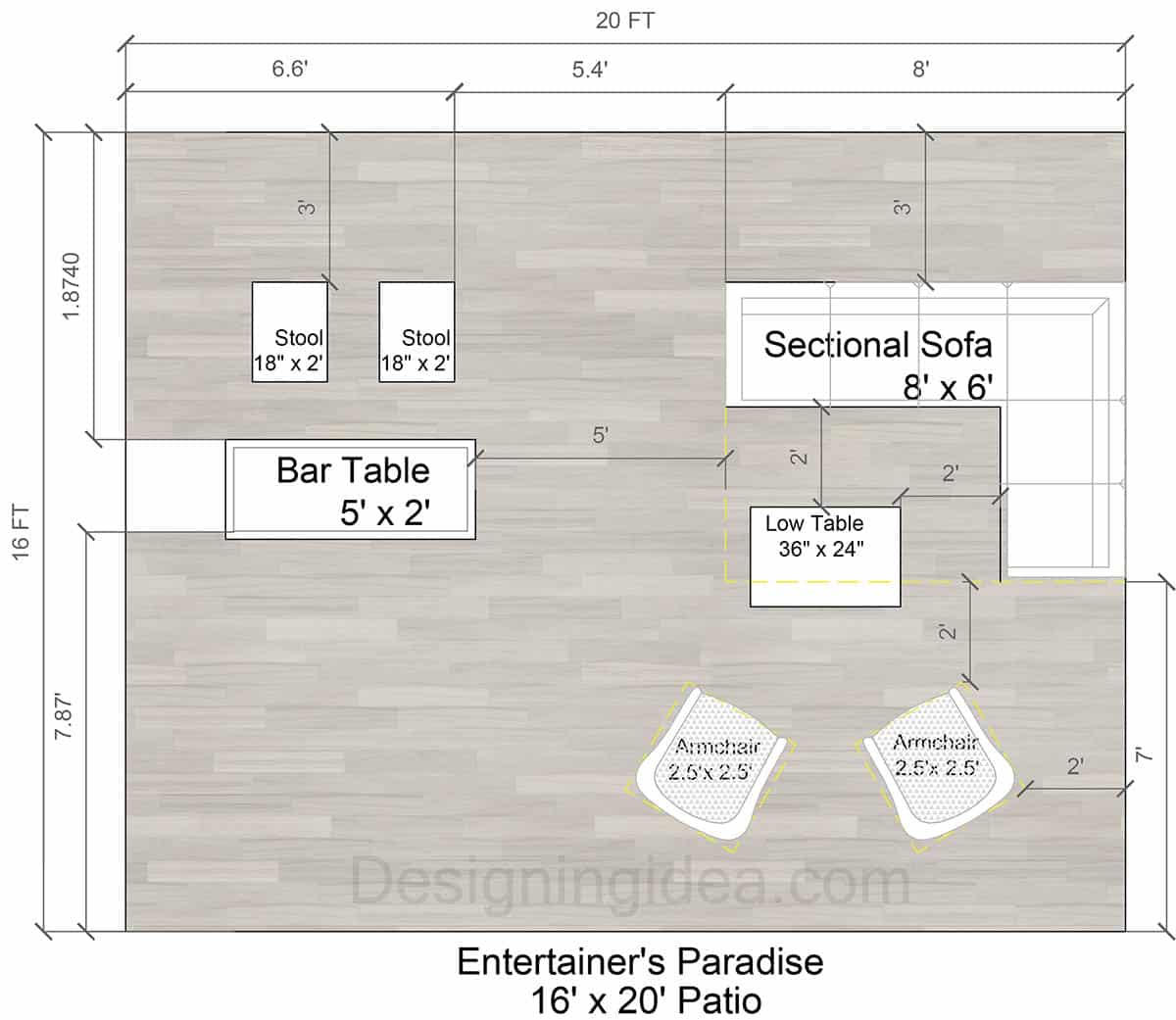

16×20 Entertainer’s Paradise Patio Furniture Floor Plan

This multi-functional patio layout creates a true entertainer’s setup by using an L-shaped sectional in one corner, and floating a slim bar along the opposite wall. The combination comfortably supports simultaneous lounging, sipping, and free-flow circulation, everything an avid host needs in one cohesive outdoor room.

Floor Plan Details: Made for socializing, this comfortable rectangular design measures 20 ft W × 16 ft D (320 sq ft), and is divided length-wise into a service/bar side on the left, and a relax/ lounge side on the right,  with a clear 5-ft circulation corridor running between them. The bar & hangout zone in the upper-left quadrant, features a bar table of 5 ft L × 2 ft D, which projects perpendicular from the left wall and 3 ft behind the stools for a back-of-bar walkway. The two stools are 18 in W × 24 in D, and centered on the bar, and spaced 18 in apart. There’s 6 ft 6 in of open deck left of the sofa zone to keep room for mingling free. This could also be used as a BBQ grill or outdoor kitchen space if desired.

On the upper right side sits the conversation lounge, with its L-shaped sectional sofa measuring 8 ft (horizontal) × 6 ft (vertical). The sofa is tucked into the top-right corner against two walls with a 2 ft walkway along the open faces. the couch faces a low table of 36 in × 24 in, and is centered inside the sectional “L” 2 ft on all sides for feet & trays. On the lower-right quadrant of this side sit two armchairs of 30 in × 30 in, that are angled toward the sectional, 7 ft from the bottom edge, and 2 ft all around for easy pull-back.

Floor Plan Concept:

• Open floor: The lower-left half (8 ft × 7 ft 10 in) is intentionally left empty for dancing, buffet tables, grill, or a portable heater, for true entertainer flexibility.
• Use an outdoor-rated sectional or sofa set for lounging
• Small bar or counter-height table along one edge for serving drinks
• Accent chairs near the bar to create multiple conversation spots

Furniture & Dimensions:

• Size: 16 ft x 20 ft
• Outdoor Sectional or Sofa: Sectional: 8 ft x 6 ft and 2.5 ft deep
• Armchairs: 2.5 ft wide x 2.5 ft deep each
• Outdoor Bar Table (High Top): 5 ft wide x 2 ft deep, with a height of 40 to 42 in
• Bar Stools (2 or 3): 18 in wide each
• Low Coffee Table / Ottoman: 36 in x 24 in

Design Tips:

• Keep the 5-ft party lane off-limits for any furniture. It’s wide enough for trays, mingling guests, or even a conga line; resist the urge to crowd it with planters.
• Go narrow with the bar. A 24-in-deep counter delivers full serving function while stealing the bare minimum of floor space.
• Stagger seating heights. Bar stools (42 in seat height), standard-height sectional, and low sling armchairs create visual rhythm and let conversations happen eye-to-eye.
• Maintain the 24-in sofa clearance. That 2-ft buffer inside the sectional “L” keeps knees happy and lets you tuck in storage poufs for extra guests.
• Angle the accent chairs. Turning them 15-20° toward the sectional opens sight-lines to the bar and prevents a furniture “gridlock.”
• Anchor each zone with lighting. Pendant or sconce over the bar, low lantern on the coffee table, and solar spikes behind the armchairs carve intimate pools of light without glare.
• Plan plug-and-play power. A weather-proof outlet at the bar powers blenders or speakers; a second near the sectional supports phone charging or a heated throw.
• Rug strategy: A 9 × 7 outdoor rug under the sectional plus a 3 × 5 runner in front of the bar visually bookend the space while leaving the center lane bare for easy clean-up after the party.

Best for: Parties, cocktails, large gatherings and for those who love hosting events.

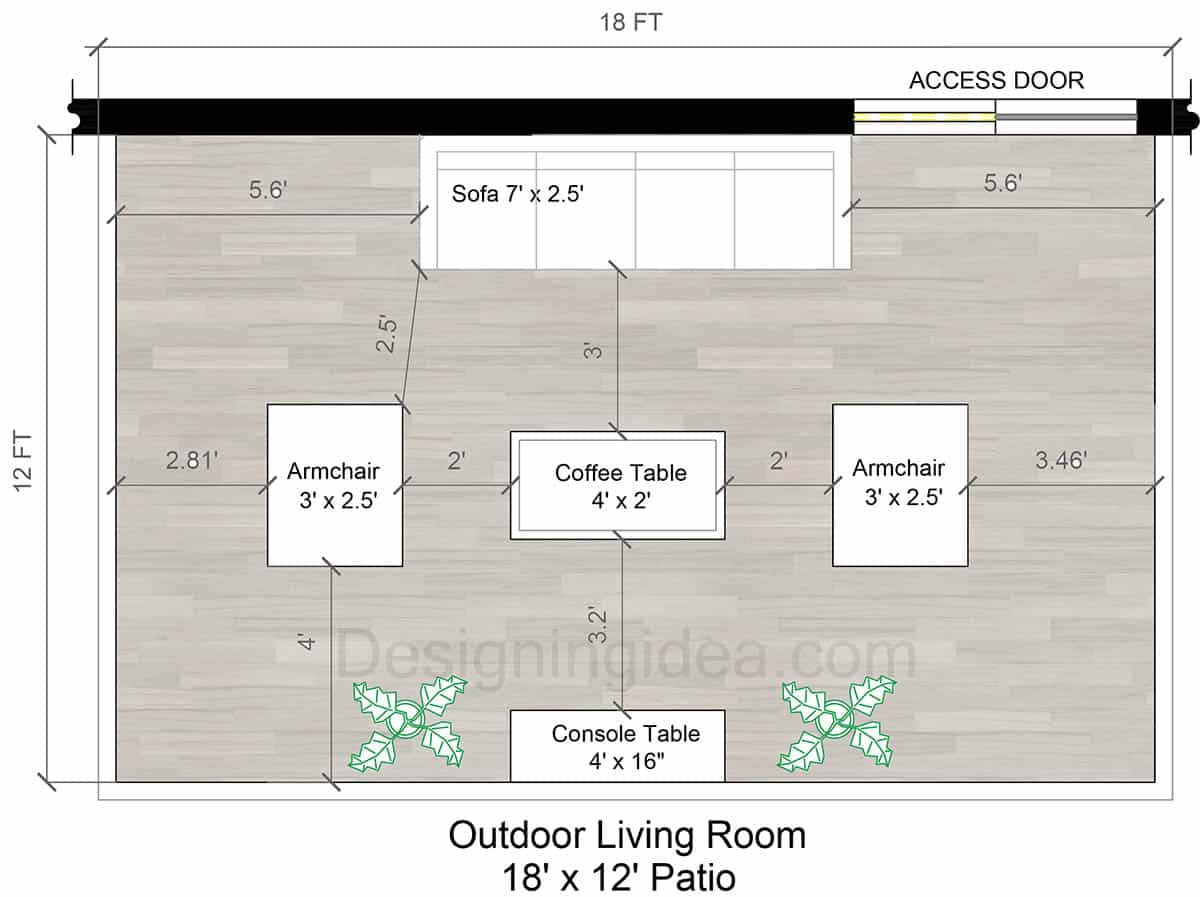

18×12 Outdoor Living Room Layout

An indoor living room patio is an excellent way to bring more comfort outdoors, and works by using a sofa up top, a centered coffee table, and flanking armchairs, with a console backdrop, all to create a familiar, conversation-ready arrangement.

Floor Plan Details: This open-air living room design is 18 ft W × 12 ft D (216 sq ft), and laid out with seating surrounding a central table. The primary seating is a 7 ft-long × 2 ft 6 in-deep sofa centered along the top wall. The sofa faces a rectangular coffee table, measuring 4 ft × 2 ft and sits 3 ft in front, and is wide enough for leg comfort and maneuverability. Two matching armchairs at 3 ft W × 2 ft 6 in D, face the table, each set 2 ft away. Opposite the couch against the bottom edge sits a slim 4 ft × 16 in console table. For greenery, potted plants are tucked between the console and armchairs to soften the hard corners while staying outside the main walkway.

Floor Plan Concept:

• Create a cozy “living room” look with a sofa facing two armchairs
• Place a large outdoor rug to define the gathering space
• Use a media center or wall-mounted TV facing the sofa (optional if a covered patio)

Furniture & Dimensions:

• Size: 18 ft x 12 ft
• Outdoor Sofa: 7 to 8 ft wide x 2.5 ft deep
• Two Armchairs: 3 ft wide x 2.5 ft deep each
• Coffee Table (Rectangular): 4 ft x 2 ft
• Optional Console Table/TV Stand: 4 ft wide x 16 in deep

Design Tips:

• Lean into symmetry. Centering the sofa and coffee table establishes a strong axis; matching armchairs reinforce visual harmony and make styling (pillows, rugs) straightforward.
• Respect the 36-inch rule up front. The 3-ft sofa-to-table distance is ideal for stretching legs yet reaching snacks without standing.
• Keep side aisles near 30 in. Roughly 2 ft 10 in left and 3 ft 5 in right guarantee that guests can slide past seated friends without shoulder brushing.
• Use the console as a “media wall.” At just 16 in deep, it holds lanterns, Bluetooth speakers, or a tabletop fire bowl without stealing circulation space.
• Layer planters for a little softness. Tall leafy pots by the console corners frame views, hide utility outlets, and create a lush backdrop for evening lights.

Best for: TV nights, family hangouts, extended relaxation.

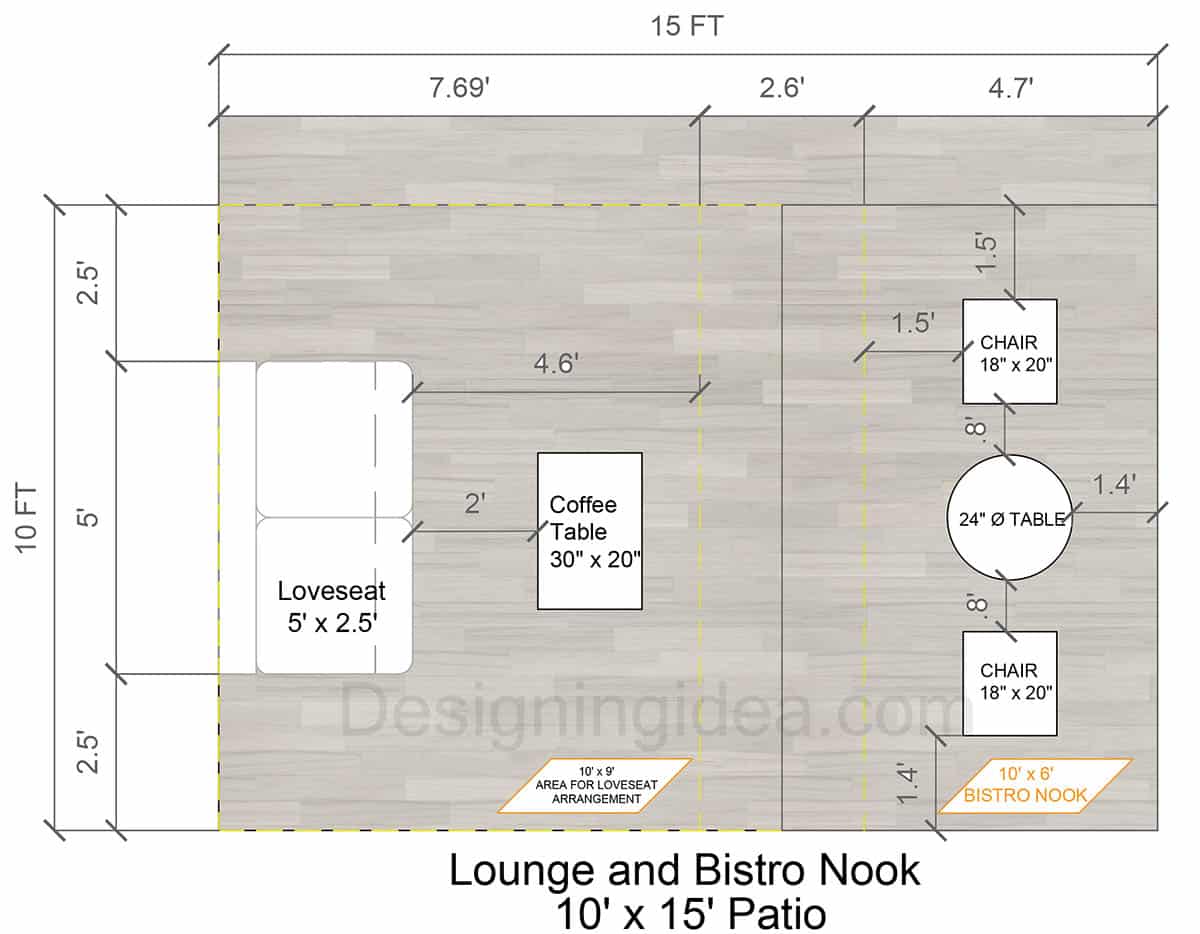

10×15 Lounge & Bistro Nook Patio

By allocating about 60 % of the floor plan to lounging and 40 % to dining, this patio delivers two distinct experiences, stretch-out comfort on one side, and café-style intimacy on the other, without feeling cramped.

Floor Plan Details: This design features a footprint measuring 15 ft W × 10 ft D (150 sq ft) and is arranged as a side-by-side split between a relaxed lounge on the left (9 ft × 10 ft), and a compact bistro nook on the right (6 ft × 10 ft). A continuous 2 ft 6 in of walkway runs along the entire front and back edges (dashed yellow lines), to keep both zones accessible without the need to shift any furniture to get by. For the lounge zone on the left, a loveseat at 5 ft L × 2 ft 6 in D is backed against the left wall facing a coffee table. The table is 30 in L × 20 in W, and placed 2 ft in front of the loveseat.

The bistro nook on the right has a 24-in-diameter round table that is centered left-to-right in its 6-ft bay. Two bistro chairs at 18 in W × 20 in D, are positioned with one on each side of the table. The dashed vertical yellow line at center (about 4 ft 6 in from the loveseat) marks a subtle threshold that is wide enough for smooth flow yet psychologically separates the “relax” from the “sip & snack zones.”

Floor Plan Concept:

• A small lounge set (loveseat + coffee table)
• A bistro set for two tucked into a corner

Furniture & Dimensions:

• Size: 10 ft x 15 ft
• Loveseat: 5 to 6 ft wide x 2.5 ft deep
• Coffee Table: 30 in x 20 in
• Bistro Set (for 2): Table is 24 in diameter, and the two chairs are 18 to 20 in wide each

Design Tips:

• Keep the 30-inch leg zone sacred. The 2-ft gap between loveseat and coffee table, and the 18-in chair-pull halo around the bistro set, are minimums for comfort—don’t shrink them.
• Emphasize the split with surfaces. Use an outdoor rug under the lounge seats and a patterned tile inlay or smaller mat beneath the bistro to signal two “rooms.”
• Choose low, light-profile furniture. Armless loveseat arms flush to the wall and slim café chairs maintain sight-lines across the full 15-ft span.
• Work vertically for storage. A wall-mounted shelf or narrow console beside the loveseat can hold lanterns and blankets without invading the traffic lane.
• Go for foldable or stackable chairs. They tuck away against the wall when you need the right-side bay for yoga or a grilling cart.
• Unify the palette, and vary the texture. Keep cushions and chair seats in the same color family, but differentiate zones with distinct textures—e.g., woven rope for the loveseat, slatted metal for the bistro, for a cohesive yet purposeful look.

Best for: Breakfasts + evening lounging.

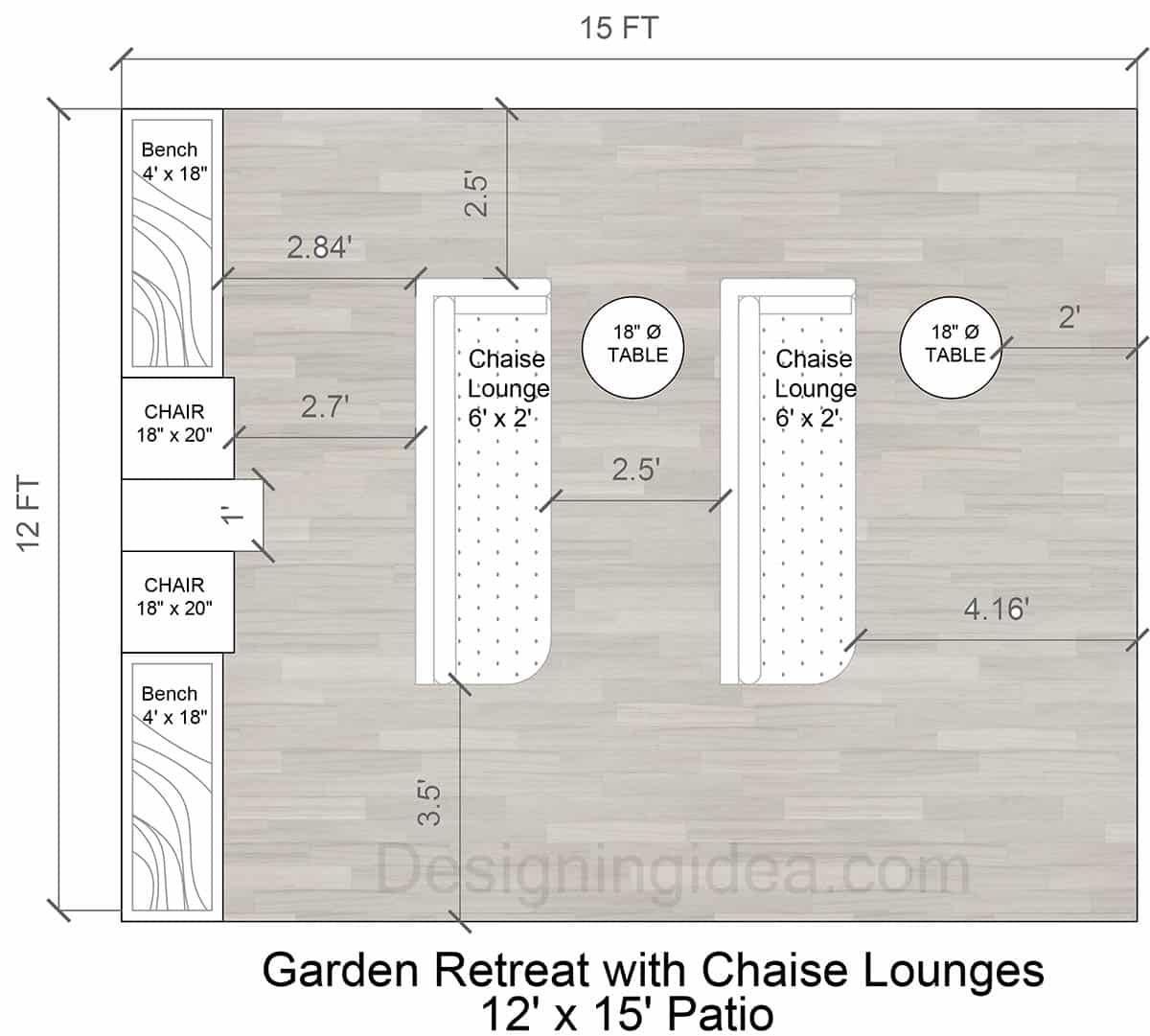

12×15 Garden Retreat Patio with Chaise Lounges

This garden retreat pairs two full-length chaise lounges for laid-back sunning while a slim, built-in bench-and-chair wall helps create a relaxing, resort-like vibe that respects easy traffic flow and personal space.

Floor Plan Details: This 15 ft W × 12 ft D (180 sq ft) garden retreat has two cozy, sun-lounging lanes with a slim built-in seating wall. The two chaise lounges on the   center/right are positioned length-wise, with each measuring 6 ft L × 2 ft W, and are aligned front-to-back so bathers face the garden views. there’s 2 ft 6 in between the chaise pair, with 4 ft 2 in of open deck space from the right-hand chaise to the side wall, which is ample for a side planter or easy passageway. Round side tables of 18 in are parked beside each chaise for drinks, sunscreen, or a speaker. A built-in retreat wall is installed on the left and has alternating elements to create a storage-plus-seating strip. It is made with 4 ft × 18 in benches at the top and bottom, sandwiching two upright chairs of 18 in W × 20 in D, in the middle.

Floor Plan Concept:

• Two chaise lounges for sunbathing
• Side table between them
• A small 2-seat bench or set of chairs in a shaded corner

Furniture & Dimensions:

• Size: 12 ft x 15 ft
• Chaise Lounges (2): Each are 6 ft long x 2 ft wide and have an adjustable backrest for sunbathing
• Small Side Table (1): 18 in diameter with a height of 18 to 20 in
• Garden Bench or Bistro-Style Chairs (2): Bench is 4 ft wide x 18 in deep and the chairs are 18 to 20 in wide each

Best for: Sunbathing, reading, meditation.

Patio Layout Tips For Furniture

• Measurements: Always verify your patio’s dimensions and plan the furniture spacing with a simple floor sketch or online or computer layout program.
• Walkways: Maintain at least 2.5 to 3 ft of walking space to avoid bumping into objects.
• Versatility: Opt for modular and multi-purpose furniture (sectionals, nesting tables) with extra storage if you need flexibility.
• Protection: Use outdoor rugs (polyester, olefin, recycled plastic, nylon)and protective covers to shield furniture from weather and extend its lifespan.

Patio Plan Recommendations

Final recommendations by priority and needs:

If you want…	Best Floor Plans
Hosting dinners	Alfresco Dining Haven (#2)
Casual hangouts	Cozy Corner (#1) or Fire Pit (#4)
Large parties	Entertainer’s Paradise (#6)
Small-space efficiency	Minimalist Lounge (#5)
Versatility	Conversation & Dining (#3)
Relaxation focus	Garden Retreat (#9)
