5 Kitchen Layouts with Double Wall Ovens For Serious Home Chefs

Kitchen layouts with double wall ovens

Having a double wall oven instantly upgrades any kitchen from “everyday use” to “chef-level.” But installing an extra unit isn’t as simple as carving out 30 inches of extra vertical cabinet space. It changes the entire rhythm of how you prep, plate, and move around. In these kitchen layouts with double wall ovens you’ll see five very different solutions: a 15′×12′ U-shape that tucks the ovens into a traffic-free baking station, an 18′×14′ L-shape with a sleek island where the ovens anchor the back wall, a space-saving 20′×8′ galley that recesses the stack beside a full-height pantry, an open-concept peninsula design that keeps the double ovens out of the social zone, and an 18′×16′ entertainer’s kitchen where the ovens sit one step from a cozy breakfast nook. Each plan shows how clever placement of a double wall oven can enhance your work triangle, free up countertop space, and create new gathering spots for entertaining.

U-Shaped Gourmet Kitchen Layout

By utilizing a balanced U-shape kitchen with an island in the center, a separate baking station, and a full-height pantry, this design transforms into a chef-worthy, multi-cook workspace that feels open and social.

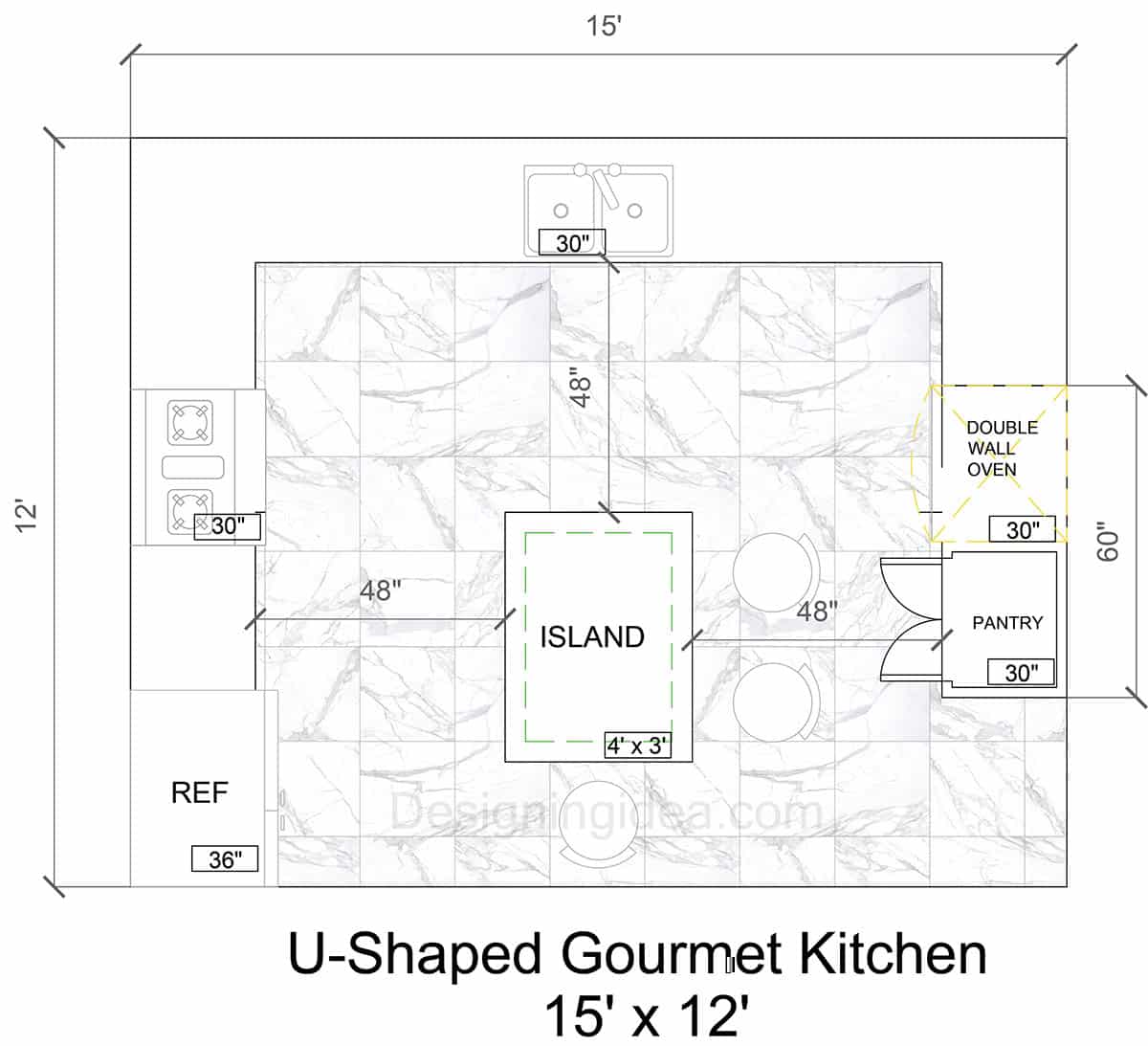

U-Shaped Gourmet Kitchen Layout

Floor Plan Details: This gourmet kitchen uses three walls of cabinets and countertops to form an efficient U-shape, then drops a compact island in the center for extra prep space and dine-in seating. The left side is where you’ll find a 36″ refrigerator at the corner and entry to the space, followed by a span of counter and a 30″ cooktop/range. Along the top wall a 30″ double-bowl sink sits beneath the window with counter space on either side. On the right side, is a dedicated appliance/storage zone with a 30″ tall pantry cabinet sitting beside a 30″ double wall-oven stack. This setup keeps baking traffic out of the main walkway. With generous 48″ clearances on all sides of the island, there’s room to accommodate two cooks comfortably and give bar-stool diners some elbow room

Dimensions:

  • Room size: 15′ W × 12′ D
  • Island: 4′ L × 3′ W with 2-seat overhang on the dining side
  • Aisles: 48″ between the island and all perimeter counters
  • Left side: 12′ long total
    • 36″ refrigerator
    • 30″ range/cooktop with base cabinets on either side
  • Top side: full 15′ width
    • 30″ sink base centered in window bay
  • Right side:
    • Appliance niche: 60″ width
    • 30″ pantry cabinet
    • 30″ double wall oven
  • Standard base-/wall-cabinet depths: 24″/12″

Design Tips:

  • Aisles: Maintain 48″ aisles to allow two cooks to pass easily and open the oven door or dishwasher without trouble.
  • Seat placement: Keep barstools on the island’s pantry-side so guests are away from hot surfaces.
  • Appliance zoning: The wall-oven stack is offset from the main range and is great for intensive baking without crowding the cooktop.
  • Pantry depth alignment: Matching the 30″ pantry to the oven appliance size creates a flush face and contains small appliances inside pull-out drawers.
  • Task & accent lighting: Pendants over the island combined with under-cabinet LEDs keep the prep areas bright.
  • Upgrade potential: Consider swapping the 4′ × 3′ island for a larger 5′ × 3′ island if you can live with 42″ aisles, which would gain storage drawers.

L-Shaped Kitchen With Modern Layout And Island

This L-shaped kitchen pairs a wide traffic lane and a bar-height island to transform the space into a sleek, entertainer-friendly design, perfect for both cooking and socializing.

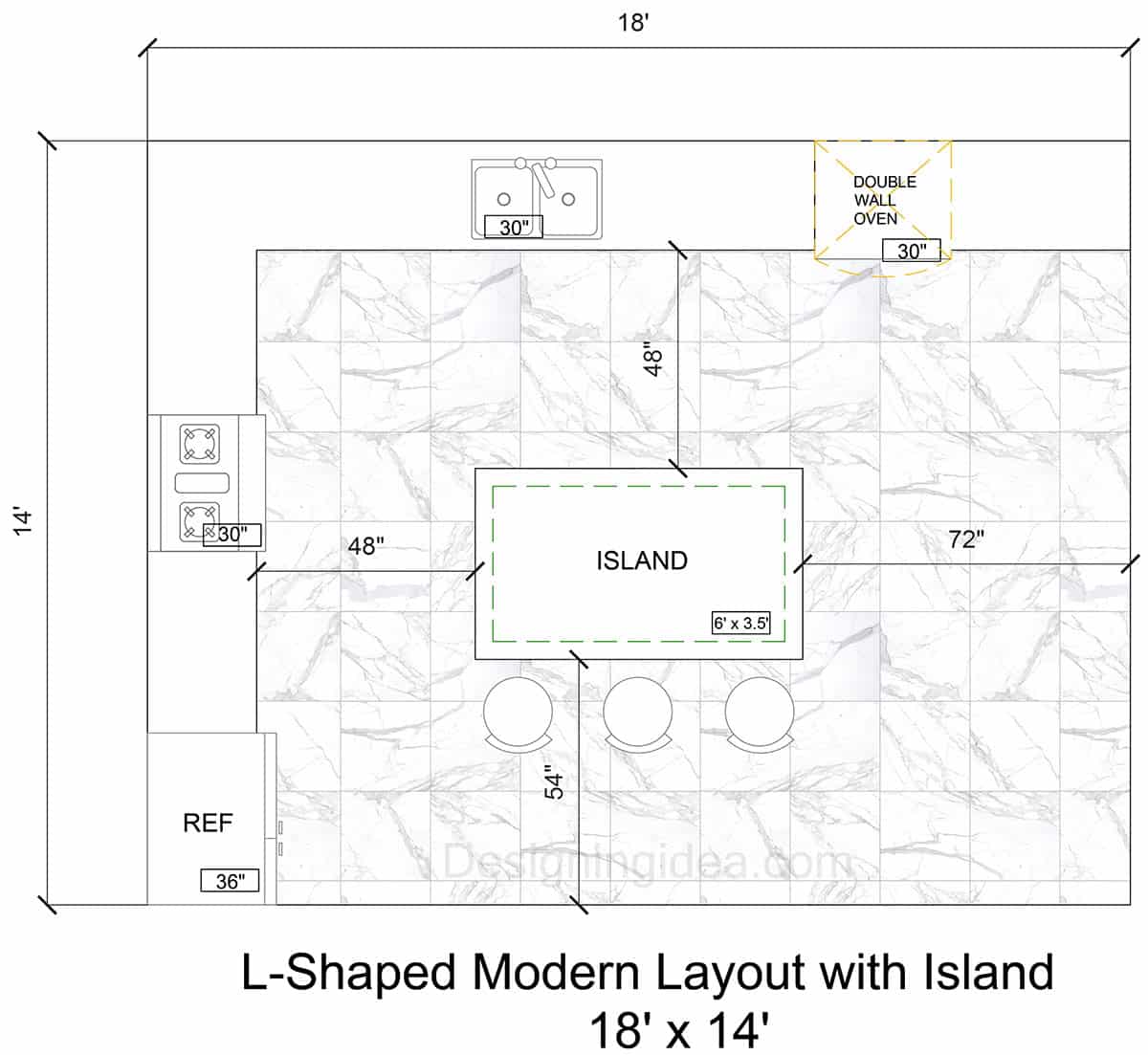

L-Shaped Kitchen With Modern Layout And Island

Floor Plan Details: Within an 18′ × 14′ envelope, this kitchen deploys an L-shape along the left and back walls, then plants a generous 6′ × 3 ½′ island in the middle. The tall 36″ refrigerator anchors the lower-left corner, flowing into uninterrupted counter space and a 30″ cooktop/range before turning the corner. Centered on the back wall is a 30″ double-bowl sink beneath the window, while a 30″ double wall-oven stack is recessed to the far right, keeping foot traffic out of the core work zone. A full 48″ working aisle circles the island on the prep sides, expanding to 72″ on the right to create an easy passage to adjacent rooms. The island’s seating edge (three stools) flares out to a 54″ eating aisle so guests can tuck in without blocking the cooks.

Dimensions:

  • Room size: 18′ W × 14′ D
  • Island: 6′ L × 3 ½′ W with 3-seat overhang
  • Prep aisles: 48″ between island and cook/sink counters
  • Traffic aisle (island to right wall): 72″
  • Seating aisle (island to bottom walkway): 54″
  • Appliance zones
    • Refrigerator: 36″ wide
    • Range/cooktop: 30″ wide
    • Sink base: 30″ wide
    • Double wall oven: 30″ wide (recessed pocket)

Design Tips:

  • Maintain a large walkway: Keep the 48″ work aisles intact to let two cooks maneuver without collisions.
  • Place the bar stools on the island’s outside: Island seating on the open side positions guests away from the cooking triangle yet close enough for conversation.
  • Recess the wall-oven stack: Keep it flush so its door swing doesn’t shrink the main passage.
  • Use corner storage solutions: Install a lazy Susan, or blind-corner pull-outs to utilize the space beside the range.
  • Use a statement backsplash: Accent the long back wall with a statement slab backsplash to emphasize the modern lines.
  • Layer lighting: Use trimless recessed cans for general light, and slim under-cabinet LEDs for tasks, and minimalist pendants above the island for style.
  • Island countertop feature: Consider a waterfall countertop on each short end of the island to reinforce the contemporary aesthetic and shield seating knees.

Galley Kitchen Floor Plan with Extended Storage

This galley kitchen offers a 4-foot aisle, a full-height pantry, and a corridor of upper and lower wall cabinets that provides an abundance of storage and a smooth workflow.

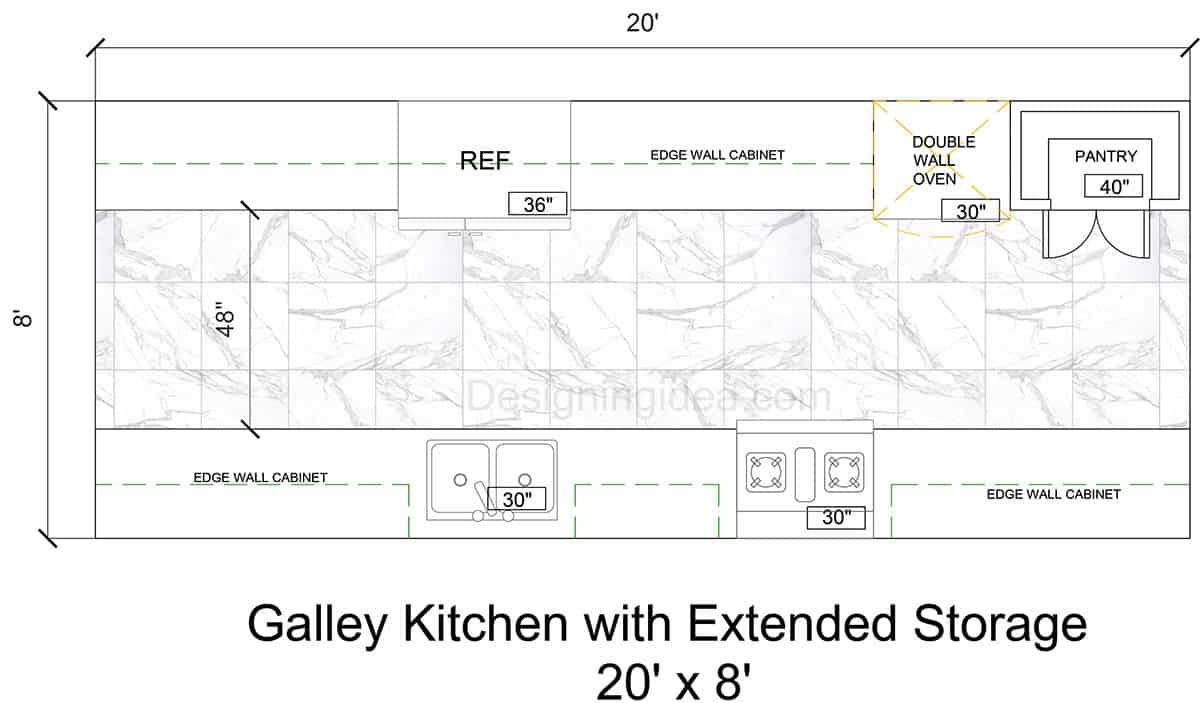

Galley Kitchen Floor Plan with Extended Storage

Floor Plan Details: Stretched across a slim 20-foot corridor, this galley kitchen arranges two parallel countertop runs and boosts capacity with floor-to-ceiling storage on either side. On the upper wall, a 36″ refrigerator is followed by uninterrupted counter space for prep and landing, leading to the 30″ double wall oven stack and a 40″ walk-in pantry niche. Opposite, the lower run features a 30″ double-bowl sink with flanking counters and a 30″ cooktop/range closer to the pantry end for easy reach to the ovens. An expansive 48″ aisle lets two cooks pass and work together. the upper “edge wall” cabinets (shown in dashed) project just inside the counters, allowing storage for more seldom-used items or accessories.

Dimensions:

  • Room size: 20′ L × 8′ W
  • Central aisle: 48″ clear (24″ base cabinets + 48″ walkway + 24″ base cabinets = 96″ / 8′)
  • North (upper) run:
    • 36″ refrigerator
  • Continuous counter & base cabinetry
  • South (lower) run:
    • 30″ sink base centered on wall
    • Expansive counters both sides
    • 30″ range/cooktop near pantry end
  • Edge wall cabinets: ~12–15″ deep uppers at both ends for bonus, out-of-the-way storage

Design Tips:

  • Maintain the 48″ aisle: This is the minimum for two cooks to work back-to-back and for appliance doors to open freely.
  • Cluster cold and wet zones: Pair the refrigerator and sink toward the entry side so daily grab-and-go tasks avoid the hot zone.
  • Keep ovens and pantry at the far end: This shifts heat away from the main cooking area and creates a natural staging zone for serving.
  • Install task lighting under both cabinet runs: This helps to rid the counters of shadows.
  • Consider pocket doors on the pantry: This way, nothing swings into the galley when the storage area is open.

Open Concept Kitchen With Peninsula Layout

Adding a front-facing peninsula with a sink turns this kitchen into an entertainer’s dream, with bar-height seating and seamless flow into the surrounding open-concept space.

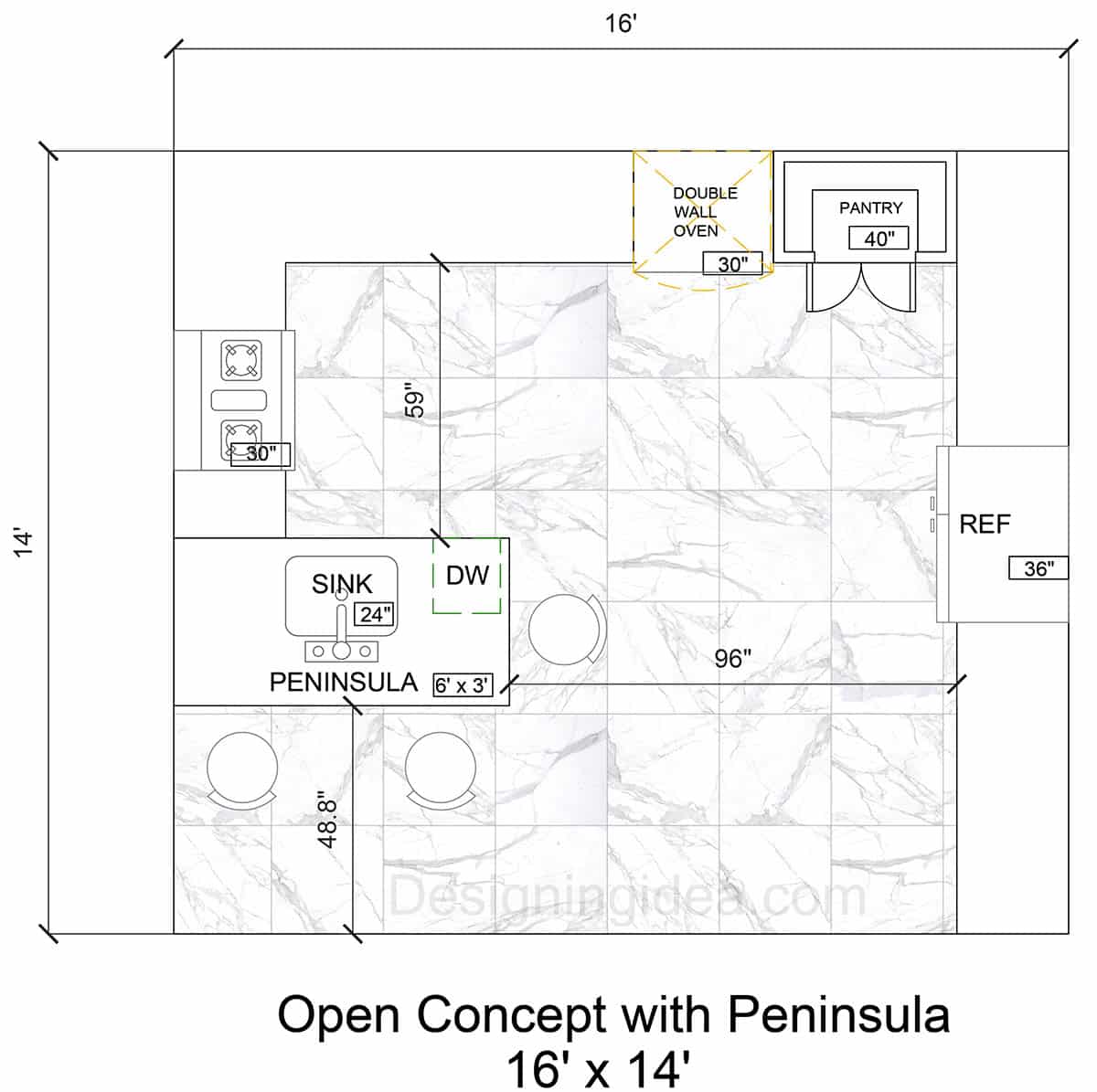

Open Concept Kitchen With Peninsula Layout

Floor Plan Details: This open-concept kitchen wraps cabinetry on three sides but swaps a traditional island for a 6′ × 3′ peninsula that doubles as the room’s social hub. The working L begins on the left side with a 30″ cooktop/range, then it turns the corner to meet the peninsula where a 24″ sink and dishwasher sit near the living space. Along the back wall, a 30″ double wall-oven stack partners with a 40″ walk-in pantry. Opposite the cooking wall, there’s a 36″ refrigerator that anchors the right side and allows an extra-wide 96″ passage that flows straight into the adjacent dining or family area. Two bar stools sit at the peninsula’s exterior, and clearances of 59″ behind the sink and 48.8″ at the seating edge allow room for cooks, kids, and guests to circulate within.

Dimensions:

  • Room size: 16′ W × 14′ D
  • Peninsula: 6′ L × 3′ D with 3-seat overhang
  • Primary clearances
    • 59″ between the peninsula sink edge and the back-wall ovens
    • 96″ between the peninsula and refrigerator/right wall (main traffic lane)
    • 48.8″ seating aisle behind stools
  • Appliance sizes
    • Refrigerator: 36″
    • Range/cooktop: 30″
    • Sink base: 24″ (centered in the peninsula)
    • Dishwasher: 24″ (right of sink)
    • Double wall oven: 30″
  • Walk-in pantry doorway: 40″ wide

Design Tips:

  • Face-out sink placement: This helps keep the chef connected to the guests and what’s going on in the adjoining room.
  • Storage in the peninsula: Integrate shallow base cabinets on the peninsula’s living-room side for extra storage.
  • Add an accent feature: Choose a waterfall countertop or contrasting panel on the peninsula end to create a visual “stop” between kitchen and living areas.
  • Install a pull-out trash next to the dishwasher: This makes cleaning up, scraping, rinsing, and loading quicker and easier.
  • Layer lighting: Hang slim pendants over the peninsula for task and ambience, under-cabinet LEDs along the back run, and recessed cans for general wash.

L-Shaped Kitchen with Peninsula and Corner Breakfast Nook

By pairing a sink peninsula with stools to seat two with a corner banquette, this L-shaped kitchen delivers an efficient workflow, plenty of storage, and a cozy family dining nook.

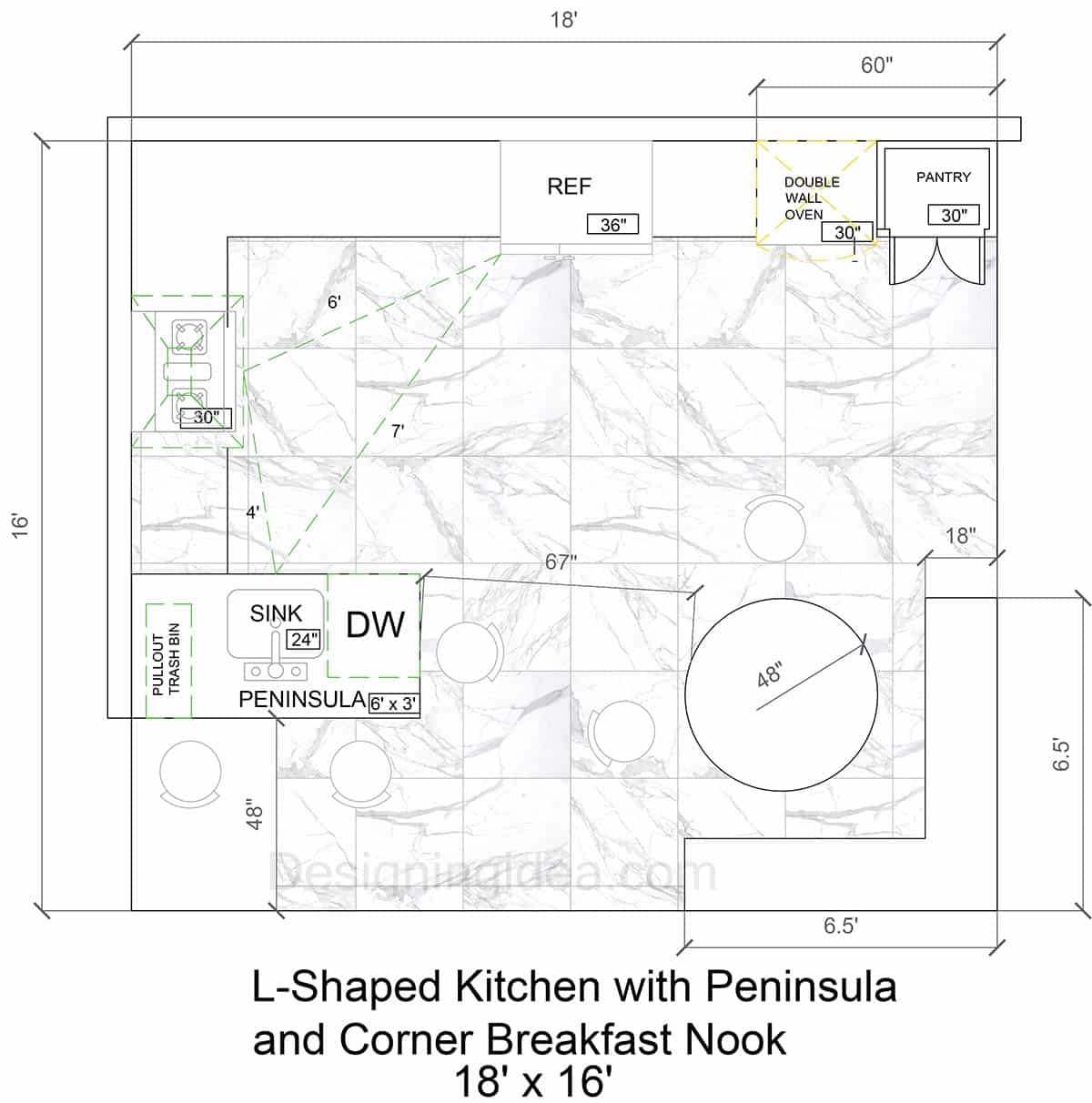

L-Shaped Kitchen with Peninsula and Corner Breakfast Nook

Floor Plan Details: This L-shaped working kitchen features a 6′ × 3′ peninsula and a built-in corner breakfast nook to create two distinct yet connected seating zones. The cooking leg starts on the far left with a 30″ range/cooktop and continuous countertop that turns the corner to meet a 36″ refrigerator centered on the back wall. On the far right, there’s a 30″ double-wall-oven stack and a 30″ walk-in pantry sitting in a 60″ deep alcove. The peninsula projects from the lower leg of the L, and faces the living space and contains a 24″ sink, pull-out trash, and a dishwasher. The peninsula also adds seating for two on the dining-side overhang. A 67″ aisle separates the peninsula from the round dining table, chair, and bench seating. The bottom-right corner, features this built-in 6.5′ × 6.5′ banquette that wraps a 48″ round table, creating an intimate breakfast spot without intruding on the kitchen work triangle (4′–6′–7′ legs).

Dimensions:

  • Room size: 18′ W × 16′ D
  • Peninsula: 6′ L × 3′ D with 2-seat overhang
  • Corner banquette: 6.5′ × 6.5′ L-bench + 48″ round table
  • Main prep aisle (peninsula to back run): 67″
  • Seating aisle behind peninsula stools: 48″
  • Cook zone to sink: 4′
  • Cook zone to fridge: 6′
  • Fridge to sink: 7′ (work-triangle legs)
  • Appliance widths
    • Refrigerator 36″
    • Range/cooktop 30″
    • Double wall oven 30″
    • Dishwasher 24″
  • Pantry door opening 30″
  • Sink base 24″

Design Tips:

  • Use the peninsula with sink to face out: The outward-facing sink keeps the cook engaged with family at the stools or banquette and keeps sightlines open
  • Pull-out trash near the range: this placement streamlines scrape-to-rinse-to-load workflow (trash → sink → dishwasher).
  • Bench seating for the banquette: A fixed banquette bench eliminates chair push-back, letting the 48″ table fit comfortably inside the nook.
  • Use an accent wall or feature: Accent the cooking corner with a statement range hood or full-height slab backsplash to anchor the long left wall.
  • Layer the lighting: Pendants over the peninsula, sconces or a pendant above the banquette, and under-cabinet LEDs for tasks works well for this design.
