Most garages are not really planned; they become the place with parking spots, some shelves, and all of the stuff that doesn’t have a home mixed in. You might be able to fit a workbench in the back if you’re lucky, but it doesn’t have to be that way. With the right floor plan, you may be able to have an effective design that allows you to work. These home mechanic garage layout ideas share ways to fit essentials such as a dedicated car lift, wash corner, space for the toolbox, and workbench. Each of them is designed with different priorities in mind, so you can find the one that fits your garage size and interests.

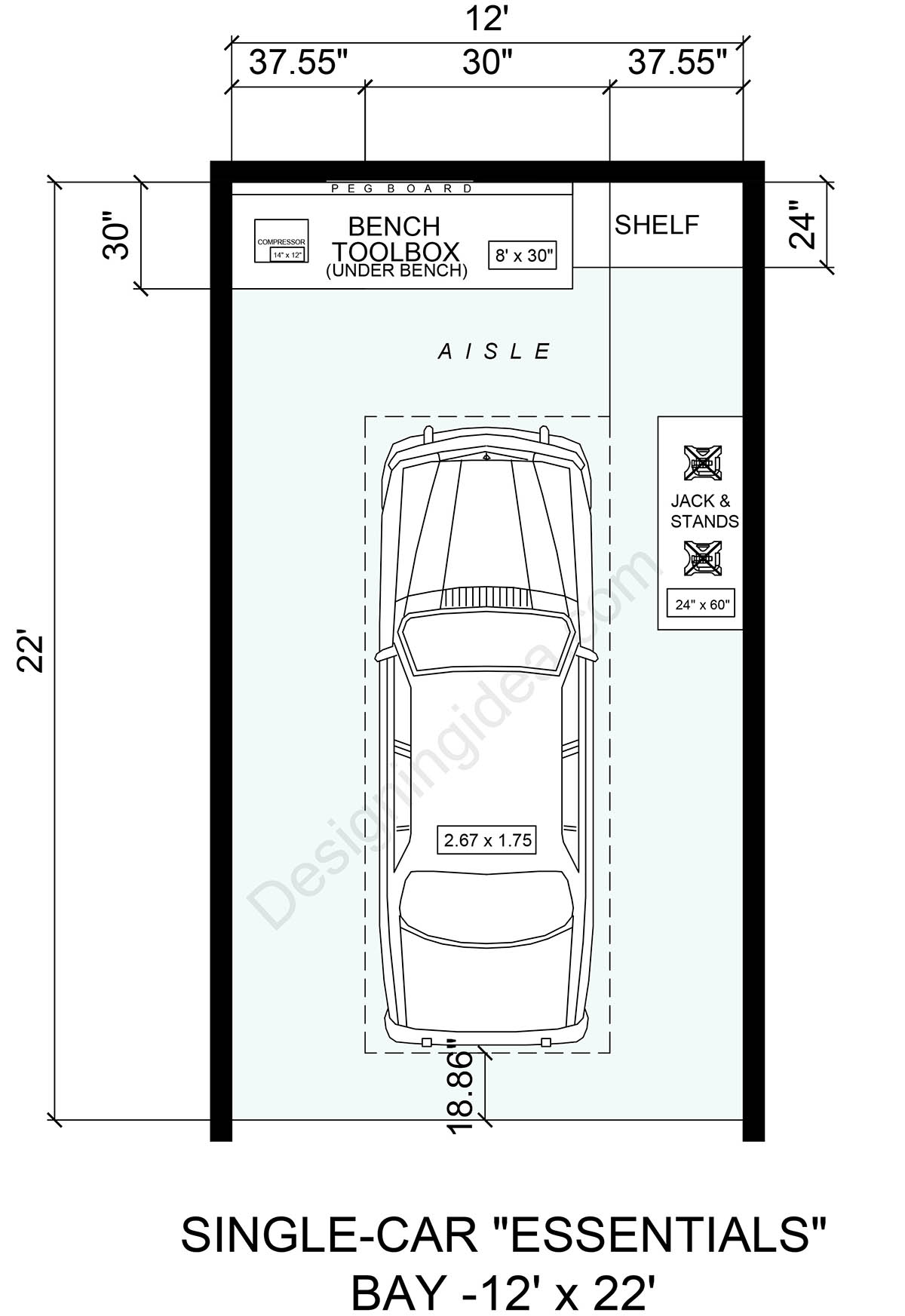

12×22 Single-Car Essentials Garage Bay Layout
Upload a photo and get instant before-and-after room designs.
No design experience needed — join 2.39 million+ happy users.
👉 Try the AI design tool now
Floor plan details: A single-car garage measuring 12′ x 22′ is a tight space, but it has just enough room in the back and one side to fit some essential items. This layout fits a car and a workshop by keeping everything hugging the walls. The workbench stretches across the back left with shelving sharing the remainder of the space, a space for storage down the right side, and the car centered in the middle. This design sets up the workbench with a pegboard on top, a rolling toolbox tucked underneath, and a small compressor wedged into the left corner. The right wall handles shelf storage that goes up to the ceiling and room for jack & stands down low on the left, where they are easy to access. The aisle between the bench and the car’s hood is your breathing room with just enough to maneuver.
Dimensions:
- Overall size: 12′ wide × 22′ deep
- Back wall workbench zone: 30″ deep across the full 12′ width
- Pegboard section widths: 37.55″ (left), 30″ (center), 37.55″ (right)
- Bench toolbox: 8″ × 30″ (stored under bench)
- Air compressor footprint: 14″ × 12″ (left back corner)
- Right-wall shelf depth: 24″
- Jack & stands storage area: 24″ × 60″ (right wall, lower)
- Vehicle footprint: approximately 2.67m × 1.75m (roughly 8.75′ × 5.75′)
- Clearance from rear bumper to garage door: 18.86″
- Aisle width (bench to car hood): approximately 30″
Design tips:
Workbench & Pegboard – Organize your tools by their frequency of use. For instance, place your daily use tools at eye level, and the stuff you use twice a year up high. Top the workbench with a butcher block or a steel surface, and place a pegboard measuring 34 to 36″ in height, making it more usable.
Toolbox – Keep it under 30″ wide so it slides under the bench, and choose a model with locking drawers so they don’t come out unexpectedly into the parking aisle.
Compressor – Mount a retractable hose reel above the bench for your compressor so that the hoses don’t sit on the floor and become a trip hazard.
Jack & Stands – Place a rubber mat under your jack and stands so it’s easier on your knees, and easier to roll the jack.
Lighting – Install two runs of 4′ LED shop lights down the long axis and add a task light over the bench for your projects.
Flooring – Go with an epoxy floor or interlocking rubber tiles, so if oil spills happen, they are more easily contained.
Overhead – since storage space is in short supply, go higher with a ceiling-mounted storage platform to better utilize all of the available area.
Best for: Those wanting daily driver maintenance, for working on fluids, brakes, or light suspension.

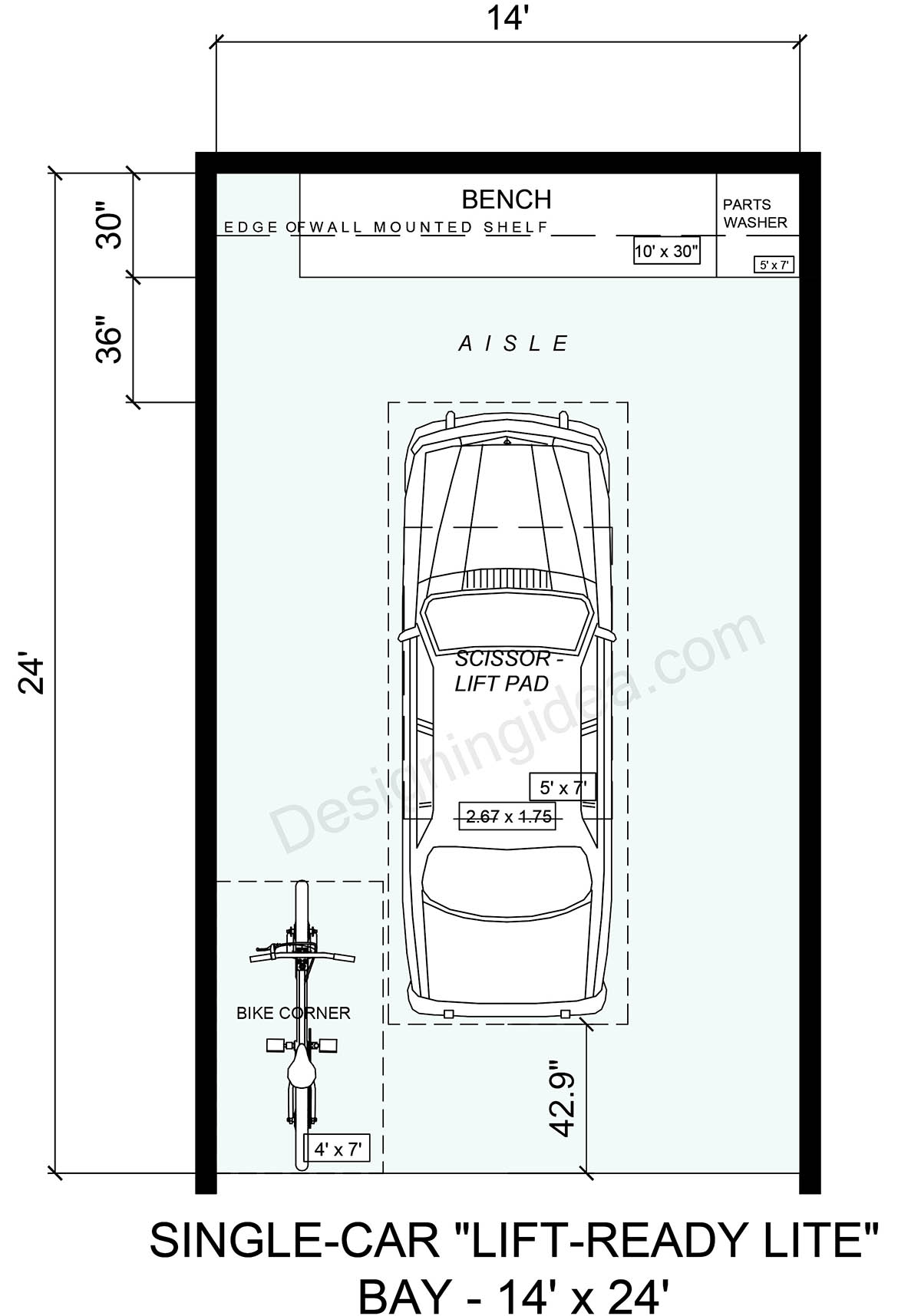

14×24 Single-Car Lift-Ready Lite Garage Floor Plan
Floor plan details: This single-car garage size is 14′ x 24′ and features a lift-ready parking bay. It offers two extra feet of width and two more of depth, compared to the 12×22 plan, and it makes a big difference. This layout’s built around the scissor lift pad, with a single-car parking setup so you can easily work on your vehicle when needed. There’s even a bike corner, which is a nice touch for those who want easy access to come and go. The layout devotes the back wall to a full-width workbench measuring 10′ x 30″ with a wall-mounted shelf below it, and a parts washer placed at the far right. The aisle up front is generous at 36″, giving you enough room to move around when the lift’s in use. The car is centered over the 5′ x 7′ scissor lift pad that can be a drive-on unit or a built-in flush design, depending on your budget and needs. The left rear corner is your bike storage zone with 4′ x 7′ of dedicated space, which keeps the bike out of the way. When parked, the car’s rear bumper sits about 42.9″ from the door giving you plenty of breathing room.
Dimensions:
- Overall size: 14′ wide × 24′ deep
- Back wall workbench: 10′ × 30″
- Wall-mounted shelf: runs along back wall edge beneath bench
- Parts washer footprint: 5′ × 7′ (right back corner)
- Aisle depth (bench to car hood): 36″
- Scissor lift pad: 5′ × 7′ (centered under vehicle)
- Vehicle footprint: 2.67m × 1.75m (approx. 8.75′ × 5.75′)
- Bike corner footprint: 4′ × 7′ (left rear)
- Rear bumper to garage door clearance: ~42.9″
Design tips:
Scissor Lift – Plan your floor before you buy the lift, since a flush-mount scissor lift needs a reinforced concrete slab that’s typically 4″ minimum, and ideally 6″. Don’t find that out after the pour. If you don’t have the ability, there are many portable products that could work as well. See a mid-rise scissor lift rated for 8000lbs at this link. (Sponsored)
Parts Washer – The corner placement for the parts washer is a good idea, and keep it near a drain if you can. A solvent-based washer does the job, but an aqueous, or water-based one is easier to live with long-term, as it provides less fumes.
Workbench & Shelf – The wall-mounted shelf below the bench is great for storing all of your parts within arm’s reach.
Bike Corner – A 4′ × 7′ footprint works for one bike, but if you’ve got two bikes or a cargo bike, go for a wall-mounted vertical hook system that frees up floor space. You can find a multiple-bike rack that swivels, such as this model (Sponsored), that can save space.
Lighting – With a lift, you’ll need light coming from multiple angles since underbody work is dark work. Add drop lights or a retractable LED work light on a ceiling track to give you the illumination you need.
Flooring – Epoxy works for this design, but if the scissor lift is getting heavy use, look into a commercial-grade polyurea coating instead.
Ceiling Height – This plan doesn’t show it, but a scissor lift typically needs about 11 to 12 feet of clearance at its full extension. Verify your ceiling height before going forward with your plans.
Best for: Those wanting to work on deeper projects, such as a motorcycle or car.

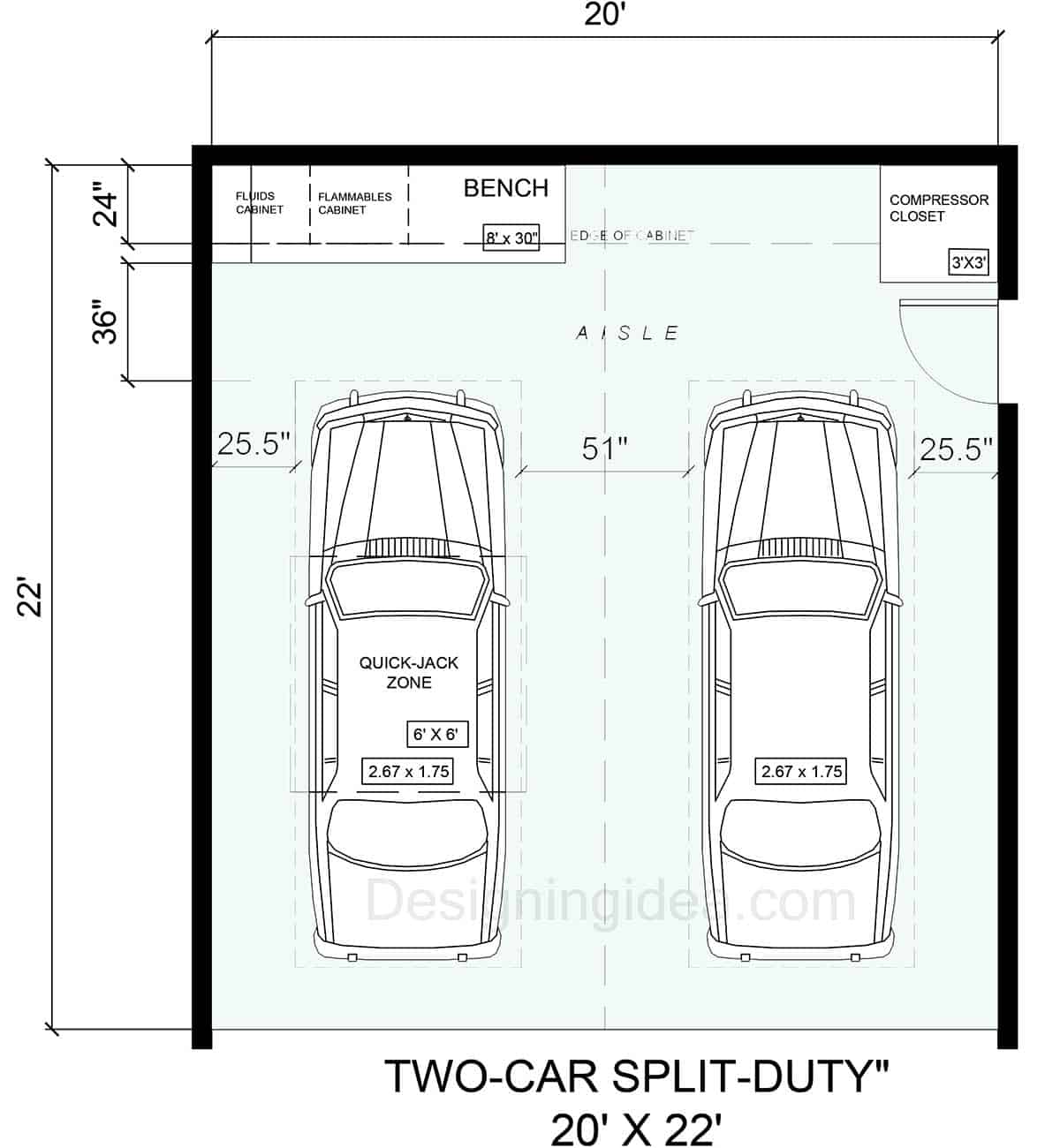

20×22 Two-Car Split Duty Garage Floor Plan
Floor plan details: This 20′ x 22′ two-car garage offers split-duty bays so you can park two vehicles and still have room for a workshop along the back. One bay pulls double duty as a quick-jack zone, and the other bay is strictly for parking. The back wall is all business with the left side dedicated to a fluids cabinet and a flammables cabinet side by side, then a central workbench measuring 8′ x 30″. On the far right, there’s a compressor that gets its own 3′ x 3′ closet. The left car bay has a 6′ x 6′ quick-jack zone marked right under the vehicle, so you know exactly where to position the car when it’s time to get to work under it. Both cars have 25.5″ of side clearance from the walls, with 51″ between them.
Dimensions:
- Overall size: 20′ wide × 22′ deep
- Back wall depth (storage zone): 24″ cabinet depth + 36″ aisle = 60″ total from back wall to car hood
- Workbench: 8′ × 30″ (center of back wall)
- Fluids & flammables cabinets: left side of back wall, separate units
- Compressor closet: 3′ × 3′ (right back corner)
- Left car clearance from left wall: 25.5″
- Right car clearance from right wall: 25.5″
- Center gap between cars: 51″
- Quick-jack zone: 6′ × 6′ (under left vehicle)
- Both vehicle footprints: 2.67m × 1.75m each
Design tips:
Fluids vs. Flammables – Organize the motor oil and brake fluid in one cabinet, and anything with vapors, like brake cleaner, starting fluid, and solvents, in a dedicated flammables cabinet.
Quick-Jack Zone – Mark this area on the floor by using paint or epoxy on the 6′ × 6′ outline so you always park the left car in the right spot.
Compressor Closet – A 3′ × 3′ closet is cozy for a compressor, so make sure it’s vented as compressors generate heat and need airflow. A louvered door does the job without costing a lot.
Lighting – Run lights down both sides of the center gap, and not just down the middle, so you have light coming across the cars, and not just above them.
Flooring – Epoxy the whole area, but consider using a different color or texture strip to mark the quick-jack zone.
Best for: Those wanting one wrenching bay and one everyday parking bay in a compact 2-car garage.

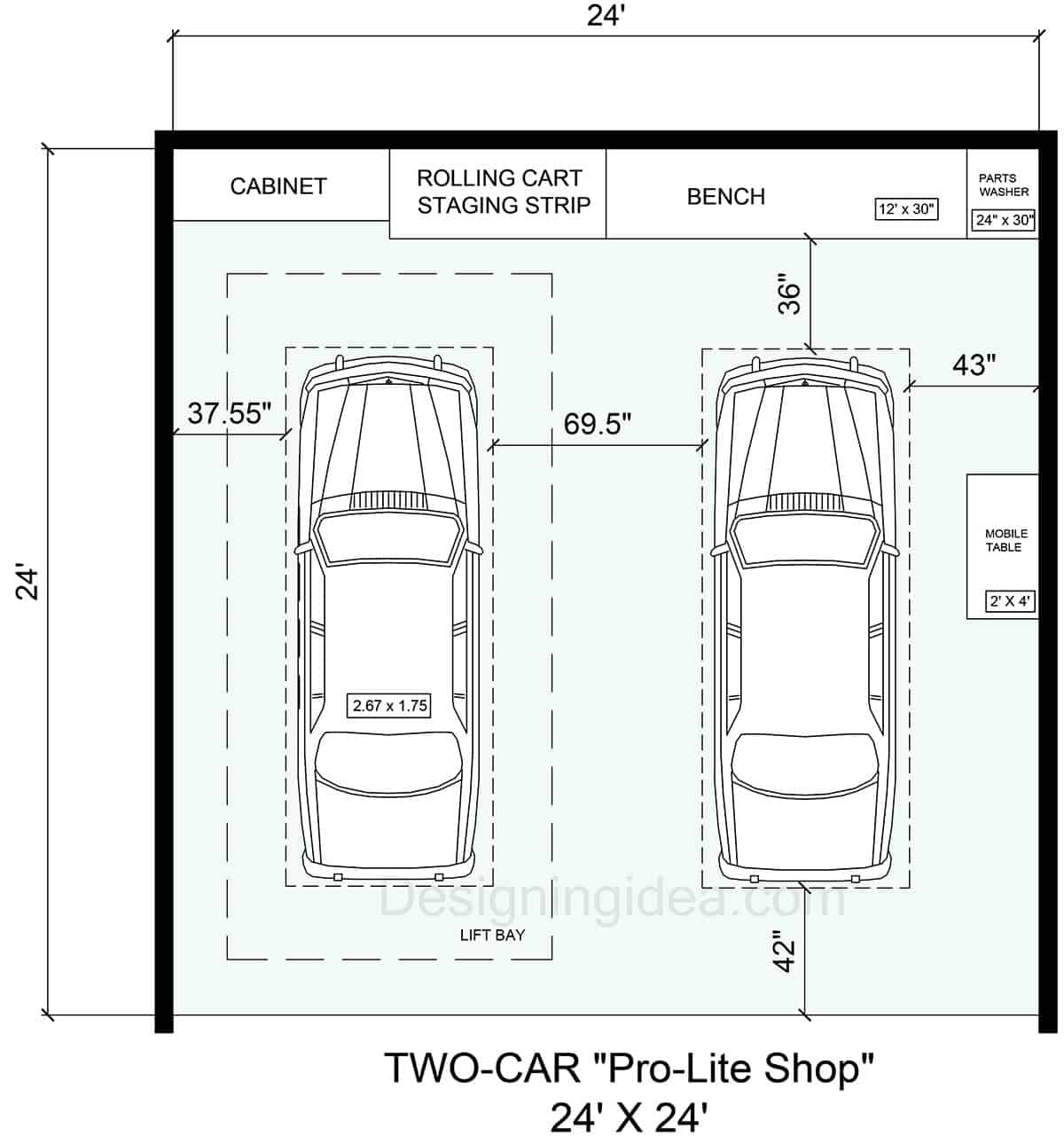

24×24 Two-Car Pro-Lite Garage Workshop Layout
Floor plan details: This 24′ x 24′ two-car garage creates a pro-lite workshop with a full lift bay on the left, a regular parking spot on the right, and a full back wall for a variety of work purposes. The back wall is split into three zones with cabinet storage on the left, a rolling cart staging strip in the middle, and a 12′ x 30″ bench on the right with a parts washer right next to it. On the right wall, there’s a 2′ x 4′ mobile table for when you need it. The left parking bay is the lift bay, shown with the dashed outline above. The right bay offers standard parking with 42″ of rear clearance. The 69.5″ gap between the cars is enough room for you to move and work.
Dimensions:
- Overall size: 24′ wide × 24′ deep
- Bench: 12′ × 30″ (right side, back wall)
- Parts washer: 24″ × 30″ (right back corner)
- Left car clearance from wall: 37.55″
- Center gap between cars: 69.5″
- Right car clearance from right wall: 43″
- Aisle depth (bench to car hood): 36″
- Rear bumper to garage door: 42″
- Mobile table: 2′ × 4′ (right wall, mid-bay)
- Both vehicle footprints: 2.67m × 1.75m
Design tips:
Rolling Cart Staging Strip – A dedicated zone along the back wall for rolling your tool cart out and parking it while you work is a useful feature for enhanced productivity.
Lift Bay – If you want a built-in lift bay, confirm your slab thickness before you buy anything. Using six inches of reinforced concrete is a non-negotiable.
Light the 69.5″ Center Gap – At almost six feet between the cars, there is working room for your needs. Add a ceiling track with a retractable extension cord or air hose that can drop right down the middle.
Parts Washer Placement – Place the parts washer in the corner, but think about drainage before it’s installed. Aqueous washers are easier for day-to-day use, and solvent ones clean better, but you’ll smell it for hours.
Backsplash for the bench – Add a backsplash behind the bench surface so you don’t splash liquids against the walls while working with parts.
Mobile Table – Position a 2′ x 4′ rolling table for use as a portable second workbench. Park it next to whatever car you’re working on.
Lighting – The lift bay needs its own dedicated underbody lighting setup, separate from the main overhead grid. The rest of the space use two LED runs down the long axis, and have them angled slightly toward the center gap section.
Flooring – Polyurea in the lift bay, and epoxy everywhere else is a good mix for this setup. Mark the lift bay boundary on the floor so you know where to park.
Best for: Those wanting a serious DIY workshop for exhaust, driveline, and suspension work with a 4-post lift.

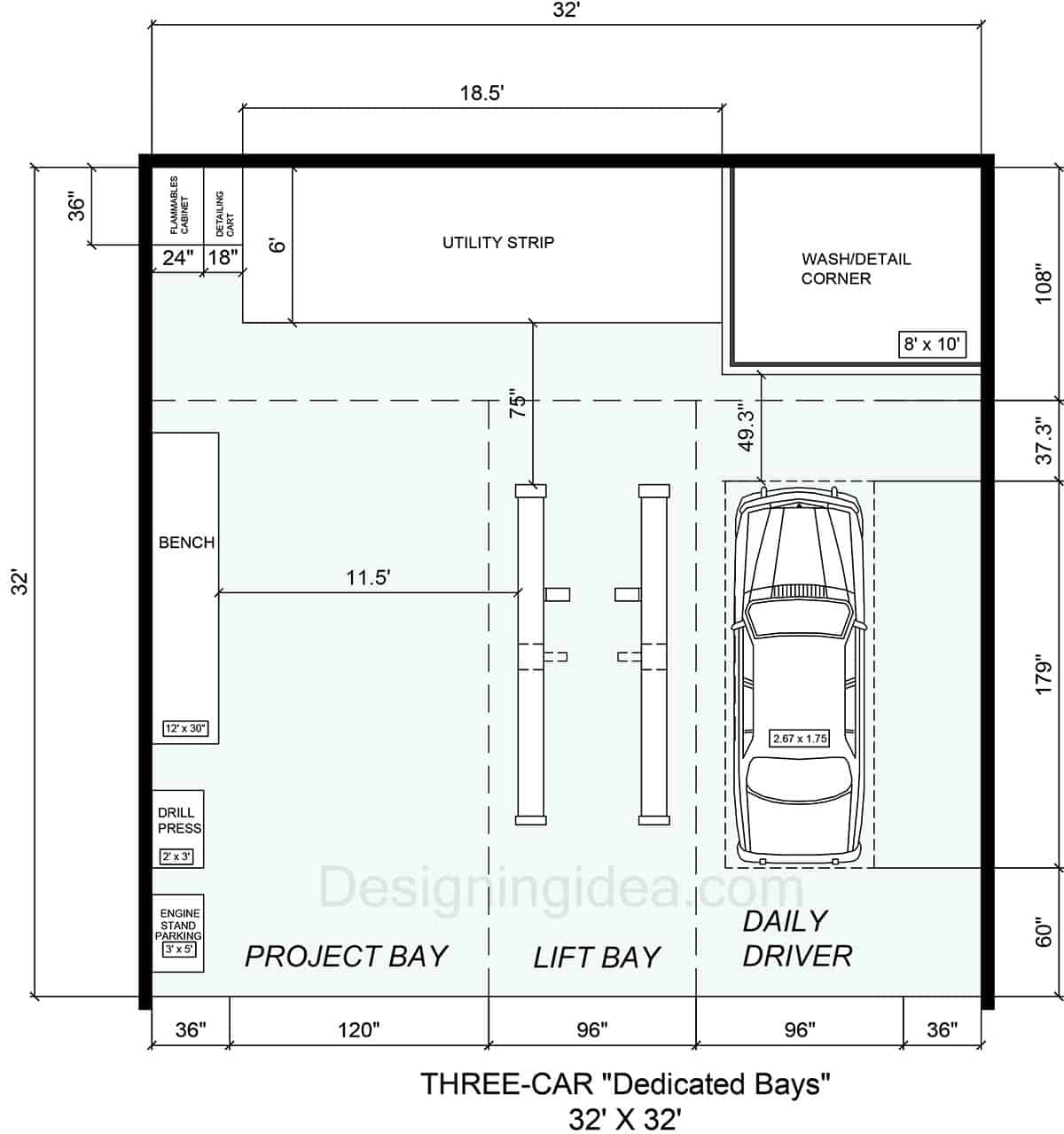

32×32 Three-Car Garage with Dedicated Parking & Workshop Bays Design
Floor plan details: This 32′ x 32′ three-car garage offers dedicated bays, one for the project car, one for the lift, and one for the daily driver. The layout features a left wall that acts as the workshop’s spine. It has a bench, drill press, and engine stand parking, all stacked down the left side. The flammables cabinet and a detailing cart sit at the top-left corner with a 6′ utility strip running across the entire back wall. That strip works as a dedicated zone for carts, equipment, and staged parts to live without falling into the bays and getting in the way. The top-right corner gets a proper wash/detail corner that measures 8′ x 10′. It could work with a drain, hose reel, and maybe a foam cannon setup. The daily driver pulls into the right bay, with the lift bay sitting center, and the project bay taking up the left side.
Dimensions:
- Overall size: 32′ wide × 32′ deep
- Project bay width: 120″ (10′)
- Lift bay width: 96″ (8′)
- Daily driver bay width: 96″ (8′)
- Wall clearances (each side): 36″
- Utility strip depth: 18.5′ wide across back
- Flammables cabinet: 24″ wide
- Detailing cart: 18″ wide
- Bench: 12″ × 30″ (left wall)
- Drill press footprint: 2′ × 3′ (left wall)
- Engine stand parking: 3′ × 5′ (left wall, bottom)
- Wash/detail corner: 8′ × 10′ (right back corner)
- Right wall depth zones: 108″ upper, 37.3″ mid, 179″ lower, 60″ bottom
- Aisle from utility strip to bays: 75″ (center), 49.3″ (right)
- Vehicle footprint (daily driver shown): 2.67m × 1.75m
- Project bay from left wall: 11.5′
Design tips:
Three Dedicated Bays – Every bay has one job, so avoid stacking stuff in the project bay as temporary storage, so they all work together.
Utility Strip – Use the wide back strip for carts and staging, and label spots on the floor if you have to, so they stay in their area.
Wash/Detail Corner – Plan the drain first in the corner with a slight slope, making the whole thing actually usable.
Engine Stand Parking – Having a designated spot means it’s permanent. The same goes for the drill press; bolt it down so it stops moving around.
Lighting: Each bay should have its own lighting zone on a separate switch.
Flooring – For best garage flooring results, install polyurea in the lift bay, epoxy everywhere else, and sealed concrete in the wash corner with a non-slip additive.
Best for: Those wanting one full-time project bay, a lift bay, and one for a daily driver
