Choosing a bathroom layout for your home depends primarily on how much space you have, the fixtures you need, and how you actually use the room each day. Depending on its size and shape, there may be trade-offs, such as shower size versus storage, privacy versus openness, and luxury features versus budget. This guide shares seven standard rectangular bathroom floor plans ranging from 40 to 150 square feet. Each design covers different priorities you may want, like a bathroom with compact efficiency, accessibility, family functionality, or one with full master suite amenities.
This 3/4 bath layout prioritizes function and flow by giving you access to the sink, toilet, and shower, all in a row along one side with the walkway on the other side for an efficient design.
Easily Create Your Own Room Makeover
Upload a photo and get instant before-and-after room designs. No design experience needed — join 2.39 million+ happy users. 👉 Try the AI design tool now

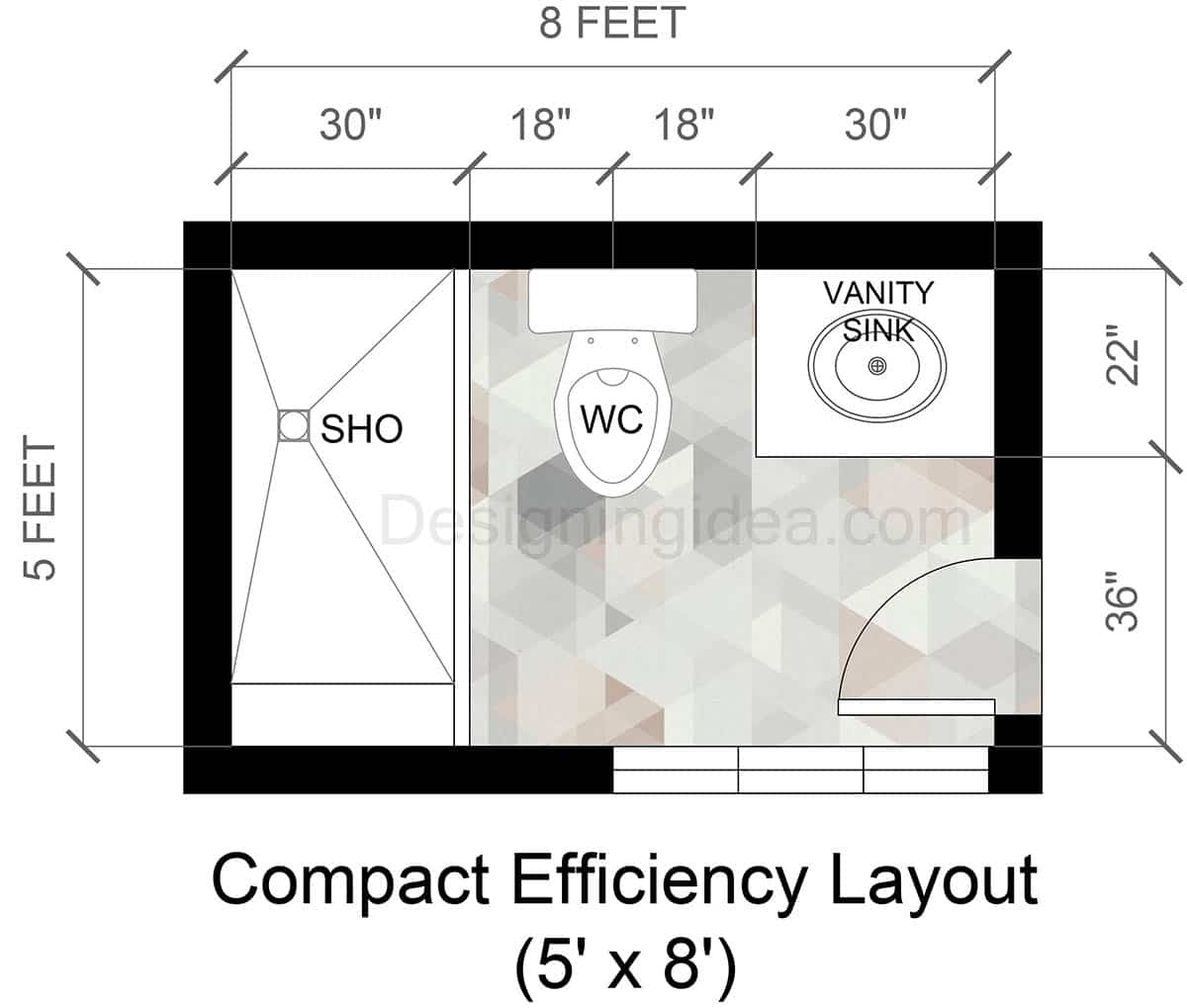

Layout Details: This small 5×8 bathroom is a 3/4 layout with a sink, toilet, and shower. The layout is efficient, and everything’s got its job to do, with no wasted space. You’ve got three distinct zones, including a 60″ x 30″ shower, a toilet with adequate code clearances, and a 22″ x 30″ single sink vanity. The shower sits on the left side in the corner and is the furthest from the doorway, so it doesn’t interfere and helps better utilize the far wall. The toilet sits in the middle, so it’s not the first thing you see when you open the door. The small vanity is positioned in the upper right corner, providing essential storage and counter space. The layout respects modern walkway and toilet clearances without feeling cramped, and you can actually stand at the sink with 36″ of clearance behind you.
Install floating shelves above the toilet, and towel hooks near the shower and on the back of the door.
Go with an exhaust fan with 70 to 80 CFM.

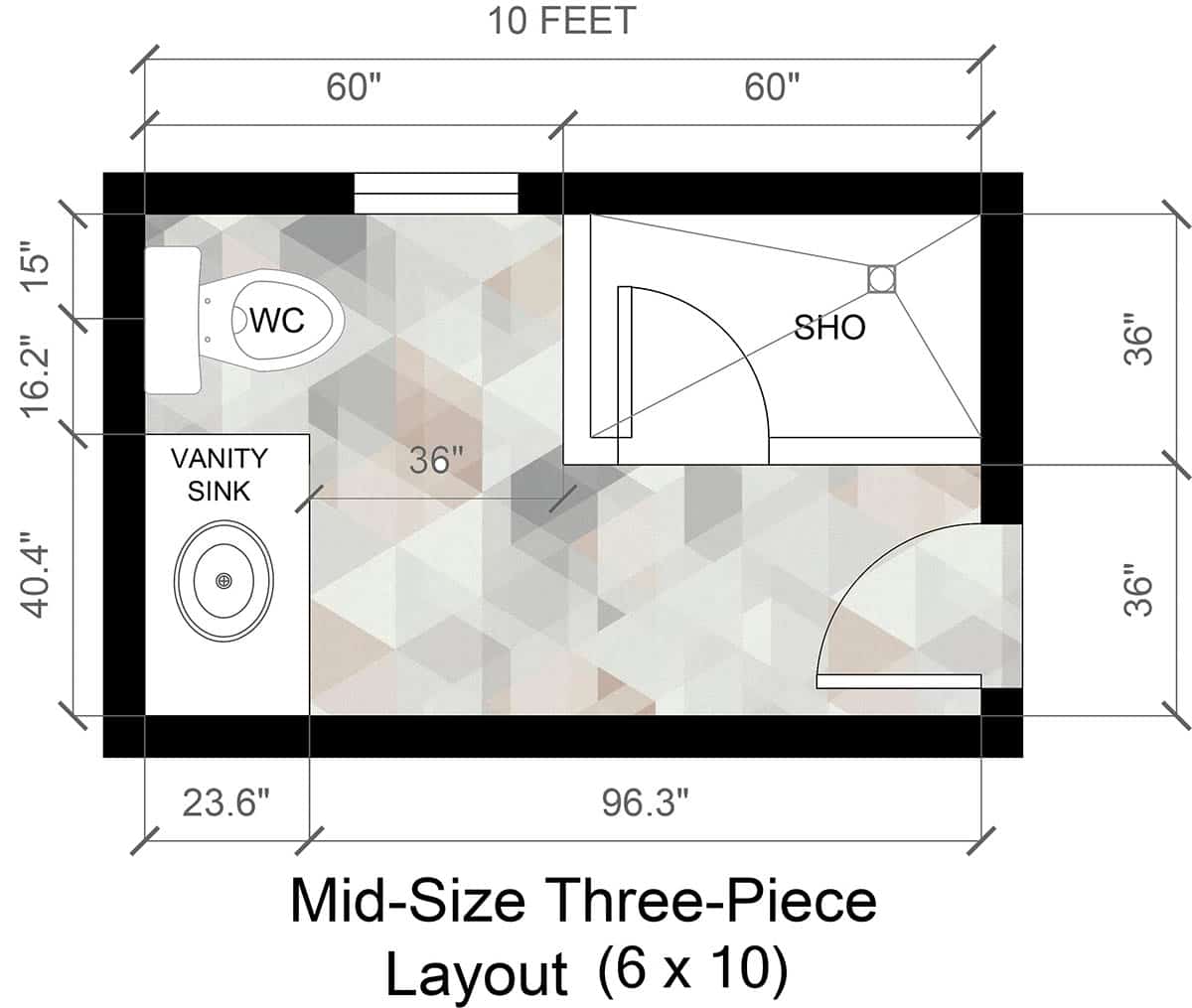

6×10 Mid-Size Three-Piece Bathroom Floor Plan
This 3/4 bath positions the sink and toilet sharing one wall in back, a shower near the top, and a walkway along the bottom for a stylish setup that feels roomy and inviting.
Layout Details: At 60 square feet, this 6×10 bathroom gives you room to maneuver without feeling cramped. As you enter from the right side, you’ll find a 36″ x 60″ walk-in shower directly to your right. As you continue down the 36″ walkway, you find a 40″ x 24″ single vanity sink in the lower corner with a toilet up top. There’s a generous 36″ stretch of open floor between the toilet and the shower, and its positioning somewhat shelters it from the entrance for added privacy. The dividing wall between the toilet and shower also separates the wet from the dry areas and makes room for a window to let in much-needed natural light.
Width segments: Two equal 60-inch zones (left and right)
Depth zones: 15″ entry area, 16.2″ vanity depth, 36″ middle circulation space, 36″ back zone for toilet/shower
Vanity width: 23.6 inches
Main usable area: 96.3 inches of the total width
Design Tips:
Run the partial wall on the left side of the shower at least 5 to 6 feet high for privacy and separation from the toilet.
Tile the enclosure all the way up for a spa-like vibe.
Consider going with a curbless shower entry if your floor allows it to make it more accessible, looking cleaner.
Choose a vanity with drawers instead of doors, making it easier to access.
Install a double-wide medicine cabinet above the sink.
Add storage above the toilet zone, like a small shelf or cabinet, for storing extra essentials.
Use multiple lighting fixtures, such as vanity lights and a shower light.
Add an exhaust fan to cut down on humidity and mold. It should be between 70 to 80 CFM, which is standard for 50 to 100 sq ft spaces. Consider going up to 100 CFM if the shower gets heavy use.

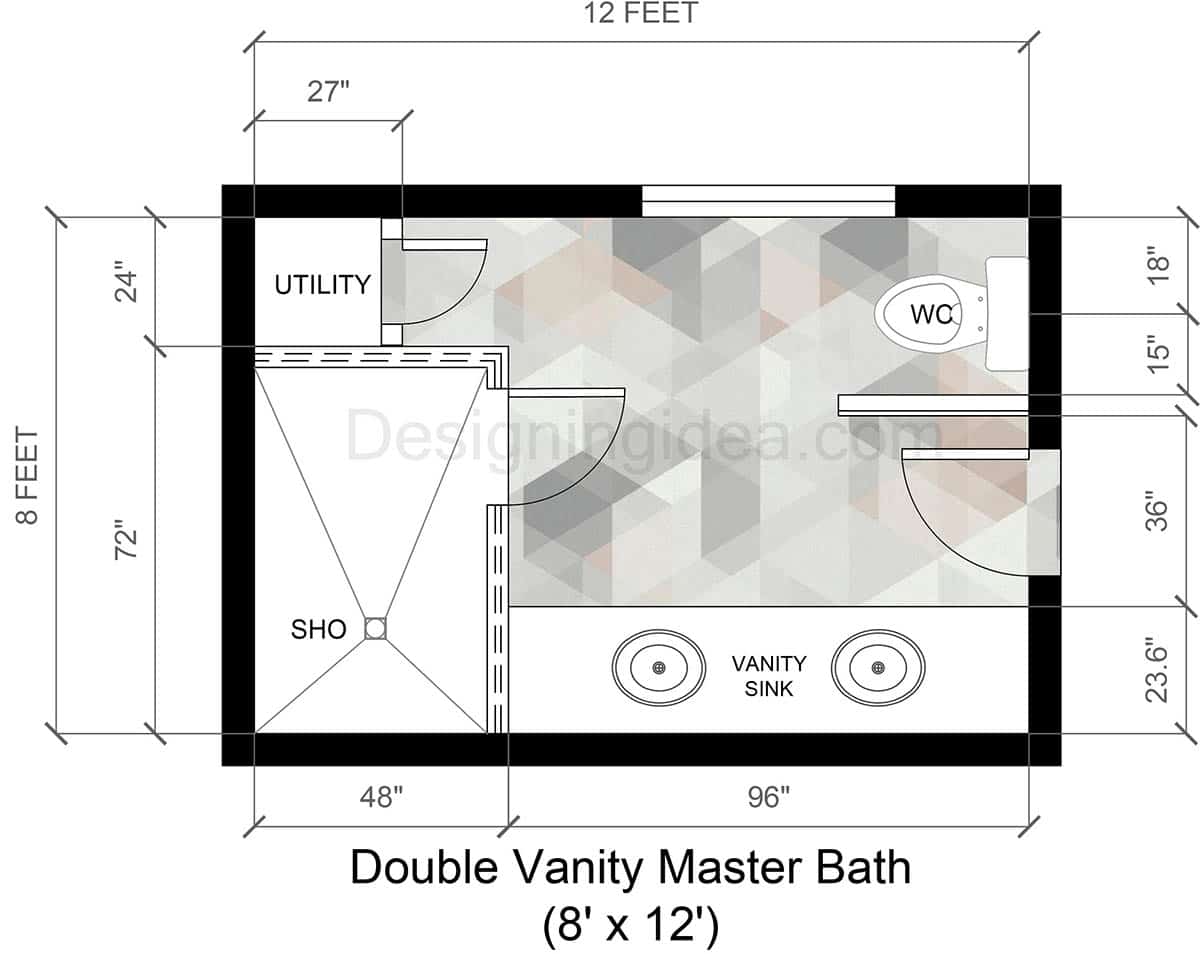

8×12 Double Sink Vanity Master Bath Layout
This master bathroom suite design gives a couple, or just one person who likes space the room to move with double sink vanity, private toilet and a large walk-in shower.
Layout Details: This 8′ x 12′ design is a definite master bath at 96 square feet that feels luxurious due to its larger 72″ x 48″ walk-in shower, and 23.6″ x 96″ dual sink vanity. The double vanity runs along the bottom wall and gives the couple room to stand side by side without bumping into one another. From the entry there’s a partition wall that separates the toilet area from the door for privacy in the upper right corner. As you enter the shower is located against the back wall with a 24″ x 27″ utility or linen closet for all of your appliance or storage needs. This separate utility closet could be used to store a water heater, stacked washer/dryer, or whatever you need tucked away.
Consider separate recessed medicine cabinets at the vanity.
For a luxe feel, add a rainfall shower head, body jets, and a bench at one end.
If you’re using the utility closet for laundry service, add some sound-dampening to better maintain the spa vibe while you’re trying to relax.
Consider heated floors for an added high-end feature that pays off during the cold months.
Make sure you have a small privacy wall to keep separation between the entry and the toilet for more privacy if desired.
Use a 100 to 110 CFM exhaust fan to cover the main bathroom and an additional 50 CFM for the utility room if you have a washer/dryer installed.

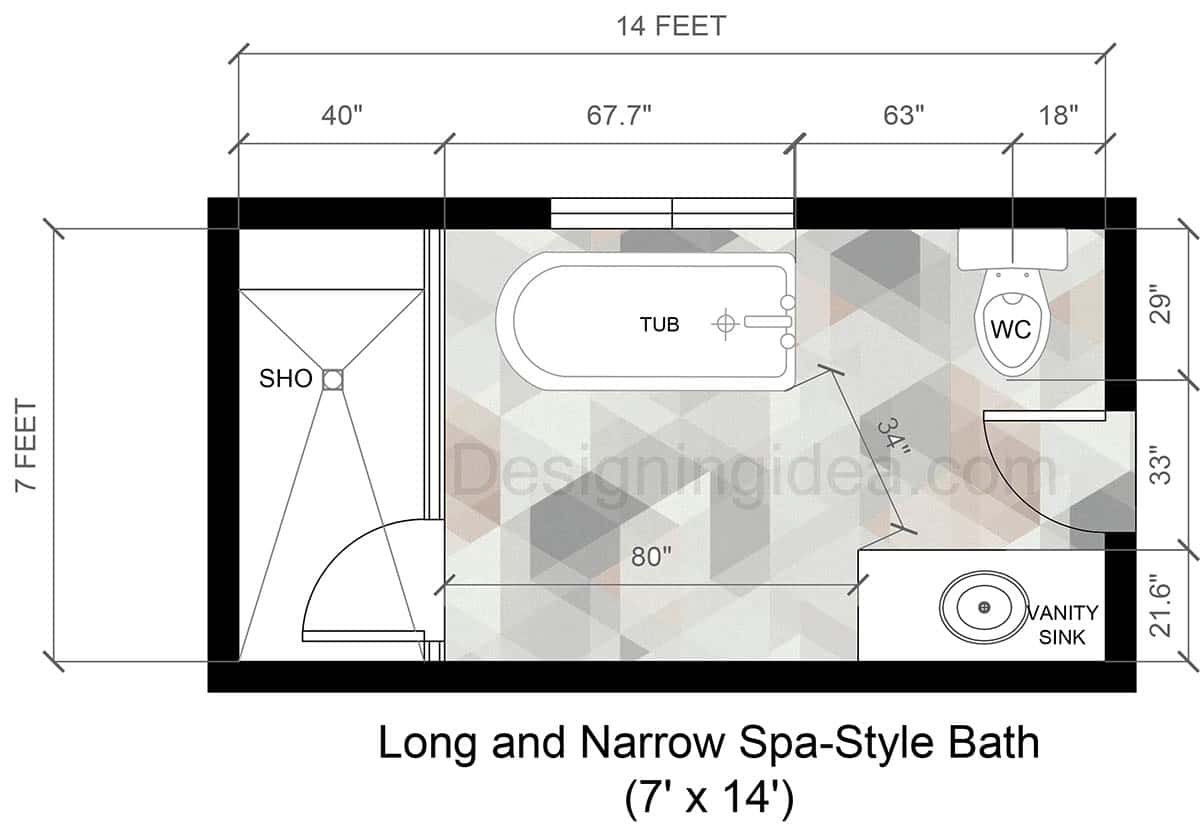

7×14 Long and Narrow Spa-Style Bath Layout
This narrow bathroom footprint creates a linear spa journey that includes a freestanding tub and walk-in shower, so the entire design feels welcoming and restful.
Layout Details: When designing long, narrow bathrooms, the secret is in how everything’s arranged. This plan works by setting the expansive 84″ x 40″ shower in the far left corner, where it can span the entire wall and become the focal point you see as you enter. As you move from the entry down toward the enclosure, there’s a full-size freestanding tub running lengthwise down the upper-middle. The toilet’s tucked in the upper right with its own little 29-inch alcove. And the vanity sits in the lower right corner, where it’s easily accessible from the door for quick hand washing or grooming tasks. The layout basically creates a linear spa experience that showcases the tub and shower near the back for better relaxation.
Width segments: 40″ shower zone, 67.7″ center section, 63″ toilet area, 18″ end wall
Shower: 84 inches by 40 inches (corner placement)
Tub length: 60 inches (full-size soaking tub)
Tub clearance: 34 inches from the wall
Toilet alcove depth: 29 inches
Vanity area depth: 21.6 inches
Design Tips:
Long and narrow bathrooms mean you need to think vertically with your storage. Use tall mirrors, vertical tile patterns, and floor-to-ceiling cabinetry.
Go with a freestanding tub so it looks like a sculptural element that anchors the whole room.
Put the tub faucet at the end nearest the door so plumbing is simpler.
Add a handheld shower wand to the tub as a luxury upgrade.
Consider a frameless shower with clear glass to maintain sightlines and highlight the focal point.
Think about the three lighting zones: a shower light, tub area (maybe a statement pendant or chandelier), and vanity lighting.
Keep the colors light and consistent, with matching fixtures and finishes.
Go with an exhaust fan of 110 to 120 CFM, on the higher end, due to having both a shower and tub.

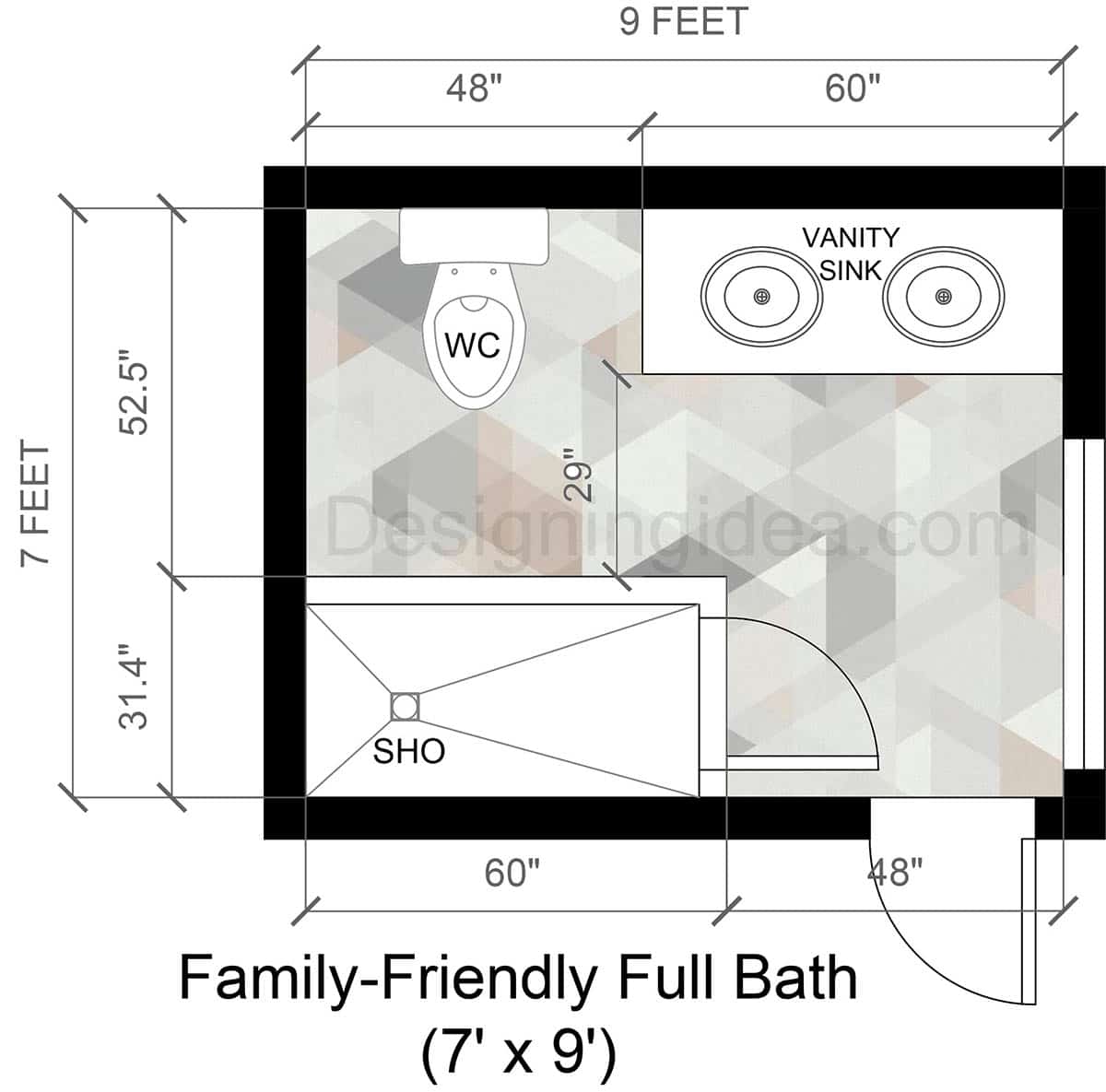

7×9 Family-Friendly Full Bathroom Design
This bathroom is set up for busy families with a dual sink vanity, somewhat private toilet, walk-in shower, and an efficient design that makes daily routines easier.
Layout Details: At 63 square feet, this bathroom is not huge, but it is set up for all of a busy household’s needs. The top half features a toilet on the left and a double vanity spanning along the right. With two sinks up there, you have room for two kids, or adults, to brush teeth or get ready at the same time. The 60-inch vanity provides space underneath for storage essentials, which can be hard to find in smaller bathrooms. The shower takes up the entire bottom left corner and measures 60″ x 31″ and is big enough for an adult to shower comfortably, but small enough that it’s not taking up too much space.
Lower wall segments: 60″ shower area, 48″ open wall/entry
Toilet depth: 52.5 inches
Center circulation: 29 inches wide
Shower depth: 31.4 inches
Design Tips:
For a family shower, use a non-slip floor, sturdy fixtures that can take some abuse, and a handheld showerhead if you need to spray down dirty pets or kids.
Choose a vanity with under-sink cabinets or drawers if you want separate sides for two kids or adults.
Add floating shelves over the toilet and a corner shelf in the shower for soap, shampoo, and products.
For the main floor, use water-resistant luxury vinyl or porcelain tile so it’s not too slippery.
Select an exhaust fan between 80 to 100 CFM for better ventilation. Lean toward 100 CFM for a family bathrooms with kids.

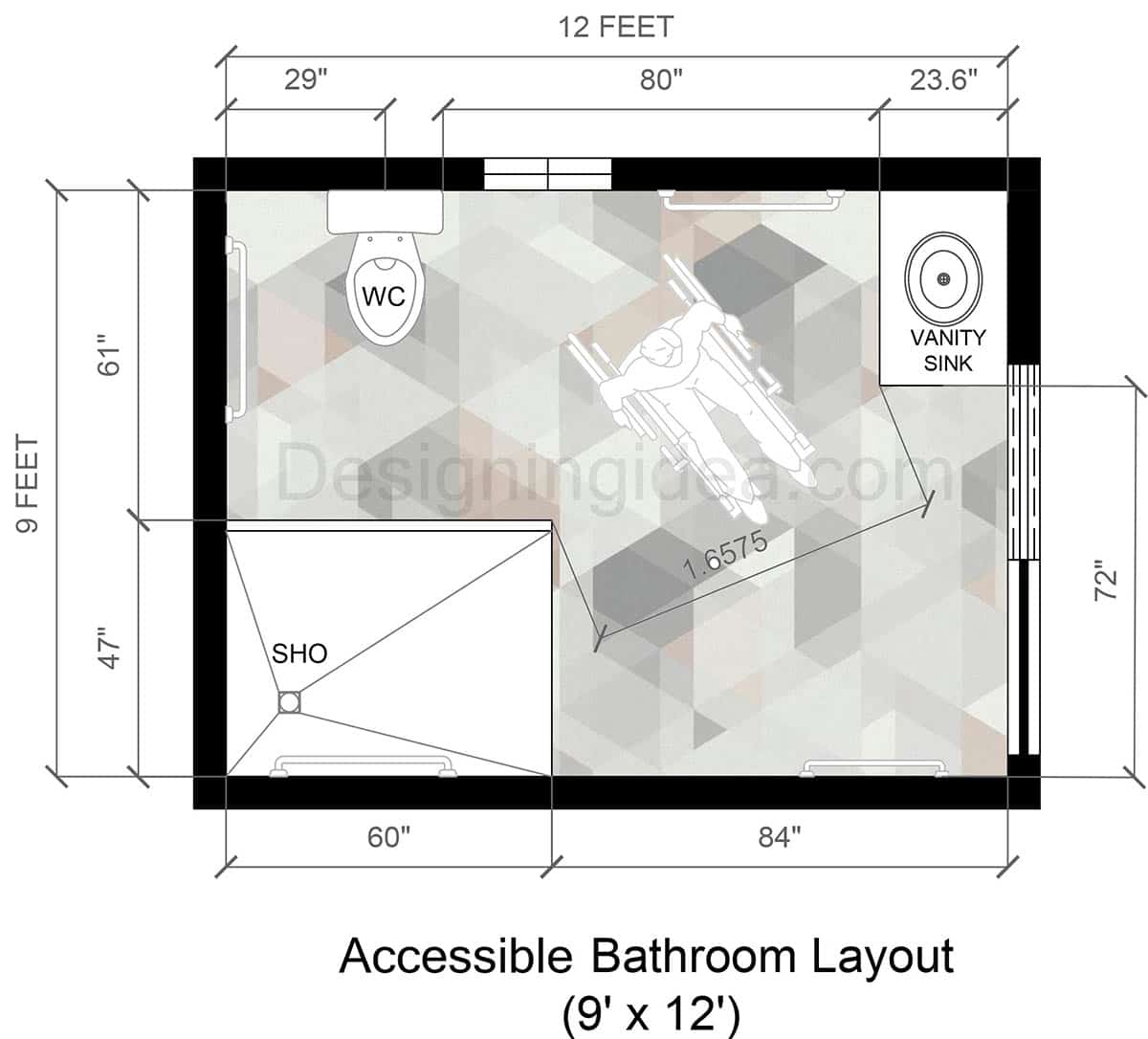

9×12 Accessible Bathroom With Curbless Shower Layout
This accessible bathroom layout gives you a design that’s easier and safer for everyone, such as aging parents, those with injuries, or permanent disabilities.
Layout Details: This accessible bathroom is designed for real people with actual needs. At 108 square feet, this 9×12 layout is ADA-compliant and thoughtful in its design. The primary benefit is its massive open floor area in the center, measuring about 65 inches for an adequate turning radius, so a wheelchair can navigate more easily. Other accessible features include a curbless shower in the bottom left so one can roll right in with no lip to get stuck on. The shower is 60 inches wide with a built-in bench. Pair it with grab bars and a handheld showerhead so it’s even more accessible-friendly. The toilet’s up in the top left in its own 29-inch zone. The vanity’s tucked in the upper right corner with a single sink, and positioned where it’s usable.
The curbless shower needs a proper floor pitch with a minimum 2% slope to the drain so water doesn’t stand.
Add a linear drain along the edge for wheelchair access.
Include weight-rated grab bars where they’re needed, such as the toilet area, shower, and possibly near the vanity.
Make sure your vanity has knee clearance underneath to accommodate if someone’s using it from a wheelchair.
Counter height should be 34″ max, which is lower than the standard 36″ (check ADA guidelines.)
The door entryway must be 36 inches minimum.
Use lever handles, not knobs, for all of the fixtures.
Install non-slip flooring throughout, and consider contrasting colors between floor and walls for people with vision issues.
Select an exhaust fan between 120 to 130 CFM since curbless showers can distribute moisture more widely.

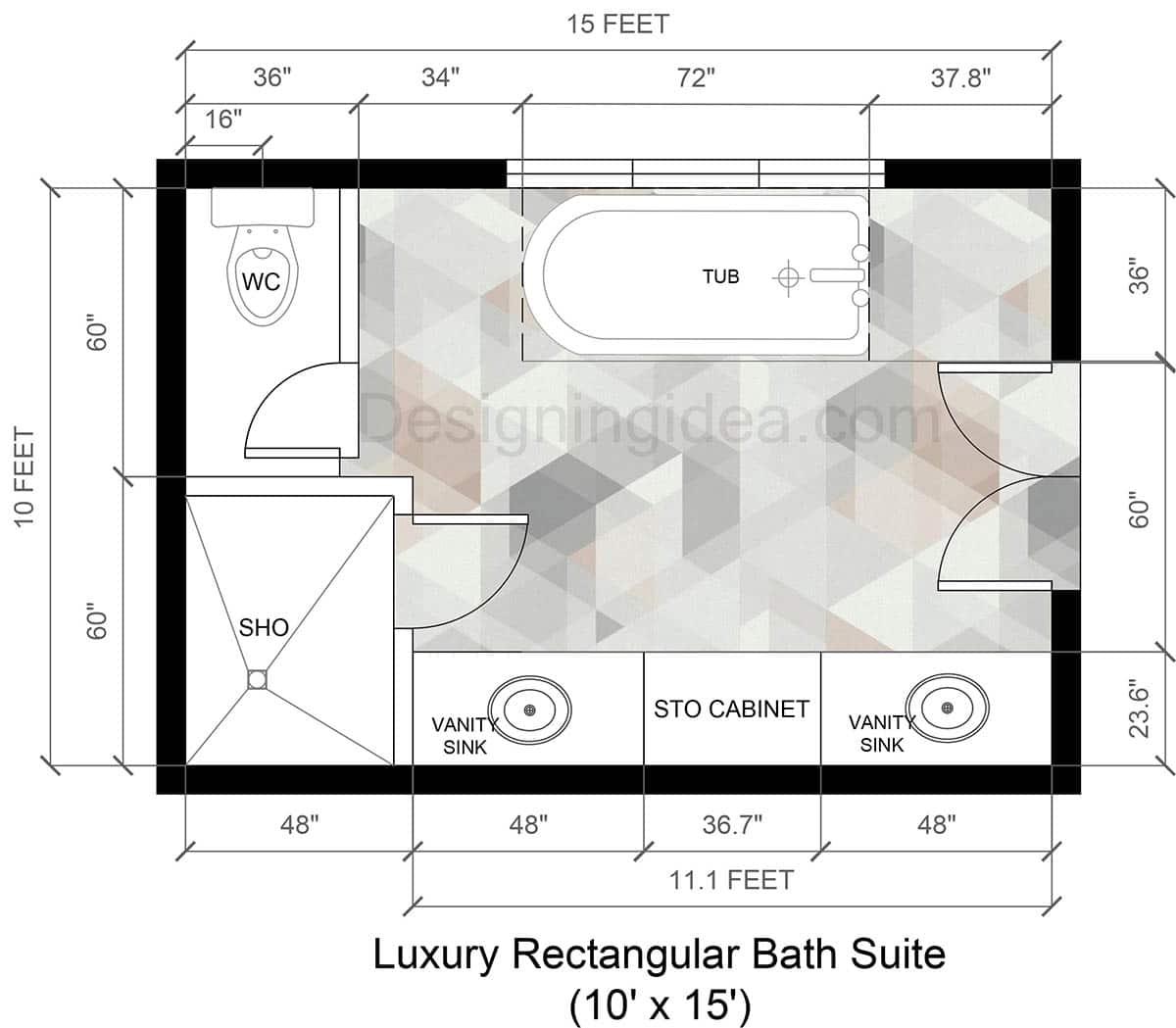

10×15 Luxury Rectangular Bathroom Suite Layout
This bathroom floor plan gives you enough space to separate all of the functions, while still adding comfort features like an expansive vanity with center storage, a freestanding tub, a walk-in shower, and a private water closet.
Layout Details: This 10′ x 15′ bathroom sits at 150 square feet and hits all of the bells and whistles by using its larger footprint to bring in luxury features like a double sink vanity, freestanding tub, walk-in shower, and a private toilet area. Each area has its own compartmentalized zone, with the upper left devoted to a private toilet room with a full 60 inches of depth. There is a proper 72-inch soaking tub running along the top wall. The corner shower takes up the entire left side, measuring 60″ x 48″. On the bottom wall, there’s an expansive 23.6″ x 132.7″ double vanity for the ultimate his-and-hers sinks flanking a storage cabinet. That middle cabinet measures 36.7 inches and is perfect for storing towels, toiletries, and all of the regular bathroom essentials that clutter the room.
Ramp up the high end feel in the shower with a built-in bench, dual shower heads (one rainfall, one handheld), and maybe body jets.
Install a frameless glass enclosure to keep it light and bright.
Make sure the custom double vanity setup has its own drawers to make better use of its individual 48 inches of storage space.
Use the middle cabinet to keep shared stuff accessible to both sides.
Zone the lighting with recessed fixtures inside the toilet room, and the shower that is rated for wet areas.
Mount individual sconce vanity lights for each sink.
Consider hanging a statement fixture over the tub, like pendants or a chandelier, if you have the ceiling height.
For extra storage capacity use the upper right side for a cabinet or linen closet.
Place a freestanding towel warmer near the tub for a luxe experience.
Install an exhaust fan between 150 to 180 CFM minimum since you have multiple moisture sources (shower + tub). Consider a separate fan of 50 to 80 CFM for the toilet room.
Bathroom Layout Comparison Chart
Attribute
5×8 Compact
6×10 Mid-Size
8×12 Double Vanity
7×14 Spa-Style
7×9 Family
9×12 Accessible
10×15 Luxury
Square Footage
40 sq ft
60 sq ft
96 sq ft
98 sq ft
63 sq ft
108 sq ft
150 sq ft
Fixtures
Shower, toilet, single sink
Shower, toilet, single sink
Shower, toilet, double sink, utility room
Shower, tub, toilet, single sink
Shower, toilet, double sink
Curbless shower, toilet, single sink, transfer bench
