Master Bedroom Floor Plans with Walk in Closet Designs

ByEllen Siloy - Architect, Design Consultant Bedroom Layouts, Floor Plans

Master bedroom floor plans with a walk-in closet

A great master bedroom has excellent furniture placement, is organized to keep clutter out of sight, and feels calm and inviting as soon as you walk in. That’s why adding a walk-in closet is one of the best upgrades to any floor plan. A walk-in closet can enhance the space with a dedicated dressing zone, easy-to-find clothing storage, and help free up the bedroom walls for better furniture placement. In this guide, I share five of my master bedroom floor plans with walk-in closet designs to help you add more style to your room, maximize every inch of storage, and give your room a luxe feel. Use these plans as a starting point, then tweak the clearances, door and window positions, and dimensions to match your needs. [toc]

12×14 Compact Bedroom Retreat with Side Walk-In Closet Layout

This bedroom gives you a large area for a queen-sized bed with matching nightstands, a sizable closet with a long hanging rod for clothing, plenty of room for walking around, and space for dressers or a desk.

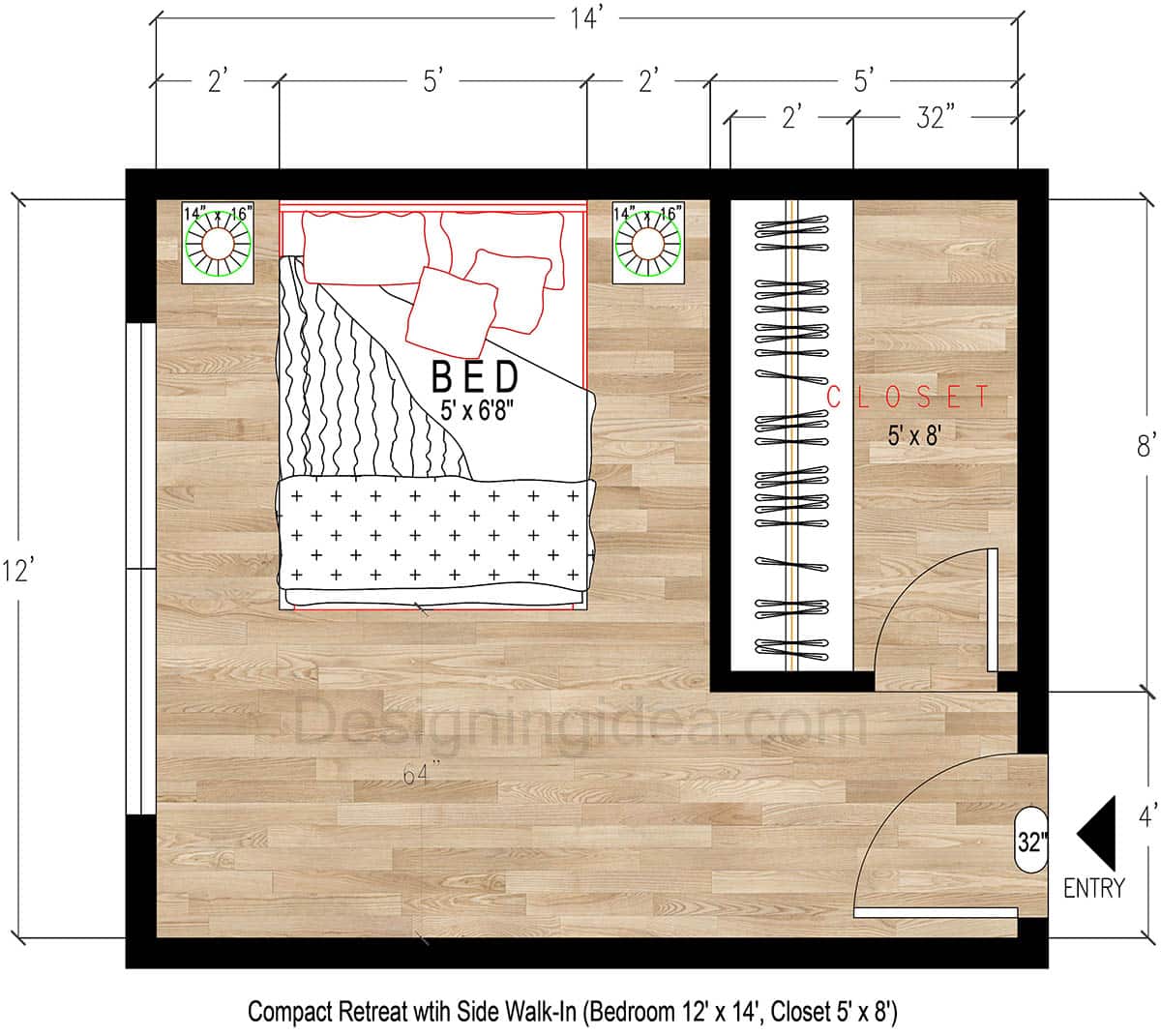

12x14 Compact Bedroom Retreat with 5x8 Side Walk-In Closet Layout

Layout Details: This 12’ x 14’ bedroom offers a spacious area at the top-left for a queen-size bed, with nightstands on both sides, providing ample space for a couple. There’s an open landing zone at the foot of the bed that has room to accommodate a sitting bench or ottoman. To the right side of the room is a 5′ x 8′ walk-in closet with a single run of clothing rods so that everything is easily accessible at a glance. As you enter from the bottom right, there’s a large open area along the bottom wall. This design gives you space to get dressed and grab clothes without bumping into doors or furniture. If you wanted a dresser, there’s wall space near the bottom left that is out of the way of the normal walking pathways.

Dimensions:

  • Bedroom: 12’ x 14’
  • Walk-in closet: 5’ x 8’
  • Entry pocket (lower-right zone): 5’ x 4’ (shares the same 5’ width as the closet zone)
  • Bed size shown: 60″ x 80″ (Queen / 5’ x 6’8″)
  • Clearance at foot of bed: 64″ (144″ room depth − 80″ bed length)
  • Side clearance beside the queen (approx.): 24″ per side (9’ / 108″ left zone width − 60″ bed width = 48″ remaining)
  • Nightstands shown: roughly 14″ to 16″ wide (2 shown)
  • Door width noted: 32″

Design Tips:

  • Swap out the inswing closet door style for a pocket or slider to save space inside.
  • Use wall sconces instead of table lamps to free the nightstands for a cleaner look.
  • Add a 48″ to 60″ dresser on the bottom wall on the left so it doesn’t block the walkway.
  • Since the closet has a width of 5’, go with a single hanging run plus shelves or drawers on the back to prevent it from feeling too tight.
Best for: Those with a smaller primary bedroom who want a queen bed and a walk-in closet that can fit a substantial amount of hanging clothing.

12×18 Long Master Bedroom Suite Floor Plan with End Walk-In Closet

This bedroom design places a king bed at the top in the middle with matching nightstands to each side facing a TV media console with a galley-style closet near the room’s entry.

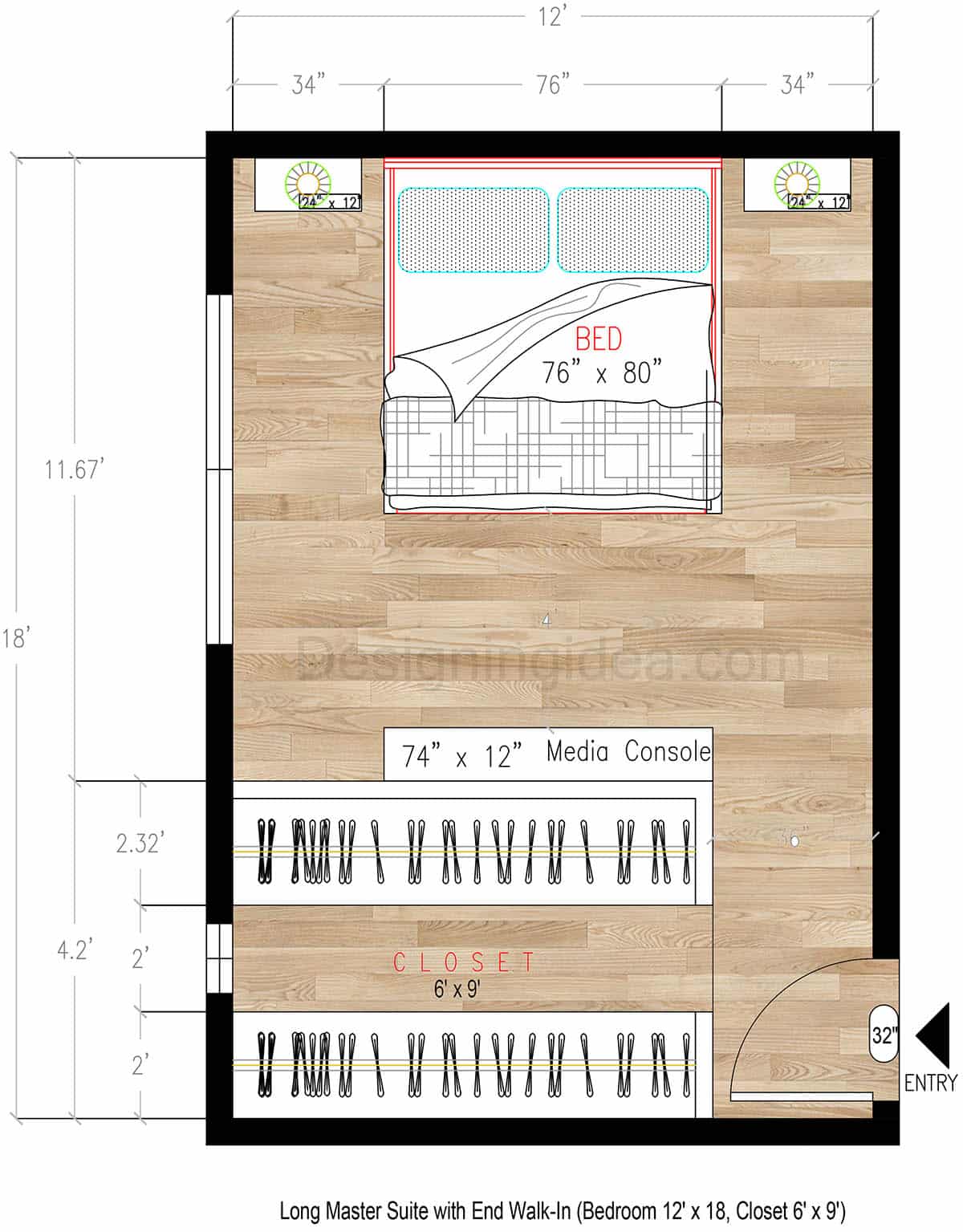

12x18 Long Master Suite Floor Plan with 6x9 End Walk-In Closet

Layout Details: This 12’ x 18’ master bedroom features a two-zone layout to keep the bed area feeling spacious and the storage well-organized and effective. The king bed measuring 76″ x 80″ is in the center of the top 12’ wall, with matching nightstands in both corners. Since the bed is centered, there’s more walking space for a couple to get in and out of their own side comfortably. A low 74″ x 12″ TV console sits across from the TV for those who like watching movies or shows from bed. The bottom of the room is devoted to the 6′ x 9′ galley-style walk-in closet. It provides double hanging, top and bottom clothing rods, with a walkable center aisle. The entry door to the room opens from the far right bottom side and lands in a small pocket that provides more privacy to the bed.

Dimensions:

  • Bedroom: 12’ x 18’
  • Bed shown: 76″ x 80″ (King)
  • Space on each side of the king bed: 34″ (left & right)
  • Nightstands shown: 24″ x 12″ each
  • Distance from bed foot to media console wall: 4’
  • Media console: 74″ x 12″
  • Walk-in closet: 6’ x 9’ (end closet zone)
  • Closet hanging depth (on each side): 2’
  • Closet center aisle: 2.32’ (28″)
  • Entry door width noted: 32″
  • Main sleep zone length (approx. to closet transition): 11.67’ (11’ 8″)

Design Tips:

  • Keep the 34″ on each side of the bed free for ease of entry.
  • Install wall sconces or swing-arm lamps above the nightstands to enhance reading at night.
  • Mount the TV above the console or swap it for a low-profile dresser for clothing.
  • Add drawers in one of the closet sections with shelves above if you want to display folded clothing items.
  • Add a pocket or a sliding door to the closet’s opening to cut down on visual clutter as you enter the room.
  • Use a large rug under the bed to give it a more designed look.
Best for: Those who want a king-sized bed with a symmetrical design and a closet that has room for his-and-hers sides.

14×14 Square Master Bedroom Layout with Corner L-Shaped Closet

With its symmetrical furniture arrangement and king-bed setup, combined with a corner L-shaped walk-in, this bedroom offers attractive visual balance and easy-to-reach storage.

14x14 Square Master Bedroom Layout with 7x7 Corner L-Shaped Closet

Layout Details: This 14’ x 14’ square master layout feels calm and like an inviting hotel because the king bed is situated in a symmetrical layout with nightstands on both sides and a pleasant amount of walking space throughout. As you enter from the bottom-right, you face a small entry zone that opens into the main sleeping area. The closet is a compact corner L-shape that’s 4’ deep and uses two walls of hanging rods for storage. Clothing rods are located with one along the left side and one along the bottom. This gives you a walk-in function that’s accessible through a sliding door to eliminate any clutter from the rest of the room. There’s about 36″ of bed-to-closet clearance, which is comfortable for walking but tight if you want to add any extra furniture at the foot of the bed, like a bench.

Dimensions:

  • Bedroom: 14’ x 14’
  • Bed shown: 76″ x 80″ (King)
  • Side clearance left/right of bed: 46″ on each side
  • Main sleep-zone depth (top wall to closet/entry band): 116″ (9’8″)
  • Bottom band depth (closet + entry zone): 52″ (4’4″)
  • Clearance at foot of the bed: 36″ (116″ sleep-zone depth − 80″ bed length)
  • Nightstands shown: 24″ x 12″
  • Closet: 4’ x 8’6″ (L-shaped)
  • Open dressing/entry space width: 60″
  • Entry door width noted: 32″
Design Tips:

  • Skip a bench at the foot of the bed as the 36″ pass-through is too tight to fit one.
  • Go a little bigger on nightstands since you have 46″ side clearance. Using 24″ to 30″ wide nightstands can work without cramping the aisle.
  • Use a sliding or pocket-style closet door to keep the room looking more tidy.
  • Make the L-closet more useful with a feature corner, by adding drawers or shelves where the two hanging runs meet.
  • Hang a full-length mirror in the 60″ entry zone to make that part feel like a mini dressing area.
  • Upgrade your lighting with wall sconces over the nightstands and LED strip/rod lighting in the closet.

Best for: Those wanting a modern, minimalistic feel in the bedroom with symmetrical proportions and a cozy, but upscale feel.

14×16 Master Suite Layout with Dressing Wall & Galley Closet

This bedroom layout completely separates the sleeping and dressing areas, so the king bed feels restful while the other side has room for a dresser and a galley walk-in without cluttering the room.

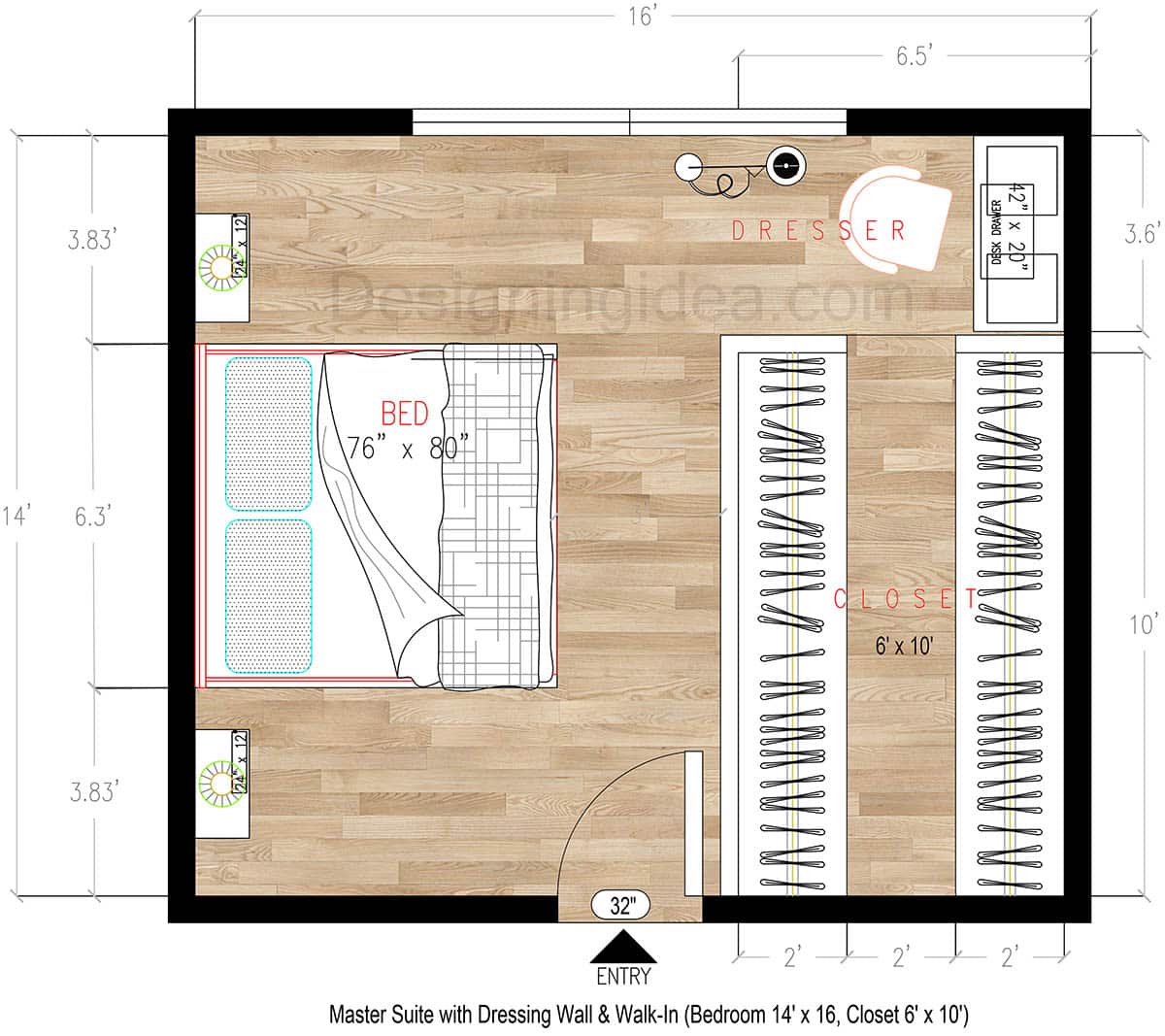

14x16 Master Suite Layout with Dressing Wall & Galley Closet

Layout Details: This 14’ x 16’ master suite is designed to keep the area for sleeping and dressing separated from each other for a more restful feel. The king bed is situated on the left wall with nightstands on both sides. You enter from the lower wall into the main sleeping area and walk to the back and around the corner to access the clothing storage. The upper-right side is dedicated to a dresser or desk wall, depending on your needs. Directly below this is a 6’ x 10’ galley closet layout on the right with hanging on both sides and a 24″ wide center aisle. The dresser wall up top creates a natural dressing, vanity, or study area. This small area in the upper-right corner gives you a spot for grooming, working on your laptop, or extra storage without taking space from the bed zone.

Dimensions:

  • Bedroom: 14’ x 16’
  • Walk-in closet: 6’ x 10’ (galley style)
  • Bed shown: 76″ x 80″ (King-size)
  • Clearance above and below the bed on the left wall: 3.83’ each (46″)
  • Walkway between bedside and closet wall: 3’
  • Closet layout depths: 2’ hanging + 2’ aisle + 2’ hanging (total 6’)
  • Desk/vanity: 20″ x 47″
  • Nightstands shown: 24″ x 12″
  • Entry door width noted: 32″

Design Tips:

  • Use the top-right side as your “getting ready” zone and place a wide dresser with a mirror and lighting there.
  • The 24″ closet aisle is the minimum you want, so use slim hangers, and keep shoes on wall racks instead of the floor to conserve space.
  • Devote an area to 12″ to 16″ shelves or drawers to make it feel less cramped.
  • Add closet lighting with LED rod lights or strip lights inside to help eliminate shadows.
  • Avoid adding any bulky chairs or a bench near the bedside.
  • If you want seating, use a small armless accent chair near the dresser wall.
  • If you use 24″ x 12″ nightstands, you can help the bed area feel visually lighter by installing wall sconces above instead of table lamps.

Best for: Those who want a master suite feel with a dedicated dressing zone.

16×18 Bedroom Layout With Walk-Through Closet to Bathroom

This bedroom suite design pairs a king-sized bed on one side with an open walk-through closet that flows into an ensuite bathroom, keeping the sleeping area calm while neatly containing storage on the right.

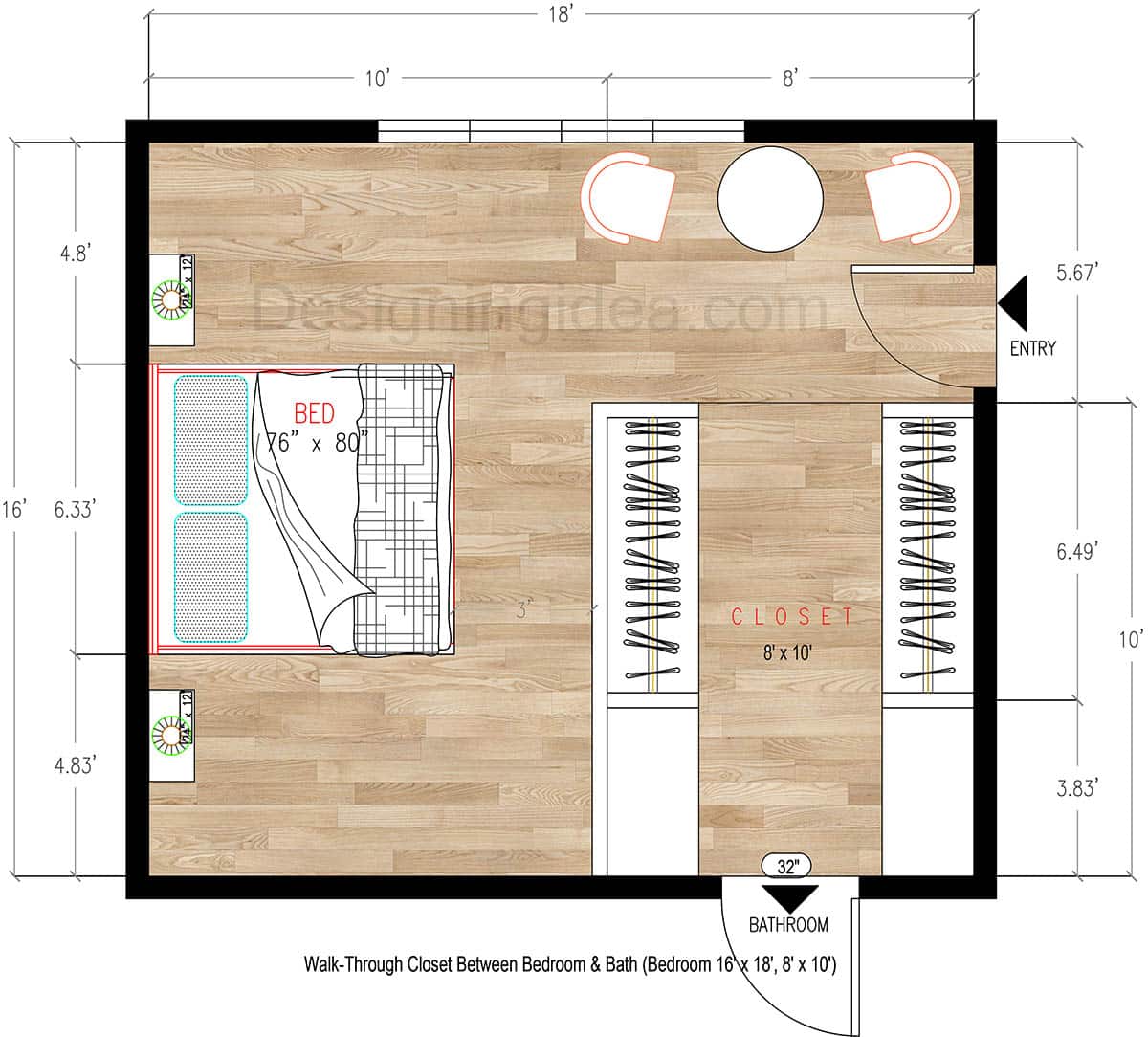

16x18 Bedroom Layout With Walk-Through Closet to Bathroom
Layout Details: This 16’ x 18’ bedroom suite is organized so the sleep zone stays on the left, while the right side becomes a getting-ready and storage area that leads directly into the bathroom. When you enter from the upper-right, you land in a small sitting lounge or vanity area with a small round table and two chairs, with the walk-through closet directly below. This arrangement makes the room feel more layered and private. The standout feature is the galley-style walk-through closet measuring 8’ x 10’, which is placed between the bedroom and the bathroom. Instead of a bathroom door opening straight into the sleeping area, you pass through the closet first, which softens noise and light while others are sleeping. The closet has clothes rods hanging on both sides and a generous 32″ central aisle. There is a 3 walkway between the bed and the closet wall, so it’s easier to get around.


Dimensions:

  • Bedroom: 16’ x 18’
  • Walk-through closet: 8’ x 10’
  • Bed shown: 76″ x 80″ (King)
  • Walkway space between bed zone and closet wall: 3’
  • Bathroom door width noted: 32″
  • Room zoning across the 18’ width: 10’ (left sleep zone) + 8’ (right closet/entry zone)
Design Tips:

  • Use the top right suite entry as a lounge area by adding a small round table with slim armchairs.
  • If you don’t want the seating area, add a small dresser, wall mirror, or vanity where the table/chairs are shown.
  • Upgrade the closet for real daily use by installing double-hang rods on one side and drawers/shelves on the other.
  • Make sure the pathway is kept clear inside the closet, as it leads to the bathroom access.
  • For additional privacy and light control, add a slider or pocket door at the closet opening.
  • Use layered lighting with a ceiling fixture in the bedroom, and bright, even closet lighting with LED rods to make the walk-through closet feel more like a dressing room.
  • If your bathroom is noisy, the closet acts as a buffer, so install a solid-core bath door to cut down on any extra sounds in the room.


Best for: Those desiring a higher-end primary suite where the closet acts as a buffer between bedroom and the ensuite bath.
