7 Living Room Layouts with Fireplace and TV That Feel Cozy

If you’re struggling to make your fireplace the star without turning your TV into an afterthought, you’re not alone. These seven living room layouts with fireplace and TV show you exactly how to balance the seating arrangement to get the most out of your room’s functionality and style. Whether you’re working with a snug bungalow home or have an airy open‑concept loft, you can dive in to these designer‑tested floor plans, with smart furniture placements, that allow you to create the cozy relaxation spot you desire.

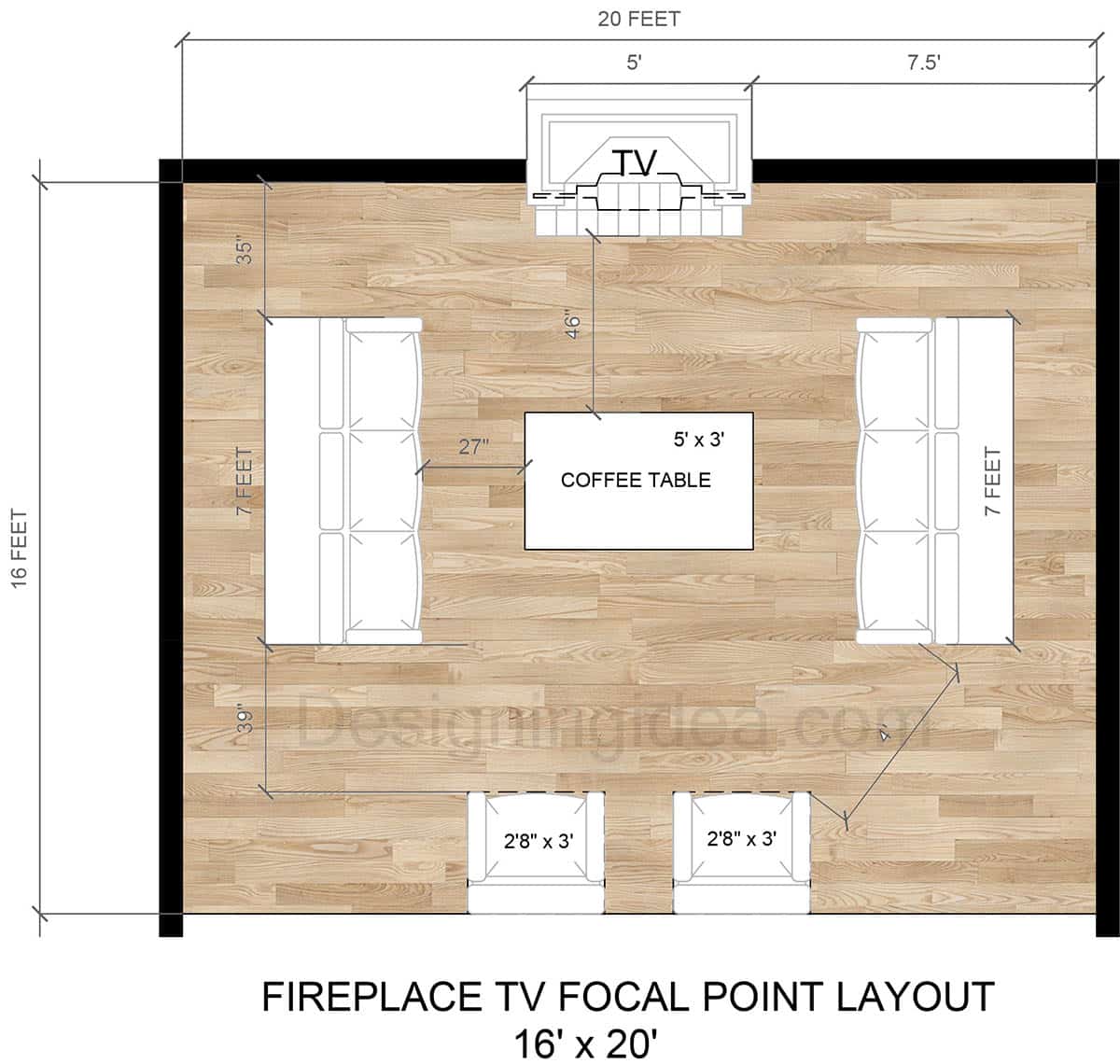

Focal Point Fireplace TV Layout

The focal point floor plan creates a strong, symmetrical conversation zone that orients every seat toward the fireplace with a TV mounted above it.

Floor Plan Details: The focal point living room layout places two full‑length sofas facing one another, framing a large coffee table and leaving clear circulation lanes around all four sides. the function and flow of the design allow traffic to naturally hug the room’s perimeter, so guests aren’t forced to step in front of the TV or fireplace. The main seating area has two sofas and a pair of armchairs that form a loose 9 ft × 9 ft conversation square that’s ideal for intimate gatherings of 6 to 8 people. This arrangement allows generous spacing to determine the optimal TV viewing distance based on your personal preferences. With a typical 55‑ to 65‑in TV, the 9‑ to 10‑ft eye‑to‑screen viewing distance (sofa center to TV) lands in the sweet spot of 1.3–1.5 × screen diagonal for HD/4K comfort.

Important Dimensions:

• Room size: 20 ft (W) × 16 ft (D) Rectangular footprint
• Fireplace/TV niche: 5 ft wide centered on the long (20 ft) wall; the remaining wall lengths are split for built‑ins or art
• Distance from the fireplace to the coffee table: 46 in
• Coffee table: 5 ft × 3 ft placed between the sofas
• Sofas: (2) 7 ft long × 35 in deep with each aligned parallel to the short walls
• Armchairs: (2) 2 ft 8 in × 3 ft each placed along the opposite long wall
• Main traffic lane: 39 in of clearance at the bottom and sides

Design Tips:

• Try mounting the TV at a max height of 60″ (42″ is ideal but not often possible) which is more comfortable for viewing and helps avoid neck strain.
• Anchor the space with an area rug measuring 8 × 10 ft or 9 × 12 ft so at least the front legs of every seat sit on the carpet.
• Leave 12–18 in between any seat and the coffee table for a natural “reach zone.”
• Provide at least 30–36 in for main walkway clearances.
• The 7.5‑ft wall segments on either side of the 5‑ft niche are perfect for low bookcases, display cabinets, or large‑scale artwork and balance the width of the hearth.
• Add sconces on the chimney breast (the part that projects forward) for an ambient glow, with a dimmable chandelier or flush mount light fixture overhead, and table lamps on side tables at sofa ends for task (reading) lighting.
• Maintain at least 16 to 18 in between the fireplace face and coffee table to prevent heat damage.
• Consider a low‑profile hearth extension or non‑combustible stone slab to prevent heat damage.

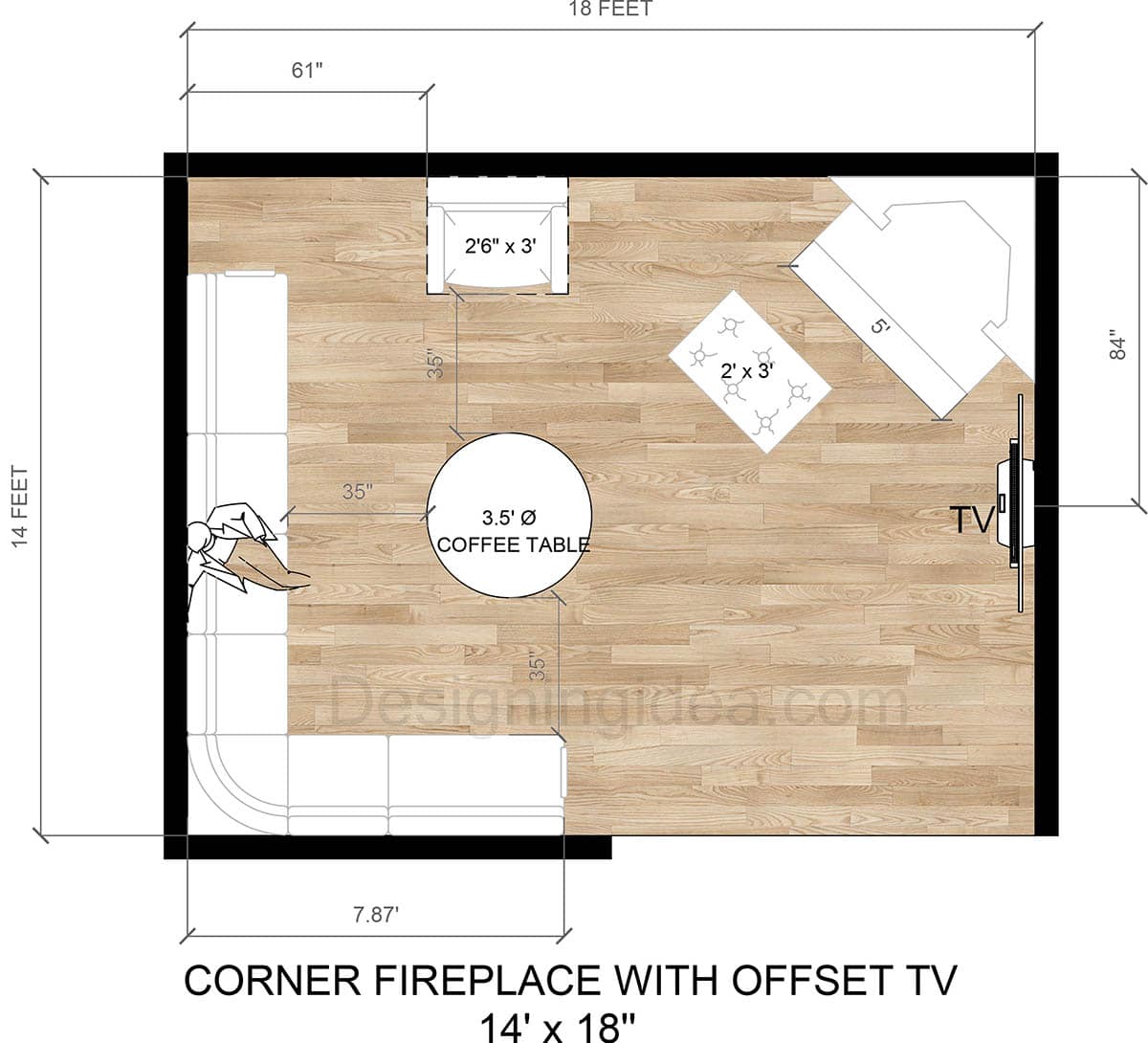

Corner Fireplace With Offset TV Floor Plan

A sectional sofa is placed in one corner, facing the fireplace on the opposite side, next to an offset, wall-mounted TV for a cohesive design with nearby dual focal points.

Floor Plan Details: This living room is focused around its corner hearth measuring 5‑ft‑wide, and positioned at a 45° angle, tucking it neatly into the front‑right corner, and freeing up both adjoining walls. Next to the hearth area is an offset flat panel TV that’s mounted on the right‑hand wall, 7 ft (84 in) from the top corner. The television installation is low enough for eye‑level viewing and far enough from the fire’s heat. For seating an L‑shaped sectional sits against the left and bottom walls, creating an inviting, semi‑enclosed relaxation nook that faces both the flames and screen. For additional seating, one floating accent chair measuring 30 in × 36 in, sits on the back 18‑ft wall. A round coffee table measuring 42‑in in diameter is centered in the seating pocket to soften traffic flow and help frame the space. With its dual focal points without overlap, the fire is the ambient, angled attraction, and the TV, is a direct‑view feature depending on sitting position. Since each feature is separated, you can enjoy one without glare or heat on the other.

Important Dimensions:

• Room size: 18 ft (W) × 14 ft (D) in one long rectangle with the entrance most likely along the bottom side
• Sectional legs” Left arm is 8 ft and the bottom arm is 7 ft 10 in , leaving a 30‑ to 36‑in passage
• Coffee table: Offset 35 in on all sides with an ideal reach zone of 18 in to 24 in, plus a comfortable walkway of 30 in around it
• Chair to coffee table distance: 35 in maintains the same clearance and symmetrical rhythm for visual harmony
• TV viewing distance: 9 to 10 ft from the sectional center and hits the 1.3 to 1.5× screen‑diagonal rule for a 55‑ to 65‑in TV
• Fireplace to sectional distance: 6 ft to the nearest seat corner to keep upholstery safely outside the typical heat‑radiation range
• Conversation hub: The sectional, accent chair and coffee table form an informal 8 × 8‑ft square that’s perfect for game night or casual chats

Design Tips:

• Use a swivel or slipper chair in place of the fixed accent seat so guests can pivot between the fire and TV.
• Anchor the sitting zone with an 8 × 10 ft rug turned parallel to the long wall.
• Let the front legs of the sectional and chair sit on the rug to pull the pieces together.
• Balance the right wall by flanking the TV with some narrow floating shelves or art to echo the visual weight of the hearth featured on the diagonal.
• Mind the mantel height by keeping it hung 48 in or lower so the angled chimney doesn’t crowd the ceiling and so décor remains at eye level.
• Layer lighting with wall sconces on either side of the fireplace, dimmable semi‑flush overhead fixture, and a floor lamp behind the sectional’s corner to cover ambient, accent, and task lighting needs.
• Run HDMI and power inside the stud cavity of the right wall for proper cable management and a better aesthetic.
• Vent the fireplace chase so excess heat escapes upward, not sideways toward any electronics.
• Choose a coffee table with round edges to soften traffic paths with a bull‑nose profile that makes the space kid‑ and knee‑friendly.

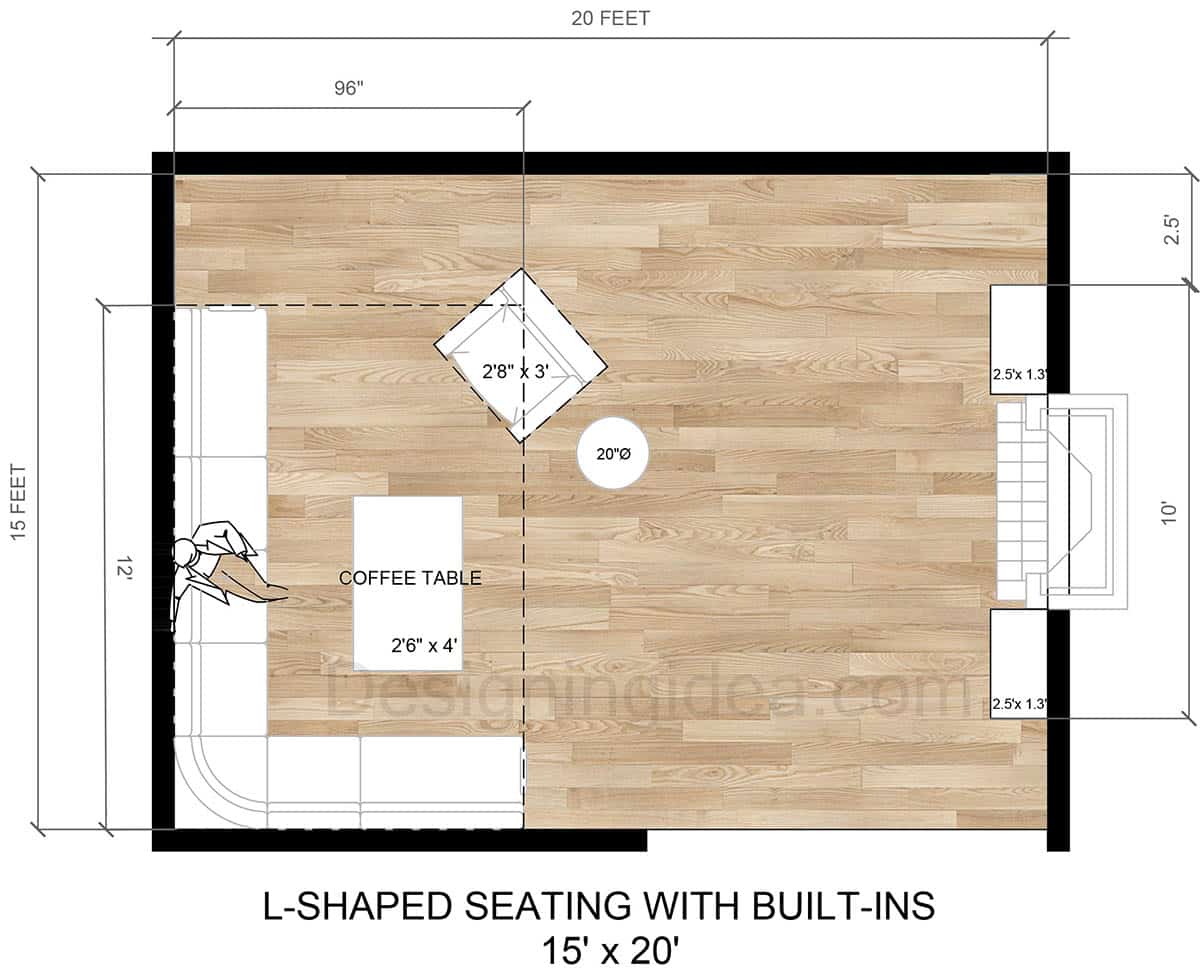

L-shaped Seating with Built-in Cabinet Design

With its single focal wall the fireplace, built‑in cabinets, and TV are unified, so every seat enjoys the same view without craning necks or awkward seating positions.

Floor Plan Details: A deep L‑shaped sectional hugs the left and bottom walls, creating an appealing conversation corner and leaving the fireplace and media wall on the opposite side fully in view. The open floor in front of the fireplace creates a natural boulevard where guests can skirt the seating area which is especially useful for open-plan designs. For the seating, a sectional and accent chair form an 8 × 8‑ft social square that is ideal for four to six people. Directly across from the sofa and centered on the right‑hand wall, the firebox is flanked by two symmetrical built‑ins for both storage and display, turning the entire 10‑ft span into a single architectural focal point. The TV is mounted above the firebox for direct viewing from the couch. As an additional seat option, a floating accent chair is angled along the top wall, completing the conversation triangle without blocking traffic.

Important Dimensions:

• Room size: 20 ft (W) × 15 ft (D) Long rectangle with fireplace on the 20‑ft wall
• Sectional arms: Left arm 12 ft, and bottom arm is 7 ft 10 in
• Built‑in cabinets: 2 ft 6 in (W) × 1 ft 3 in (D) each with cabinet storage and shelves for media, books, décor
• Fireplace span: 5 ft opening and fits a standard 36 to 42‑in firebox with mantel and trim
• Accent chair offset: 8 ft (96 in) from left wall, 35 in from the coffee table
• Coffee table: 2 ft 6 in x 4 ft  with gap of 18 to 20 in to the sectional
• Main traffic lane: 36 in clearance in front of built‑ins & across the room

Design Tips:

• Anchor the seating space with an area rug measuring 9 × 12 ft and let the front two sectional legs and the chair rest on it.
• Use the built‑ins for styling by staggering books, baskets, and decor on the lower shelves and reserve the upper thirds for art or plants to soften the backdrop.
• The best TV height if you’re mounting a TV above the mantel is 42 to 48 in off with an articulating mount to tilt downward.
• Try color-balancing the room by echoing the cabinetry finish (paint or wood stain) with the coffee table to tie the focal wall back into the seating zone.
• Match accent pillows and upholstery with built-in decor hues for a balanced look.

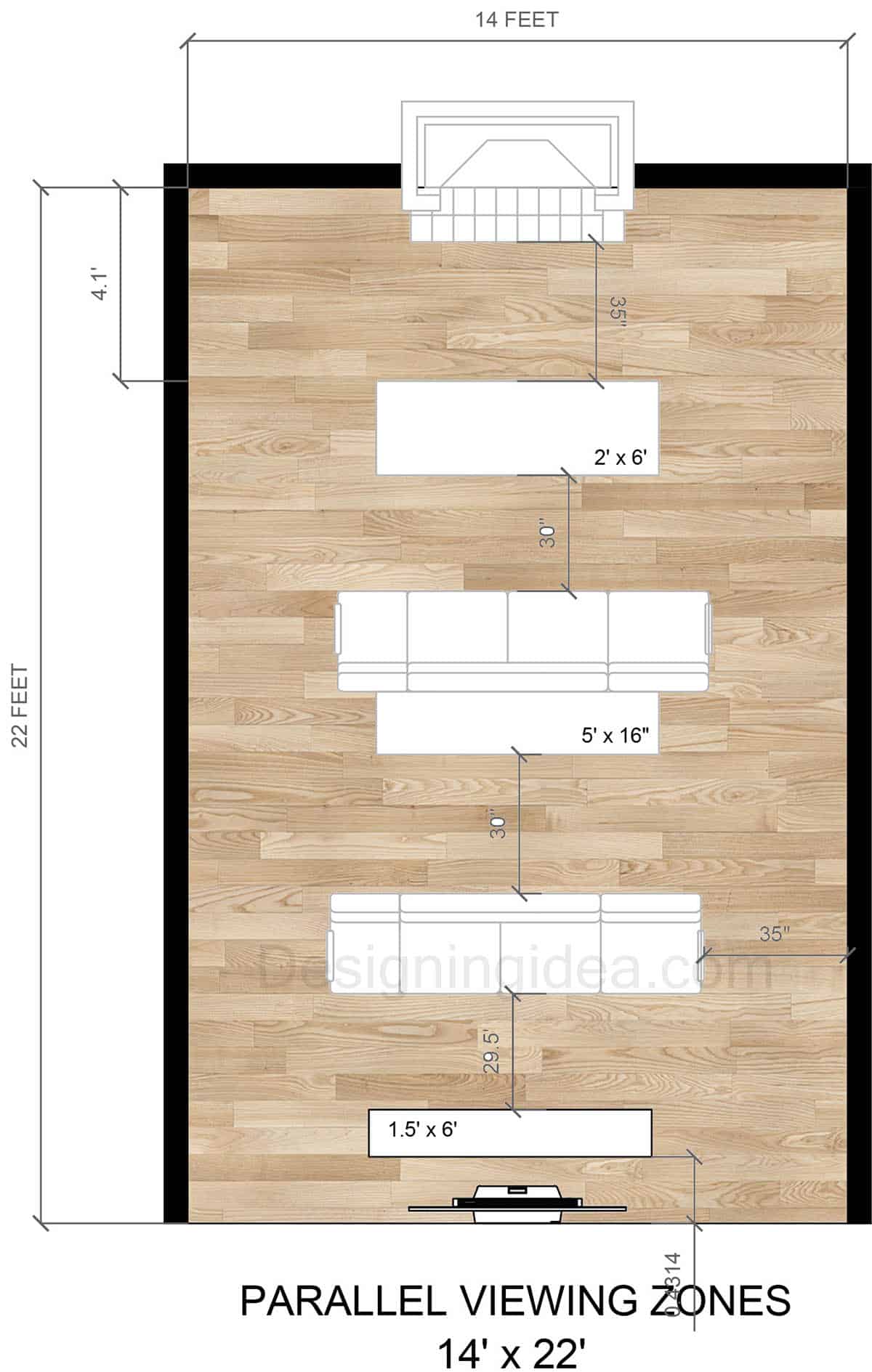

Living Room Layout With Parallel Viewing Zones

This long, narrow footprint is split into two back‑to‑back seating arrangements so the room can serve both a cozy fireplace chat zone and a dedicated TV‑watching zone, without either blocking the other’s view.


Floor Plan Details: This parallel furniture setup offers functional flow with dual focal points. To get the look each sofa enjoys its own “screen” (flames or flat‑panel) depending on the mood. Since the sofas are positioned back‑to‑back, neither one is bothered by the other which is ideal for entertaining large groups or for furnishing a large room. A central walkway aisle measuring 30 inches bisects the room lengthwise, acting as a natural traffic spine from one end of the house to the other. For additional flexible seating capacity add poufs, ottomans, or stools to either end of the aisle when entertaining and slide them under the console tables when not in use.

Important Dimensions:

• Room size: 14′ (W) x 22′ (D)
• Slim media console: 1.5 ft × 6 ft
• Console/sofa table: 5 ft × 16 in
• Low hearth bench: 2 ft × 6 ft
• Clear space in front of hearth: 35 in of safe distance from heat & foot traffic
• Sofa #1 (faces the fire): 35 in deep Seats 3 to 4 for fireside chats
• Main circulation aisle: 30 in of clearance
• Sofa #2 (faces the TV): 35 in deep and mirrors sofa #1
• Walkway to TV wall: 43 in

Design Tips:

• Align the backs of the sofa for a clean balanced look.
• Place two 6 × 9 ft rugs (or one 8 × 20 ft runner‑style) to visually anchor each zone while keeping the aisle bare for separation.
• Install a pair of aligned chandeliers or linear fixtures, with one centered over each sofa to reinforce the parallel layout.
• Use separate lighting dimmers for each half of the room.
• Echo the fireplace surround finish with similar colors for the throw pillows on the Sofa, and pick up the TV console wood tone in accents on the other Sofa to tie the halves together.

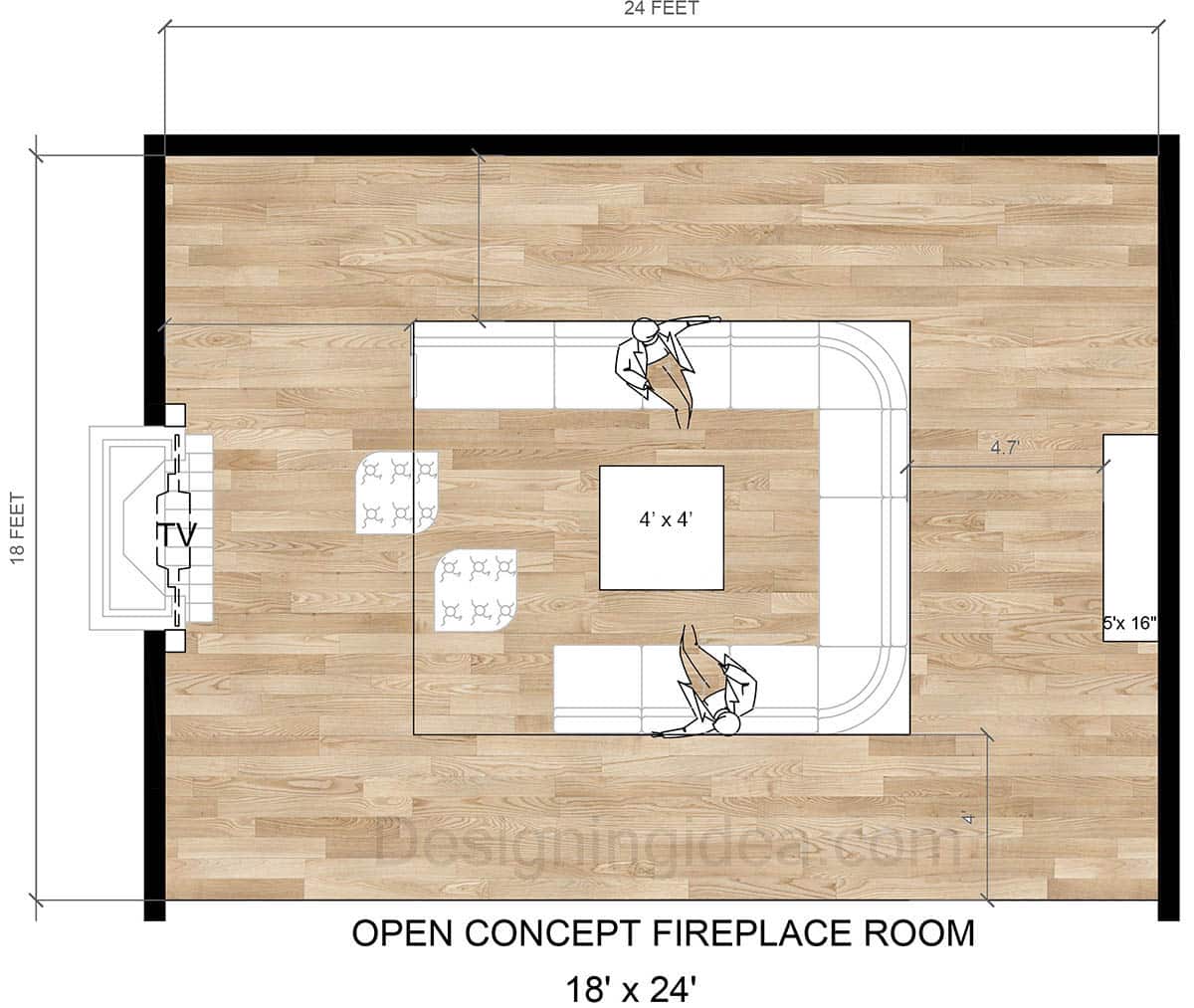

Open-Concept Living Area With Fireplace And Mounted TV

With a single focal wall of a fireplace and a wall‑mounted TV this living room floor plan is perfect for an open-concept design.



Floor Plan Details: This living room design features a large U‑shaped sectional with three modular runs to create an inward‑facing conversation pit that looks directly at the fire and wall-mounted TV. The furniture setup defines the living zone within the larger open‑plan footprint and surrounds a central 4′ x 4′ coffee table. Two pull‑up cubes or ottomans can be tucked at the sectional’s open sides and can slide out for extra seating or act as footrests when needed. A low console bench measuring 5 ft × 16 in is placed along the right-side wall. The sectional’s back acts as a low “partition,” that subtly separates the living area from whatever lies to the right, be it the kitchen, dining, or entryway, while preserving sightlines.

Important Dimensions:

• Room size: 24 ft (W) × 18 ft (D)
• Fireplace/TV span: 5 ft wide that centers the visual weight on the left wall
• Sectional footprint: Top run is 10 ft; right run is 9 ft; bottom run is 10 ft
• Sectional seating: Seats 6‑8 comfortably to encloses an 8 × 10‑ft conversation zone
• Bench/console: 5 ft x 16 in
• Coffee table: 4 ft x 4 ft

Design Tips:

• Use an area rug measuring 10 × 14 ft so at least the front two legs of each sectional segment sit on it.
• For layered lighting, try pairing recessed cans on a dimmer switch with a statement chandelier centered over the coffee table, plus sconces flanking the fireplace.
• Mount the flat screen so its center is 42 to 48 in off the floor if possible. (60 in is more likely) If mounted above a mantel, use an articulating mount to tilt it down.

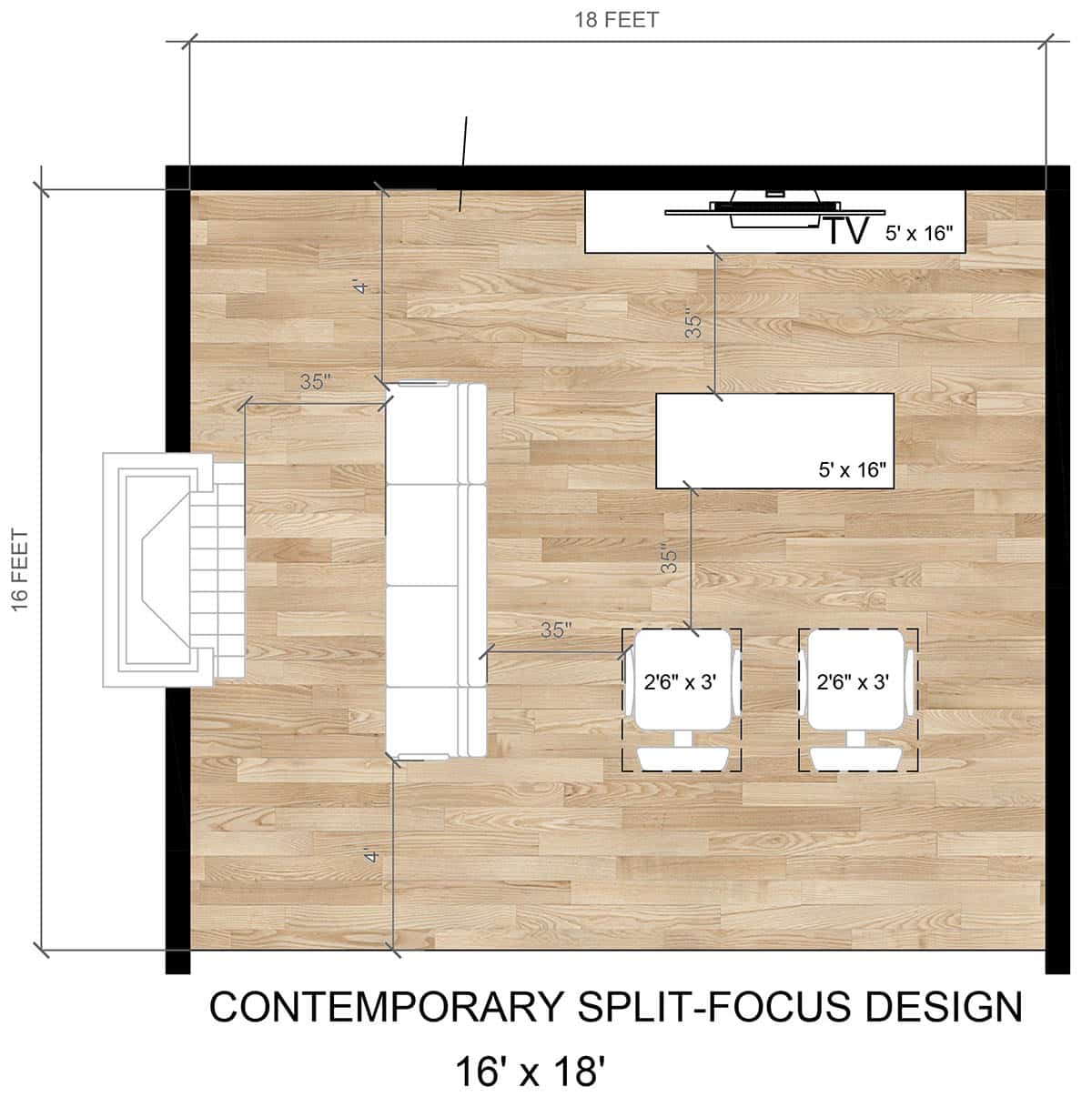

Contemporary Split-focus Family Room Floor Plan Design

This split-focus design features a fireplace on one wall with a TV on another with separate seating for each area.



Floor Plan Details: This family room offers two distinct zones with a fireplace along the left wall and a wall‑mounted TV and slim media shelf on the upper wall. The main sofa sits 35 in from the fireplace and seats 3 to 4 for conversations around the fire. For watching movies and shows, two swivel chairs are facing a rectangular coffee table. There’s also the option for a face‑to‑face chat if desired. For movie nights the sofa can be turned to view the TV. With neither focal point dominating the area the room feels balanced and social.

Important Dimensions:

• Room size: 18′ (W) x 16′ (D)
• Fireplace opening: 42 in (W) × 30 in (H) to fit a standard gas insert
• Sofa length & depth: 84 in (L) × 38 in (D) and seats 3‑4
• Coffee table: 5′ x 16″
• Chair pair: 2′ 6″ x 3′
• Media console: 5′ with a shelf depth 16 in

Design Tips:

• Ensure there’s a hearth extension and performance-rated fabrics rated for higher radiant temperatures.
• Use 35 in of minimum clearance on every side of the coffee table for adequate movement.
• A 4 ft traffic lane behind the sofa should be kept free of floor lamps & side tables.
• Consider a console or built-in low cabinetry beneath the TV for storage.
• Use a 9′ x 12′ area rug centered under the table to frame the media area.

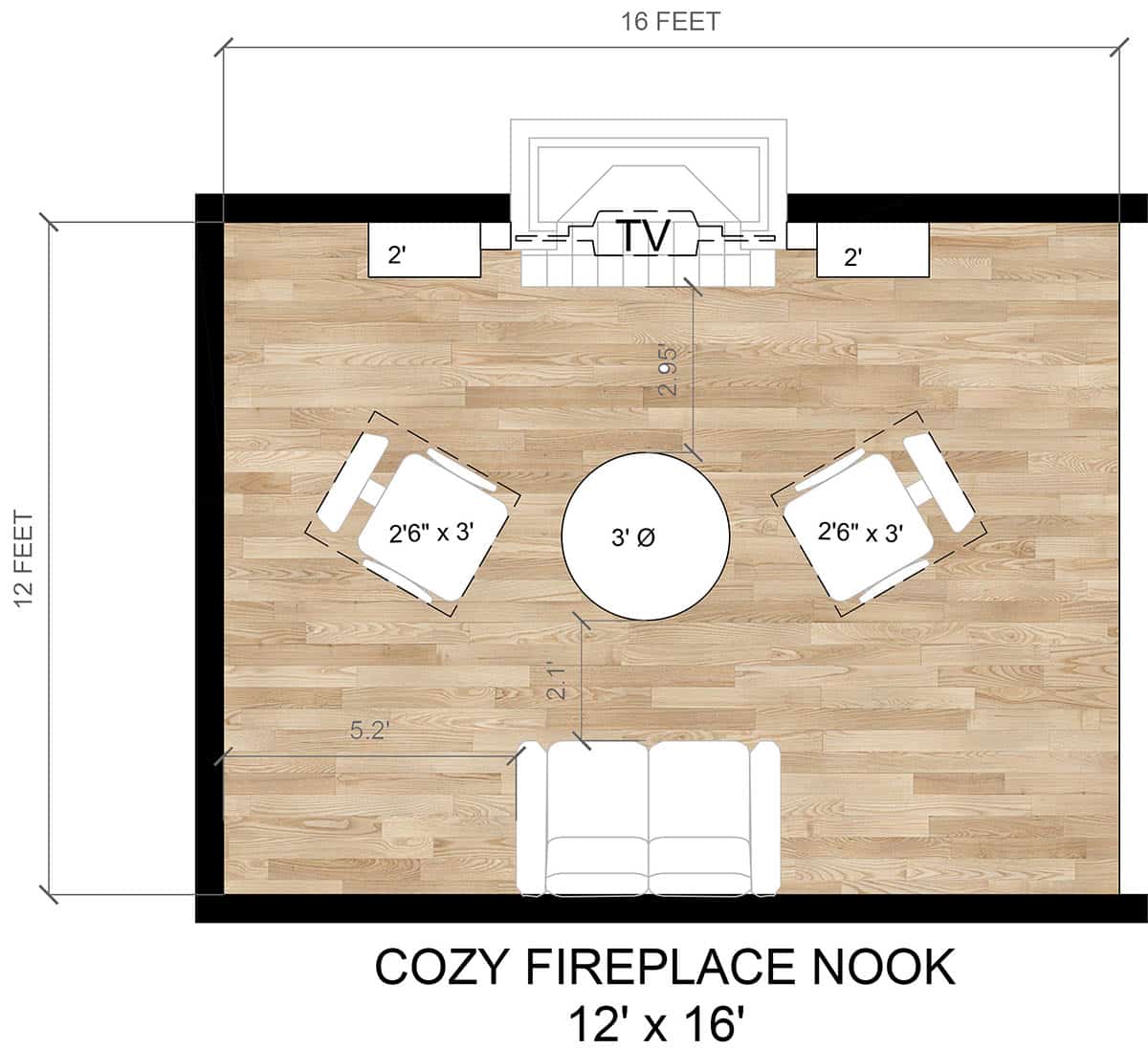

Cozy Fireplace Nook With Off-center TV

This cozy living room layout focuses around a central hearth with a TV, a direct-facing sofa, and two armchairs.



Floor Plan Details: This cozy living room offers an all‑inclusive view with every seat having a straight or slight‑pivot view of both the flames and the offset TV, so you can switch from conversation to movie night without rearranging any furniture. The conversation triangle design features a small sofa and two angled chairs to form a tight 7 ft‑wide triangle around the round table that’s perfect for intimate chats or board games with family and friends. The two lounge chairs or recliners are canted inward at 15°–20° to frame the round table. For circulation, there’s open floor space along both side walls to provide plenty of walking room. As the focal point, the large traditional hearth centered on the upper wall with a wall-mounted TV has 24 in‑wide plinths on either side to double as wood storage or display ledges for decor pieces.

Important Dimensions:

• Room size: 16″ (W) x 12′ (D)
• Fireplace opening: 40 in W × 28 in H to fit a standard gas/wood insert
• Hearth depth: 16 in stone slab that’s code‑compliant for spark protection
• Built‑in plinths: 24 in W × 16 in D × 18 in H with an extra perch as a décor platform
• Sofa/loveseat: 60 in W × 36 in D and seats two without overpowering the nook
• Sofa to coffee table distance: 25 in (plan shows 2.1 ft) which is an ideal reach zone for drinks & books
• Lounge chairs: 2′ 6″ × 3′
• Coffee table: 3′ round
• Chair angle: 15°–20° inward and directs sight‑lines to the fire & TV feature simultaneously
• Walking path behind chairs: 36 in to both side walls to help guests slip in/out without bumping furniture

Design Tips:

• Use an area rug measuring 6 × 9 ft, centered under the coffee table that lets the sofa’s front legs and chair legs sit on the pile.
• Consider choosing swivel barrel chairs so guests can pivot toward the TV or turn to chat with the sofa without dragging their legs across the floor.
• Add wall sconces above each 2‑ft plinth for soft up‑lighting, combined with a dimmable semi‑flush mount in the center for ambient overhead glow, and a floor lamp behind one chair for task (reading) lighting.
• Use texture layering to balance the hearth’s hard stone with plush throws on the sofa and a luxurious wool rug to amplify the intimate vibe.
• Mirror the fireplace surround’s tone in the coffee table finish and details, and repeat the chair upholstery color in the loveseat’s accent pillows to tie the color palette together.

For even more ideas, make sure to check out our gallery of TV placement for living rooms with a fireplace.
