12×12 Living Room Layouts With The Best TV & Furniture Placements

A 12×12 living room is a popular size that sits right in the middle between small and large. You have furniture placement options, but if you use the wrong arrangement, it could feel like you’re navigating around obstacles. Get it right, and the room design feels organized and accessible. If you’re struggling with a room that’s already furnished but not quite working, or you’re about to move things around, you need a plan that works. Maybe you’re even in the first stages of planning a renovation and trying to figure out what’s actually possible. That’s exactly where these 12×12 living room layouts are useful. Below you’ll get helpful architect-designed floor plans that show you the best places to position the sofa, with efficient entry paths and seating areas that work for watching TV and entertaining. The five layouts detailed below cover a range of real-life scenarios for whatever your needs may be: dedicated media rooms, dual-purpose spaces, and conversation-focused seating arrangements.

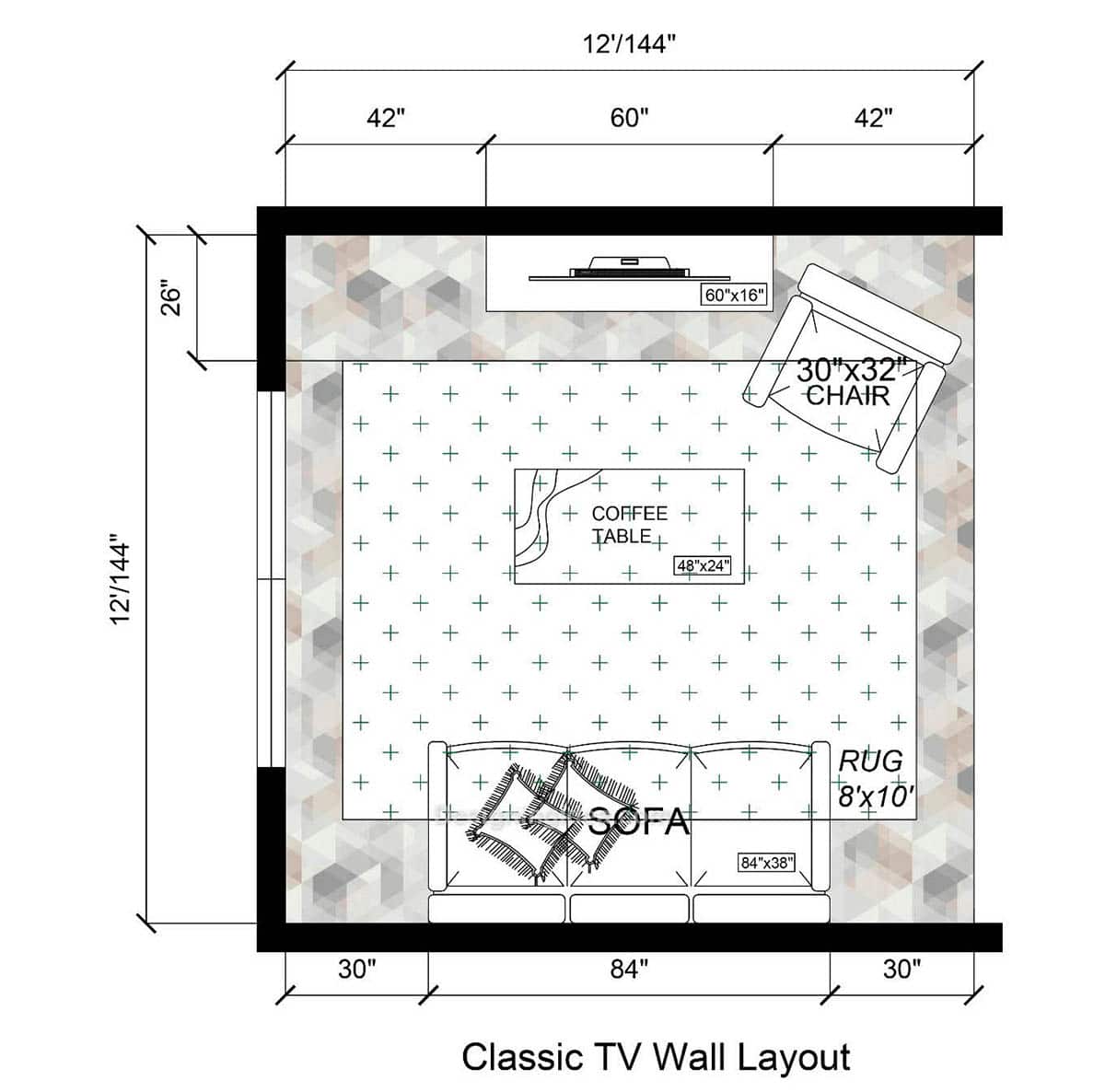

Classic TV Wall Layout

This room design is straightforward, with a sofa that faces a TV setup that makes the 12×12 floor plan feel roomy and inviting.

---

Easily Create Your Own Room Makeover

Upload a photo and get instant before-and-after room designs.
No design experience needed — join 2.39 million+ happy users.
👉 Try the AI design tool now

---



Floor Plan Details: Dealing with arranging furniture in a square room can be a challenge since it’s not always obvious which wall should be the focal point, and things can feel too spread out. This room solves that problem by situating the TV console on the top wall, with the sofa pulled up opposite it. To frame the primary sitting area there’s an 8×10 rug that defines the seating zone, so the room doesn’t feel like furniture is just floating there. There’s an accent chair tucked at an angle in the upper right corner with a diagonal placement that works for entertaining. The trade-off for this layout is that it leans hard into its primary function of watching TV.

Dimensions:

• Room size: 12′ x 12′ (144″ x 144″)
• TV console: 60″ x 16″
• Sofa: 84″ x 38″
• Coffee table: 48″ x 24″
• Accent chair: 30″ x 32″
• Rug: 8′ x 10′
• Left and right wall clearances to sofa from the wall: 30″ each
• Left and right clearances from the TV console to the wall: 42″ on each side, with 60″ center span
• Top wall inset depth to rug: 26″

Design Tips:

• Maintain the 30″ clearance on either side of the sofa so there’s room to comfortably walk through and add a floor lamp.
• Keep the sofa exactly where this plan puts it so traffic can move and the design appears symmetrical.
• Use an angled chair placement and point it slightly toward both the TV and the sofa so it feels like part of the conversation seating group.
• Add a small side table tucked beside the accent chair if you want a designated reading area.
• Keep the coffee table sized at 48″ x 24″ which leaves a good amount of breathing room between the sofa and the table.
• Place a rug under the seating area to frame the space and help the furniture feel more connected.

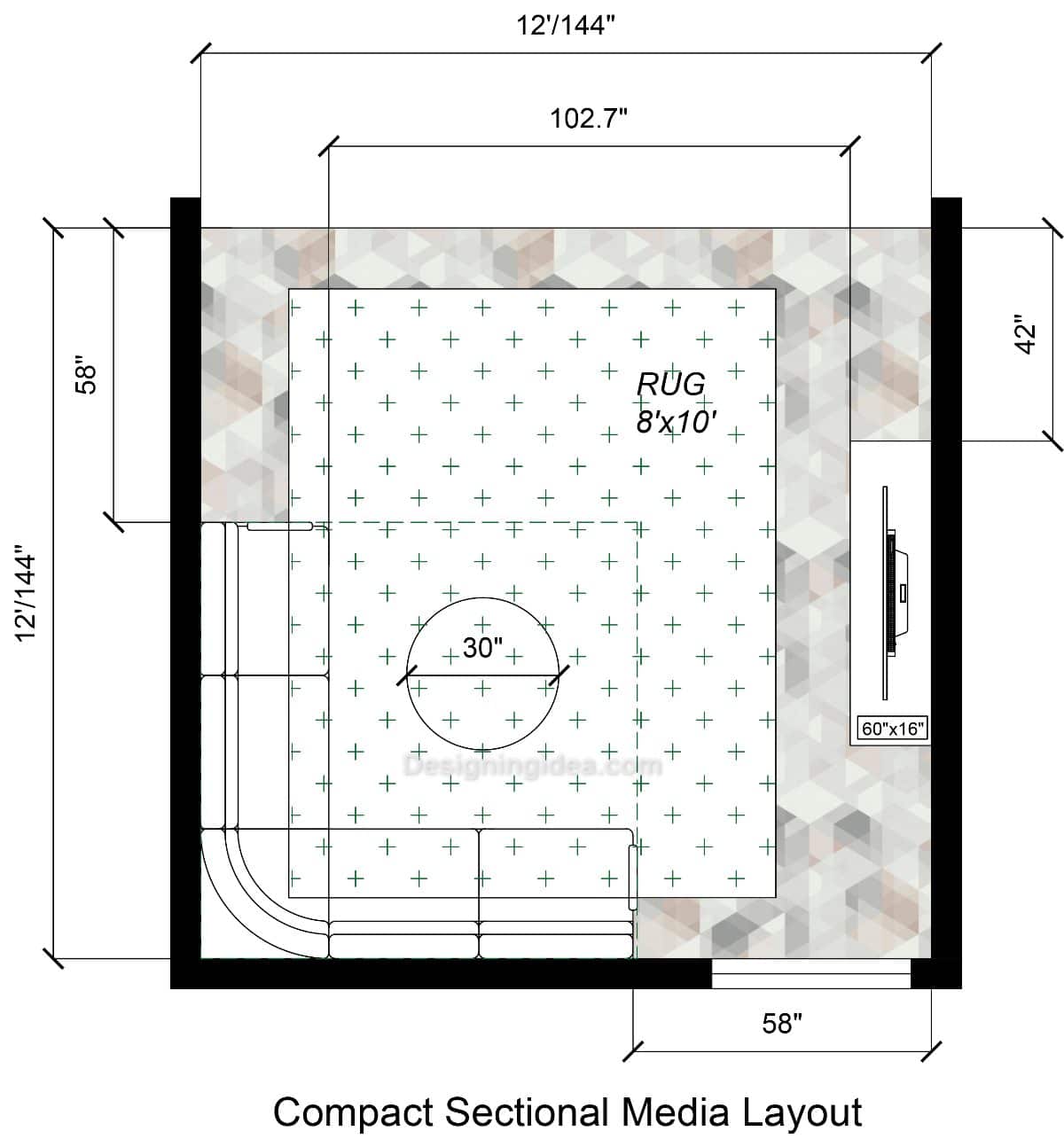

Compact Sectional Media Layout

This square 12×12 room gets a full media setup by pushing the sectional into the corner and centering the TV against the opposite wall.

Floor Plan Details: This layout works with the room’s natural geometry by positioning a sectional in the lower-left corner, hugging two walls so the remainder of the floor space is open to movement. The entry is in the bottom right and is immediately followed by a 60″ x 16″ TV console. This setup allows for easy TV watching from the sofa with a small 30″ coffee table placed nearby and an 8×10 rug underneath to designate the sitting space. The 30-inch coffee table is at at distance from the couch so it’s easy to reach without being in anyone’s way. The trade-off for this design is that having a sectional corner limits your overall flexibility as it’s challenging to reconfigure or host a larger group with additional chairs.

Dimensions:

• Room size: 12′ x 12′ (144″ x 144″)
• Interior usable wall-to-wall span: 102.7″ wide
• TV console/media unit: 60″ x 16″
• Coffee table: 30″ diameter (round)
• Rug: 8′ x 10′
• Left wall sofa clearance zone: 58″ depth
• Bottom wall sofa clearance zone: 58″ width
• Right wall TV zone depth: 42″

Design Tips:

• Mount the TV so it’s watchable when seated at eye level, which is roughly 42 to 48 inches from the floor to the center of the screen.
• Keep the pathway from the entry to the TV wall clear and avoid adding a side table or floor lamp on the open right side of the sofa.
• Use an 8×10 rug and pull it fully under the front legs of the sectional rather than floating it in the middle of the room.

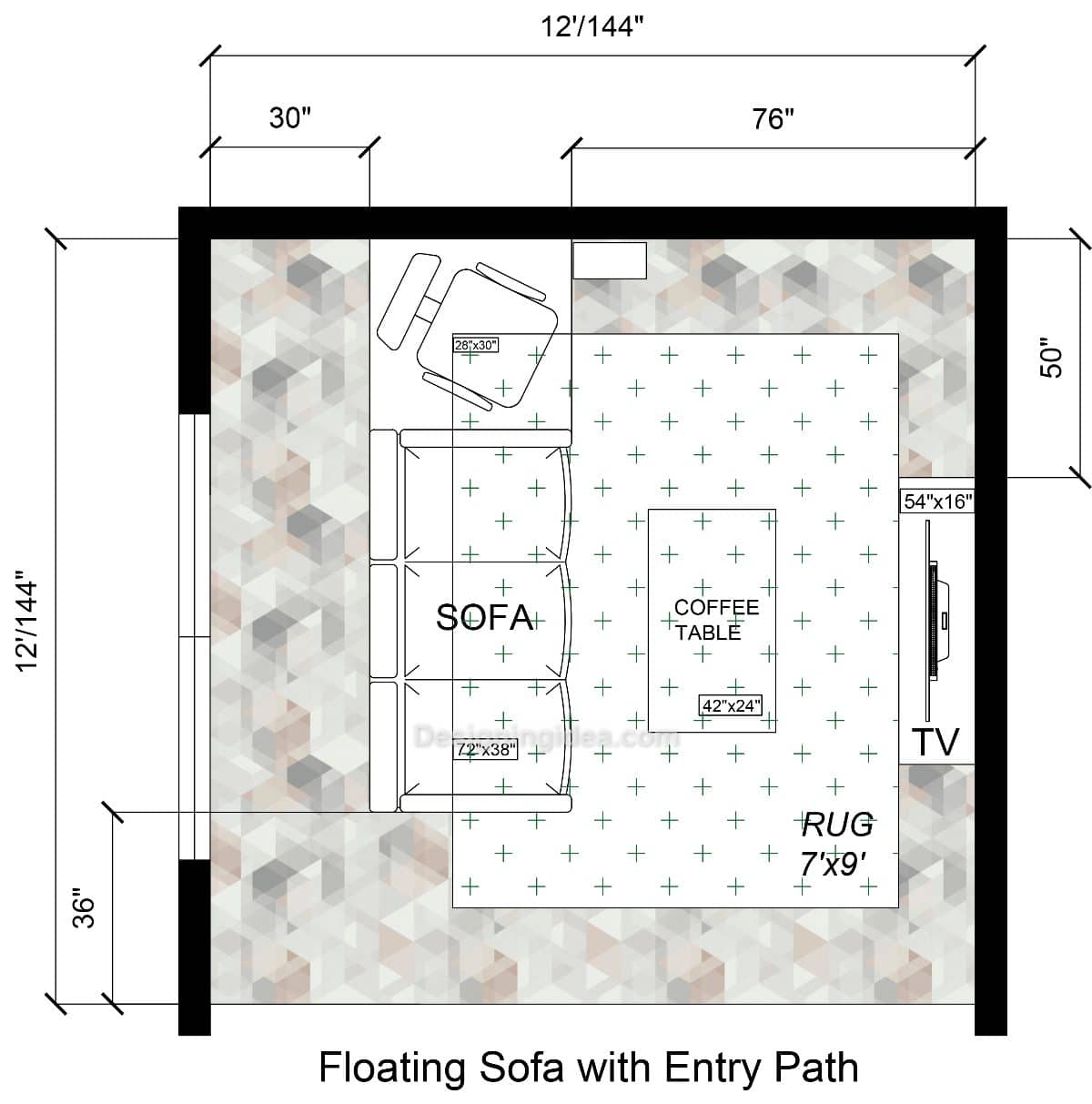

Floating Sofa With Entry Path

For a more intimate layout, this living room design floats the sofa more toward the middle, leaving an open walkway along the left wall while keeping the seating zone facing the TV.

Floor Plan Details: This room design leaves a 30-inch corridor along the left wall, which is perfect for creating a more intimate setting or if you want a pass-through walkway to another area, such as the kitchen or dining space. To get these results, the sofa is floated off the back wall with an angled accent chair tucked beside it, with both facing the 42″ x 24″ coffee table and TV. The TV sits on a 54×16″ console on the right with direct sightlines from the sofa. This arrangement is ideal for those looking for a media room setup that doesn’t compete for attention. The trade-off is a much more compact furniture cluster, with the far bottom-left corner potentially ending up feeling underused.

Dimensions:

• Room size: 12′ x 12′ (144″ x 144″)
• Entry path along left wall: 30″ wide
• TV console zone on right wall: 50″ from top wall, 54″x16″ console
• Sofa: 72″x38″
• Coffee table: 42″x24″
• Accent chair: 28″x30″
• Rug: 7’x9′
• Bottom-left clearance/open zone: 36″

Design Tips:

• Set up that underused bottom-left corner with a tall floor lamp or a slim bookshelf that can fit there without blocking the entry.
• Place a 7×9 rug to anchor the seating group, but make sure the front legs of the sofa sit on top of it.
• Keep the accent chair on top, angled to maintain the conversational geometry and let the entry path feel open.

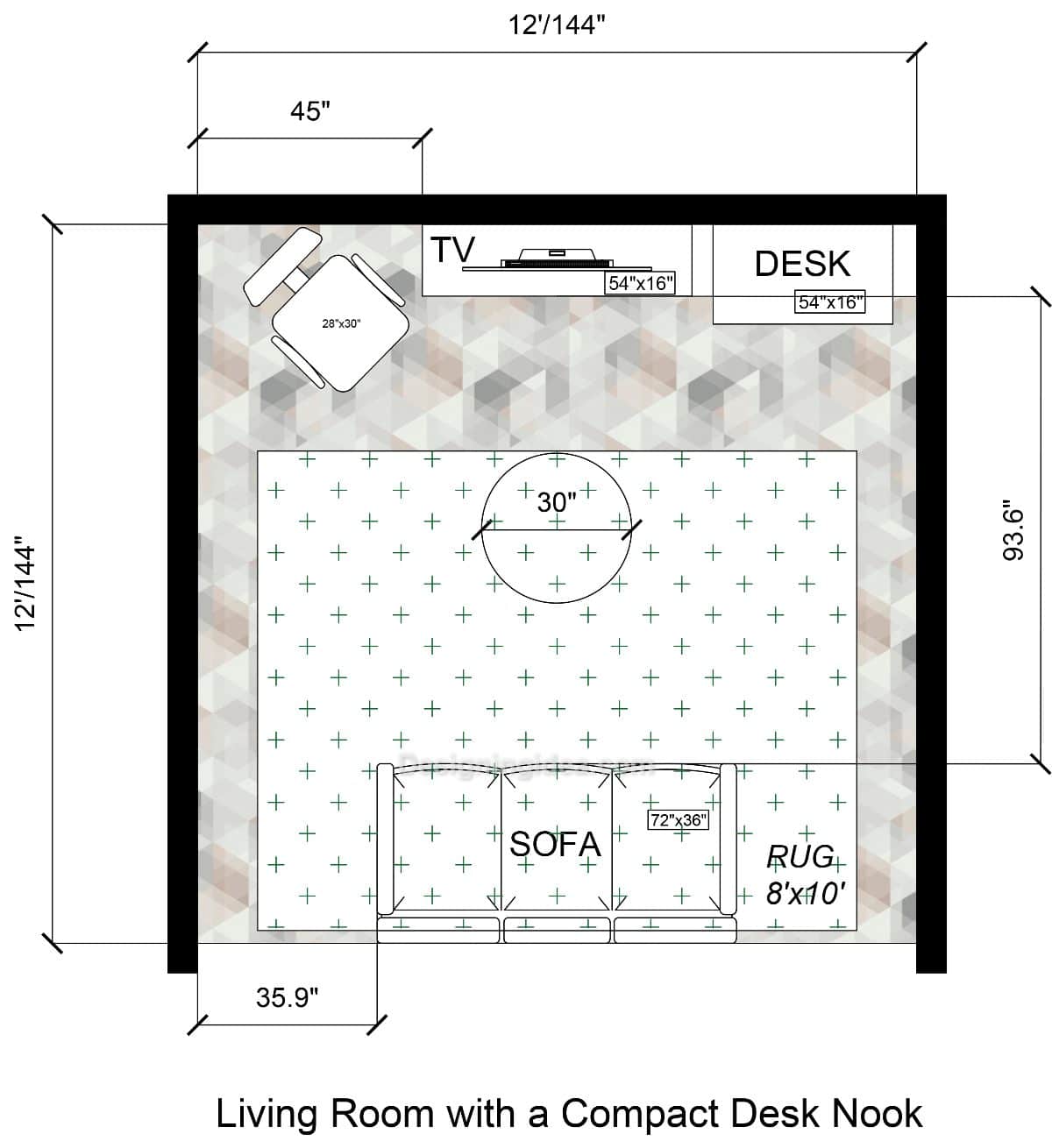

Living Room With A Compact Desk Nook

For those wanting a useful, multi-purpose work-from-home living room layout, this design features a full sofa and TV setup with a dedicated workspace in one corner.

Floor Plan Details: The upper wall does most of the work here with a TV console and desk sitting side by side across the top of the room. This room division keeps the “task” functions in one corner and frees the rest of the floor for relaxed living. The sofa sits on the lower half of the room, facing the TV at a comfortable distance, with an 8×10 rug pulling the seating zone together. The 30-inch round coffee table is placed between the sofa and the screen without blocking movement. An armchair is tucked into the upper-left corner, so there’s a secondary seat to create a better conversation area. The trade-off is that the desk and TV share a wall with no buffer, so if you’re working while someone else is watching the TV, it could be disruptive.

Dimensions:

• Room size: 12′ x 12′ (144″ x 144″)
• Sofa: 72″ x 36″
• TV console: 54″ x 16″
• Desk: 54″ x 16″
• Coffee table: 30″ diameter (round)
• Armchair: 28″ x 30″
• Rug: 8′ x 10′
• Wall offset dimension: 45″ (upper left) and 35.9″ (lower left)
• Right wall clearance: 93.6″

Design Tips:

• The desk and TV share the same wall, so treat them as a single visual unit.
• Add a low floating shelf or a single long console running the full width of the top wall for a cohesive look.
• Angle the armchair slightly toward the room rather than pushing it flat against both walls.
• Use an 8×10 rug and make sure the sofa’s front legs sit on it.

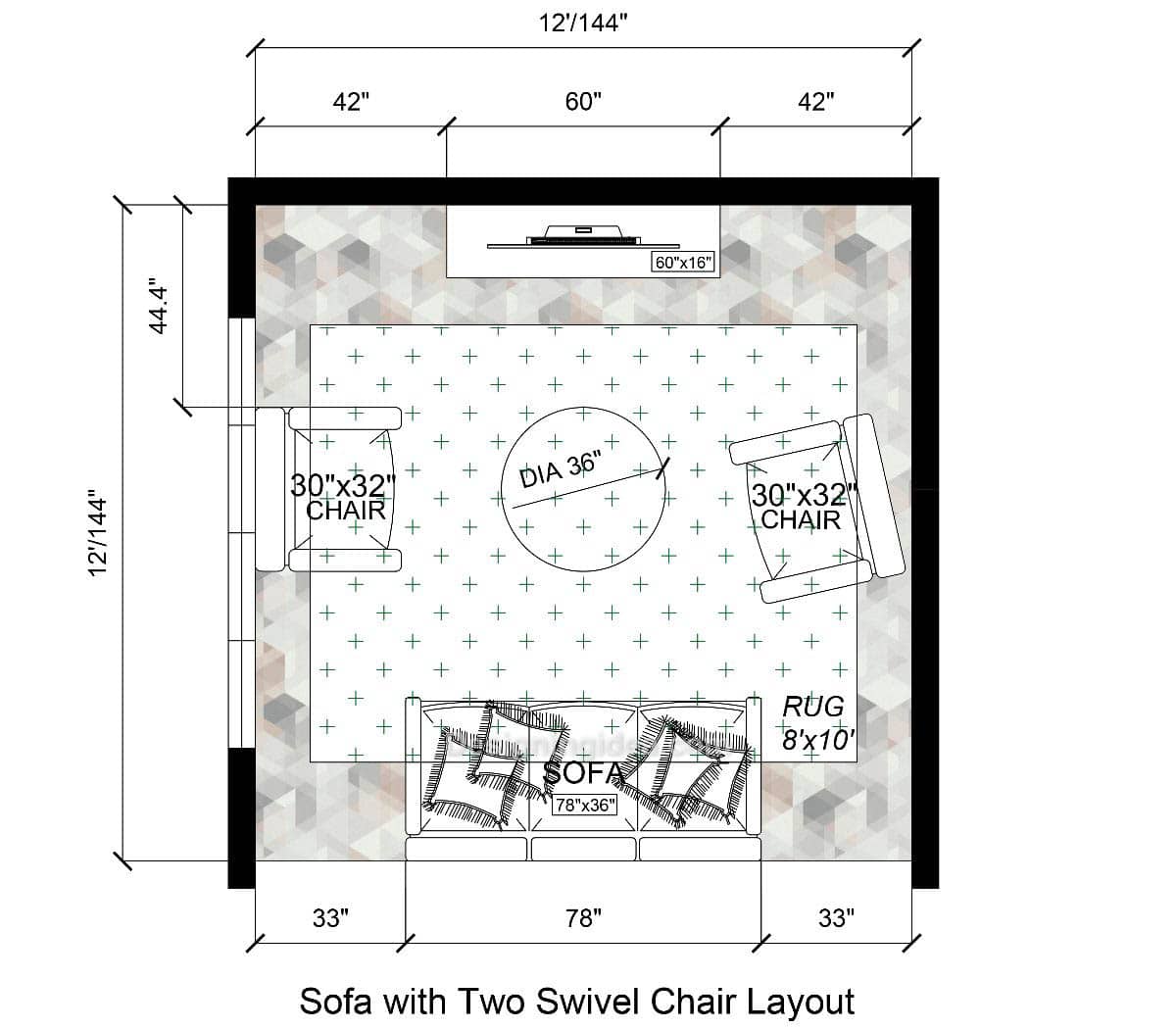

Sofa With Two Swivel Chairs

This design places two angled swivel chairs flanking a round coffee table with a sofa in the center facing a TV for a conversation-first space that also works for TV viewing.

Floor Plan Details: When you’re working with a perfectly square 12×12 room, it can be harder to define zones, especially if you don’t have a defined focal point. This living room layout uses symmetry by placing the sofa anchoring the lower wall, the TV console in the center of the opposite wall, and the two swivel chairs floating on either side with a round table in the middle. Everything is framed with an 8×10 area rug, so it’s all cohesive. The swivel chairs rotate and can face the TV when you’re watching and pivot toward whoever’s sitting on the sofa when you’re talking. This setup gives the room flexibility with open sightlines and easy pathways to either side of the couch.

Dimensions:

• Room size: 12′ x 12′ (144″ x 144″)
• Sofa: 78″ x 36″, centered on lower wall with 33″ clearance on each side
• Two swivel chairs: 30″ x 32″ each, positioned left and right of center
• Round coffee table: 36″ diameter
• TV console: 60″ x 16″, centered on upper wall with 42″ clearance on each side
• Rug: 8′ x 10′

Design Tips:

• Keep the chairs angled iso their slight inward rotation makes the seating feel like a group.
• Choose an 8×10 rug and ensure the front legs of the sofa and at least the front feet of both chairs land on top.
• Add matching floor lamps to each top corner for additional light sources.

---
