Designing an accessible bathroom is all about creating a space that feels easy, safe, and comfortable to use every day, while still meeting all the guidelines to remain code-compliant. In this guide, you’ll see five space-efficient and accessible bathroom layouts that prioritize mobility and comfort. You’ll see designs that focus on room for movement, turning space, offer wider entries, better fixture placement, and shower options that work for different height levels. Whether you’re planning for a wheelchair user, aging in place, or simply want a bathroom that’s more user-friendly, these floor plans will show how to make accessibility feel seamless and not clinical.

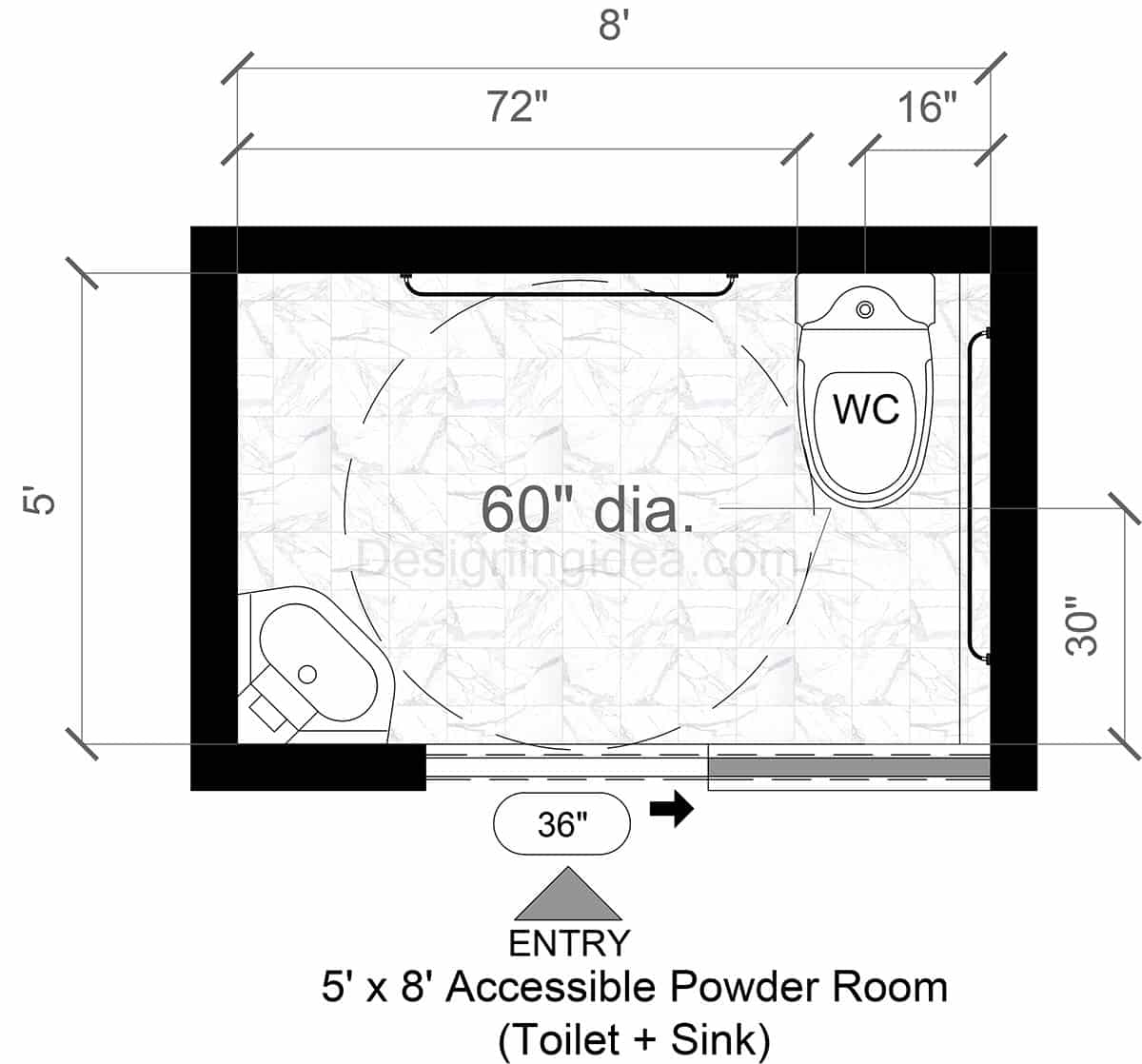

This small 5′ x 8′ bathroom focuses on offering a wide 60″ turning radius in its limited space by pushing all of the fixtures to the edges and using a 36″ pocket entry, so the room is genuinely accessible.
Easily Create Your Own Room Makeover
Upload a photo and get instant before-and-after room designs. No design experience needed — join 2.39 million+ happy users. 👉 Try the AI design tool now
Floor Plan Details: This 5′ x 8′ accessible powder room is laid out to keep the middle of the room open to provide a full 60″ turning ability. At the entry, there is a 36″ pocket or sliding door at the bottom wall, so there’s no door swing to get in the way. Once inside, the plan reserves the center as a turning circle, with all fixtures placed along the perimeter to make the room feel ADA-friendly for its users. The toilet, marked as WC, is placed along the right wall toward the back, and is paired with a side and rear-wall grab bar for support and transfers. A compact corner sink sits in the front-left corner, giving a functional handwashing spot without creating a vanity bump-out that would interfere with the turning diameter. The result is a simple, code-aware powder room to prioritize ease-of-use and access. Check out our 5×9 designs for more like this.
Dimensions:
Room size: 5′ x 8′ (about 60″ x 96″)
Turning space: 60″ diameter circle in the center
Door opening: 36″ wide (use a pocket or sliding style)
Toilet offset shown: 16″ noted at the WC side (common centerline-style placement for accessibility planning)
Design Tips:
Use a wall-hung corner sink that is open to accommodate a wheelchair and legs underneath.
Equip the sink with levers or a motion-controlled sensor for better accessibility.
Keep the sink’s bowl projection shallow so it doesn’t get in the way of the 60″ turning circle.
Choose a pocket door with easy-to-use hardware, such as a recessed pull, and with a soft-close track.
Add solid blocking for all grab bars to ensure they can support the weight needed.
Place the towel ring, TP holder, and trash can on the outside perimeter so they don’t block the 60″ circle.
Use a comfort-height toilet to make use easier for all users.
Light the space with a bright ceiling fixture plus a glare-free mirror light and equip it with a motion detector.

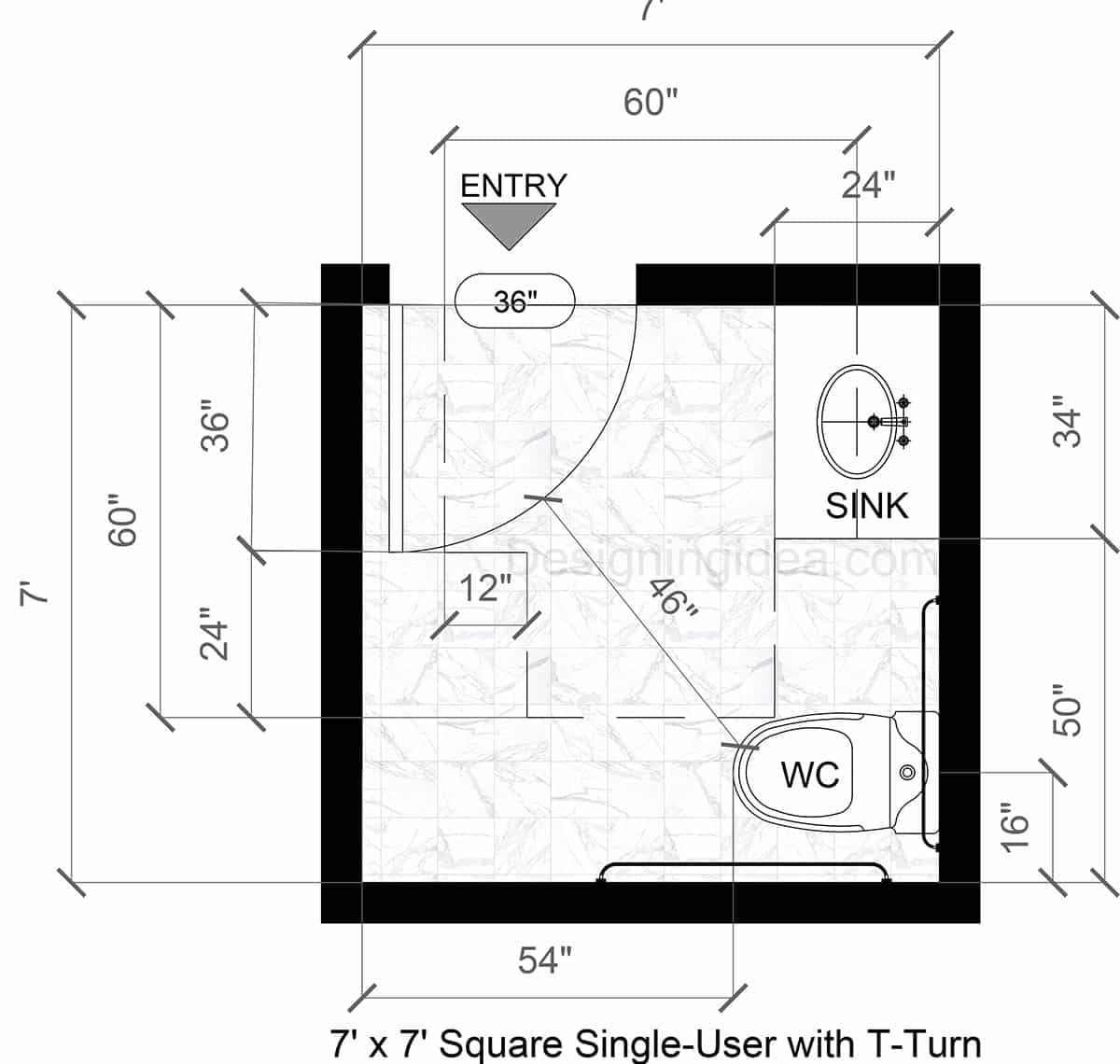

7×7 Square Single-User Bathroom with T-Turn Floor Plan
This square 7′ x 7′ bath positions all fixtures on the right side, creating a T-turn maneuvering zone that offers accessibility within a compact space.
Floor Plan Details: This 7′ x 7′ square single-user bathroom is designed around a T-turn space that makes maneuvering easier. The 36″ entry door is located up top, and the plan keeps the main area open with the 34″ x 24″ sink and the toilet placed against the right side. The layout places the sink in the upper-right corner so it’s easy to reach as soon as you enter. This arrangement also keeps plumbing on one side, leaving the center-left area as the “stem” of the T-shaped turning space. That open stem is what makes the plan work since it gives a wheelchair room to maneuver without needing a full 60″ turning circle. Overall, it’s a simple and practical arrangement with a wide entry, a sink nearby, the toilet tucked further down, and protected turning space for better accessibility.
Dimensions:
Room size : 7′ x 7′
Vanity 34″ x 24″
Door opening: 36″
Primary width across the top maneuvering zone: 60″
Bottom interior span callout: 54″ (lower run shown along the bottom)
Design Tips:
Consider an outswing or pocket door to make the turning area even more forgiving.
Use a compact or wall-hung sink or choose a model with adequate knee clearance.
Keep the floor area clear in the T-turn zone and any trash bins or hampers at the perimeter.
Add a weight-rated grab bar or at least the blocking, so even if you don’t install bars now, they are easier to put in later.
Pairing a bright overhead fixture with a glare-free vanity light keeps the area well-lit.

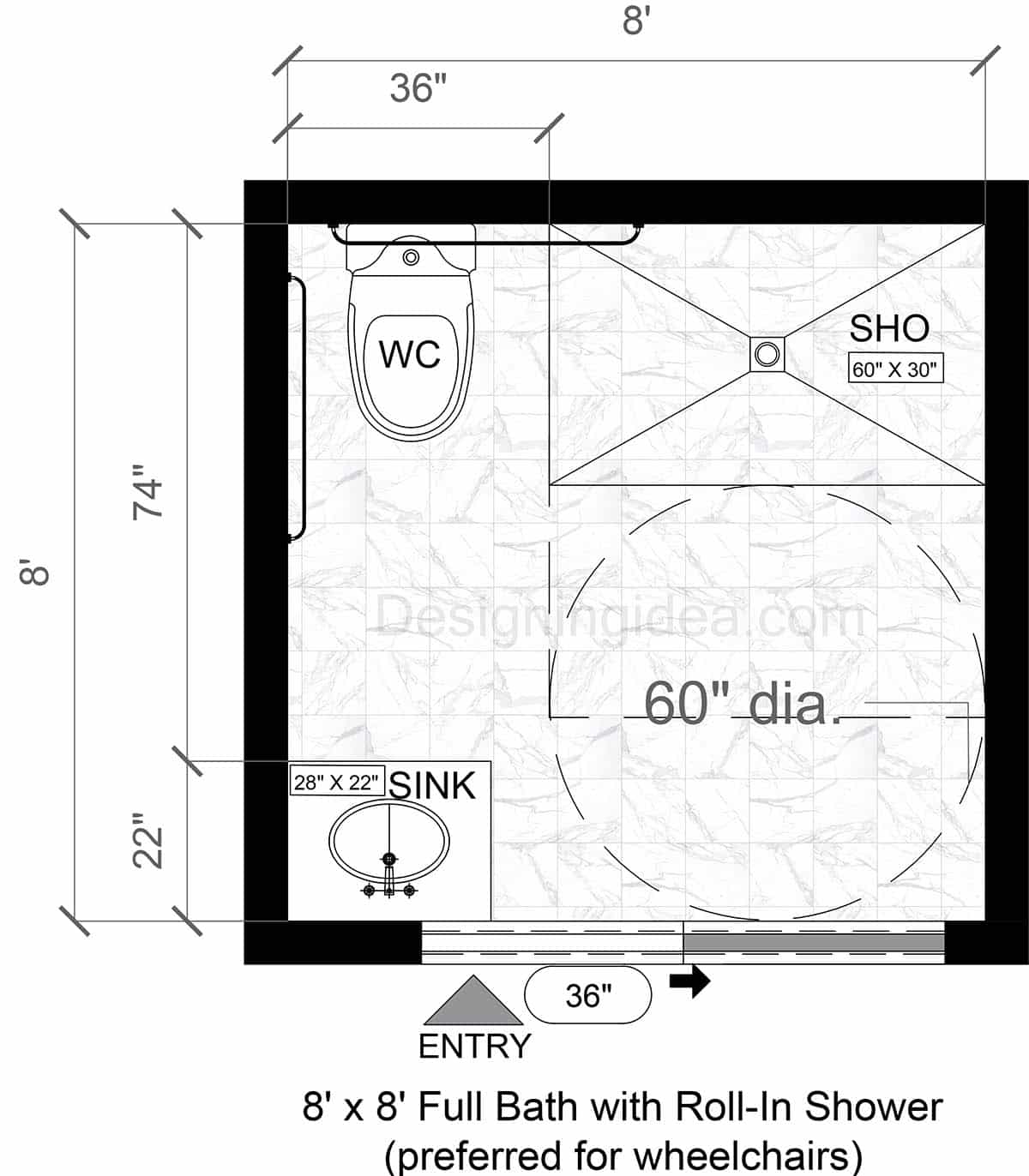

8×8 Full Bathroom with Roll-In Shower Layout
This full bath has room for a full 60″ turning circle and uses a 60″ x 30″ roll-in shower, which makes the 8×8 room feel usable for wheelchairs without any wasted space.
Floor Plan Details: This 8′ x 8′ full bathroom is built around a wheelchair-friendly movement that reserves the center for a 60″ turning circle. The 36″ wide entry is placed on the bottom wall with a sliding or pocket-style opening, which eliminates door-swing conflicts and keeps the floor area usable for those in a wheelchair. The fixtures are pushed to the perimeter to protect the turning zone. As you enter, you’ll find a compact sink sitting in the bottom-left, with a toilet, marked WC located along the upper-left wall. The toilet is paired with wall-mounted grab bars so transfers and support are available whenever needed. On the upper, right side, the layout is dedicated to a roll-in shower measuring 60″ x 30″. The open, barrier-free shower allows a wheelchair to approach and enter without a curb. With the shower and toilet kept to the top half and the sink tucked in the low-left, the plan maintains an open space so everything is easy to reach and access when needed.
Dimensions:
Room size: 8′ x 8′
Entry width: 36″
Turning space: 60″ turn diameter
Shower size: 60″ x 30″ (curbless roll-in zone)
Sink size: 28″ x 22″ (as labeled)
Design Tips:
Plan for a curbless shower build with proper pre-slope, waterproofing, and a linear drain near the opening so the water stays controlled without a curb.
Use a weighted shower curtain or a partial screen for the shower enclosure to keep water contained.
Install shower controls for reach with a valve and handheld on a wall that can be reached from a seated position.
Add a fold-down seat and grab bars for accessibility.
Mount a wall-hung or shallow vanity with open knee clearance.
Use slip-resistant flooring with good wet traction and keep all of the transitions flush.
Install recessed niches along the shower’s wall for bathing accessories.

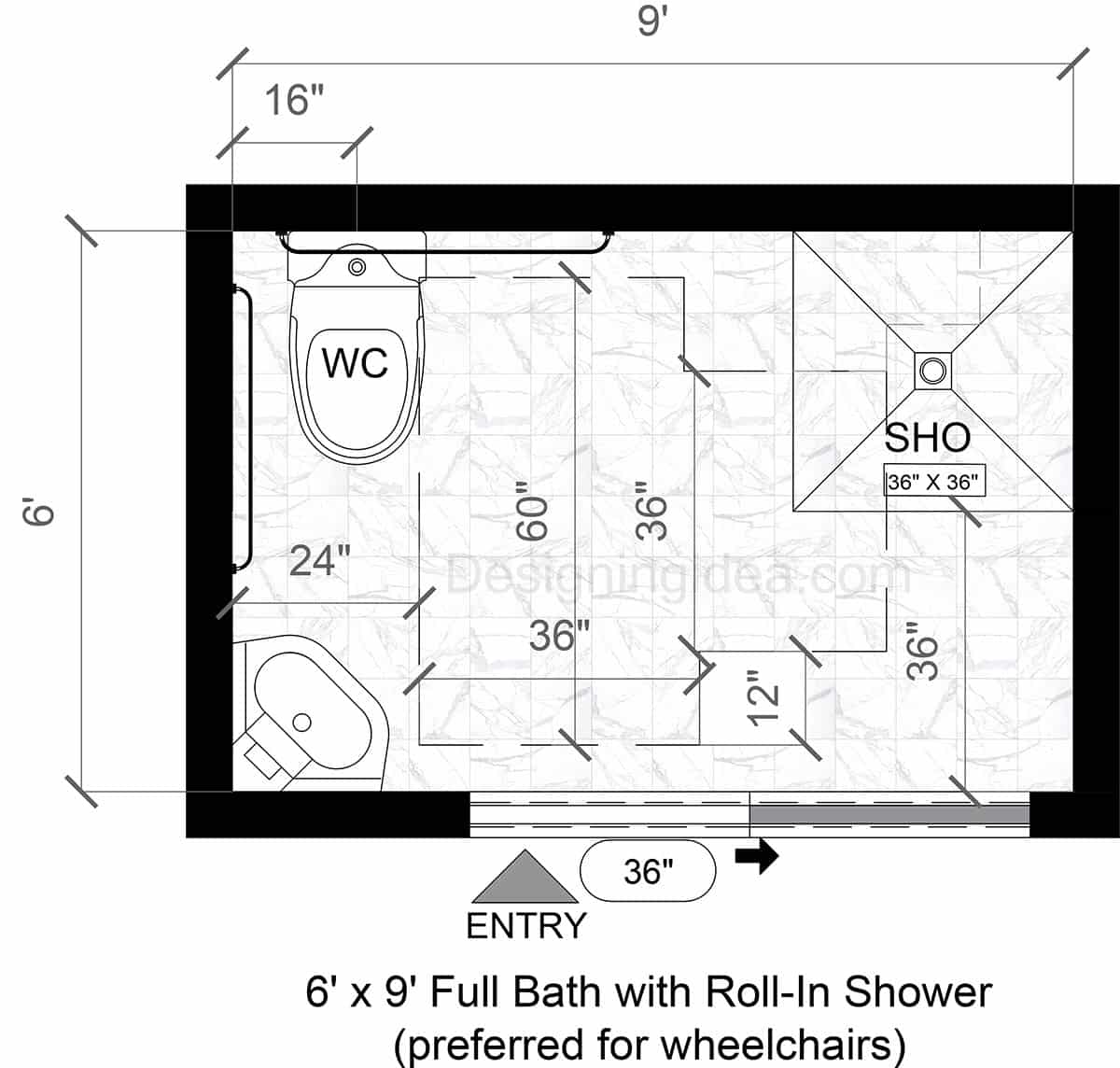

6×9 Narrow Bathroom with Transfer Shower Floor Plan
This bath design pairs the sink and toilet on one side with a roll-in shower on the other, making accessibility achievable in a narrow 6′ x 9′ floor plan.
Floor Plan Details: This 6′ x 9′ narrow full bath is organized with a focus on accessibility by creating a transfer/turning lane space in the middle with all of the fixtures along the sides. The 36″ entry is found on the bottom-middle wall and is shown as a sliding/pocket-style opening. As you enter, there is a wide and unobstructed, central maneuvering pocket to support wheelchair movement. The toilet, marked as WC, is placed on the upper-left side, with grab bar locations on the top and left sides. Across from it, the shower is located in the upper-right corner and labeled as a 36″ x 36″ transfer shower. This setup allows the user to approach from the open floor area and transfer laterally to a seat or bench, or roll straight in. A corner sink is placed in the bottom-left near the doorway and should be floating to allow access for legs underneath.
Dimensions:
Room size: 6′ x 9′
Entry width: 36″
Roll-in/transfer shower size: 36″ x 36″
Key clearance callouts shown in plan:
60″ (central maneuvering length shown)
36″ (path/turn arms shown multiple times)
24″ (left-side clearance callout near WC zone)
12″ (small offset/return near lower-right)
Design Tips:
To create a transfer shower and not just a roll-in, plan for a fold-down seat (or a built-in) and put the controls where they can be reached.
Use a compact/lavatory-style sink in the corner that is wall-mounted and shallow so it doesn’t interfere with the turning pocket.
Use a curbless or very low-threshold shower entry to reduce trip risk and improve accessibility.
Consider a partial glass panel or weighted curtain so the rest of the room stays drier.
For a narrow, rectangular room like this, go with two recessed lights spaced along the length, a wet-rated shower light, and a vanity fixture.

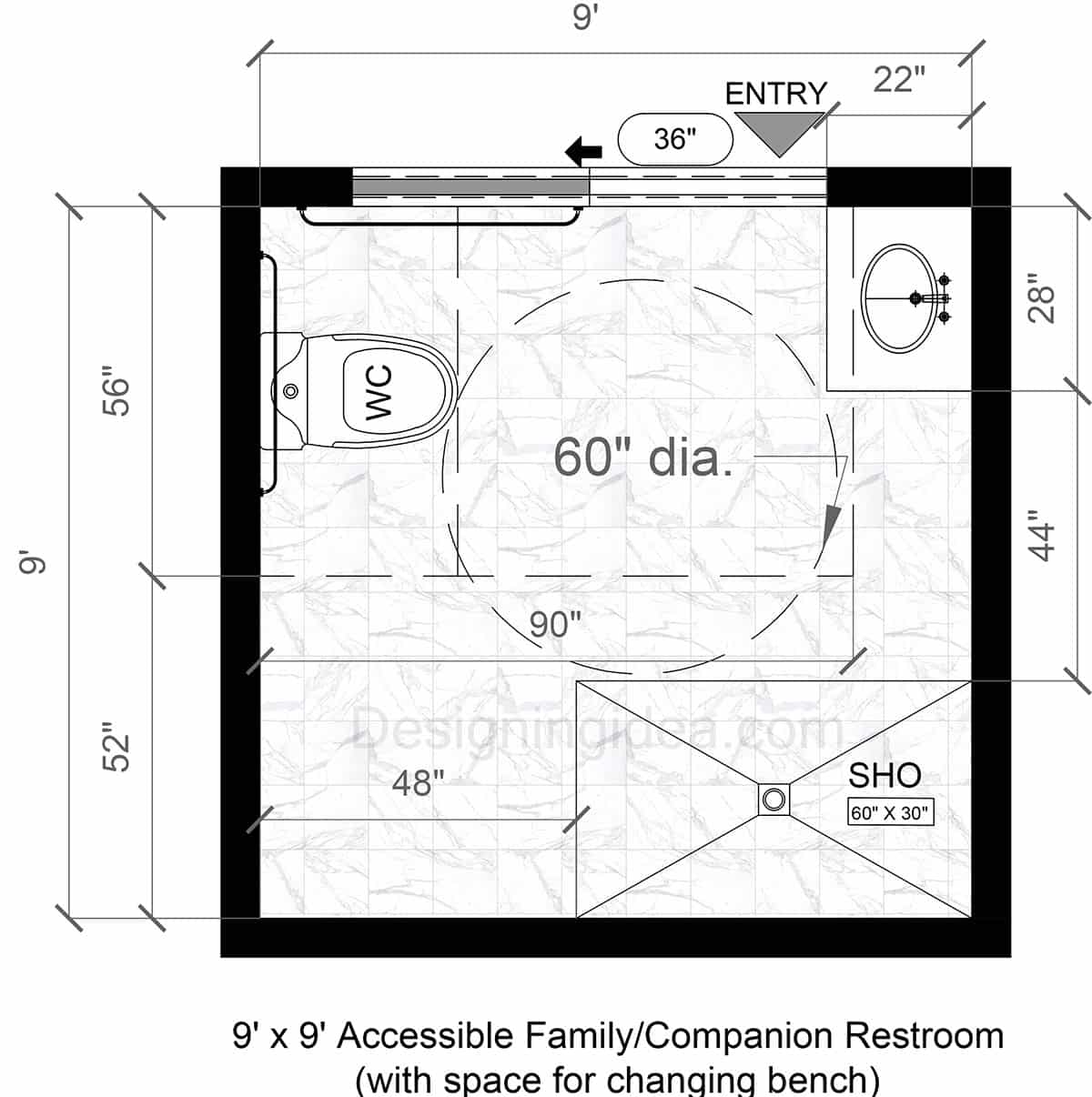

9×9 Accessible Family & Companion Restroom Design
This restroom design works for a home or business that needs a 60″ x 30″ roll-in shower, an open bench zone, and a central 60″ turning circle so the room is functional for both the user and a caregiver.
Floor Plan Details: This 9′ x 9′ accessible family and companion restroom is laid out like a small universal bathroom that provides the space for one person to maneuver while a parent, caregiver, or companion can assist. The 36″ entry is on the top wall and shown as a sliding or pocket-style opening, so there’s no inswing door to get in the way. The plan is organized around a 60″ turning circle in the middle, so one in a wheelchair can turn easily. The toilet, or WC is placed along the left side and is paired with a long grab bar so transfers can happen while leaving open floor area nearby for a helper. On the right side, there is a sink/vanity in the upper corner that measures 28″ x 22″. The roll-in shower is placed at the bottom-right and measures 60″ x 30″, giving an accessible shower that can be approached directly from the open area.
Dimensions:
Room size: 9′ x 9′
Entry width: 36″
Vanity/sink: 28″ x 22″
Turning space: 60″ diameter
Roll-in shower size: 60″ x 30″
Key plan callouts shown:
22″ (top-right offset near entry)
28″ (upper-right zone height at sink area)
44″ (right-side clear zone callout)
56″ / 52″ (left-side vertical zoning callouts)
48″ (lower-left area that is ideal for a changing bench zone)
90″ (clear span callout across the main interior zone)
Design Tips:
If you add a changing bench or seat, keep it wall-mounted or fold-down so the 60″ turning circle isn’t impacted.
Pick a wall-hung sink or shallow vanity with knee clearance.
Upgrade the shower for caregiving by adding a handheld showerhead, a fold-down seat, and blocking for grab bars.
All controls should be reachable from the entry and from a seated position.
Use a pocket/sliding door to preserve interior clearances.
Choose durable, slip-resistant flooring to prevent accidents.
Go with soft-close hardware and rounded-edge accessories in a shared-use bathroom.
Install 2 to 3 recessed lights to cover the turning area, mirror lighting, and a wet-rated shower light.
Notes: Some California codes require a 60″ turning circle separate from any knee/toe clearances. For larger plans, visit our 10×10 room designs here.
Notes you can apply to all five layouts
Grab bars at toilets: Side wall 42″ min, rear wall 36″ min, both mounted 33–36″ AFF. Access BoardADA Archive
Lavatory details:34″ max height; 27″ knee and 9″ toe clearances with the allowed tapered reduction beyond 8″ depth. Access Board+1
Doors:32″ min clear opening; provide ADA maneuvering clearances at pull/push sides (e.g., 60″ x 18″ at front/pull). Access Board Corada
Important: ADA standards are written for public/commercial facilities. Residential projects may follow local accessibility or universal design guidelines; always confirm with your local code official before building. ADA.gov
Accessible Bath Plan Reference
Plan
Room Size
Key Accessibility Feature
Fixtures Included
Best For
What It Provides
Accessible Powder Room (Toilet + Sink)
5′ x 8′
Full 60″ turning circle + 36″ pocket entry
Toilet + compact corner sink
Tight spaces needing true maneuvering clearance
A small footprint that still supports wheelchair turning and easy companion assistance.
Accessible movement in a square plan without requiring a wide-open 60″ circle in the center.
Full Bath with Roll-In Shower
8′ x 8′
Full 60″ turning circle + 60″ x 30″ roll-in shower
Toilet + sink + roll-in shower
Wheelchair users needing a true roll-in shower
A balanced full bath layout with a curb-free shower zone and protected turning space.
Narrow Bath with Transfer Shower
6′ x 9′
36″ x 36″ transfer shower + clear center lane
Toilet + corner sink + transfer shower
Skinny bathrooms that still need accessible bathing
A space-saving accessible shower approach (transfer style) that works when a full roll-in shower won’t fit.
Accessible Family & Companion Restroom
9′ x 9′
Full 60″ turning circle + space for changing bench
Toilet + sink + roll-in shower
Caregiver assistance, family use, adult changing needs
A universal-style room that supports turning + showering + a dedicated open zone for bench/changing tasks.
