A 4×6 walk-in closet sounds like it might offer a lot of room, that is, until you start trying to fit all of your clothing inside it. With only 48″ of depth for hanging racks, the difference between a closet that’s functional and one that’s cramped really depends on your design. The big questions, like where you will place your hanging rods, how deep to make the shelving, and whether you make some space for shoes or folded items, can completely change its functionality. In this guide, I share five different proven 4×6 walk in closet layouts that squeeze the maximum amount of storage possible out of its tight dimensions.

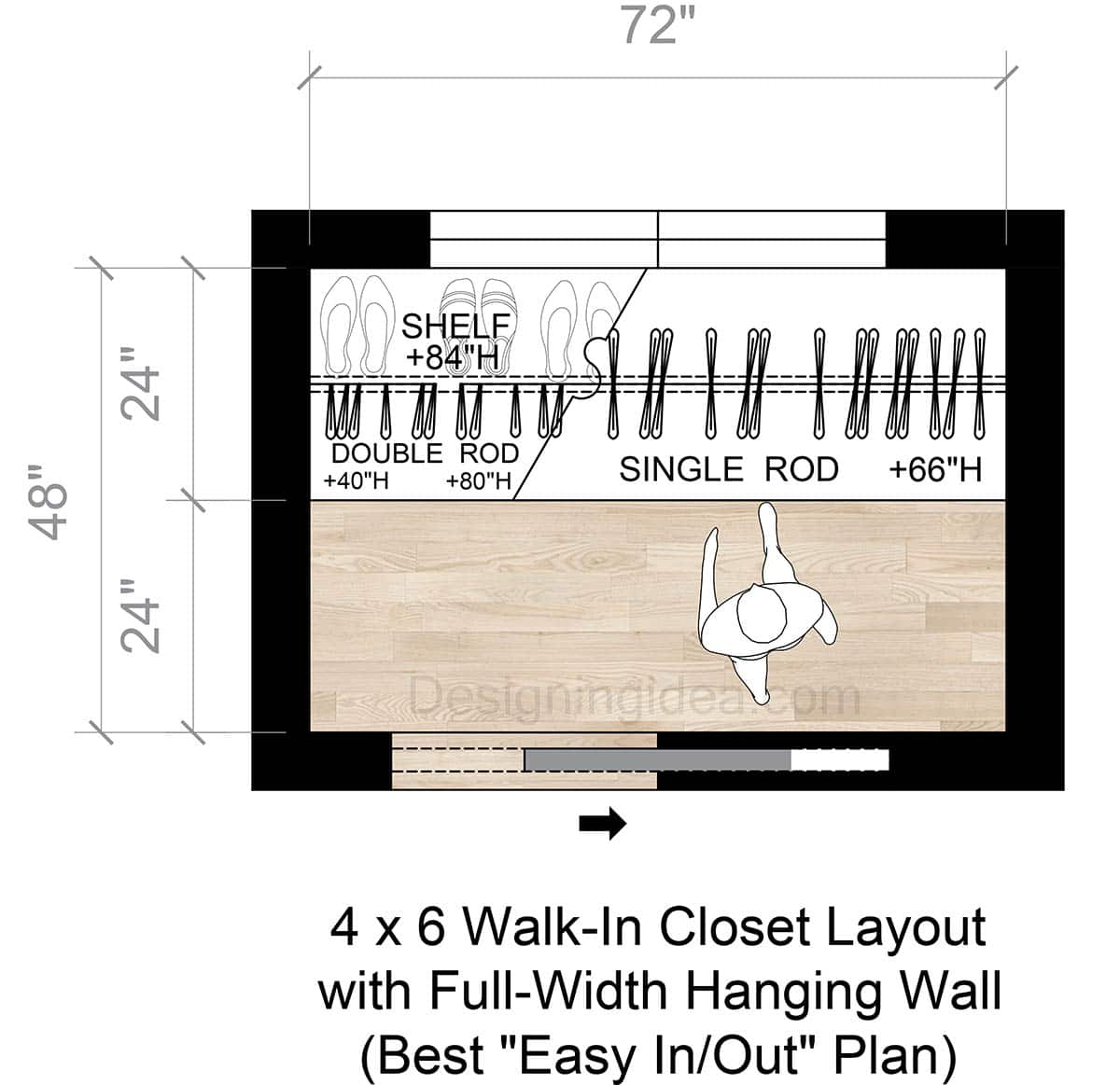

4×6 Walk-In Closet Layout With Full-Width Hanging Wall
This design goes with two different sections of rods spanning across one side, combined with a narrow walking aisle, so the small 4×6 closet feels organized and easy to use.
Easily Create Your Own Room Makeover
Upload a photo and get instant before-and-after room designs. No design experience needed — join 2.39 million+ happy users. 👉 Try the AI design tool now
Floor Plan Details: This small closet design places all the hanging storage on the back, for a full-width wall of clothing storage. When you walk in from the bottom slider opening, you’re in a 24″ wide aisle that runs along the bottom side of the closet. Facing the back 72″ wall, the plan splits your hanging into two zones, with a double-hang section for shorter items like shirts, and folded pants, and on the right, you get a single-hang section for longer pieces like dresses, and jackets. There is a top shelf that runs along over the racks for storing bins, extra bedding, or seasonal items you don’t often use.
Dimensions:
Closet size: 72″ W × 48″ D (6′ × 4′)
Depth split: 24″ hanging zone + 24″ aisle
Left section: Double rod
Lower rod height: +40″
Upper rod height: +80″
Right section: Single rod height: +66″
Top shelf height: +84″ H (above rods)
Design Tips:
Use the double-hang zone for storing your hanging shirts, pants, or workout gear so you can stack more.
Reserve the single rod for longer items like dresses and coats.
Choose slim hangers, as bulky hangers waste space.
Use one centered flush or recessed ceiling light for overall brightness.
Add LED strip lighting under the shelf to make the closet feel more “boutique.
Keep the top shelf devoted to labeled bins so you can easily store and find things you need.
Why it works: Uses one long wall for full-depth clothes hanging with an aisle you can step into and easily maneuver.

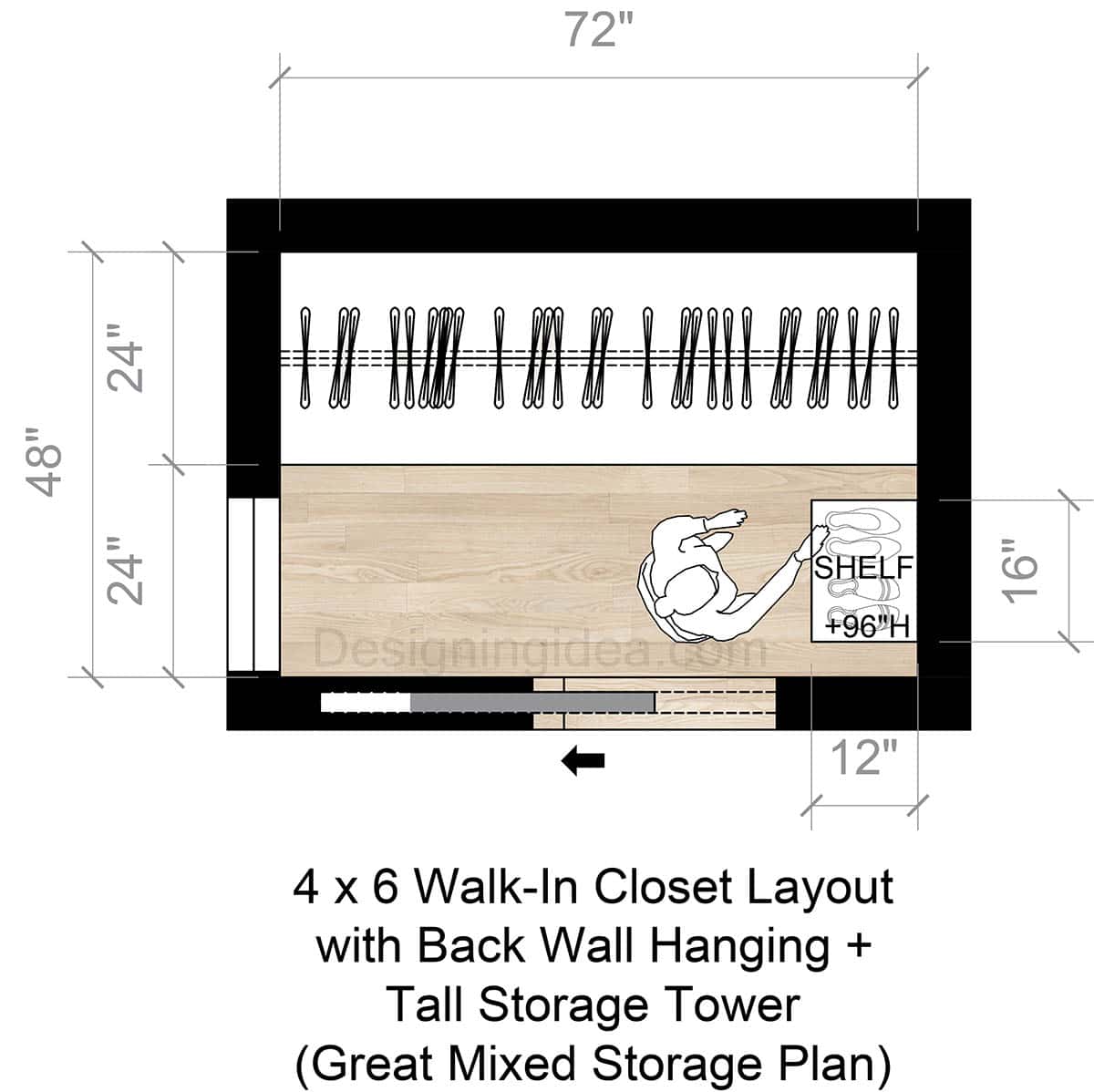

4×6 Single Wall Closet With Tall Storage Tower Floor Plan
This design combines a full-width clothes hanging wall with a tall storage tower for folded clothing and accessories, with a window to benefit from natural light.
Floor Plan Details: This 4×6 walk-in keeps the layout simple by hanging your clothing on the back 6-ft wall, with a tall storage tower to one side for folded items and accessories. The narrow vertical tower offers stacked shelves or drawers that can be used to store shoes, tees, sweaters, bags, or baskets. You walk in from the bottom through a sliding door and immediately are in a narrow 24″ walkway facing the line of clothing rods. This way, you can easily scan everything at a glance.
Dimensions:
Closet size: 72″ W × 48″ D (6′ × 4′)
Back-wall hanging zone depth: 24″
Standing/aisle depth: 24″
Tall storage tower footprint:
16″ along the right wall
12″ depth into the room
Tower height: shelf/top storage up to +96″ H (8 ft)
Design Tips:
If you need more hanging capacity, you can convert part of the back section to double-hang, while keeping one long-hang section.
Use a tower with a couple of drawers at the bottom for socks/underwear, open shelves in the middle for folded tees, and labeled bins up high for seasonal or rarely used items.
Keep the tower shallow with a 12″ projection so it doesn’t interfere with the 24″ aisle.
Add angled shoe shelves on the floor below the rods, but keep them out of the walkway.
If you don’t have a window on one side, hang a full-length mirror to create a mini-dressing room.
Light the room with a ceiling recessed can or flush mount fixture with an LED strip under the top shelf.
Why it works: You get a real mix of hanging storage plus shelves & drawers for folded items.

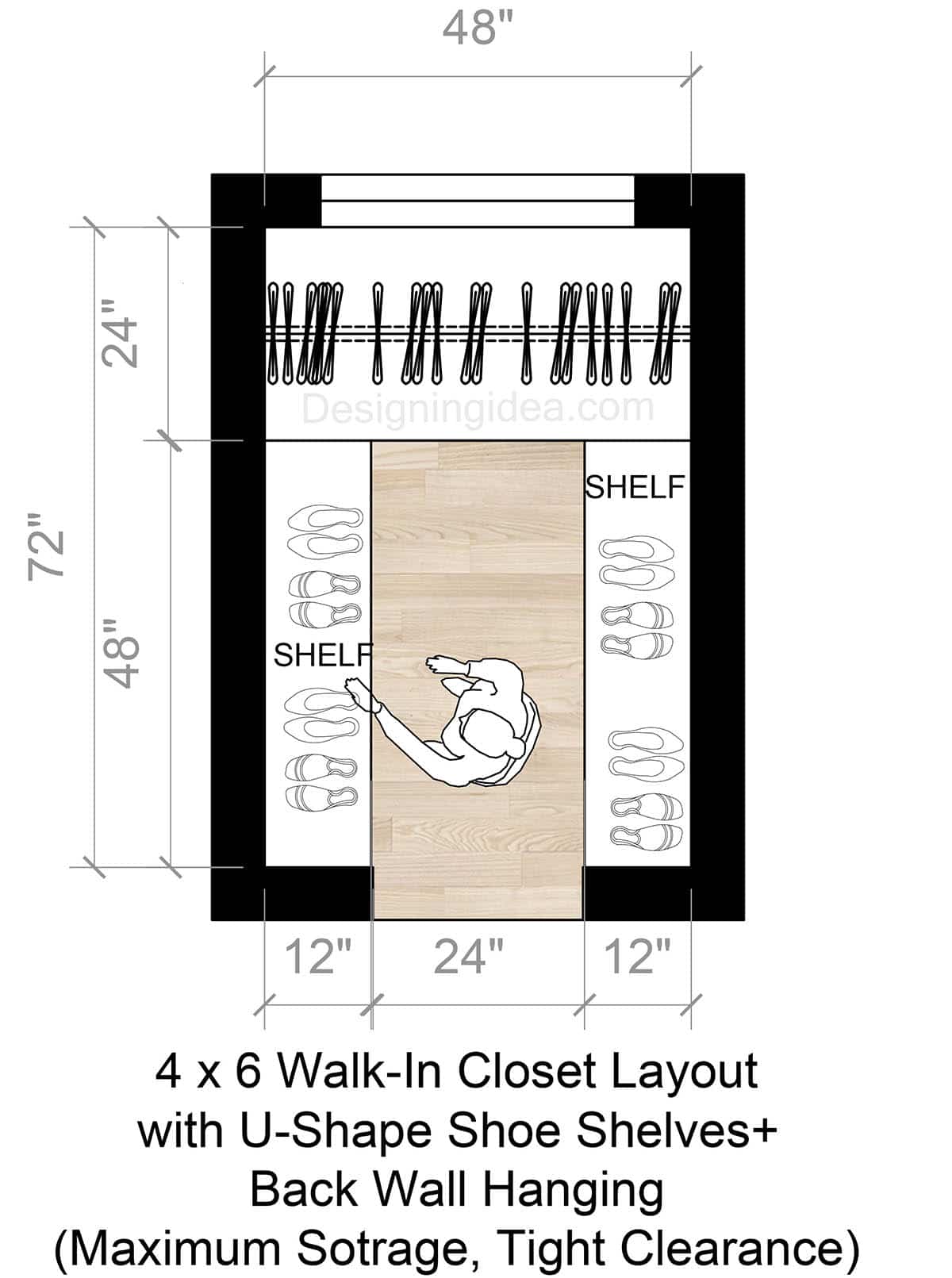

4×6 U-shaped Closet With Shoe Shelves and Back Wall Hanging Layout
This tiny 4×6 design wraps storage on three sides to become a high-capacity closet with full-width back-wall hanging, and 12″ deep shoe shelving on either side with a 24″ center aisle.
Floor Plan Details: This 4×6 walk-in is designed to maximize storage by using a “U” layout with hanging rods across the back wall and shoe shelving on both side walls. While you get a lot of storage for such tight room dimensions, the trade-off is the center aisle, which feels snug. Because the closet is only 48″ wide, the plan uses 12″ deep shelves on either side, leaving you with the 24″ wide walkway. You enter from the bottom and step into a narrow aisle, with shoes and small-item storage within arm’s reach on either side and a full hanging for clothing along the back. It works best for someone who wants a lot of organized shoe storage and doesn’t mind a tighter, galley-style walk-in.
Dimensions:
Closet size: 48″ W × 72″ D (4′ × 6′)
Back-wall hanging zone depth: 24″ (across the full 48″ width)
Front zone depth (from entry to hanging): 48″
Side shelf depths: 12″ (left) + 12″ (right)
Aisle width: 24″ clear between the side shelves
Design Tips:
Use the side shelves for your shoes or shallow bins. The 12″ depth is perfect for shoes, clutches, hats, or folded tees.
Keep the back hanging run as a single-hang for daily wear jackets and shirts, or split it into a small long-hang section and the rest devoted to short-hang.
Install adjustable shelving on the sides to accommodate different shoes like sneakers, boots, and heels.
Add a lip/rail on the shelf edges to keep your shoes and bins from sliding off.
Pair a centered recessed ceiling light with LED strips under both shelves to get rid of shadows.
Use the very front ends of the side shelves for your most frequently used shoes and store seasonal pairs toward the back.
Why it works: Offers clothes hanging on the back, space for shoes on both sides, and feels boutique-like.

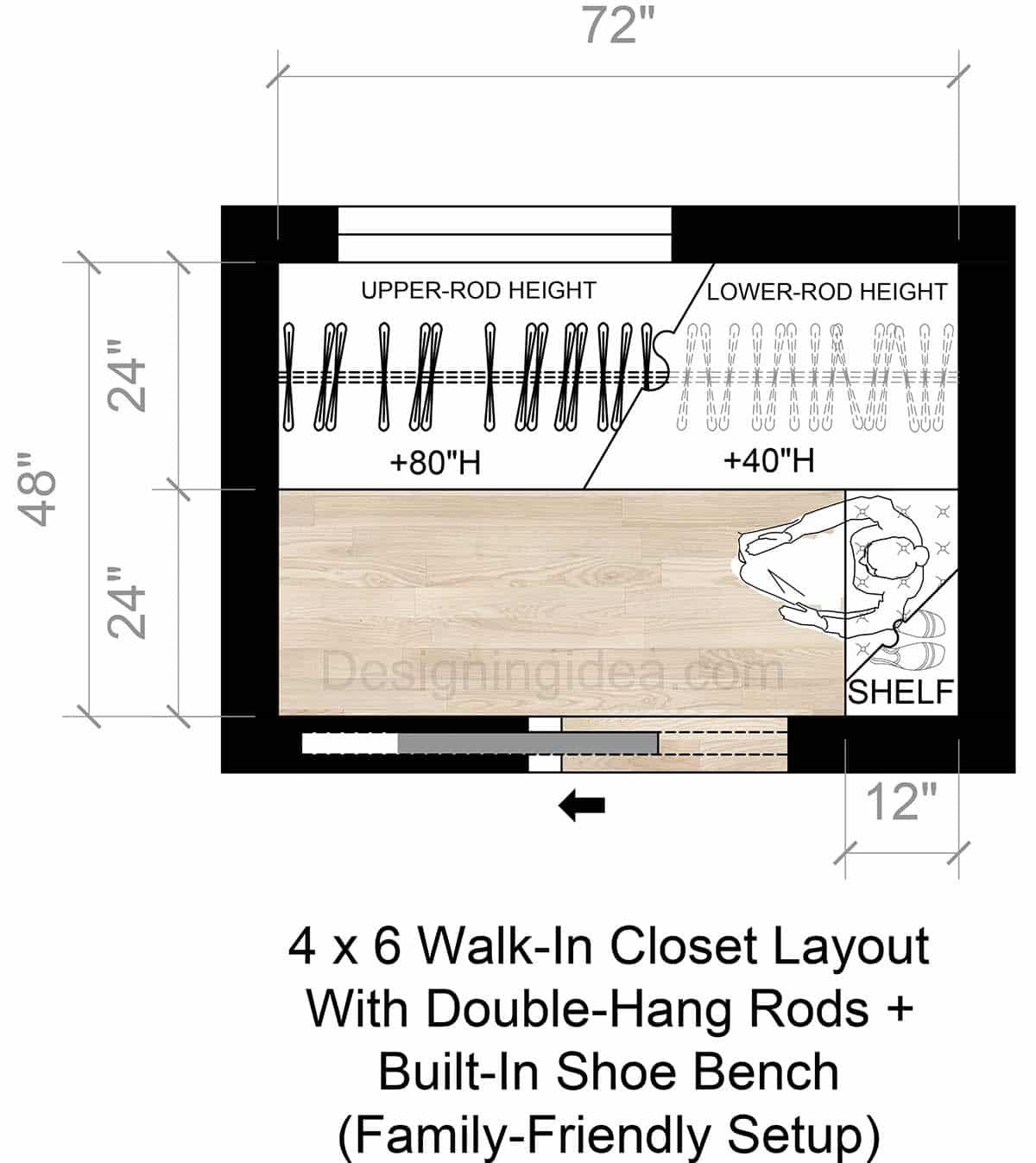

4×6 Closet Layout With Double-Hang Rods and Built-In Shoe Bench Layout
This closet packs in a high-capacity double-hang storage system along the back with a shoe bench on one side and a sliding entry so the aisleway is free and usable for daily routines.
Floor Plan Details: This 4×6 walk-in maximizes hanging space by using the entire back 6-ft wall as a double-hang zone with lower and higher clothing rods to fit as much as possible. This setup allows you to store a lot of clothing in a small footprint while still providing a 24″ wide walkway, so that things are easy to grab and go. As you enter from the bottom into the slim aisle, there is a built-in shoe bench on the right. This keeps shoes from piling up or blocking the pathway, and the bench seat gives you a place to sit, try on shoes, and place pairs underneath. This is an especially good design for shared closets, kids, or anyone who wants the closet to function like their own mini dressing station.
Dimensions:
Closet size: 72″ W × 48″ D (6′ × 4′)
Depth split: 24″ hanging zone & 24″ walkway
Double-hang rod heights:
Upper rod height: +80″ H
Lower rod height: +40″ H
Shoe bench/shelf depth (shown at entry corner): 12″ (approx.)
Design Tips:
Use the double-hang spot for shirts/pants and kids’ items, and the short hang for your long pieces. Reserve one end for a short long-hang section because even 18 to 24″ of long-hang helps.
Add cubbies or a shoe rack under the bench.
If you have kids, assign each person a side with two shelves/cubbies per kid.
Hang a small organizer on the side wall or mount hooks for jackets.
Add a top shelf that runs above the upper rod if the ceiling height allows it.
Use a ceiling light positioned toward the hanging wall, an under-shelf LED strip for illuminating the clothing.
If this is for kids, keep the lower rod kid-accessible at the +40″ height so they can reach it.
Why it works: Doubles your hanging capacity and adds a sit-down spot for shoes and their storage.

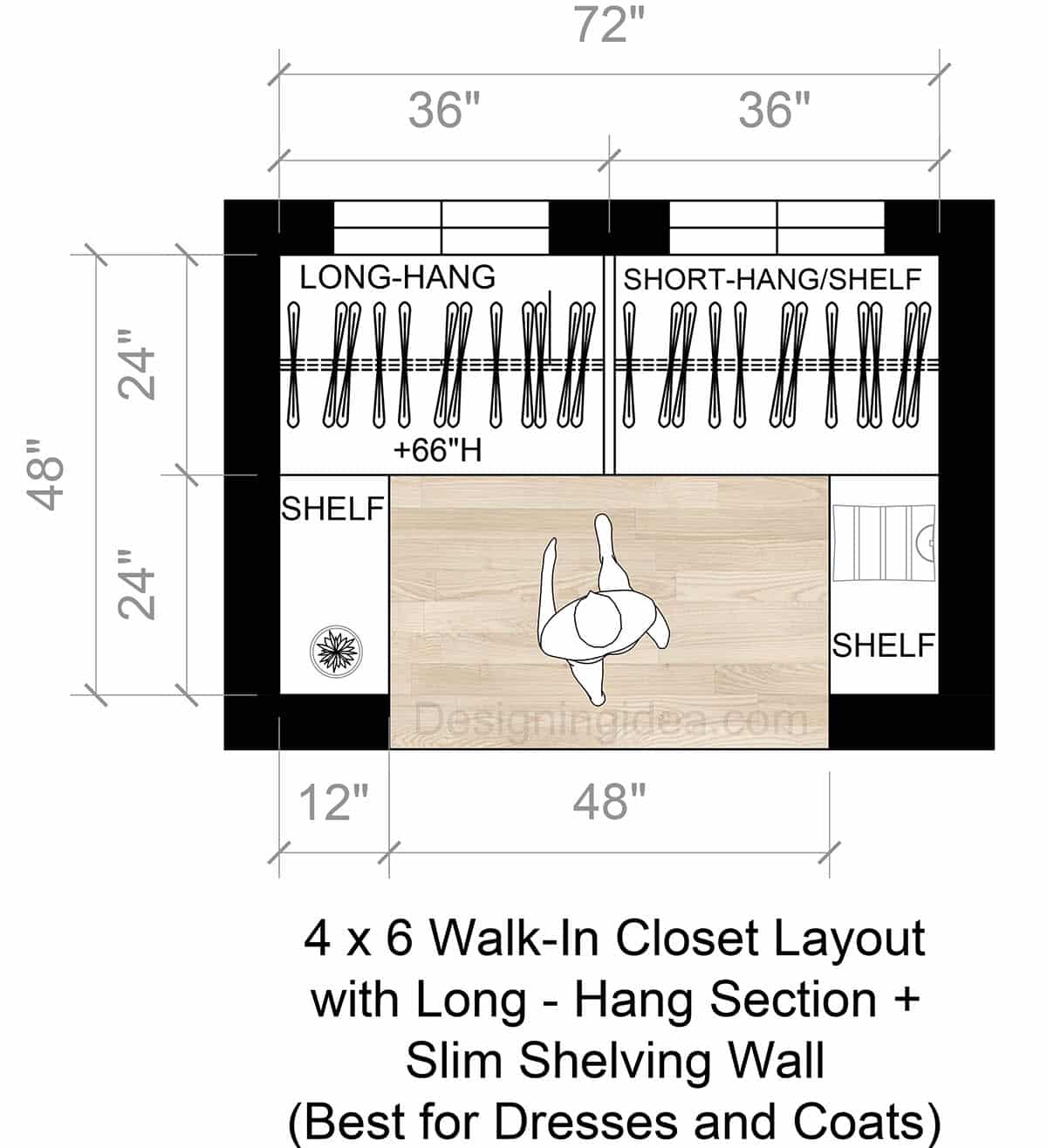

4×6 Closet With Long-Hang Section and Slim Shelving Wall Floor Plan
This closet is a U-shaped design that wraps 12″ deep shelving units on two sides with a back wall plan featuring short and long hang clothing rods.
Floor Plan Details: This 4×6 walk-in is designed for people who own a lot of long items like dresses, coats, jumpsuits, and robes, because it offers a long-hang bay instead of forcing everything into just a double-hang area. The back wall is split into two equal 36″ sections with a long-hang on the left and a short-hang with a shelf section on the right. To balance out the hanging storage, the plan uses narrow 12″ deep shelving on both sides that can be used to hold shoes or folded items like jeans, sweaters, or shirts. The central area for browsing your clothing is 24″ by 48″, so there’s room to grab what you need from inside.
Dimensions:
Closet size: 72″ W × 48″ D (6′ × 4′)
Depth split: 24″ hanging zone & 24″ aisle
Back-wall sections: 36″ + 36″ (two equal sized bays across the 72″ wall)
Rod height (shown): +66″ H (works for long-hang and standard hang)
Slim shelving depth (side walls): 12″ (left and right)
Center floor area (shown): 48″ wide between the front shelving returns
Design Tips:
Make the left 36″ bay your long-hang zone and use it for coats, dresses, or anything that needs a longer drop length. If you don’t have many long items, it’s still great for bulky hang items like winter coats that can be too bulky for other sections.
Use the right bay for short-hang with the shelf to create a daily outfit area so it’s easier to get ready in the morning.
Keep the side shelving shallow at 12″ deep, and regulate it to shoes and bins rather than big stacks of folded clothes that can fall into the aisle.
If you want more function at the shelves, add pull-out shoe trays or basket rails.
Install a small hamper and folded linens in the inside corner shelf zones to better use these spots.
Add a hook strip on the inside of the door for your belts, scarves, purses, or part of tomorrow’s outfit.
Combine a centered ceiling light overhead with a vertical/under-shelf LED near the long-hang bay and puck lights over the shelves for better visibility.
Why it works: Gives you a dedicated long-hang section, shorter-hang, and organized shelving.
Closet Design Plan Reference
Plan
Best for
Storage setup
Key dimensions / clearance
What you gain
Trade-offs
Full-Width Hanging Wall
(“Easy In/Out”)
Fast daily use, simple organization
Back wall: split double-hang & single-hang with top shelf
Back wall: full double-hang
Entry: bench & shoe landing zone
72″W × 48″D; 24″ hanging & 24″ aisle
Rods: 40″ (lower) & 80″ (upper); bench zone 12″ deep
Huge hanging capacity & a practical “sit and put shoes on” station
Not great for lots of long-hang unless you reserve a section
Long-Hang Section & Slim Shelving Wall
(“Best for Dresses/Coats”)
Long garments & tidy accessory storage
Back wall: 36″ long-hang & 36″ short-hang/shelf
Side walls: slim 12″ shelves
72″W × 48″D; 24″ hanging & 24″ aisle
Back wall bays: 36″ & 36″; rod height shown 66″
Proper space for dresses/coats while still keeping shelving for shoes/bins
Slightly less total hanging capacity than full double-hang setups
Check out our closet price calculator for more ideas about how much everything will cost with your design.
