3/4 Bathroom Layout Ideas for Small Spaces, Family Baths, and Everything In Between
A 3/4 bathroom layout offers you three out of four of the standard fixtures, a shower, a toilet, and a sink, with no bathtub included. That missing quarter, for most households, is a smarter configuration that saves space and works more efficiently. The term comes from plumbing lingo, where a full bathroom counts as one whole unit, which is a bathtub + shower + toilet + sink. So a bathroom with three of those four elements is counted as three-quarters. In general practice, it usually means swapping the tub or tub/shower combo for a standalone shower, which immediately frees up around 13 to 20 square feet, depending on your floor plan. That’s a significant improvement in a smaller room.
A 3/4 bathroom makes the most sense in guest bathrooms, since most overnight guests aren’t expecting a bath. Other places, like basement bathrooms and bonus room additions, where space is limited, are also a great choice. Adults with primary ensuites who have stopped using their tubs are another strong contender. Even shared family bathrooms benefit from the added shower space and storage when you don’t need to devote the room to a bathtub. From a resale standpoint, at least one full bathroom with a tub is generally recommended, especially for buyers with young children. But a 3/4 as a second, third, or ensuite bathroom is often seen as a plus, not a negative.
Upload a photo and get instant before-and-after room designs.
No design experience needed — join 2.39 million+ happy users.
👉 Try the AI design tool now
The five 3/4 bathroom layouts I share below walk you through everything from compact 5×7 spaces, all the way up to a luxury 8×10 double-duty family plan. Each one is a 3/4 configuration featuring a shower, toilet, vanity, and no tub. Each one is drawn to scale with dimensions you can use so you can see exactly what fits and give you ideas for your own remodel.

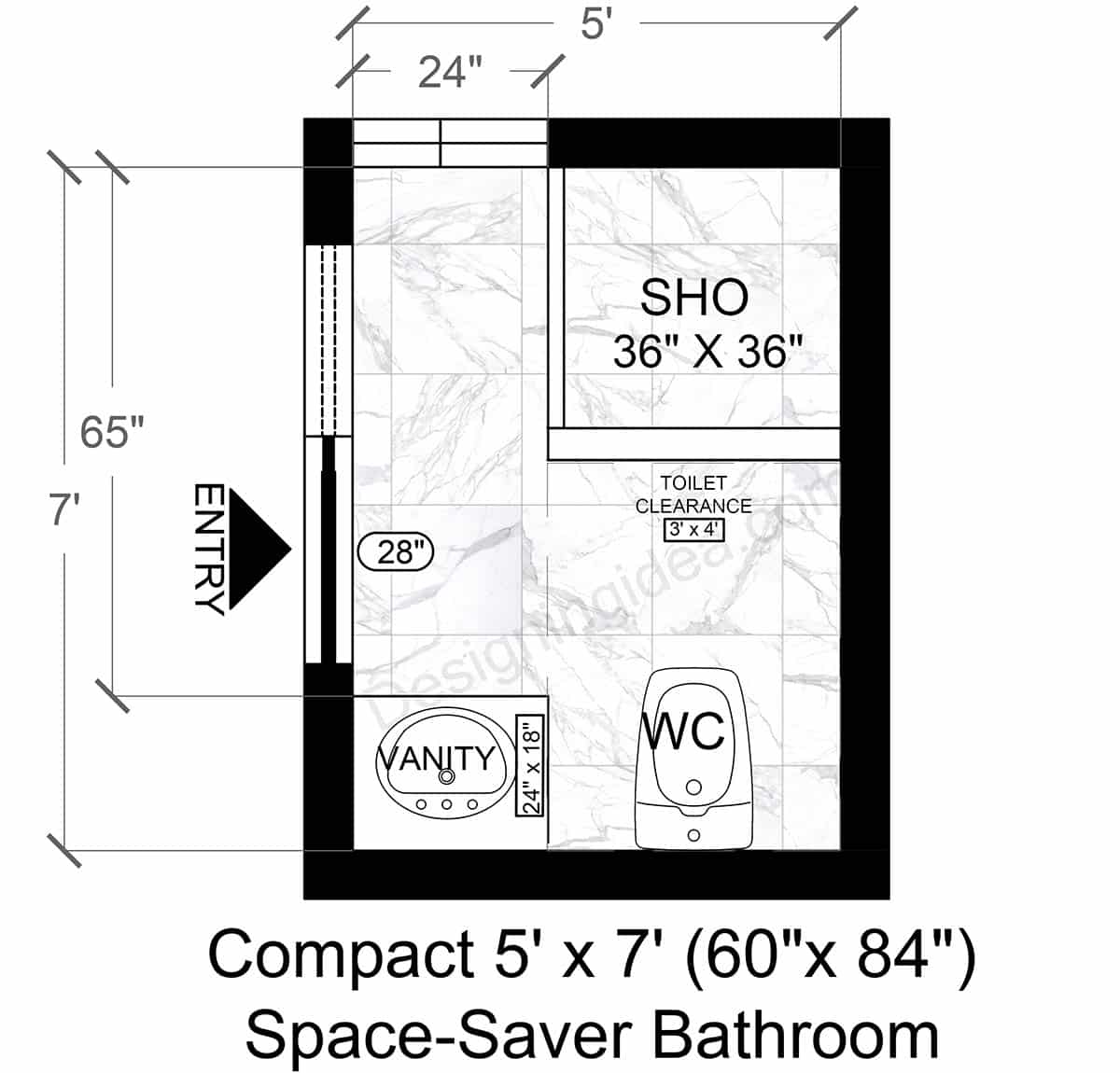

5’×7′ Compact Space-Saver Bathroom Layout
Floor plan details: This compact 5×7 bathroom layout is a space-saver by placing the shower in the top-right corner, the toilet center-right, and the vanity on the bottom-left. This arrangement keeps the traffic flow near the 28″ entry sliding door on the left. The 36″ by 36″ shower sits in the upper, right portion of the room with the vanity and toilet sitting side by side along the bottom. The toilet clearance zone measures 3’×4′ and is mapped out to provide adequate code compliance. The 24″ x 18″ single sink vanity near the door is compact and wall-mounted to save additional space.
Dimensions:
- Room size: 5′ wide × 7′ deep (60″ × 84″)
- Shower: 36″ × 36″ (minimum comfortable size)
- Shower door opening: 24″
- Vanity: 24″ × 18″ (compact wall-mount style with a single sink)
- Entry door: 28″ wide, left wall
- Toilet clearance zone: 3′ × 4′
- Usable interior width: 65″ wall-to-wall
Design tips:
- If you don’t have enough natural light, ensure there is good artificial lighting with a backlit mirror above the vanity and an overhead fixture.
- For a smaller floor plan like this, use large-format tiles such as 12×24 with minimal grout lines to make the floor feel bigger than it is.
- Keep the vanity floating, as being able to see underneath tricks your eye into thinking there’s more space.
- Use frameless glass instead of a solid wall or curtain on the shower enclosure to keep things visually open.
- Think vertical with your storage by adding shelving above the toilet, and a couple of recessed niches in the shower wall.
Best for: Basement bathrooms, guest baths, or those with tight renovations.

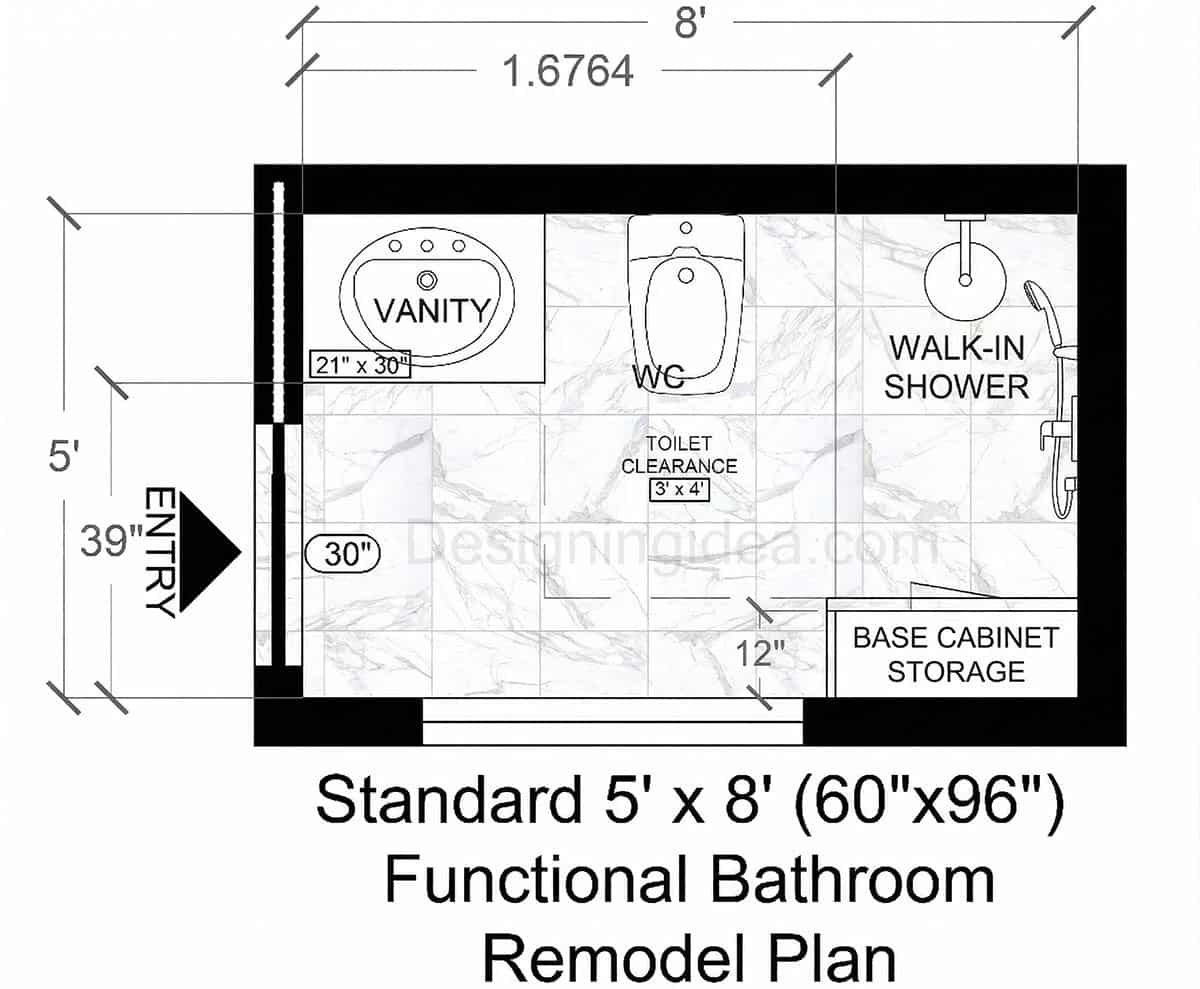

5’×8′ Functional Bathroom Remodel Design Plan
Floor plan details: This is a standard 5×8 American-style bathroom with a functional remodel plan that’s basically been the default setting for most homes built in the last 60 years. It’s a pretty sweet spot, that’s not spacious, but still gives you room to move around. The layout runs horizontally with the entry on the left, and everything else is lined up along the top, spanning from left to right. As you enter through the 30″ sliding door, there’s a 21″ x 30″ single sink vanity, followed by a toilet in a 3′ x 4′ area and a walk-in shower with a 12″ linen closet to the side.
Dimensions:
- Room size: 5′ × 8′ (60″ × 96″)
- Entry door: 30″ wide
- Vanity: 21″ × 30″ (compact but functional, with single sink)
- Toilet clearance: 3′ × 4′ (code minimum, dead center of the room)
- Shower area: 30″ × 48″ (shares the right-side alcove with the tub
- Linen closet: 12″ x 30″ (perfect for bathroom accessories, towels, or washcloths)
- Interior usable width: 39″ of open floor space along the left wall
Design tips:
- Add recessed niches inside the shower enclosure for your bath products.
- Use the small linen closet to store all of your accessories that can’t fit under the sink, especially if you choose a floating or pedestal model.
- The 21×30 vanity is tiny, and by using a wall-mount or pedestal style, it keeps it from feeling too chunky.
- Hang a medicine cabinet above the sink and floating shelves behind the toilet to get some extra storage space.
- Maintain at least the standard 15″ from the centerline to each side of the toilet to be code-legal.
- In smaller spaces like this, keep the color palette light. Consider using light tile, a bright mirror, and good lighting above the vanity.
Best for: Most common bathroom remodel design that works for secondary bathrooms with great functionality

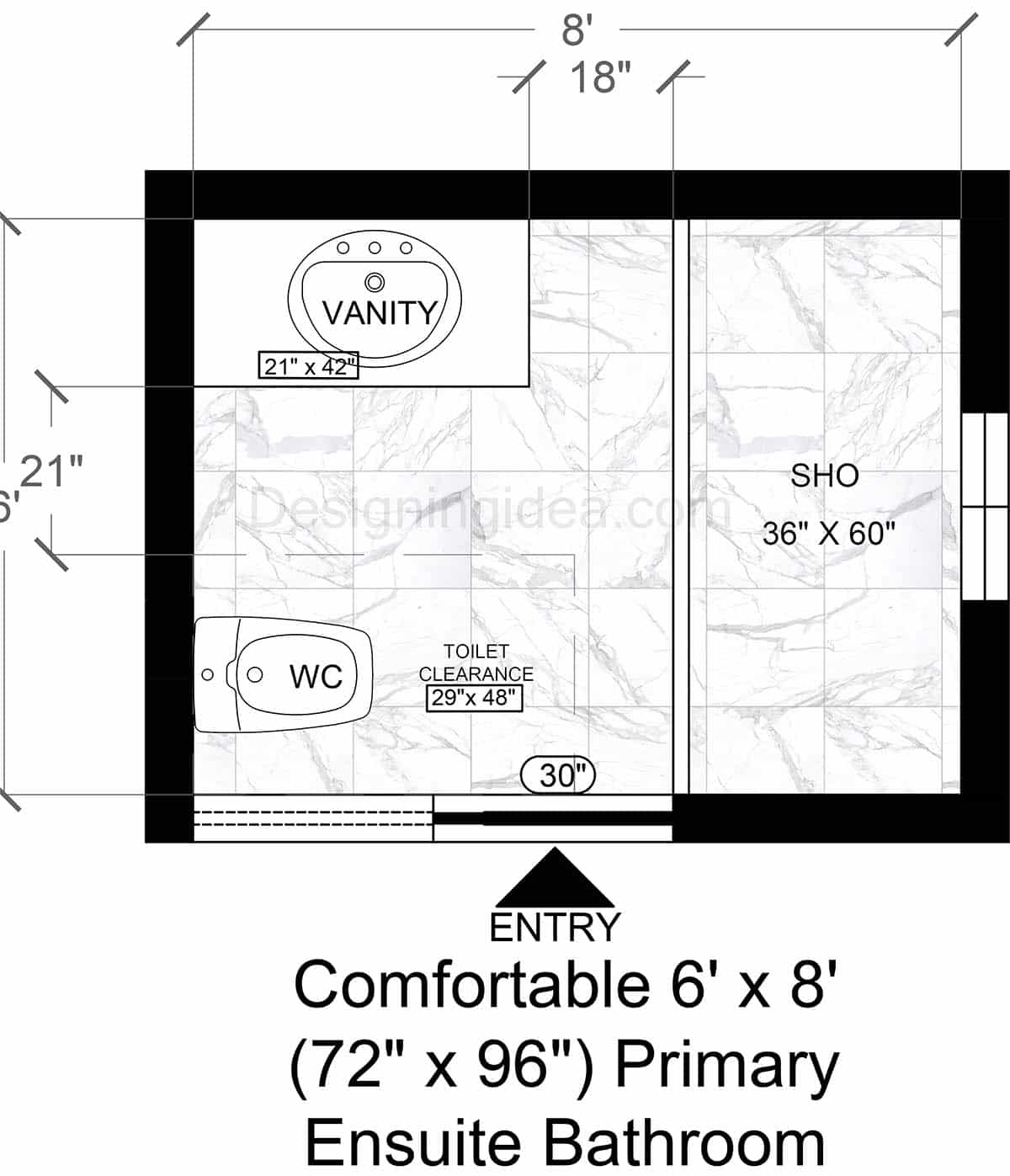

6’×8′ Comfortable Primary Ensuite Bathroom Floor Plan
Floor plan details: This 6×8 primary ensuite bathroom focuses more on the shower entry, which takes up the right side of the plan. As you enter from the bottom through a 30″ wide slider, you’ll find the toilet to your left and the 21″ x 42″ single sink vanity against the top wall. This layout splits the room into two sections with a wet zone shower on the right, and a dry zone vanity & toilet on the left. The shower measures 36×60 and is a comfortable size with room for a bench if desired. The floor plan is easy to use simultaneously if two people want to share this space.
Dimensions:
- Room size: 6′ × 8′ (72″ × 96″)
- Vanity: 21″ × 42″
- Shower: 36″ × 60″ (walk-in, with no tub)
- Shower panel/entry opening: 18″
- Toilet clearance: 29″ × 48″
- Entry door: 30″ wide, bottom-center wall
- Left-side open zone: 21″ of circulation space
Design tips:
- Maintain the large 36×60 shower footprint if you want a roomy feel.
- If you want a double sink vanity, stretch it all the way to the enclosure’s side.
- Since this is a primary ensuite, the toilet is set up for convenience near the door, and you gain a bit of privacy.
- Install a sliding pocket door on the entry so it feels more premium for a primary ensuite.
- Add a bench in the shower for relaxing or sitting and shaving your legs.
Best for: Those wanting a primary bath near a bedroom, with a large shower.

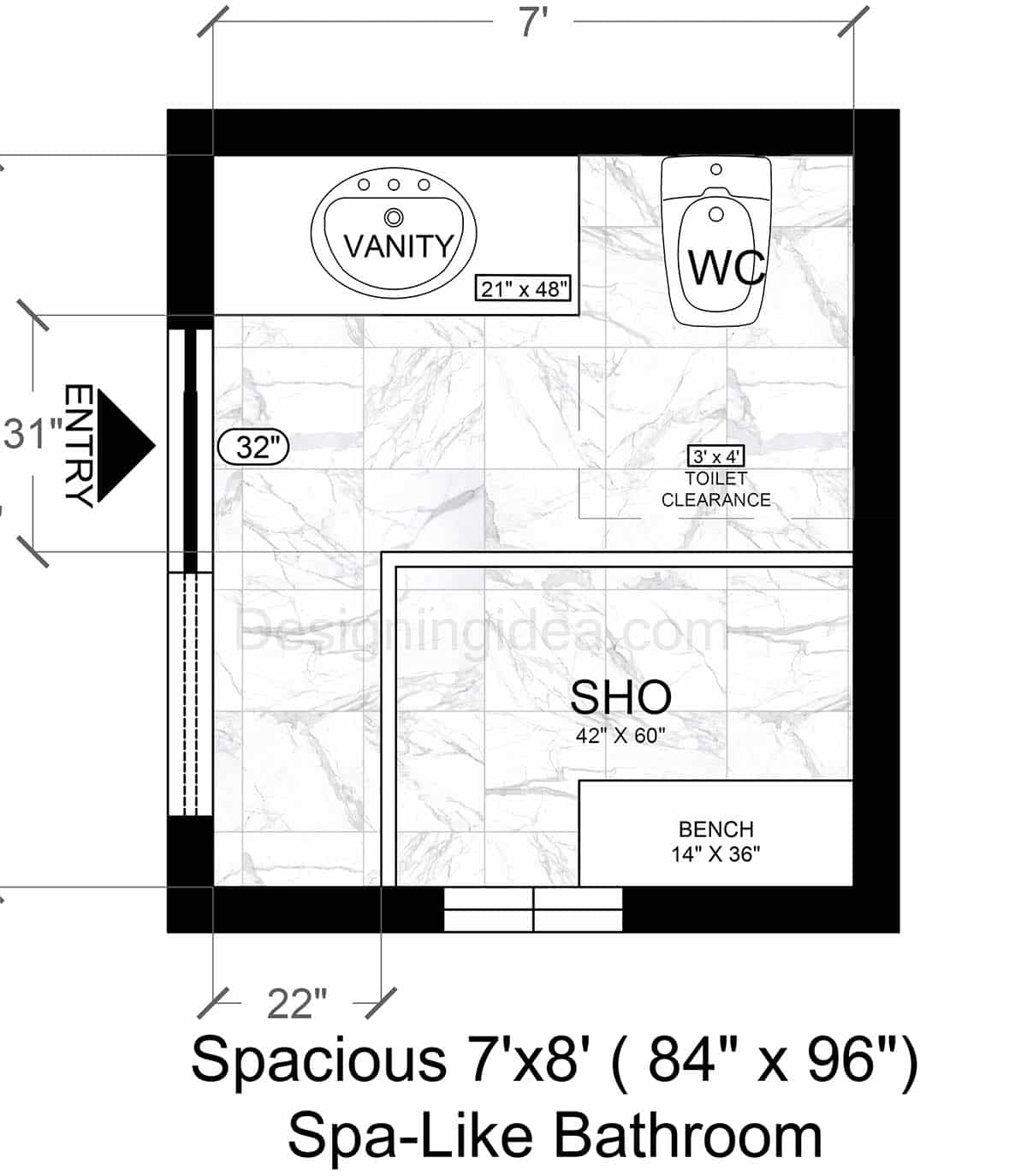

7’×8′ Spacious Spa-Lite Bathroom Design
Floor plan details: For a spacious spa-like feel, this 7×8 bathroom layout offers a large shower with a sitting bench, so it feels more luxurious. You enter from the left side through a wide 32″ door and see the vanity and toilet on the top and the shower on the bottom side. The single sink vanity measures 21″ x 48″, so there’s room on the countertop and underneath for storage. You could stretch things by adding a double sink model at the expense of counter space. After the vanity comes the toilet in its own 3′ x 4′ zone with some privacy tucked behind the cabinet. The 42″ x 60″ walk-in shower opens from the bottom-left corner and features a built-in bench inside, elevating the ambiance.
Dimensions:
- Room size: 7′ × 8′ (84″ × 96″) 56 sq. ft
- Entry door: 32″
- Vanity: 21″ × 48″
- Toilet clearance: 3′ × 4′ standard
- Shower: 42″ × 60″ (with roomy, walk-in corner entry)
- Shower bench: 14″ × 36″ (built-in, bottom-right corner)
- Bottom wall offset: 22″ (likely shower entry threshold)
- Circulation zone: 31″ along the left wall
Design tips:
- Upgrade the 48″ vanity to a model with a double sink, which is recommended for an ensuite bathroom for couples and is a solid resale feature of homes.
- Add the shower bench for comfort and accessibility, which essentially helps future-proof it for later in life.
- Add a handheld showerhead on a slide bar if you want to further enhance the seated feature for washing.
- Since corner-entry showers are naturally more steam-friendly, add a frameless glass enclosure to keep the space feeling open.
- Install a backdrop of marble tile inside the enclosure to create a visual focal point that looks inviting and stylish.
- Keep the toilet tucked in the upper-right with its back to the corner wall since it’s the most private spot in the room.
Best for: Those desiring an upgrade-feel bathroom that works for an aging-in-place friendly design.

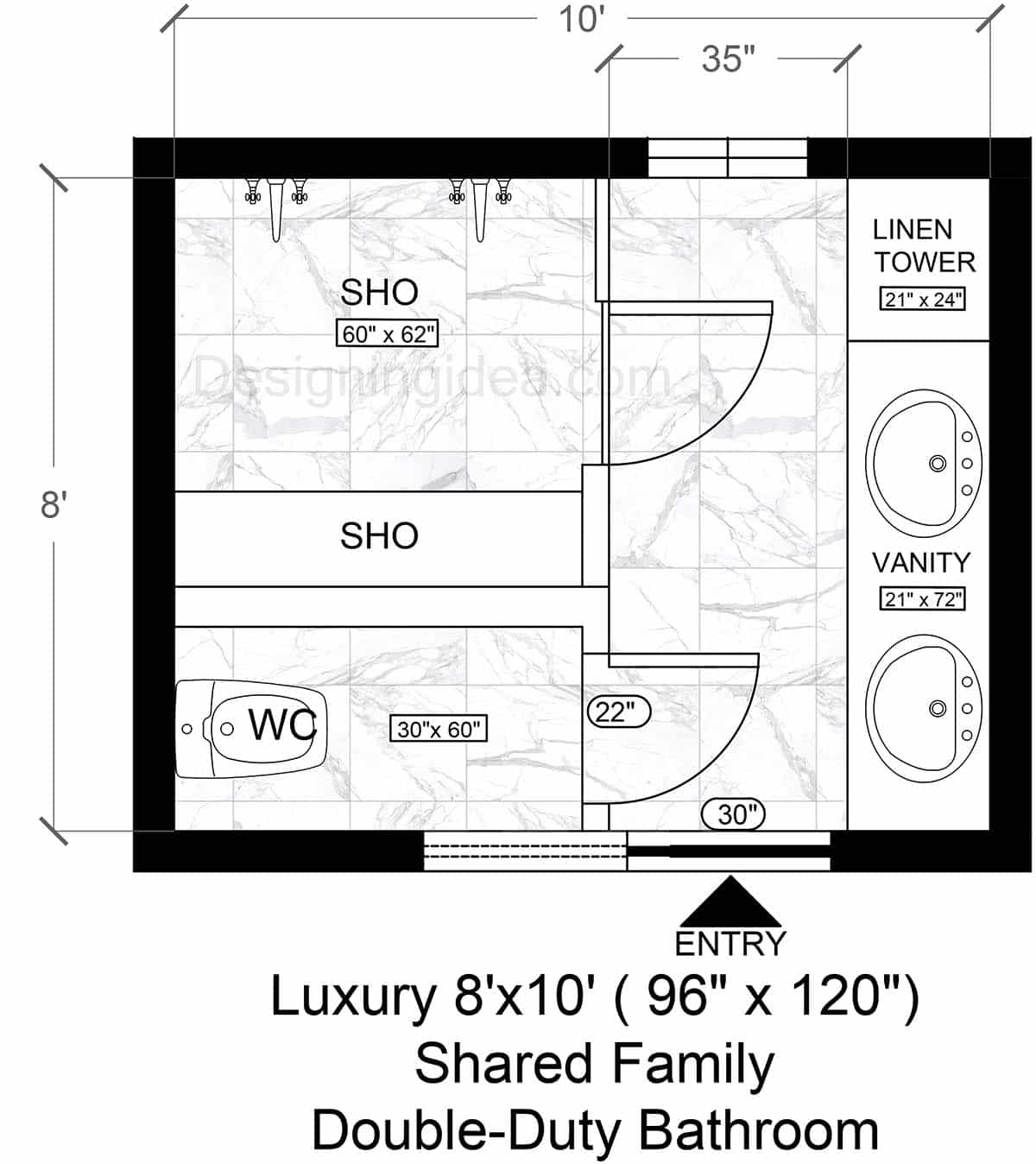

8’×10′ Shared Family Double-Duty Bathroom Floor Plan
Floor plan details: This 8×10 bathroom is arranged with a focus on a shared family space that is designed for multiple people to use at the same time without anyone losing their cool. It has a double capacity shower, a two-sink vanity, and a private water closet. The entry’s at the bottom-center through a 30″ sliding door. As you walk in, you’ll find the 21″ x 72″ double vanity with two sinks to your right and the enclosed toilet room to your left. The large shower is set in the left, upper corner and measures a roomy 60″ x 62″ with a long bench running along the lower end. The shower’s equipped with two showerheads so that a couple can enjoy the space together. There’s a window in the upper end allowing natural light into the room to keep things light and bright inside. This arrangement allows one person to use the toilet while another can shower or be at the vanity with no arguments or waiting.
Dimensions:
- Room size: 8′ × 10′ (96″ × 120″)
- Large shower: 60″ × 62″
- Second shower: 30″ × 60″
- Vanity: 21″ × 72″ (with two sinks)
- Linen tower: 21″ × 24″ (in upper-right corner)
- Toilet clearance zone: 30″ × 60″
- Partition doors: 22″ and 30″
- Right-side zone width: 35″
Design tips:
- Choose a 72″ vanity with two sinks, and hang two mirrors above so two people can get ready simultaneously.
- Get a vanity with drawers on two sides so you can evenly split organizational space between two people.
- Use a durable material like quartz for the countertop so it feels more luxurious and is easier to clean.
- Inside the 60×62 shower, install dual showerheads with a bench for a spa-like feel.
- Ensure the toilet is enclosed by a door for privacy, especially if it’s designed for multiple children to use.
Best for: Those wanting a shared family bath, with high-end finishes, and privacy upgrades like a water closet.
Planning Notes (kept consistent across all plans)
- Toilet zone: 30″ wide (15″ from centerline on each side); 21″ min of front clearance with 24″+ being better
- Showers: 30″×30″ minimum; 36″×36″ comfortable; and 60″×30″ is a common stock replacement size
- Doors: 28″ minimum, 30″ preferred, 32″ for accessibility; pocket doors save space in 5′ wide baths
- Vanities: Using 21″ depth for the cabinet is the easiest way to make narrow baths feel better
