7 Narrow Full Bathroom Layouts With A Shower

Just because you have a narrow bathroom doesn’t mean you have to sacrifice your comfort, style, and functionality. With the right floor plan design, you can transform your room into something that you’ll love and can help increase your home’s resale value. Let’s explore seven architect-inspired narrow full bathroom layouts that make the most use out of your square footage without minimizing any of your needs.

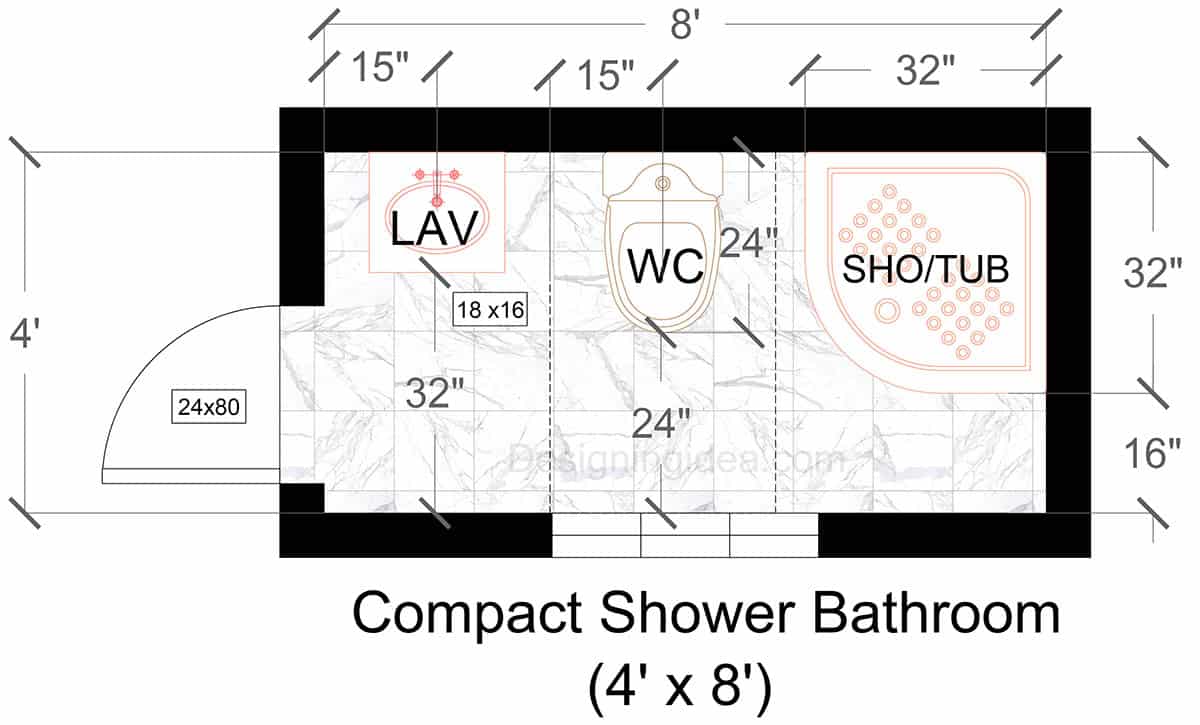

4×8 Compact Shower Bathroom Layout

By placing the three main fixtures, ‘Sink → Toilet → Shower Stall’, along one wall, the design provides easy circulation for its compact size.

Floor Plan Details: This ultra-compact bathroom fits all three fixtures along the 8-foot party wall, so the 4-foot width remains an unobstructed circulation zone. A 24″ × 80″ inswing door occupies the lower-left corner and swings against the short wall, leaving the full 32″ walkway free once you step inside. Moving left-to-right you meet an 18″ × 16″ wall-hung pedestal sink whose centerline sits 15″ from the side wall. This is just inside code minimums while still providing a generous 32″ of clear floor in front for washing hands. Another 15″ brings you to the water-closet centerline; the toilet enjoys 24″ of front clearance and 15″ of shoulder room on each side, so it feels surprisingly comfortable for a space this tight. The far right corner is reserved for a 32″ × 32″ quadrant shower; its curved entry line tucks neatly into the corner yet leaves a straight-line sight path down the room, making the 32 ft² room feel wider. All supply and waste lines run in the same stud bay, simplifying rough-in and easing future maintenance.

Dimensions:

• Room size: 4′ × 8′
• Shower enclosure: 32″ x 32″
• Pedestal sink: 18″ x 16″

Design Tips & Why It Works:

• Single-wall Plumbing: This keeps costs low and walls free for storage niches or towel hooks opposite the fixtures.
• Shower: Curved quadrant shower glass clips the literal corner, carving out elbow room at hip height and letting light bounce deeper into the room—vital in a 4-foot span.
• Low-profile Sink: Wall-hung or pedestal sink and (optionally) wall-hung WC expose more floor tile, extending the sightline and making cleanup easier.
• Doorway: 24″ door width is the narrowest comfortable swing; if you anticipate mobility aids later, swap it for an out-swing or pocket door to reclaim the hinge arc.
• Large-format, light-toned tiles on both floor and walls minimize grout lines and visually stretch the room; running the floor tile up the shower curb unifies the palette.
• Mirrors: A Recessed mirrored cabinet above the sink provides closed storage without projecting into the aisle, while a shallow niche behind the WC tank holds everyday items.
• Vertical Accents: a slim strip light beside the mirror or a floor-to-ceiling mosaic panel behind the toilet can draw the eye up, while dialing back the tunnel effect common in narrow baths.

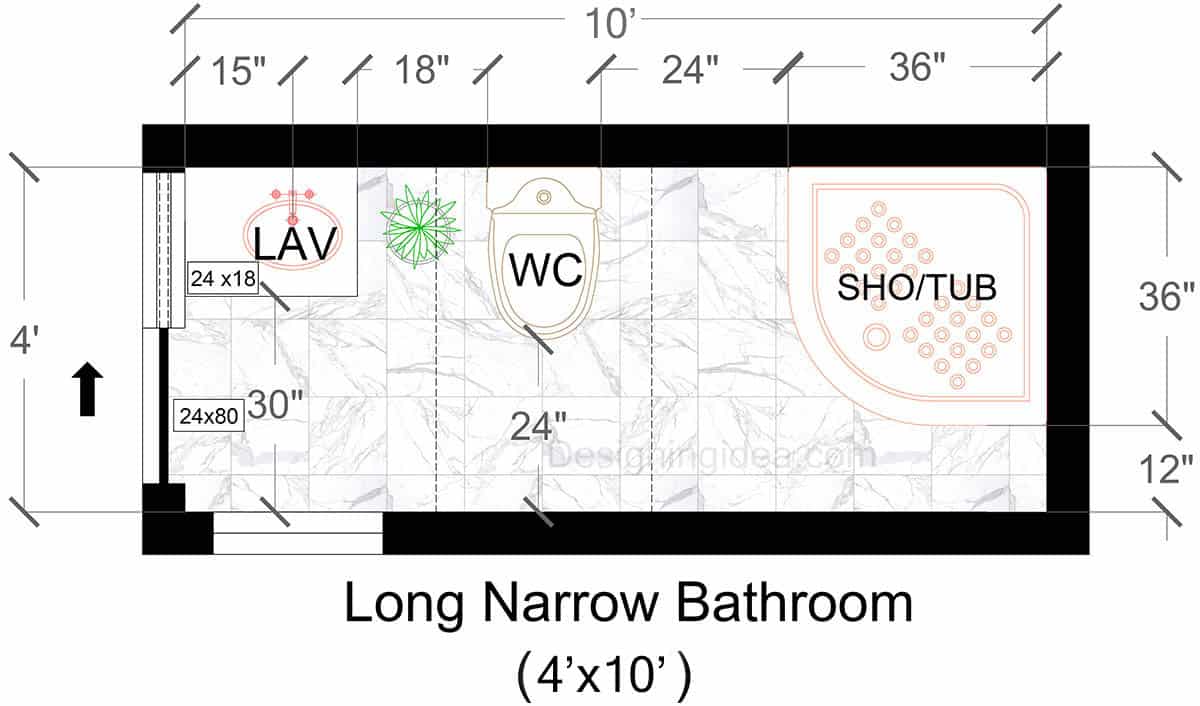

4×10 Long Narrow Bathroom Floor Plan With Shower

This design places the shower enclosure in the back of the room to allow as much aisle space as possible leading up to the enclosure for a roomier feel.

Floor Plan Details:  The long, narrow layout strings every wet fixture along the north wall, leaving the entire 4-foot width as a continuous circulation lane. The single-wall for plumbing allows for a lower cost build and limits waste, and vent lines as they all share one chase, simplifying rough-in and future maintenance. The fixtures grow from shallow (24″-deep vanity) to a full 36″ shower, as you go into the room, so the room feels more spacious when you enter. The first 30″ of open floor means you’re not dodging a fixture the moment you step through the door. It also creates a landing zone for towel hooks or a slim linen tower opposite the sink for storage. This arrangement also allows for a full-size vanity that gives real counter space for toiletries. Specify a wall-hung cabinet and underslung trap for maximum toe-kick visibility. In the back, the 36″ radius clips the corner, opening the sightline past the WC and making the room read wider. Frameless glass lets daylight reach the vanity’s end. With just two extra feet compared to a 4′ × 8′ bath, this layout trades the cramped feel for a graceful procession of fixtures, ample clearances, and a focal-point shower that makes every inch count.

Dimensions:

• Room size: 4′ × 10′ overall
  Zone Fixture Size Key Clearances Center-line Offsets* Notes
• Vanity wall-mount sink:  24″ × 18″ and 32″ clear floor in front and 15″ from left side wall. Deep enough for a full-size top while staying within code
• Toilet Standard WC: 24″ front clearance; 15″ shoulder room each side 18″ from sink C/L, and centered under skylight/plant niche for visual relief
• Shower: Shower Quadrant shower measuring 36″ × 36″ with a curved glass entry to help keep the aisle open, 36″ module to right wall. All wet-wall services in the same stud bay

Design Tips:

• Add a Pocket or Barn Door Upgrade: If you’d rather not swing a door into the hall, a pocket door reclaims wall space for artwork or towel bars.
• Continuous Floor & Wall Tile: Run the same large-format porcelain (or slab shower panels) from the shower pan through the main floor; fewer grout joints visually elongate the 10-foot span.
• Vertical Storage Niches: since width is precious here, carve 4″-deep recessed shelves between studs opposite the WC for tissue, décor, or a trailing plant.
• Light the Aisle: Install linear LED coves along the ceiling edges bounce light down the marble-look walls, reducing the tunnel effect. A skylight or high transom above the WC centreline adds natural light without sacrificing privacy.
• Accent at the Far End: Using a bold mosaic in the shower quadrant or a matte-black fixture set draws the eye forward, making the corridor feel purposeful rather than merely long and stretched out.

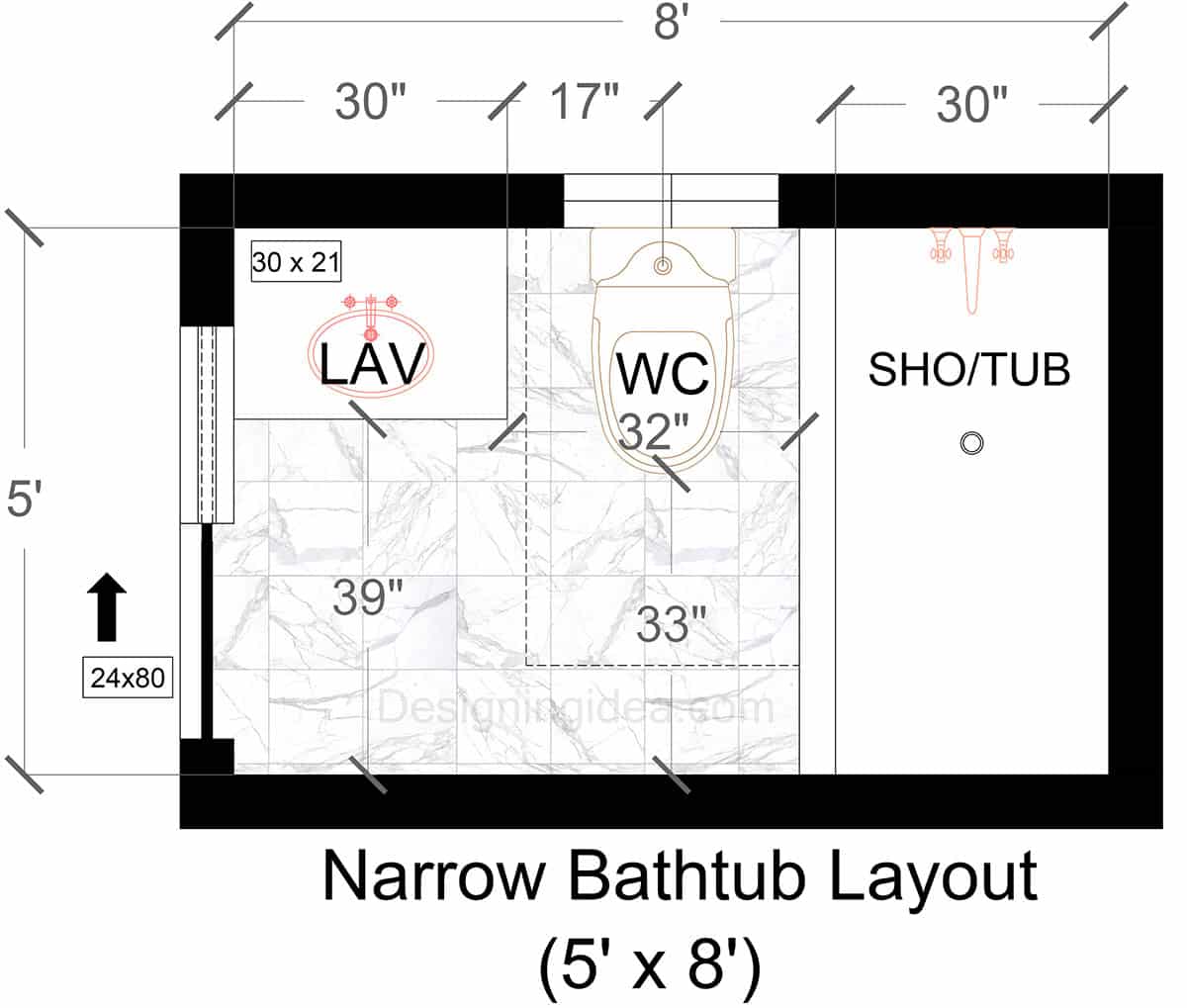

5×8 Narrow Bathtub Layout

With its shower/tub combination, this design is perfect for the family with children or as a guest room for visitors.

Floor-Plan Details: With a pocket door, combined with single-wall services, and the right fixture widths, this 5′ × 8′ plan packs full-size comfort into a footprint that fits nearly any standard home layout. A swinging door would eat 5 to 6 ft² of floor area, while a pocket door keeps every inch in play and lets you tuck a slim storage tower behind the jamb if desired. Similar to the other plans, the fixtures step up in depth, starting with a 21″ vanity, to a 29 to 32″ toilet and then a 30″ x 60″ tub/shower, so you never face a visual wall; the room “expands” as you move toward the tub. Even with the compact 5′ width one enjoys >33″ in front of each fixture, and the toilet has the full 30″ minimum lateral clearance, (rather than the bare-bones 15″ each side).  The vanity surface measures 30″ × 21″ and can be used with or without storage cabinet underneath depending on your preferences. With no base cabinet touching the floor, the clear visual span under the sink helps the room read wider than its 60″ shell. Because the fixtures are only 21–32″ deep, you get a continuous 33–39″ aisle, which is enough for two people to pass or for comfortable towel-change pivoting.

Dimensions:

• 5′ × 8′ interior footprint (See related 5×9 bathrooms here.)
• Bathtub/shower combination: 60″ x 30″
• Sink: 30″ x 21″

Designer Tips:

• Visually Widen The Space: Run floor tile, preferably 12″ × 24″ laid cross-wise and straight into the tub skirt to visually increase the look. In addition, band the same tile 42″ up the walls to blur edges and create a horizontal “wrap”, feature.
• Add Storage Without Extra Bulk: Recess a 4″-deep medicine cabinet above the sink and a niche over the tub spout, as both sit in the same stud bay, this means no extra plumbing work is needed.
• Keep It Bright: Use a frameless fixed glass panel at the entry to the tub instead of a shower curtain. This steals only 3 to 4″, and helps bounce light deeper. Use the same style on the pocket door glass to match the look.
  Stretch The Ceiling: Paint walls and ceiling the same soft white or very light grey for a cohesive design. Then mount a narrow crown molding one inch below the ceiling plane to draw the eye up.
• Add A Pocket Door: Add a pocket door to save additional interior space.

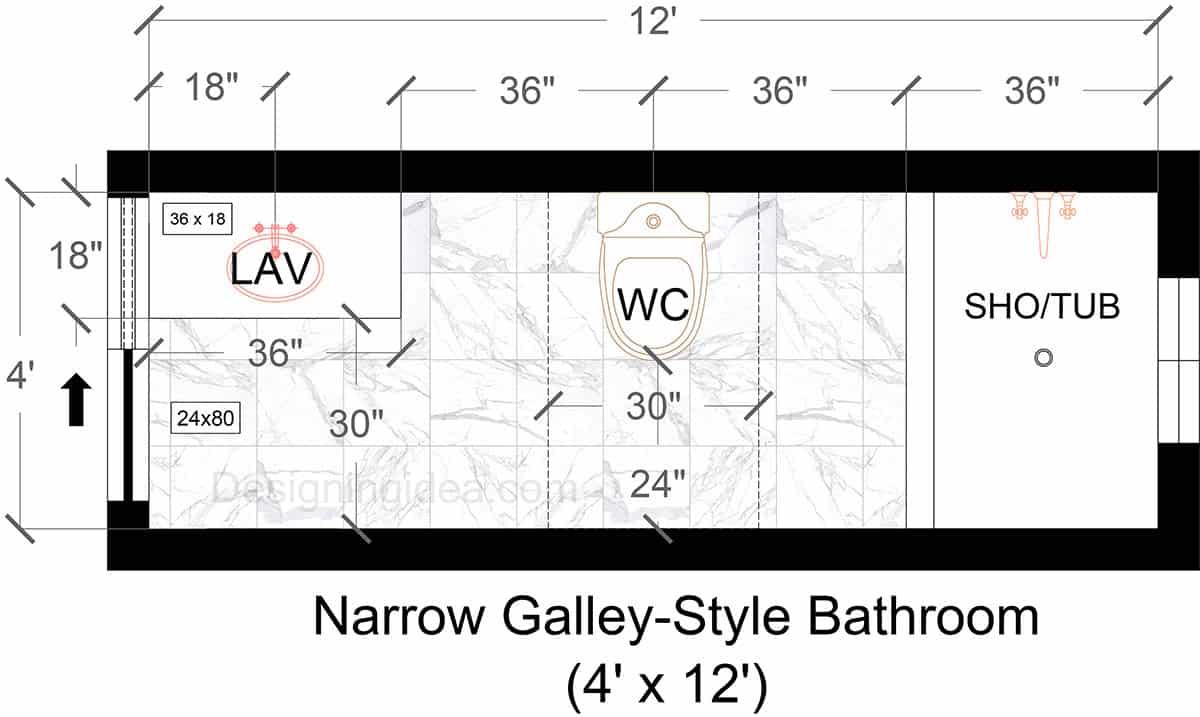

4×12 Narrow Galley-Style Bathroom Design

Depending on your needs, the narrow galley-style bathroom offers a large shower enclosure at the end of the room or a bigger vanity.

Floor Plan Details: The narrow galley keeps all the plumbing along a single-wall, keeping costs lower and frees the opposite wall for towels, niches, or a shallow linen tower. Its progressive fixture depth going from a 18″ vanity to a 28 to 30″ toilet, to a 36″ shower means the room gradually widens as you walk in. A 36″ vanity can be enlarged if necessary at the expense of some extra elbow room around the toilet or additional wall storage. The 12′ sight-line flows directly to the shower wall pulling the eye forward.

Dimensions:

• 4′ × 12′ interior)
• Entry door 24″ × 80″ swing; hinged at lower-left. Opens over the 36″ vanity landing zone. Swap to pocket/barn if you need the aisle 100 % free
• Vanity (sink) 36″ w × 18″ d wall-hung; center-line is 18″ from left wall and 36″ clear floor in front, with 30″ aisle to opposite wall. Sits in a framed niche 18″ deep, keeps piping on one wall
• Toilet: (WC) Standard bowl; center-line 54″ from left wall 30″ front clearance, 15″ from each side wall
• Tub/Shower alcove: 36″ w × 48″ with full 4′ depth and uses a curbless or low-profile pan that lines up with main floor tile. This is for a very small tub if you go that route
• Circulation lane: A continuous 30″-wide corridor the full 12-foot length that is comfortable for two-way passage or assisted access

Design Tips:

• Stretch the Width Visually: Run 12″ × 24″ tiles perpendicular to the long axis as the cross-lines fake another 6 to 8″ of width.
• Use a Frameless Enclosure: With frameless glass, the bath feels far larger than its 48 sq ft footprint.
• Add More Lighting: A recessed LED strip behind the mirror can help reduce shadows.
• Future proofing: Install ¾″ plywood blocking at 34–38″ AFF behind the WC and inside the tub alcove; you can add grab bars later without opening tile.

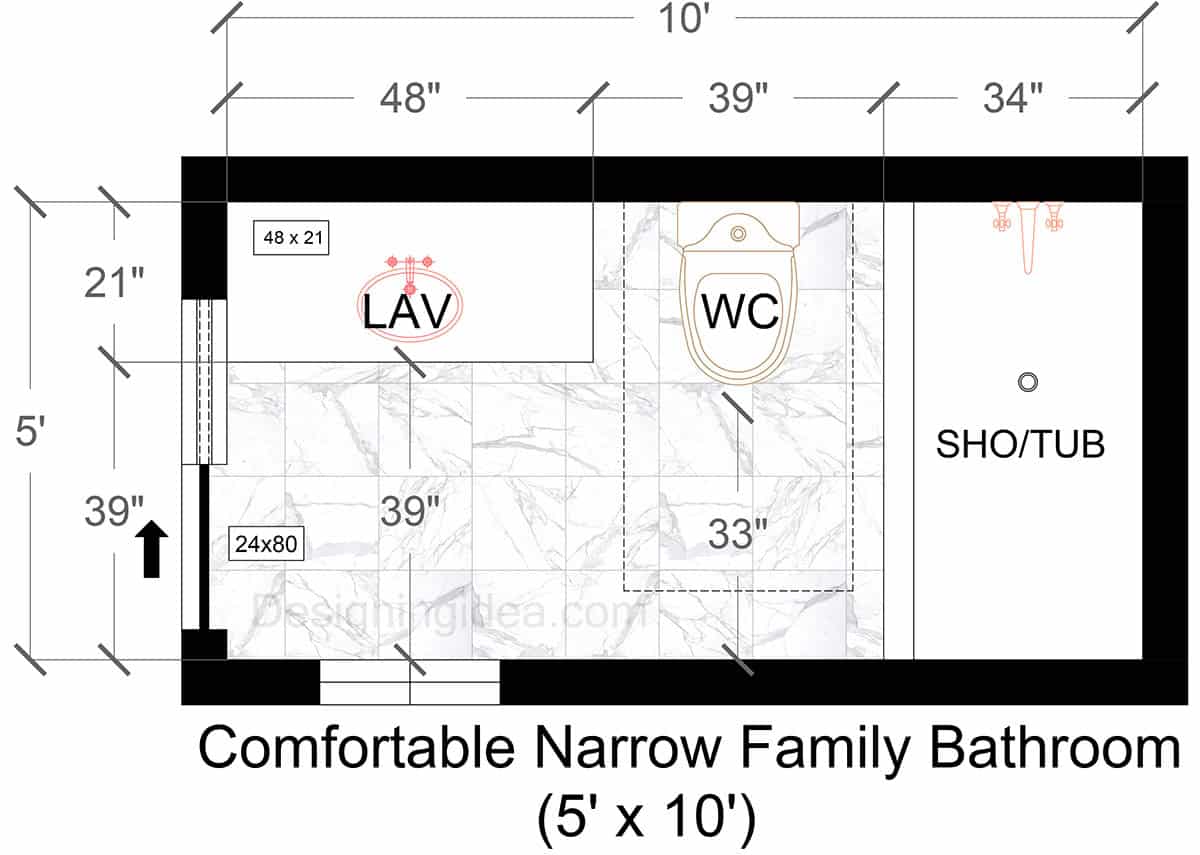

5×10 Comfortable Narrow Family Bathroom Floor Plan

Perfect for families with its large vanity and shower/tub combination this plan is designed to maximize space and ensure plenty of room for storage and maneuverability.

Floor Plan Details: Stepping into this 5-by-10 sanctuary you instantly find some breathing room. Along the north wall, the 48-inch vanity stretches almost the length of a twin bed, offering a shared grooming stage that actually feels generous. The 39″ clear floor space in front of the long counter is big enough for a pair of kids or “his-and-hers” zones. I love specifying a wall-hung cabinet here, since the void beneath visually widens the floor plate and leaves nowhere for dust bunnies to hide. A full-width mirror and integrated LED back-lighting turn the countertop into a miniature dressing room, so early-morning routines stop bottlenecking. The five-foot alcove tub anchors the far end and is excellent for small children who don’t want a shower. I’d run the floor tile straight up the skirt and wrap it around a recessed shampoo niche, as the continuous material line visually elongates the room and creates a splash-proof toy corral. Frameless glass keeps sight lines open, letting natural light in. Put it all together and this plan feels less like a narrow corridor and more like a functional “getting-ready hub.”

Designer Tips:

• Daily traffic Run: Use durable, slip-rated 12″ × 24″ porcelain across the whole floor and up the tub apron. By laying it perpendicular to the long axis one gains visual width.
• Storage Niche: Recess a 14″-high niche above the tub for toys & shampoos, and a mirrored medicine cabinet flush with the wet wall over the vanity.
• Kid-friendly Cleanup: Choose a wall-hung WC and vanity so a quick mop reaches every corner, with no baseboards to collect grime.
• Bright, Shareable Grooming Zone: Mount a 48″ frameless mirror with perimeter LED back-lighting that doubles as night-light and lets two people get ready side by side.
• Visual Calm: Keep the long wet wall one paint color (white or pale stone) and use a single bold accent, like a ribbed feature tile inside the tub niche to avoid the “busy” look that shrinks narrow rooms.

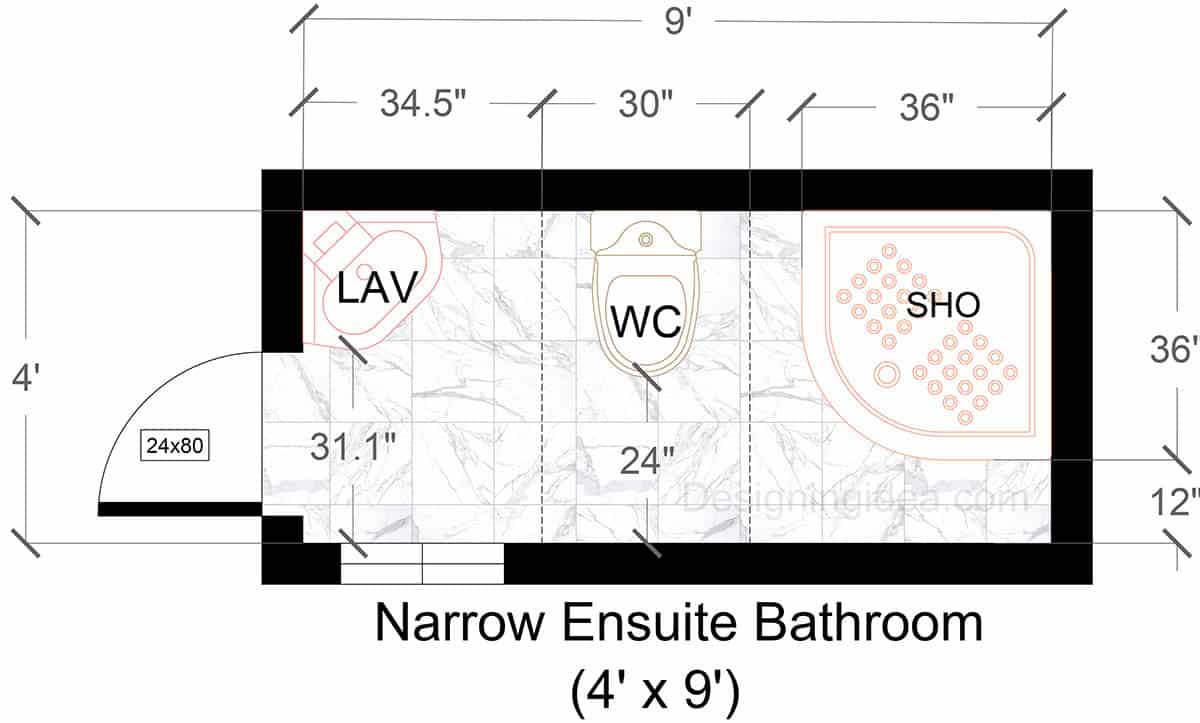

4×9 Narrow Ensuite Bathroom Design With A Shower

With its ultra-slim profile, this small bathroom connected to the bedroom offers a corner-mounted sink and shower enclosure with the toilet in the middle that allows room for movement.

Floor Plan Details: This 4 × 9 ft ensuite bathroom follows a single-wall plumbing strategy with the vanity, toilet, and quadrant shower all sharing the north wall. The 18-in-deep corner sink is positioned at a 45 degree angle, so its widest point projects only 12 inches into the room, which is enough counter for daily tasks, when accompanied by nearby shelving. Placing the toilet 30 inches farther down the wall preserves a code-compliant 15-inch shoulder clearance, and a 24-inch knee zone, making the narrow footprint feel usable rather than cramped. At the far-end, the curved 36 × 36 in. shower tucks into the corner, and its radius clips the corner that would otherwise block the sight-line, allowing natural and artificial light to travel the full length of the room. A frameless glass panel maintains an open feel and lets floor tile run unbroken into the stall, visually elongating the space. Because fixtures step up gradually in depth, first the vanity, then toilet, then full-depth shower, the room widens as you walk in. The opposing blank wall can accommodate a recessed towel niche, or shallow cabinet without crowding the walkway.

Design Tips:

• Celebrate the Angle: That 45-degree vanity isn’t just a space-saver, it’s a visual trick that breaks the “bowling-alley” feel. to get the design right, choose a vessel sink and wall-mount faucet so the counter can be a slim 18″ without sacrificing splash space.
• Keep Sight-lines Sweeping: Opt for a frameless quadrant shower enclosure with glass to allow the narrow room to read wider than four feet.
• One-wall Plumbing, & Double-duty Storage: Because everything’s on the wet wall, the opposite wall is free for a 4″ deep recessed cabinet or towel niche. Paint it the same tone as the tile so it blends in better.
• Light in Layers:  Recess a slim LED strip along the ceiling’s wet-wall edge. Pair it with a back-lit mirror over the vanity, as the layered glow removes shadows and turns the aisle into a softly illuminated runway.

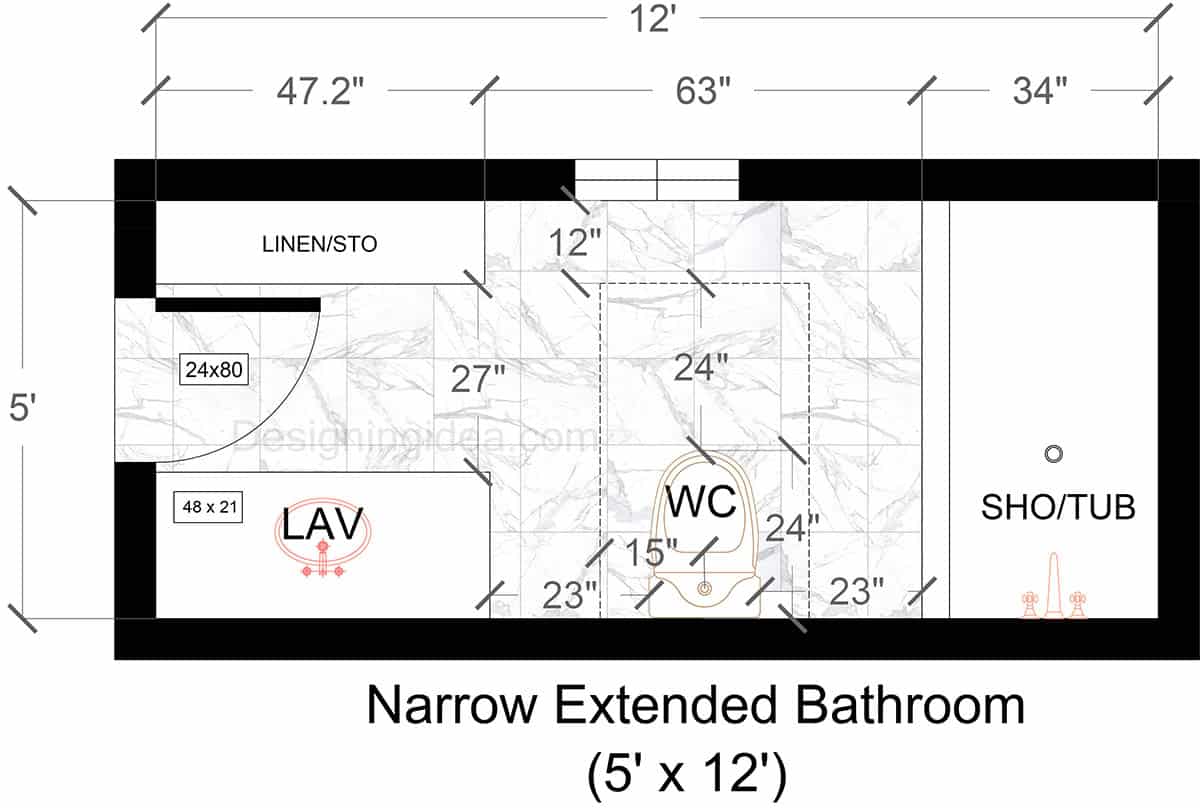

5×12 Narrow Extended Bathroom With Shower/Tub Combination

This design splits the bathroom into three separate zones for grooming, storage, and bathing, and maximizes every inch for a productive use of space.

Floor Plan Details: With its long, corridor-like design, this bathroom opens you to a 48 × 21-inch vanity that runs along the south wall. On the opposite side sits a small storage area or linen closet, followed by the toilet and then the tub and shower combination. Along the north wall, a built-in linen cabinet is only 12 inches deep and occupies the first 47 inches of wall space. Because it’s flush with the door jamb and hung higher than counter height, it steals no floor area while giving a legitimate linen stack right where you need it. Past the cabinet, the aisle narrows to roughly 27–30 inches and stays that width to the far end. The toilet sits midway down (center-line 87 inches from the door wall) with a full 24 inches of knee space and 15-inch shoulder clearances, which is code compliant and comfortable for assisted use. The run terminates in a 60 × 34-inch tub/shower alcove.

Dimensions:

• Room: 5 ′ × 12 ′ rectangle, at 60 ft²
• Vanity: 48″ x 21″
• Linen closet: 47.2″ x 12″
• Shower/tub combo: 60″ x 34″

Design Tips:

• Use Touch Latch doors on Closet: Fit the linen cabinet with touch-latch doors so there are no pulls to snag clothing in the narrow aisle.
• Choose Lighter More Reflective Surfaces: A narrow space works well with high-gloss ceramic or porcelain tile in pale tones to avoid looking too dark.
• Larger Tile: Run large-format tile perpendicular to the 12-foot axis, as every grout joint visually widens the 5-foot span.
• Create a Focal Point Without Clutter: Use one feature wall, it could be above the tub while keeping the rest of the palette simple. A vertical mosaic in the shower can draw the eye and visual interest.
• Keep Lighting Layered: Use a mix of ceiling lights with vanity sconces or backlit mirrors for even illumination and to help remove shadows.
