Master Bedroom Above Garage Floor Plans With Privacy, Comfort & Style

Adding a spacious master retreat addition above your garage can offer a ton of benefits. By tucking a bedroom suite over the garage, you instantly increase your home’s overall square footage. It elevates you to a quiet perch away from normal household traffic, leverages structural space that’s already framed, and instantly boosts resale value. In this guide, we’ll walk through creative and stylish master bedroom floor-plan concepts, showcasing everything from cozy loft-style studios to luxurious, hotel-inspired suites, so you can transform the space above your garage into the place you‘ve been dreaming of.

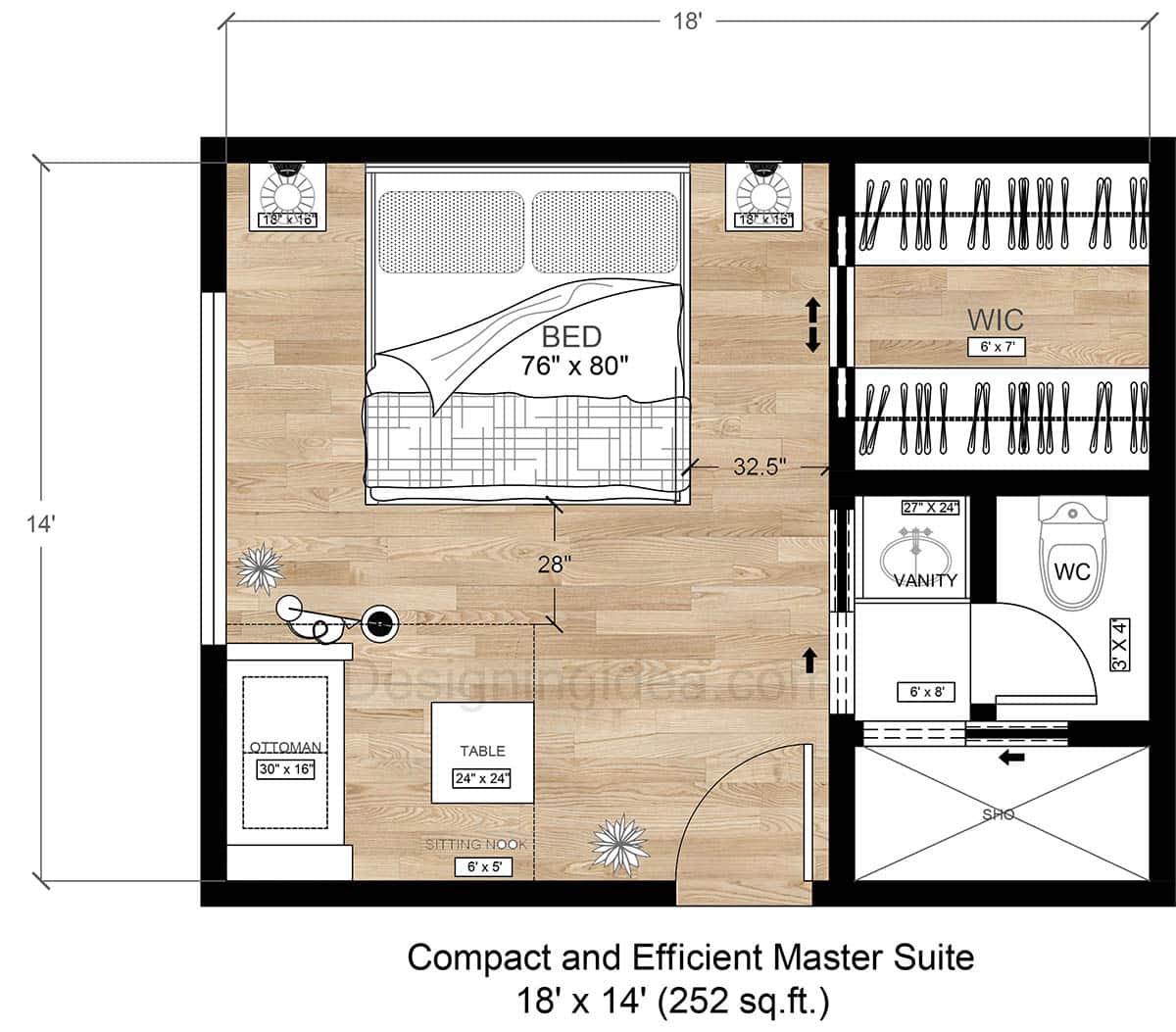

18×14 Compact And Efficient Master Suite Layout

This bedroom suite combines areas for sleeping, lounging, dressing, and bathing into a single rectangular arrangement that carefully utilizes every inch of space.

Layout Details: This 18 × 14-foot bedroom suite offers 252 sq ft of livable space that divides its design into four purposeful zones. The sleeping hub has room for a 76 × 80-inch king bed that anchors the long exterior wall and is framed between two compact 18 × 16-inch nightstands with dual lamps. A 32.5-inch walking passage on the closet side and a 28-inch run at the bed’s foot keep the circulation clear of obstructions. Below the bed is a 6×5 ft sitting nook that holds a 30 × 16-inch ottoman, a 24 × 24-inch accent table, and a lounge chair. On the upper far right side sits the 6×7 ft walk-in closet that is accessed behind sliding doors with two full walls of hanging space and overhead shelving for seasonal and bulk storage. Situated in the bottom right is the 6×8 ft en-suite bathroom hidden behind a pocket door. As you enter, you’ll see a 27 × 24-inch floating vanity that sits opposite a private water closet. On the bottom wall, there is a glass-enclosed shower reached by a short step-through slider to contain splashes.

Dimensions:

• Room size: 18′ × 14′ (252 sq ft)
• Bed: 76″ × 80″ (king)
• Bed-to-closet clearance: 32.5″
• Bed-to-foot wall clearance: 28″
• Sitting nook: 6′ × 5′
• Walk-in closet: 6′ × 7′
• Bathroom: 6′ × 8′ bath
• Vanity compartment: 27″ × 24″ cabinet
• Shower span: full bath width (approx. 8′

Design Tips:

• Slide, don’t swing the doors: Use pocket or sliding doors on the closet and bathroom to avoid door-swing into aisles.
• One long wet wall: Align the vanity, toilet, and shower so they use the same plumbing, which cuts down on construction costs.
• Balanced walkways: Keep pathways just over 30 inches to ensure easy mobility through the space.
• Multifunction corner: Use the ottoman to double as a perch for work or extra seating.
• Light layering: Consider adding wall sconces above each nightstand, plus a reading lamp in the sitting nook, to enhance task-specific illumination.

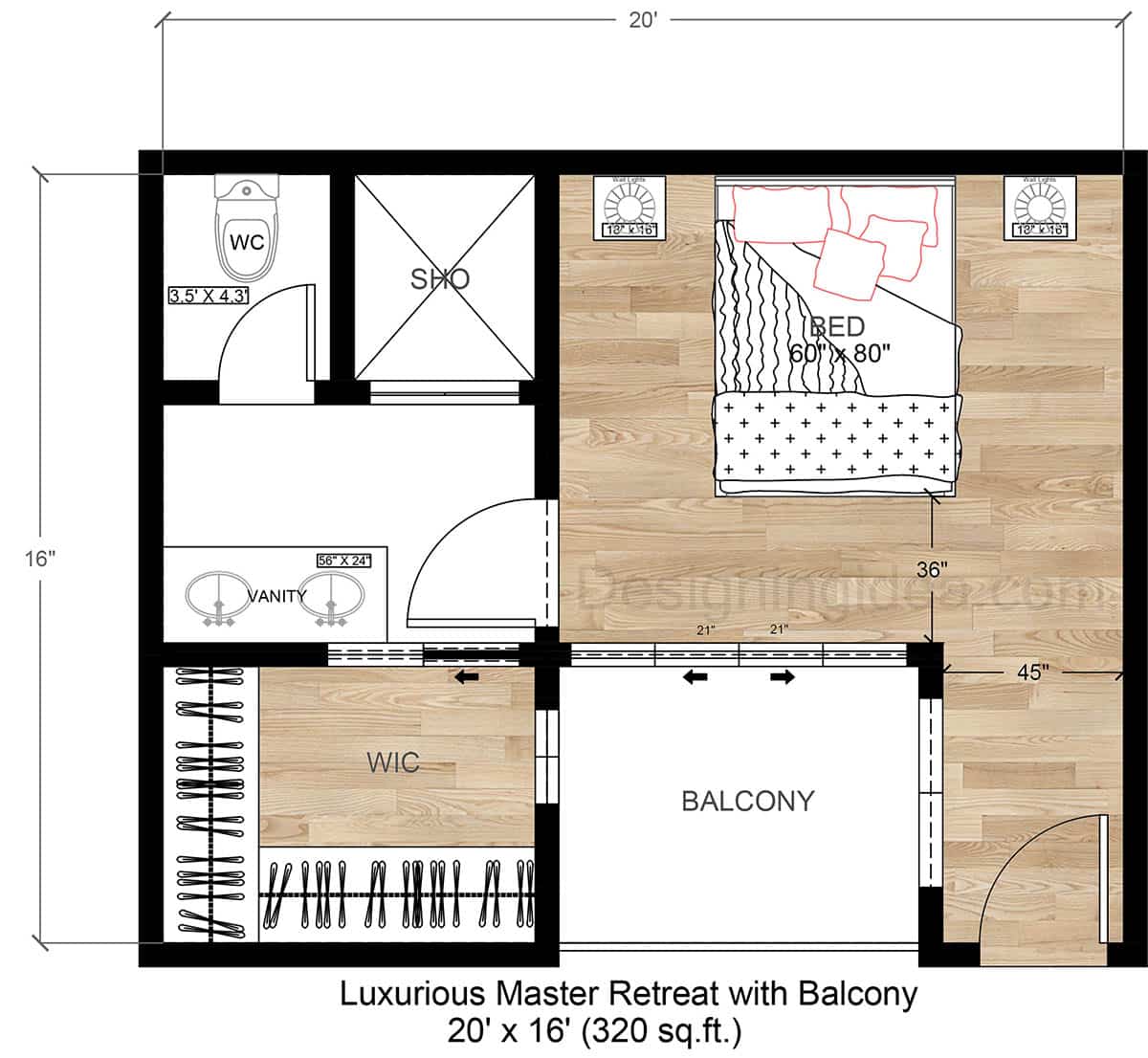

20×16 Luxurious Master Retreat with Balcony Floor Plan

By pairing indoor and outdoor comfort, this master retreat feels indulgent, thanks to its accessible outdoor access and functional layout that promotes a hotel-suite vibe.

Layout Details: A full 20×16 ft, 320 sq ft of living space lets you live large enough for resort vibes while still fitting into a second-story footprint. The sleeping area is able to accept a 60×80-inch queen bed that is centered on the long upper wall, and bracketed by twin 18×16-inch nightstands. From the bed, there’s a 36-inch aisle to the balcony sliders and a 45-inch route to the entry door that allows plenty of space for two people to pass by each other. The layout focuses on indoor–outdoor living by providing triple-panel sliders (each active panel is 21 in.) that open to a recessed balcony for taking in the fresh air and view. The bathroom in the upper left is accessed through a pocket door to reveal a 56×24 in double sink vanity, a private 3.5×4.3-ft water closet, and a square 5×5-ft glass shower. A walk-in closet occupies the suite’s lower left corner, and measures roughly 7 × 8 ft, with full-height clothing rods hanging on two walls and open shelving for shoes and folded items.

Dimensions:

• Bedroom suite size: 20′ × 16′ ( 320 sq ft)
• Bed: 60″ × 80″ (queen)
• Bed-to-balcony clearance: 36″
• Bed-to-entry path: 45″
• Balcony slider panels: 21″ each (42″ clear opening when stacked)
• Double vanity: 56″ × 24″
• Shower: 5′ × 5′
• Water closet: 3.5′ × 4.3′
• Walk-in closet: ≈ 7′ × 8′

Design Tips:

• Zone with doors that hide: Use pocket doors on the bath and closet to save space.
• Install clerestory windows above the bed. This provides symmetrical daylight above and helps naturally brighten the room.
• Let the balcony borrow space. Center the sliders opposite the bed to draw the eye outside, enhancing the overall feel.
• Keep plumbing on one wall. Place the shower, vanity and WC back up to the same chase, to reduce build cost.
• Plan for paired living. Use a 56-inch vanity that gives each partner 28 inches, for true his and hers elbow room.

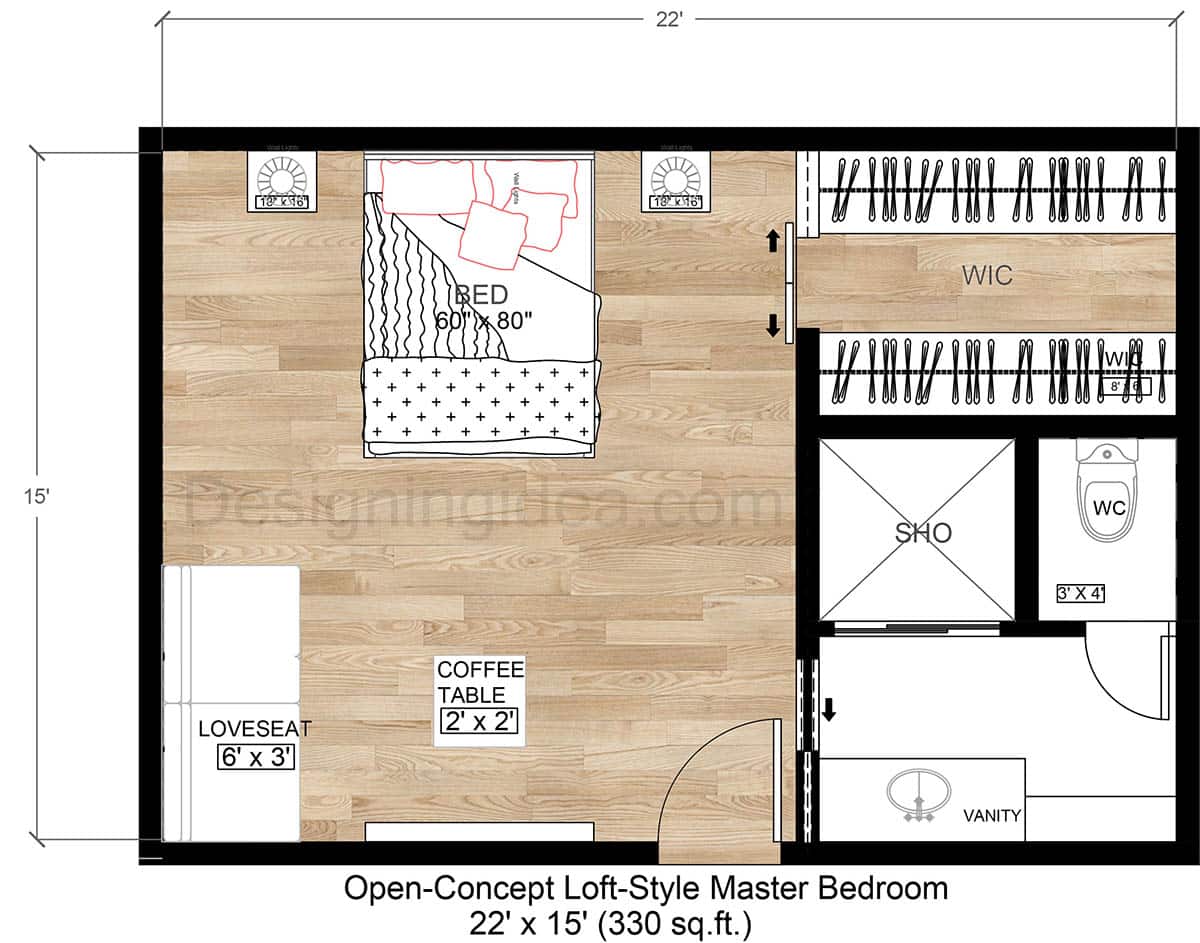

22×15 Open-Concept Loft-Style Master Bedroom Layout

With its galley-style closet, compact bathroom, and furniture pushed to the sides, this bedroom suite layout delivers the vibe of a roomy downtown loft.

Layout Details: This bedroom suite measures 22 × 15 feet, with 330 sq ft of space, and goes for a loft-style feel by removing most interior walls so the space feels airy and studio-like. The sleep zone lines up along the upper wall and uses a 60×80-inch queen bed paired with two 18 × 16-inch nightstands on either side. The lower left corner acts as a mini living room with a 6 × 3-foot loveseat pushed to the side and a 2×2 ft coffee table that sits opposite the foot of the bed. On the right side are the storage and bathing functions behind sliding doors. A sliding barn door reveals a galley walk-in closet measuring 7 × 8 feet with double-sided hanging. Below that is the compact bathroom with a square glass shower (5 × 5 ft), a single-sink vanity, and a private 3×4-foot water closet.

Dimensions:

• Room size: 22’×15′ (330 sq ft)
• Bed: 60″ × 80″ (queen)
• Clearance, bed-to-closet wall: 36″
• Clearance, bed-to-loveseat: 7′
• Loveseat: 6′ × 3′
• Coffee table: 2’×2′
• Walk-in closet: 7’×8′
• Shower: 5’×5′
• Water closet: 3’×4′

Design Tips:

• Use low-profile furniture in the seating nook. This way the floor space stays visually open.
• Slide instead of swing. Add pocket and sliding barn-style doors on the closet and bath.
• One plumbing chase, three fixtures. Stack the shower, vanity, and toilet on a single wall.
• Layer light like a loft. Combine ceiling-mounted recessed cans with sconces, table lamps by the bed and a floor lamp by the loveseat.
• Zone with rugs. Add separate rugs under the bed and the lounge corner to define each space. (8×10 under the bed and 4×6 under the loveseat)
• Large skylight for natural lighting. Consider a skylight to enhance the overall brightness.

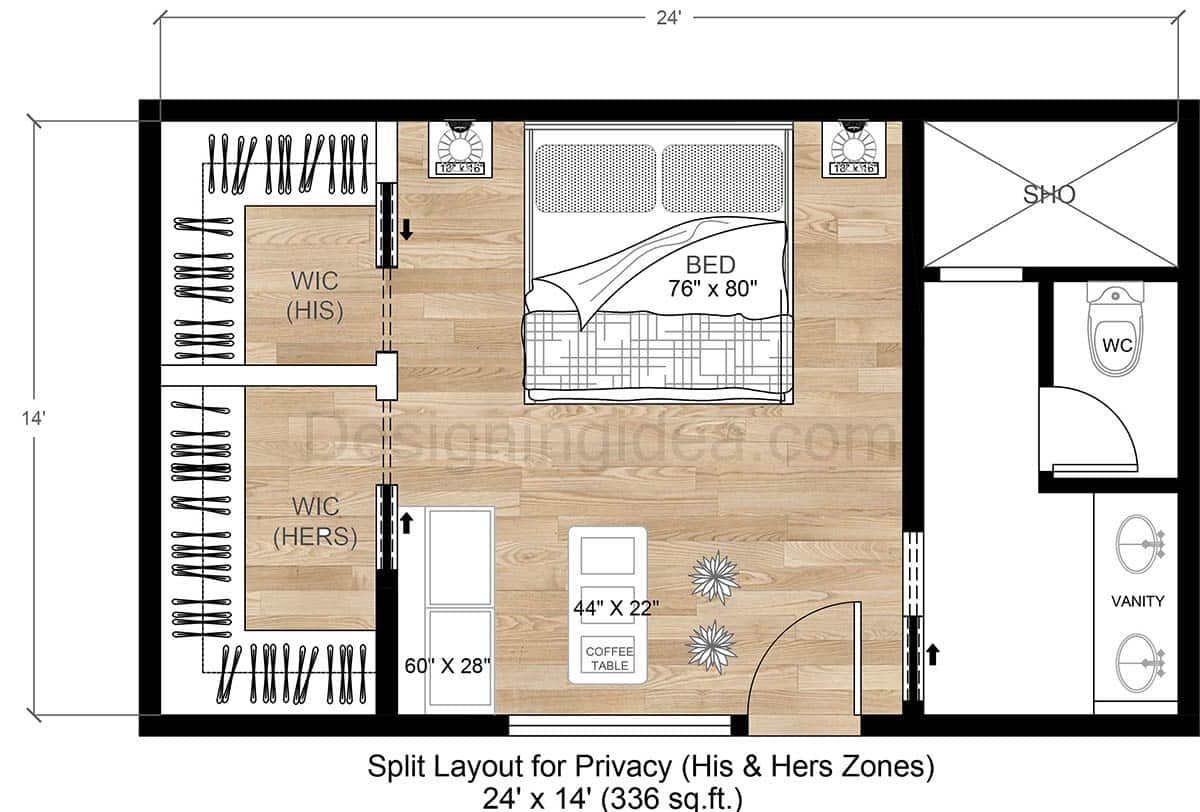

24×14 Split Bedroom and Garage Layout for Privacy (His & Hers Zones)

This split bedroom layout offers his and hers closets, a king-sized bed, and a bathroom vanity with two sinks for a clutter-free sanctuary for two.

Layout Details: Stretching across a room measuring 24×14 ft with 336 sq ft of livable space, this plan splits the rectangle length-wise so each partner gets personal closet storage with a shared bedroom and a bath with dual vanities. The left side is devoted to the two separate his and hers walk-in closets. Each is separated by a sliding door to keep contents hidden yet instantly accessible when needed. The center of the design has a king-size sleeping zone that is framed by two nightstands with symmetrical lamps for balanced light. A 60×28-in dresser and a 44×22-in coffee table with plants creates a casual sitting nook below the foot of the bed. All bathing functions are located on the right side with a walk-in glass shower, private water closet, and double vanity, allowing two people to prep at once.

Dimensions:

• Bedroom suite size: 24′ × 14′
• Bed: 76″ × 80″ (king)
• His & Hers WICs: each 6′ × 6′
• Central closet corridor width: 36″
• Built-in dresser: 60″ × 28″
• Coffee table: 44″ × 22″
• Shower enclosure: 6′ × 6′
• Water closet: 3′ × 4′
• Double vanity length: approx. 5′ – 6′

Design Tips:

• Duplicate, don’t share. Matching identical closets eliminates dressing battles and speeds up morning routines.
• Slide to save space. Use pocket or barn doors on both closets and the bath to save space.
• Add a dresser below the bed. For extra storage, add a dresser or swap with a couch if you want a comfy seating area.
• Soft rugs for zoning. Place a runner in the closet corridor and an area rug under the coffee table to create separate zones.
• Soundproofing between the garage and the bedroom. Don’t forget adequate soundproofing between levels for less ambient noise.

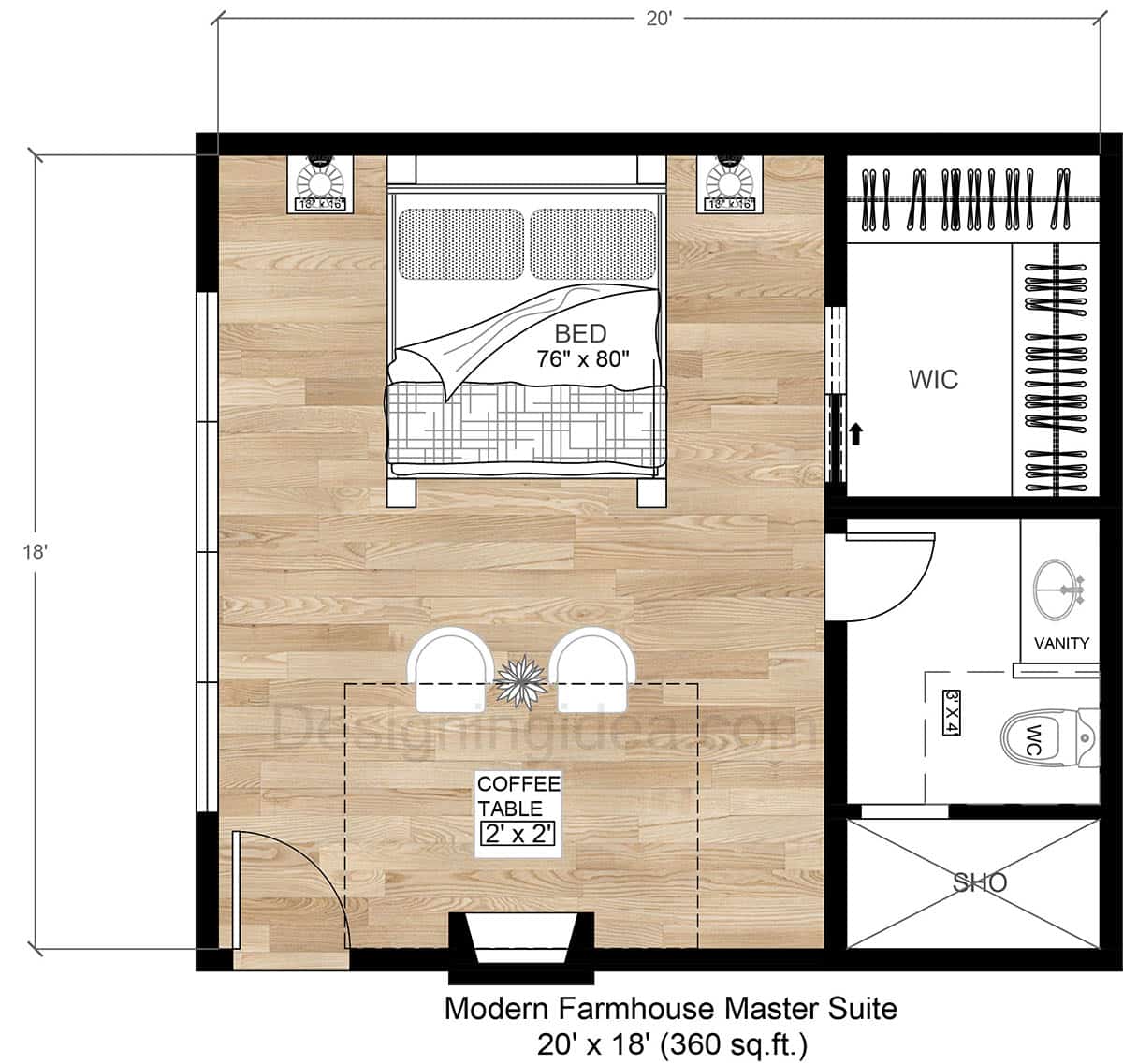

20×18 Modern Farmhouse Master Suite Design

For those who want an open feel in the bedroom, this design clusters the storage and bath along one wall and inserts a cozy lounge in front of the bed, giving you room to breathe and relax around a gas fireplace or TV.

Layout Details: This 20 × 18-foot modern farmhouse master suite measures 360 sq ft, and is reminiscent of an airy barn loft that’s been polished for luxury living. The walls are adorned with shiplap panels for a farmhouse feel. The primary bedroom space has room for a 76 × 80-inch king-sized bed that is centered on the upper wall with two 18 × 16-inch nightstands. Because the foot of the bed lines up with the room’s long axis, you get a clear, almost eight-foot sight-line straight to the seating area, which looks stylish and allows for watching TV or the fireplace from bed. The conversation nook, located near the entrance (dashed line shows the area rug), is about 8 × 6 ft and fits two curved slipper chairs and a 2 × 2-foot coffee table. It’s the perfect spot for relaxed mornings or late-night conversations with a loved one.

The walk-in closet is tucked behind a sliding barn door and spans roughly 6 × 7 ft with full-height hanging clothes rods on two sides and shoe cubbies on the opposite side. Below this sits the spa bath, behind a pocket door. At the top sits a small floating vanity next to a private 3 × 4-ft toilet area and a glass-walled shower that measures about 6 × 6 ft.

Dimensions:

• Bedroom suite size: 20′ × 18′ (360 sq ft)
• King bed 76″ × 80″
• Nightstands 18″ × 16″ each
• Seating rug 8′ × 6′
• Coffee table 2′ × 2′
• Walk-in closet 6′ × 7′
• Vanity length 5′
• Shower enclosure 6′ × 6′
• Water closet 3′ × 4′

Design Tips:

• Barn-style sliders. Use reclaimed-wood barn doors at the closet and bath to enhance the farmhouse aesthetic.
• Mixed metals: Pair matte-black hardware with aged-brass hardware and light fixtures to add to the rustic charm .
• Layered light: Use recessed cans for an ambient glow, sconces for task lighting, and a statement chandelier over the seating zone to balance brightness throughout the floor plan.
• Textured wall behind the bed. To create a focal point, add shiplap or vertical V-groove paneling that gives farmhouse character and frames the king-size headboard.
• Zone with rugs. Anchor the seating nook and bed individually so each looks like its own space.
• Large double windows for natural light. Adds to the amount of natural light and lets one appreciate the second story views.
