His and Hers Bathroom Layouts That Balance Privacy and Luxury

Sharing a bathroom doesn’t have to mean fighting over mirror space or crowding around a single vanity. In fact, with the right design, a shared space for couples can feel luxurious while offering individual spaces that work for you. His and hers bathroom layouts are all about creating the perfect blend of togetherness and a personal retreat, where you can get ready side by side without sacrificing privacy or style. Get ready to be inspired by our favorite ideas that prove you really can have it all: connection, comfort, and everyday luxury.

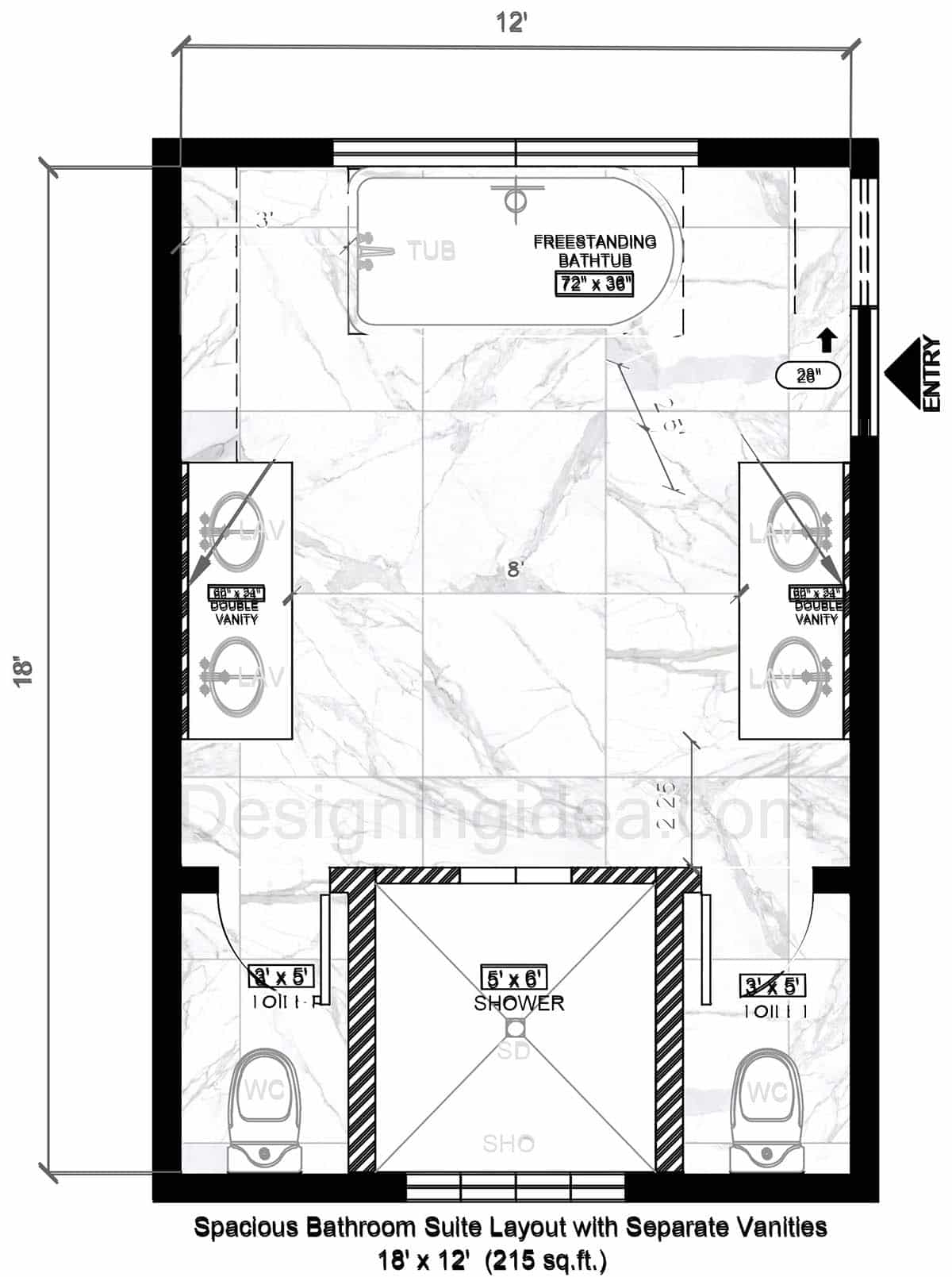

Spacious Bathroom Suite Layout with Separate Vanities

A perfectly symmetrical bathroom suite with a wet core and a separate vanity for each means two people can soak, scrub, groom, and, yes, even take care of business at the same time with no bumping elbows, lost privacy, or spa-day serenity sacrificed.

Floor Plan Details: As you enter, your eye is immediately pulled straight ahead to the star of the room, a 72-by-36-inch freestanding tub framed by a wide window on the upper wall. Because the tub sits dead-center, it acts like a focal point, setting a spa-like tone the moment you step in. On either side of this tub feature are matching double vanities. By placing the sinks opposite each other instead of crowding them onto one wall, the plan can offer an open floor aisle in the middle. That generous amount of space keeps morning traffic from feeling too tight, and it helps the 18-by-12-foot room feel even larger than its 215 square feet.

Walk past the vanities and you’ll find a 5-by-6-foot glass shower enclosure centered on the lower wall. Doors on either side of the enclosure let each partner step into their own private 3-by-5-foot water-closet rooms. Each has its own door, so privacy is built in all while promoting symmetry. The result is a layout that feels calm, perfectly balanced, and effortlessly shareable.

Dimensions:

• Room size: 18′ x 12′ (216 sq ft)
• Central freestanding bathtub: 72″ x 36″, centered, acting as a focal point.
• Two separate vanity areas: Each 60″ wide, opposite sides, each with double sinks.
• Separate toilet rooms: Each 3′ x 5′, positioned near each vanity.
• Walk-in shower area: 5′ x 6′, frameless glass enclosure, at the far end.

Design Tips:

• Mirror imaging. Keep fixtures symmetrical on both sides to calm the eye and make the space feel more orderly.
• Outswing or pocket doors on the WCs. This will prevent clashes with people moving through the central zone.
• Add a bench along the lower shower wall. The 5′ depth leaves plenty of showering space.
• Use tall mirrors above the vanities. This helps bounce natural light deeper into the bath with tall mirrors that reflect the tub-side window.
• Discreet ventilation. Use one quiet fan per WC that controls humidity and odors.

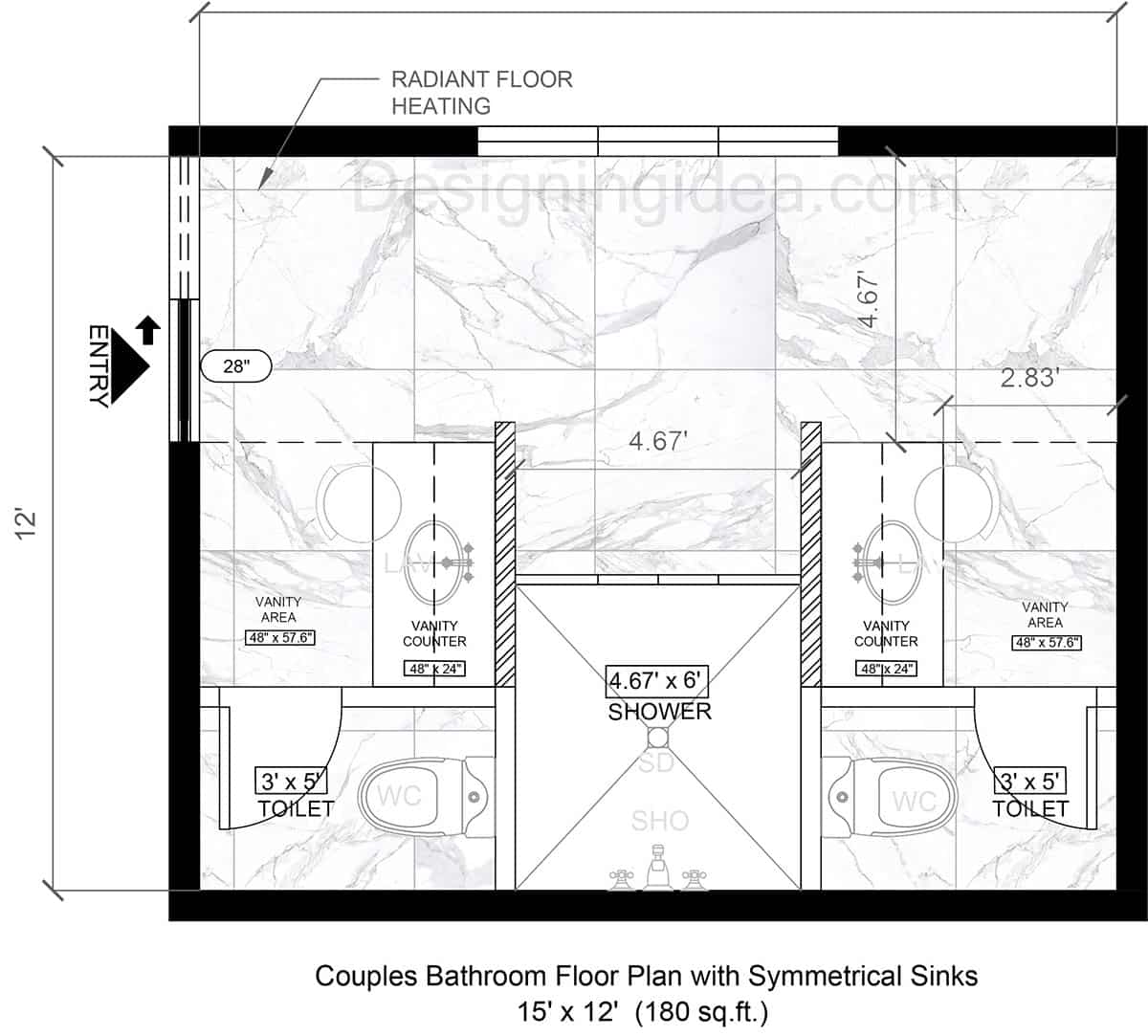

Couples Bathroom Floor Plan With Symmetrical Sinks

With perfectly mirrored vanities, private water closets, and a central shower, this plan gives couples equal space and spa-level comfort.

Floor Plan Details:

As you enter the bathroom through the right side, you’re greeted by a bright floor space that stretches almost five feet deep and twelve feet long. That open zone is heated with radiant floor coils, so the tiles stay toasty even on cold winter mornings to add extra luxury to the design. On either side, there are matching 48-inch vanities that stand like bookends. Each sink sits on a two-foot-deep counter and has its own 4 ft × 4 ft-9 in surface in front, providing room for individual chairs, accessories, and beauty or grooming products.

Push past the vanities, on either end, and you’ll find matching water closets. The doors to those WCs swing outward, keeping the compact stalls easy to navigate while preserving valuable inches inside. Between the toilet rooms, a roomy 4 ft 8 in × 6 ft shower sits, with a small alcove leading to the entrance and room for his and hers towel racks. At just 15 ft by 12 ft (180 sq ft), the plan relies on symmetry and a clean upper/lower axis to make the space feel ordered, balanced, and big enough for two people to have their own space.

Dimensions:

• Room size: 15′ x 12′ (180 sq ft)
• Two matching vanity spaces: Each 48″ wide and 24″ deep with individual sinks.
• Central aisle: 4′ wide for comfortable movement.
• Shared luxury walk-in shower: 4.67″ x 6′ frameless, centrally positioned at the lower side.
• Private toilet compartments: Each 3′ x 5′, accessed through the vanity area and flanking the shower.

Design Tips:

• Keep the symmetry strict. Use matching mirrors, sconces, and hardware to reinforce the calming, balanced look.
• Upgrade the shower glass to low-iron. This eliminates the green tint and keeps sightlines more open, and promotes the central enclosure.
• Space-saving doors. Using pocket or barn-style doors is worth considering for the toilet stalls.
• Layer lighting. Wall sconces at each vanity, along with a linear LED strip above the shower door, prevent shadows and add soft nighttime lighting.
• Install a heating system for a warm floor. Radiant heat means you can skip bath rugs and show off large-format tile.
• Mirror backsplash height. Run the vanity mirrors up the 8-foot ceiling to stretch the walls visually and bounce daylight deep into the room.

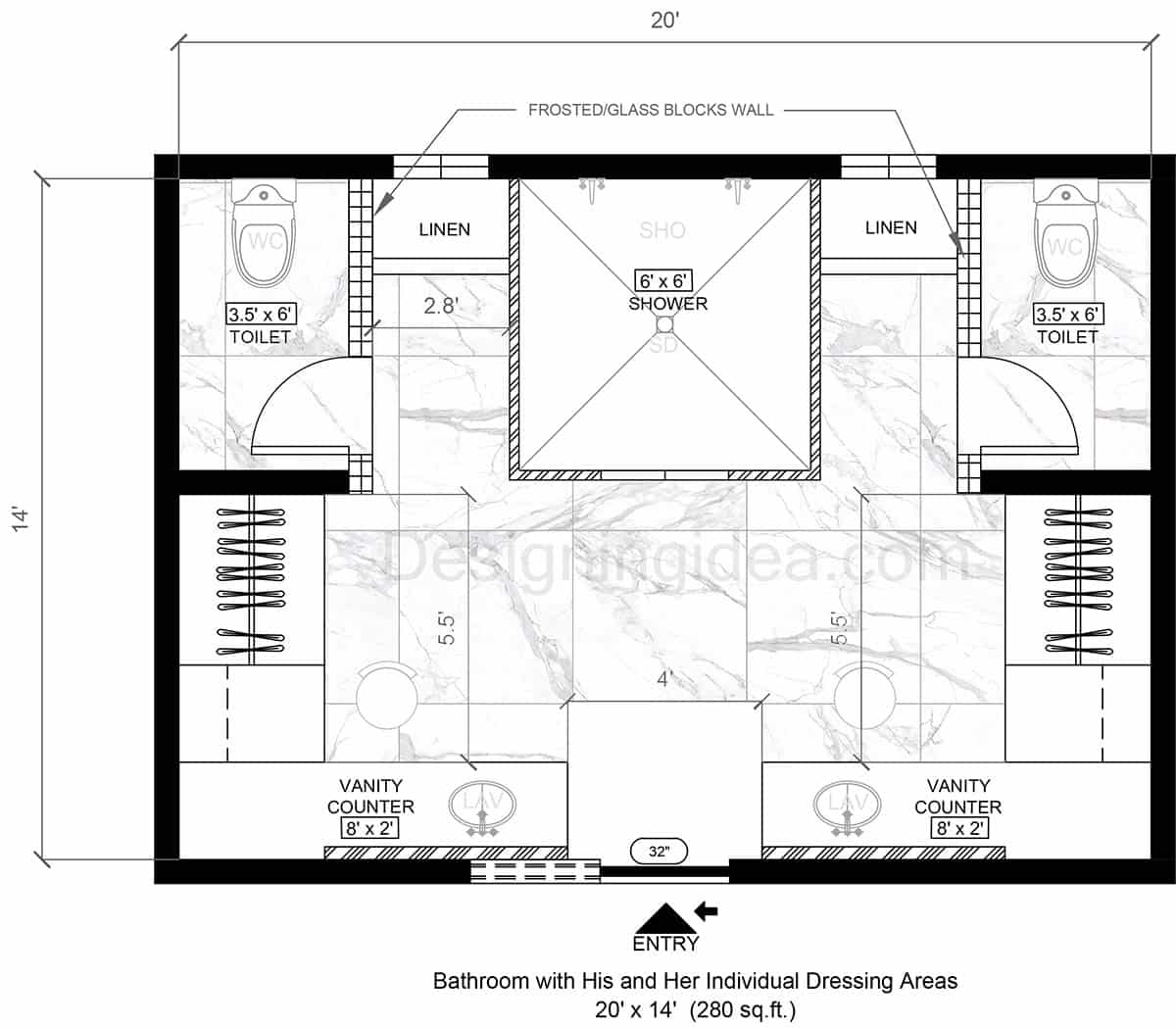

Bathroom With His-and-Her Individual Dressing Areas

This expansive floor plan delivers resort-suite comfort by giving each person an eight-foot vanity plus a private dressing alcove, and still fitting a luxe 6×6 shower and two discreet water closets,

Floor Plan Details: As you step into this bathroom design, you’ll first notice you’re faced with  a dramatic 6-by-6-foot glass shower enclosure. The shower is placed in the center with two shallow alcoves on either side. Those niches hide identical closets and the doors to twin 3½-by-6-foot toilet rooms, each one private, and each one naturally lit through modern frosted-glass block bands.

Move a few feet left or right and you’ll find why this layout feels so accessible with his-and-her dressing wings. On both sides, two massive 8-foot-wide vanities stretch out for each person to have their own space. This area flows into a dedicated 5½-foot-deep dressing zone with room to push in a vanity chair for grooming or relaxation. Tall cabinets bookend the vanities, so bathroom products and clutter stays out of sight. Because the two wings mirror each other, no one gets the “better” side, and morning routines can happen in tandem without anyone shoulder-checking for sink space.

Dimensions:

• Room size: 20′ x 14′ (280 sq ft)
• Shared open shower: 6′ x 6′, double sized shower that is centrally placed with dual showerheads.
• Two vanities with dressing counters: Each vanity and dressing area is 8′ x 2′ and is placed along opposite walls.
• Separate water closets: each 3’5″ x 6′ with individual doors.
• Built-in wardrobes/storage: 5’ 5′ x 3′ each, adjacent to respective vanity areas.

Design Tips:

• Double up on lighting. Install identical light fixtures on both vanities so each side feels equally “premium.”
• Modern frosted glass blocks. These can let daylight wash the WCs while protecting privacy.
• Use contrasting cabinet finishes. If you want to add some individuality, you can use walnut on one side and painted oak on the other, to personalize each dressing area without disturbing the symmetry.
• Use his and hers showers. Setup different showerheads based on individual preferences.

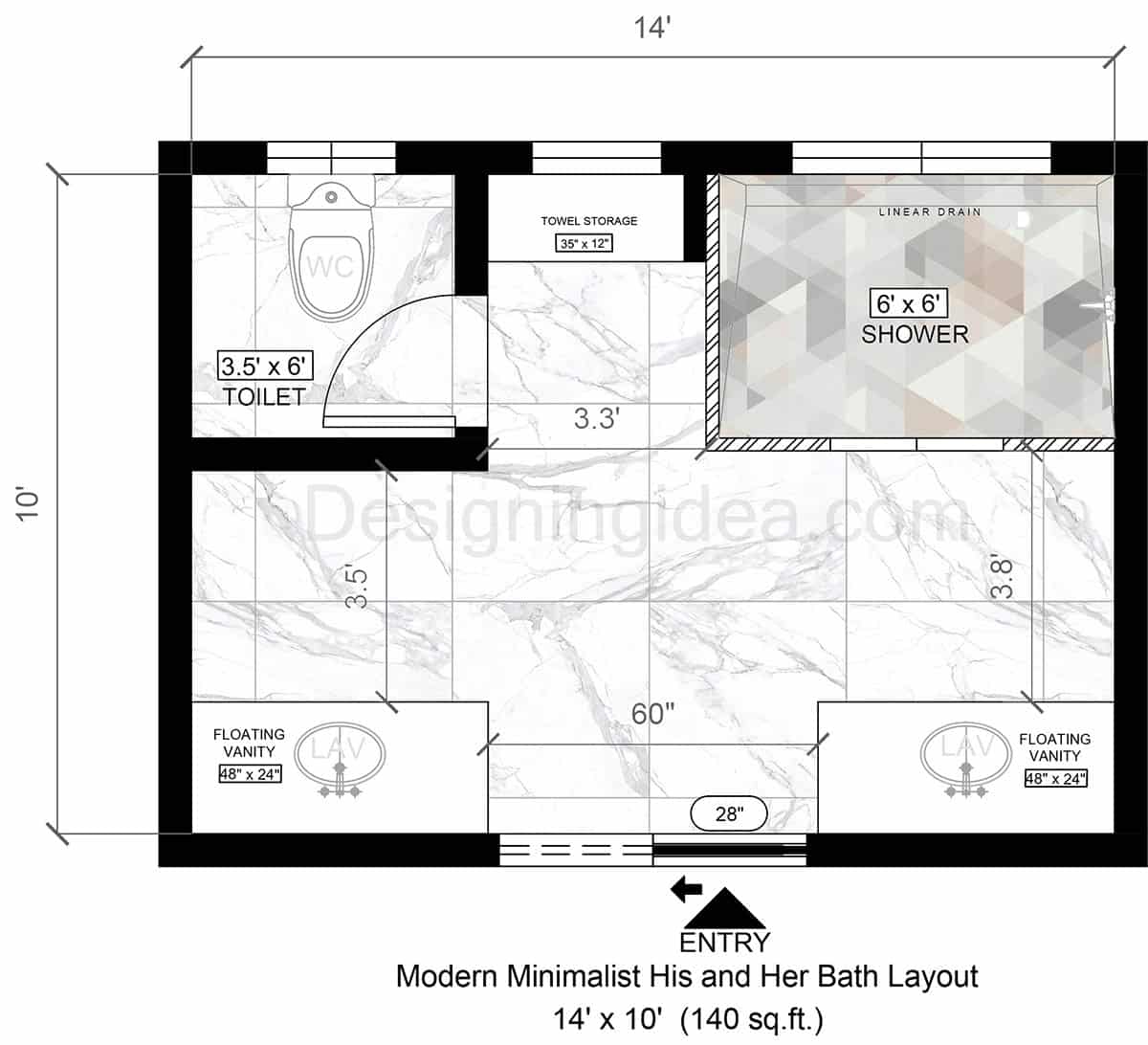

Modern Minimalist Couples Bath Layout

This minimalist-style bathroom delivers individual space for couples by dividing equal vanity space, adding an expansive 6-foot shower, and a private water closet that makes a modest-sized floor plan feel like a boutique hotel suite.

Floor Plan Details: As you enter the room through the sliding door, a five-foot clear swath of floor extends straight ahead that reinforces the modern-minimalist “less is more” vibe. On either side of the doorway sit matching 48-inch floating vanities for a true his and hers feel. The wet zone lives along the top wall, with a discreet 3 ½ × 6-foot water-closet room to the left and a shower enclosure on the right. The roomy 6 × 6-foot shower is equipped with a sleek linear drain and frameless glass enclosure for a stylish modern look. A 35-inch-wide towel niche sits between the two, so fresh towels are within easy reach. The result is an uncluttered grooming zone at the front and a large shower and private toilet in the back, and is perfect for couples who like their mornings efficient and their design luxurious.

Dimensions:

• Room size: 14′ x 10′ (140 sq ft)
• Two floating vanities: Each 48″ x 24″, placed side-by-side.
• Large shared shower enclosure: 6′ x 6′, frameless glass, positioned opposite vanities.
• Single shared water closet: 3.5′ x 6′ in a corner with privacy door.
• Built-in towel/storage niche: 35” wide x 12″ deep near shower entrance.

Design Tips:

• Keep fixtures floating. Wall-hung vanities and a wall-mounted toilet (if budget permits) help promote the airy, minimalist aesthetic.
• Install a large format tile. Use a single large-format floor tile across the entire space, including in the shower, for a seamless visual flow.
• Space-saving door for the water closet. A pocket or barn door on the WC can free up floor space.
• Add under vanity lights. Install recessed LED strips under each vanity to act as soft night lighting and highlight the floating effect.
• Utilize towel/accessory storage. Leverage the 35-inch niche with open shelving for towels or a closed cabinet to keep the countertops free from clutter.
• Use modern hardware. Keep materials sleek, uniform, and minimal to enhance the modern/contemporary aesthetic.
• Linear drain in the shower. Install a linear drain and low-profile fixtures in the shower for streamlined appeal.
• Install large tiles. Use large-format tile to minimize grout lines and visual clutter.

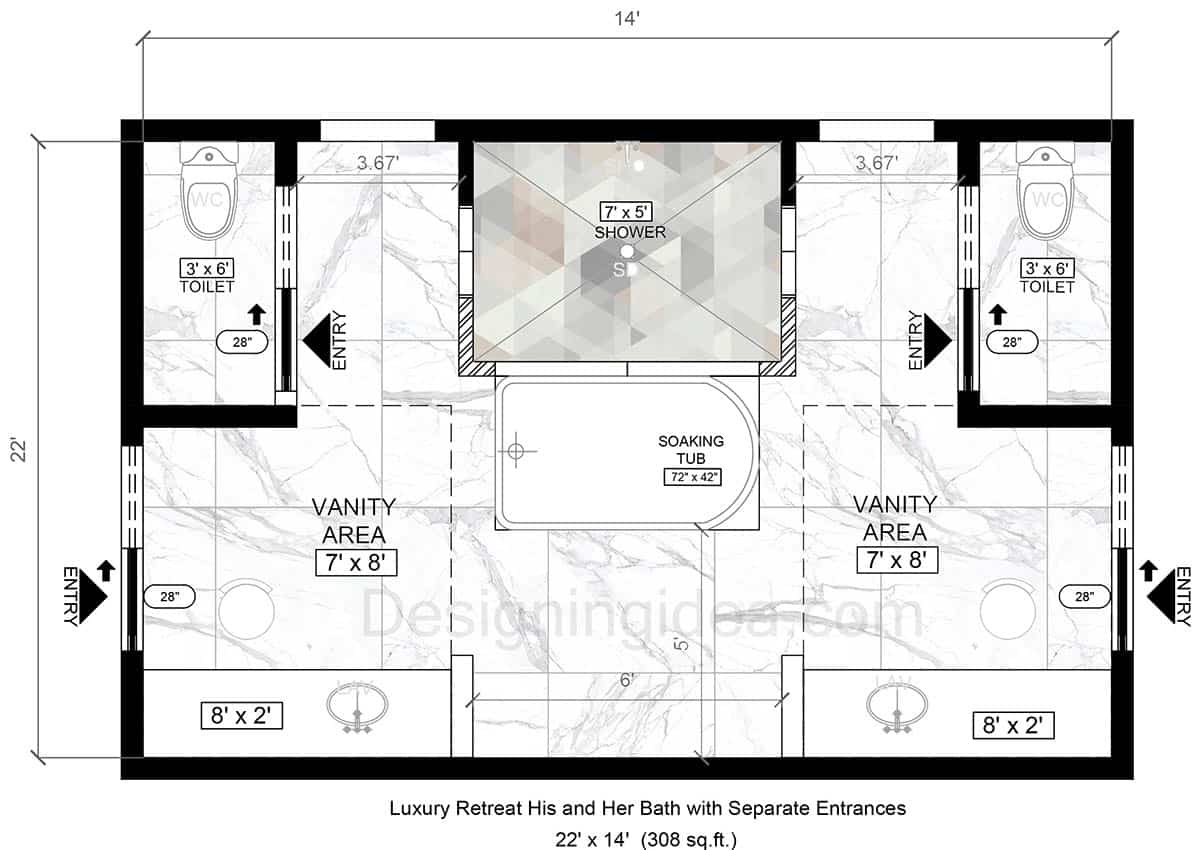

Luxury Retreat His-and-Hers Bath with Separate Entrances

With dual entrances, mirror-image vanity lounges, a statement soaking tub, resort-sized shower, and private WCs, this plan turns a master bath into two personal dressing suites joined by a five-star spa.

Floor Plan Details: This Jack and Jill style bathroom has two points of entry, one on the husband’s side, one on the wife’s that open into a 22-by-14-foot sanctuary. Each doorway deposits its owner directly into a private 7′ × 8′ vanity lounge area. Because the two grooming zones are mirror images, no one has to negotiate “your side / my side”, as they already exist.

Once you step forward, the two lounges meet at a shared spa core with a tub and a shower. Front-and-center sits a 72″ × 42″ oval soaking tub with a large clearance space around it. Just beyond, a 7′ × 5′ frameless-glass shower sits in the upper middle of the room. You’ll also find twin 3′ × 6′ toilet rooms, each with a discreet 28″ swing door on either side for true couples’ privacy. The whole plan feels like two luxurious bathrooms combined together by a single, spectacular wet zone that is perfect when both partners crave privacy part of the time and together time the rest.

Dimensions:

• Room size: 22′ x 14′ (308 sq ft)
• Two independent entrances: Each leads directly into individual vanity zones measuring 8′ x 2′.
• Central shared spa tub: 72″ x 42″, positioned prominently in the middle space between vanity areas.
• Expansive shower enclosure: 7′ x 5′, shared and accessed from the common bathing area.
• Two enclosed toilets: Each 3′ x 6′, next to individual vanity areas.

Design Tips:

• Install a custom chandelier or sculptural pendant above the soaking tub. Provide the tub area with a dramatic focal point feel, similar to a piece of art in the middle of the room.
• Incorporate a shared warming bench on either side of the tub. A low heated stone bench can enhance relaxation before or after a soak or steam.
• Frame each vanity lounge with arched doorways or cased openings. Soften these transitions with arches or framed portals to make each dressing area feel like its own mini suite.
• Add integrated makeup lighting and magnifying mirrors on both vanities. Adding hidden edge-lit mirrors or swing-out magnifiers ensures both partners have a luxe grooming station.
• Include ceiling-mounted rain shower heads plus hand showers. In the large 7′ × 5′ shower, use dual rain heads plus handheld wands to create a truly immersive experience and allow for each to have their own preferred water spray style.
