If you’re finishing a basement and have the space, it’s worth thinking about, especially if you spend a lot of time down there or would like to create a self-contained ADU or in-law unit. Having one is useful in ways that are hard to explain until you have experienced the benefits. The tricky part is figuring out the layout. Since basements take special precautions and are even awkward by nature, they take extra care. Typically, you have little wiggle room when it comes to the dimensions, the plumbing setup, and the natural light you have to work with. Below, I’ve shared five basement kitchen layouts: straight-line, L-shaped, U-shaped, open with an island, and two-wall with a shallow pantry floor plan. They all have different sizes, so you can take what works for your home and use it.
Arranging all of the kitchen along one well-organized wall with the right sequencing gives you an efficient design that keeps all the plumbing along one side to help keep costs down and create an efficient work triangle.
Easily Create Your Own Room Makeover
Upload a photo and get instant before-and-after room designs. No design experience needed — join 2.39 million+ happy users. 👉 Try the AI design tool now

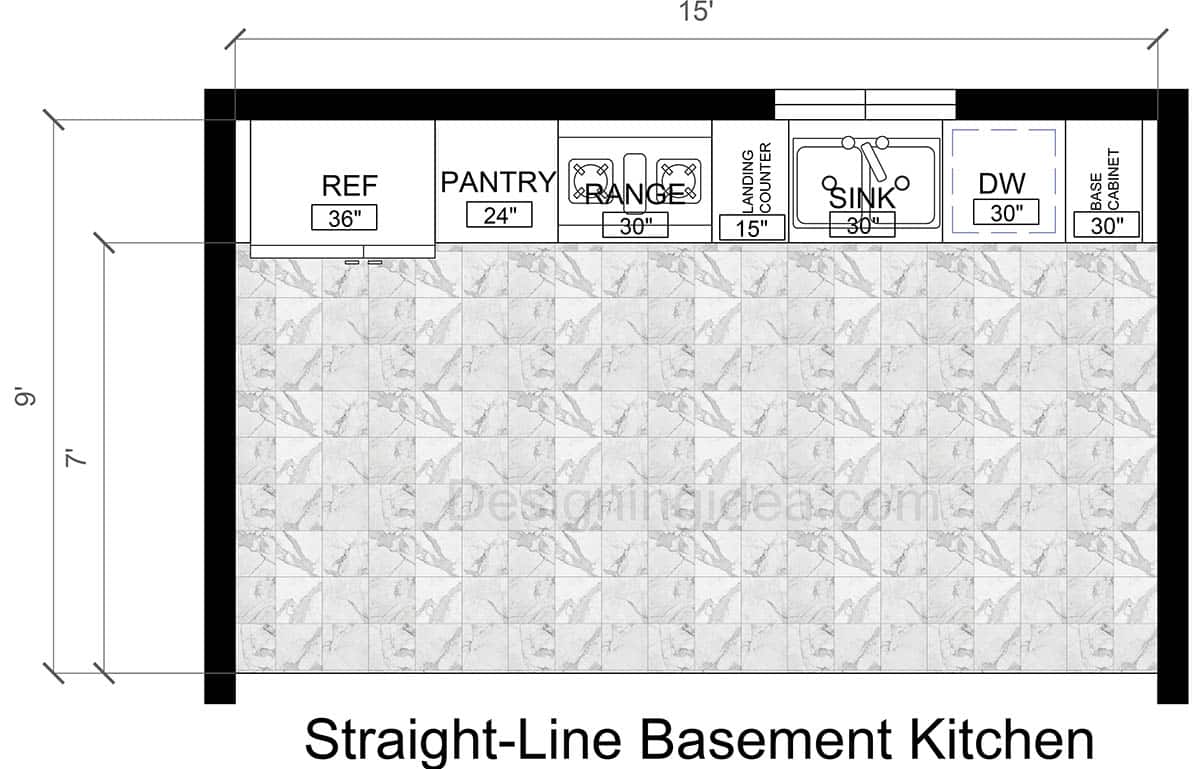

Floor Plan Details: This straight-line basement kitchen layout has a 15′ span along one wall, making it as efficient as it gets. Everything runs along a single wall, and from left to right starts with: fridge, pantry, range, a small landing counter, sink, dishwasher, and a base cabinet at the opposite end. By using one clean working line, the actual kitchen depth only uses about 2 feet of space, leaving a full 7 feet of open floor in front. With this setup, you’ll never feel cramped, and there is plenty of room for a dining table and chairs, a couch, or anything else you could possibly think of. The work triangle is basically a straight shot, with the prep work happening in the middle near the landing zone, then cleanup at the sink on the right and the cold and dry food storage on the left.
Dimensions:
Room size: 15′ wide x 9′ deep
Floor space: 7′ in front of the cabinets
Refrigerator: 36″
Pantry cabinet: 24″
Range: 30″
Landing counter: 15″ between range and sink and 60″ on the opposite side if you only have lower cabinets.
Sink: 30″ (double basin is shown)
Dishwasher: 30″
End base cabinet: 30″
Design Tips:
Make sure you include that 15″ landing counter between the range and sink for a prep and cleaning space.
If you have one wall of cabinets with no windows, under-cabinet lighting is essential.
Ensure your fridge placement on the far left end works and opens correctly with your door orientation.
Keep upper cabinetry consistent in a galley-style setup, such as this.

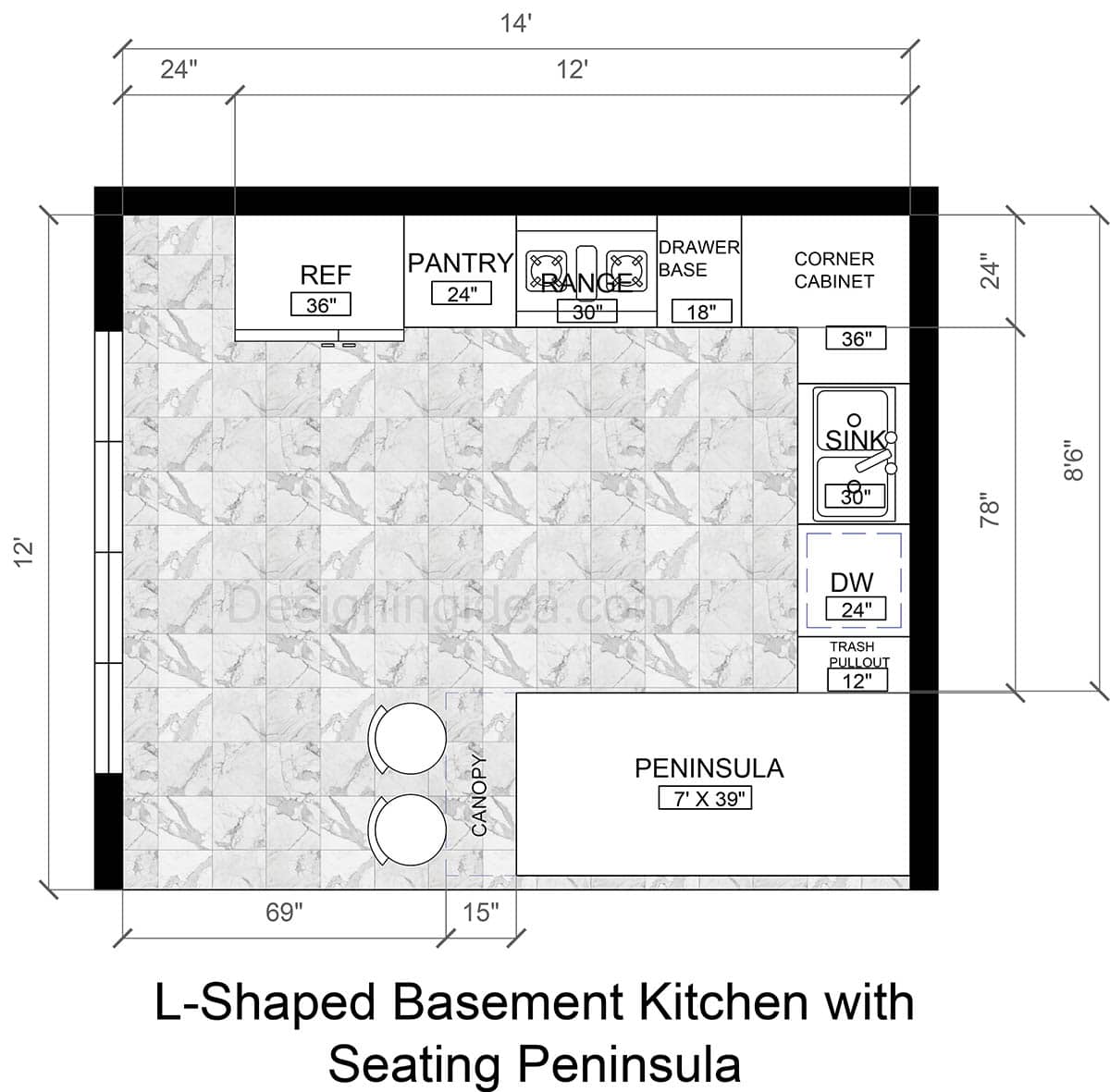

12×14 Basement with L-Shaped Kitchen and Seating Peninsula Layout
The addition of a peninsula is what sets this kitchen apart and makes the whole basement feel like somewhere people actually want to gather.
Floor Plan Details: This is a L-shaped basement kitchen with a seating peninsula that measures 12′ x 14′ and offers cabinets that run along the top wall and turn the corner down the right side, making a classic L-shape. The peninsula juts out from the bottom right and acts as extra counter space for prep work and seating for eat-in dining. This arrangement gives the cook their own work zone, with the fridge, pantry, and range all living on the top wall. The sink and dishwasher are around the corner on the right with a separation so someone can do the dishes while you’re trying to cook. The peninsula creates a natural boundary between the kitchen and the rest of the basement, allowing people to sit, eat, chat, and watch you cook. The canopy seating on the left side provides room for two seats and is good for a basement that doubles as a hangout space.
Dimensions:
Room size: 12′ x 14′
Top wall run: 12′ of cabinets
Right wall depth: 8’6″ total, 78″ of active cabinetry space
Corner cabinet: 24″ x 24″
Refrigerator: 36″
Pantry: 24″
Range: 30″
Drawer base: 18″
Sink: 30″
Dishwasher: 24″
Trash pullout: 12″
Peninsula: 7′ x 39″
Clearance left of peninsula: 69″
Peninsula gap to right wall: 15″
Design Tips:
Choose low-profile and slim stools at the peninsula to maintain an adequate walkway behind.
Install a Lazy Susan or pull-out drawers in the corner cabinet so there is no dead space inside.
Plan your peninsula overhang and make sure there’s at least 12″ on the seating side for your knees to fit underneath.

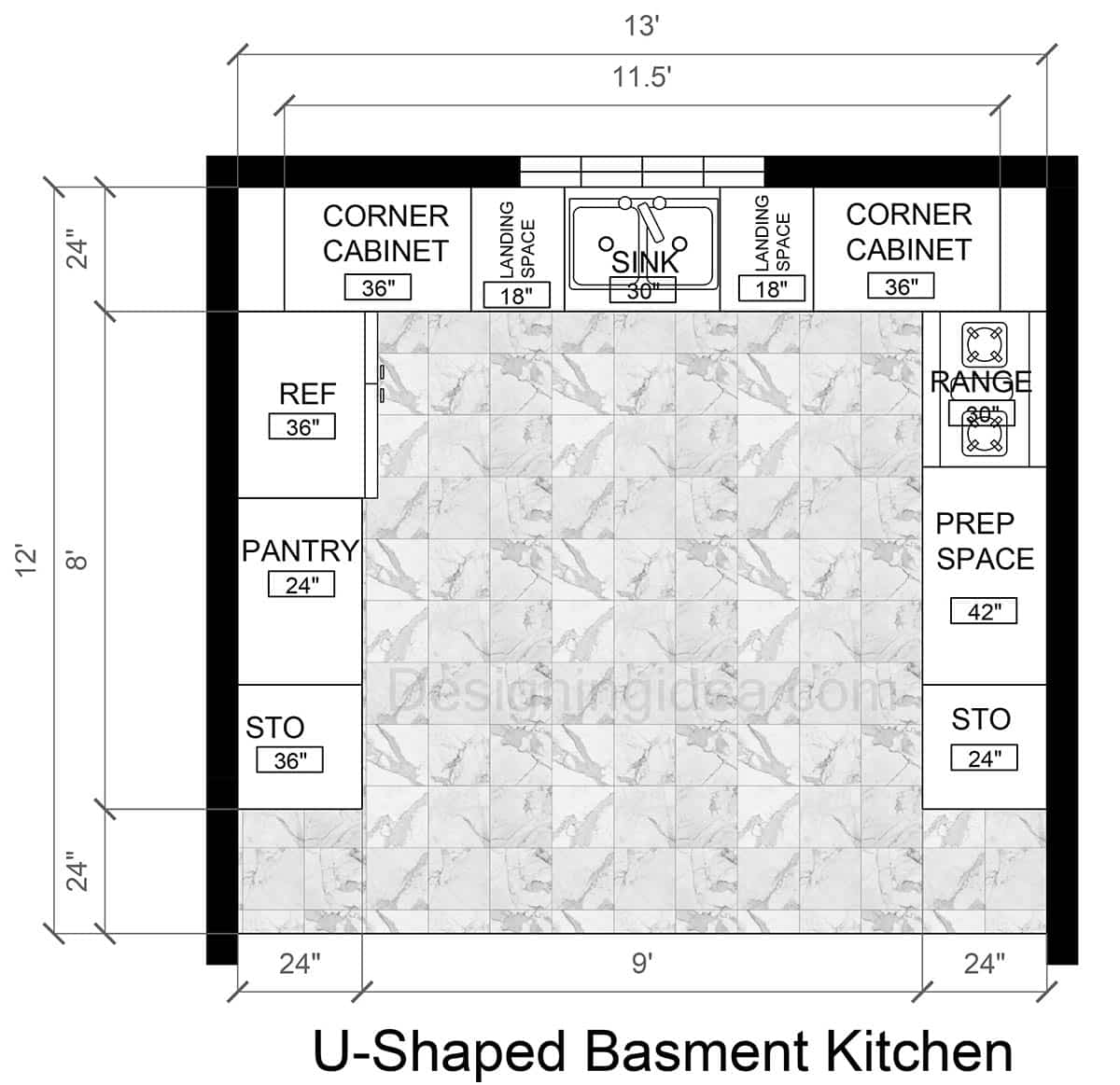

A U-shape design gives you the most amount of counter and storage of any basement kitchen layout, and this one places the sink at the top in the middle under a window to benefit from the available natural light.
Floor Plan Details: The traditional This smaller U-shaped kitchen design features three walls of cabinets so that everything is easily accessible. This plan measures 12′ x 13′ and has its cabinets wrap around the top wall, and turn down on both sides with a big open floor space in the middle. It’s the most storage-efficient kitchen layout shown on this page, and in a basement that doubles as a functional cooking space, it makes a big difference. The sink sits centered on the top wall, and is flanked by 18″ of landing space on each side, giving you room for meal prep. The range is on the right near the top corner, and there’s a large 42″ of prep counter below it. The left wall gets the fridge, pantry, and a storage cabinet stacked going down, and the right side mirrors it with storage at the bottom. The open center features a 9′ width and 8′ of depth, which is plenty of room for two people to cook without getting in each other’s way.
Dimensions:
Room size: 12′ x 13′
Interior floor area: 9′ wide x 8′ deep
Top wall interior run: 11.5′
Corner cabinets (both): 36″ each, 24″ deep
Landing space (both sides of sink): 18″ each
Sink: 30″
Range: 30″
Prep space: 42″
Refrigerator: 36″
Pantry: 24″
Storage cabinets: 36″ left, 24″ right
Wall depth both sides: 24″
Design Tips:
Install Lazy Susans in the two corner cabinets, so you maximize all of your available under-cabinet storage.
Keep the sink in the center, where you can see and access both walls, which is useful when you’re cooking
Keep the 42″ of prep counter next to the range so there is space for all of your cooking items.
For more useful counter space, add a portable rolling cart or butcher block island to the center.
Make sure the range is well ventilated by using a hood to remove cooking smells.

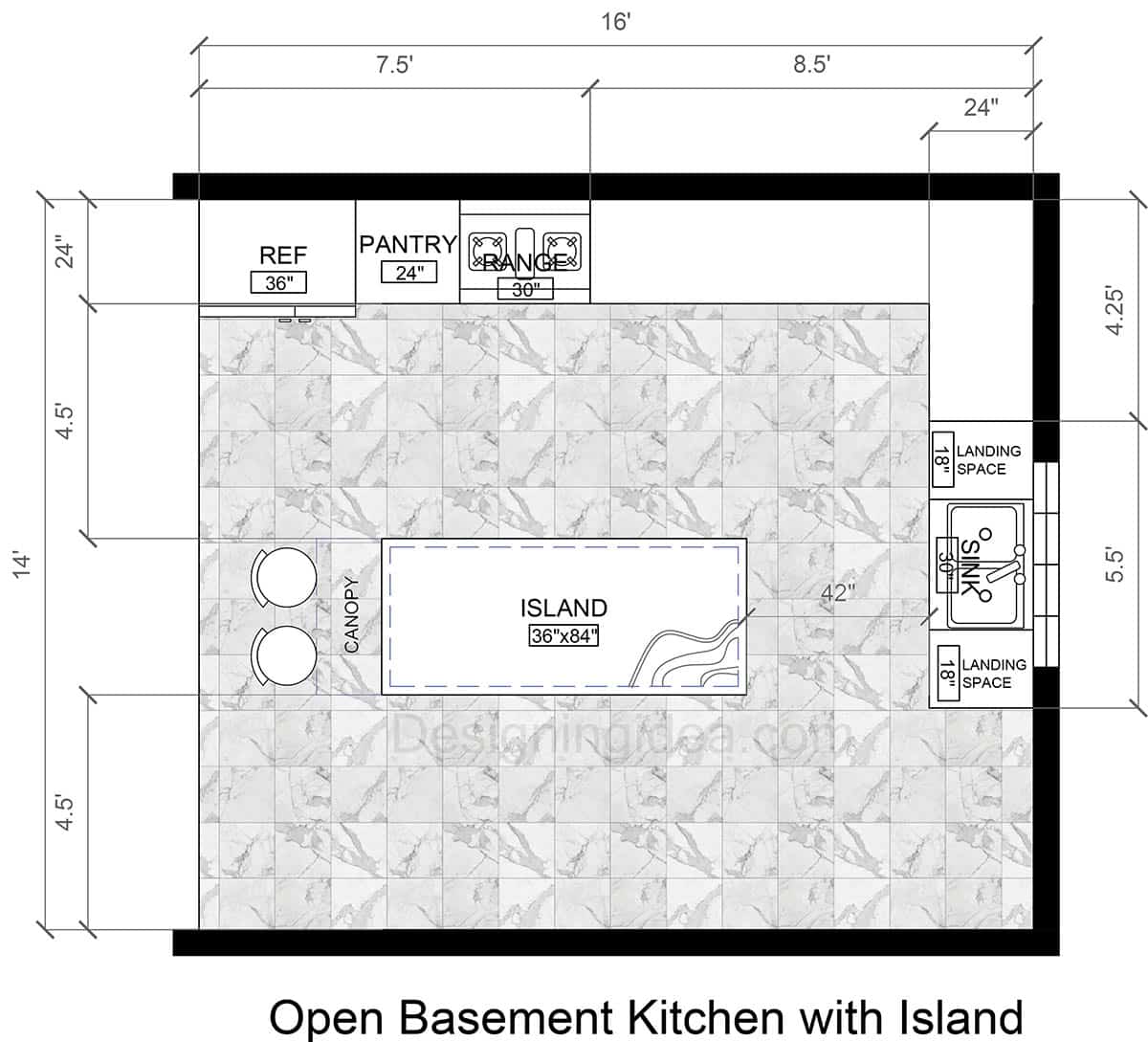

14×16 Open Basement Floor Plan with Kitchen and Island
This basement layout treats the floor plan like a real entertaining setup with a large island with room for eat-in dining and an abundance of cabinet space.
Floor Plan Details: This open basement kitchen with an island measures 14′ x 16′ and is the most ambitious of the four layouts. It’s got a really expansive kitchen footprint with a cooking zone that hugs the top wall, stretching from the fridge to the pantry to the range. On the lower right wall, there’s a sink with landing space to either side. In the middle of everything sits a 36″x84″ island with overhang seating on the left, with room for two seats for casual dining. It faces the island, which means two can sit there and talk to whoever’s cooking.
Dimensions:
Room size: 14′ x 16′
Top wall split: 7.5′ left, 8.5′ right
Refrigerator: 36″
Pantry: 24″
Range: 30″
Island: 36″ x 84″
Island clearance to the sink wall: 42″
Sink: 30″
Landing space (above and below sink): 18″ each
Right wall cabinet depth: 24″
Sink wall height: 5.5′
Top wall depth: 4.25′ on right side
Floor clearance top and bottom of island: 4.5′ each
Design Tips:
Seven feet of island gives you space up top for prep, seating, and an abundance of storage underneath.
Maintain the 42″ of clearance between the island and the right side, as it is the minimum required if two people are using the sink together.
The range on the top wall needs ventilation so there is adequate airflow throughout the basement.
Install a window along the top wall if possible to promote better airflow and natural light.
Make sure the island has at least 12″ of overhang on the seating side.
Ensure there are large cabinet doors on the island to accept small appliances and keep them from crowding the countertops.

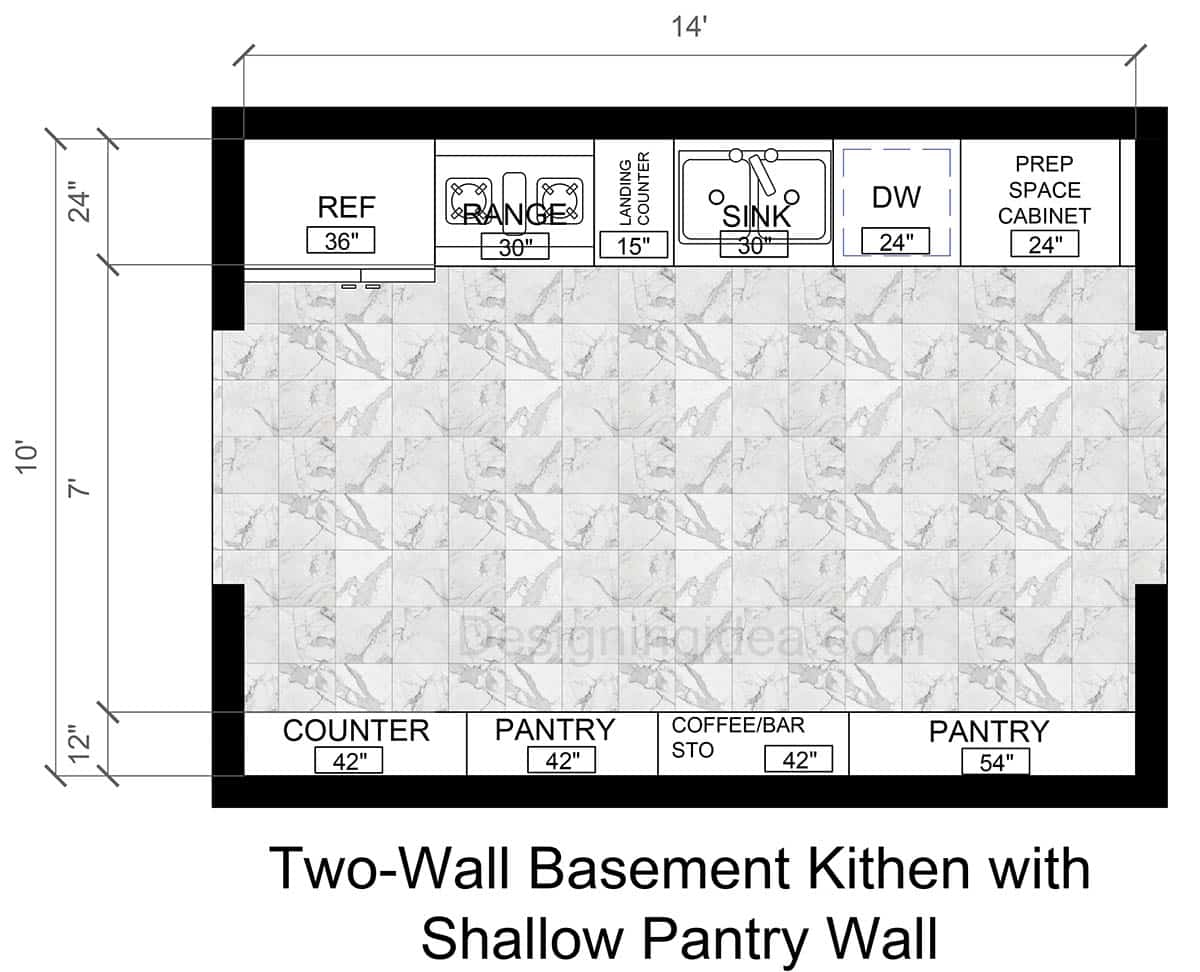

10×14 Two-Wall Basement Design Kitchen with Shallow Pantry Wall
This kitchen features a standard wall of cabinetry and appliances on one side, and a shallow pantry wall on the other that turns what normally would be dead space into serious storage without making the room feel any smaller.
Floor Plan Details: This is a two-wall kitchen with a shallow pantry wall on one side devoted to storage space. The overall layout measures 10′ x 14′ with the two walls functioning totally opposite of each other, with 7′ of open floor between them. The top wall is the real kitchen with a range, sink, and dishwasher. The bottom wall is only 12″ deep and is left shallow on purpose. The shallow wall adds a counter, pantry, coffee/bar storage, and additional closet space for dry food items. At 12″ deep, it’s like having a butler’s pantry squeezed flat against the wall. The top wall flows logically left to right with the fridge on the left, range next, then a little 15″ landing counter, followed by the sink, dishwasher, and a prep space cabinet capping the right end.
Dimensions:
Room size: 10′ x 14′
Floor between walls: 7′
Shallow pantry wall depth: 12″
Refrigerator: 36″
Range: 36″
Landing counter: 15″
Sink: 30″
Dishwasher: 24″
Prep space cabinet: 24″
Counter (bottom wall): 42″
Pantry left (bottom wall): 42″
Coffee/bar storage (bottom wall): 42″
Pantry right (bottom wall): 54″
Design Tips:
Use the 12″ pantry wall for all of your food and drink storage without eating into your available floor space.
Install a mini fridge under the coffee/bar section, since it’s a perfect spot for drinks without touching the main kitchen
Keep the full-size 36″ range as an upgrade over the smaller 30″ shown in the other layouts for more cooking surface.
Keep the 7′ of clearance between sides if you want more room for people to move around each other without bumping.
Add full-size upper cabinets only on the top wall.
Basement Building Tips
Ventilation is one of the most important elements in basements. Kitchens in these spaces will need a range hood that vents outside. Recirculating hoods are better than nothing, but are not recommended.
Your plumbing location should drive your layout choice, as moving drain lines in a basement means jackhammering concrete. So if possible, pick the design that puts the sink closest to where the plumbing already is. It’s recommended to go with the straight-line or two-wall designs, which are easier to work with in this regard.
Since basements have little to no lighting with fewer or no windows, they will need more forethought than upstairs. With no natural light, every floor plan benefits from under-cabinet lighting, recessed cans, and something over the island or peninsula if there is one.
If you have the extra space, a shallow pantry wall idea is recommended. A 12″ built-in pantry wall somewhere in the basement is almost always worth it for the organizational benefits it adds.
When planning your basement, egress and code compliance issues come first. Before you fall in love with an island layout, check what your local building code says about basement kitchens, as some municipalities have rules about second kitchens specifically.
Moisture is always a consideration in basements. Sealed concrete, a proper vapor barrier, and a good subfloor are essential. Get that right before the cabinets go in, or you’ll be redoing it in five years.
Ceiling Height
The Issue: Most building codes (IRC) require a minimum ceiling height of 7 feet (84 inches) in habitable spaces like kitchens. They often require 7 feet 6 inches (90 inches) if the ceiling has an exposed beam or ductwork. Make sure your room meets your local requirements to stay in compliance and avoid a costly mistake.
The Risk: If your basement ceiling is low (e.g., 6’8″ from floor to joist), none of these layouts will pass a permit inspection for a legal kitchen or apartment, regardless of your floor plan dimensions.
