5 Stylish Basement Bar Layouts That Help Maximize Your Space

If you want to turn your basement into the ultimate hangout spot, there are a few things to consider, like your entertaining needs, room dimensions, available storage space, and the number of guests you want to host. It’s helpful to design the room around your specific interests, whether watching TV, mixing drinks, socializing, or playing games with friends and family. Below, we share five stylish basement bar layouts that range from small cozy nooks to a full-service U-shaped island you can use for inspiration for your own design.

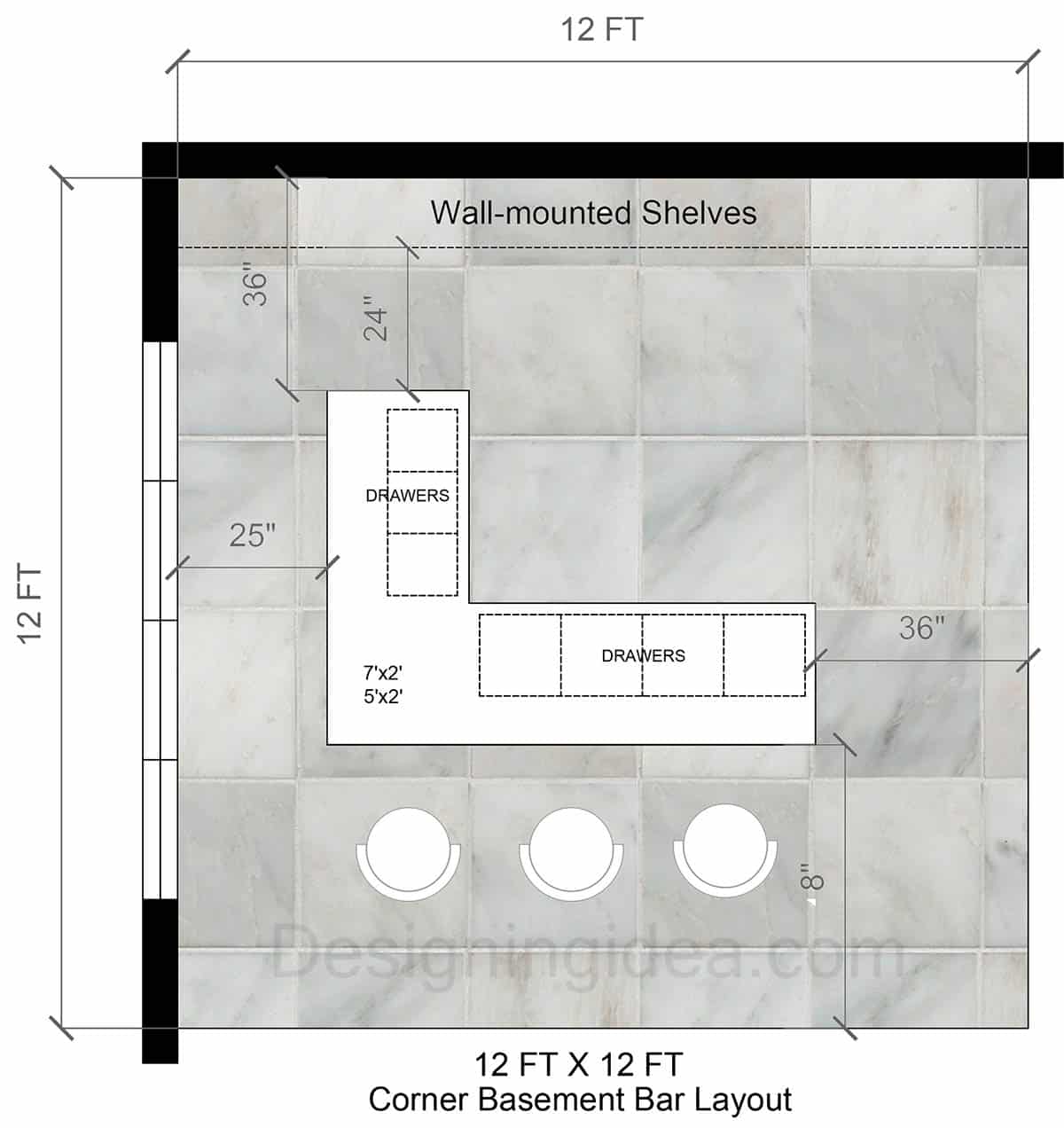

12×12 Corner Basement Bar Layout

With its space-saving L-shape, this corner design turns a modest basement room into a fully equipped bar that comfortably seats three people.

Floor Plan Details: An L-shaped bar hugs the top-left corner with two runs of standard 25 in-deep cabinets with a wider, guest-facing counter for seating. The 7-foot long countertop on the bottom run, allows for three stools and plenty of space for storage underneath. A 36 in service aisle separates the working counter from the back wall, giving the bartender comfortable space to maneuver. To better utilize the back wall, one can mount full-length floating shelves for glassware. This design works well for smaller basements.

Dimensions:

• Bar Counter:
  • L-shaped, measuring 7′ x 5′.
  • Depth: 24″ standard bar top.
  • Bar height: 42″ high with bar stools.
• Bar Storage and Shelving:
  • Under-counter cabinets and shelves (7′ side).
  • Wall-mounted open shelves on the back wall for glasses.
• Seating:
  • 3 bar stools positioned on the longer run.
• Walkway Clearance:
  • Keep a minimum of 36” clearance.

Design Tips:

• Elevate the backdrop. For the back wall add an accent piece like mirrored or textured tile behind floating shelves. The reflection doubles the perceived depth and shows off bottles while being a low-budget addition.
• Light for ambience and task work. Recessed downlights over the 36-inch counter is useful for adequate illumination. Pair the downlights with LED strips under the shelves and counter lip create a cool ambiance.
• Choose a forgiving surface. A low maintenance option like quartz or honed granite helps to resist spills, and will look stylish with a waterfall effect at the corner.
• Comfort matters. Add a low-profile foot-rail along the guest side and opt for backless swivel stools so patrons can pivot out without crowding the 36 in walkway.

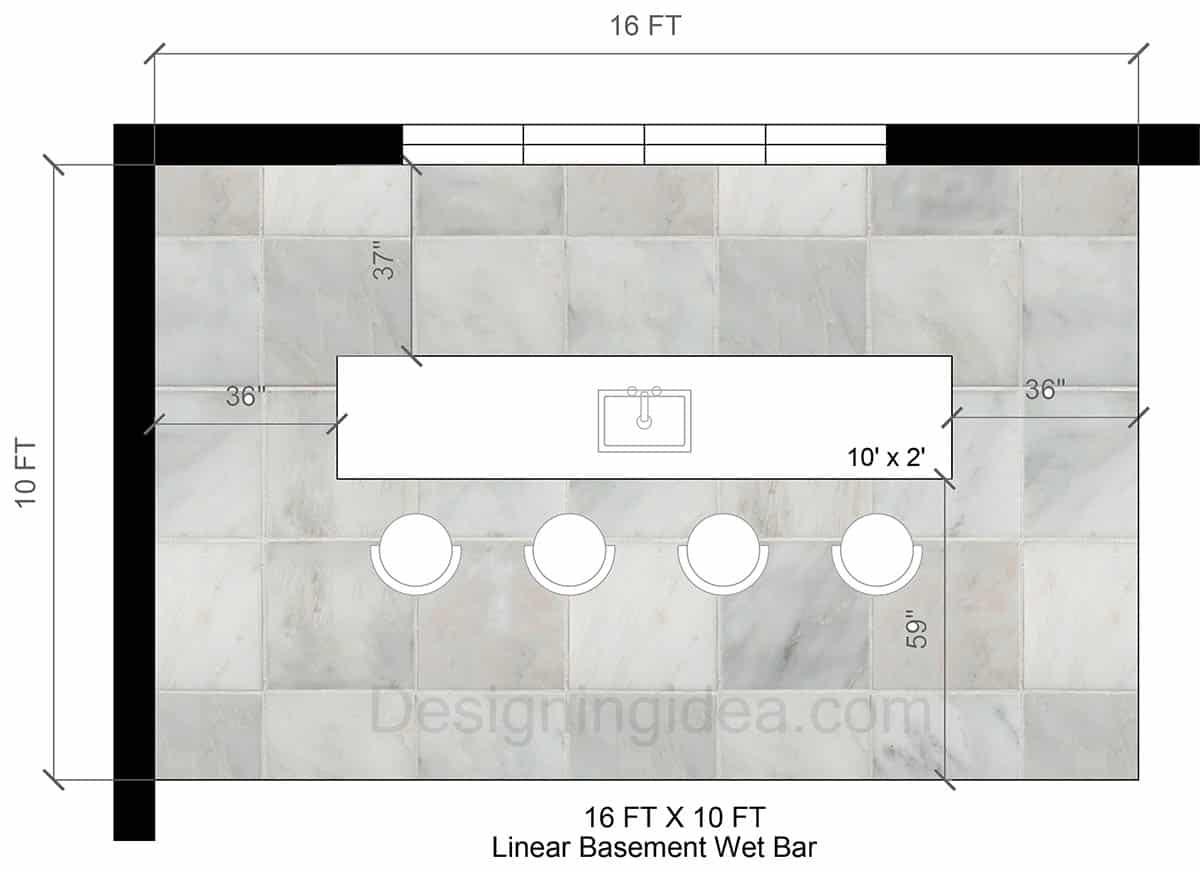

16×10 Linear Basement Wet Bar Floor Plan

Using a single 10-foot island this streamlined plan turns a narrow basement into a wet-bar lounge that seats four in style.



Floor Plan Details: This design focuses around a 10ft long island bar that’s centered in the space. The countertop has an extra 8-10 inch overhang on the guest side for more leg-room. There’s a single-bowl sink placed mid-island and room for four stools spaced 24 in on-center to provide ample elbow room. On the bartender’s aisle there is 37 inches to the back wall storage. You can use the full 10 ft run for shallow cabinets for glasses and bottles or split between a wine cooler, dishwasher and storage. This design is best for narrow rooms or rectangular spaces.

Dimensions:

• Bar Counter:
  • Straight linear design with a 10′ length and 24″ in depth.
  • Height: 42″ standard bar height.
• Wet Bar Elements:
  • Small sink (18″) centered in the middle of the counter.
  • Mini fridge and built-in wine cooler installed beneath the counter.
• Cabinets:
  • 10′ of cabinets for storage. Or mix with a dishwasher, and wine cooler, depending on your needs.
• Seating:
  • Four bar stools evenly spaced along the 10′ length.
• Walkway Clearance:
  • Provide at least 42” of walkway along the bar front.

Design Tips:

• Self-contained work zone. Tuck a 24 in beverage fridge and slim dishwasher drawer beneath the island flanking the sink so every prep task happens in one straight line.
• Make the island pop. Contrast the floor tile with your countertop material and add a brass foot-rail for style and comfort.
• Layer lighting. Hang pendant fixtures above each stool to handle task lighting.
• Sound control & comfort. Add a low-pile area rug by the stools and in the bartender zone to absorb clinks and chatter and soften a hard-surfaced floor.
• Hang a TV. Mount a TV along the back wall to better enjoy the seating areas.

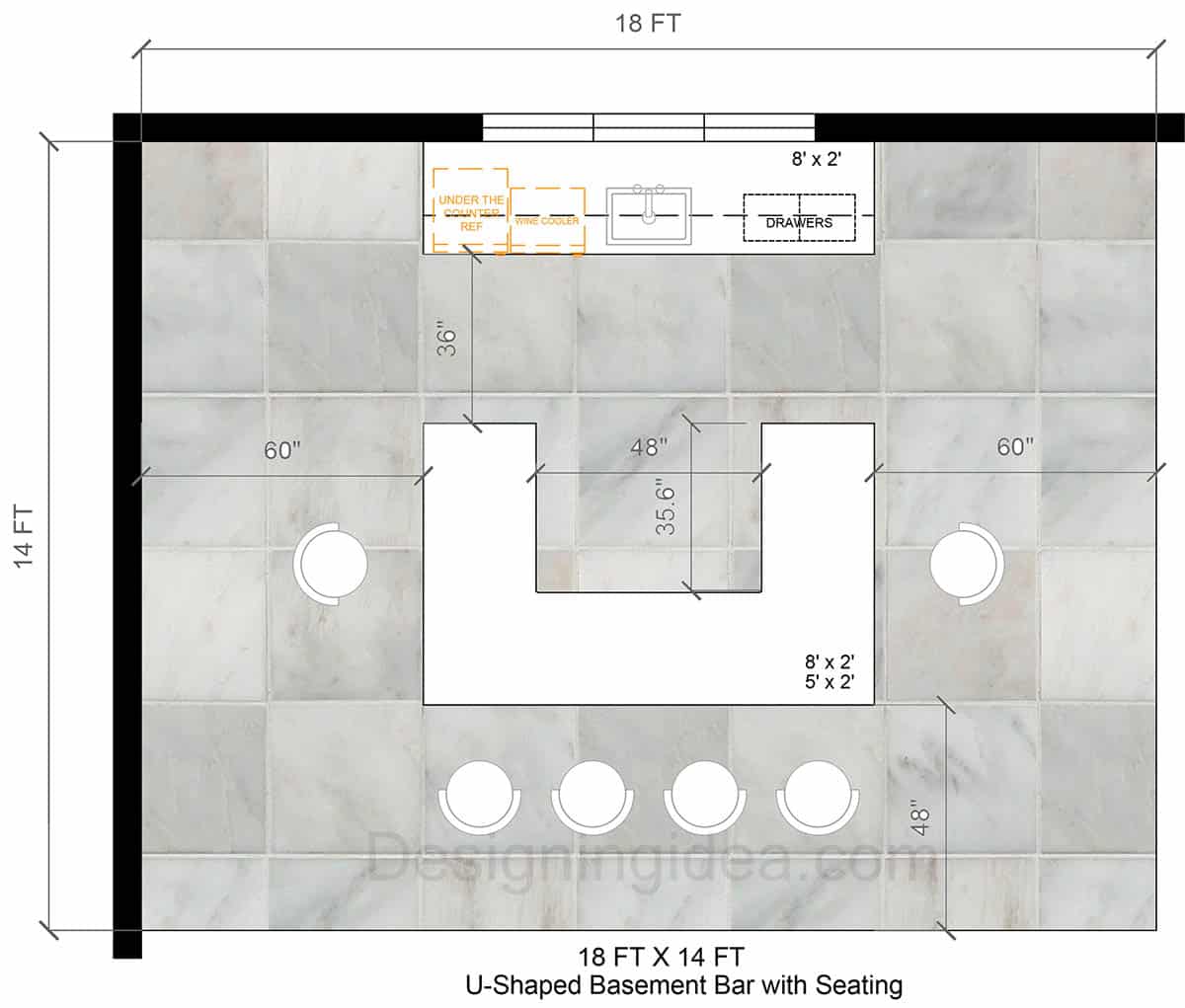

18×14 U-Shaped Bar with Seating Layout

A U-shaped island wraps around three sides and provides an abundance of seating options, and a true “private pub” experience right in the basement.

Floor Plan Details: This design offers a true U-shape custom bar that wraps around the host and is constructed with 24 in-deep base cabinets. The wrap-around countertop seats four on the 8ft bottom run, with a 10 to 12 inch overhang for legs. Each side measures 5ft and can seat another person. The interior work zone offers 48″ by 35″ of space, which is comfortable for a single bartender. Along the back-bar wall, there’s an 8 ft-long × 2 ft-deep counter with an undermount sink, drawer stack, under-counter fridge, and wine cooler. For additional storage, floating shelves can be hung on the wall above the back prep area for bottle display. The plan is best for larger gatherings with plenty of seating.

Dimensions:

• Bar Counter:
  • U-shaped design with an 8′ wide main serving counter with two 5′ side counters.
  • Seating: 6 bar stools
  • Bar counter depth: 24″.
  • Bar height: 42″.
• Amenities:
  • Wet bar with sink centered on back wall (8′ counter).
  • Beverage refrigerator and storage drawers underneath the back counter.
• Shelving & Storage:
  • Wall-mounted cabinetry above the 8-foot main countertop.
  • Open shelving on the back wall for any glasses and bottles.
• Seating:
  • Six bar stools are comfortably spaced around the outer perimeter.
• Walkway Clearance:
  • Minimum 48” aisle within the U-shape.

Design Tips:

• Zone your back cabinet. Keep cold storage (fridge & wine cooler) near the sink and on the back wall.
• Define the social hub. Highlight the U’s outline with an LED toe kick and a brass or matte-black foot-rail.
• Layer your lighting. Hang a trio of pendants over the bottom run for better ambience. Use puck lights under the floating shelves for a warm bottle glow and a flush-mount fixture over the interior workstation to help eliminate  shadows.
• Sound & comfort. Acoustically soften a wood or hard tile floor with a patterned 3 × 5 ft rug inside the U. This helps cushion long bartending stints and catches the drips and splashes.

18×14 Bar With Island Layout

By combining a 8ft x 3ft island for bar seating with an equipped back wall, this design creates distinct prep and social zones, allowing five guests to gather in comfort and style.

Floor Plan Details: This plan focuses on the rectangular 8′ x 3′ island that serves as the main seating and serving counter with room for five stools. Along the back wall  run sits a 10 ft-long × 2 ft-deep cabinet that houses the sink, drawer stack, refrigerator & wine cooler. A 48″ aisle separates the back counter work-zone from the front seating area so that two people may pass without a problem. The generous pathways around, in front, and behind the island allow for easy chair pull-back, and room to maneuver. This leaves an abundance of room for games, extra furniture, or media zones. The design is best for those wanting a spacious, multipurpose basement entertainment room.

Dimensions:

• Island Counter:
  • Freestanding bar island measuring 8′ long x 3′ deep.
  • Bar height: 42″.
• Back Wall Counter:
  • 10′ length x 24″ for drink prep and storage.
  • Includes sink, cabinetry, built-in mini fridge, and a wine cooler.
• Shelving and Display:
  • Back wall overhead shelving for decorative bottles/glassware.
• Seating:
  • 5 bar stools around island (3 front, 1 on each side).
• Walkway Clearance:
  • Minimum 42” clearance around all sides of island.

Design Tips:

• Two-zone flow. Split into two zones: a prepping and a serving area.
  • Prep zone. Everything wet (sink, ice, fridge) placed along the 10 ft back counter to keep plumbing in one section.
  • Serve zone: The island becomes a dedicated pour & presentation station, with no appliances to interrupt the leg-room underneath.
• Island spotlighting. Install pendant fixtures every 24 in along the island to give even task light above the stools.
• Install dimmers. Add dimmers so you can shift from prep-bright to a lounge-moody theme.
• Material contrast.  Use a statement slab (e.g., leathered quartzite) on the island and a complementary, lower-maintenance quartz on the back counter, this way guests will see the showpiece first, while the worktop stays problem free.
• Hidden storage hack. Fit the island’s “chef side” with shallow pull-outs for bar tools and essentials to keep the aisle free of swinging doors.

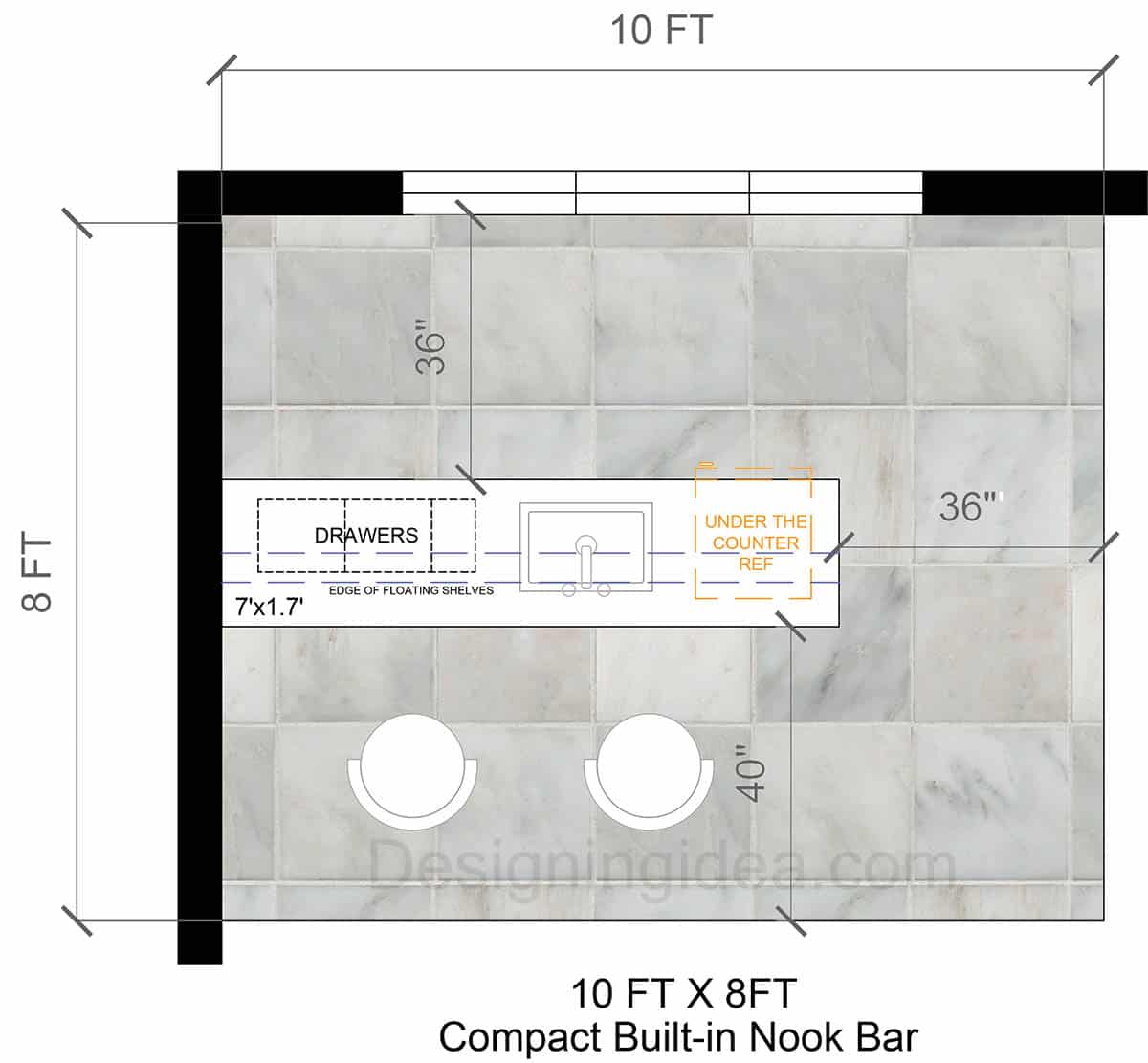

10×8 Compact Bar With Built-in Nook Layout

Tucked into one corner of this 10 × 8 ft room, this built-in nook proves you only need a small amount of space to create a fully stocked, two-seat basement bar.

Floor Plan Details: Fitting everything you want into a smaller space takes some planning and this 10 ft wide × 8 ft deep basement is just big enough for a cozy two-seat hideaway. It has a built-in back bar nook with a 7 ft long × 20 in deep cabinet run that’s recessed into the rear wall, so no floor space is lost. Centered in the middle of the counter is a single-bowl prep sink, with an under-counter refrigerator on the right, and a bank of drawers on the left for necessities. The bartender aisle is tight and measures 36 inches between the cabinet fronts and the opposite wall, while the minimum recommendation from the NKBA is 42″ for a one-person work zone. The guest zone in the seating area measures 40 inches from the counter edge to the stool fronts to accommodate knee-space and a pass-behind path. For seating, there are two counter-height stools spaced 24 inches apart and a 10 to 12 inch countertop overhang. This design is best for small basements or a compact man cave room.

Dimensions:

• Built-in Bar Counter:
  • 7′ length tucked into one corner (peninsula style.)
  • Counter depth: 20″ (slightly narrower for space efficiency).
  • Standard 42″ bar height.
• Features:
  • Under-counter mini fridge and cabinet drawers for storage.
  • Narrow wet bar sink integrated into the counter.
• Seating:
  • 2 compact stools fitting neatly at the bar.
• Walkway Clearance:
  • Maintain minimum 36” clearance around seating area. (42″ is preferred)

Design Tips:

• Think vertically. In smaller spaces it’s a good idea to utilize vertical space. Use three tiers of narrow floating shelves near the bar and illuminate them with under shelf strip lights for added effect.
• Multipurpose storage. The left-side drawers can hide a pull-out trash bin or a slim dishwasher drawer and consider using full-extension slides so every inch is usable.
• Lighten the palette. Smaller spaces benefit from lighter tones and reflective surfaces. Add a mirrored or metallic backsplash and lighter materials to bounce light around the room.
• Choose slim seating. Use low-profile swivel stools without backs that tuck completely under the overhang.
