20×20 Patio Layouts for Dining, Lounging, and Entertaining

A 20×20 patio is in the perfect sweet spot of backyard design as a 400 sq. ft. space is big enough to host a crowd, and still compact enough to feel cozy. With this size you can have room for long summer dinners, fire-lit conversations, or a chef’s grilling corner with bar seating. In this guide, we’ll explore five 20×20 patio layouts for dining, lounging, and entertaining, and each offers the furniture sizes needed, guest capacity, and the amount of clearance space for comfort and walkways.

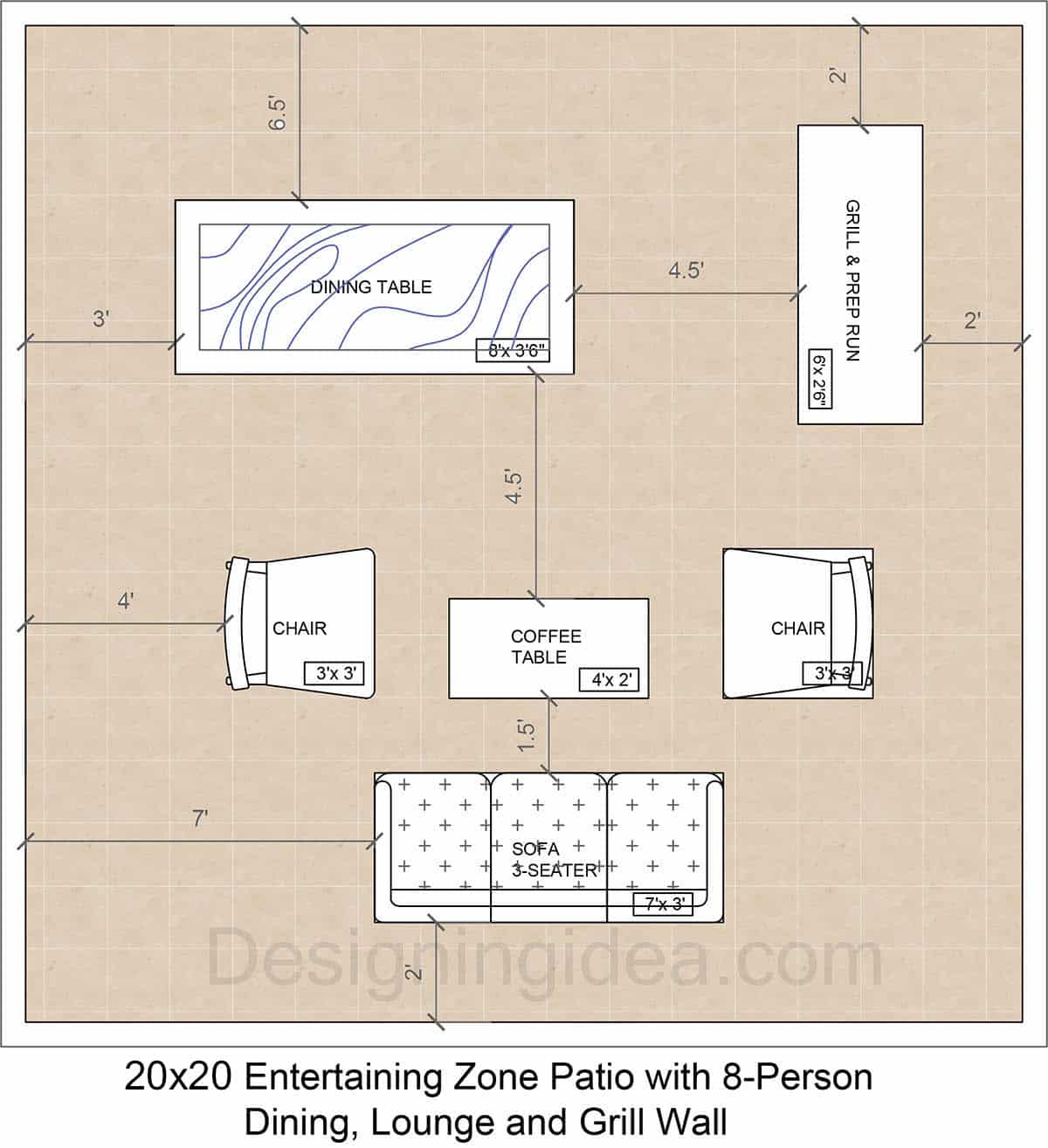

Entertaining Zone Patio With 8-Person Dining, Lounge, And Grill Wall

This plan has something for everyone as it offers clearly defined zones for cooking, dining, and lounging, so a large family or group of guests can eat, hang out, and grill together.

Use case: Perfect for big family meals and space for relaxed conversations.

Floor Plan details: This 20×20 patio layout is split into three zones with a dining, lounge area, and grilling wall. The cooking zone is positioned at the top-right with an 8-foot built-in grill and countertop space for meal prep and cleanup. To the upper left of the design is the dining zone with a rectangular table that seats up to eight, with at least about 3 feet on all sides for chairs and a walkway. The lounge zone in the lower half contains an inviting 7-foot, three-seat sofa that is centered with a 4×2 coffee table in front, and a pair of 3×3 armchairs to either side. Clearances around all of the seating are wide enough for servers and guests to pass by without feeling squeezed, so traffic flows easily from the house, to the lounge, to dining, and to the grill without cutting through any conversations.

Dimensions:

• Overall patio: 20′ × 20′.
• Grill & prep run: 8′ × 2’6″, set 2′ off the top and right edges as a buffer.
• Dining table: 6′ × 3’6″ (can comfortably seat 6, but fits up to 8 with end chairs).
• Offset 3′ from the left boundary, and 6.5′ from the top boundary.
• Aisle between dining and lounge spine: 4.5′.
• Sofa (3-seater): 7′ × 3′, set 2′ off the bottom edge.
• Coffee table: 4′ × 2′, with 18″ (1.5′) sofa-to-table reach.
• Lounge chairs: two at 3′ × 3′ each, and the left chair is 4′ from the left boundary.
• General walking/serving lanes around furnishings: 3′ to 4.5′.

Design Tips:

• Keep 36″ minimum around the dining table. This way chairs can slide back without bumping into others.
• Maintain a 4 to 5′ “cook lane” in front of the grill. You can add a small serving cart at one end if you need more food staging space.
• Use an 18″ sofa to coffee distance. This amount is ideal for reaching plates and drinks and fitting in without trouble.
• Float the lounge chairs and don’t push them to the perimeter. This allows one to easily maintain conversational distances.
• Add step lights along the middle aisle and task lighting at the grill.
• Use an outdoor rug to add focus and definition to the lounge zone.
• If you add shade, use a pergola over the dining and a cantilever umbrella at the lounge without blocking the grill’s ventilation.

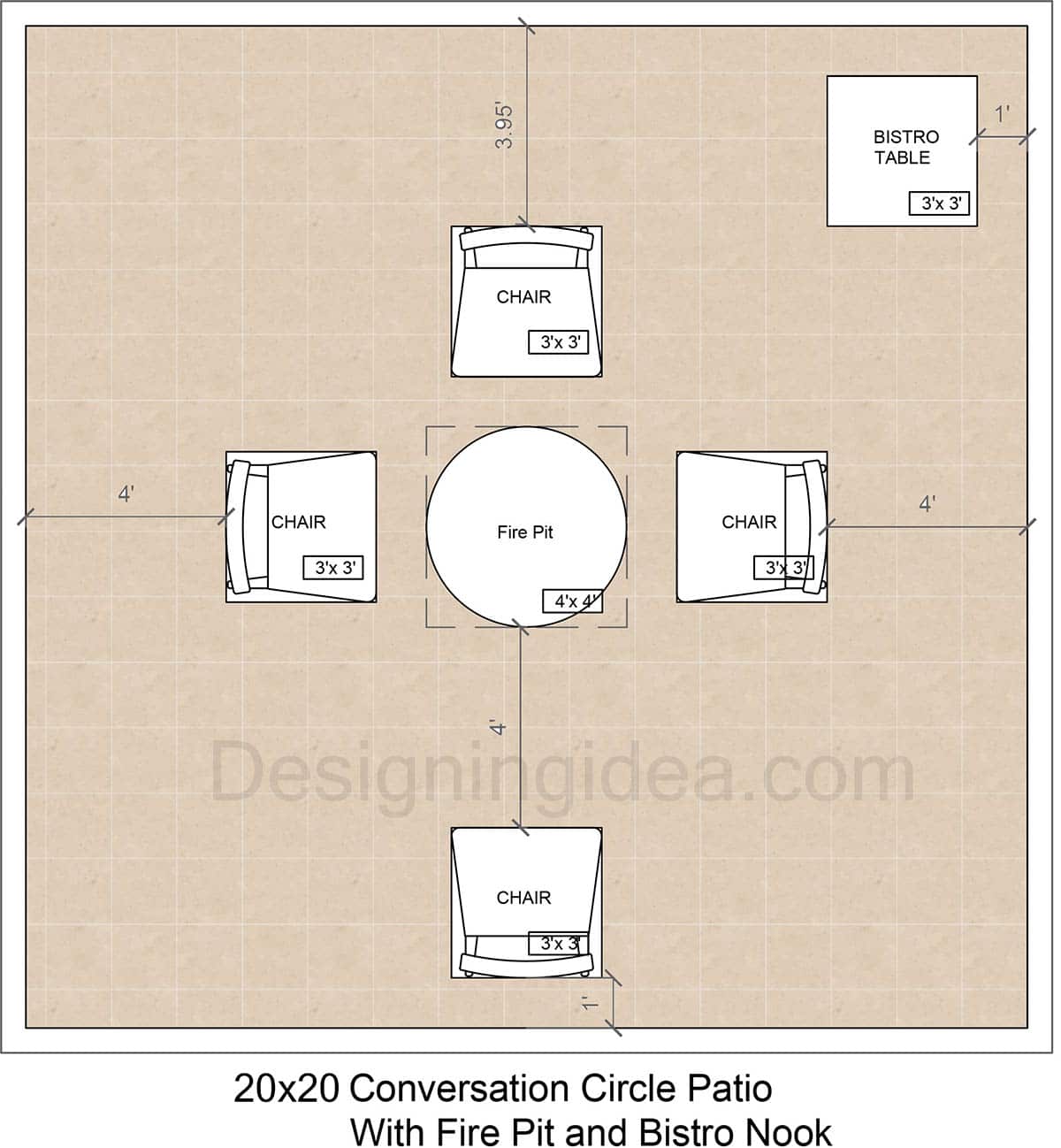

Conversation Circle Patio With Fire Pit And Bistro Nook

This patio layout uses a symmetrical furniture circle around a fire pit to facilitate face-to-face conversation, lounging, and space in the corner for outdoor dining.

Use case: Inviting for cozy evenings around the fire or casual mornings sipping coffee and enjoying the views.

Floor Plan Details: This 20×20 patio is organized around a round, 4′ fire pit that is surrounded by four 3’×3′ lounge chairs to create an inviting conversation circle for sitting under the stars or catching a morning coffee. Each chair is floated in from the perimeter so people can move around without any interference. There’s a compact 3’×3′ bistro table placed in the upper-right corner for a quiet two-top dining experience.

Dimensions:

• Overall patio: 20′ × 20′
• Fire pit: 4′ round (labeled 4’×4′) with a clear ring around it
• Chairs (4): 3′ × 3′ each
• Side setbacks: left and right chairs are placed 4′ in from the side boundaries
• Top chair setback: 3.95′ from the top edge
• Bottom edge clearance: 2′ from the bottom boundary to the rear of the bottom chair
• Fire pit to bottom chair front: 4′ (comfortable feet distance)
• Bistro table: 3′ × 3′, and placed 1′ off the top and right edges

Design Tips:

• Keep 30 to 48″ between the edge of the fire pit and each seat.
• Maintain 36″+ walkways behind and around the chairs.
• Angle the chairs inward to reinforce the “circle” and sightlines to the fire pit.
• Use non-combustible surfacing, such as pavers, stone, and concrete in the pit zone, and add a spark screen if using wood to avoid embers.
• Put a low side table between any two chairs for drinks, but keep the surfaces below any armrest height to preserve views to the fire.
• Keep the bistro nook at least 6 to 8′ from the fire pit so smoke and heat don’t impact diners.
• To better use the seating circle during the day, add a small umbrella there for shade.
• Layer soft lighting by using path lights along the paths and low-glare lighting near the bistro for ambiance.

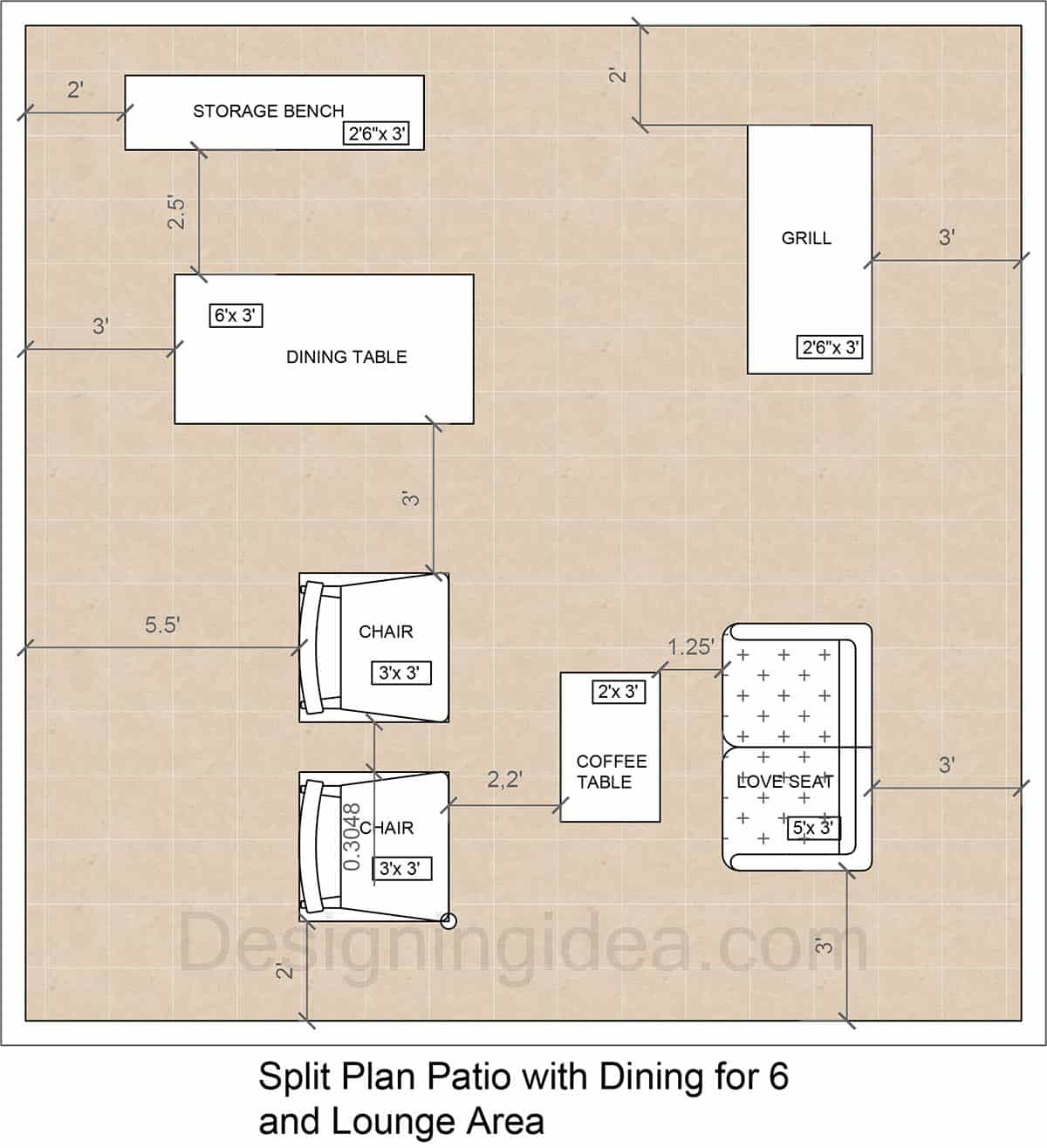

Split Plan Patio With Dining for 6 and Lounge Area

This design evenly splits dining and lounging with a center path so each space is defined with comfortable lounging on one end, and grilling and dining on the other.

Use case: A versatile patio for everyday use that offers space for balanced eating and seating areas.

Floor Plan Details: This 20×20 patio is divided into two purposeful sections with a lower seating area and an upper cooking and dining zone. The dining side has a 6’×3′ table that seats up to six, backed by a shallow storage bench that acts as a buffet and cushion storage. The grill is tucked into the top-right corner and is offset from the edges so smoke stays out of the dining zone. The lounge side features a 5’×3′ loveseat that faces a coffee table, and two 3’×3′ lounge chairs for a comfortable conversation nook.

Dimensions:

• Overall patio: 20′ × 20′
• Dining table: 6′ × 3′, centered on the upper-left half and 3′ from the left edge
• Storage bench: 2’6″ × 3′, set 2′ down from the top edge and 2.5′ behind the table
• Central aisle between dining and lounge is 3′ wide
• Grill: 2’6″ × 3′, placed 2′ from the top edge and 3′ from the right side
• Loveseat: 5′ × 3′, is set 3′ off both the right and bottom edges
• Coffee table: 2′ × 3′, and placed 1.25′ (15″) in front of the loveseat
• Lounge chairs (2): 3′ × 3′ each, with one 5.5′ in from the left edge, and the lower chair 2′ up from the bottom edge

Design Tips:

• Keep 36″+ around the dining table for chair pull-back and serving.
• Use the storage bench as a buffet, storage for cushions, and extra seating when needed.
• Maintain a 3 to 4′ cook lane in front of the grill to keep smoke away.
• Target 16 to 18″ reach from the seat edge to the coffee table.
• Float the two lounge chairs to preserve conversation distances.
• Use finishes to reinforce the split plan, such as an outdoor rug in the lounge and a slatted divider screen or planter behind the storage bench.
• For sunny days, add shade by using an umbrella or pergola over the dining area.
• For extra ambiance, add string or bollard lights along the main aisle for nighttime use.

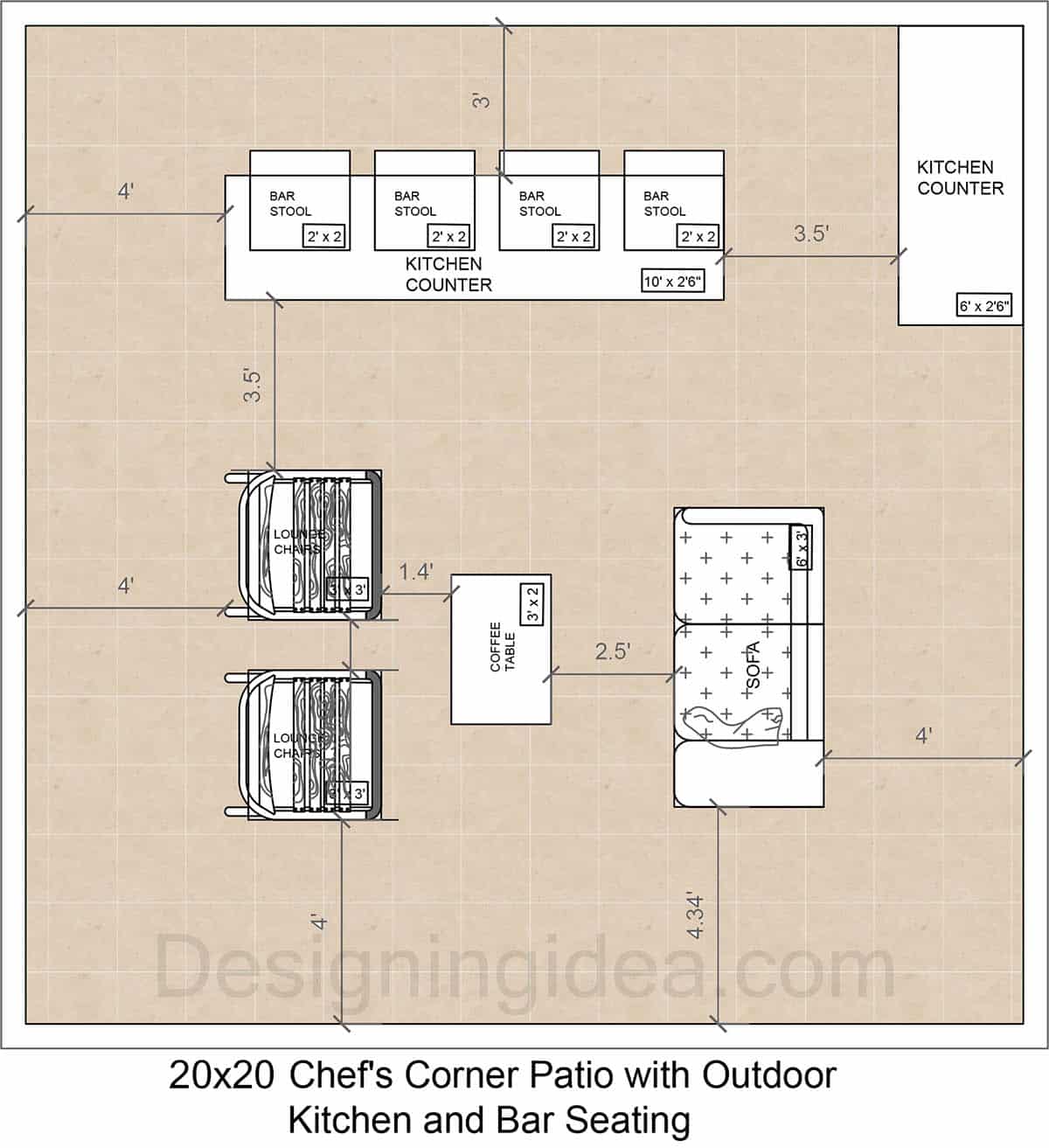

Chef’s Corner Patio Layout With Outdoor Kitchen And Bar Seating

This patio design uses an L-shaped outdoor kitchen with a dedicated chef’s corner with bar seating facing a separate lounge area for a cohesive space for cooking and entertaining.

Use case: For cooking and serving at the bar, while guests can enjoy relaxing nearby.

Floor Plan Details: This 20×20 patio layout features an L-shaped chef’s station with a 10-foot counter and four bar stools facing the patio, and a 6-foot side counter on the right wall for prep and grilling. A comfortable lounge zone occupies the center of the plan with a sofa opposite two lounge chairs and a coffee table in the middle. This arrangement allows guests to relax at the bar and still chat with the cook or others in the dedicated lounge area. Throughout, there’s plenty of room for walking and mingling with a 3½-foot service aisle between the kitchen’s bar island and seating.

Dimensions:

• Overall patio: 20′ × 20′
• Main bar counter offers 10′ × 2’6″ with four 2′ × 2′ stools and a 3′ walkway behind the stools.
• Secondary counter (right) provides 6′ × 2’6″ with a 3.5′ aisle between counters/work edge and patio.
• Sofa measures 6′ × 3′, and is set 4′ off the right boundary with 4.3′ open space at its foot to the bottom edge.
• Coffee table: 3′ × 2′ with 2.5′ from the sofa as a guest reach zone.
• Lounge chairs (2): 3′ × 3′ each with 4′ from the left boundary and 1.4′ chair-to-table reach.
• General walking lanes around furnishings are 3′ to 4′.

Design Tips:

• For sitting at the bar comfort, allow 24″ width per stool, and a 12″ counter overhang.
• Add a slim foot rail under the bar for better ergonomics.
• Preserve a 36 to 42″ cook aisle between the two counters to keep hot appliances and grilling smoke away from guests.
• Add task lighting under the counter lip and a warm ambient layer over the lounge.
• Add power outlets in the bar for mixing drinks with blenders or installing a pizza oven.
• Anchor zones with an outdoor rug under the lounge and a hard, non-combustible surface behind the kitchen bar.
• For shade, add a pergola or canopy over the bar run, but ensure that you keep the cooking exhaust area open.
• Add a cantilever umbrella over the lounge for sunny days.

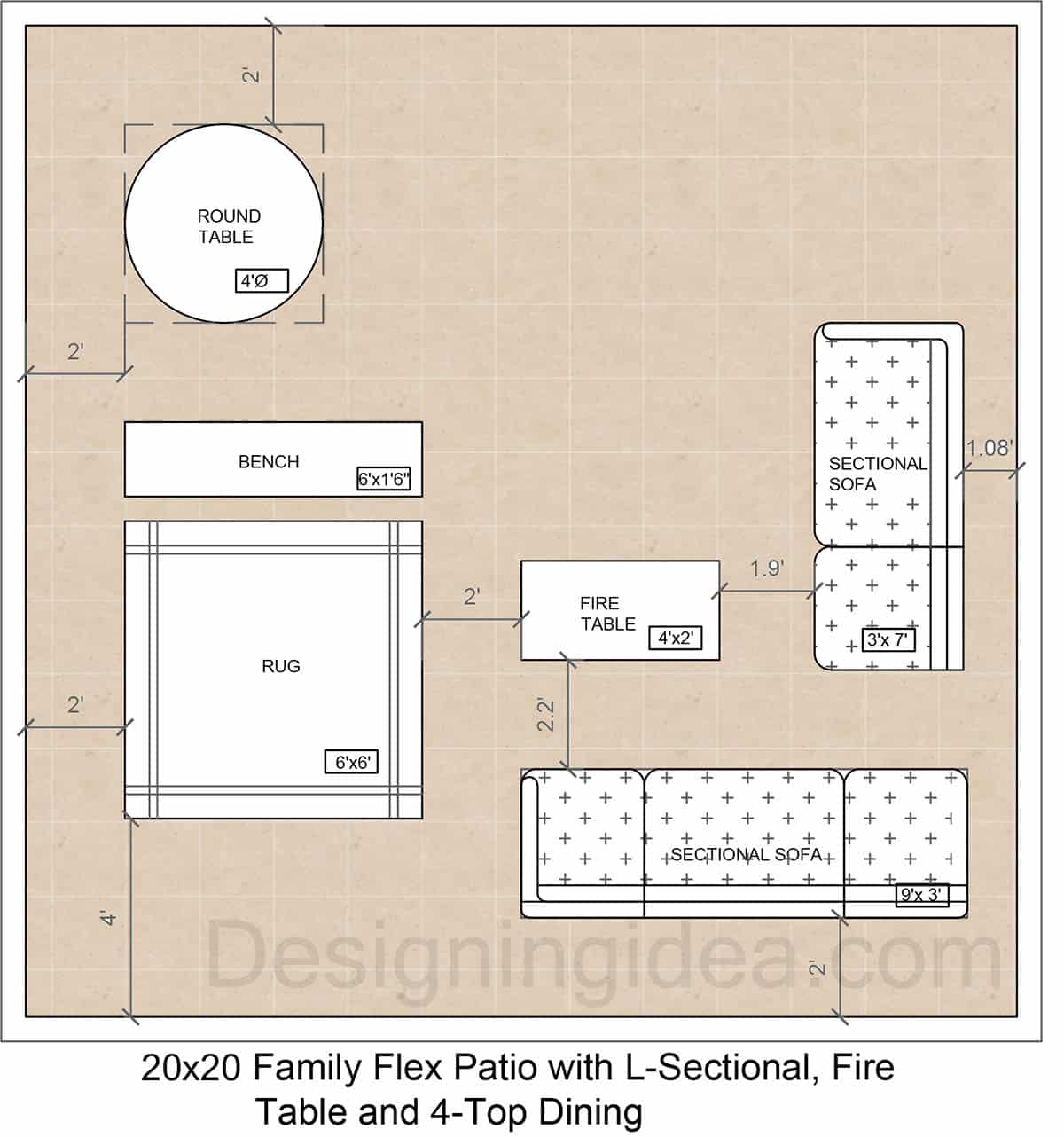

Family Flex Patio With L-Sectional, Fire Table And 4-Top Dining

This patio design works because it balances lounging, dining, and open play space, making it perfect for family life or entertaining guests in the backyard.

Use case: Ideal for families with kids, offering hangout seating, a small dining zone, and a multi-purpose open space.

Floor Plan Details: This 20×20 patio layout uses three flexible zones that families can enjoy, a cozy lounge with a sectional, sofa, and fire table, a casual 4-top round dining table, and an open activity square (rug) for play, yoga stretching, or overflow seating. A storage bench delineates the dining area from the play/multi-use zone to add separation and create separation. Circulation wraps the outside edges, so kids can loop around the rug without cutting through the fire zone.

Dimensions:

• Overall patio: 20′ × 20′
• Sectional sofa: measures 9′ × 3′
• Sofa: 3′ × 7′ is placed 2′ off the bottom edge, 1.9 from the fire table, and 1.08′ from the right edge.
• Fire table: 4′ × 2′ with clearances of 2.2′ to the front of the sectional, 1.9′ to the sofa’s side, and 2′ to the rug.
• Round dining table: 4′, located 2′ from the top and 2′ from the left side boundary.
• Bench: 6′ × 1’6″ positioned above the rug for storage and extra seating.
• Activity rug: 6′ × 6′, set back 2′ from the left edge and 4′ up from the bottom edge.
• Walking lanes around the perimeter and between zones: 2′ to 4′.

Design Tips:

• Try for 18 to 24″ reach from seating to the fire table.
• Give the round table 24 to 30″ of chair pull-back clearance.
• Use a non-combustible, weather-resistant rug near the fire area.
• If small children are nearby, swap the sofa and the fire table so hot areas are away from play.
• Use the bench as a buffet or extra seating during meals or as a toy storage chest near the rug.
• Add cushions to the bench to match the sectional and sofa.
• Define zones with textures by using a low-pile outdoor rug at the activity zone.
• Keep the center aisle between the rug and the fire table open.
• Add an umbrella or small pergola over the dining nook for shade and leave the fire table area open for night-sky views.
• Add path and step lighting along the outside edges so kids can move safely.

Quick Dimension Cheatsheet (for swapping furniture pieces, if you want to mix & match)

● Lounge chair: 30 to 36″ square and allow 36 to 42″ in front.
● Sofa (3-seat): 84″ × 36″ and allow 36 to 48″ in front.
● Loveseat: 60″ × 36″ and allow 36 to 42″ in front.
● Coffee table: 36 to 48″ long and 18 to 24″ from the seat front.
● Rectangular dining table (seats 6): 72″ × 36″; (seats 8): 96″ × 40 to 42″, and allow 30 to 36″ for chair pull-back.
● Round dining (seats 4): round 48″; (6): round 60″, and allow 30 to 36″ all around.
● Walkways: Try for 36″ minimum with 42 to 48″ for comfy two-way walking traffic.
