Best 12×12 Dining Room Layouts For Comfort And Flow

Knowing how to set up your 12‑by‑12 dining room with furniture so it feels welcoming and purpose‑built for entertaining takes some thought. Below, we’ll explore five thoughtfully crafted 12×12 dining room layouts, each tuned for a different hosting style. You’ll see everything from intimate four‑seat arrangements to maximize natural light to a six‑seater that doubles as a fireside lounge. You’ll see how subtle changes, such as angling a table or keeping storage tight against the walls, can unlock extra elbow room, airflow, and floor space without adding a single square foot. Let’s step inside and discover which floor plan will transform your dining area into an experience you and your friends and family will love.

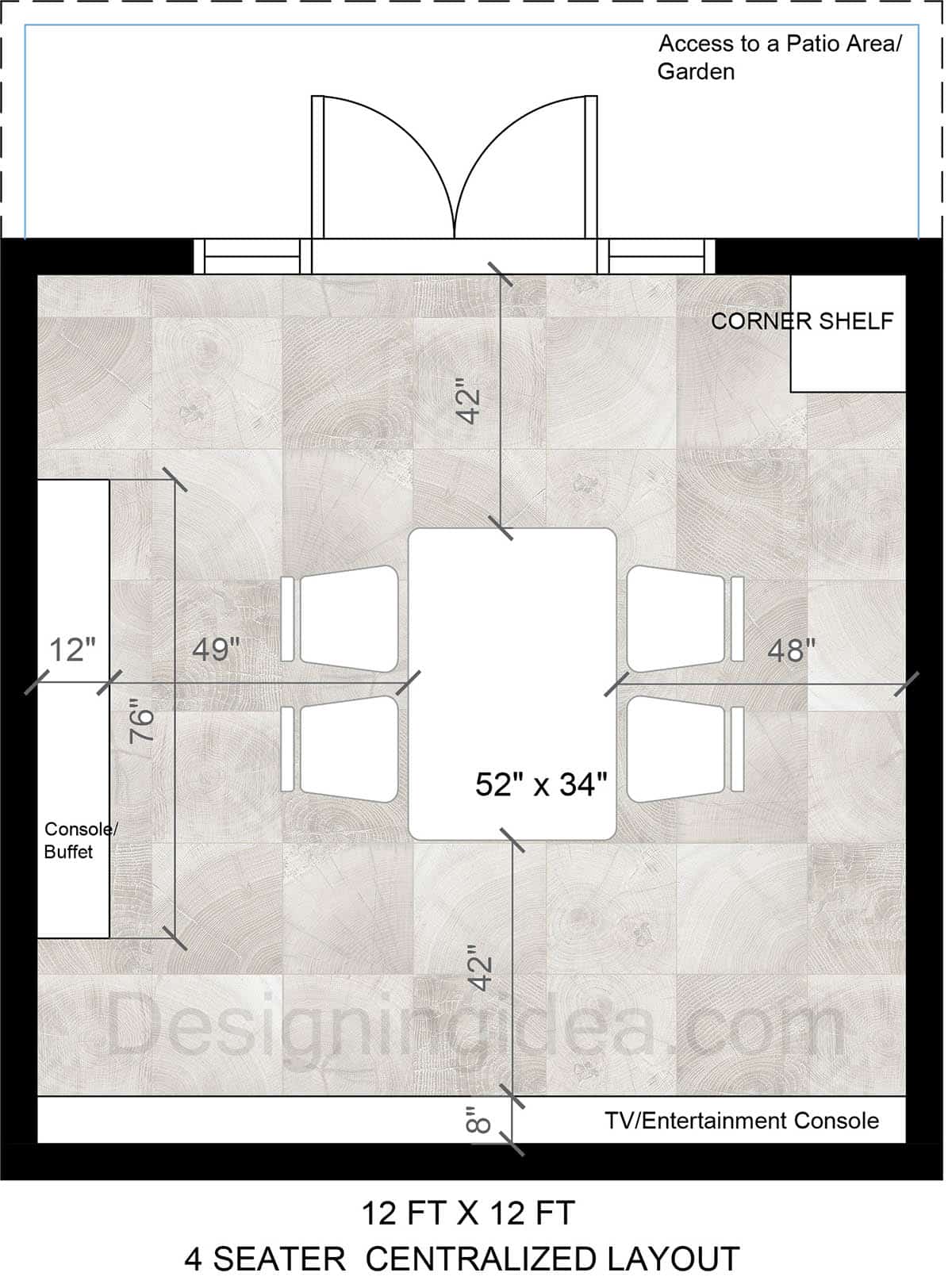

4-Seat Dining Table With Central Layout

This dining room floor plan works by centering a 4 seat table with at least 42-inch aisles on all sides for a comfortable and functional design.



Floor Plan Details: This perfectly square 12 ft × 12 ft dining room centers a 52 in × 34 in four‑seater table, with space all around for a symmetrical feel. A pair of garden doors on the upper wall open directly into the patio for a relaxed and inviting ambiance. A slim buffet/console lines the left wall, a TV‑entertainment console is placed against the lower side, and a small corner shelf tucks into the upper right corner for décor. Because the table sits in the dead‑center, every seat enjoys the same comfortable pull‑out space, and benefit from circulation that stays clear on all sides.

Dimensions:

• Room size: 12 ft (144 in) × 12 ft (144 in)
• Dining table: 52 in L × 34 in W, rectangular, with four chairs
• Clearances around the table
  • North & South: 42 in from table edge to wall/console
  • West: 49 in between chair backs and buffet
  • East: 48 in between chair backs and wall
• Buffet/console: 12 in deep × approx. 76 in long
• TV/entertainment console: spans most of the south wall
• Double garden doors: centered on the north wall; full swing clear of furniture

Design Tips:

• Keep storage shallow. A 12‑inch‑deep buffet provides enough room to hide tableware and offer serving space.
• Choose armless, low‑profile chairs. These can tuck under the 34‑inch‑wide table for when not in use.
• Use a light, uniform floor finish. Running the same continuous tiles makes the square footprint feel larger.
• Frame the patio view. Glass double doors double as artwork so pair them with narrow drapery panels mounted high to accentuate their height.
• Float the TV or artwork above the south console. Raising the media 6 to 8 inches above the console’s top keeps screens at eye level and saves surface space for décor.
• Corner shelf styling. Limit the display pieces here to three staggered heights so the shelf feels intentional, and not cluttered.
• Layer lighting. A small statement pendant over the table gives functional task light. Pair with wall sconces, and recessed lights.

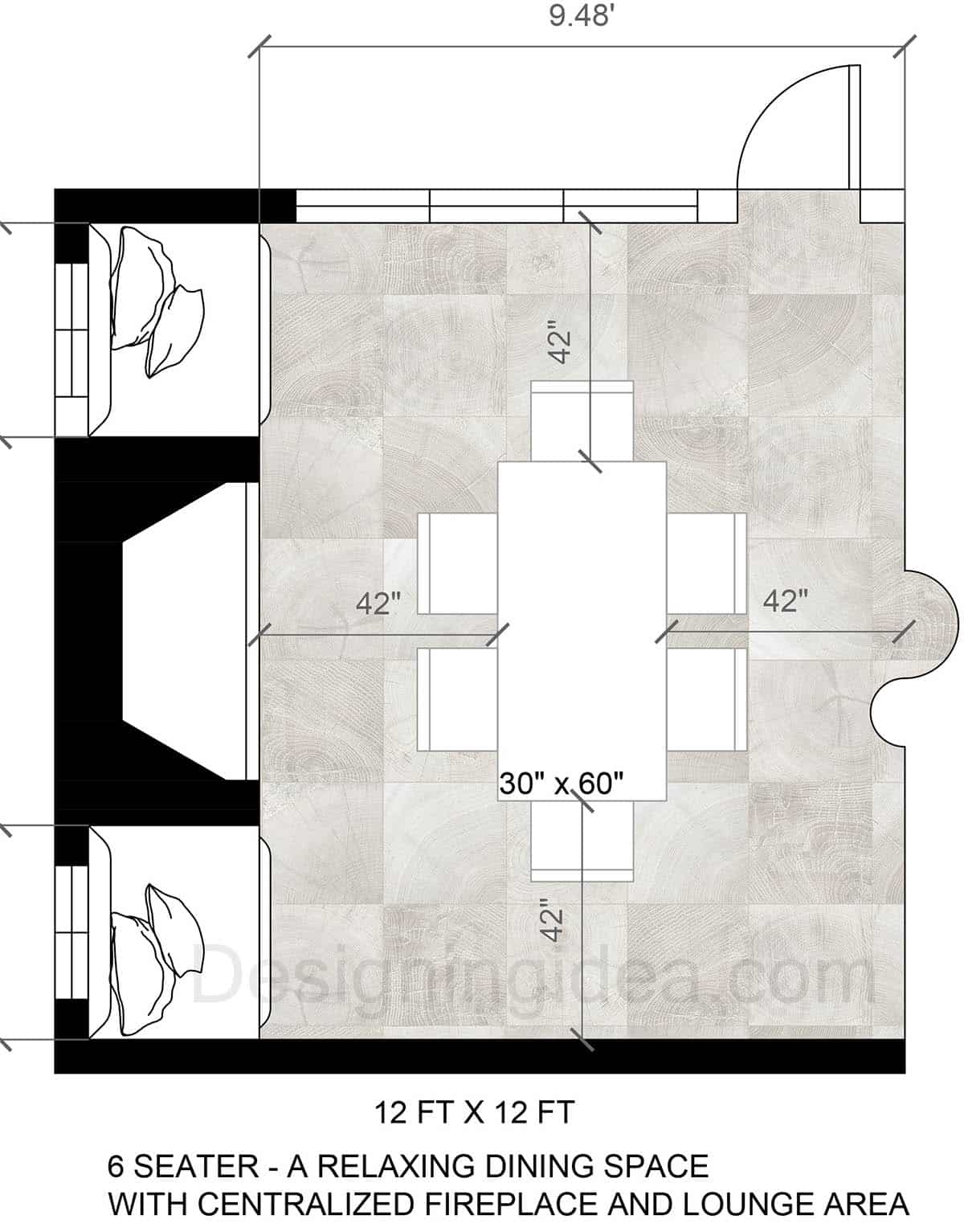

6-Seat Relaxing Dining Room Floor Plan with Fireplace and Lounge Area

This arrangement places the table in the center of the dining area, parallel to the fireplace, with cozy sitting nooks on either side.

Floor Plan Details: This square dining zone combines a fireside lounge with a slender 30 in × 60 in table that seats six (two on each long side, one at each end). The table’s situated in the  middle with a generous 42‑inch traffic lane on all four sides for movement. The entire right wall becomes a focal point with a built‑in fireplace in the center, and flanked on either side by comfy seating nooks. Natural light enters through the large run of windows on the upper wall.

Dimensions:

• Room size: 12 ft (144 in) × 12 ft (144 in)
• Dining table: 30 in W × 60 in L; seating for 6 guests
• Clearance around table: 42 in on all sides (ample chair slide‑out and walkway)
• Fireplace wall depth: flush build‑out keeps depth minimal; lounge love‑seats at 32 in deep
• Door opening: single inswing door at north‑east corner
• Radius (south‑east): curved bump‑out maintains 42‑in aisle while adding architectural interest

Design Tips:

• Zone with rugs. Layer a 6 × 9 rug under the dining table to visually separate the eating and lounging sections.
• Add comfy cushions to the wall nook seat. Decorate with comfortable, color-coordinated cushions.
• Slim‑profile fireplace surround. A flush gas insert or a shallow electric unit maximizes floor depth for seating and helps control heat output more effectively.
• Window bench potential. Add a built‑in under the window run for hidden storage and extra casual seating that’s useful for larger gatherings.
• Keep chair arms and backs minimal. Armless or slender‑armed dining chairs allow you to slide all six fully beneath the table.
• Accent the curve. Highlight the south‑east radius with a wall sconce or half‑round console to turn the architectural quirk into a stand-out feature.
• Layered lighting. Hang a pendant over the table (hung so its bottom sits 30 in above the tabletop), sconces to flank the fireplace, and dimmable soffit lights around the ceiling perimeter to enhance the mood.

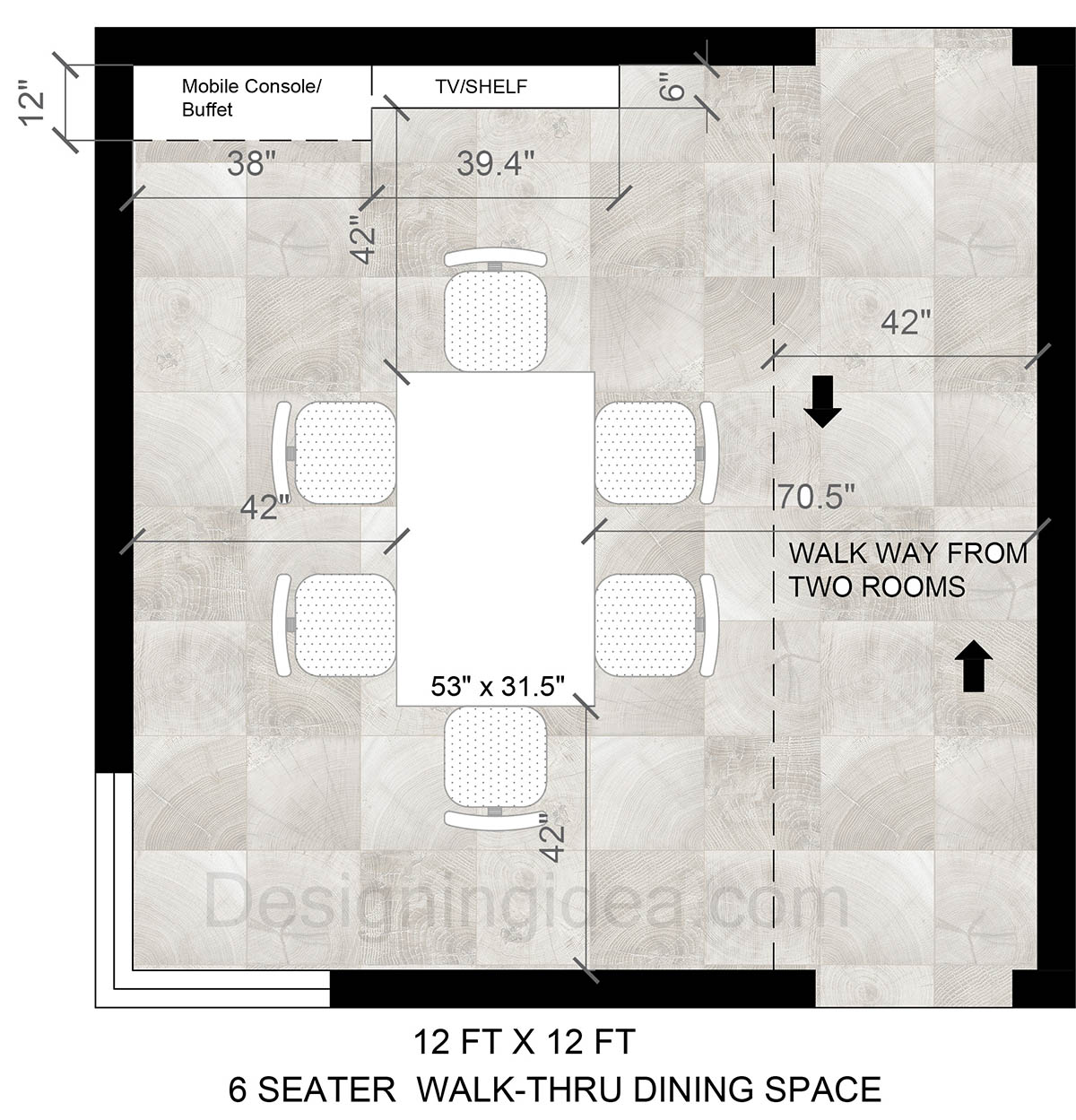

6-Seat Table With Walk-thru Dining Space

Perfect for pass-thru dining rooms that sit between the kitchen and living room, or other areas of the home, this design keeps a dedicated 42‑inch traffic lane open along one wall.

Floor Plan Details: This room does double duty by feeding up to six people and acting as a main corridor between two adjoining spaces. The solution is to “borrow” a 42‑inch‑wide walkway along the entire left wall as a designated pass‑through lane (indicated by the dashed line and arrows). That leaves the remaining space for a slim 53 in × 31.5 in table. Chairs line the long sides and both ends, yet every seat still enjoys a 42‑inch of pull‑out clearance. Storage stays shallow and high with a 12‑inch‑deep mobile buffet that spans 38 inches of the upper wall, while a 39.4‑inch TV/shelf unit sits next to it.

Dimensions:

• Room size: 12 ft (144 in) × 12 ft (144 in)
• Dining table: 53 in L × 31.5 in W; fits six seats
• Dedicated east‑side walkway: 42 in wide along the full room length
• Chair clearances: 42 in on west, north, and south sides
• Mobile buffet / console: 12 in deep × 38 in long
• TV / shelf unit: 39.4 in long, with a 6 in depth

Design Tips:

• Define the lane visually. A long runner rug placed along the 42‑in walkway designates the space, while protecting the finish from heavy foot traffic.
• Opt for armless, low‑back chairs. They are beneath the tabletop, so nothing interferes with the aisle when not in use.
• Use a mobile buffet. Adding casters let you roll it nearer the table during meal service, then push it tight to the wall when its not needed.
• Mount the TV on a swivel arm. Angle it toward diners for casual viewing, and then pivot it flush when done.
• Pendant orientation matters. Hang a linear fixture in line with the long end so sight‑lines down the corridor stay clear.
• Keep décor vertical. Use tall, slim artwork or wall sconces to add personality without getting in the way
• Traffic‑friendly tableware. Place dishes in the mobile buffet so guests can set and clear from the side.

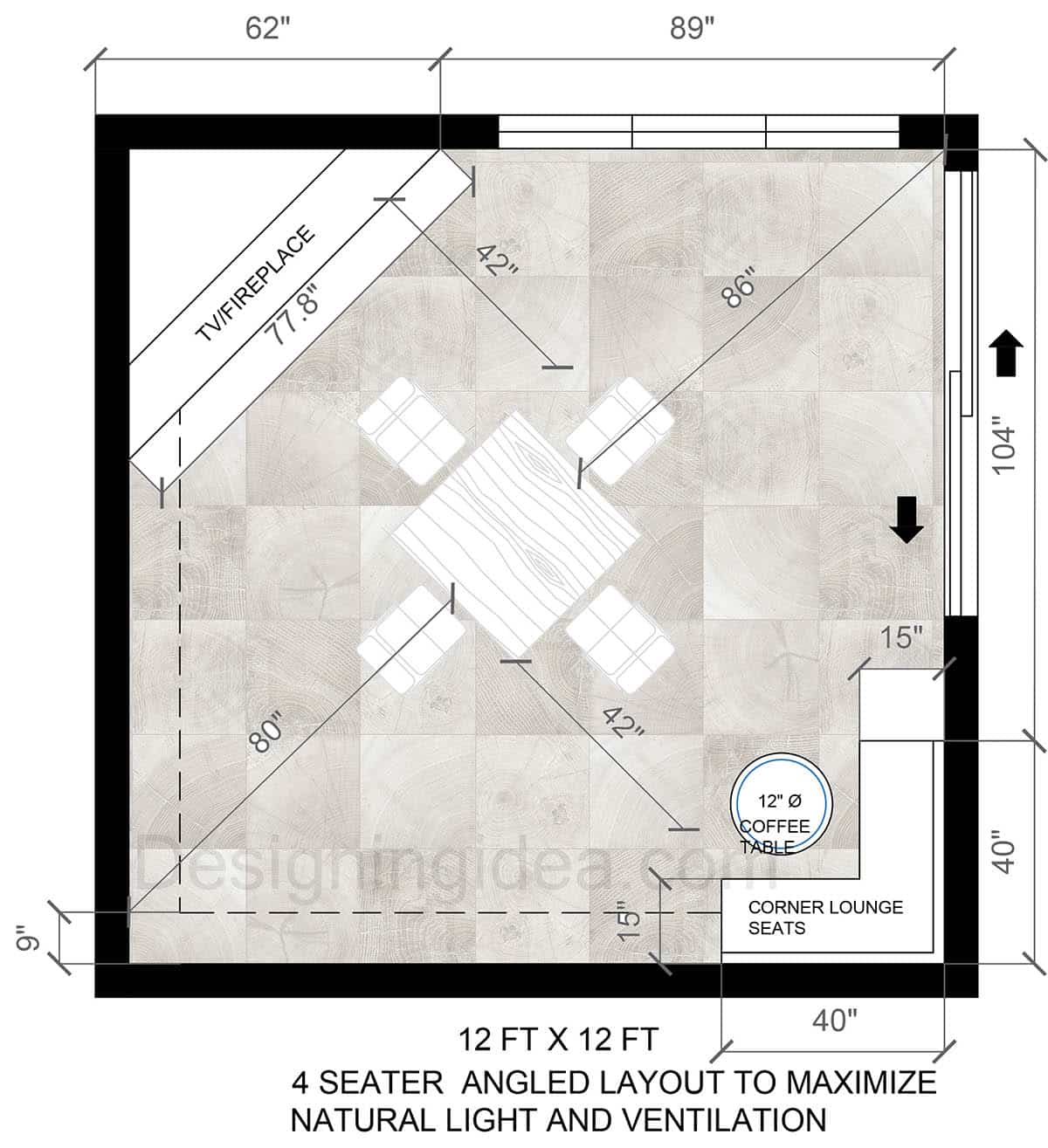

4-Seat Angled Dining Table Layout to Maximize Natural Light

By angling a compact square table, it opens a clear diagonal pathway that benefits from natural daylight from two exposures, and frees the corners for a fireplace and cozy bench.

Floor Plan Details: Turning the 4‑seater table at a 45-degree angle transforms this room into a bright, breezy area that looks aesthetically pleasing. The table (about 42 in on each side) sits on the diagonal, so its corners point toward the room’s walls. This way it doesn’t block sight‑lines to the 7 ft‑5 in window on the upper wall and the full‑height sliding door on the right. This orientation funnels natural light straight through the center, while also creating two corners. One is a built‑in TV/fireplace stretching almost 6 ½ ft across, and the other is a cozy L‑shaped bench seat with a round coffee table. Because the table’s edges sit 42 in off the walls and hearth, every chair can slide out, and the diagonal traffic lane (dashed line) lets people move from one doorway to the other.

Dimensions:

• Room size: 12 ft × 12 ft (144 in × 144 in)
• Dining table: 42 in square, set at 45°; four chairs
• Clearances around table: 42 in minimum on all four sides
• North window span: 89 in wide sill‑to‑sill
• TV / fireplace: 77.8 in long built‑in across north‑west corner (set at matching 45° angle)
• East wall opening: glazed slider with height to ceiling; wall segment measures 104 in floor‑to‑ceiling beside lounge niche
• Corner lounge bench: 40 in run on each leg; seat depth 15 in; paired with 12‑in coffee table
• Circulation diagonal: 80 in from south‑west corner to the table’s edge; 86 in from north‑east to table edge.

Design Tips:

• Echo the angle. Install the area rug and chandelier on the same 45° axis so the placement angle feels intentional.
• Low‑profile chairs. Choose open‑back or slim‑leg chairs so maximum amount of light can flow between pieces.
• Corner hearth focus. Clad the TV/fireplace surround in a reflective tile or brushed metal that naturally catches daylight and becomes a feature wall.
• Bench storage. Use the built‑in lounge seat bases for flip‑up storage, toy bins or table‑linen drawers.
• Sheer window treatments. Mount rods to span the full 89 in window and adorn with floor‑to‑ceiling sheers to diffuse glare.
• Transitional flooring detail. Lay floor tiles or boards on the same 45° angle to reinforce the dynamic geometry.
• Plant power. A tall plant in the corner can soften the long diagonal view and visually balance the fireplace.

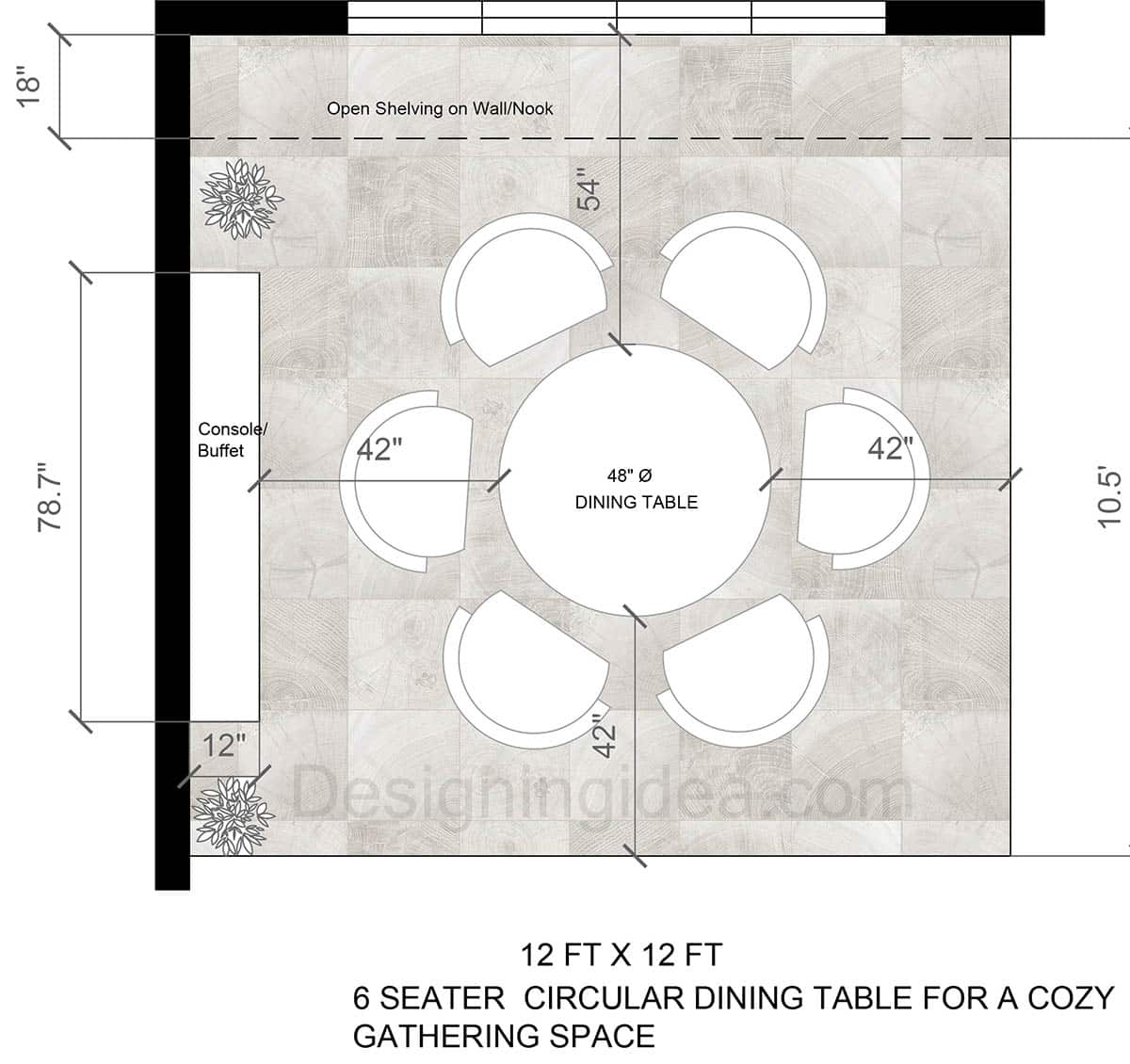

6–Seat Circular Table Floor Plan for a Cozy Gathering

This design uses a 48‑inch round table paired with a slim console and an 18‑inch shelving niche to deliver effortless 360° circulation, and sun‑lit coziness that works for intimate gatherings and still feels spacious.

Floor Plan Details: Inside this dining room layout sits a 48‑inch‑diameter round table that is the heart of the space, and comfortably seats up to six. Surrounding this is a uniform 42‑inch slide‑out zone on every side. Because a circle naturally tucks its corners in, circulation feels fluid, allowing guests to easily walk around the perimeter without bumping. Vertical storage lines the walls with an 18‑inch‑deep recessed nook along the entire upper wall with open shelving (top edge marked by the dashed line), that’s perfect for displaying decorative dishes. A slim 12‑inch‑deep buffet hugs the left side for easy access to plates and linens. Large windows above the shelving flood the area with daylight and create an inviting feel.

Dimensions:

• Room size: 12 ft × 12 ft (144 in × 144 in)
• Dining table: 48 in round and seats six
• Chair clearances: 42 in all around
• North wall shelving niche: 18 in deep, runs wall‑to‑wall with a shelf face that sits 54 in from the table’s center
• Console/buffet: 12 in deep × 78.7 in long
• Window stretch above shelving: almost full‑width for maximum amount of natural light
• Primary circulation path: an uninterrupted ring around the table

Design Tips:

• Choose a pedestal base. It frees legroom, so six can scoot in closely without fighting table legs.
• Tuck‑in chairs. Use curved‑back, armless chairs to slide fully under the round tabletop.
• Layer a round rug. Match, or slightly oversize, the 48‑in table with a 7‑ft rug to reinforce the circular geometry.
• Accent the niche. Paint or wallpaper the 18‑in‑deep shelving recess a contrasting color so displayed objects pop and the wall gains depth.
• Statement pendant. Add a single globe or multi‑arm chandelier 30 in above the tabletop to cast an even light and act as a room feature.
• Greenery in the corners. A tall plant or slim tree in the corner can visually soften the right‑angled design and help balance the open shelving opposite.
