5x8 Walk in Closet Layouts for Every Storage Style

5x8 Walk in Closet Layouts

A 5×8 walk-in closet can be more than enough space for all of your clothing needs if you plan it right. The problem isn’t the amount of space; it’s that most people throw up a rod, add a shelf, and wonder why nothing feels organized after a few months. These five walk-in closet layouts address that, each focusing on a different setup, including solutions for those who need more clothing space, folded shelving, his-and-hers sides, or a place for a shoe collection. Each of these designs shares how to arrange your clothing rods, where to place your shelving, and offers specific tips on how to get the most out of the 5×8 floor plan.

Table of Contents

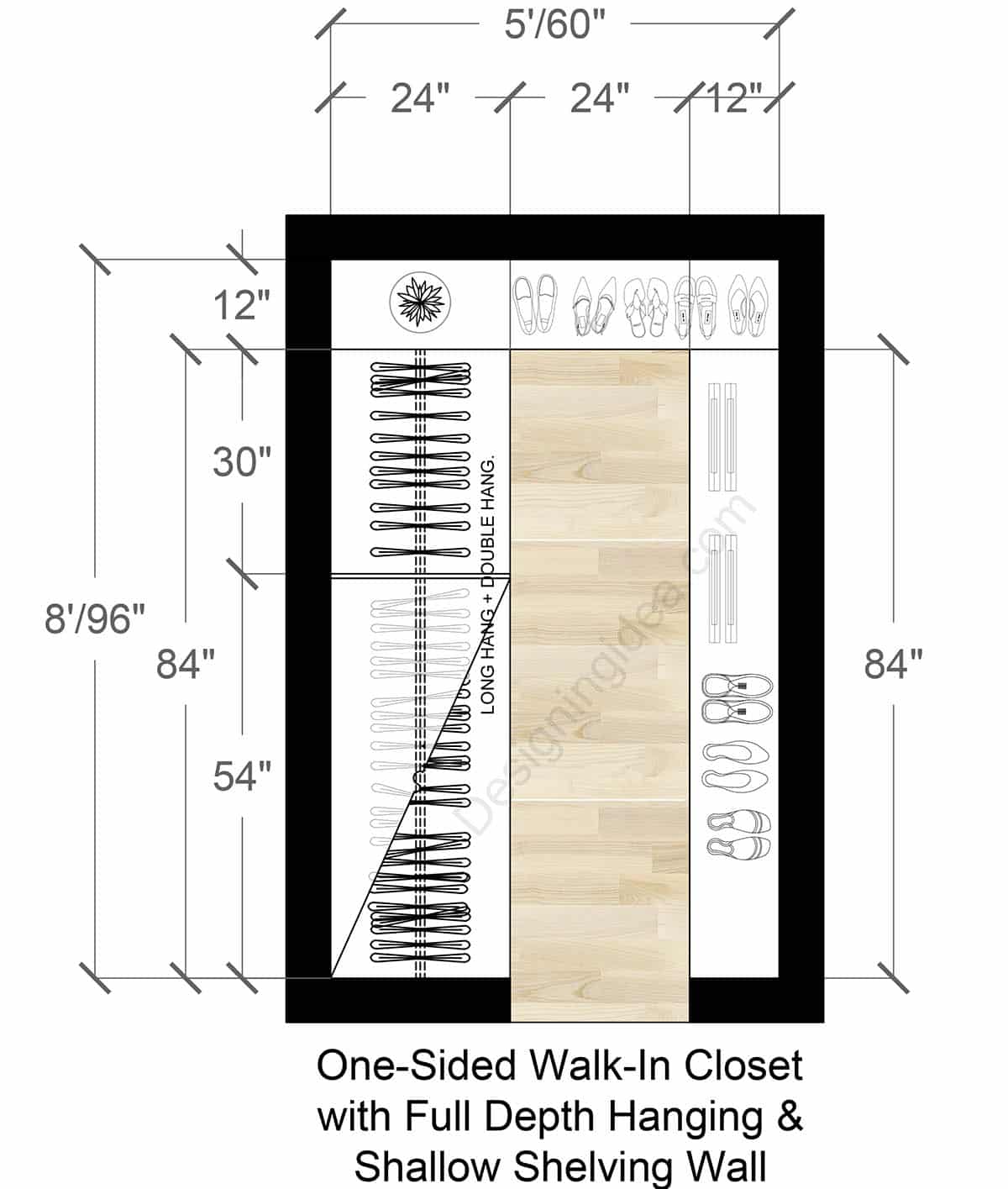

One-Sided Walk-In Closet Layout with Full Depth Hanging & Shelving Wall

Easily Create Your Own Room Makeover

Upload a photo and get instant before-and-after room designs.
No design experience needed — join 2.39 million+ happy users.
👉 Try the AI design tool now

Floor plan details: This one-sided 5×8 walk-in closet design makes the most of its relatively compact space by running the clothing rods along a single side with shallow shelving along the back wall and the other side. It promotes keeping the floor open as a walking and dressing area. It’s a good approach for those who want something that actually feels bigger and doesn’t need all of the hanging space and would rather have more room for shoes and folded items. The left wall is divided into two zones side by side, with a long hanging section on the bottom, and a double-hang on the upper side. The double-hang section is useful for hanging shorter items like shirts and jackets stacked two rods high, while the longer-hang works for your dresses, coats, or anything that needs full drop space. The top shelving across the entire back wall adds a mix of storage through its shoe shelving on the right portion and open shelving or a decorative element on the left. The right-hand shelving wall is notably shallower than the hanging section and is ideal for shoes and folded items that don’t need 24 inches of depth. This shorter side is what keeps the walkway feeling more open.

Dimensions:

Room size: 5’/60″ wide × 8’/96″ deep
Hanging section width: 24″
Center open floor zone width: 24″
Shallow shelving wall width: 12″
Top shoe/storage shelf depth: 12″ high
Double hang & long hang section height: 30″ (double hang zone) + 54″ (long hang zone) = 84″ total
Shelving wall height: 84″

Design tips:

Keep the double hang section for your shirts and folded jackets, especially if you’ve got mostly casual clothes, since you can fit roughly twice the pieces versus a single rod.
Use the 12″ shallow shelf for shoes, bags, or folded accessories.
Place a small bench or pull-out drawer unit in the back with a mirror above and start the shelving unit overhead if you need that functionality.
Go floor-to-ceiling with your shelving on the right. The extra 84″ height means you can stack a lot of your daily-use items at eye level, where you can find them.
Add a pull-out valet rod tucked into the hanging section so you can hang tomorrow’s outfit on it the night before.

Best for: Those seeking an efficient, practical design, especially for one person or a couple willing to split zones.

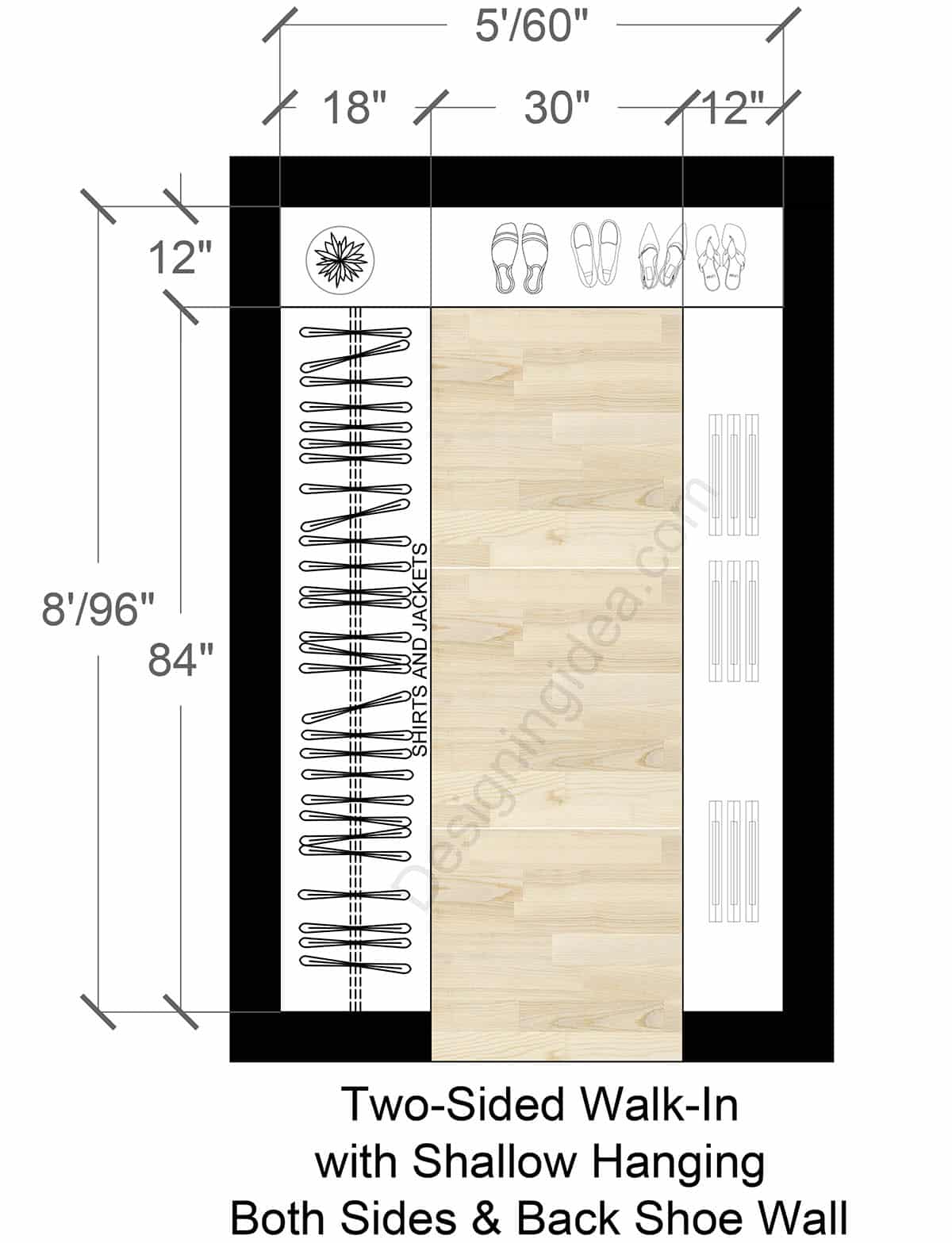

Two-Sided Closet Floor Plan with Shallow Hanging & Back Shoe Wall

Floor plan details: This closet uses a two-sided layout with shallow hanging on one side, a back shoe wall, and shelving on the other side. The left wall runs the full 84″ height with double-hang rods, so you can easily find your shirts and jackets. The right wall uses open shelving instead of rods, and it works great for storing folded clothes, bags, or more shoes. The back top strip is your dedicated shoe display across 42″ of width that’s perfect for your sandals, flats, and heels, so they’re all visible at a glance. The center stays open all the way through and is just wide enough to become your dressing space.

Dimensions:

Room size: 5’/60″ wide × 8’/96″ deep
Left hanging wall width: 18″
Center open walkway: 30″
Right shelving wall width: 12″
Top shoe shelf height: 12″
Full hanging + shelving height: 84″

Design tips:

The short hanging section at 18″ is shallow and is designed for those with a lot of shirts, blazers, and jackets. Don’t try to hang longer dresses and bulkier coats here.
Use the right shelving wall of 12″ for your folded tees, clutches, and small bins.
Place your most-used shoes on the back shoe wall at eye level so you can find them as soon as you walk in.
Maintain the 30″ center aisle so it doesn’t feel cramped.
Double-hang both sections if your wardrobe allows, or devote a small section to long hang if you want a space for dresses.
Face your shoes toe-out on that back wall, not toe-in, so you can actually see what you own.

Best for: Those wanting shallow hanging, want folded clothing space, and need room for a serious shoe collection. Check out these 6×8 closet plans for something slightly bigger.

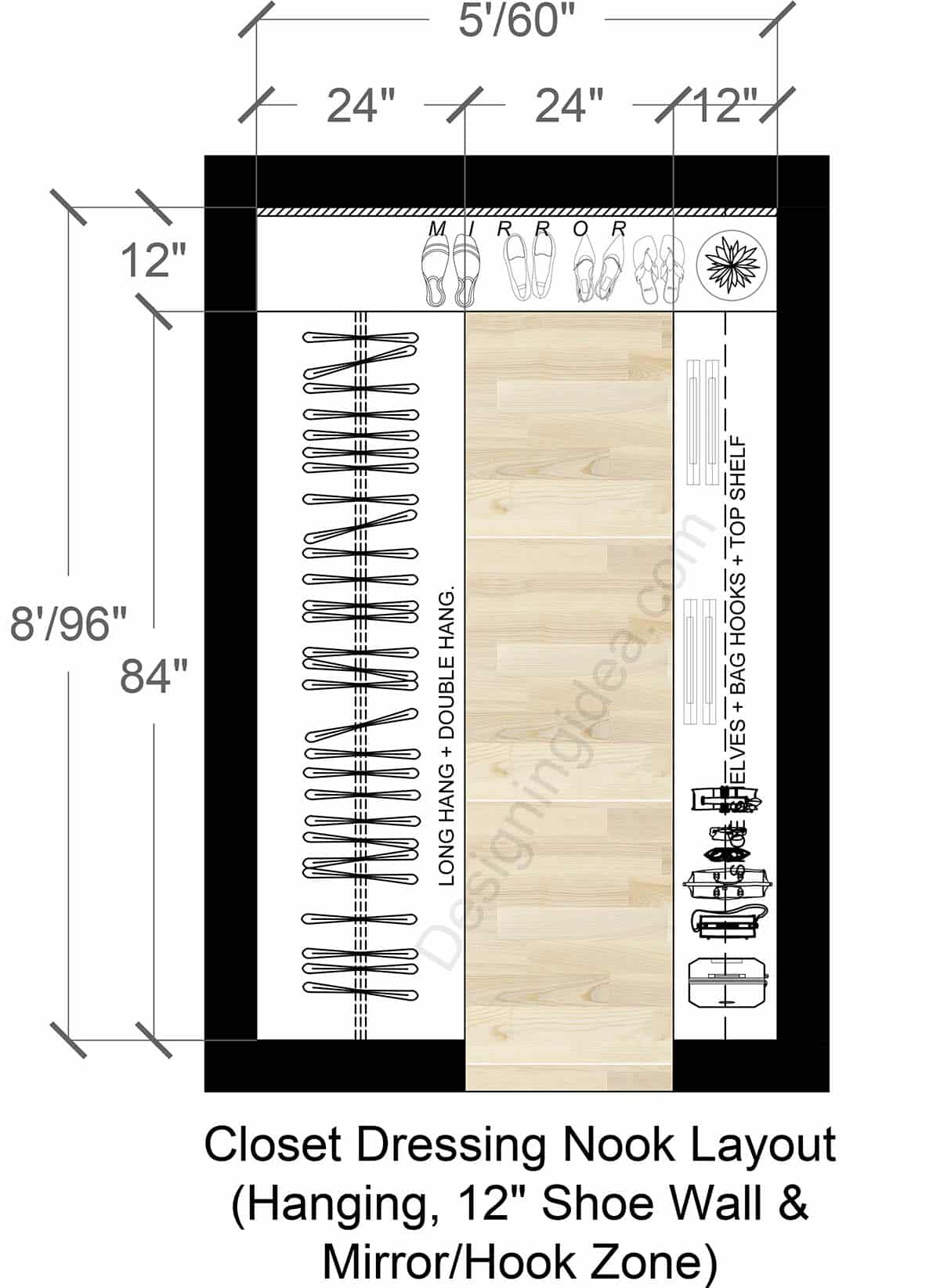

Closet Dressing Nook Layout

Floor plan details: This 5×8 closet acts as its own dressing nook with a layout stretching from hanging on the left, shoe shelves on the right, and a mirror in the back. The left wall offers a long and double hang section that runs along the full 84″ length. The right wall provides shelves up top, then bag hooks in the middle section, followed by more shelving at the bottom. The back wall is split between a mirror down lower and a shelf running over the top. With this setup, you can place tomorrow’s outfit on the hooks and check your whole ensemble without leaving the closet, just like a dressing room.

Dimensions:

Room size: 5’/60″ wide × 8’/96″ deep
Left hanging section: 24″ wide
Center walkway: 24″ wide
Right shelving/hook wall: 12″ wide
Back top strip height: 12″
Full wall height (hanging + shelving): 84″

Design tips:

Hang a full width mirror panel across the back to enhance natural light from the doorway and for better visibility while getting dressed.
Add bag hooks on the right wall so you can easily find the one you want.
Use a balance of long hang and double hang rods if you have a balanced mix of clothing, such as shirts and dresses.
The 12″ right shelf is shallow and is better used for shoes and bags.
Add a small stool or ottoman in the back if you want a place to sit down to put on shoes in your own closet.
Put a small USB charging strip behind the right shelving wall for your phone or device.

Best for: Those wanting a dressing nook with a mirror in back, a mix of clothing hang sections, and shelving for shoes and handbags.

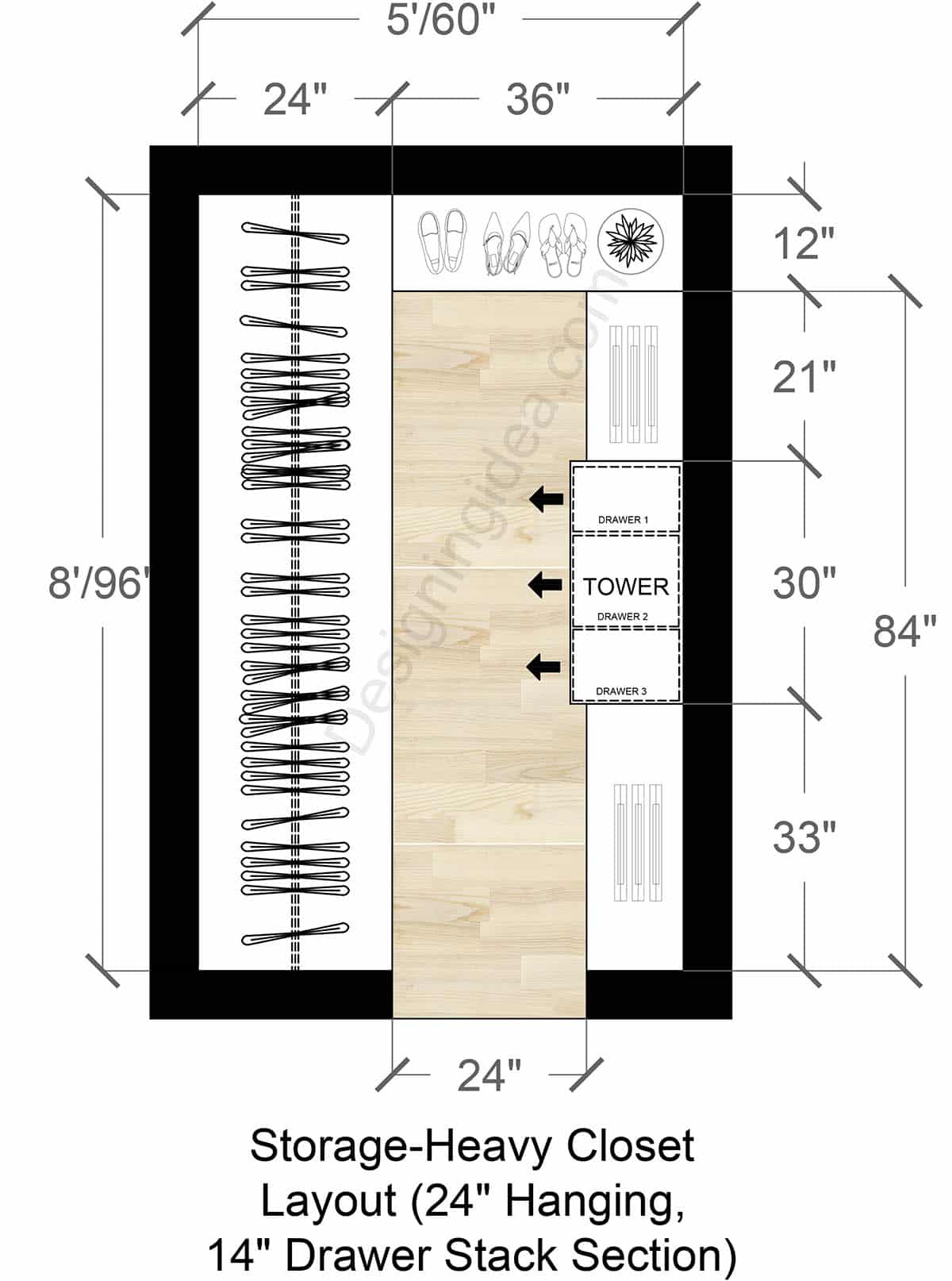

Storage-Heavy Closet Floor Plan

Floor plan details: This 5×8 storage-heavy closet design is for those looking for an organized layout with both hanging rods, shelving, and drawers. It trades some of its shelving length for a proper drawer tower in the middle. The left wall is all hanging, with a full 84″ length single rod. The right side features open shelving at the lower end and at the top, with a three-drawer tower planted in the middle. This is an excellent spot for all of your underwear, socks, tees, or whatever you hate folding on a shelf. The back, as shown, works for your shoe gallery featuring shelving so you can easily find the pairs you need. The aisle is a tight 24″, that give you the minimum amount of space to navigate the room without any trouble.

Dimensions:

Room size: 5’/60″ wide × 8’/96″ deep
Left hanging wall: 24″ wide
Center walkway: 36″ wide
Top shoe shelf: 12″ high
Upper shelving zone: 21″ high
Drawer tower (3 drawers): 30″ high
Lower shelving zone: 33″ high
Total right wall height: 84″

Design tips:

Organize the drawers one per category with tops, bottoms, and intimates so everything is sorted and easy to locate.
Use the 33″ lower shelf for bins, folded jeans, and t-shirts.
Don’t crowd the already tight 24″ walkway with a bench or any baskets.
The single rod on the left is perfect for those with a lot of dresses and coats, but may frustrate if your wardrobe is mostly shirts.
Line your drawers with felt if you are using them for accessories to keep everything from sliding around every time you open them.

Best for: Those wanting a storage-heavy closet with shelving and a drawer tower that is best for someone who folds more than they hang their clothing.

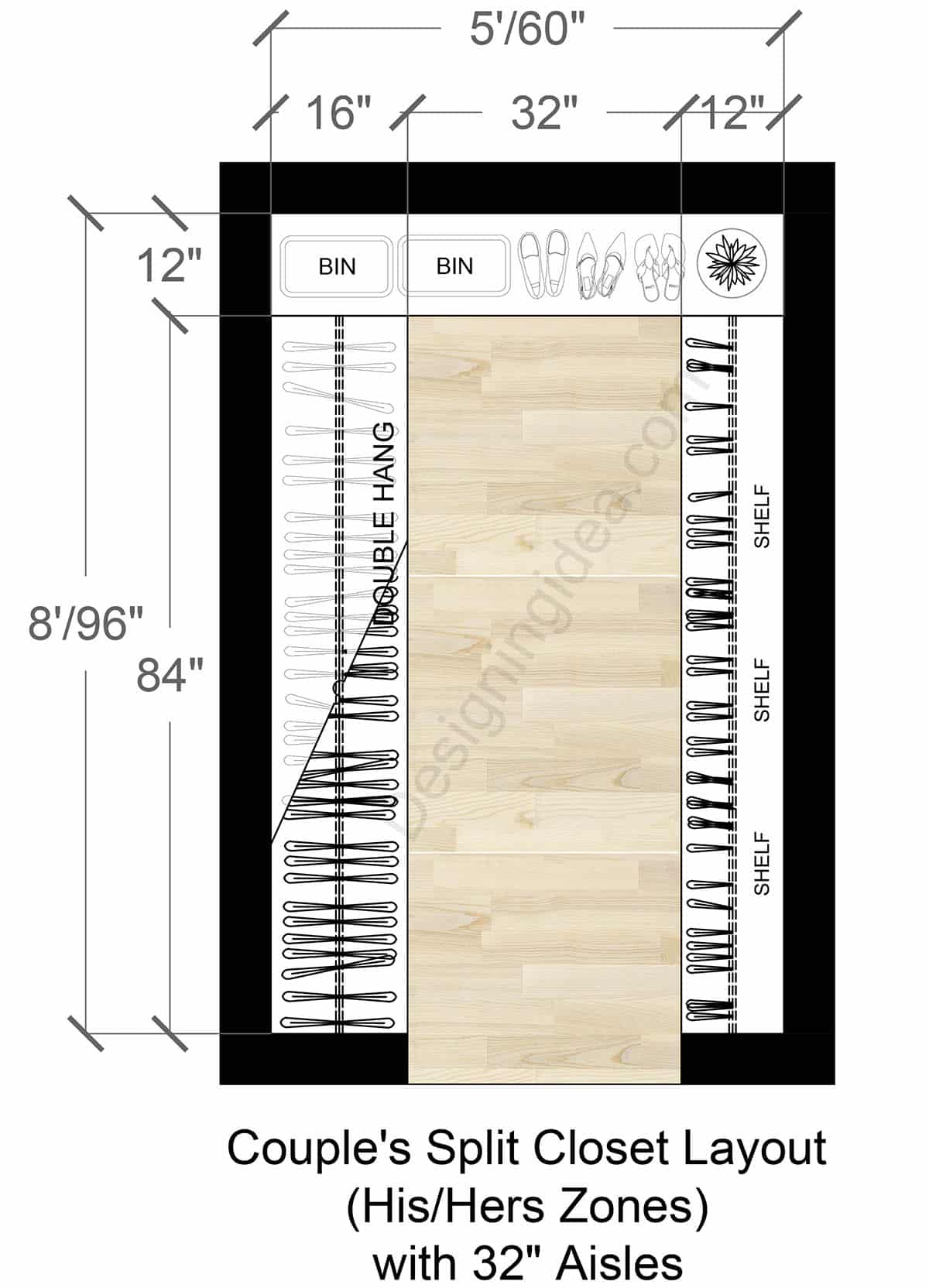

Couple’s Split Closet with His & Hers Zone Layout

Floor plan details: This walk-in closet is set up with a couple’s split design featuring a his & hers zone Layout. This one works for two people, offering a clean separation of sides with a shared center aisle. The left wall is dedicated to a 16″ wide, double hang for shirts, jackets, and shorter items stacked two rods high. The right wall swaps rods for shelves running the full 84″ length. The back offers shelving space for storage bins and shoes with a large 32″ walkway going down the middle, so there’s space for two people to get through.

Dimensions:

Room size: 5’/60″ wide × 8’/96″ deep
Left hanging wall: 16″ wide, double hang
Center aisle: 32″ wide
Right shelving wall: 12″ wide, 3 shelves
Back top strip: 12″ high
Total wall height: 84″

Design tips:

16″ width for the double hang racks is shallow and works here for shorter items.
Use the shelves on the right for flexible storage with clothing that can be folded up.
Use the bins up top, in back, for your seldom-used items like seasonal stuff, spare linens, or bulkier cold-weather clothing.
Label or color-code each side so there is no confusion or potential arguments later.
If you need some hanging rods on the right side, swap out one of those right-wall shelves for a rod.

Best for: Couple’s who want a split design with his & hers zones setup for two people sharing one closet who value having clearly defined spaces.
