A 5×7 bathroom does not provide a lot of room to get the floor plan of your dreams, but it can still fit a walk-in shower layout that feels comfortable to use. The secret is to plan a layout that provides adequate walking space while allowing the proper amount of clearance for the shower, toilet, and vanity, all while meeting code compliance. In this guide, you will find architect designed, 5×7 bathroom with walk in shower layout ideas that share the best ways to organize your space so you have a room you actually want to use every day.
Straight-Shot Bathroom Layout with Full-Width Back Shower
This bathroom spares some of its compact floor space so you benefit from a strong focal point with a large back wall walk-in shower.
Easily Create Your Own Room Makeover
Upload a photo and get instant before-and-after room designs. No design experience needed — join 2.39 million+ happy users. 👉 Try the AI design tool now

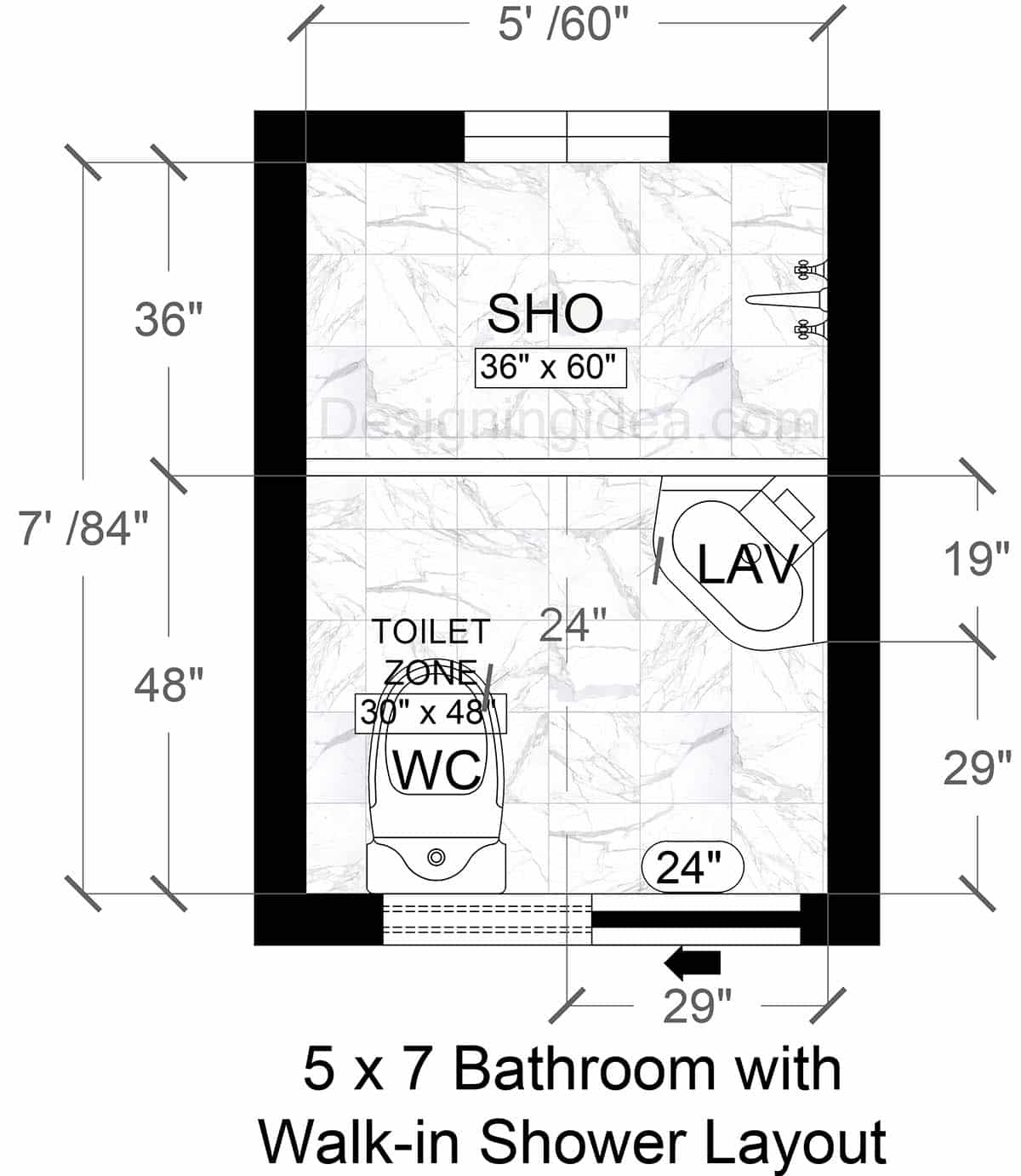

Floor plan details: This 5×7 bathroom uses an efficient straight-shot layout that fits the shower across the entire back wall. This arrangement uses the glass enclosure to become a strong focal point and the full-width 36-inch by 60-inch shower gives a more upscale feel than a small corner unit. Since it visually stretches the space from side to side there’s more room to luxuriate and even install a bench if desired. In the remaining 48 inches of floor depth, the toilet sits on the left of the entry slider with a compact angled lavatory on the right. That corner sink placement preserves a path from the entry to the shower with a result that feels organized, and roomy for such a small footprint.
Use large-format tile, continuous slab-look wall tile with a single glass panel to make the room feel larger.
Set the sink at an angle, with wall-mounted storage in the form of a recessed medicine cabinet, and shallow shelving above the toilet instead of a larger vanity.
Add a ceiling light over the center plus a mirror light or sconce at the sink.
Choose a compact sink with a slim profile that’s floating or a pedestal model if you want to make the walkway feel roomier at the expense of your storage.
Bathroom with Long Side Walk-In Shower Floor Plan
This bathroom goes with a large full-length side shower that creates a spacious bathing zone while the toilet and vanity fit perfectly on the opposite side for an efficient flow.

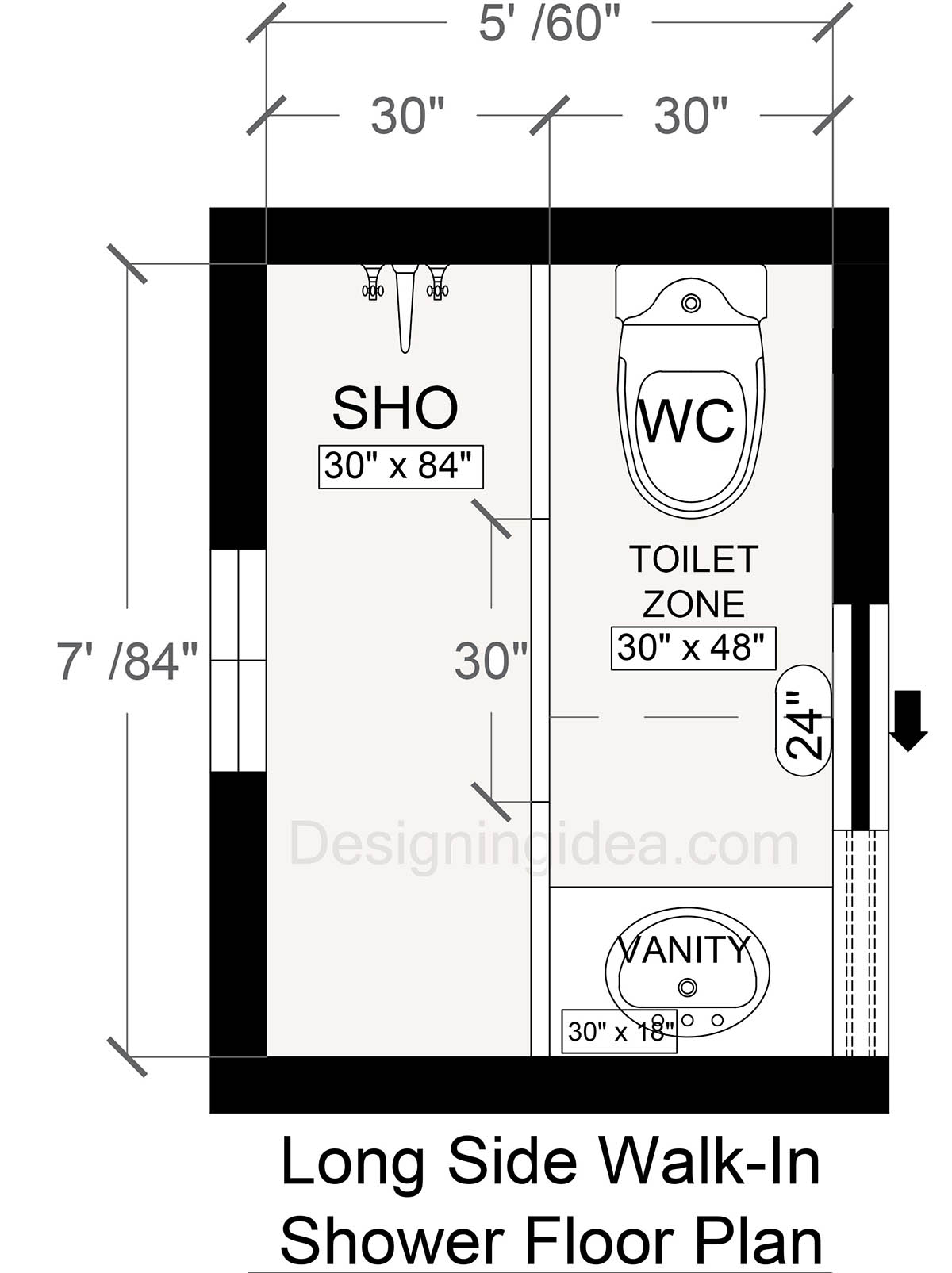

Floor plan details: This bathroom features a large walk-in shower running along the full length of the left wall. The enclosure is 30-inch by 84-inches and gives the room a clean linear structure that feels much larger than a typical short shower stall. As you enter on the right side through a sliding pocket door, you’ll find the toilet placed to your right or up top, in a dedicated 30-inch by 48-inch zone, while a small 30-inch by 18-inch vanity sits to your left or on the bottom. This stacked arrangement is efficient and feels practical and open. What makes this plan stand out is the long center partition between the shower and the rest of the bathroom. The divider helps define the shower and keep splashes from interfering with the dry side.
Dimensions:
Room size: 5′ x 7′
Overall interior dimensions: 60″ x 84″
Long side walk-in shower: 30″ x 84″
Toilet zone: 30″ x 48″
Vanity size: 30″ x 18″
Shower width: 30″
Right-side circulation/fixture lane shown: about 24″
Room width split: 30″ shower side & 30″ fixture side
Design tips:
Install the same wall tile throughout the shower and use a frameless glass panel that makes the whole room feel bigger.
Keep the vanity slim with efficient storage underneath and pair it with a recessed medicine cabinet above.
Add a ceiling light centered over the room, with a dedicated vanity light.
This design showcases an angled back-corner shower that saves your usable floor space while giving you an effective side by side toilet and vanity.

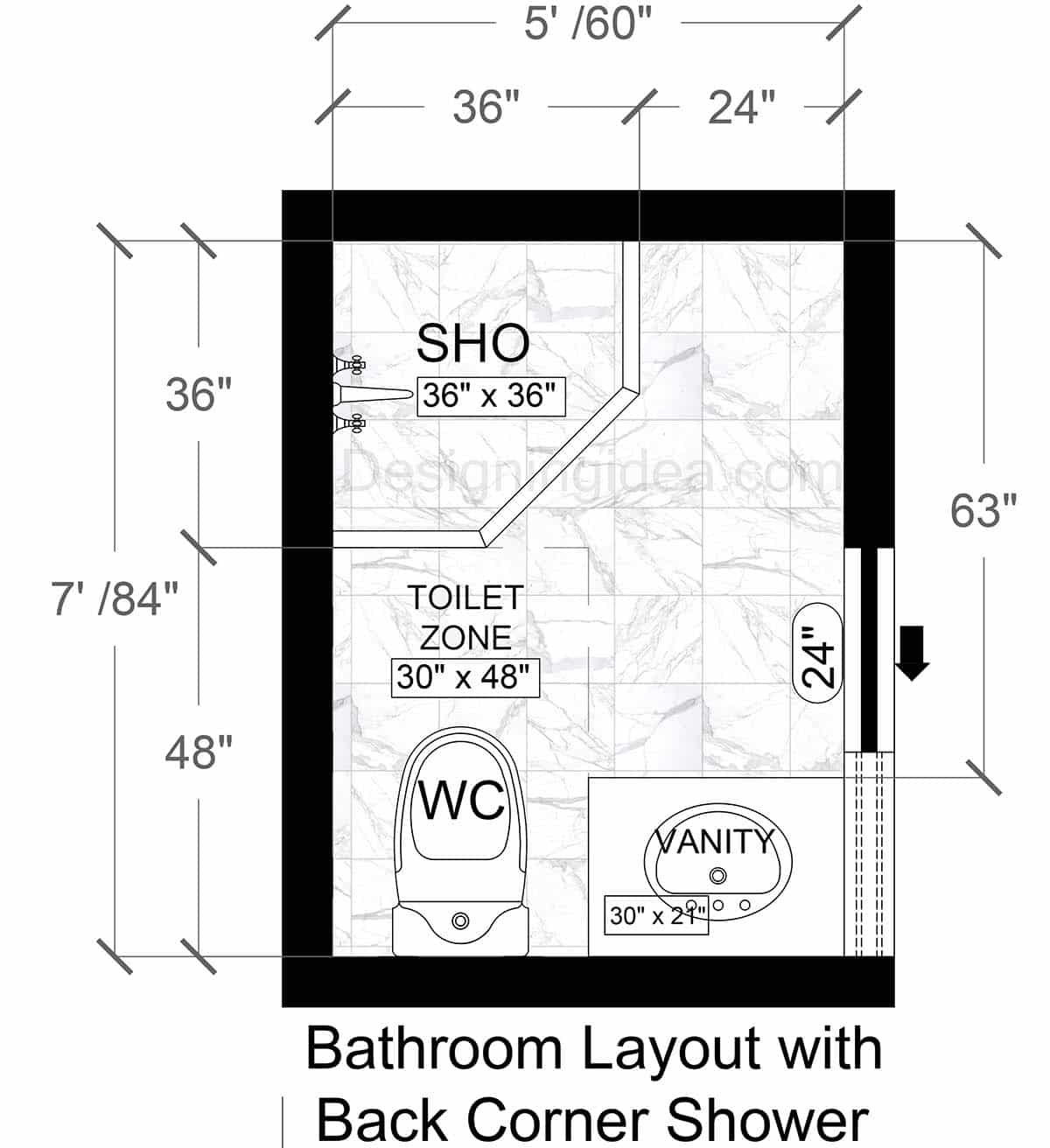

Floor plan details: This 5×7 bathroom uses a compact angle-design back-corner shower that provides a little more space in the middle of the room. The enclosure measures 36-inch by 36-inch and is placed in the rear-left corner. That angled front is what makes the plan feel easier to move through to use. The toilet and vanity sit on the bottom part. The toilet has a dedicated 30-inch by 48-inch zone, and the single-sink vanity measures 30″ by 21″. The balance between fixture size and open floor area prevents the room from feeling too tight.
Dimensions:
Room size: 5′ x 7′
Overall interior dimensions: 60″ x 84″
Back corner shower: 36″ x 36″
Shower frontage: angled / neo-angle entry edge
Toilet zone: 30″ x 48″
Vanity size: about 30″ x 21″
Width split at the back wall: 36″ shower side + 24″ open side
Clear circulation space shown near entry side: about 24″
Design tips:
Choose a frameless neo-angle enclosure with glass panels and avoid heavy metal framing that can make this type of shower look smaller.
Keep the vanity shallow at about 30-inches so it doesn’t block the doorway and select one with drawers to maximize your storage space.
Install the same floor tile throughout the bathroom and into the shower, and select larger-format tile to help it feel bigger.
Hang a recessed medicine cabinet over the vanity and a shelf above the toilet to make the room much more functional.
Boutique Wet-Zone Bathroom Design
This bath layout is laid out with a generous back shower zone on top and a compact front vanity and toilet arrangement that allows movement through the middle of the room.

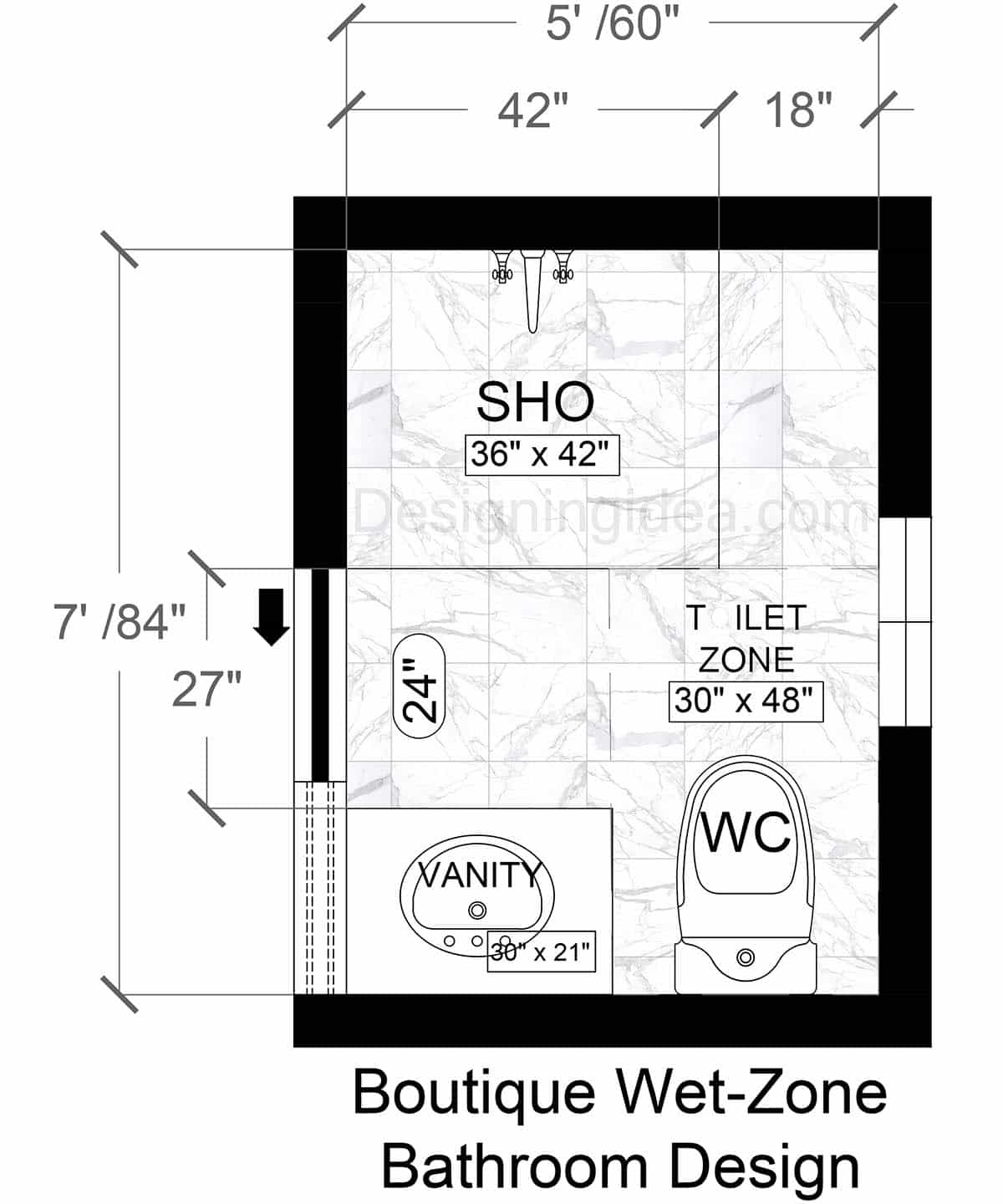

Floor plan details: This 5×7 bathroom uses a boutique-style layout that gives the shower extra visual importance without overpowering the room. As you enter through the doorway on the left side, the shower has a 36-inch by 42-inch enclosure on your left, while the vanity and toilet occupy the right. Instead of boxing it tightly into one corner, the enclosure leaves additional open space for additional storage. There is a 30-inch by 21-inch vanity that sits along the lower-left side near the entry, which leads to a dedicated 30-inch by 48-inch toilet zone. There is a central passage for a walkway of about 24 inches, which is enough to keep the room usable and easy to move through.
Dimensions:
Room size: 5′ x 7′
Overall interior dimensions: 60″ x 84″
Shower size: 36″ x 42″
Back wall allocation: 42″ shower zone and 18″ open side
Toilet zone: 30″ x 48″
Vanity size: 30″ x 21″
Circulation path shown: about 24″
Entry opening: about 27″
Design tips:
Convert the design to a wet room style by adding a linear drain, with a slight floor slope instead of a fully enclosed shower for a more open space.
If splash control is a concern, install a fixed glass panel without losing the open boutique effect.
Choose moisture-friendly finishes on the vanity with a quartz or solid-surface counter, and durable paint.
Since the room leans into an open wet-zone, make sure you have a good exhaust fan, and fast-drying materials will help with maintenance.
Keep the color palette restrained and avoid bulky storage pieces.
Bathroom With Fixtures on One-Side Layout
This bathroom layout organizes all of the main plumbing fixtures efficiently on one side, cutting down on construction costs and creating an open walking space in front.

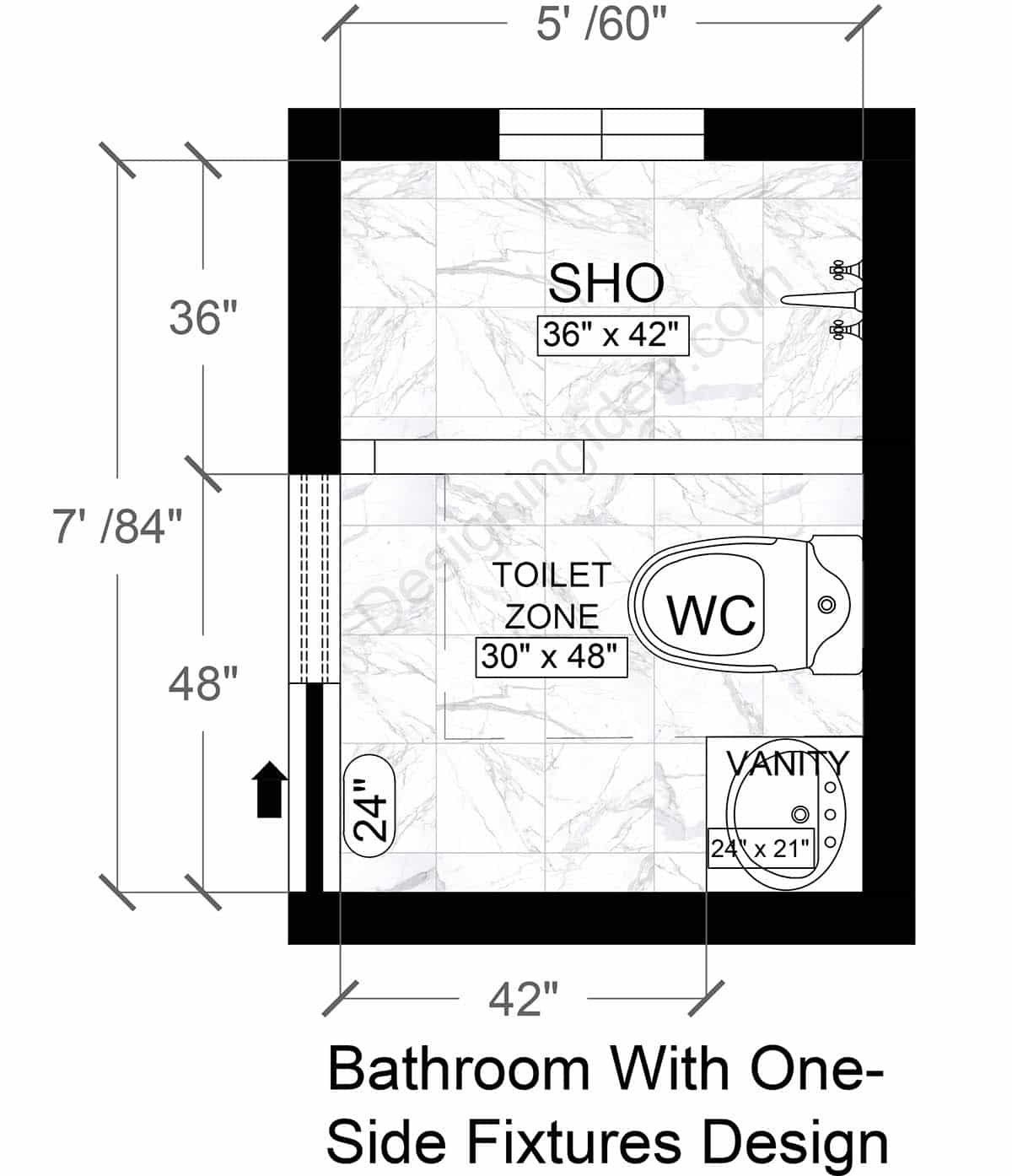

Floor plan details: This 5×7 bathroom uses a one-side fixture arrangement that keeps the toilet, sink and showerhead grouped along the right side while leaving the left side open for movement. At the back of the room, there is a shower measuring 36-inch by 42-inch shower that stretches across the top portion. Below that, the toilet occupies the middle-right area in a dedicated 30-inch by 48-inch zone. Further along, there is a compact 24-inch by 21-inch vanity in the lower right corner. That stacked-right approach is what gives the plan its name, cuts down on construction remodel costs, and makes everything feel more organized.
Dimensions:
Room size: 5′ x 7′
Overall interior dimensions: 60″ x 84″
Rear shower size: 36″ x 42″
Front dry-zone depth: 48″
Toilet zone: 30″ x 48″
Vanity size: 24″ x 21″
Open circulation path shown on the left side: about 24″
Width shown across lower room area: 42″ span before vanity/toilet side zone
Design tips:
Keep the left side open so the path stays open and there is an easy walkway to all of the fixtures.
Since the vanity is only 24 inches wide, hang a mirrored medicine cabinet above with a recessed niche nearby to make up for the smaller base cabinet.
Add wall niches in the shower with a bench on the far left to promote a more comfortable showering setup.
Ensure there is 15″ of clearance from the toilet’s centerline to either side to ensure it is code-compliant.
Choose lighter-toned cabinetry with simple hardware to help keep the room feeling balanced.
For more designs like this visit our 6×8 bathrooms gallery.
