5 Functional 5×5 Walk-In Closet Layouts You’ll Love
You may think a 25-square-foot closet can’t feel luxurious, well think again. One can design a well-planned 5×5 walk-in that uses double-hanging rods, shoe towers, a sit-down vanity, or even a storage bench, without sacrificing anything. The secret lies in choosing the right layout so that there’s no wasted space. Below you’ll find five 5×5 walk-in closet layouts, each engineered for a different need. You’ll find designs that maximize hanging space, streamline shoe storage, offer vanity prep, and bench seating that you’ll love using every day.

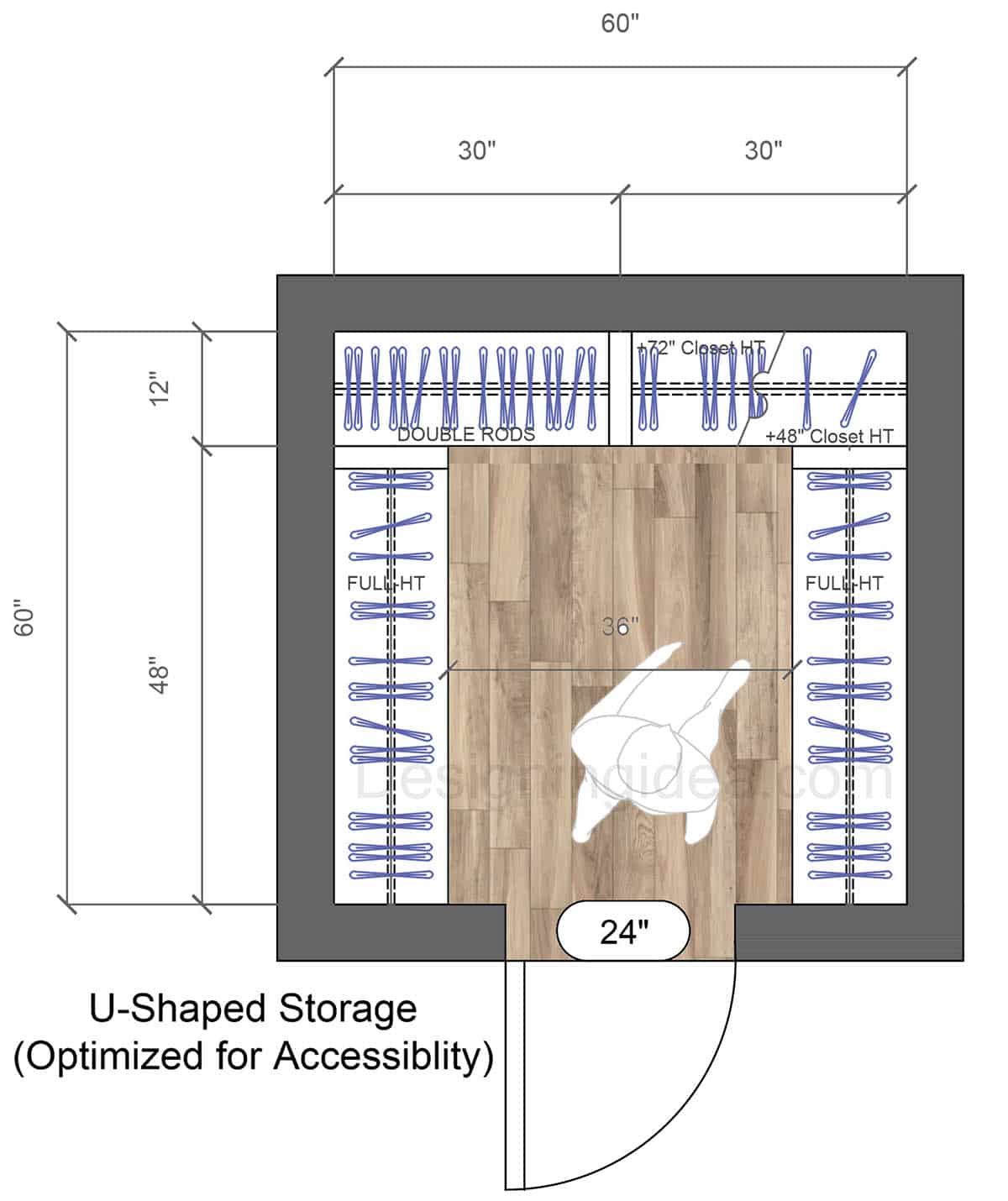

U-Shaped Hanging Clothes Storage Closet Layout
By using a super slim 12 inches of hanging depth, this 5 × 5 closet floor plan delivers three walls of clothing storage within a very small footprint.
Floor Plan Details: This compact walk-in offers clothing rods on all three walls with 12-inch-deep hanging sections, forming a U-shape that offers a 36-inch-wide turning space in the middle. As you enter from the lower door you’ll find full height hanging racks on either side for longer garments and apparel. The backside provides two sections with conventional double-hanging rods for shirts and folded pants on one side and full-height single rods.
Dimensions:
- Room size: 60″ W × 60″ D (5 ft × 5 ft)
- Center aisle/turning radius: 36″ W
- Hanging section depth: A slim 12″ on all three walls
- Back wall storage: two 30″ wide sections
- Left: double-hang (upper & lower rods)
- Right: single rod at 48″ height
- Side wall storage lengths: 48″ each (full-height single rods)
- Door opening: 24″ outswing
Design Tips:
- Keep rod depth slim. Maintain a 12″ width to preserve the 36-inch center clearance.
- Mix double and single-hanging zones. This gives you a variety of space for longer coats or dresses.
- Mount all rods on adjustable standards. This gives you the option to raise or lower them depending on your needs.
- Add a continuous shelf above the rods. Place the overhead shelving at 84″ for bins and baskets to hold off-season items.
- Use bright LED strip lighting underneath the shelving. This helps better illuminate the area.

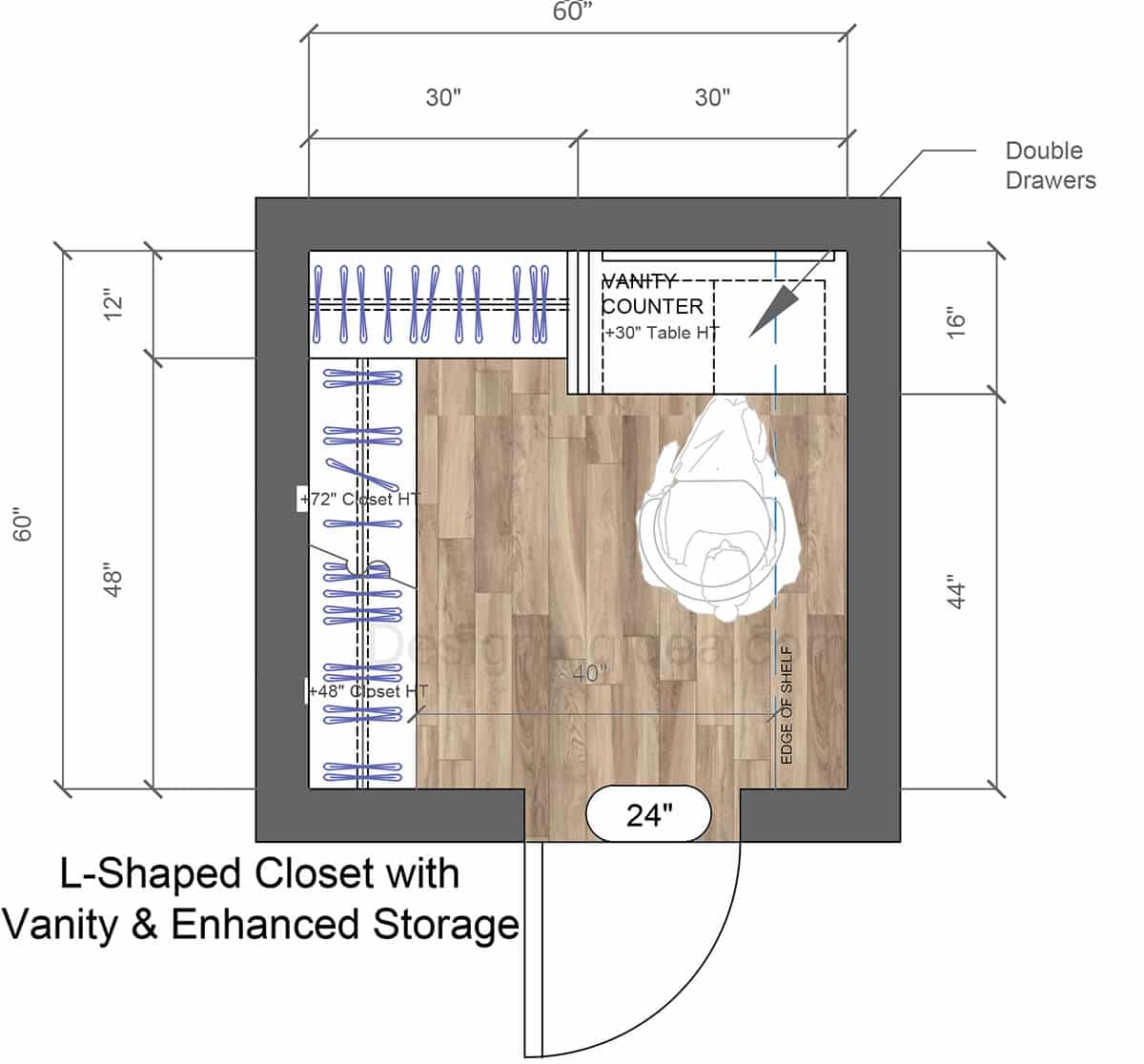

L-Shaped Closet with Vanity & Enhanced Storage Floor Plan
To get more room for changing, this L-shaped closet design offers two walls for clothes storage and swaps one wall for a sit-down vanity that provides dressing room functionality and the ability to move comfortably.
Floor Plan Details: Stepping through the outswing door, you face a 40-inch clear zone with room to pivot, dress, or pull out drawers without bumping into the clothes rods. Hanging starts on the left-hand side with a 48-inch long full-height single clothes rod. It turns the corner onto the back wall for a 30-inch run of double-hang rods, followed by a 30″ space for a sit-down vanity. The vanity counter has room to mount a mirror and a stool can tuck underneath when not in use. At the vanity’s right side, there’s a 16-inch-deep drawer tower for accessories and folding items. Since the L shape concentrates storage in two zones, it leaves the right side open for dressing or make-up tasks.
Dimensions:
- Room size: 60″ W × 60″ D (5 ft × 5 ft)
- Floor space (door to storage): 40″
- Hanging/storage depth: 12″ on hanging walls
- Left wall hanging: 48″ full-height single rod
- Back wall hanging: 30″ double-hang rods upper + lower rods
- Vanity counter: 30″ W × 16″ D × 30″ H at table height
- Drawer tower depth: 16″
- Door opening: 24″ outswing
Design Tips:
- Place vanity lights at eye level on both sides of the mirror. This helps to eliminate shadows while applying makeup.
- Use shallow 16-inch drawers. These can hold folded items without taking up too much of the dressing area.
- Install a continuous shelf 12 inches above the rods. This is useful for storing off-season items.
- Choose mirrored drawer fronts and a mirror above the vanity. Adding reflective surfaces can visually expand a compact room and bounce light.
- Add undermount LED strips and recessed ceiling cans. This will offer a variety of light, including both task and ambient.
Check out this page for a few slightly smaller 4×4 closets you can use.

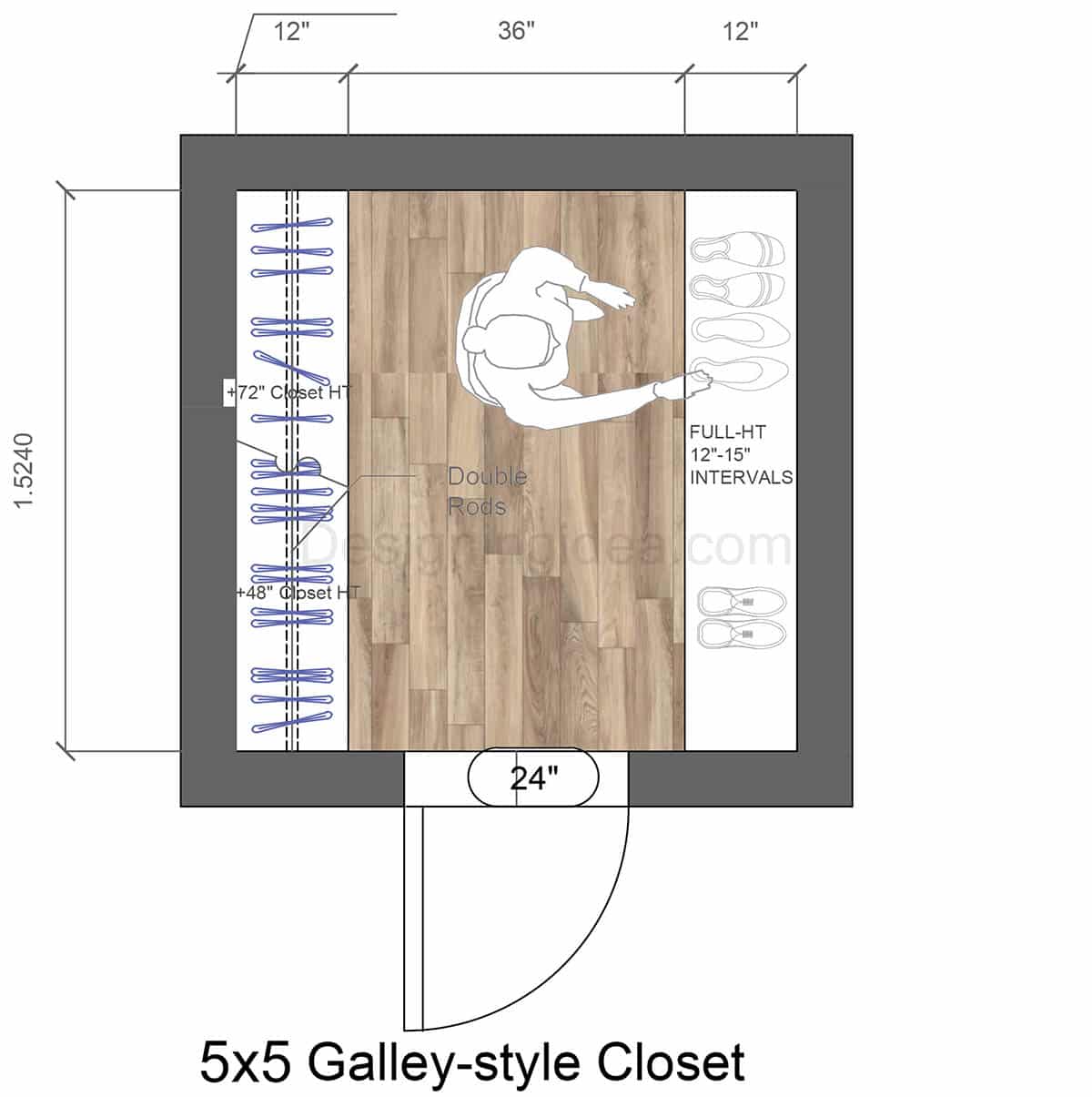

Galley-Style Closet With Shoe Storage Layout
This efficient symmetrical galley-style closet uses shallow double-hang storage rods on one side, and a floor-to-ceiling shoe tower on the other, so you benefit from a roomy 36-inch walkway for effortless dressing and access.
Floor Plan Details: As you enter this galley style closet, you’ll see clothes hanging on one side, with shoe shelves on the other, with a 36-inch aisle down the middle. The left side has 12-inch wide double hanging rods that are set about 48 in and 72 in high. On the opposite side there’s a full-height 12-inch-deep shoe tower that uses adjustable shelves at 12 to 15-inch intervals, each holding 18 to 20 pairs of shoes. This allows one to quickly and easily find heels or sneakers at a glance. Since the storage is kept shallow on both walls, all 25 sq ft remains walkable, allowing one to try on clothing without bumping into things.
Dimensions:
- Room size: 60″ W × 60″ D (5 ft × 5 ft)
- Central aisle width: 36″ clear
- Storage depth (both walls): 12″
- Left wall hanging length: 60″ continuous double rods at 48″ & 72″ height
- Right wall shoe tower length: 60″ with 12 to 15″ adjustable shelf spacing
- Door opening: 24″ outswing
Shoe Wall Spacing Guide:
| Footwear Type | Vertical Clear (Shelf Spacing) | Shelf Depth | Angle | Pairs per 30″ Shelf* | Notes |
|---|---|---|---|---|---|
| Flats & Sneakers | 7.5–8.5″ | 12″ (14″ if angled) | 0–10° | 6–7 | Use uniform slim pairs; add 1.5 to 2″ front lip or heel rail if angled. |
| Low/Medium Heels (1–3″) | 8.5–9.5″ | 12″ (14″ if angled) | 10–15° | 6–7 | Angling improves visibility and keeps a shallow front stop. |
| High Heels (3–4″+) | 9–10″ | 12–14″ | 10–15° | 5–6 | Allow extra toe clearance and the heel rail keeps pairs aligned. |
| Ankle Boots | 10–12″ | 12–14″ | 0–10° | 4–5 | Mix flat/angled. Raise the shelf to avoid toe overhang. |
| Mid-Calf Boots | 14–16″ | 12–14″ | 0–5° | 3–4 | Consider one taller bay and use boot shapers. |
| Tall/OTK Boots | 18–22″ | 12–14″ | 0–5° | 2–3 | Dedicate a tall bay or use hanging clips or hooks. |
| Handbags / Boxes | 10–14″ | 12–14″ | 0° | 3–5 | Shelf dividers keep bags upright. |
* Pairs per 30″ shelf assumes typical women’s widths; large men’s sizes may reduce counts by 1 pair per shelf.
Design Tips:
- Use identical slim hangers on the double-rod side. This keeps clothing perfectly aligned.
- Add toe-kick LED strip lighting beneath each shoe shelf. Illuminate the shoes so you can quickly find what you want.
- Reserve the top shelf of the shoe tower for decorative hat boxes. This allows you to better utilize the top for awkward fitting boxes that otherwise would not fit.
- Install a mirrored panel behind the shoe tower. A reflective surface helps bounce light and allows you to preview outfits without a separate full-length mirror.
- Cap both walls with a continuous 10-inch-deep overhead shelf at 84″ high. This can be used for out-of-season bags and linens.

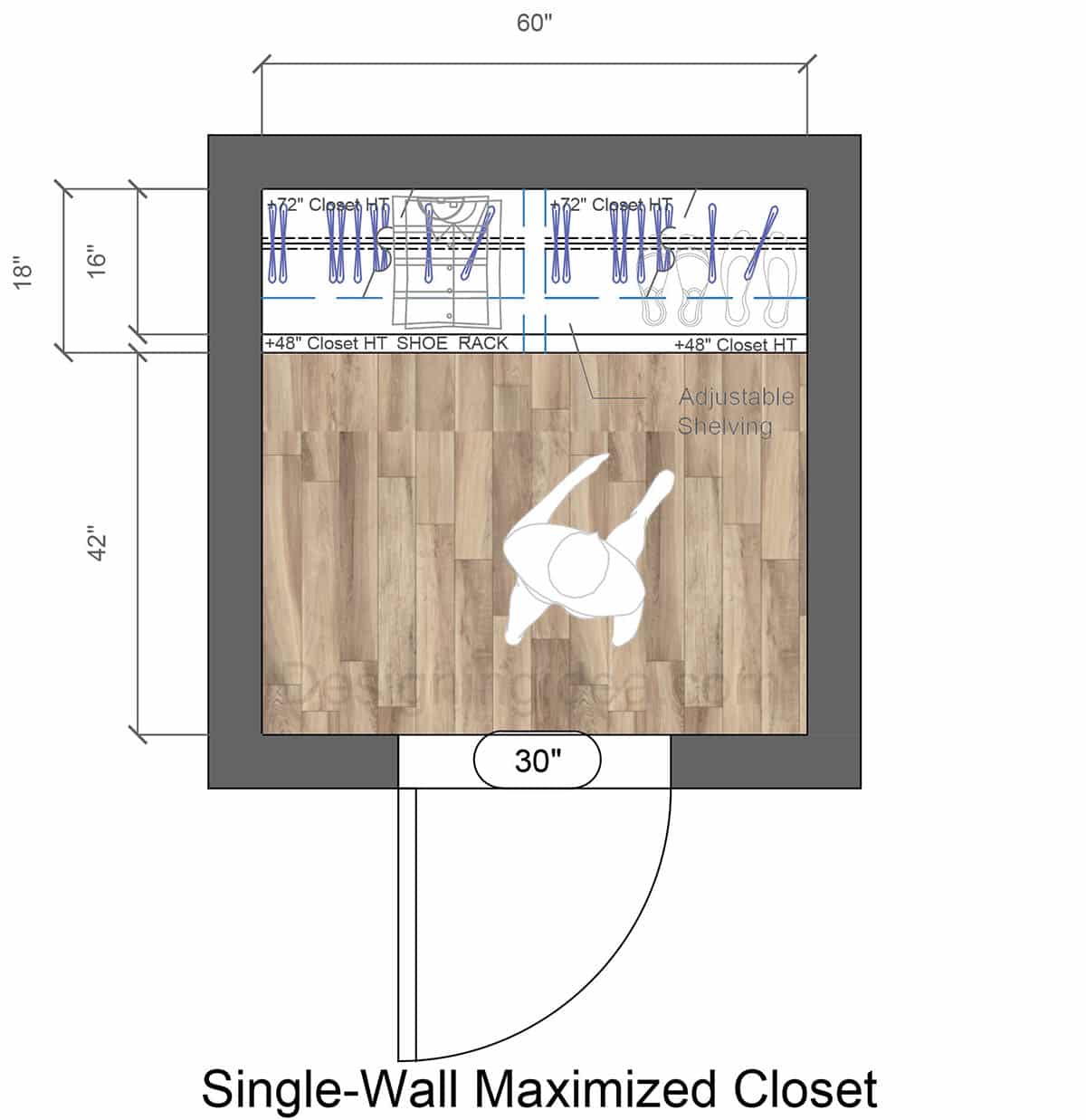

Single-Wall Maximized Storage Closet Design
This closet design uses the back wall for hanging clothing above a shoe rack with adjustable shelving to maximize a large open zone for changing and effortless movement.
Floor Plan Details: Instead of wrapping the sides in clothes racks, this layout pushes everything onto the 60-inch-wide back wall, allowing for a 42-inch-deep space for dressing. A shallow 18-inch built-in spans corner-to-corner and holds a continuous shoe rack that is 48 in high. Above this shoe rack, there’s a pair of hanging rods that run the full width at a height of 72 in. A single 12-inch-deep shelf is installed above the racks for off-season storage and seldom-used items. With the flexibility of the open space, there’s room for a small bench, vanity, or dresser depending on your needs.
Dimensions:
- Room size: 60″ W × 60″ D (25 sq ft)
- Storage depth (north wall): 18″
- Clear floor depth: 42″ from the door jamb to the storage face
- Hanging width: full 60″ double rods with the bottom at 48″, top at 72″
- Shoe rack height: 48″ that runs the full width beneath the bottom rod
- Adjustable shelf tower: 16″ W × 18″ D × 72″ H (right end)
- Overhead shelf: 60″ L × 12″ D at 84″ H
- Door opening: 30″ outswing
Capacity Estimates: (Realistic Ranges)
| Configuration | Hanging Width | Double-Hang Capacity* | Shoe Capacity** | Shelves/Drawers |
|---|---|---|---|---|
| A) Full 60″ double-hang | 56 to 58″ usable | 48 to 60 shirts/jackets (24 to 30 per rod) | Flat shelf under rod: 8 to 12 pairs – or add 2 to 3 tiers for 20 to 30 pairs | Top shelf bins only |
| B) 42–44″ hang + 16–18″ tower | 40 to 42″ usable | 36 to 44 shirts/jackets | 2 to 3 shoe tiers under hang for a total of16–24 pairs | 4 to 6 shelves or 2 to 4 drawers + hamper |
* Assumes slim, uniform hangers. ** Shoe counts vary by size; men’s larger sizes reduce counts.
Design Tips:
- Add a full body mirror to one wall. This enhances the dressing area while getting ready.
- Use a pull-out or angled shoe rack. By tilting pairs forward, it keeps toe prints visible and reduces vertical space.
- Line the back of the adjustable tower with LED strip lighting. (CRI 90+, 3000–3500K) In addition, add a motion sensor to eliminate dark shelves when you enter the room.
- Mount a frameless mirror on the inside of the door. This also helps brighten the area.
Corner Closet with Bench Seating Layout
By adding a storage bench into one corner and hanging racks and shelving in another, this 5 × 5 closet layout delivers a tightly organized, multifunctional design.
Floor Plan Details: This unique walk-in closet design transforms into a mini-mudroom, meets dressing nook with its corner bench with lift up storage. The 30 in × 30 in bench sits 18 in from the floor and hides lift-up storage for stowing purses or seasonal accessories. Directly above it, there’s a 10-inch-deep display shelf that’s ideal for decorative boxes, a scented diffuser, or perfume collection. The wall devotes 30 in to the bench and the remaining 30 in to double-hang rods, hung at 48 in and 72 in. On the right side there’s a 12-inch-deep, and 30-inch-wide shoe or clothes shelving tower, that allows for an open feel in the center of the room.
Dimensions:
- Room size: 60″ W × 60″ D (25 sq ft)
- Bench footprint: 30″ × 30″; seat height 18″
- Display/utility shelf depth: 10″ on the north wall, over the bench
- West wall hanging run: 30″ wide with double rods at 48″ & 72″ heights, and a 12″ depth
- East wall tower: 30″ H × 12″ D adjustable shelving or shoe cubbies
- Clear walk/turn space (door to bench): 30″ diagonal
- Door: 24″ outswing
Design Tips:
- Add a tilt-out hamper to the beside the shoe tower. Creates a way to dump dirty clothing and keep them out of the way until laundry time.
- Choose a hinged, soft-close bench lid. This way the seat doubles as hidden storage.
- Add three coat hooks on the short upper wall. This is perfect for setting out the next day’s outfit with quick access.
- Line the tower shelves with pull-out fabric bins. By using these containers you can cut back on clutter and slide them in easily onto the shelving.
- Install LED puck lights under the display shelf. Helps to brighten the dressing area.
More more floor plan designs like these, check out our 6×6 closets on this page.
