4×8 Walk in Closet Layouts With Big Style and Functionality

When you have a smaller closet space its important to use the best floor plan to get the most out of it. With the right 4×8 walk-in closet layout you can get the most out storage your usable storage and functionality. These designs cover everything from L-shaped shelving arrangements, integrated vanities, to U-shaped designs that wrap you in storage options. In this guide, I’ll walk you through beautifully designed 4×8 layouts that maximize your space without compromising function or style.

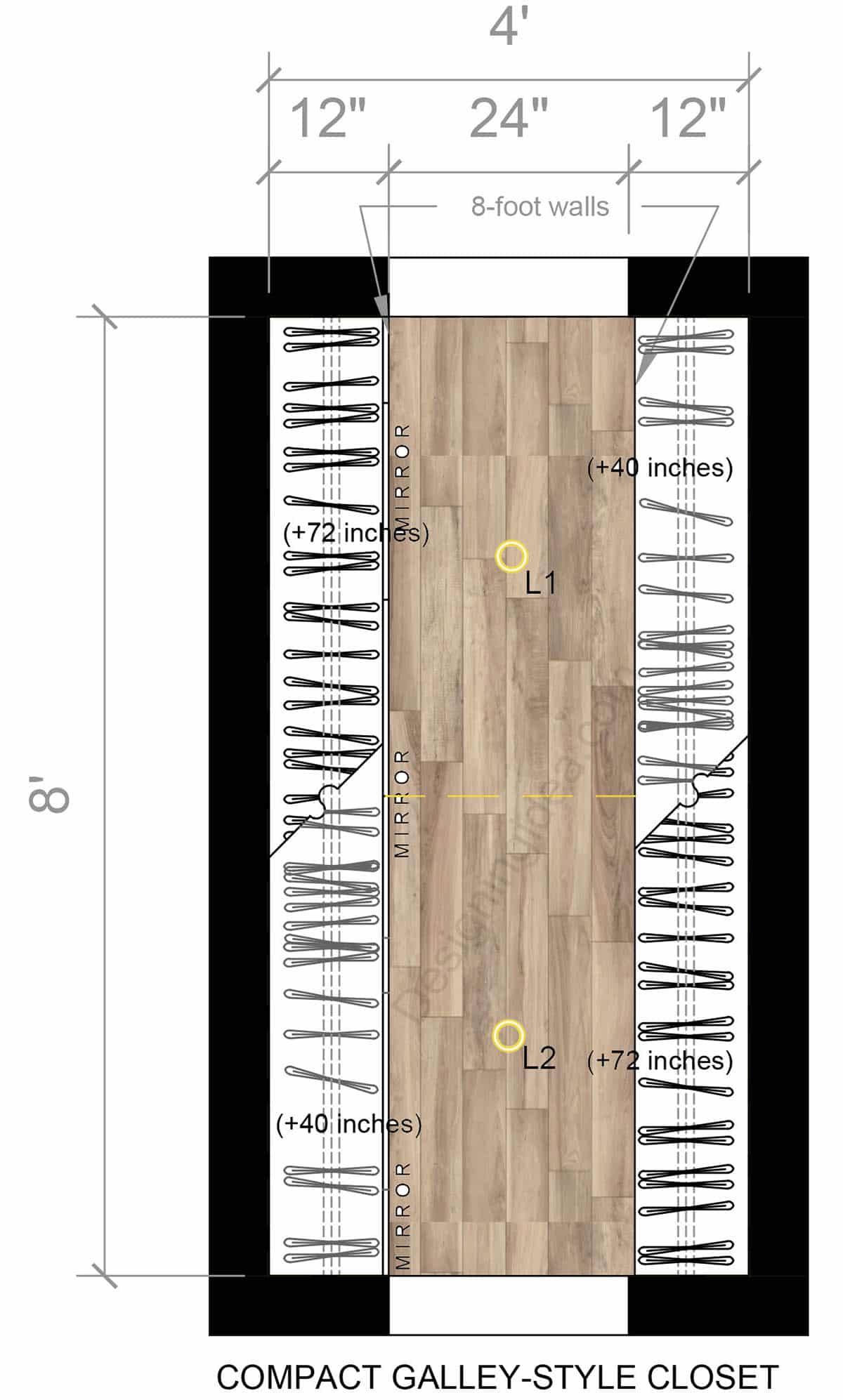

4×8 Compact Galley-Style Closet Layout

A galley-style closet is a great option that provides walk-in functionality in a reach-in footprint that’s perfect for singles or couples in condos or small bedrooms that need maximum hanging space.

Floor Plan Details: Picture an 8-foot-long hallway that’s only 4 feet wide, now subtract one foot of storage depth from each long wall, and the part that’s left is a snug 2-foot-wide center aisle. This is just enough room for one person to stand and select clothing items without bumping into the clothes racks. That’s essentially what you get with this compact galley closet that offers parallel 12-inch-deep clothing rods flanking a two-foot walkway. Placed at the end is a full-height mirror panel that doubles as a visual enhancer and a place to see yourself as you get ready. Rods on both sides are staggered with taller sections for dresses (with a 72 in. drop) opposite a row of shorter double-hang sections for shirts and pants (with a 40 in. drop). This way there’s no entanglements or clothing getting in the way of others. Two ceiling can-lights (L1 and L2) provide adequate illumination to wash the mirrored wall with an even glow, preventing the “tunnel” like feeling typical of narrow closet designs.

Dimensions:

• Room size: 4′ W × 8′ L (48 in × 96 in)
• Aisle width: 24 in clear walking path
• Storage depth (each wall): 12 in shelves/rods
• Long-hang drop: 72 in (left wall, upper section)
• Double-hang drop: 40 in + 40 in stacked (right wall & lower left)
• Lighting: 2 recessed cans centered along aisle (approx. 4 ft apart)

Design Tips:

• Use slim, 12-in-deep clothing racks. Standard 14–16 in systems will choke into the aisle and not allow enough room to get by easily.
• Add a full wall mirror panel at the end. This visually enhances the brightness and lets you view outfits head-to-toe.
• Stagger hanging zones. Put long-hang opposite double-hang so clothes never clash, and you get the most out of the limited space.
• Add shelf lighting strips under each rod. This looks cool and prevents shadows and dark corners.
• Install pull-out accessories (belt/tie racks) near the doorway. Dedicate the front 18 inches of reach for these often-used accessories.

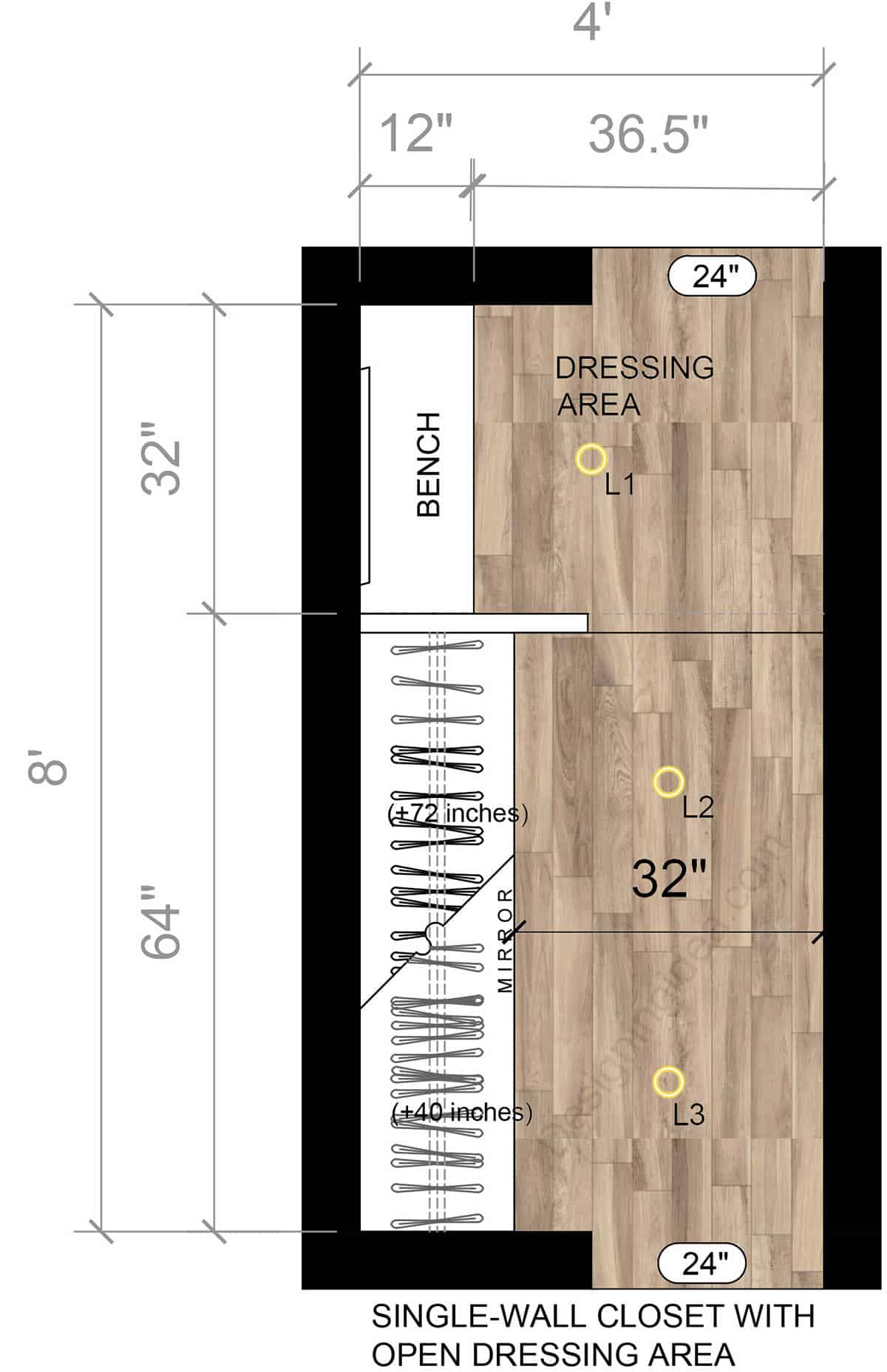

4×8 Single-Wall Closet with Open Dressing Area

This single-wall layout transforms your closet into a micro dressing suite, ideal for homeowners who prefer ample space to change clothes but only have room for cabinetry on one wall.

Floor Plan Details: Instead of lining both sides with storage, this pass-through layout reserves the entire right-hand half of the room for movement and dressing. It’s ideal for rooms that have the closet between the bedroom and bathroom. At the top entry, you step onto a 32-inch-wide runway that guides you to a 32-inch-deep alcove with a bench. The bench runs along the left wall with room for a small hamper or shoe storage underneath. Beyond the bench the left wall switches to full-height storage racks with 72 in of long-hang rods above and 40 in of double-hang rods below. A tall mirror is angled just past the hanging zone, reflecting the light and increasing the apparent width. Three recessed lights (L1–L3) are positioned down the centerline so both the dressing niche and the hanging section are evenly lit.

Dimensions:

• Room size: 4′ W × 8′ L (48 in × 96 in)
• Storage depth (left wall): 12 in custom system
• Walkway width: 32 in clear (meets ADA minimum for a single user)
• Dressing alcove depth: 32 in from doorway to bench face
• Bench length: full 32 in section, 17–18 in seat height is recommended
• Long-hang drop: 72 in (coats, dresses)
• Double-hang drop: 40 in + 40 in stacked (for shirts, and pants)
• Door opening: 24 in pocket or swing door

Design Tips:

• Choose slim racks. A 12-in deep clothes hanging system leaves a comfortable 32-in aisle that avoid crowding the passage.
• Use the bench as a shoe cubby. A flip-up or open-front seat hides footwear. Or use an open shoe rack underneath if you want.
• Frame the mirror. Setting the mirror at a slight tilt past the rods gives a full-body view without blocking much hanging space.
• Layer lighting. Recessed cans plus an LED strip under the long rod helps eliminate shadows.
• Keep accessories forward. Place a pull-out tie or belt rack near the doorway so you can grab them without walking deep into the space.

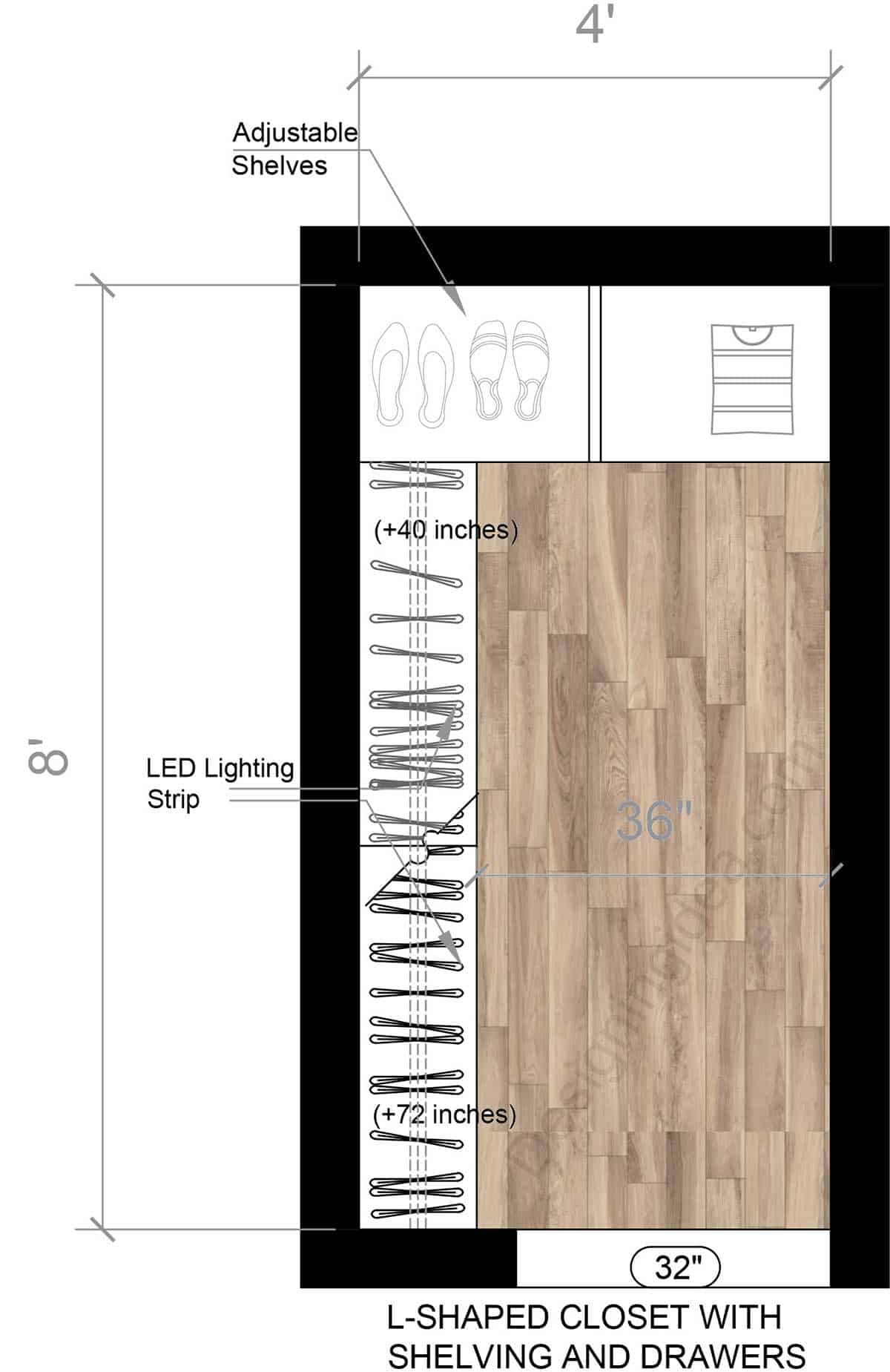

4×8 L-Shaped Closet with Shelving and Drawers Design

An L-shaped arrangement allows for both hanging and folded storage while still providing a full 3-foot turning zone that works for both singles or couples who need a variety of storage options. (rods, shelves, drawers)

Floor Plan Details: This 4-by-8-foot closet combines full-height hanging rods with a bank of shelves and drawers that hug two walls and open up the other side for a roomy walkway. The result is a 36-inch gallery aisle on the right side where you can step back, sort outfits, or change outfits without feeling cramped. Along the left wall, clothing rods are split between a 72-inch long section for hanging dresses and coats and a double-hang stack (2 × 40 in.) for your shirts and pants. Turning the corner, the 4-foot-wide top wall is split into a section for adjustable shelving next to a space for deep drawers that work well for shoes, sweaters, and accessories you’d rather fold than hang. Because all storage stays 12 inches deep, the central floor remains open.

Dimensions:

• Room size: 4′ W × 8′ L (48 in × 96 in)
• Storage depth (both legs): 12 in custom system
• Aisle width: 36 in (comfortable pivot space)
• Long-hang drop: 72 in
• Double-hang drops: 40 in + 40 in stacked
• Top-wall cabinet run: full 48 in width with adjustable shelves over drawers
• LED strip placement: underside of upper rod/shelf, left wall

Design Tips:

• Keep both legs of the L shallow. Limit units to 12 in deep to preserve the 36-in walkway.
• Use corner transition pieces. A slanted shoe shelf or curved shelf works well in the corner of the L.
• Mix closed and open storage. Drawers can hide socks and lingerie, while the open shelves display shoes or handbags.
• Add continuous lighting. An LED strip and puck lights on upper shelves can eliminate dark pockets and make colors look real.
• Plan vertical zoning. Put seldom-used items on the highest shelves, with everyday folded items in waist-high drawers, and reserve the lowest area for shoes.

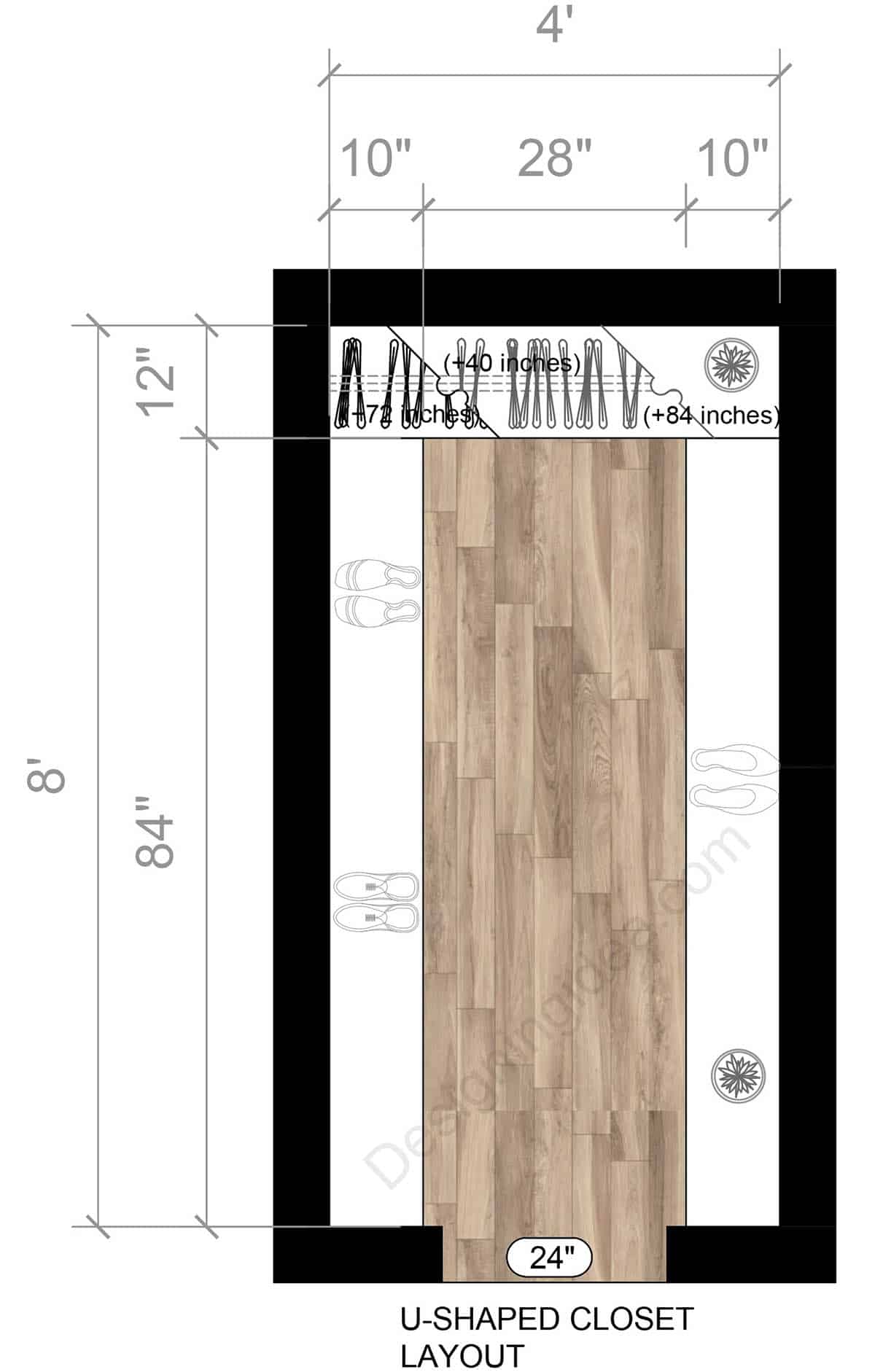

4×8 U-Shaped Closet Layout

This U-shape full walk-in features three walls of storage, providing ample space for clothing, with a slender 2-ft passage for dressing.

Floor Plan Details: This 4 × 8 ft closet layout puts hanging and shelving on all three walls, forming a “U” shape. The long racks feature 10-inch-deep closet components, leaving a consistent 24-inch aisle for you to select your clothing. At the far (4-ft) wall the storage has 12 inch storage racks with upper and lower rods. A slanted corner shelf bridges the sidewall rods into the back wall, creating a handy drop-off zone for shoes or handbags. The left and right runs are vertically zoned with shelving for folded clothing, shoes, and accessories on either side.

Dimensions:

• Room size: 4′ W × 8′ L (48 in × 96 in)
• Sidewall storage depth: 10 in (full height)
• Rear-wall storage depth: 12 in (shallow to widen turning zone)
• Aisle width: 24 in near the door that opens to 28 in
• Long-hang drop: 72 in (for coats and dresses)
• Double-hang drops: 40 in + 40 in (for shirts and pants)
• Upper rod height on rear wall: 84 in (for seasonal or seldom-used items)

Design Tips:

• Mix depths intentionally. Using shallower side units (10 in) keeps the “U” feel without cramping the entry aisle.
• Light from above. One flush-mount ceiling fixture in the middle of the aisle plus LED strips under each side shelf can help provide adequate lighting.
• Color-code your zones. Use dark wood on the rear crosspiece to make the aisle feel longer and draw eyes to hanging garments.
• Reserve floor under the side racks for totes. Because the side units are shallow, you can slide stackable bins beneath them without creating tripping hazards.

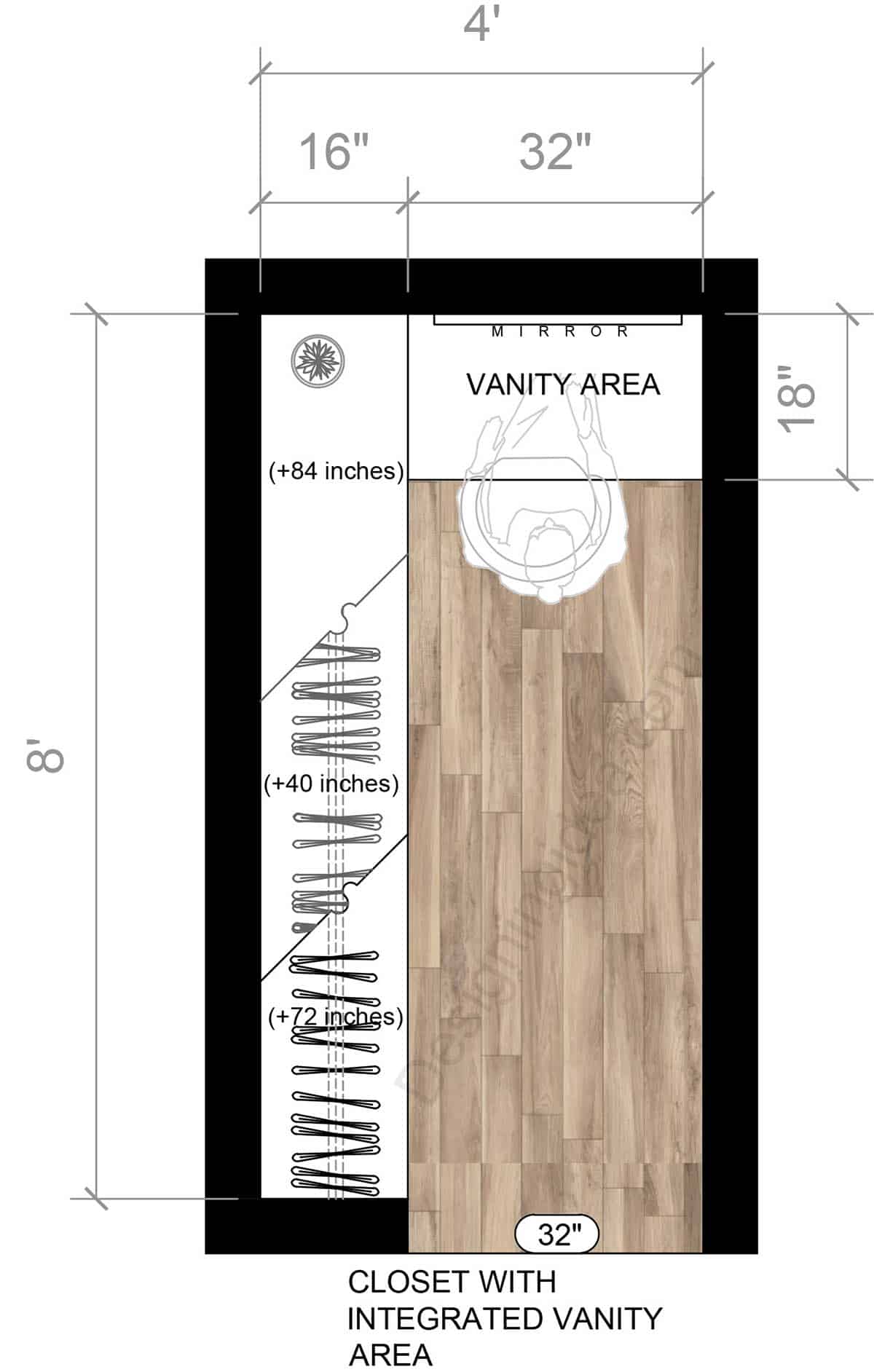

4×8 Walk-In Closet Floor Plan with Integrated Vanity Area

With a vanity positioned at the end wall, this closet layout transforms a basic narrow design into a complete get-ready station, that’s perfect for anyone who wants clothing, cosmetics, and mirror time all in one small area.

Floor Plan Details: Step inside and you’ll find the entire left-hand end of this 4 × 8 ft closet devoted to 16″ clothing racks. In the back, there’s a built-in vanity with a 32-inch-wide countertop, backed by a wall-to-wall mirror. Because the vanity occupies the short back side instead of a side wall, the aisle remains large at 32 inches with enough room to pull up a stool and still pass around it. Storage is contained completely along the left side with double-hang sections (40 in. drops) to take care of shirts and pants, while a 72-inch long-hanging bay keeps dresses within reach. A corner shoe wedge turns that dead space into a handy perch for your favorite heels. The vanity’s mirror doubles as the closet’s focal point, bouncing light from recessed lighting on the ceiling and the integrated LED strip under the top rods so garments and makeup colors read true to life.

Dimensions:

• Room size: 4′ W × 8′ L (48 in × 96 in)
• Aisle width: 32 in (full length)
• Vanity width: 32 in
• Vanity depth: 18 in countertop projection
• Side cabinet next to vanity: 16 in W × 12 in D with adjustable shelves
• Hanging depth (left wall): 16 in custom system
• Long-hang: 72 in drop
• Double-hang: 40 in + 40 in stacked
• Mirror width: full 32 in over vanity

Design Tips:

• Wire task lighting into the mirror frame. Use a 3,000 to 3,500 K LED strip around the mirror to eliminate shadows for makeup and knotting ties.
• Add a shallow drawer under the vanity top. At just 3 to 4 inches deep, it can accommodate jewelry trays when needed.
• Mount power outlets inside the side cabinet. Hair tools and phones stay plugged in but hidden, keeping the countertop clutter-free.
• Use matching finishes. Run the vanity countertop material (wood or stone) across the top of the side cabinet so the two elements are cohesive and stylish.
• Use shelving above the rods. Make sure to use a top shelf for seldom-used or seasonal items.
