A 10×12 kitchen gives enough space to cook comfortably, with plenty of room for countertops and storage, but still small enough that care must be taken to successfully create the floor plan. The right design can give you the space you need for food prep, traffic flow, and an effective work triangle that promotes everyday functionality. Below, I share five practical 10×12 kitchen layout ideas that range from classic L-shapes to efficient parallel galleys and U-shapes, with all of the dimensions and design tips you can use in your own remodel or new build.

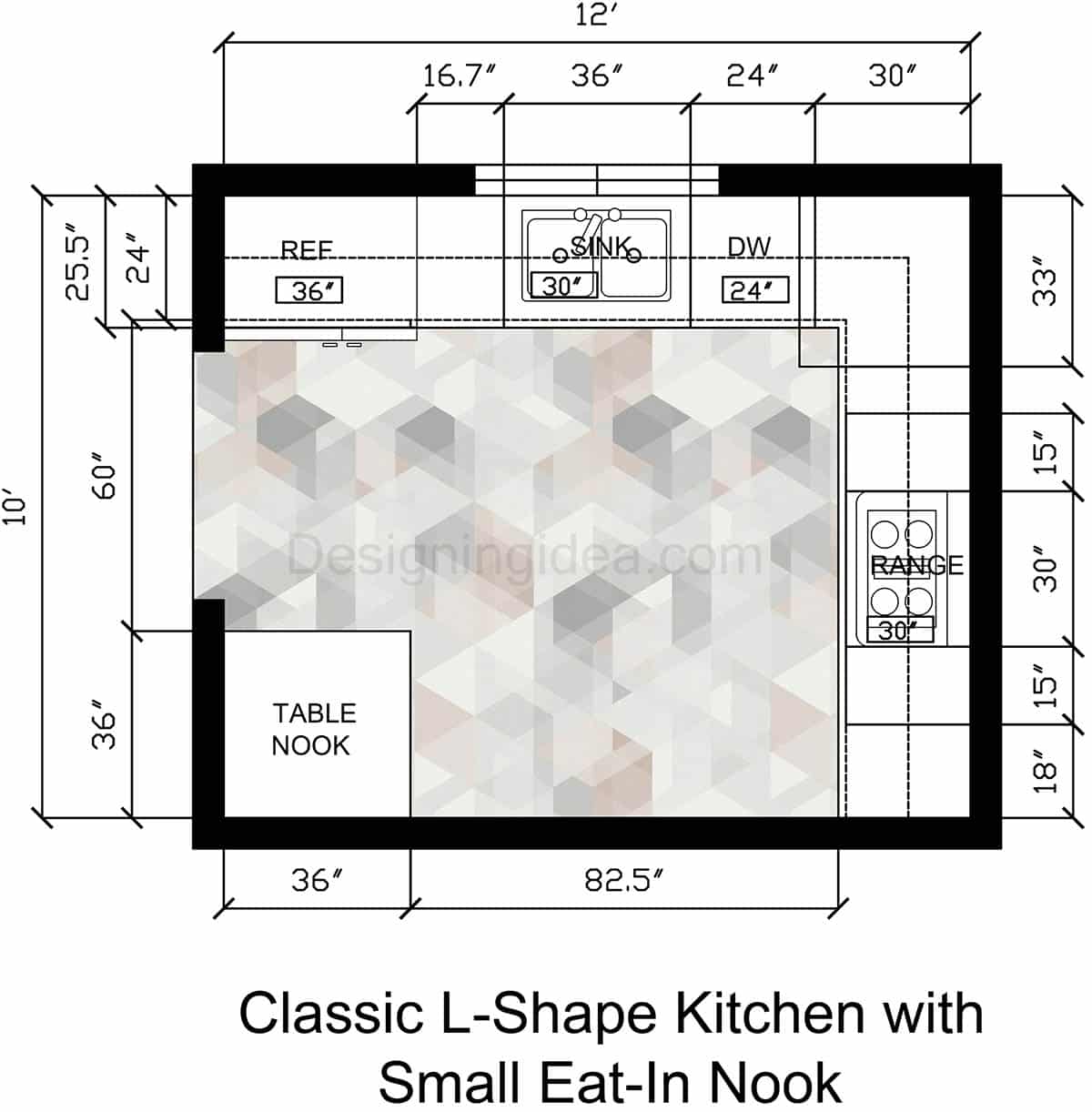

Classic L-Shaped Kitchen with Small Eat-In Nook Layout
This kitchen uses an effective L-shape design paired with a tucked-in 36″ table nook to provide eat-in dining, ease of traffic flow, and access to all of the appliances, cabinets, and counter space.
Easily Create Your Own Room Makeover
Upload a photo and get instant before-and-after room designs. No design experience needed — join 2.39 million+ happy users. 👉 Try the AI design tool now
Floor Plan Details: This 10′ × 12′ kitchen uses a classic L-shape layout that runs from the top wall and down the right side to maintain a tight work triangle with a big open center for easier movement. The sink is centered on the top under a window, with the dishwasher to the right and the refrigerator on the left. The range sits halfway down the right side with open countertops to either side to facilitate food prep and cooking. The design makes room for a small eat-in nook in the bottom-left corner for eat-in dining. Since this table is tucked out of the main cooking path, you can seat one or two people without blocking the main pathways. You could also opt for a portable table or island here that can be pulled out and used as an additional work surface or when entertaining for staging food.
Dimensions:
Room size: 10′ × 12′
Main open aisle/center depth: 60″ (open floor area from counters to the lower side)
Table nook footprint: 36″ × 36″
Bottom open span (nook to right side): 82.5″
Counter depth (shown): 24″
Refrigerator: 36″ wide
Sink base: 36″ wide with a 30″ sink
Dishwasher: 24″ wide
Range: 30″ wide
Range landing spaces (shown on right run): 15″ above and 15″ below the range
Design Tips:
Optimize the corner use by installing a lazy Susan or a pull-out shelving system so it’s easier to reach inside.
Upgrade the nook table to create a micro-banquette by adding a slim bench 14 to 18″ deep against the bottom wall.
Add several recessed overhead lights in the room, plus under-cabinet lighting along both legs of the “L” to better illuminate the countertops.
Maintain the 15″ counters near the range, and consider adding a slim utensil pullout or spice cabinet to reduce clutter up top.
Plan the fridge door swing and make sure the doors can open fully without crashing into the wall or adjacent cabinet.
Why it works: An L-shaped kitchen with a table nook gives you an open pathway in the center with good workflow and a small dining spot.

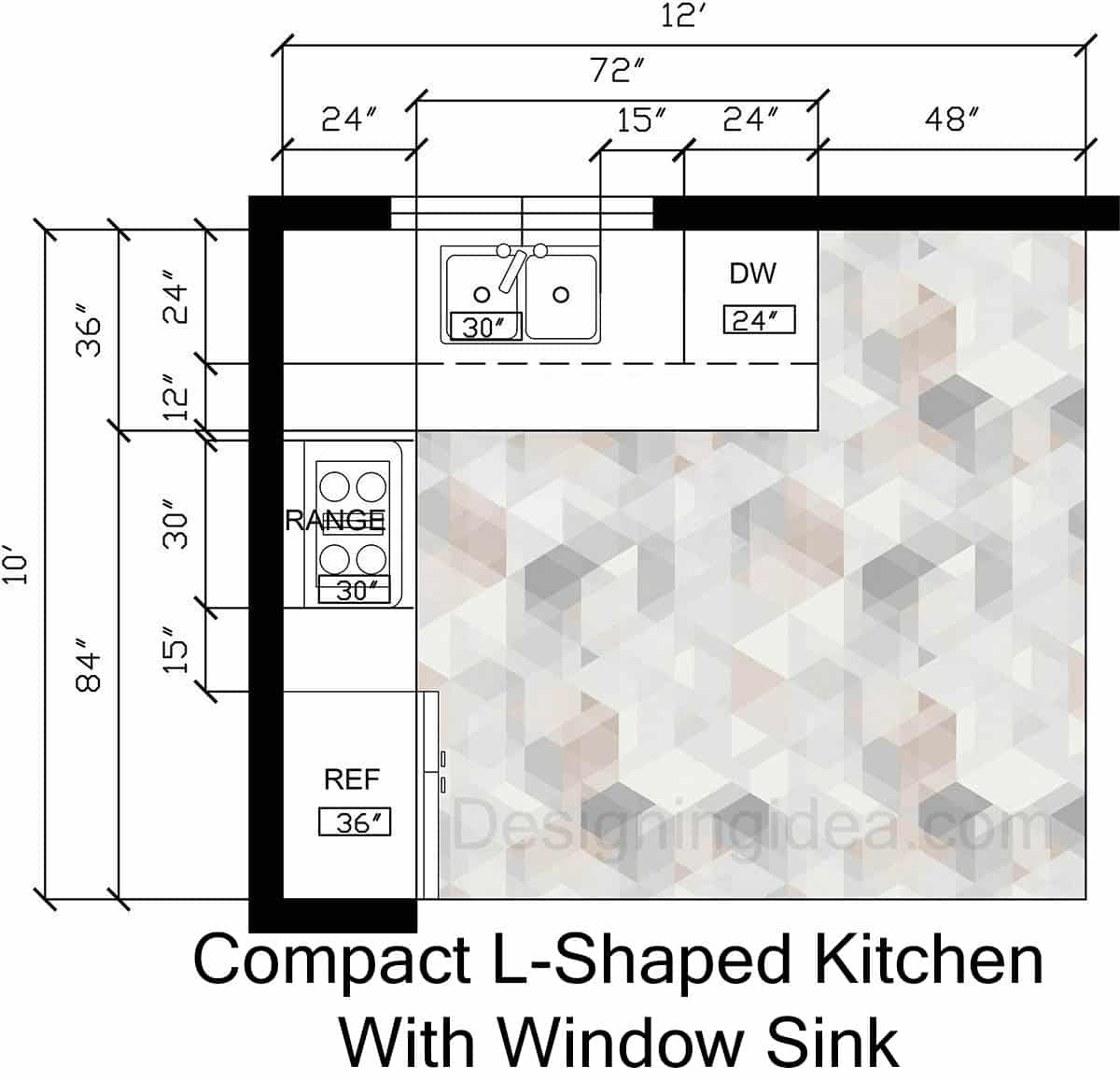

Compact L-Shaped Style Kitchen with Window Sink Floor Plan
This open concept kitchen design delivers an inviting sink under the window with counter and cabinet space that keeps the room functional.
Floor Plan Details: This 10′ × 12′ kitchen uses a compact L-shape for its counters and cabinets, with the remainder of the space open to a living or dining space. The left wall stacks the big appliances, starting with a 36″ refrigerator on the lower left, a 30″ range above with counter space to either side. From the top, the countertops extend across 72″ with a 30″ sink centered under the window, and a 24″ dishwasher to its right. This arrangement creates a tight, practical prep and cleanup design, while still maintaining an open and accessible environment.
Dimensions:
Room size: 10′ × 12′
Upper counter length: 72″ (6′)
Counter depth (shown): 24″
Sink: 30″
Dishwasher: 24″ (next to the sink)
Space between sink and DW: 15″ (useful landing/prep zone)
Refrigerator: 36″
Range: 30″
Additional counter/run shown to the right side: 48″ (good for pantry/tall storage or extra prep)
Design Tips:
Treat the upper countertop as a work surface and as your main prep zone and serving station.
If you want a place to sit, add a single stool at the open end with a longer 12″ overhang to accommodate legs underneath.
Keep the range landing zones at least 15″ to either side to maintain space for meal prep.
Use under-cabinet lighting along the top run plus a centered ceiling fixture.
Add task lighting, such as pendants over the top counter, for added illumination there.
Use the open right side for tall storage, like a pantry cabinet, if you decide not to add a stool.
Why it works: The tight L-shape creates an efficient work triangle for cooking, making the room feel bigger and providing seating for one.
Galley Kitchen Layout With Pull-Out Pantry Design
A galley-style kitchen with a pull-out pantry works great because its two parallel runs keep the work triangle tight, and the extra storage keeps things easily accessible when needed without crowding the aisle.
Floor Plan Details: This 10′ × 12′ galley kitchen uses two 24″ deep parallel cabinet runs with a wide, efficient corridor down the middle. The left run begins with the full-size refrigerator, then the double basin sink, and the dishwasher. Across from it, the right run starts on the bottom with a 48″ wide full-height pull-out pantry that doesn’t interfere with your walking path. After the pantry in the corner, there’s a large countertop area followed by the range and another small work surface to give space for food prep. The roomy 69″ center aisle is generous for a galley, and helps two people pass through or work together cooking.
Dimensions:
Room size: 10′ × 12′
Base cabinet/counter depth: 24″ (both sides)
Center aisle clearance: 69″
Refrigerator: 36″ wide
Sink: 30″
Dishwasher: 24″
Range: 30″
Pull-out pantry depth footprint shown: 24″ (pantry run width at the bottom)
Along with the pull-out pantry, install a trash pull-out near the sink and a tray zone to prevent countertop clutter.
Make the pull-out pantry work for you by storing your bulkier items, oils/spices, and sheet pans there.
With the fridge and pantry in the lower half, watch your door swings and choose hardware and placements that prevent the fridge door from colliding with the pantry pull-out when both are open.
Use layered lighting with under-cabinet strips on both runs plus a couple of evenly spaced overhead fixtures for a brighter feel.
Why it works: A galley offers maximum storage and counter space with a strong work triangle.

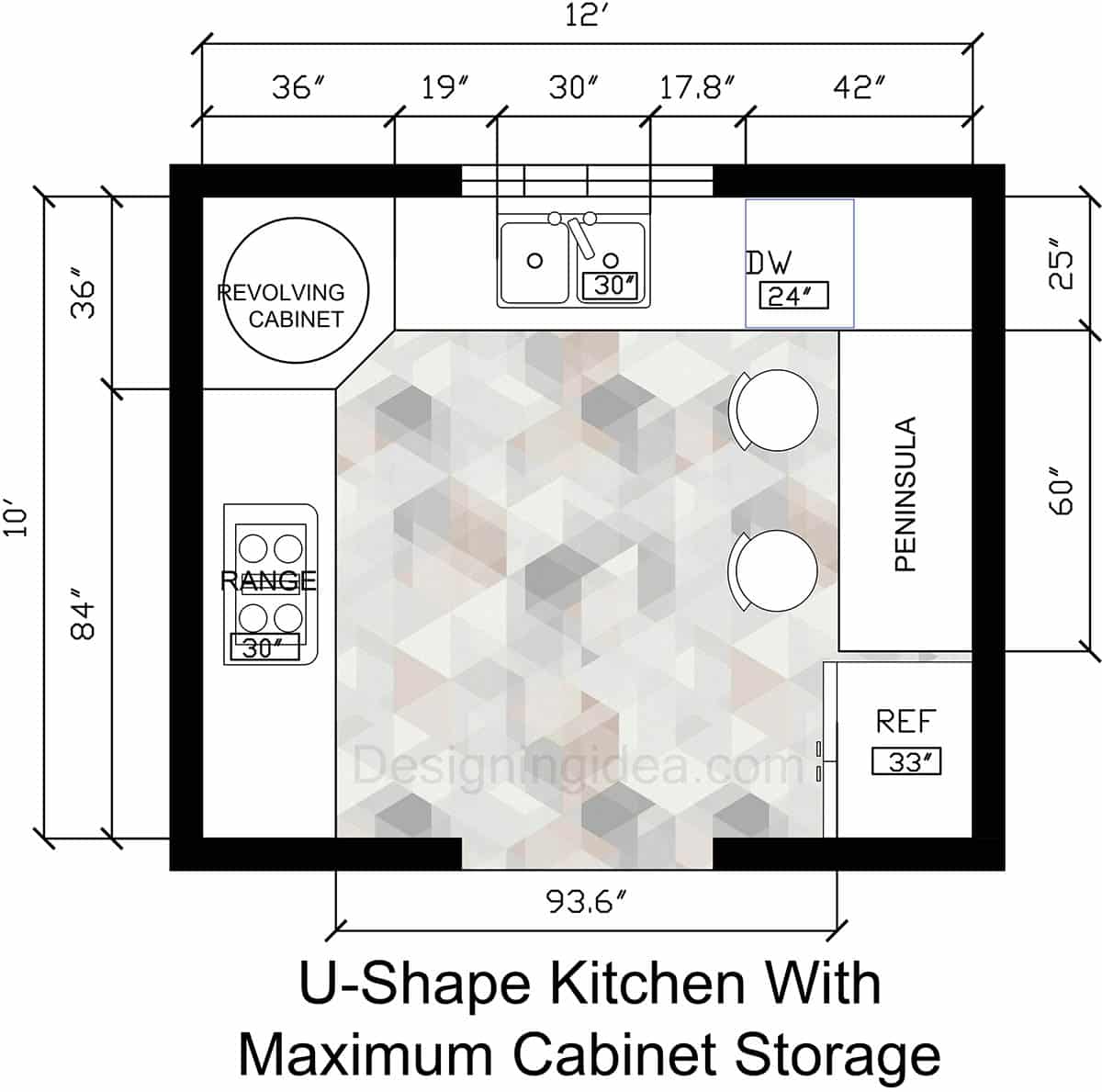

U-Shape Kitchen With Maximum Cabinet Storage Layout
A U-shaped kitchen is the definitive layout for maximizing cabinets and counters, and this design pairs it with a small seating area for a family-friendly setup.
Floor Plan Details: This 10′ × 12′ U-shape kitchen is built to give the most amount of storage and countertop space. As you enter from the bottom, you’ll find cabinets wrapping three sides, with a short seating area marked ‘peninsula’ for two-seat casual dining. The sink is centered on the top under a window to take advantage of outside views, while the basin or dishwasher is immediately to the right. On the left side, there is a 30″ range with an abundance of countertop space, and the upper-left corner has a revolving cabinet so the tightest area stays usable. The refrigerator is on the bottom-right, and keeps drinks and snacks easily accessible without pushing traffic through the main cooking area.
Dimensions:
Room size: 10′ × 12′
Peninsula length: 60″
Main counter depth: 25″ (top run)
Sink: 30″
Dishwasher: 24″
Range: 30″
Refrigerator: 33″
Bottom opening/entry span: 93.6″
Top run segment callouts (left → right): 36″, 19″, 30″, 17.8″, 42″
Corner storage feature: Revolving cabinet (corner lazy Susan zone)
Design Tips:
Install the revolving cabinet, lazy Susan, or pull-out corner system so heavy pots and pans aren’t buried and hard to reach.
Keep the seating ‘peninsula’ at a height for seated comfort with two stools.
Use a shallow 12″ overhang so knees don’t bang the cabinet face at the seating area.
Maintain the open countertops between the sink and the range for food prepping.
Think about traffic around the fridge and check the door swing so it doesn’t interfere with the wall.
Installed layered lighting with under-cabinet LEDs on all three runs and a pendant or two over the peninsula with recessed cans overhead.
Why it works: This U-shape plan is ideal if you want lots of continuous counter space and storage.

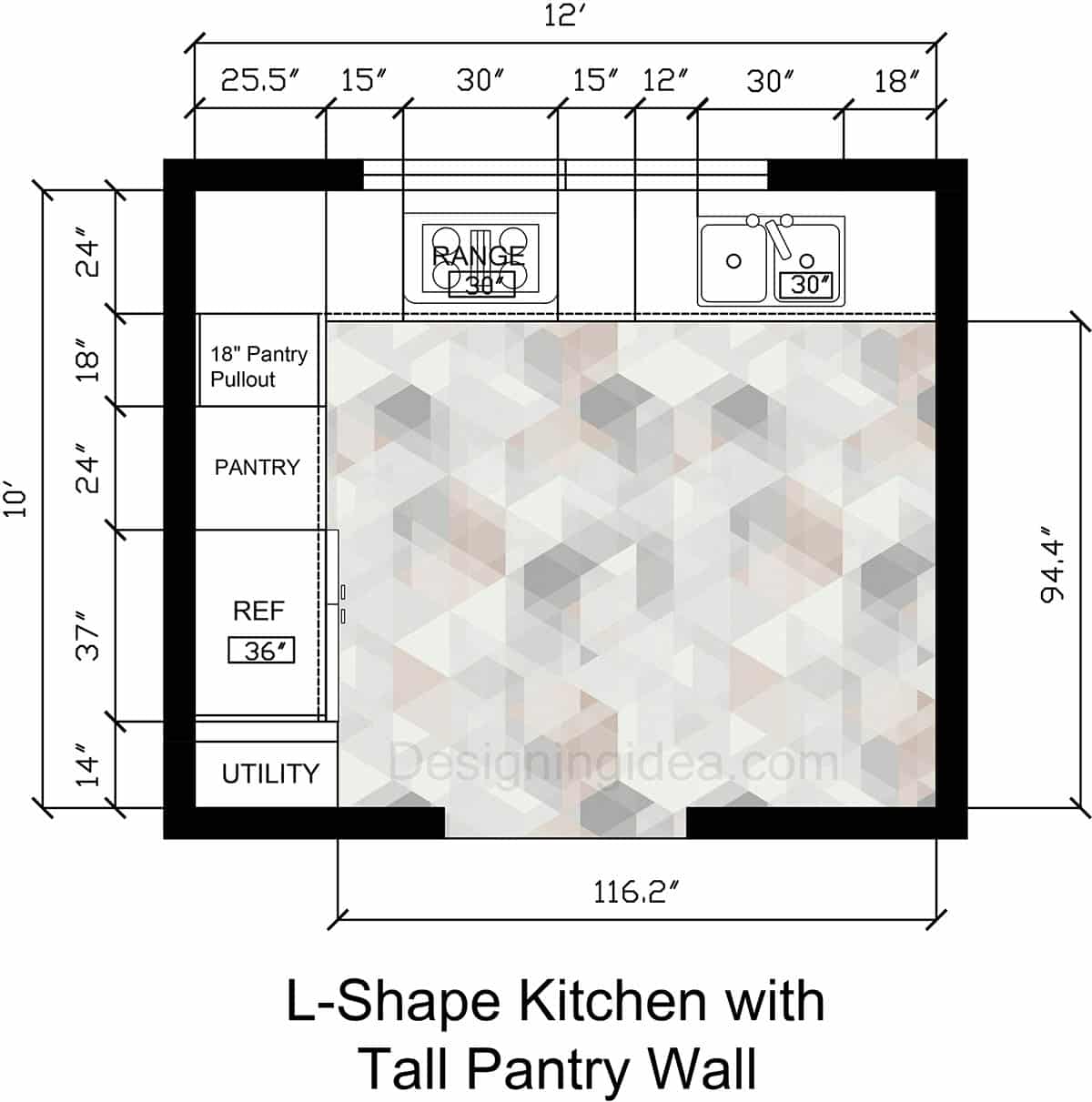

Closed L-Shape Kitchen Floor Plan with Tall Pantry Wall
This closed kitchen layout uses an L-shape design with a tall pantry wall that concentrates storage and utilities on one side, while freeing the other to function as an efficient cooking line with an open center.
Floor Plan Details: This 10′ × 12′ closed kitchen uses an L-shape design that puts the storage primarily on a tall pantry wall that also has the refrigerator and a utility closet at the end. The left wall has a full pantry cabinet zone with an 18″ pantry pullout to organize all of your food items. The top counter run is mainly devoted to food prep and cooking with a 30″ range toward the left-middle and a 30″ sink on the right. The overall result is a stylish and efficient design that makes the 10×12 kitchen feel bigger, thanks to stacked vertical storage and open countertops.
Dimensions:
Room size: 10′ × 12′
Top wall cabinet run segment callouts (left to right): 25.5″, 15″, 30″ (range), 15″, 12″, 30″ (sink), 18″
Use the pantry wall as the storage center, with everyday dry goods in the 18″ pullout, bulk items in the tall cabinet, and small appliances in the utility zone.
Protect the main prep lane between the range and sink by keeping that area appliance-free.
Add a trash pull-out near the sink for easier clean-up.
Add roll-out trays, labeled bins, and a couple of deep drawers in the pantry for better organization.
Because the range sits on the main run, use a properly sized hood for ventilation.
Install a full-height backsplash behind the range so the wall doesn’t get dirty from cooking splashes.
Why it works: This closed L-shape kitchen gives you a designed look with a tall-storage zone and a separate food prep zone.
Quick cheat sheet (U.S. standards used here)
Base cabinets: 24″ deep
Counters: 25 to 25.5″ deep
Walkway/aisle: 42″ ideal, 36″ minimum
Range: 30″, Dishwasher: 24″, Fridge: 36″
Seating space: 24″ per stool minimum (30″ better)
Landing space: 15 to 18″ near fridge/range where possible
Kitchen Design Layout References
Floor Plan
Layout Type
Best For
Key Features
Key Dimensions (from plans)
Design Notes
10×12 Classic L-Shape Kitchen with Small Eat-In Nook
L-Shape & Nook
A traditional kitchen that still fits a tiny eat-in spot.
Sink centered on main run; DW beside sink; range on side run; compact table nook.
Spend on a quality corner solution (lazy Susan/pull-out). Watch fridge traffic near
the peninsula seating.
10×12 L-Shape Kitchen with Tall Pantry Wall
L-Shape & Tall Storage Wall
People who want a cleaner look and “big-kitchen” storage without an island.
Tall pantry, 18″ pullout, fridge, utility zone on one wall; main cook line stays on the long run for better prep flow.
Room: 10’×12′
Counter depth: 24″
Range: 30″ • Sink: 30″ • Fridge: 36″
Pantry pullout: 18″
Bottom open span shown: 116.2″ • Right-side open depth: 94.4″
Top run segment callouts: 25.5″, 15″, 30″, 15″, 12″, 30″, 18″
Use the tall wall for vertical storage (dry goods, broom, appliances). Add roll-outs/bins so the pantry stays organized.
