10x10 Living Room Layouts with Sectionals, Sofas & Seating Ideas That Fit

10x10 Living Room Layouts

A 10×10 living room doesn’t give you a lot of area to work with, making it imperative that you carefully plan the furniture sizing and placement so everything fits. With the right layout, a hundred square feet living room can work as an actual, functional, good-looking space. The problem is that most people approach a small room by trying to shrink everything down, push it all against the walls, or leave an awkward empty patch in the middle. What actually works for a 10×10 room is focusing on choosing your priority. Will it be a TV room, or an entertaining and conversation space? Or do you want both? The room can do it; you just need a plan going in so you can get the results you want. These five living room floor plans use setups with a floating sofa, sectional, loveseats, and proper TV wall arrangements so you can find different approaches, in the same footprint, to find one that works for your home.

Table of Contents

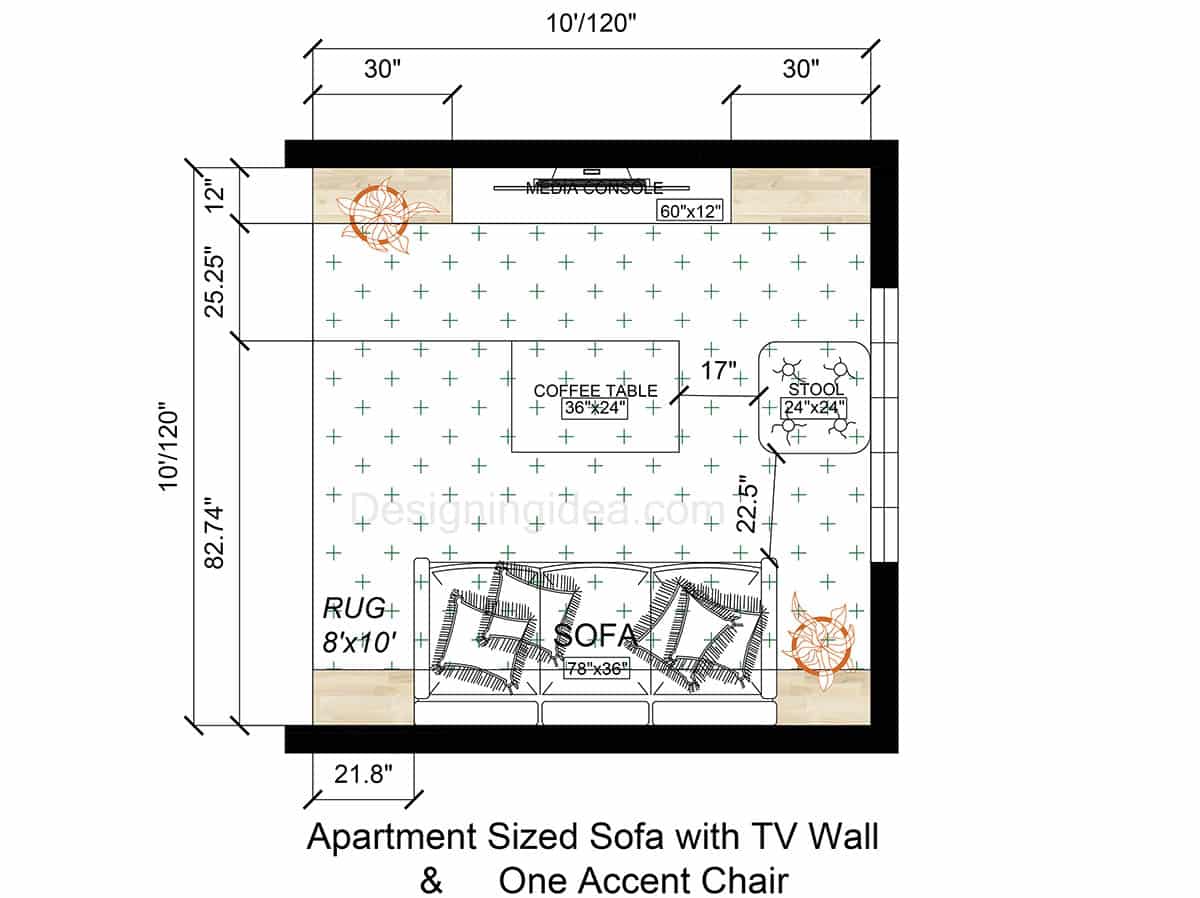

Apartment Sized Sofa with TV Wall & One Accent Chair Floor Plan

Easily Create Your Own Room Makeover

Upload a photo and get instant before-and-after room designs.
No design experience needed — join 2.39 million+ happy users.
👉 Try the AI design tool now

Floor Plan Details: This 10×10 living room is meant to resemble an apartment floor plan with a perfectly sized sofa, TV wall, and accent chair. The result is a compact, but workable layout for a square room with everything hugs the walls, while the center stays open. The TV wall sits against the upper side, the sofa on the lower end, and a little accent stool is tucked into the right with a coffee table in the middle. There is an 8×10 rug placed underneath the seating area with the media console sitting in the center of the top wall in line with the sofa.

Dimensions:

Room size: 10′ × 10′ (120″ × 120″)
Sofa: 78″ wide × 36″ deep (apartment-sized styling)
Coffee table: 36″ × 24″ – proportional, leaves legroom
Sofa-to-coffee-table gap: 17″ which is tight but totally walkable
Media console: 60″ wide × 12″ deep
Console-to-wall gaps: 30″ on each side
Accent stool: 24″ × 24″
Stool-to-sofa clearance: 22.5″
Bottom wall clearance (sofa to wall): 21.8″
Rug: 8′ × 10′ – covers the seating zone

Design Tips:

Use a sofa measuring 78″ wide so it’s undersized for the wall and doesn’t block traffic.
Maintain at least a 17″ gap between the sofa and coffee table. If you need more comfort, swap the 36×24 table for something round, like a 24″ round table.
Style the accent stool with a tray on top or swap it for a chair if you want more dedicated seating.
Use 30″ of wall on each side of the media console so there is enough room for floating shelves or a plant.
Place an 8×10 rug so that the furniture sits with its front legs on top. All four legs on the rug are even better if it fits.
Have one overhead light fixture and pair it with a floor lamp behind the sofa on the left side, or beside the accent stool.
Keep the console between 12″ and 16″ deep so the room doesn’t feel cramped.
Avoid the console altogether and wall-mount the TV for more space.

Why it works: Sized for apartment living that gives you full-size lounging and a proper TV view with adequate walking lanes.

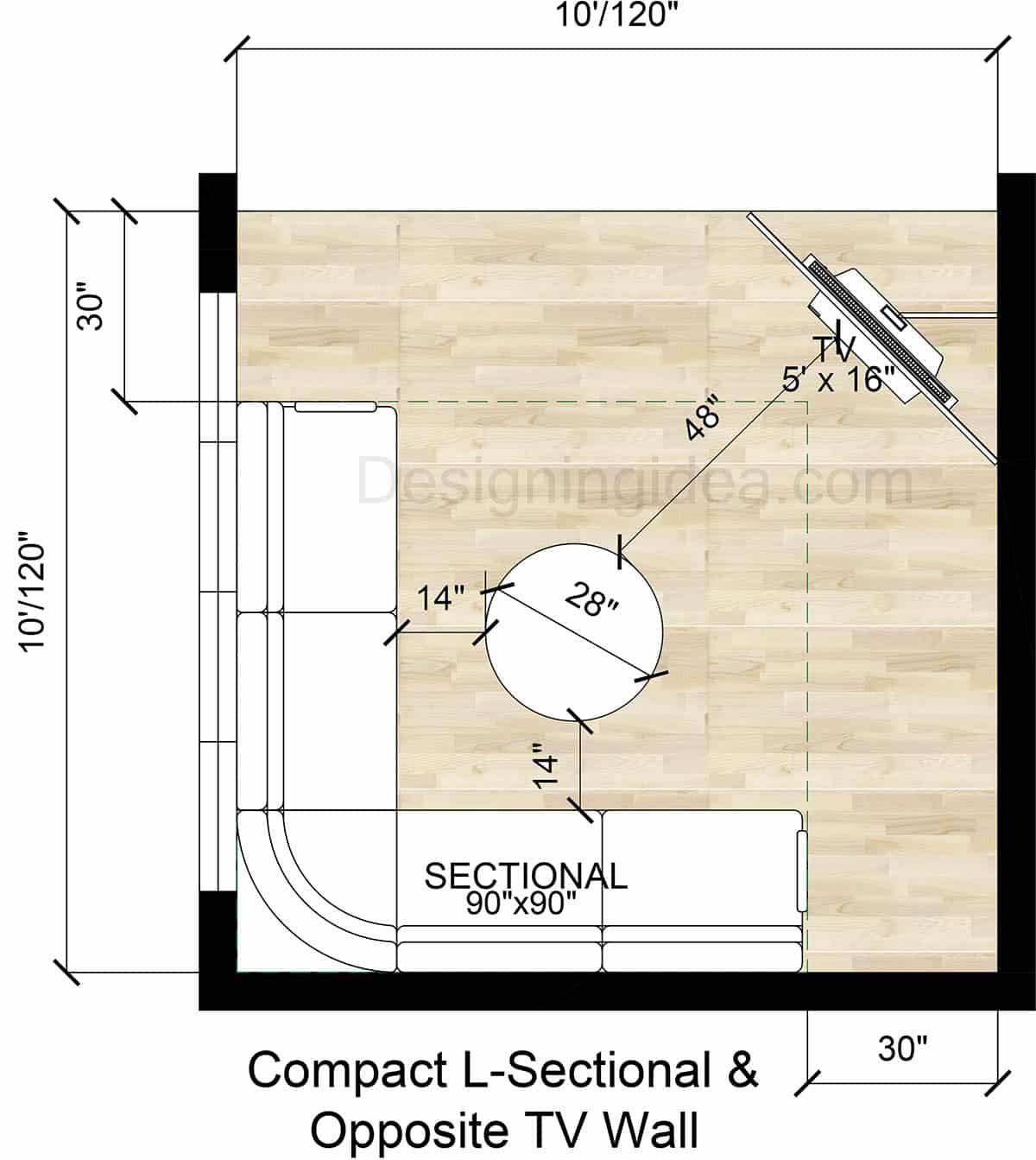

Compact L-Sectional & Opposite TV Wall Layout

Floor Plan Details: This living room brings in a compact L-shaped sectional with a corner TV layout for a bold setup that may sound crazy at first, but actually works. The design wraps a 90×90 sectional into the 10×10 room on the bottom-left corner, with the TV tucked into the top-right. Everything faces each other diagonally with a corner-mounted TV at a 45° angle, so it frees up both walls completely. Since there’s no media console eating your floor space, you have better sightlines and more walking space. In front of the sectional, there is a 28″ round coffee table placed in the center with soft edges, so it’s easy to walk around.

Dimensions:

Room size: 10′ × 10′ (120″ × 120″)
L-Sectional: 90″ × 90″ placed in the corners
TV: 5′ wide × 16″ deep, corner-mounted at 45°
Sofa-to-TV distance: 48″ (4 feet cozy, but works for a smaller screen)
Round coffee table: 28″ diameter
Table-to-sofa gap: 14″ on both sides
Wall clearance (top & bottom right): 30″ each

Design Tips:

With a 48″ viewing distance, like this, keep the TV at 43 to 50″ max, or it’ll feel like sitting in the front row of a movie theater.
Use a full-motion articulating mount for the corner TV setup so you can angle it slightly downward and swivel it toward wherever you’re sitting.
Add a round rug under that round coffee table to define the zone in the 5 to 6ft range, centered in the middle.
Choose a sectional with a curved corner piece for this wall-hugging setup.
Add a small C-table that slides over the sectional arm for your drink and remote.
If you need extra seating, use one small ottoman measuring 18″ to 20″.

Why it works: You get sectional comfort with open floor space and a corner placed TV.

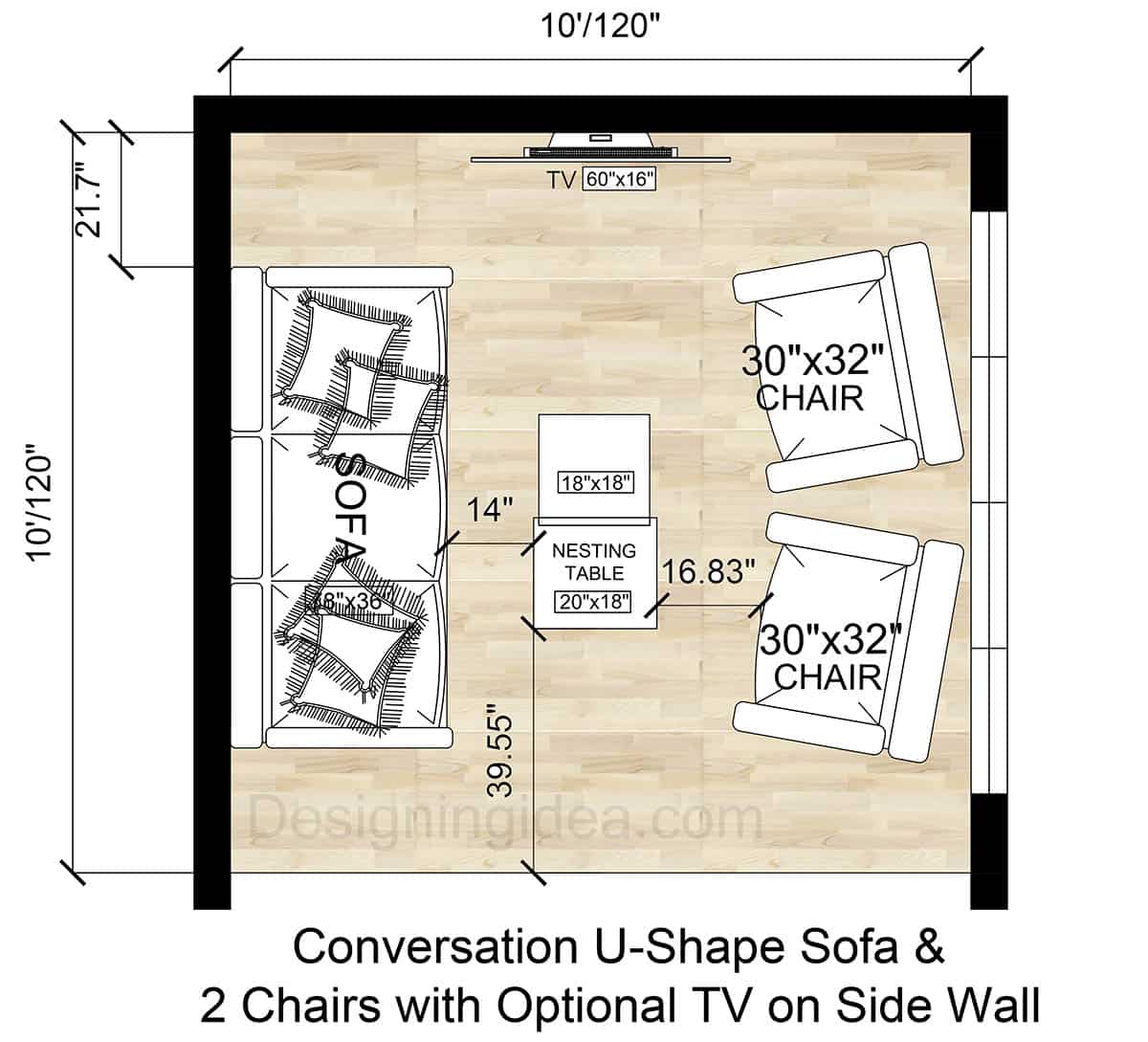

Conversation Room Layout with U-Shape Sofa Placement & 2 Chairs with Optional TV on Side Wall

Conversation Room Layout with U-Shape Sofa & 2 Chairs with Optional TV on Side Wall

Floor Plan Details: This living room is set up for conversation with a U-shape sofa setup, two chairs, and an optional wall-mounted TV. This layout is not built around TV watching; instead, it’s built around entertaining people. The sofa wraps around the left side in a U-shape, with two chairs facing it from the right, and a tiny nesting table in the middle. The TV is labeled “optional and you can have it or skip it entirely, based on your needs. The nesting tables are a clever pick since they can stack when you don’t need them, or spread out when you do.

Dimensions:

Room size: 10′ × 10′ (120″ × 120″)
Sofa: 48″ × 36″ (compact, U-shaped configuration on the left)
Each accent chair: 30″ × 32″ ( two of them, stacked vertically on the right)
Nesting tables: 18″×18″ (top) and 20″×18″ (bottom)
Sofa-to-nesting table gap: 14″
Chair-to-nesting table gap: 16.83″
Top wall clearance: 21.7″
Bottom open floor space: 39.55″
TV (optional): 60″ × 16″, centered on the top wall

Design Tips:

Maintain the 39.55″ of open floor at the bottom.
Slightly angle the two chairs on the right inward toward the sofa.
If you use the TV, 60″ is pushing the biggest you’ll want based on this viewing distance. Something in the 50″ range would be ideal and be more proportionate to the size.
Style the nesting tables with a small candle, a book, and one plant for symmetry.
This layout seats four people really comfortably and is ideal for a small apartment for those who want a hosting setup.
Choose chairs with slimmer arms or that are armless so you don’t block the walkways.

Why it works: It provides a social and spacious design with furniture that hugs the edges and is setup for conversation.

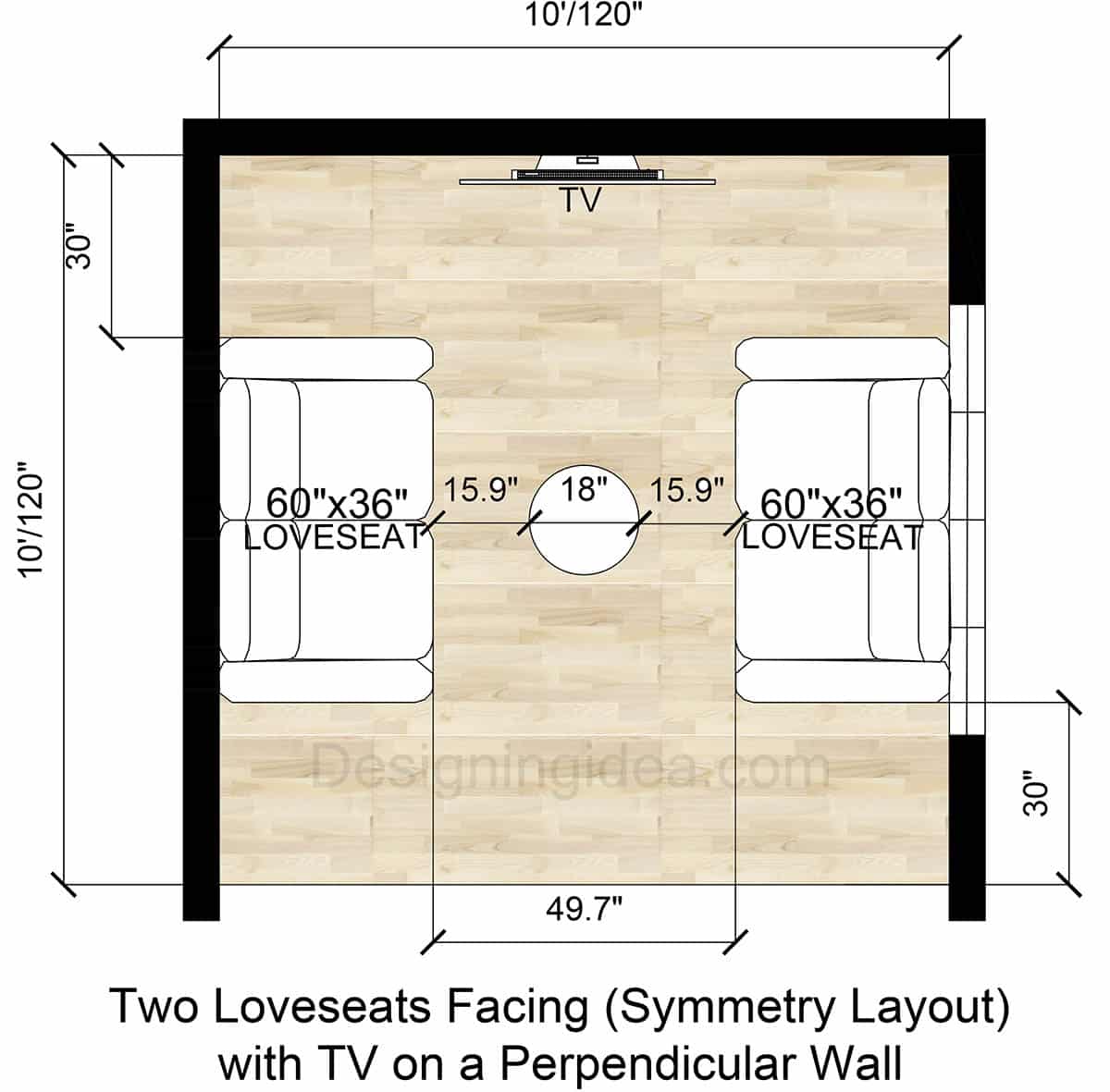

Two Loveseats Facing (Symmetrical Layout) with TV on a Perpendicular Wall

Floor Plan Details: This living room design features two loveseats facing each other with a perpendicular TV placement. If you want symmetry, the two identical loveseats parked directly across from each other, with a tiny round table in the middle, fit the bill. There’s a TV off to the side on the top wall that’s out of the way, making it feel more formal. Since neither loveseat faces the TV head-on, they both watch it from a slight angle. This means the room works better for conversation, but can be suited to watching TV when desired.

Dimensions:

Room size: 10′ × 10′ (120″ × 120″)
Each loveseat: 60″ wide × 36″ deep (two of them, facing each other)
Coffee table: 18″ diameter round
Loveseat-to-table gap: 15.9″ on each side
Bottom open floor: 49.7″
Top wall clearance: 30″
Right wall clearance: 30″
TV: mounted on top wall, no dimensions specified

Design Tips:

The 15.9″ gap between the loveseats and the table is tight, so you may want to go with an ottoman instead of a hard table.
The symmetry is what gives this layout its personality, so lean into it with matching throw pillows. and side tables on the outer arms.
Use the same lamp on each end table or beside each couch.
Maintain the 49.7″ of open floor at the bottom for an easy pathway out of the room.
Place a rug that covers just the seating zone to frame the conversation zone.
Two 60″ loveseats only seat four people, technically, so it will feel cozy with that amount. This works best as a couple’s room or a close-friends space, and not a party layout.
To avoid turning one’s head too much while watching TV, use a full-motion wall mount that can swivel slightly toward the watcher.
Carefully size the television for the viewing distance with something in the 43″ to 55″ range with a swivel.

Why it works: It creates a “real living room” feeling in a small footprint by using symmetry and a compact center zone.

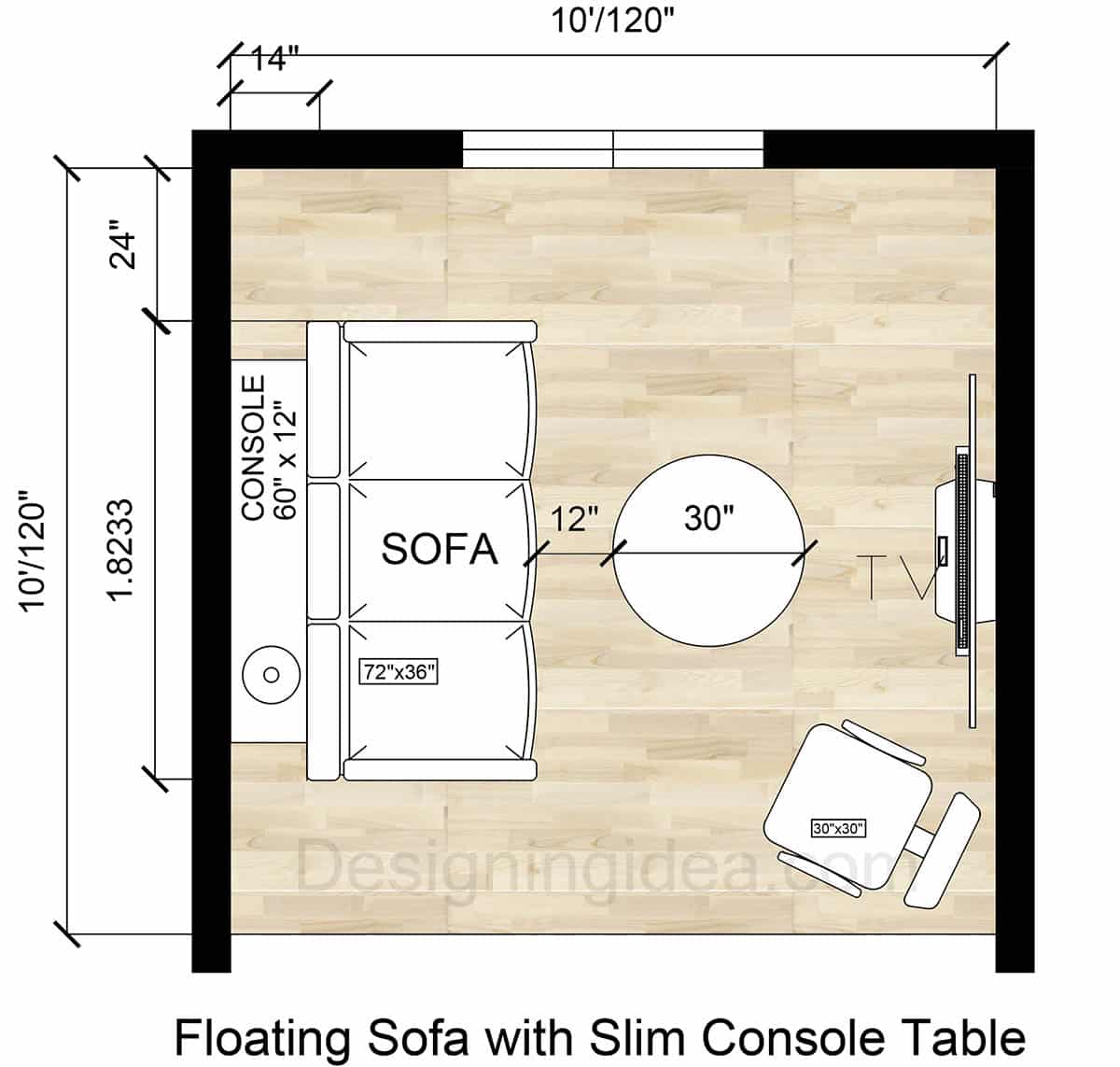

Living Room Layout with Floating Sofa and Slim Console Table

Floor Plan Details: This living room goes with a floating sofa arrangement with a slim console table placed behind and a round coffee table and TV directly in front. The sofa is pulled away from the left wall with a 60″ by 12″ slim console behind it for your lamp and other items, like a remote, where it is easy to reach. The 30″ table in front is rounded, so you don’t bump into any sharp edges when trying to get to the couch. There is also an accent chair in the bottom-right corner that is angled toward the sofa for easier conversations.

Dimensions:

Room size: 10′ × 10′ (120″ × 120″)
Sofa: 72″ × 36″ (floating, not wall-backed)
Console table: 60″ × 12″ (slim, and sits right behind the sofa)
Round coffee table: 30″ diameter
Sofa-to-table gap: 12″
Accent chair: 30″ × 30″, bottom-right corner
Top wall clearance: 14″
Left wall clearance: 24″
TV: right wall, mounted vertically (floor stand or wall mount)

Design Tips:

Style the console table properly with a lamp on one end, a few objects like the remote in a tray, and maybe a plant.
The 12″ sofa-to-coffee-table gap is tight, so use a round table that has softer edges and is easier to navigate.
Add a swivel mount for the TV so you can get better viewing angles depending on where you sit.
By floating the couch away from the wall, it tricks your eye into thinking there’s more space.
Floating looks best with a 10×10 room when the TV is wall-mounted, and the console is slim.

Why it works: This layout makes the smaller room feel bigger and is setup for watching TV and conversations.
