7 Square Bathroom Layouts With A Shower: Different Size Designs

When designing a bathroom, you have a unique opportunity to create a space laid out to your preferences. It’s vital that the space created has the proper balance between function and flow and makes sense for your lifestyle. In this guide, we share seven square bathroom layouts with a shower that help promote a spacious feel, focus on comfort, and offers style that translates into an enjoyable experience.

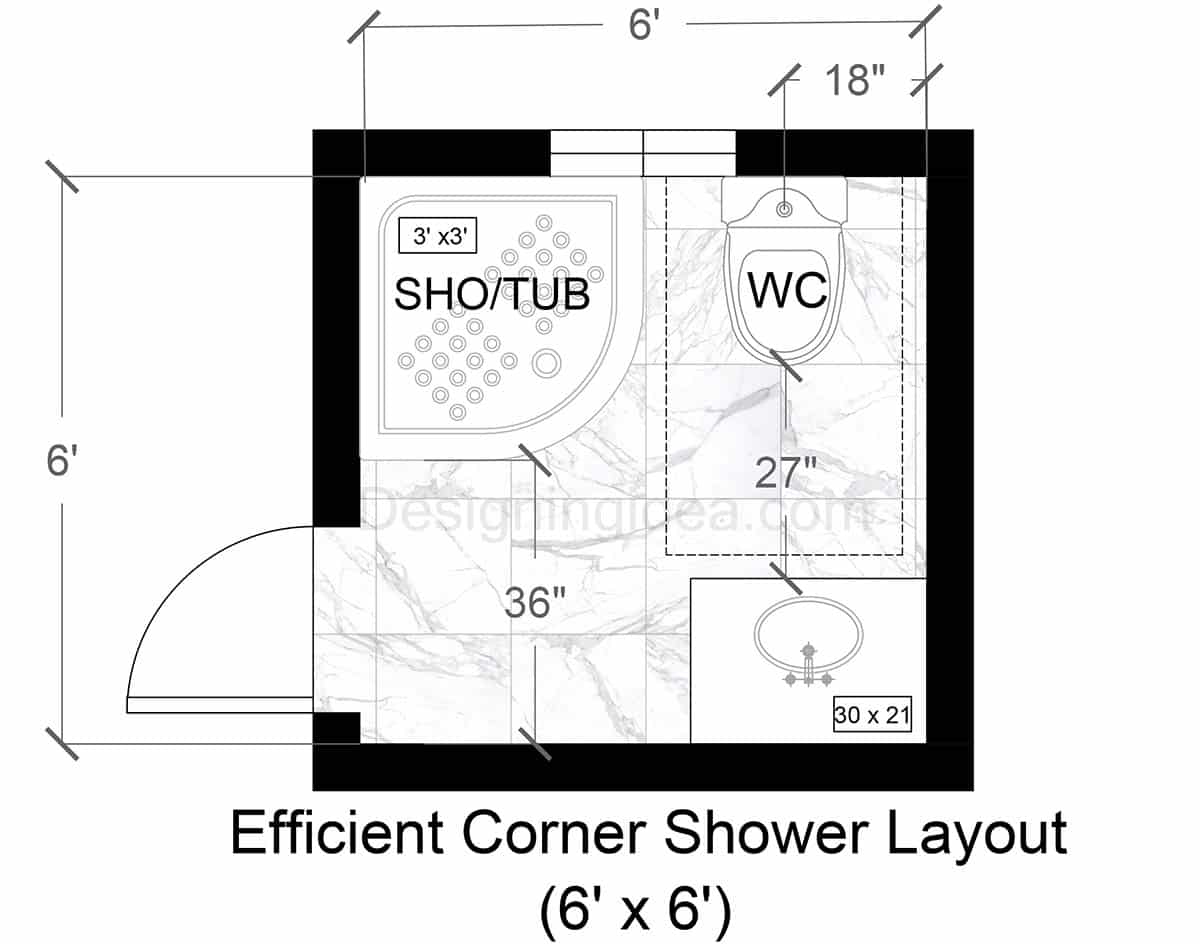

 6×6 Efficient Corner Bathroom Shower Layout

This efficient powder-room sized bathroom design carefully utilizes every inch to provide maximum functionality for a guest suite, ADU or tight remodels.

Floor Plan Details: As you step in through the entry located at the lower-left corner, you enter an open 36-inch circulation zone that lets you turn either toward the curved corner shower enclosure or straight toward the toilet and vanity wall. The quadrant-style 3′ × 3′ shower nestles neatly into the upper-left hand corner. It has a rounded face that guides traffic smoothly around it while keeping water inside a compact footprint. Opposite of the shower, the water closet sits on the upper-right wall, and positions the bowl’s centerline 18 inches off the side wall, which meets code yet leaves breathing room beside the user. The small 30″ W × 21″ D vanity tucks into the lower-right corner, keeping the sink close to both the toilet and the doorway for quick hand-washing without interrupting the room’s circulation.

Dimensions:

• Room size: 6 feet by 6 feet (36 sq ft)
• Shower: Corner shower stall (3′ x 3′) placed in one corner. (neo-round front)
• Toilet: Located adjacent to the shower, and centered along the back wall, 18” from the side wall. With 27″ front clearance to the vanity edge.
• Vanity: Small vanity (30” wide x 21” deep) placed opposite the toilet.
• Door: Sliding/outward swing or or pocket door positioned centrally on the remaining wall for easy access.

Design Tips:

• Use a curved shower door or curtain rod. Choose a curved glass shower door (or a stationary panel plus curtain) to mimic the quadrant curve; it saves a few critical inches compared with a square enclosure and visually softens the tight footprint.
• Large format tiles. Run large-format marble-look tiles for example from floor onto the lower portion of the walls. Fewer grout lines make the 6′ × 6′ box feel wider, while the continuous veining tricks the eye into seeing a single surface plane.
• Float the vanity. Using a wall-hung vanity at 34″ to 35″ can expose more floor, with even two inches of visible flooring under the sink deepening the perceived depth.
• Add a recessed medicine cabinet. Mount this directly above the sink instead of a surface-mount mirror; you gain hidden storage without narrowing the walkway in front of the toilet.
• Install a pocket or barn-style door. Swapping out the inward swing door frees almost 5 sq ft of floor and eliminates any conflict with a partner using the sink.

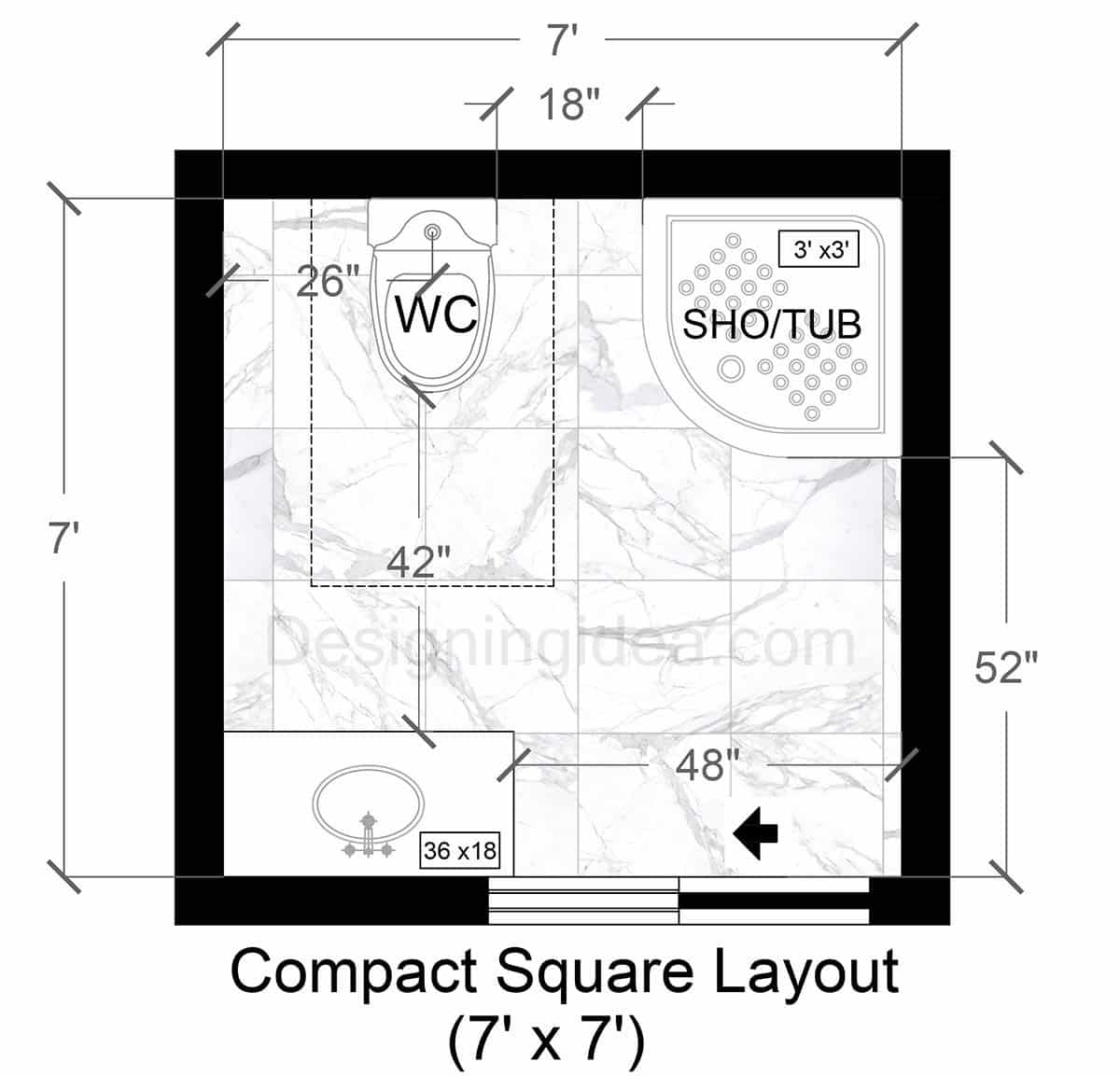

7×7 Compact Bathroom Floor Plan With Shower

This smaller bathroom floor plan delivers full-bath comfort with hotel-like circulation in under 50 square feet.

Floor Plan Details: The compact bathroom design opens into a generous 48-inch dry zone that splits the room. Immediately to the left is a slim 36″ W × 18″ D, sink sink vanity, keeping the basin close to the doorway for quick hand-washing. Opposite the vanity, a quadrant 3′ × 3′ shower tucks neatly into the upper-right corner; its curved glass face frees up precious inches while steering traffic naturally toward the enclosure. On the upper-left wall, the water closet is centered 18″ off the side wall, with a roomy 42″ front clearance that exceeds code and lets someone towel off without bumping any knees. Because fixtures hug three separate walls, the square footprint feels surprisingly open, allowing two users to pass each other comfortably.

Dimensions:

• Size: 7 feet by 7 feet (49 sq ft)
• Shower: 36” x 36” corner shower, diagonally in one corner.
• Toilet: Placed on the back wall, 18” from side wall, next to the shower.
• Vanity: 36” vanity opposite the toilet with a sink centered.
• Storage: Small recessed shelving above the toilet or near vanity.
• Door: Located centrally on front wall opposite shower.

Design Tips:

• Install larger tiles. Echo the square footprint with large-format 24″ × 24″ porcelain tiles in a light marble pattern; fewer grout lines visually widen the 7-foot span.
• Use a glass enclosure. Specify a frameless curved glass shower enclosure to maintain sight-lines into the corner and keep the floor’s veining continuous.
• Floating vanity to enhance the look. Float the vanity and choose a skirted toilet so the entire floor remains visible, which is an easy illusion that makes the compact bath read larger.
• Niche out the shower for extra storage. Capitalize on the 7′ ceiling height with a tall recessed niche inside the shower and a full-height linen closet recessed between studs beside the WC.
• Layer lighting. Install an LED mirror to reduce shadowing.

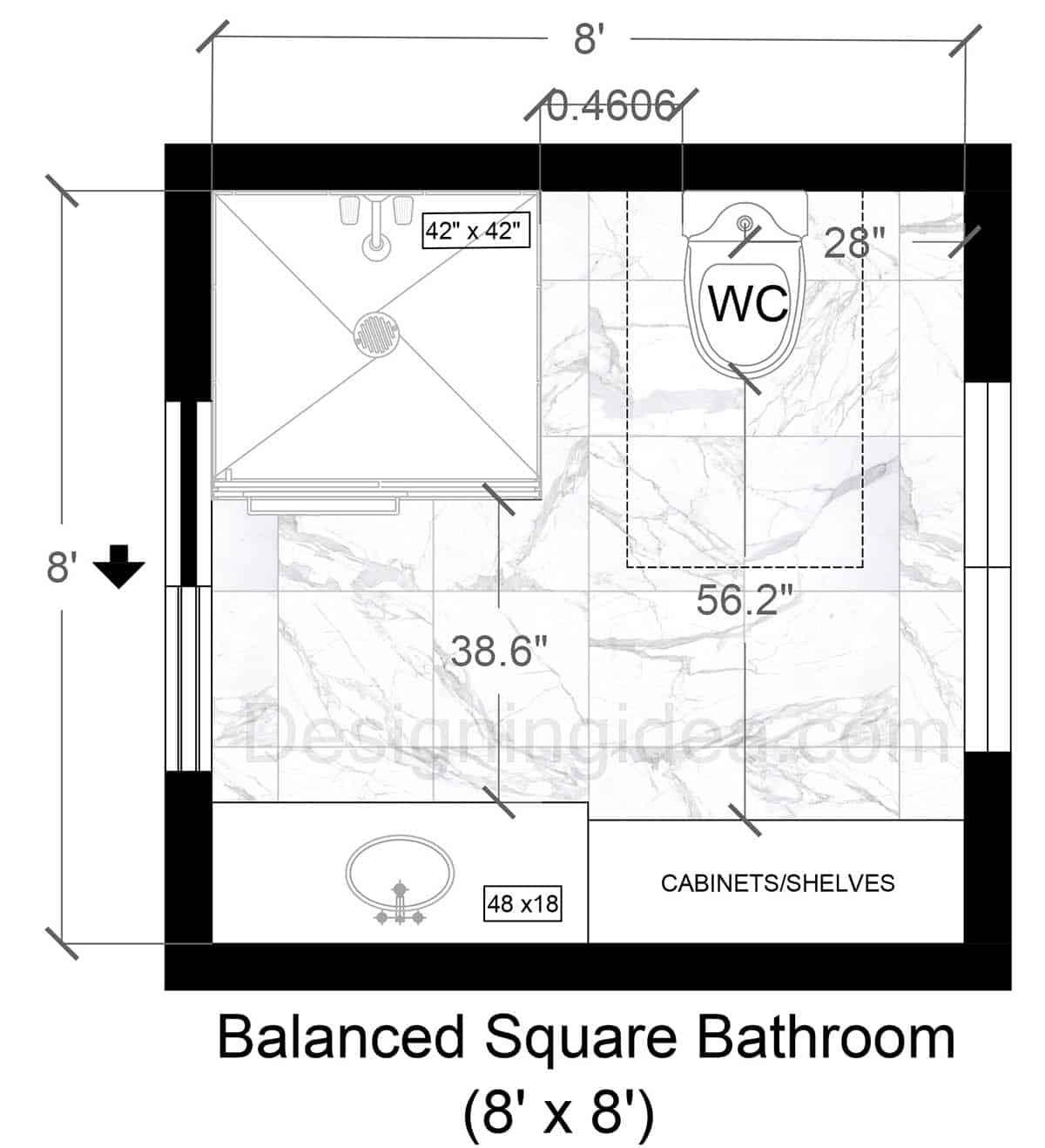

8×8 Balanced Square Bathroom Layout

By pairing a roomy square shower with a full-width vanity and cabinet wall on the other side, this 8′ × 8′ floor plan delivers spa-level elbow room and perfect balance.

Floor Plan Details: The balanced square bathroom design opens into a generous central aisle. Directly ahead, a 42″ × 42″ square enclosure occupies the upper-left corner, and its frameless glass keeps sight-lines open. Opposite the shower on the upper-right wall, the water closet is centered 28″ off the side wall and enjoys a roomy 56 ¼” of front clearance, providing a lot of space for toweling off or assisting a young child. The entire lower wall becomes the vanity-and-storage cabinet zone, measuring a 48″ W × 18″ D. The wall-hung sink cabinet anchors the left half, while the right half is reserved for full-height cabinets or open shelves. This creates a visually balanced backdrop and brings daily-use items within arm’s reach. A clear 38 ⅝” walkway separates wet and dry zones, allowing two users to pass comfortably.

Dimensions:

• Size: 8 feet by 8 feet (64 sq ft)
• Shower: Square corner shower (42” x 42”) in back corner.
• Toilet: Set next to shower, positioned 18” from side wall.
• Vanity: 48” vanity with single sink opposite shower area.
• Storage: Wall-mounted cabinet or shelves near vanity.
• Door: Positioned opposite vanity, centrally located.

Design Tips:

• Keep symmetry in mind. Align the shower glass edge with the linen tower face so the central aisle feels framed, and not pinched.
• Contrast wet vs. dry zones. Run floor tile uninterrupted, but clad the shower walls in a vertical-stack 4″ × 12″ tile while painting the vanity wall a serene matte tone—this reinforces the left/right division without crowding.
• Integrate hidden lighting. A dimmable light strip under the linen tower toe-kick and a linear niche light inside the shower add evening ambience without fixtures intruding into head-height space.
• Plan for aging-in-place. The square shower easily accepts a fold-down teak seat and a vertical grab bar on the hinge wall, making the layout future-proof without sacrificing style.
• Use glass or open shelving above the storage cabinets. Doing so lets natural or artificial light bounce deep into the room and keeps the right-hand mass from feeling heavy.

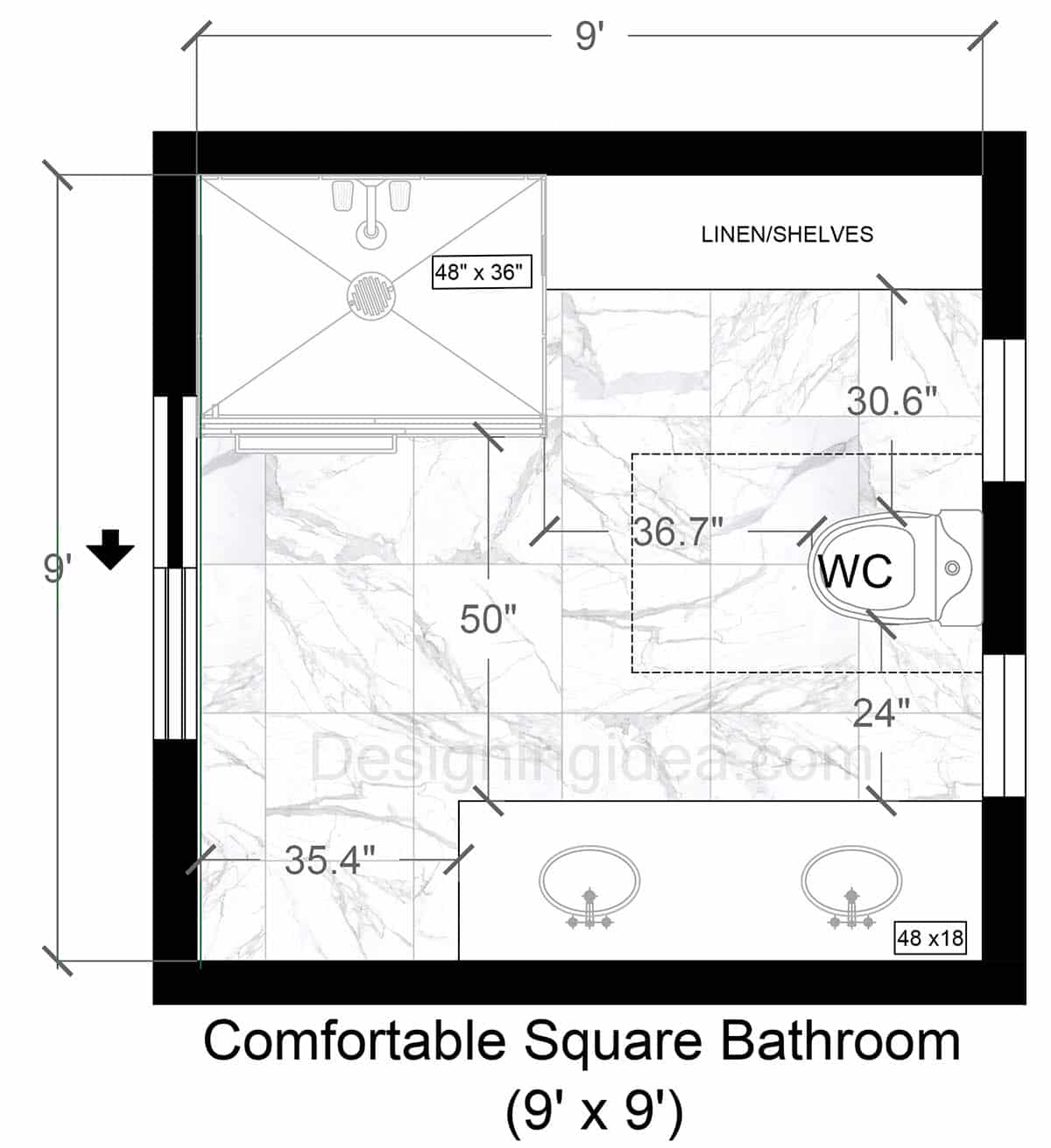

9×9 Comfortable Dual Sink Bathroom Design

This bathroom combines a rectangular shower with a full-width double vanity and a dedicated storage tower, that turns its central 50″ plaza into a shared dressing zone that never feels cramped.

Floor Plan Details: The room opens to a generous dry zone that runs the width of the room and straight ahead toward the toilet. In the upper-left corner, a 48″ × 36″ rectangular shower faces the room, and its frameless glass keeps sight-lines open while the entry door clears the central aisle. The entire lower wall is devoted to a dual-sink vanity (72″ W × 18–21″ D) so two people can prep side-by-side. Opposite the vanity, the water closet sits on the right wall, and is tucked 30 ⅝” off the linen tower and enjoying 36 ¾” of front clearance, while a full-height linen/shelving run stretches between the toilet and shower to corral towels and toiletries. The heart of the plan is a nearly 50″-square foot open area, with plenty of elbow-room for dressing, helping kids, or rolling in a hamper.

Dimensions:

• Size: 9 feet by 9 feet (81 sq ft)
• Shower: Large walk-in shower (48” x 36”) along one side wall.
• Toilet: Situated on the adjacent wall, comfortably spaced 18” from shower.
• Vanity: Double-sink vanity (72” x 22”) opposite the shower and toilet.
• Storage: Linen closet or vertical storage cabinet beside shower area.
• Door: Centrally located on the wall opposite the vanity.

Design Tips:

• Matching mirrors. Center two framed mirrors over the sinks and align the shower door with the vanity mid-point so the entire room reads balanced when you walk in.
• Zone wet vs. dry visually. Run slab-look porcelain on the floor and backsplash the vanity in the same tile, but switch to a textured white ceramic inside the shower for subtle contrast without breaking the palette.
• Upgrade the storage wall. Use a 15″-deep linen cabinet with pocket pull-outs so the shelving never intrudes into the WC’s elbow-room.
• Layer lighting fixtures. Recessed cans on either side of the aisle, sconces flanking each mirror, and an LED strip under the linen tower give bright task light and dimmable mood options.

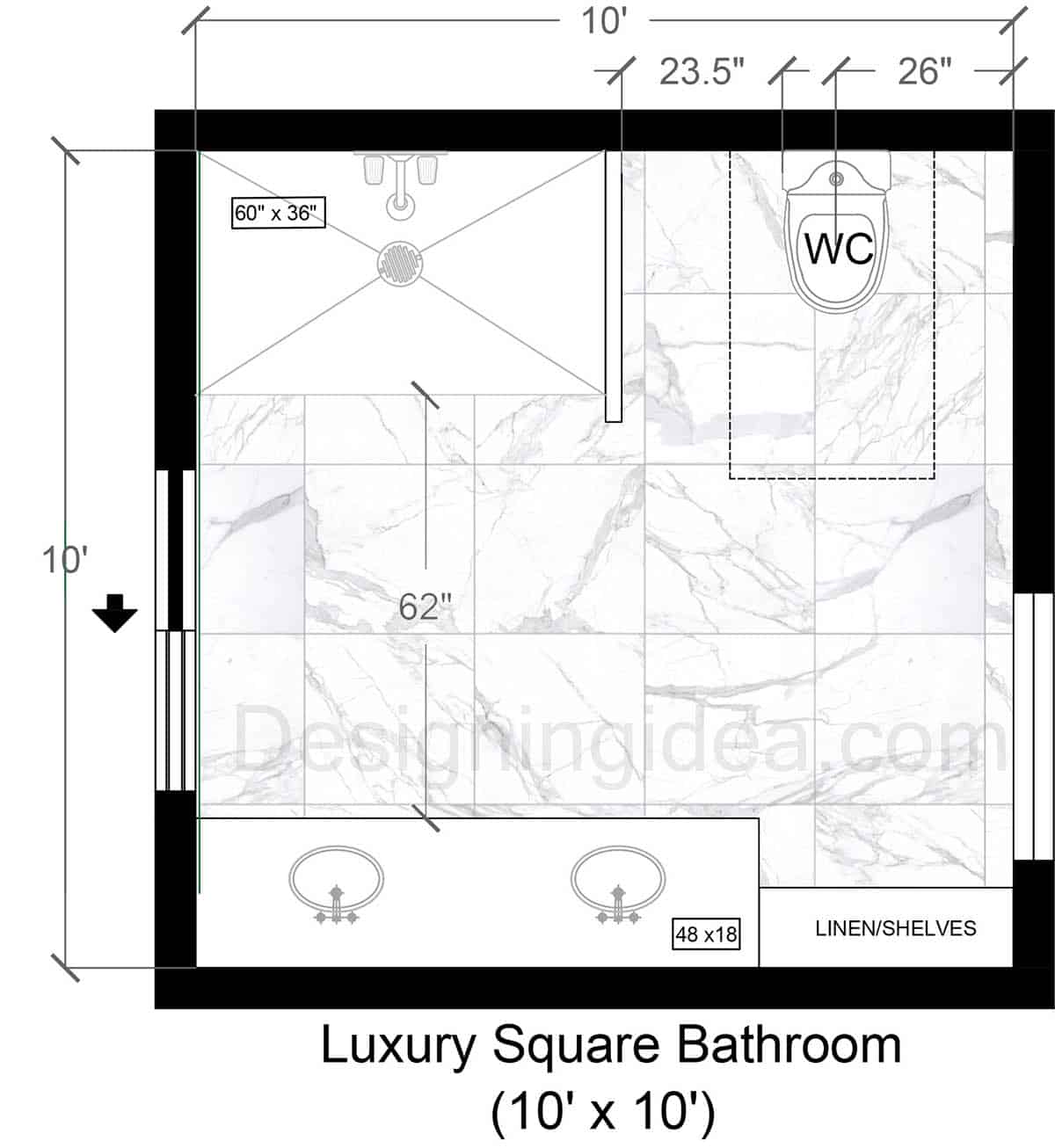

10×10 Luxury Bathroom With Spacious Walk-in Shower

This 10′ × 10′ square plan delivers true spa luxury, with its expansive walk-in shower, double sink vanity, and linen cabinet, yet it still manages to leave a five-foot open space for stress-free, two-person morning routines.

Floor Plan Details: This luxury bathroom open into a 62-inch runway that divides wet and dry zones. The star attraction is a frameless, walk-in shower measuring 60″ × 36″ with a clear glass panel that faces into the room. Opposite the shower, the entire lower wall hosts a dual-sink vanity that measures roughly 72″ W × 18-21″ D, while a built-in linen cabinet at the far right keeps accessories close by. The toilet nests on the upper-right wall, centered 26″ off the side and buffered 23 ½” from the enclosure partition. With each fixture assigned its own wall, you’re left with an uncluttered 5-foot-plus square of floor in the center, that is perfect for drying off, dressing.

Dimensions:

• Size: 10 feet by 10 feet (100 sq ft)
• Shower: Spacious walk-in shower (60” x 36”) with glass partition along one side wall.
• Toilet: Positioned discreetly in corner near shower, spaced 18″ from wall.
• Vanity: Double-sink vanity (84” x 22”) on the wall opposite shower and toilet.
• Storage: Built-in linen closet beside vanity or shower.
• Door: Centered on the wall opposite vanity area.

Design Tips:

• Go curb-less with a linear drain. Sloping the full shower bay toward a hidden trough keeps the marble-look tile uninterrupted and wheelchair-friendly.
• Pony wall. Use a half-height shower pony wall as the glass return; it hides plumbing, supports a slab seat, and gives the WC modest privacy without blocking light.
• Pre-wire for upgrades. The generous wall cavities can hide heating-panel leads behind the mirror or an integrated Bluetooth speaker over the shower—easy luxuries to install now or later.
• Future-proof the space. The 36-inch-deep shower can accept a fold-down teak seat and grab bars; the 5-foot turning radius at center easily accommodates a walker or wheelchair.

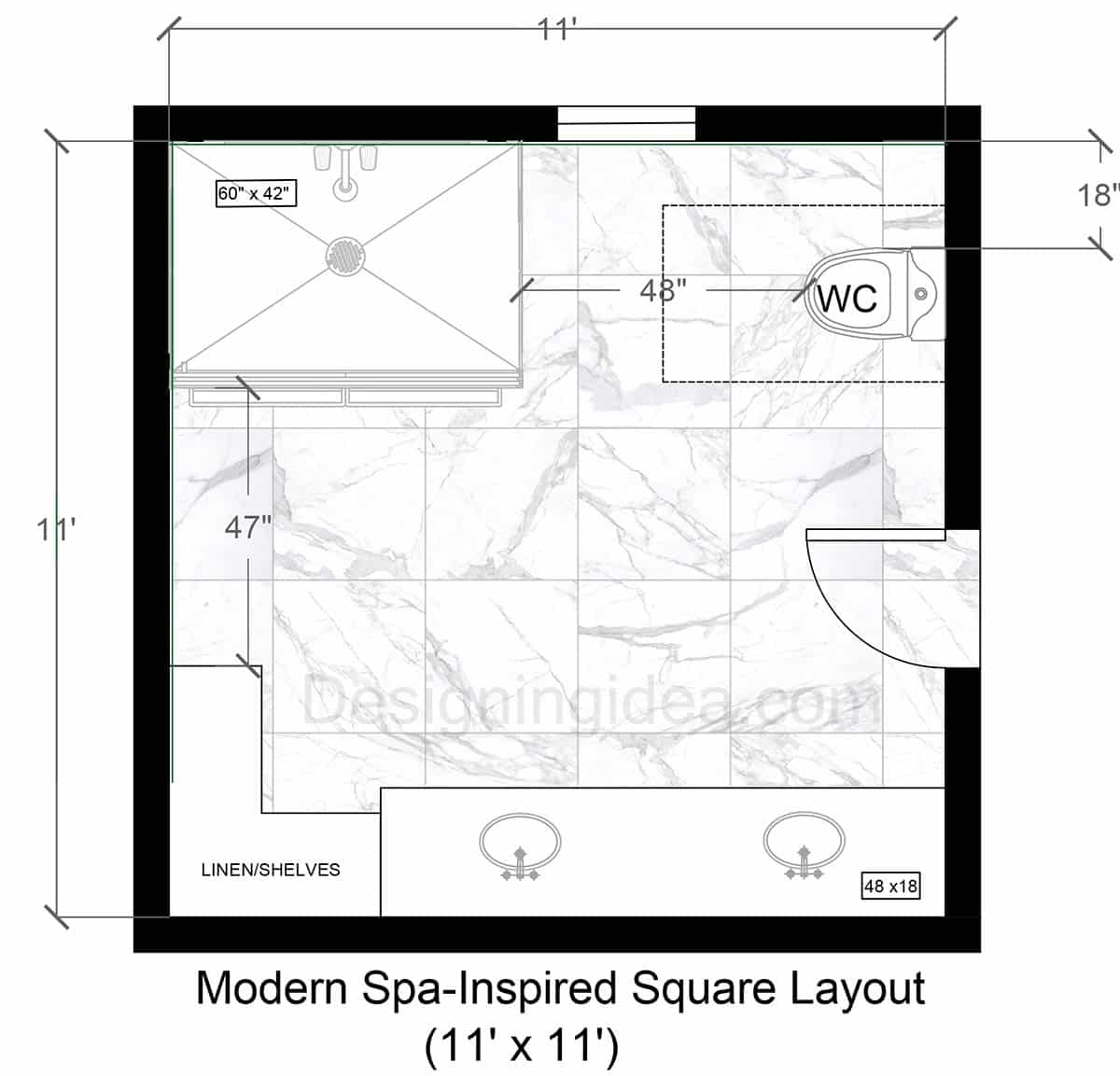

11×11 Modern Spa-Inspired Bathroom With Corner Shower Layout

With its generous central “spa plaza,” and oversized walk-in shower, dual-sink vanity, and dedicated linen niche this bathroom design turns into a true at-home retreat without any wasted space.

Floor Plan Details: When you enter a broad, almost square “spa plaza” opens up in front of you for a luxury feel. The separation splits wet functions on the left and top walls from dry prep space on the bottom wall. A large walk-in shower measuring 60″ × 42″, is positioned in the upper-left corner. The frameless glass panel of the enclosure helps reflect light and keep things feeling airy. The toilet sits on the upper-right wall, centered 18 inches off the side wall and buffered 48 inches from the shower glass. Install a small pony wall one one side of the toilet for a better sense of privacy. A dual-sink vanity stretches nearly the full lower wall and has two 48″ × 18″ cabinet modules, for 96″ overall of surface space, letting two people prep side by side without feeling overcrowded.

Dimensions:

• Size: 11 feet by 11 feet (121 sq ft)
• Shower: Large frameless glass walk-in shower (60” x 42”) occupying corner.
• Toilet: Wall-mounted toilet installed adjacent to shower, spaced comfortably.
• Vanity: Spacious dual vanity (96” x 22”) placed on opposite wall.
• Storage: Freestanding or built-in cabinet between vanity and shower.
• Door: Positioned centrally on opposite wall, creating smooth traffic flow.

Design Tips:

• Seamless surfaces. Run the same large-format porcelain tiles on the floor and up the shower walls for a cocooning, hotel-spa vibe.
• Half-height partition = privacy + perch. A 42″-high pony wall at the shower’s right edge hides plumbing, supports a slab bench, and screens the toilet without blocking any light.
• Symmetrical mirrors + sconces. Use two tall, back-lit mirrors centered over each basin to reinforce the balance while eliminating shadows.
• Layer wellness features. Pre-plumb for a rain head and hand-shower wand, embed a linear drain for curb-less access, and add radiant heat mats under the tile, for extra luxuries you’ll feel every morning.
• Accent with warm wood. Walnut drawer fronts on the vanity or open oak slat shelving in the linen niche soften all that tile work and keep the look modern yet inviting.

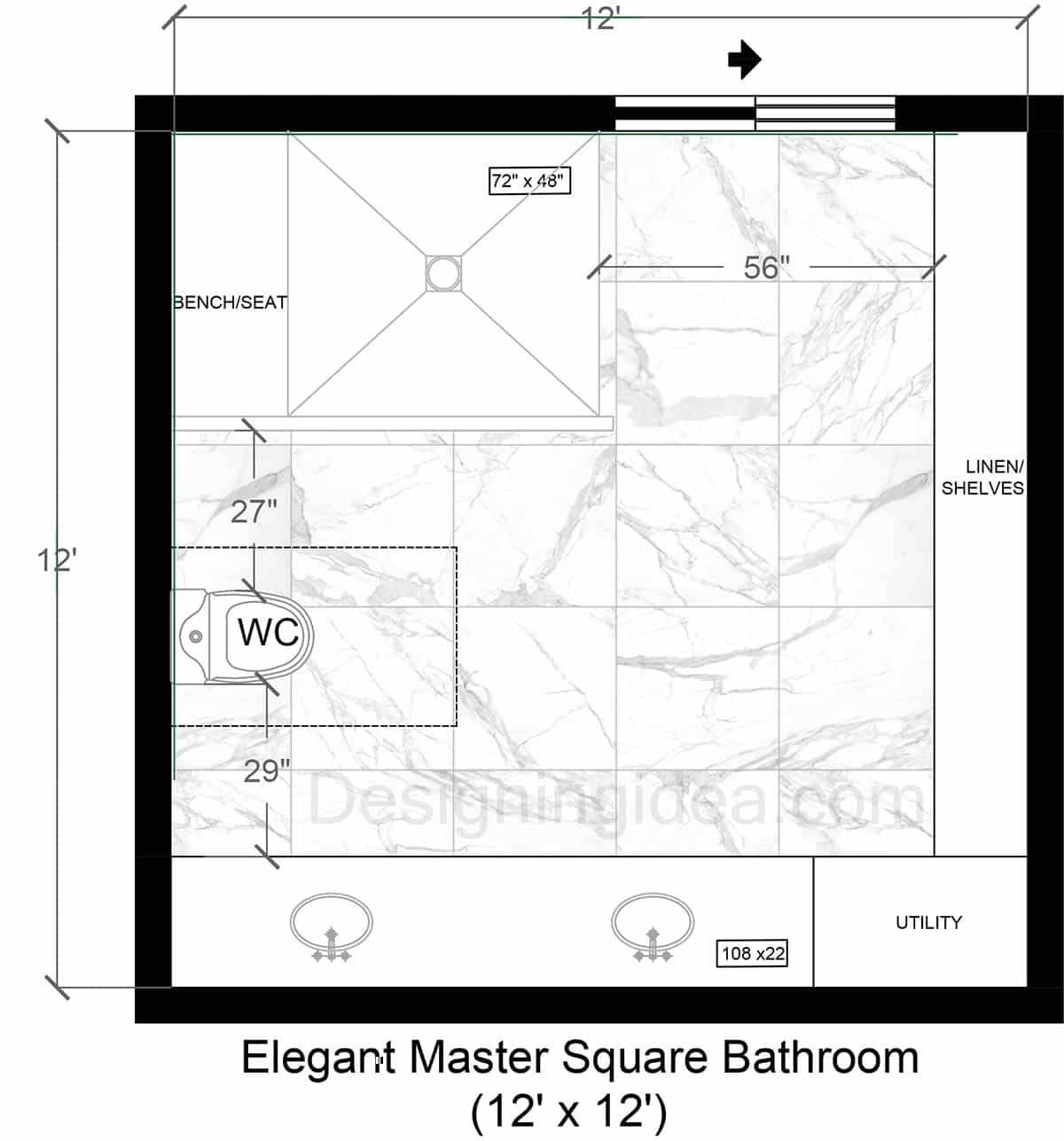

12×12 Elegant Square Master Bathroom Floor Plan

This master bath features an oversized walk-in shower with a bench on one side and a double vanity on the other, leaving a hotel-suite-sized center stage that feels every bit like a private spa.

Floor Plan Details: As you enter this primary bathroom suite, you’ll feel like you’re stepping into an expansive “stage” of uninterrupted floor that measures roughly 56 inches from the shower glass to the linen cabinet wall. The expansive walk-in shower, measuring 72″ × 48″ occupies the entire upper-left corner and comes equipped with a bench for relaxed rinsing or grooming. The toilet tucks below the shower on the left wall; its bowl is offset 27″ from the partition and enjoys 29″ of front clearance. The lower wall is devoted to the dual-sink vanity with lower cabinets for a total measurement of 108″ W × 22″ D with two basins and uninterrupted counter space between. Next to the vanity sits a utility/hamper bay, which is a convenient place to store laundry or other essentials. The right wall offers a full-height linen cabinet to store towels and toiletries within arm’s reach of both the vanity and the shower.

Dimensions:

• Size: 12 feet by 12 feet (144 sq ft)
• Shower: Expansive walk-in shower (72” x 48”) featuring a bench seat, occupying one corner.
• Toilet: Comfortably located adjacent to shower area, 18” from wall.
• Vanity: Double-sink vanity (108” x 22”) located along the opposite wall, creating symmetry.
• Storage: Generous linen cabinetry or tall storage tower beside vanity area.
• Door: Centrally located on wall facing vanity, providing elegant visual entry.

Design Tips:

• Seamless slab surface effect. Run large-format marble-look porcelain on floor and shower walls; carry a 4″ apron of the same tile behind the vanity as a splash guard, then top it off with a warm wood accent wall on one side.
• Curb-less linear drain. Install a single-plane slope toward a hidden trough to let the main floor tile flow straight into the shower for a boutique-hotel vibe.
• Half-height privacy wall. By extending the shower’s glass return only to 48″ and solid-frame the lower portion, one creates a bit of privacy and a ledge for décor.
• Wellness upgrades. Run plumbing for a rain head, hand-shower, and body jets for a luxurious showering experience.
• Future-proof it. The 48″-deep shower easily accepts a fold-down teak seat; the 56″ wide aisle offers full wheelchair turning radius should accessibility ever be required.
