Large Living Room Layouts With A TV That Work For Entertaining

Designing a large living room can be exciting, especially when the TV is the focal point, yet creating the perfect floor plan for entertaining can be a real challenge. The right layout can make all the difference as it makes sure everyone has comfortable seating, easy viewing of the screen, and room to walk through without any trouble. Depending on whether your focus is on a conversation-friendly arrangement or a multi-zone setup that combines lounging, dining, and media, there are many ways to design your room so that it’s both stylish and functional. In this guide, we’ll explore large living room layouts with a TV that are ideal for entertaining, and allow for the perfect blend of comfort, flow, and style.

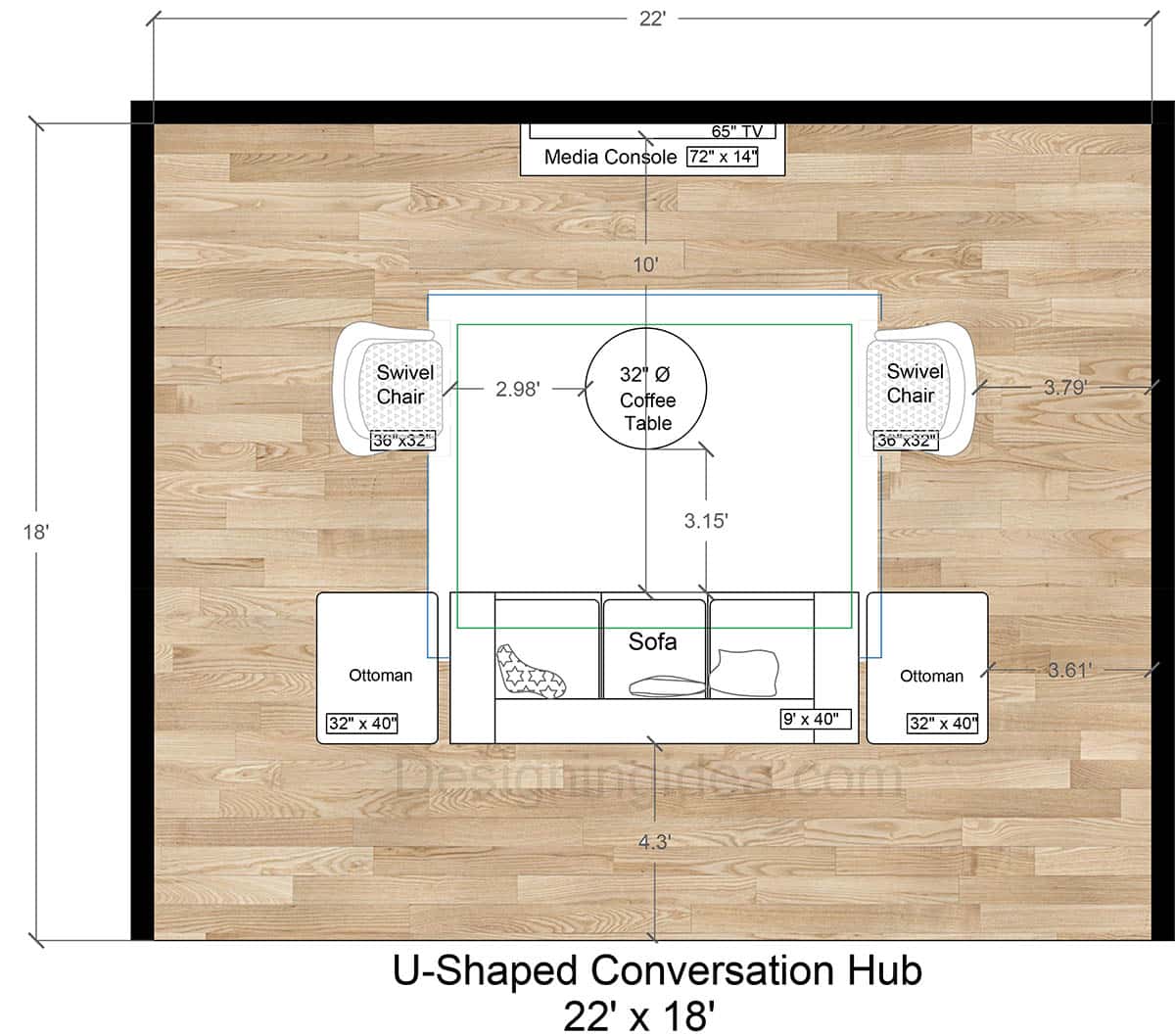

18×22 U-Shaped Conversation Hub With Wall-Mounted TV

By utilizing a U-shaped furniture configuration, this living room design achieves balanced symmetry, offering flexible seating that allows for a room that is functional for TV viewing or conversation.

Floor Plan Details: This 22′ by 18′ u-shaped living room layout is designed around a wall-mounted TV and media console that sits front and center. The seating arrangement encourages both relaxation and social interaction, while maintaining an easy flow of movement. The furniture is placed in a flexible setup with a central 9-foot by 40-inch sofa that’s flanked by two 32″ x 40″ ottomans and two 36″ x 32″ swivel armchairs. In the middle of the space is a 32-inch round coffee table that anchors the seating zone. The TV is positioned on the 22-foot wall, and hung over a 72″ x 14″ media console, at an appropriate viewing distance from the sofa. The arrangement leaves nearly 4.3 feet of aisle clearance behind the sofa and a similar amount between seating and walls, so there’s plenty of room to walk.

Dimensions:

• Room size: 22′ x 18′
• Sofa: 9′ x 40″
• Ottomans (2): 32″ x 40″
• Swivel chairs (2): 36″ x 32″
• Coffee table: 32″ diameter
• Media console: 72″ x 14″ with a 65″ TV above
• Sofa to coffee table clearance: 3′
• Walkway behind sofa: 4.3′
• Distance between chairs and wall: 3.6 to 3.8′

Design Tips:

• Balanced Symmetry: Match two swivel chairs and two ottomans with similar color schemes to balance the sofa, and offer a proportional look.
• Conversation-Friendly: The U-shaped seating promotes face-to-face conversations and interaction.
• Flow & Comfort: Ensure plenty of clearance between the furniture and walls to ensure unobstructed movement.
• Flexible Seating: The swivel chairs add adaptability, to watch TV or turn toward conversations.
• Focal Point: A large, wall-mounted TV with a slim console keeps the space feeling modern.

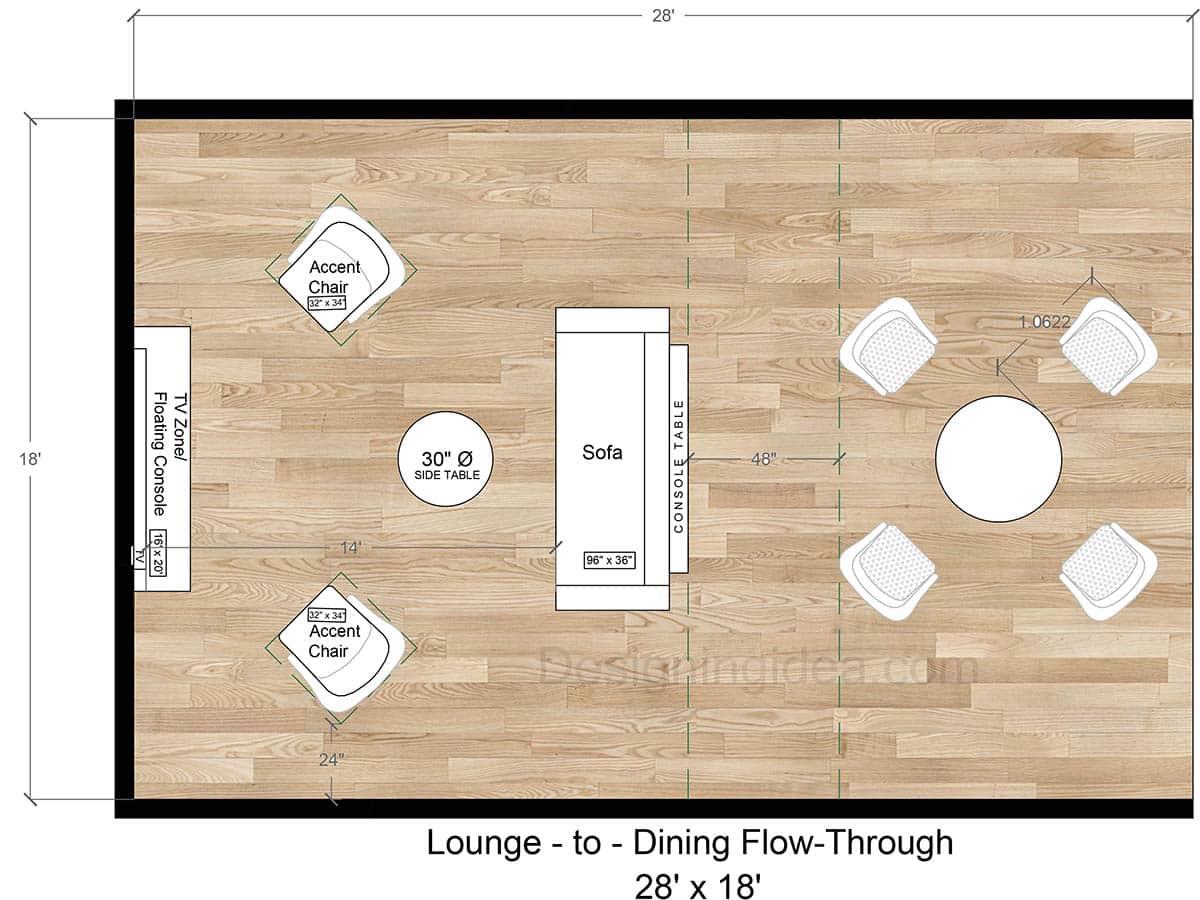

18×28 Lounge-to-Dining Room Flow-Through Floor Plan

This living room combines separate areas for dining and watching TV with a flow-through design down the middle, creating two functional yet connected zones that work well for both entertaining and everyday living.

Floor Plan Details: This 28′ by 18′ open-concept living room is divided into two distinct zones: a seating lounge and a dining area, separated by a flow-through walkway down the center. By separating the areas into one for relaxation and entertaining, the layout allows for two different functions in one room without crowding the other.  On one side, the lounge features a 96″ x 36″ sofa facing in front of the TV with a floating media console measuring 16″ x 20″ and a wall-mounted screen. Two 32″ x 34″ accent chairs are placed diagonally opposite one another to allow for easy conversation or extra seating while watching television. This arrangement is complemented by a 30″ round side table in front of the sofa. A console table is placed behind the sofa and acts as a subtle barrier between the lounge and dining area. The dining zone is positioned on the opposite side of the room, and offers a round dining table surrounded by four chairs. There’s also a 48″ walkway between the sofa’s console table and the dining area.

Dimensions:

• Room size: 28′ x 18′
• Sofa: 96″ x 36″
• Accent chairs (2): 32″ x 34″
• Side table: 30″ diameter
• Console table behind sofa: dimensions not specified, but fits while maintaining the aisle
• Floating media console: 16″ x 20″
• Dining table: round with seating for four
• Sofa to dining clearance: 48″
• Chair to wall spacing: 24″ to 30″ clearance

Design Tips:

• Defined Zones: Use the sofa and console table as a divider to keep the lounge and dining areas separate.
• Diagonal Seating: Placing two accent chairs at an angle for conversation or watching TV.
• Balanced Proportions: Break up the long rectangular room with the placement of furniture to keep it from feeling too linear.
• Flow-Through Design: Use a 4-foot clearance zone in between each area to make it more functional for daily living.
• Multi-Purpose Furniture: Add a slim console table behind the couch that doubles as storage and display.

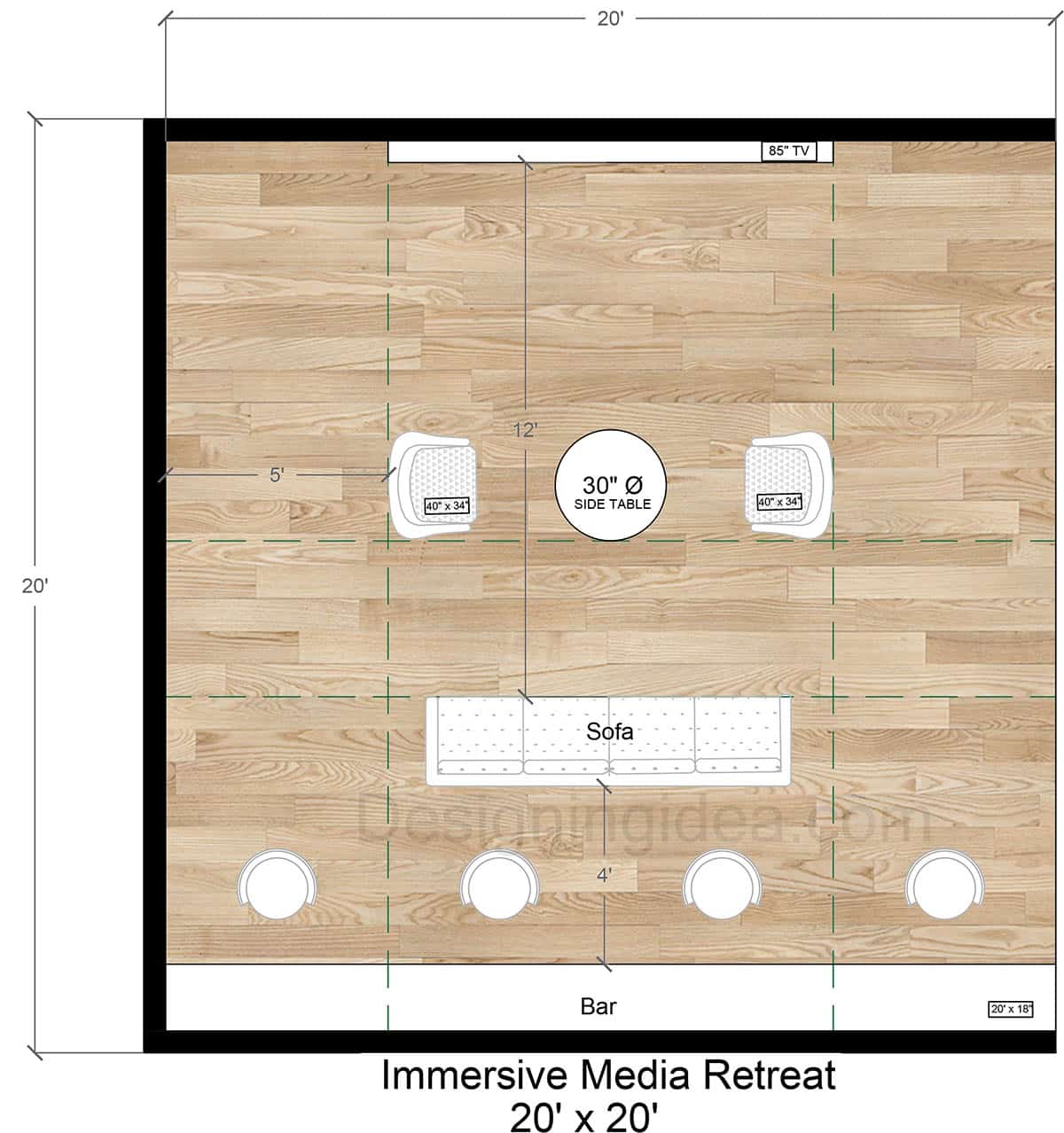

20×20 Immersive Media Room Retreat Layout

For those wanting an immersive media retreat, this theater room design combines optimized movie-watching seating with a built-in bar to create a versatile space for entertainment and relaxation.

Floor Plan Details: This 20′ x 20′ square layout is designed as a media room that blends space for a home theater setup with a social bar area. The arrangement creates a space for entertainment, relaxation, and gathering, making it ideal for those seeking fun movie nights, game days, or casual get-togethers. The show-stopper of this room is the 85-inch wall mounted TV on the front wall that acts as the main focal point for viewing. A sofa is placed 12 feet back from the screen, delivering the optimal viewing distance for the large display. In front of the sofa are two 40″ x 34″ armchairs facing each other with a small 30″ diameter round side table in between. Behind the sofa, there’s a built-in bar with four stools for hanging out. A 4-foot clearance between the sofa and the bar allows for easy traffic flow, while the 5-foot spacing along the sides allows guests to get around without any trouble.

Dimensions:

• Room size: 20′ x 20′
• TV: 85″ screen
• Sofa to TV distance: 12′
• Sofa to bar clearance: 4′
• Bar: 20′ x 18″ with seating for four
• Accent chairs: 40″ x 34″
• Side table: 30″ in diameter
• Side clearances: 5′ on each side of chairs

Design Tips:

• Theater-Optimized Viewing: The 12-foot distance from the sofa to the screen is ideal for an 85-inch TV.
• Dual Purpose Setup: Add a bar behind the sofa that’s perfect for additional seating without interrupting the theater setup.
• Balanced Layout: Match the accent chairs to create symmetry with a small table in the middle for drinks or snacks.
• Flow & Comfort: The 4-foot gap behind the sofa allows for movement between the seating and the bar.
• Add side tables to the couch. This provides extra surface area for holding drinks, remote or other decor items.

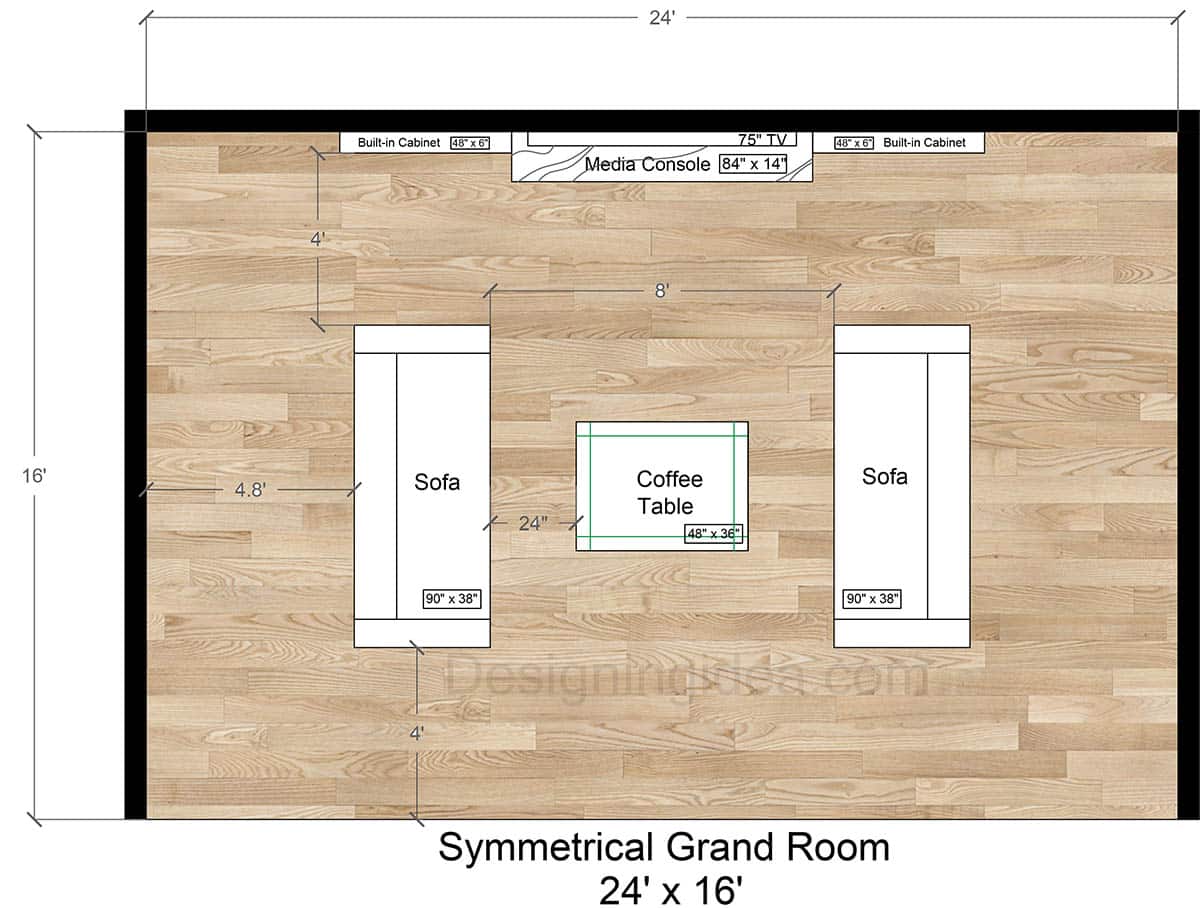

16×24 Symmetrical Grand Media Room With Matching Sofas

With a symmetrical floor plan that’s more focused on conversations than watching TV, this grand room works because its balanced designs provides matching sofas, a central coffee table, and a built-in media wall that is both elegant and functional.

Floor Plan Details: This 24′ x 16′ living room shares a mix of balance and elegance through symmetry, making it an ideal setup for formal entertaining. It works by using matching sofas that face each other with a coffee table in the middle, and a built-in media wall with built-in cabinets and a center console. The arrangement features two identical 90″ x 38″ sofas, placed parallel to one another, with a 48″ x 36″ rectangular coffee table at the center. There’s a 75-inch wall-mounted TV sitting above a long 84″ x 14″ media console with built-in cabinets measuring 48″ x 6″ on either side for storage. There are 4′ walkways on the upper and lower side of the couches, allowing plenty of room for comfort and accessibility. This furniture placement directs emphasis on  the conversational area with secondary focus toward the entertainment wall, which acts as a natural focal point.

Dimensions:

• Room size: 24′ x 16′
• Sofas (2): 90″ x 38″
• Coffee table: 48″ x 36″
• Media console: 84″ x 14″
• TV: 75-inch wall-mounted
• Built-in cabinets: 48″ x 6″ on both sides of the TV
• Sofa to coffee table clearance: 24″
• Walkway behind sofas: 4 feet
• Distance between sofas: 8 feet

Design Tips:

• Symmetry for a formal feel: Match the sofas and use a balanced cabinetry setup to create a refined and formal look.
• Sightlines: The parallel sofas provide side viewing angles to the TV while at the same time making the area conversation-friendly.
• Functional Storage: The dual built-in cabinets add storage and can be used for display.
• Spacious Walkways: The 4-foot clearances behind and around each sofa ensures a roomy feel for family gatherings or hosting guests.
• Versatile Use: This setup works equally well for movie nights, entertaining, or simply lounging in style.
• Add another loveseat for a theater experience. If you want to put more focus on movie watching add a small couch on the lower end facing the media console.

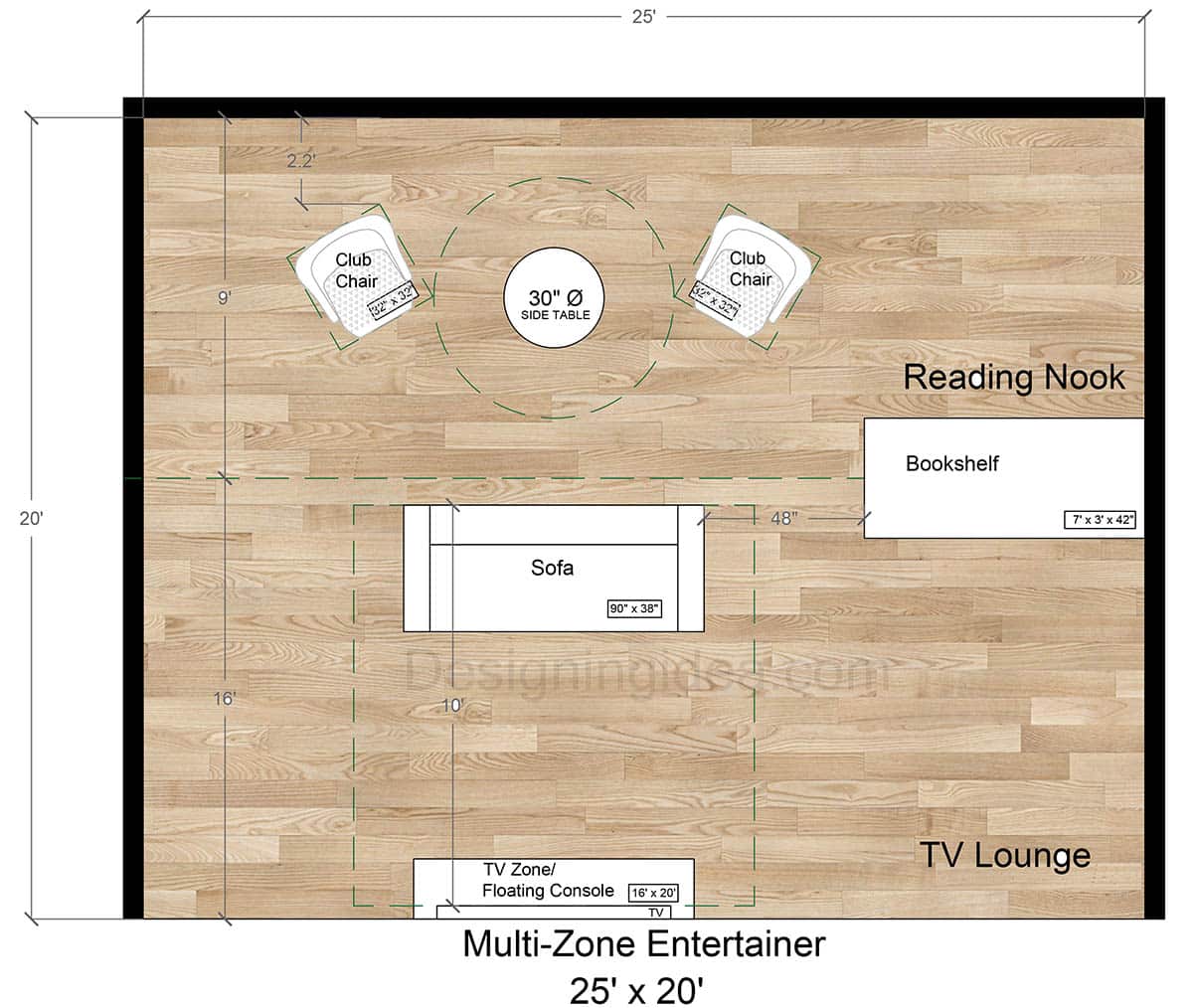

20×25 Multi-Zone Entertainer’s Living Room Layout

For an entertainer’s style layout, this design creates zones like a TV lounge, a sitting area for conversation, and a reading nook, so there’s something for everyone in this spacious living room.

Floor Plan Details: This 25′ x 20′ living room is designed for versatility by offering multiple activity areas within one open space. The room balances its design between a TV lounge, a conversation zone, and a cozy reading nook, so it works well for family use and larger gatherings. The TV lounge is made up of a 90″ x 38″  sofa facing the TV with a 16″ x 20″ floating console located on the bottom half of the room, and wall-mounted TV. Behind the sofa, there is a sitting area with two 42″ x 32″ club chairs facing each other diagonally, with a 30″ round table in between. On the right side of the room is a dedicated reading nook with a 7′ x 3′ x 42″ bookshelf, and a defined area for a cozy retreat within the larger space.

Dimensions:

• Room size: 25′ x 20′
• Sofa: 90″ x 38″
• Media console: 16″ x 20″ floating console
• Club chairs (2): 42″ x 32″
• Side table: 30″ diameter
• Bookshelf: 7′ x 3′ x 42″
• Sofa to bookshelf clearance: 48″
• Club chair zone depth: 9′

Design Tips:

• Zoned Layout: Break the room into a TV lounge, reading nook, and conversation area.
• Enhance the reading nook. Add a comfy window seat or comfy seat in the bookshelf corner with an inviting area rug to define that zone.
• Balance Furniture: The club chairs and side table form a secondary focal point, balancing the dominant TV wall.
• Define the Corners: The reading nook ensures no corner of the room feels wasted, and turns the bookshelf into a functional and decorative element.
• Flexible Entertaining: This layout allows guests to choose between lounging, chatting, or retreating to a quieter corner.
