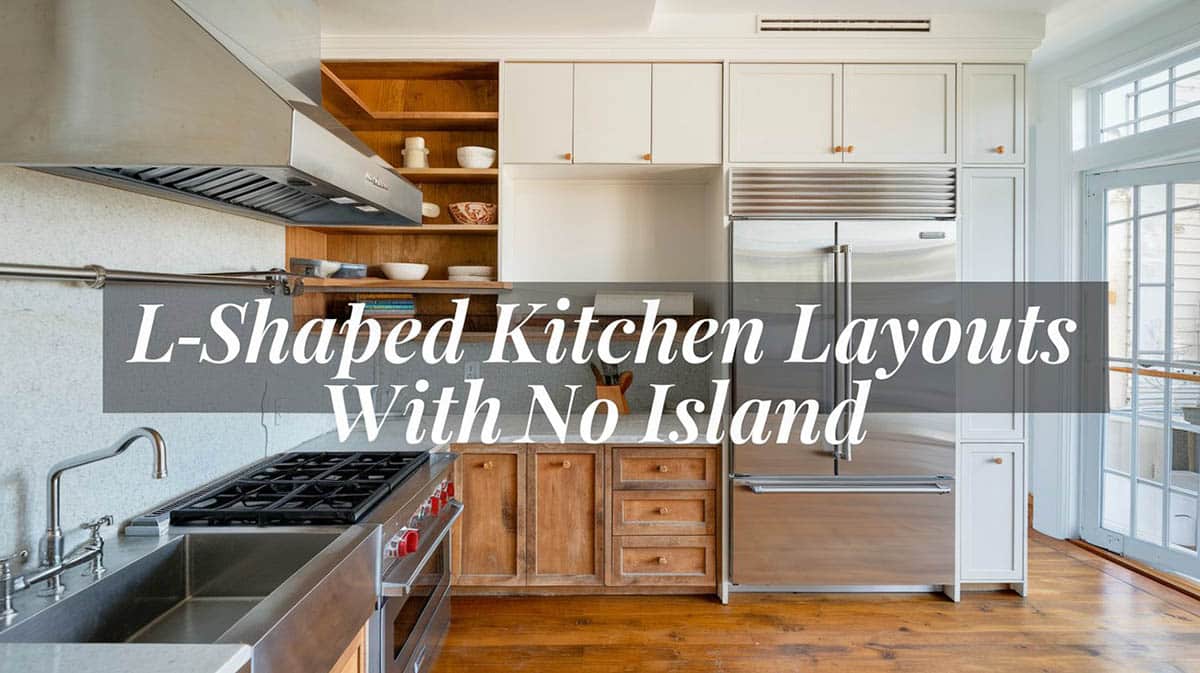

5 Efficient L-Shaped Kitchen Layouts with No Island

Are you searching for a kitchen that works hard, hugging two walls, without crowding the center of the room? With an L-shaped, island-free layout, you can strike the perfect balance since they wrap storage, prepping zones, and major appliances along two intersecting walls. This design leaves a large open center for walking circulation, or a pop-up serving cart when needed. Whether you’re outfitting a compact condo nook, carving out a medium-sized cook-and-dine combo, or planning a large entertainer’s hub with double wall ovens, these plans prove you don’t need an island to achieve a smooth workflow with plenty of countertop real estate. Dive in to see five smart L-shaped kitchen layouts with no island that include family-friendly pantries with galley-wide aisles.

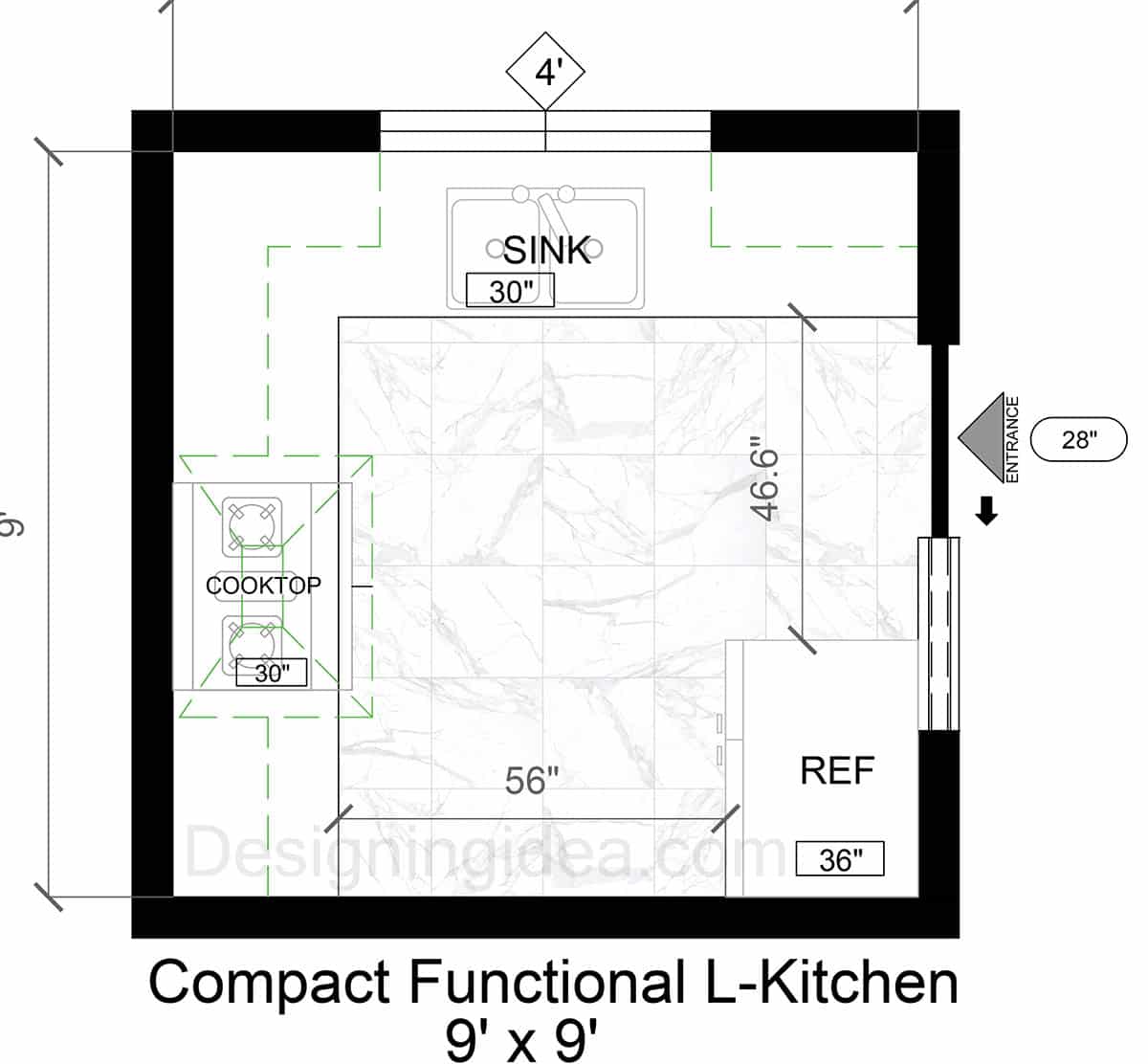

9×9 L-Shaped Compact And Functional Kitchen Floor Plan

This compact L-shaped kitchen layout delivers efficiency and workflow by keeping all major appliances within easy reach while maintaining a spacious central aisle that is big enough for two.

Floor Plan Details: Once you step through the doorway on the right, you’re greeted by the refrigerator, placed for easy accessibility and facing the true L-shaped kitchen. The counter swings around a corner and runs the full width of the left and upper side, where a 30-inch sink sits neatly centered in a 4-foot stretch beneath the window to better appreciate the outdoor views while on dish duty. Turning the corner again, the left side offers another uninterrupted work surface that leads to a 30-inch, two-burner cooktop and then additional counter space. With all appliances clustered on adjoining walls, the room’s center remains completely open with a 56-inch clear aisle and a tight, sub-12-foot work-triangle (sink-cooktop-fridge) that lets one cook pivot without wasted steps while still leaving enough room for a helper to pass behind. The plan details lower and upper cabinets (See green dashed lines) to make your remodel planning easier.

Dimensions:

• Room size: 9′ × 9′ (square)
• Entry door clearance: 28″ wide
• Refrigerator niche: 36″ W standard-depth unit
• North-wall counter run: 4′ of counter + 30″ sink base (window above)
• West-wall counter run: ≈ 4′ of counter terminating at 30″ cooktop
• Open aisle width (counter to counter): 56″
• Diagonal sink-to-fridge reach: 46.6″
• Total work-triangle length: 11′ 6″ (compact & NKBA-friendly)

Design Tips:

• Low-profile fridge. Go counter-depth on the fridge to preserve the big 56″ aisle.
• Lazy-Susan in the corner. Install a blind-corner pull-out or lazy-Susan base to reclaim storage in the inside corner.
• Drawer accessibility. Use slim pull-out spice drawers on each side of the cooktop for quick-grab seasonings.
• Light the counters and floors. Add under-cabinet and toe-kick LEDs along both legs to brighten prep surfaces, enhance the look, and visually widen the space.
• Shelves next to the window. Opt for floating shelves flanking the window instead of full uppers to keep sight-lines open and bounce light deeper into the room.

Best for: Use in small homes or apartments to maximize the limited space.

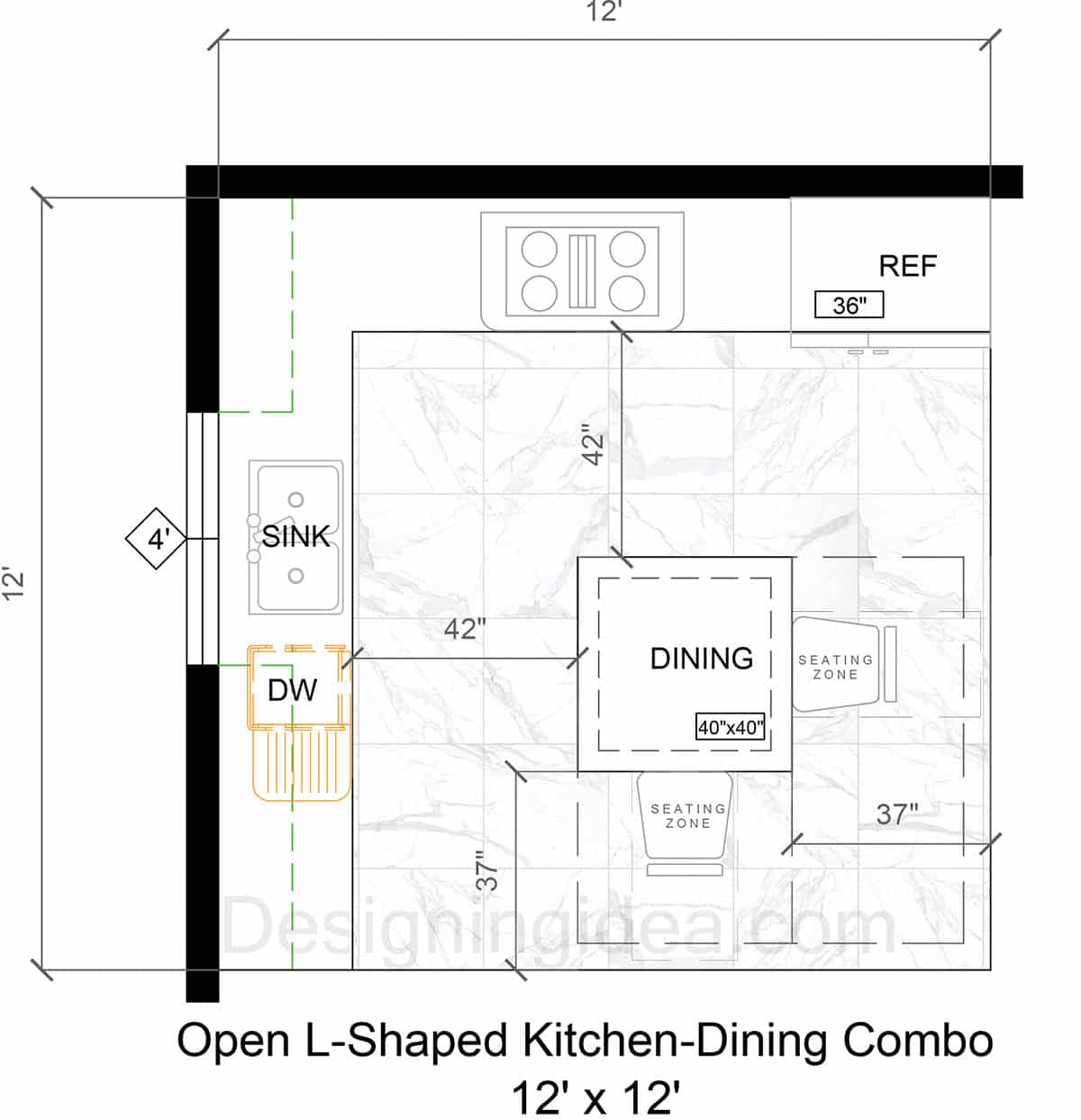

12×12 Open L-Shape Kitchen And Dining Combo Layout

This sociable design is built with eat-in dining in mind, featuring a central table and an arrangement that facilitates ease of use.

Floor Plan Details: This square room pairs an L-shaped working kitchen with an eat-in dining nook for multi-functionality. Starting at the upper-right corner, a 36-inch refrigerator is accessible on the outer edge, followed by counter space and followed by a 30-inch cooktop. Turning the corner, the left side hosts a 30-inch sink beneath a 4-foot window, with a 24-inch dishwasher nearby. The remaining floor is kept open for a 40-inch-square dining table placed slightly off-center so that there is room for walkways of 42 inches between the table and counters and 37 inches to the lower edge. The result is a social, circulation-friendly design, where the cook can move easily between the fridge, sink, and stove while entertaining diners just a step away.

Dimensions:

• Room size: 12′ × 12′ square
• Refrigerator width: 36″
• Cooktop width: 30″ (centered on the upper side)
• Sink base: 30″ under 4′ window
• Dishwasher: 24″ right below sink
• Dining table: 40″ × 40″ square
• Clearances: 42″ aisle (sink/cooktop to table) and a 37″ aisle (table to south wall)

Design Tips:

• Add a bench. Opt for a built-in banquette or bench on the right side to squeeze in extra diners without over crowding.
• Maintain the aisle. Keep at least 42″ between table edge and counters to allow cooking and seating at the same time.
• Slim fridge. Install a counter-depth fridge to prevent bottlenecks near the dining area.
• Light the table. Use a statement pendant above the square table to visually anchor the dining area and add task lighting.

Best for: Those who want a combination kitchen and dining area with smooth traffic flow.

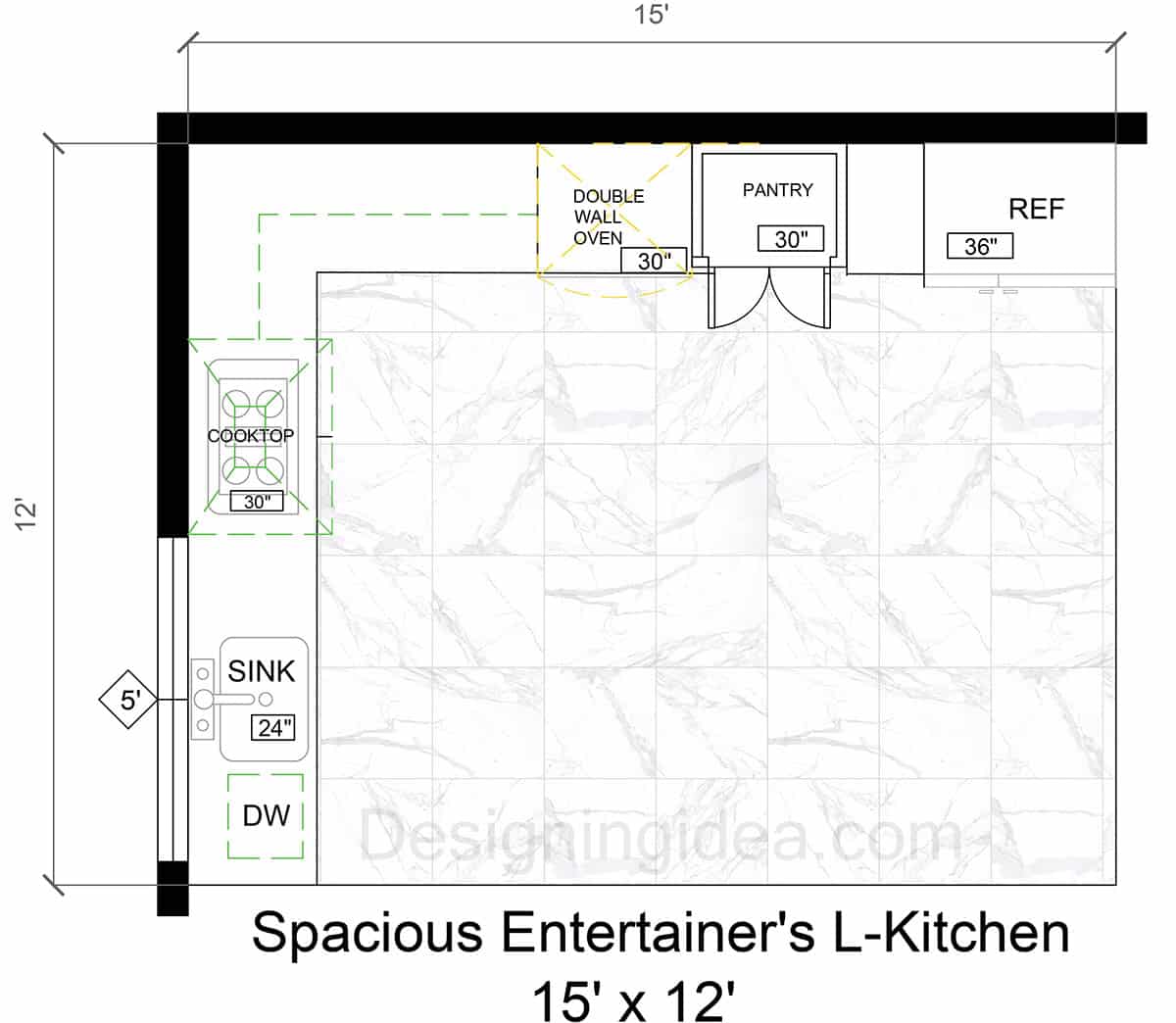

15×12 Spacious L-Shaped Entertainer’s Kitchen Design

This roomy L-shaped layout offers double wall ovens, a full pantry, and a wide central gathering area that makes this design a host’s dream that’s efficient for weeknight cooking, yet ready to handle a crowd at a moment’s notice.

Layout Details: In this spacious room, the working zones stretch along the upper and left sides, leaving a wide, obstacle-free center that could be used for rolling in a mobile island when any company arrives. Starting from the upper-right side of the “L,” a 36-inch refrigerator flows into a 30-inch full-height food pantry, followed by a 30-inch double wall-oven tower, providing the cook with two independent baking zones surrounded by counter space. Turning the corner, the left run begins with a generous landing surface and a 30-inch, five-burner cooktop, followed by extra prep space that leads to a 24-inch sink with an adjacent 24-inch dishwasher. Having the sink and cooktop near each other enhances cooking speed. A 5-foot picture window at the lower left allows for views while involved with kitchen duties. Meanwhile, the long legs of the “L” keep the classic fridge–sink–cooktop triangle just under 13 feet, which is efficient for everyday use, yet roomy enough for others to help when needed.

Dimensions:

• Room size: 15′ W × 12′ D
• North-wall run: 36″ fridge, 30″ pantry, and 30″ double wall oven
• West-wall run: 30″ cooktop, 40″ landing/prep counter, 24″ sink base, and 24″ dishwasher
• Entry opening (west wall, south end): 5′ wide
• Clear central floor area: 9′ × 8′ unobstructed and large enough for a movable 4′ × 2′ island or buffet table
• Work-triangle length: 12′ 8″ (efficient for multiple cooks)

Design Tips:

• Add a 4-foot rolling island or bar cart. This can help convert the open center into bonus prep or serving space during gatherings.
• Use pull-out trays inside the 30″ pantry. This keeps dry goods and food items organized and easy to grab.
• Install a concealed ceiling hood over the cooktop. This can help keep the long sight-lines obstruction-free.
• Select a counter-depth refrigerator. Helps to retain the aisle in front of the wall ovens.
• Run decorative task lighting beneath upper cabinets. This can spotlight key work zones and create extra room ambiance.

Best for: Excellent for large kitchens with plenty of prep space for hosting.

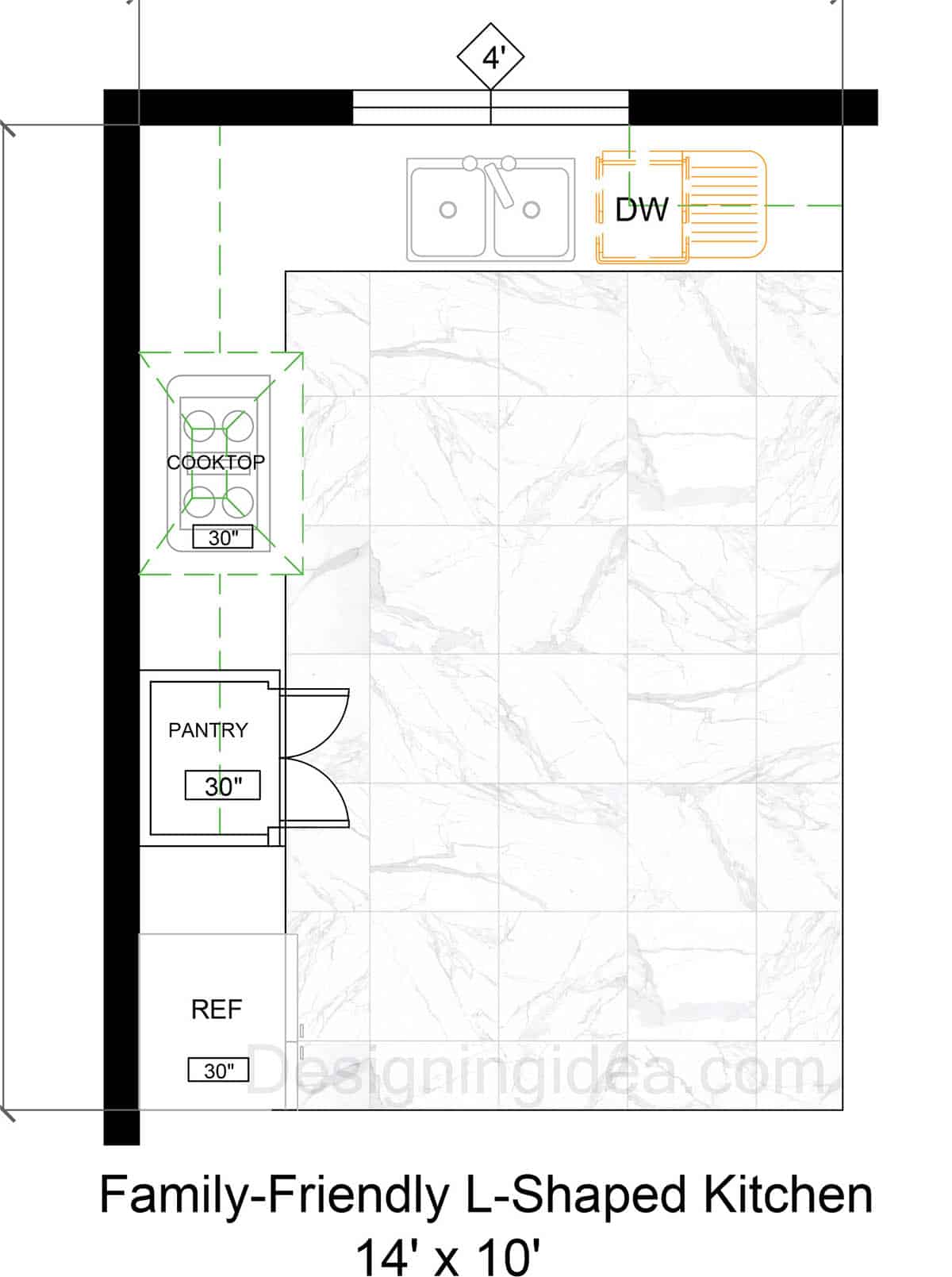

14×10 L-Shaped Family-Friendly Kitchen Floor Plan

This balanced kitchen provides dedicated pantry storage, roomy clearances, and an efficient work triangle that makes daily family cooking (and kid traffic) run smoothly without over-crowding the cook.

Layout Details: This kitchen keeps the busy family’s core tasks parked along the two adjoining walls, freeing up a wide central entertaining-and-prep zone where kids can hover safely out of the cook’s way. The long upper wall has a four-foot window with a 30-inch double-bowl sink underneath, next to a 24-inch dishwasher. Turning the corner, the left-hand run begins with a 30-inch five-burner cooktop, then leads to a full-height 30-inch pantry cabinet for bulk food items and small appliances, and finally meets a 30-inch refrigerator at the room’s bottom left. The classic fridge-sink-cooktop triangle all stays under 13 feet, with an open center that can easily fit a rolling island or a toddler’s high chair without blocking traffic.

Dimensions:

• Room size: 14′ W × 10′ D
• Sink base: 30″ (under a 4′ window)
• Dishwasher: 24″ right of sink
• Cooktop width: 30″
• Full-height pantry: 30″ wide, with double doors
• Refrigerator niche: 30″ standard-depth
• Clear central floor area: 9′ × 7′ unobstructed (for a movable 4′ × 2′ island, small table and chairs or high chair)
• Work-triangle length: 12′ 6″ total (family-friendly efficiency)

Design Tips:

• Add a pull-out trash bin between the sink and the dishwasher. Others can throw away trash without crossing the cook’s path.
• Use soft-close, full-extension drawers under the cooktop. This can be used to store pots and plasticware with no finger pinches.
• Adjustable shelves and door racks in the pantry. Help to organize food between child and adult heights.
• Install a magnetic chalkboard or cork panel on the pantry side. Helpful for writing grocery lists, important dates or reminders.

Best for. Homes that need room for families with multiple cooks or activities.

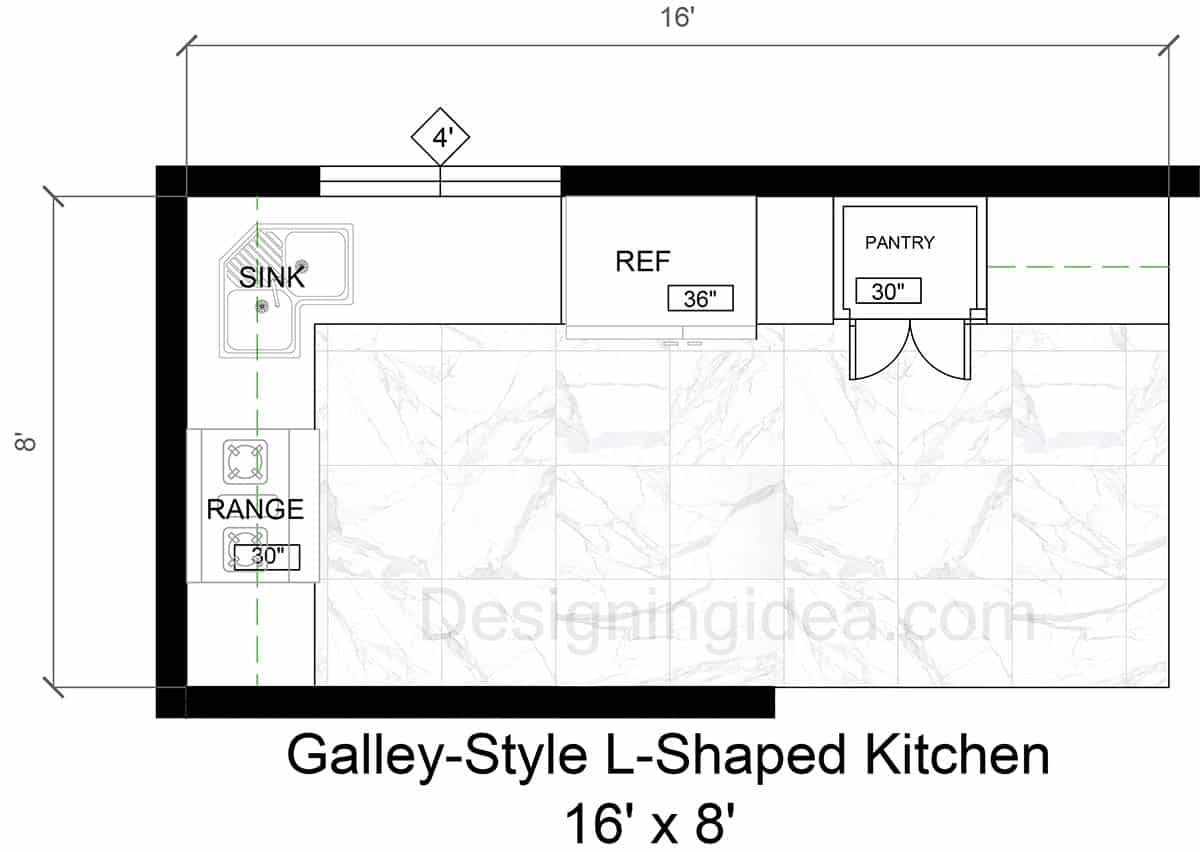

16×8 L-Shaped Galley-Style Kitchen Design

This L-galley tucks every major kitchen task against two walls, leaving a roomy center aisle that makes the small-space feel open and airy.

Layout Details: In this streamlined galley kitchen the “L” hugs the left and top walls to create a wide center aisle that feels larger than one would think. Starting on the left run, a 30-inch range sits just below a diagonal double-basin corner sink that enjoys daylight from a nearby 4-foot window. The counter then turns to meet a prep span under the window, a 36-inch refrigerator, and finally a 30-inch full-height pantry cabinet for storing dry goods on the far right. Because all three work-triangle points occupy adjoining walls, the longest leg stays under 13 feet (best for ease of use), while the 6-foot-wide central corridor remains traffic-friendly, and can accommodate a  helper or a slim rolling island.

Dimensions:

• Room size: 16′ W × 8′ D
• Window above counter: 4′ wide
• Corner sink: diagonal, fits a standard 33″ base
• Range: 30″ on left wall
• Refrigerator: 36″ wide, and standard depth
• Pantry cabinet: 30″ wide, with double doors
• Clear center aisle: 6′ wide × 11′ long
• Work-triangle total: 12′ 10″ (efficient)

Design Tips:

• Corner storage. Choose a corner-sink base with swing-out trays to maximize the tricky corner.
• Use shallow upper cabinets. Install shallow (12–15″) uppers along the long wall so the 8′ depth doesn’t feel like a tunnel.
• Consider a rolling cart. Add a 15–18″-deep rolling cart for extra prep space that can park against the pantry when not in use.
• Light under the cabinetry. Run under-cabinet LED strips the full length of the upper wall to create a bright work zone.

Best for: Homes with a narrow kitchen footprint that desire pantry storage.
