A bathroom with a large walk-in shower can make the room instantly feel bigger, luxurious, and give it a spa-like feel. This effect works even when the room isn’t huge. The way it works is not just picking a bigger shower size; it’s choosing a floor plan that showcases its design, combined with direct sightlines through the glass enclosure. In this guide, I share inviting bathroom layouts with large showers ranging from compact 8×10 plans to roomier primary suites. You’ll see all of the key dimensions, fixture placement tips, and design ideas that make an oversized shower look elegant and stylish.
10×12 Spacious Rectangular Bathroom with Walk-In Shower and Double Vanity Layout
This bathroom features an open center walkway with a double vanity and linen closets at the top and a large shower and private toilet at the bottom so everything is easy to access and efficient.
Easily Create Your Own Room Makeover
Upload a photo and get instant before-and-after room designs. No design experience needed — join 2.39 million+ happy users. 👉 Try the AI design tool now
Floor Plan Details: This 10′ x 12′ bathroom is laid out with an entry on the left that opens into a wide aisle with grooming and storage above, showering along the bottom-left, and a private toilet in the bottom-right corner. The open center aisle keeps the room feeling wide, and as you face the 6′ x 2′ double sink vanity, you’ll see matching 2′ x 2′ linen closets to either side. On the lower side, you’ll find the large 4′ x 6′ walk-in shower with a sitting bench. After that, there’s a private water closet measuring 3′ x 5′ that gives privacy from anyone else sharing the space. The middle of the room remains open, and the roughly 5.84 ft depth between the vanity and the shower helps the room feel spacious and work for a couple, or a family with several kids to use.
Dimensions:
Room size: 10′ W x 12′ L
Vanity wall layout: 2′ + 6′ + 2′ = 10′ total
Double vanity: 6′ W x 2′ D
Storage/linen closets (two): 2′ x 2′ each
Walk-in shower: 4′ x 6′
Toilet room: 3′ x 5′
Main clearance (vanity to shower line): 5.84′ (70″)
Design Tips:
Run a wide mirror across the wall above the vanity to enhance the brightness and make grooming easier for two.
Upgrade the shower with a frameless glass panel so it looks even bigger.
Add a recessed niche above the bench for your bath accessories.
Include the bench in the enclosure for a luxe feel.
Install a handheld sprayer near the bench for washing and shaving legs.
Keep towel hooks and accessories near the ends of the shower and vanity for easier use.
Hang two sconces, with one at each sink, along with overhead ambient light to better eliminate shadows.

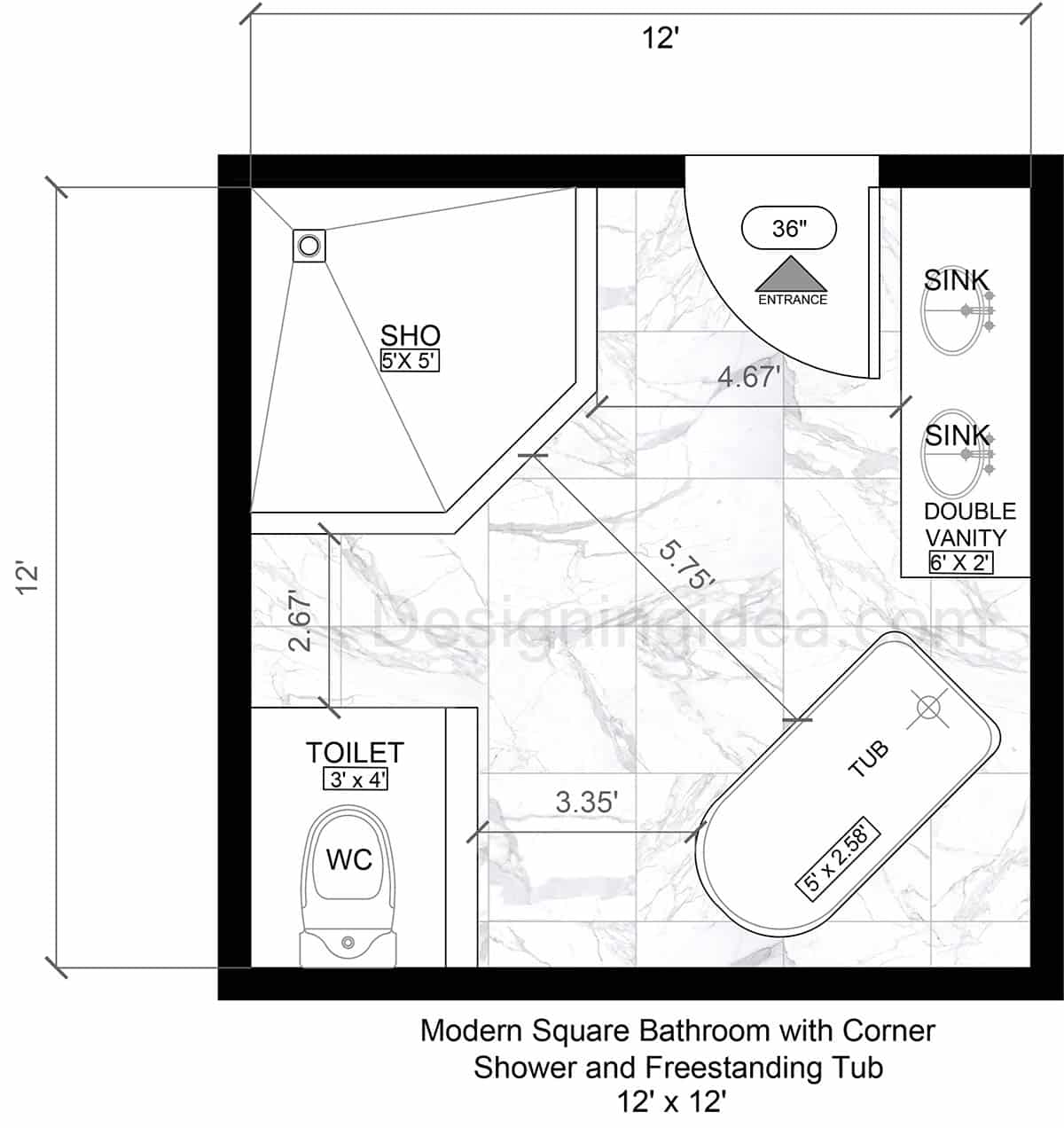

12×12 Modern Square Bathroom with Corner Shower and Freestanding Tub Layout
This bathroom gives definite spa vibes with its large open center, double sink vanity, angled shower, and freestanding tub that beckons one for an indulgent, relaxing soak.
Floor Plan Details: This 12′ x 12′ modern square bath features an open middle area and uses the perimeter for every fixture so the room feels spa-like and elegant. As you enter from the top, you’ll find the double sink vanity on the right side with room for a couple to get ready side by side. This is followed by the freestanding tub on the lower-right. There is a 5′ x 5′ corner shower at the top-left, with a neo-angled shower that softens the square room and adds modern geometric styling. The bottom-left holds a compact 3′ x 4′ toilet nook, separated by a half wall, so it feels a little more private while still being easy to reach when needed.
Dimensions:
Room size: 12′ x 12′
Entry door: 36″ wide
Corner shower: 5′ x 5′
Double vanity: 6′ x 2′
Toilet nook: 3′ x 4′
Freestanding tub: 5′ x 2.58′ (approx. 31″ wide)
Clearance in front of vanity/shower zone: 4.67′
Width between toilet wall and tub: 3.35′
Open center diagonal clearance shown: 5.75′
Gap between shower edge and toilet zone: 2.67′
Design Tips:
Choose a glass neo-angle shower. Going with a frameless enclosure keeps it from visually blocking the room and makes the space feel bigger.
Since the tub is set on a diagonal, mount a floor-mounted tub filler near the long side for a cleaner look.
Use a large mirror or mirrored cabinet above the vanity to give it a taller appearance.
Add vertical sconces on both sides of the vanity for better face-lighting than using overhead-only lighting.
Put towel storage hooks near the shower and tub.
Install large-format tile to reinforce the modern aesthetic and add visual interest.

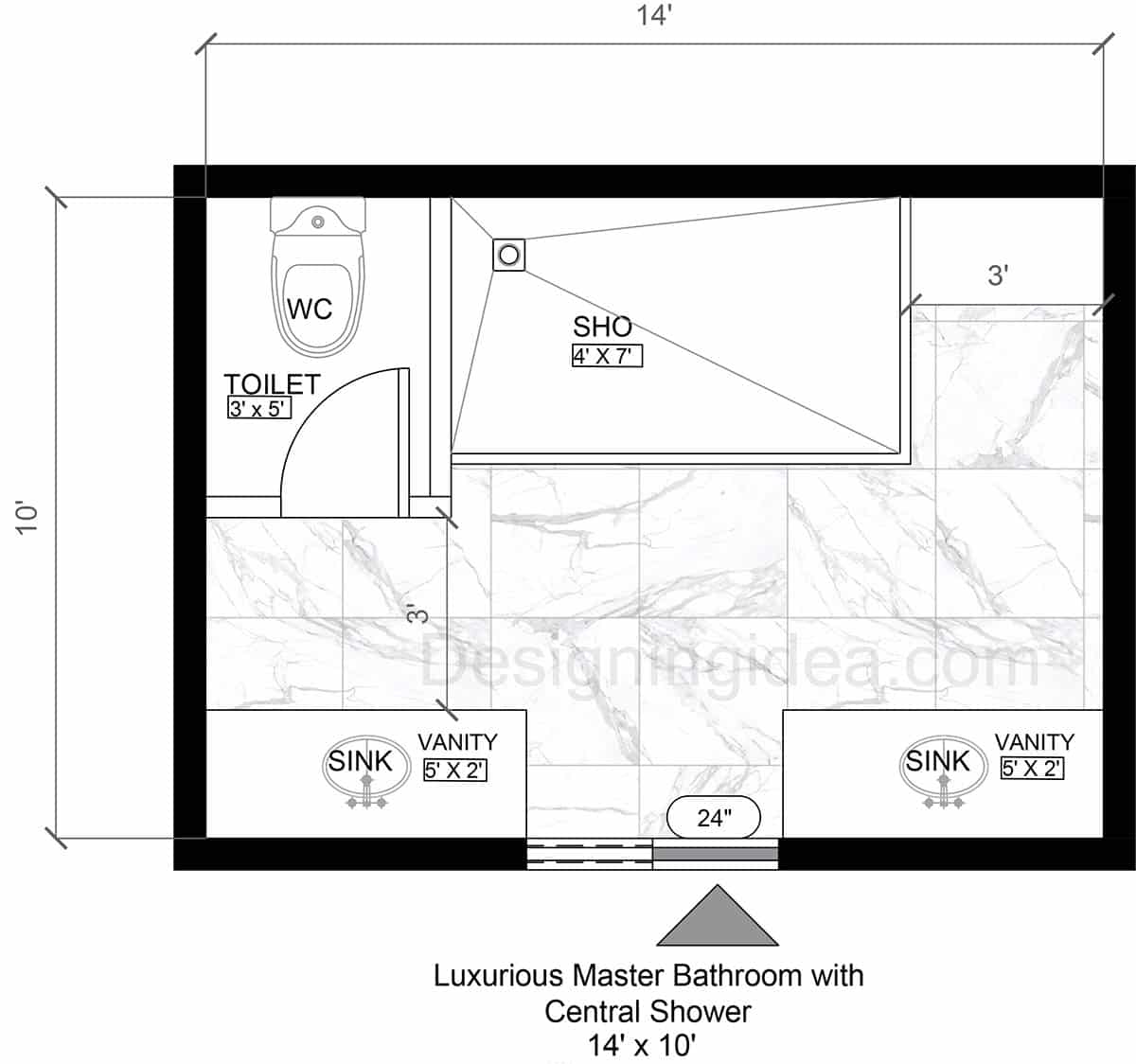

10×14 Luxurious Master Bathroom with Central Shower Floor Plan
This bathroom is set up with his and hers vanities on opposite sides, a large, welcoming shower, and a private water closet to promote a busy household’s daily routine.
Floor Plan Details: This 10′ x 14′ primary bath welcomes you as you enter from the bottom with separate vanities on either side and a hotel-style view looking straight ahead to a large 4′ x 7′ shower. The two matching single vanities create a balanced “his-and-hers” setup with an open central aisle. That middle walkway makes the area feel roomy and luxe and keeps the enclosure as the star of the show and focal point. The toilet room is tucked into the top-left corner with its own door, so it’s private for someone to use while sharing the space. To the top-right, there’s an additional 3′ wide space that works as a reach-in linen closet, hamper spot, shelving, or space for a linen tower.
Dimensions:
Room size: 14′ W x 10′ D
Shower: 4′ x 7′
Toilet room: 3′ x 5′
Vanities (two): 5′ x 2′ each
Main circulation clearances shown: 3′ (between zones)
Entry opening shown: 24″ (as labeled at the bottom)
Design Tips:
Make the shower feel like the feature wall by using full-height tile.
Add a frameless glass enclosure to the 4′ x 7′ shower to better enlarge the space.
Use the 3′ wide zone in the upper-right for a linen closet, or a tall, slim cabinet.
Treat the two vanities with matching finishes, the same mirrors, lighting, and hardware to give a high-end design.
Install two vertical sconces at each vanity corner for a total of four.
Use two recessed ceiling lights down the main aisle and one wet-rated one in the shower and one in the toilet room.
Add dimmers to the vanity sconce light fixtures to control the lighting for a softer look when needed.

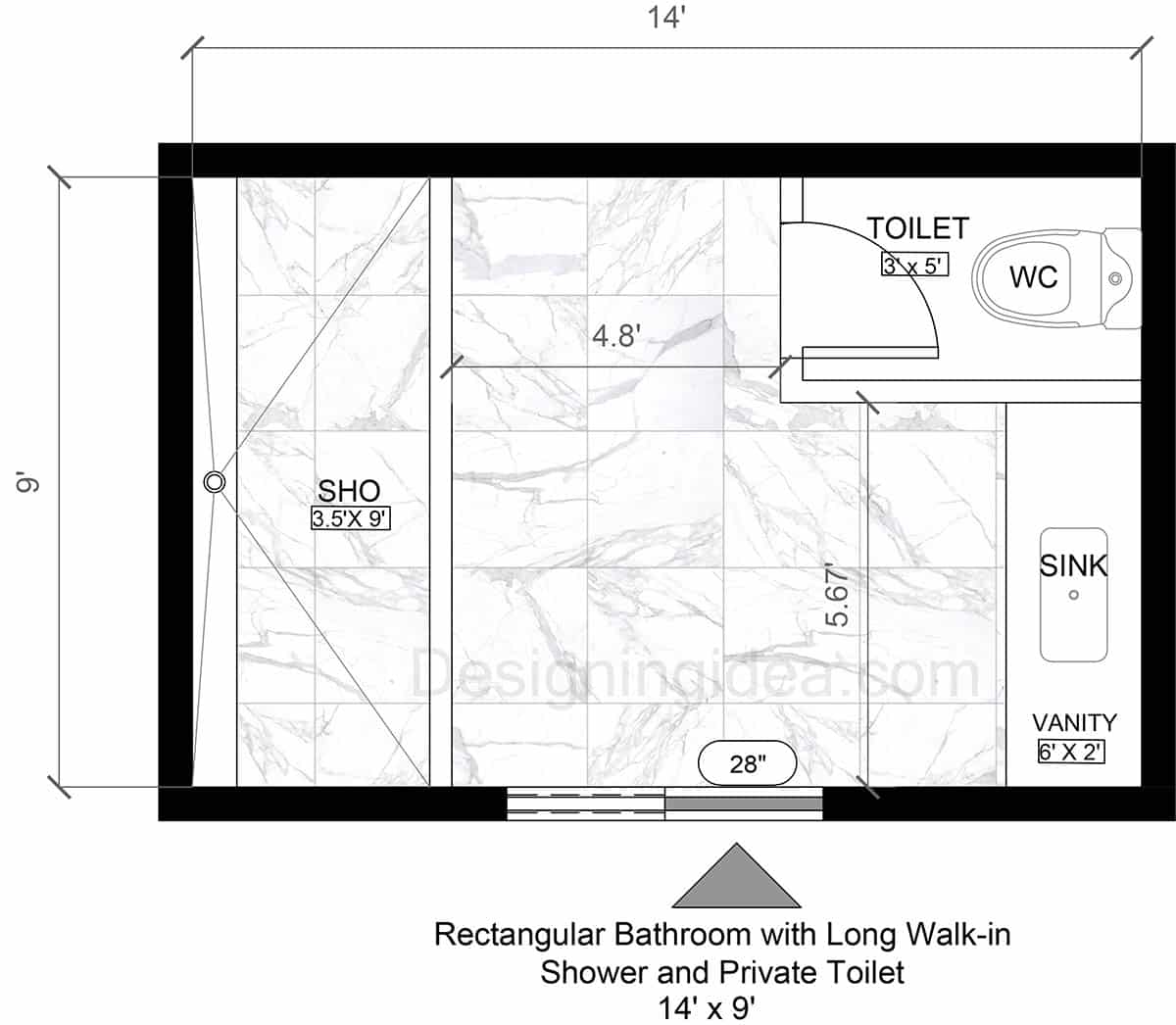

9×14 Rectangular Bathroom with Long Walk-In Shower and Private Toilet Floor Plan
This bath dedicates one whole side to an oversized, spa-like shower with a private toilet and vanity on the other, with an expansive, open center.
Floor Plan Details: This 9′ x 14′ rectangular bathroom features an entire left side focused on one big walk-in shower measuring 3.5′ x 9′ that looks elegant and inviting. The right side holds the 6′ x 2′ vanity sink and a private 3′ x 5′ toilet room. You enter from the bottom into an open aisle with plenty of room to maneuver or get dressed. The layout feels roomy, and the extra-long shower acts as a gallery, with space for a bench, niches, and even a second shower head if you want.
Dimensions:
Room size: 14′ W x 9′ D
Walk-in shower: 3.5′ x 9′ (full-length shower zone on the left)
Vanity: 6′ x 2′ (single sink)
Toilet room: 3′ x 5′
Entry opening shown: 28″
Main open span near top center: 4.8′ (shown between the shower wall and the toilet-room zone)
Main walkway depth shown near right side: 5.67′ (open area from the entry toward the vanity zone)
Design Tips:
Add luxury features like a bench at one end and a long recessed niche on the wall.
Using a linear drain makes waterproofing and drainage easier in a long shower like this.
Go with a fixed glass panel, instead of a bulky framed door, for an airy look.
For more storage, add a shallow recessed cabinet at the end of the vanity.
Consider a wider entry of 30″ to 32″ if you expect a lot of through foot traffic.
8×10 Compact Bathroom with Oversized Corner Shower Design
This compact bath plan keeps everything segmented with an oversized shower, a water closet toilet, and a vanity zone near the entry so there’s a sense of privacy throughout the design.
Floor Plan Details: This 8′ x 10′ compact bath is basically a big shower with smart separation of all the features. It’s got a large shower enclosure measuring 4′ x 6′ on the left with its own inswing door. The entry is at the bottom and opens directly to the small vanity space with a single sink on the right. The plan tucks the toilet into its own defined 3′ x 6′ compartment at the top-right, so the room works for couples or families with kids whenever one person needs to use it. Since much of the space is separated by walls or doors, the design adds privacy and helps the bathroom feel more organized than a typical 8×10 layout does.
Dimensions:
Room size: 8′ x 10′
Shower: 4′ x 6′ (oversized for this room size)
Vanity: 4′ x 2′ (single sink)
Toilet compartment: 3′ x 6′
Entry opening shown: 24″
Width in the middle circulation zone: 3.67′ (shown between the shower wall and the vanity/toilet partition)
Design Tips:
To maintain the private feel in the shower stall but add a little more light, add frosted glass to the door.
Go for a linear drain at the back wall to make the floor slope cleaner and support a more modern, low-threshold look.
To brighten the enclosure, add a higher transom window if possible to enhance its natural light.
Keep the color palette light throughout the space since it is heavily segmented to avoid it feeling dark inside.
Pick a vanity that gives storage with deep drawers instead of doors.
Add a recessed medicine cabinet over the vanity to keep counter clutter down.
Use a wall-hung shelf above the toilet tank, or a recessed niche for more storage potential.
With a separated toilet room and a large shower, ensure you have a strong, quiet fan installed in each area.
Balanced “three-zone” layout (vanity/shower/toilet),
built-in symmetry with storage closets.
Extend the mirror wide and use matching closet doors/hardware to make the whole vanity wall look custom-built.
Modern Square Spa Bath
12′ x 12′
A spa vibe with both a shower and a tub in a clean, modern layout
5′ x 5′ corner (neo-angle) shower
6′ x 2′ double vanity
Open toilet area (no separate room)
Freestanding tub with
strong “perimeter layout” that keeps the center open.
Use frameless shower glass and keep accessories off the floor to preserve the open, airy center zone.
Luxurious Master Bath with Central Shower
14′ x 10′
His-and-hers function with a hotel-style, symmetrical feel
4′ x 7′ large shower as the visual focal point
Two 5′ x 2′ single vanities (his + hers)
Private toilet room (3′ x 5′)
Separate vanities to reduce traffic, strong center aisle,
with a shower as a statement wall.
Match mirrors & sconces over both vanities for a high-end “suite” look, even with budget-friendly finishes.
Rectangular Bath with Long Walk-In Shower
14′ x 9′
Shower lovers who want a true spa shower without a huge room
3.5′ x 9′ extra-long walk-in shower (full-length wet zone)
6′ x 2′ single vanity
Private toilet room (3′ x 5′)
“Wet-wall” layout (entire side is shower),
tons of room for niches/bench options,
simple straight flow.
Consider a linear drain and a long recessed niche to make the shower feel intentionally premium, not just “big.”
Compact Bath with Oversized Shower
8′ x 10′
Small bathrooms that still want a comfortable, non-cramped shower
4′ x 6′ oversized shower (big for an 8×10)
4′ x 2′ single vanity
Separated toilet zone (3′ x 6′)
Big-shower priority in a compact footprint,
better privacy than a typical small bath.
If possible, switch the toilet door to pocket/outswing to reduce door-swing.
