A one wall kitchen with an island can be a surprisingly functional option that gives you a clean, streamlined look. The single run of cabinets keeps all the plumbing and venting on one side, and the addition of an island adds space for a prep zone, extra storage, and a place to sit just outside the kitchen aisle. The tough part is getting it all to fit comfortably without impacting its functionality. In this guide, one-wall kitchen layout with island options, including the dimensions for the aisle width, island depth, and landing space between the range and sink. These layouts are set up to help you find an island size and placement that works for you and makes the kitchen feel open, efficient, and stylish.
10×14 Compact One-Wall Kitchen Layout With 5-Foot Island
This kitchen design features a workflow that runs along a single efficient wall with a 5-foot island, leaving extra space for prep and seating.
Easily Create Your Own Room Makeover
Upload a photo and get instant before-and-after room designs. No design experience needed — join 2.39 million+ happy users. 👉 Try the AI design tool now
Floor Plan Details: This 10′ x 14′ kitchen pairs a compact one-wall line of cabinets with a 5-foot island sitting parallel to the main run. All of the primary functions, like cold storage, pantry storage, and the double-basin sink, stay on a single wall. This keeps plumbing simple and cuts down on construction costs. Working left to right, the layout starts with a 36″ refrigerator on the end, leading to a 15″ pantry cabinet, a 30″ sink, with a 24″ dishwasher, followed by a 30″ range, with 15″ landing space on either side. The 60″ x 24″ island adds the “extra space” you need with a one-wall layout for more prep surface area, and seating for two for eat-in dining. The positioning of the island allows for a 36″ aisle between it and the main counter run, so there’s enough room for two people to work and cook together.
Dimensions:
Room size: 10′ x 14′
Main counter depth: 25″
Refrigerator: 36″
Pantry cabinet: 15″ wide
Sink base: 30″
Dishwasher: 24″
Range: 30″
Landing space by range: 15″ on both sides
Island size: 60″ x 24″
Work aisle (counter to island): 36″
Side clearances around island: 54″ left and 54″ right
Clearance at seating side: 24″ at the bottom (note: this is tight if it’s a true walkway, going for 36″+ is more comfortable)
Design Tips:
Install roll-out drawers in the 15″ pantry, so there are compartments for dry goods storage.
Add a trash pull-out right next to the sink to make prep time easier.
Place the dishwasher next to the sink so it’s easy to clean and load.
Treat the island like an extra cabinet space to store mixing bowls, cutting boards, or small appliances inside.
Include an outlet on the island’s end to power your mixers or other cooking tools.
Choose backless stools so the seating side feels lighter, especially if you have a narrow walkway.
Go vertical with the cabinets by having them go to the ceiling.

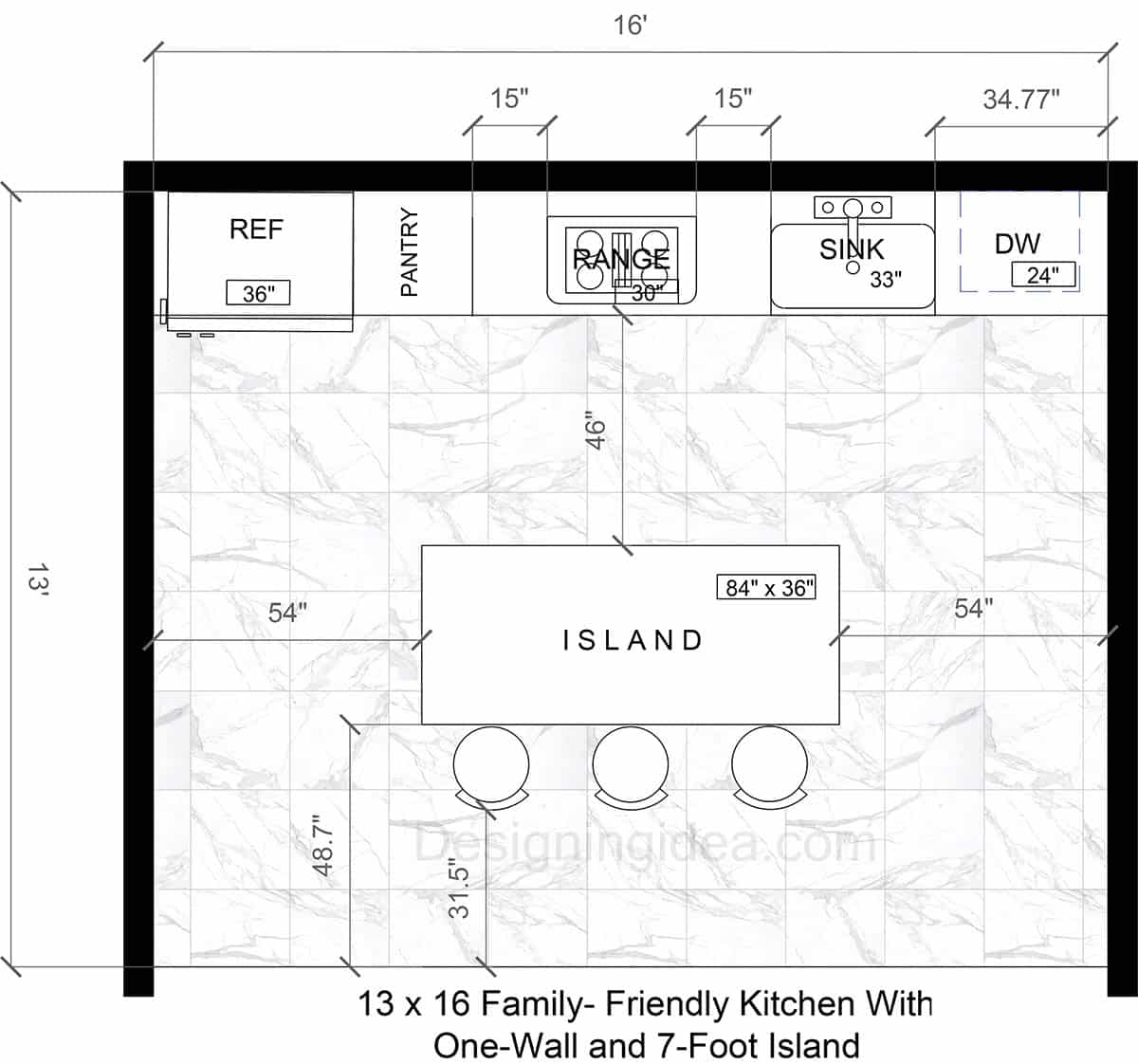

13×16 Family-Friendly Kitchen Floor Plan With Single Wall And 7-Foot Island
This kitchen design combines an effective workflow with a large 7-foot island, so there’s a prep-and-seating zone that makes the space feel family-friendly.
Floor Plan Details: This 13′ x 16′ family-friendly kitchen combines a single cabinetry wall with a spacious 7-foot island with seating, so the room feels open, social, and easy to move in. All the major appliances live on one 16′ wall, starting with the fridge on the far left and followed by the pantry, range, sink, and dishwasher. The island is centered with three stools, so there’s a perfect spot to gather without impacting the cook. There’s a 46″ aisle between the island and the main counter, allowing two people to cook and clean together at the same time. The seating side faces the kitchen, making it a great place for families to grab a quick breakfast, do homework, or invite guests to hang out while you cook.
Dimensions:
Room size: 13′ x 16′
Refrigerator: 36″
Pantry cabinet: Next to the fridge
Range: 30″
Landing space: 15″ on each side between the pantry and range, and the range and the sink
Sink base: 33″
Dishwasher: 24″
Island size: 84″ x 36″ (7′ x 3′)
Work aisle (counter to island): 46″
Side clearances around island: 54″ left and 54″ right
Clearance behind stools to the back wall: 31.5″ (shown)
Left-side open depth: 48.7″ (shown)
Design Tips:
Make the island the spot to keep your most-used prep tools so everything is easy to find.
Since the sink sits close to the dishwasher, install a pull-out trash for easier clean-up.
Keep the range landing zones with 15″ buffers on either side for hot pans or food prep.
Use a countertop overhang of 12″ on the seating side so legs can fit underneath comfortably.
Light the island with 2 to 3 pendants and add under-cabinet lighting along the wall to better illuminate the counters.

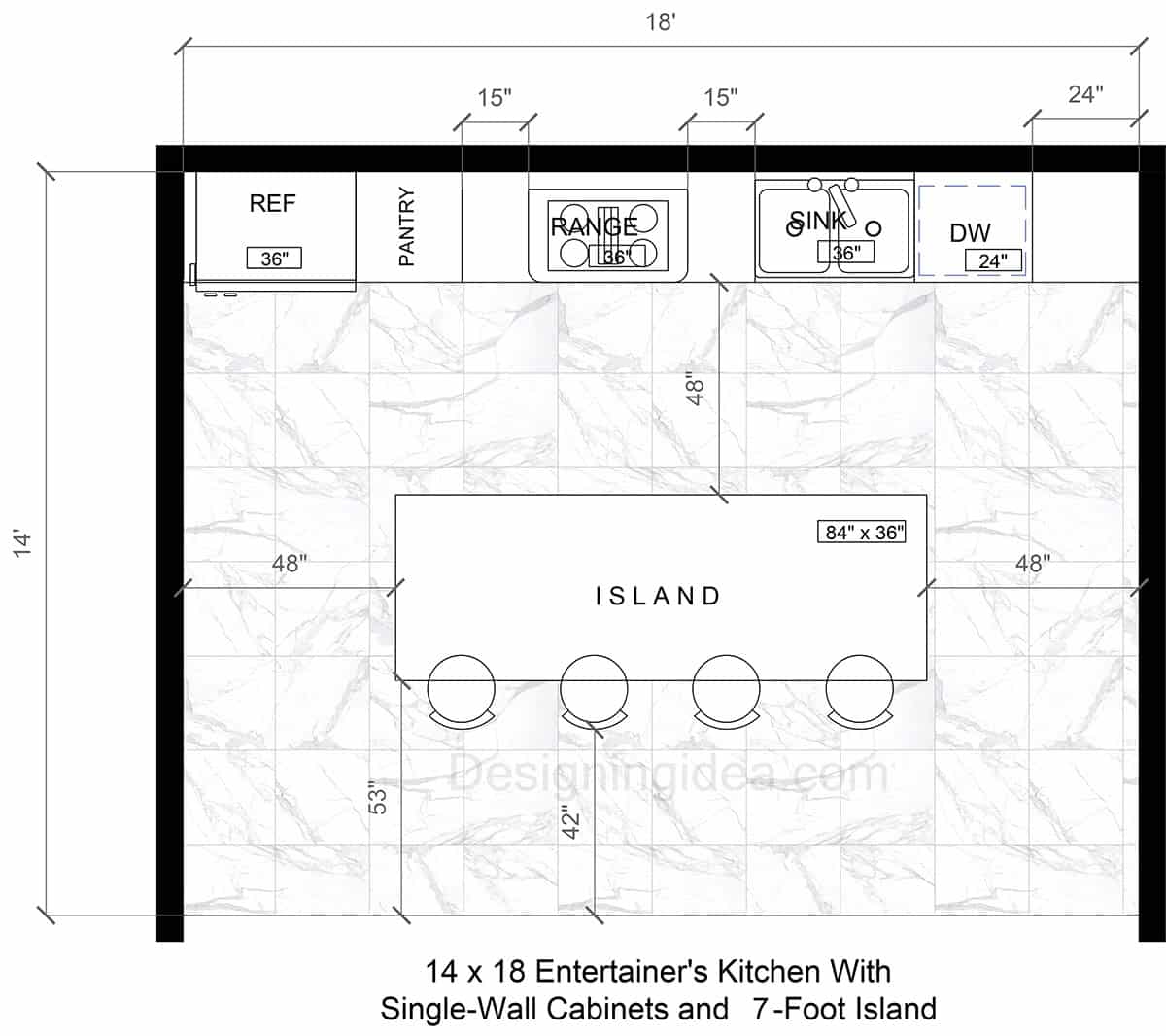

14×18 Entertainer’s Kitchen Floor Plan With Single Wall Cabinets And 7-Foot Island
This kitchen features a long 18ft single row of cabinets with a 7-foot island and seating for four, and a wide 48″ aisle that can accommodate large families or gatherings.
Floor Plan Details: This 14′ x 18′ kitchen is made for entertaining by placing all of the appliances along a single-wall run and positioning a large 7ft central island that provides seating for four people comfortably. The back wall arranges the 36″ fridge on the left side and is followed by a tall pantry, a 36″ range, a 36″ double sink with a 24″ dishwasher at the far right. This setup creates an effective work triangle so that food can be taken from the fridge and prepared while using the nearby island as an additional counter. There’s a 48″ aisle from the main cabinets to the large 7-foot island with four seats. This allows the space to become a gathering space instead of just a pass-through.
Dimensions:
Room size: 14′ x 18′
Refrigerator: 36″
Range: 36″
Sink base: 36″
Dishwasher: 24″
Landing space segments on the wall run: 15″
Island size: 7′ x 36″
Work aisle (counter to island): 48″
Clearance at island ends: 48″ (left) and 48″ (right)
Seating-side clearance: 42″ (shown)
Left-side open depth to bottom wall: 53″ (shown)
Design Tips:
Make the island effective for meal prepping by adding outlets.
Plan for cabinet storage inside the island to keep serving trays, large bowls, and small appliances nearby.
Maintain the 48″ aisle so there’s room for two people to work along the main countertop run.
Place a trash pull-out right next to the sink to ensure easy cleanup.
Consider installing a microwave drawer or beverage fridge inside the island to keep guests outside of the cooking lane.
Light the island above with 2 to 3 pendants and combine with under-cabinet lighting on the wall to make it easier to see the counters.

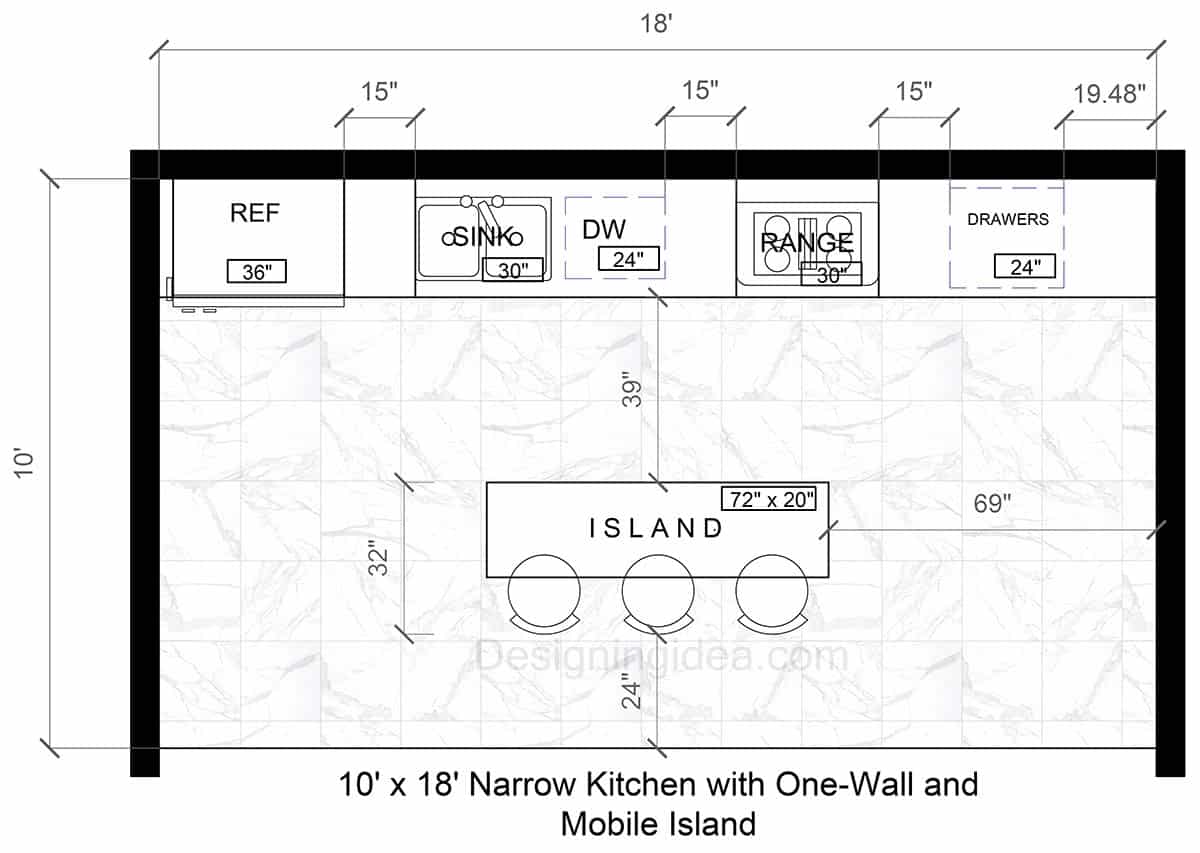

10×18 Narrow Kitchen Design With Single Line Cabinets And Mobile Island
This kitchen goes for a more open feel by pairing its main cabinets with a 6ft mobile-friendly island for a more flexible prep and gathering space.
Floor Plan Details: This kitchen keeps things accessible and feeling open by pairing a one-wall cabinetry run with an easy workflow with a mobile-sized island, so you have a flexible extra counter space in the middle for when you need it. The main run starts on the left with a 36″ fridge, leading a 30″ double sink, a 24″ dishwasher, and then to the cooking zone with a 30″ range, and pull-out drawers.
The portable island allows for a 39″ aisle between it and the cabinet run, which is wide enough for two people to pass by each other. It can be positioned exactly where you want it or pushed against a wall when not in use. It can also be substituted for a more permanent model if desired, so you have a solid structure that is more comfortable for seating.
Dimensions:
Room size: 14′ x 17′
Refrigerator: 36″
Range: 30″
Sink base: 30″
Dishwasher: 24″
Island size: 6ft shown but can vary depending on needs
Use the island as your moveable work zone for seating or prep when needed or to allow specific positioning in the room.
Add a pull-out prep board, so you have an extra chopping surface near the sink.
Put a pull-out trash and recycling receptacle near the sink area for convenience.
Use slim stools to keep the walkways feeling more open.
Add bright task lighting on the wall, with under-cabinet LED strips to illuminate the worktop.

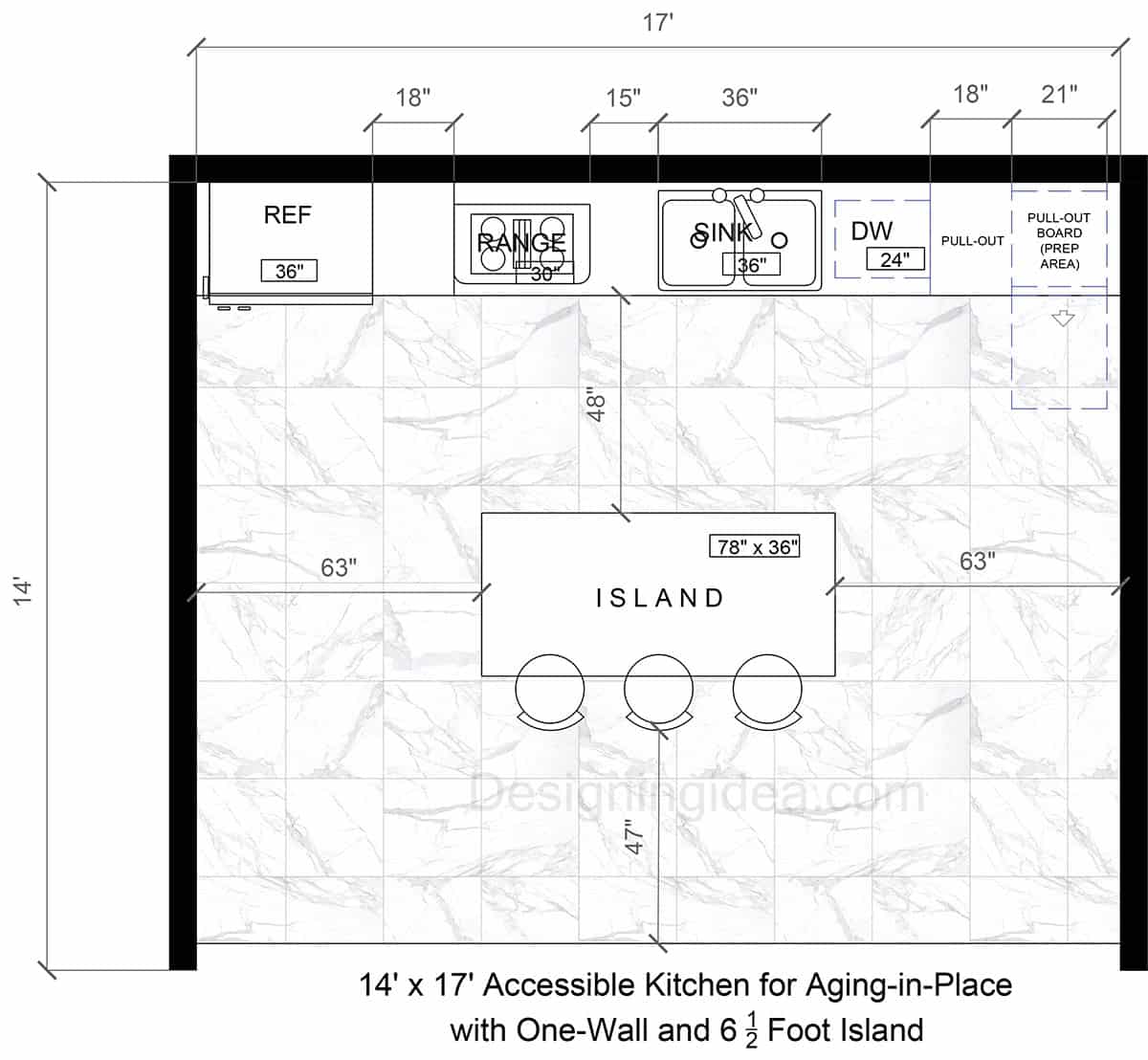

14×17 Accessible Kitchen Design For Aging-in-Place With One-Wall Cabinets And 6½-Foot Island
This layout combines a streamlined one-wall kitchen workflow with a 6 1/2 ft island with seating for three, creating an open and relaxing feel.
Floor Plan Details: This 14′ x 17′ accessible kitchen is designed to feel open by leaving plenty of walkway space in front of the main cabinetry and around the island. The cabinets are placed entirely along one wall for a straight-line workflow with a wide 48″ aisle and a 6½-foot island for prep and seating. To provide an effective aging-in-place design, the plan features wide clearances so turning, passing, and working alongside someone is much easier. Left to right, the wall run starts with a 36″ refrigerator, followed by an 18″ landing zone, then a 30″ range, a 36″ sink and 24″ dishwasher. This works for an efficient rinse and load cleanup flow. There’s also smart accessibility features like an 18″ pull-out drawer plus a 21″ pull-out board so there’s an additional surface prep area.
Dimensions:
Room size: 14′ x 17′
Refrigerator: 36″
Range: 30″
Sink base: 36″
Dishwasher: 24″
Island size: 78″ x 36″ (6½’ x 3′)
Work aisle (counter to island): 48″
Side clearances around island: 63″ (left) and 63″ (right)
Clearance behind island seating: 47″
Right-side accessibility storage/prep: 18″ pull-out & 21″ pull-out board for a prep area
Additional landing segments shown: 18″ (near range) + 15″ between the range and the sink
Design Tips:
Maintain wide clearances around the cabinets and island to promote an aging-in-place design.
Maintain the 48″ aisle so the plan feels calm and maneuverable.
Use the pull-out board as an extra surface area as a prep station.
Install a trash pull-out near the sink.
Add a pull-out cabinet, so you have accessible bulk storage.
Prioritize easy-grip hardware like D-pulls on drawers and lever-style handles to reduce strain as a person’s grip strength changes.
Add strong, glare-free task lighting combined with under-cabinet lighting with a bright diffused fixture over the island to better prevent harsh shadows.
Build the island to maximize comfort with knee space under a 12″ overhang.
Put the “most-used” items in drawers since they are easier to access than bending over to reach inside base shelves or reaching overhead.
Breakdown of All Kitchen Layouts
Plan
Room Size
Layout Type
Island Size
Seating
Work Aisle (Counter–Island)
Appliance Lineup (Left → Right)
Why It Works
Compact One-Wall + 5-Foot Island
10’x14′
Single-wall cabinets
60″ x 24″ (5′ x 2′)
2 stools
36″
Fridge 36″, Pantry 15″, Sink 30″, DW 24″, Range 30″
Fits an island tightly while keeping a workable 36″ aisle.
Family-Friendly One-Wall + 7-Foot Island
13’x16′
Single-wall cabinets
84″ x 36″ (7′ x 3′)
3 stools
46″
Fridge 36″, Pantry, Range 30″, Sink 33″, DW 24″
Wide aisle & longer island make it easy to cook & hang out.
Entertainer’s One-Wall + 10-Foot Island
14’x18′
Single-wall cabinets
120″ x 36″ (10′ x 3′)
4 stools
48″
Fridge 36″, Pantry, Range 36″, Sink 36″, DW 24″
A big social island & generous 48″ aisle allows easy traffic flow during gatherings.
Accessible/Aging-in-Place One-Wall + 6½-Foot Island
48″ clearance and pull-out prep features promote comfort & accessibility.
